Timing Cover

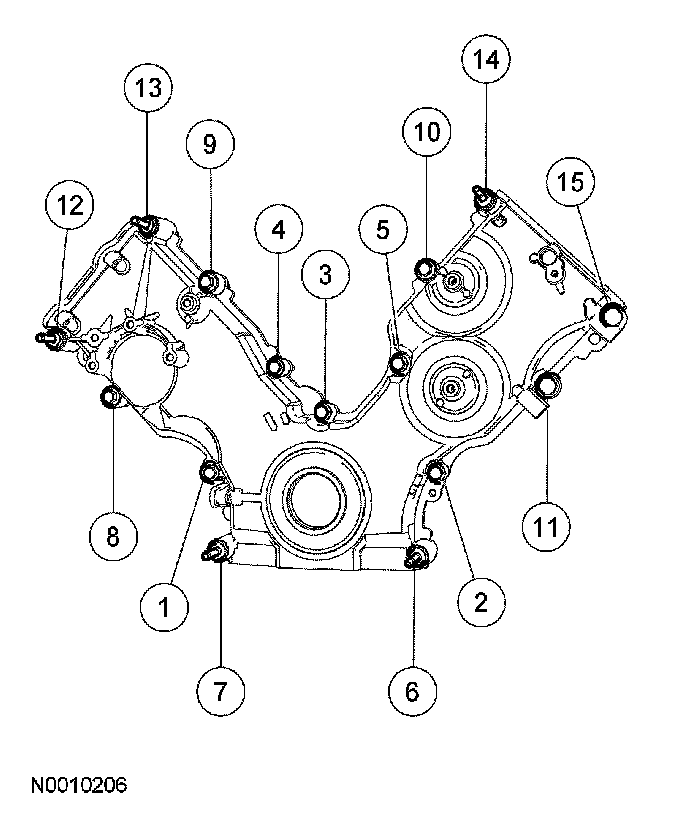

Timing cover front bolts & nuts
Fasteners 1 through 15 25 Nm (18 ft. lbs.)
Fasteners 6 & 7 48 Nm (35 ft. lbs.)





Timing cover lower bolts
First pass 20 Nm (15 ft. lbs.)
Final pass 60°
