Transmission Position Sensor/Switch: Locations

View 151-6 (Transmission - 4R75E Without Four-wheel Drive):

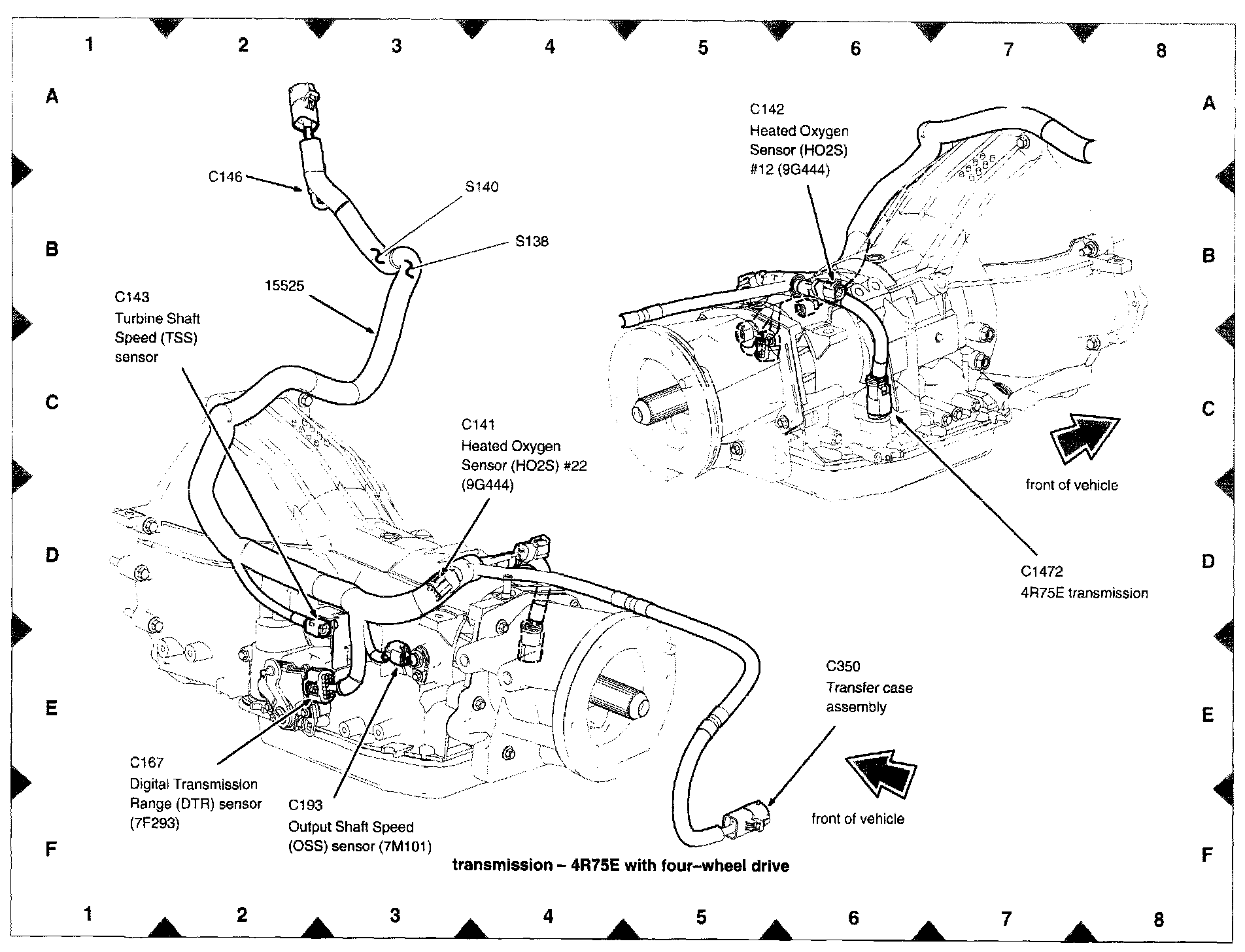

View 151-7 (Transmission - 4R75E With Four-wheel Drive):
