Direct Clutch Assembly: Assembly

  1. Install the direct clutch plates, starting with the wave spring then a steel plate and alternating between steel and friction plates, and ending with the pressure plate on the top.
    Fig 1: Locating Direct Clutch Plates
    G04627917Courtesy of FORD MOTOR CO.
  2. Install the direct clutch snap ring.
    Fig 2: Locating Direct Clutch Snap Ring
    G04627918Courtesy of FORD MOTOR CO.

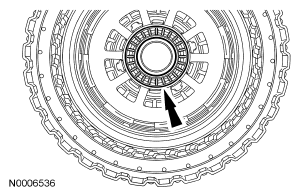

  3. Install the roller bearing.
    Fig 3: Locating Roller Bearing
    G04627919Courtesy of FORD MOTOR CO.
