Child Safety Seat Tether Anchor - LATCH: Notes

NOTE: RH shown, LH similar.

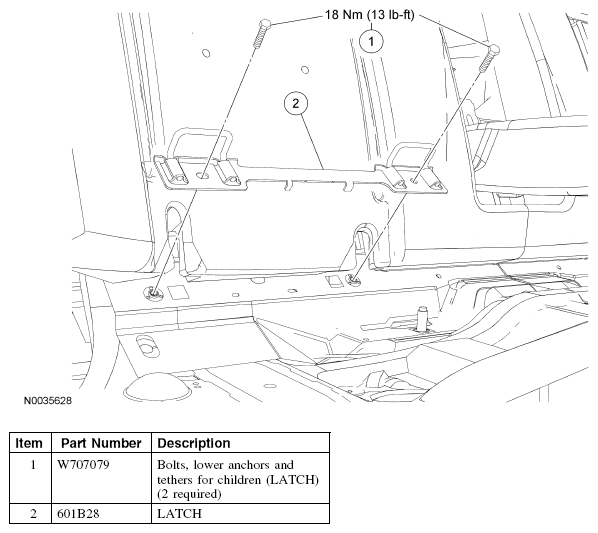

Fig 1: Child Safety Seat Tether Anchor -- LATCH Replacement Components - With Torque Specifications
G04708151
