Remote Audio/Climate Control Module

REMOTE AUDIO/CLIMATE CONTROL MODULE


Heavy Duty Riveter:






Special Tool(s)







Removal and Installation

1. CAUTION: Prior to removal of the module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed.

Disconnect the battery.

2. Remove the rear seat backrest.

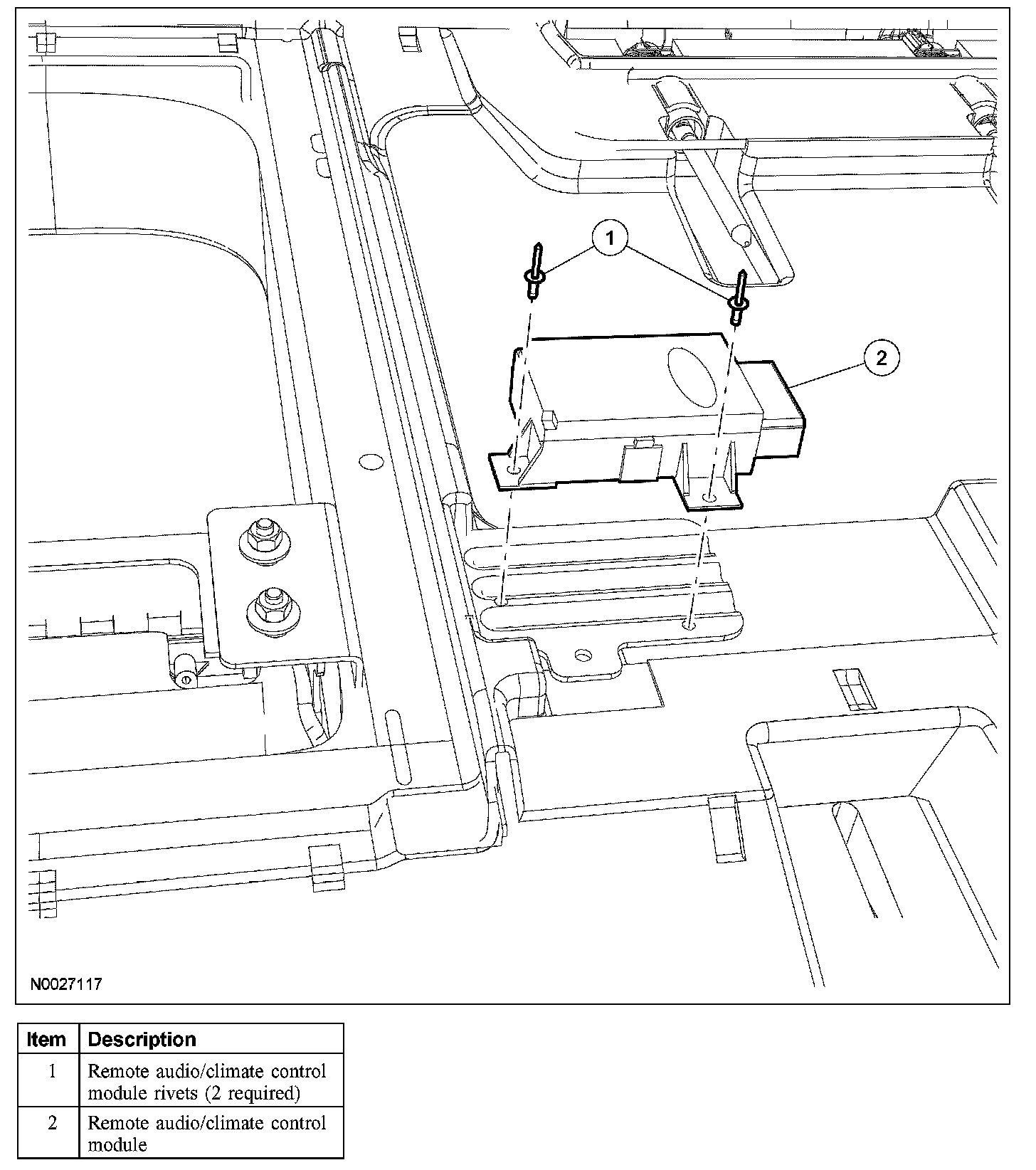

3. Drill out the 2 rivets and remove the remote audio/climate control module.

4. CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module.

To install, reverse the removal procedure.
