System Specifications

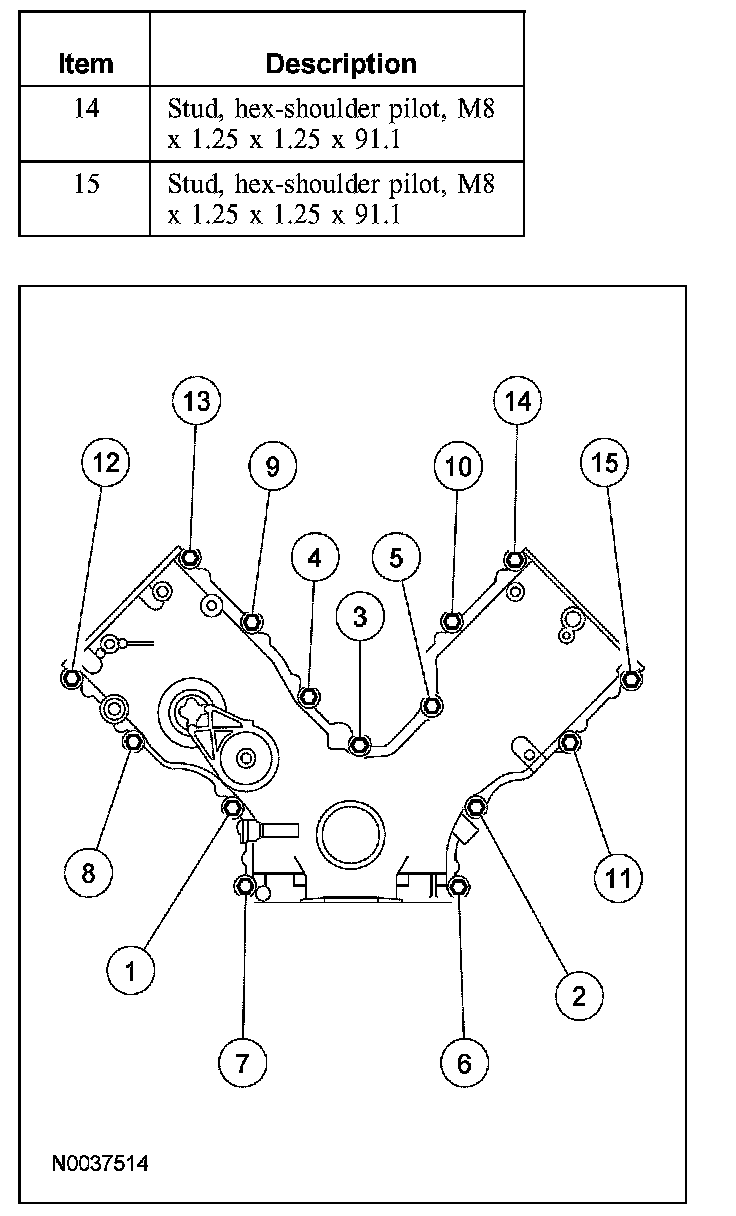

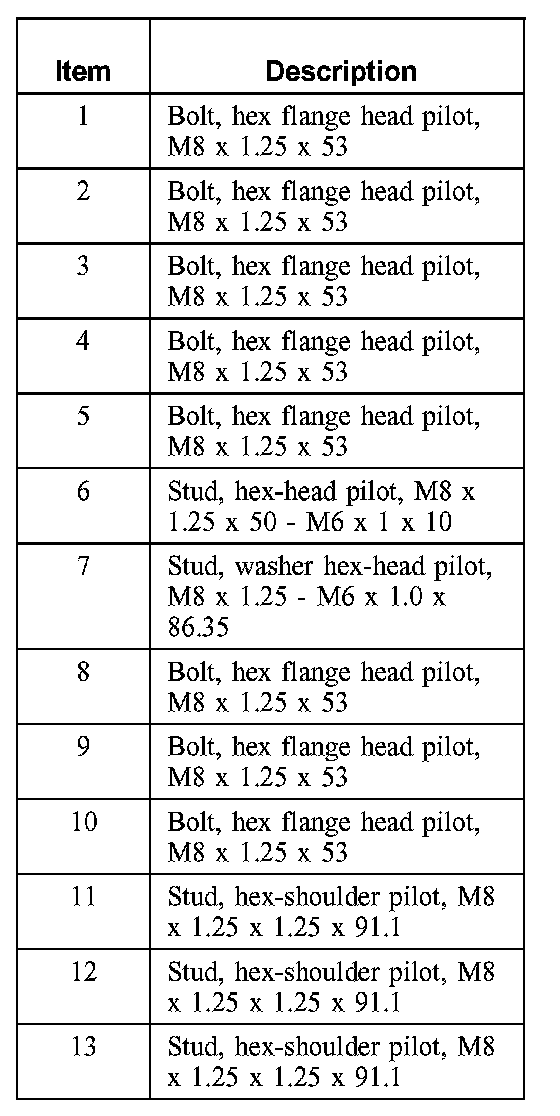

Timing cover front fasteners 25 Nm (18 ft. lbs.)





Timing cover lower bolts
First pass 20 Nm (15 ft. lbs.)
Final pass tighten 90°

Crankshaft pulley bolt
First pass 90 Nm (66 ft. lbs.)
Second pass loosen
Third pass 50 Nm (37 ft. lbs.)
Final pass tighten 90°
