Engine Ignition Components - Exploded View

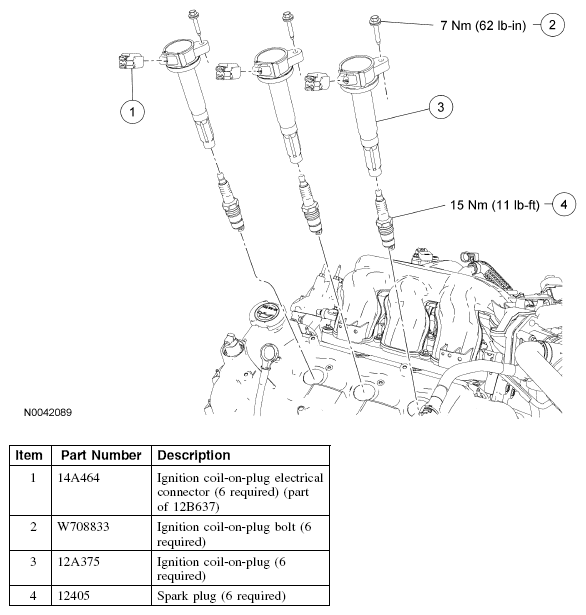

Fig 1: Engine Ignition Components - Exploded View
G04681330Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
