Connector Views

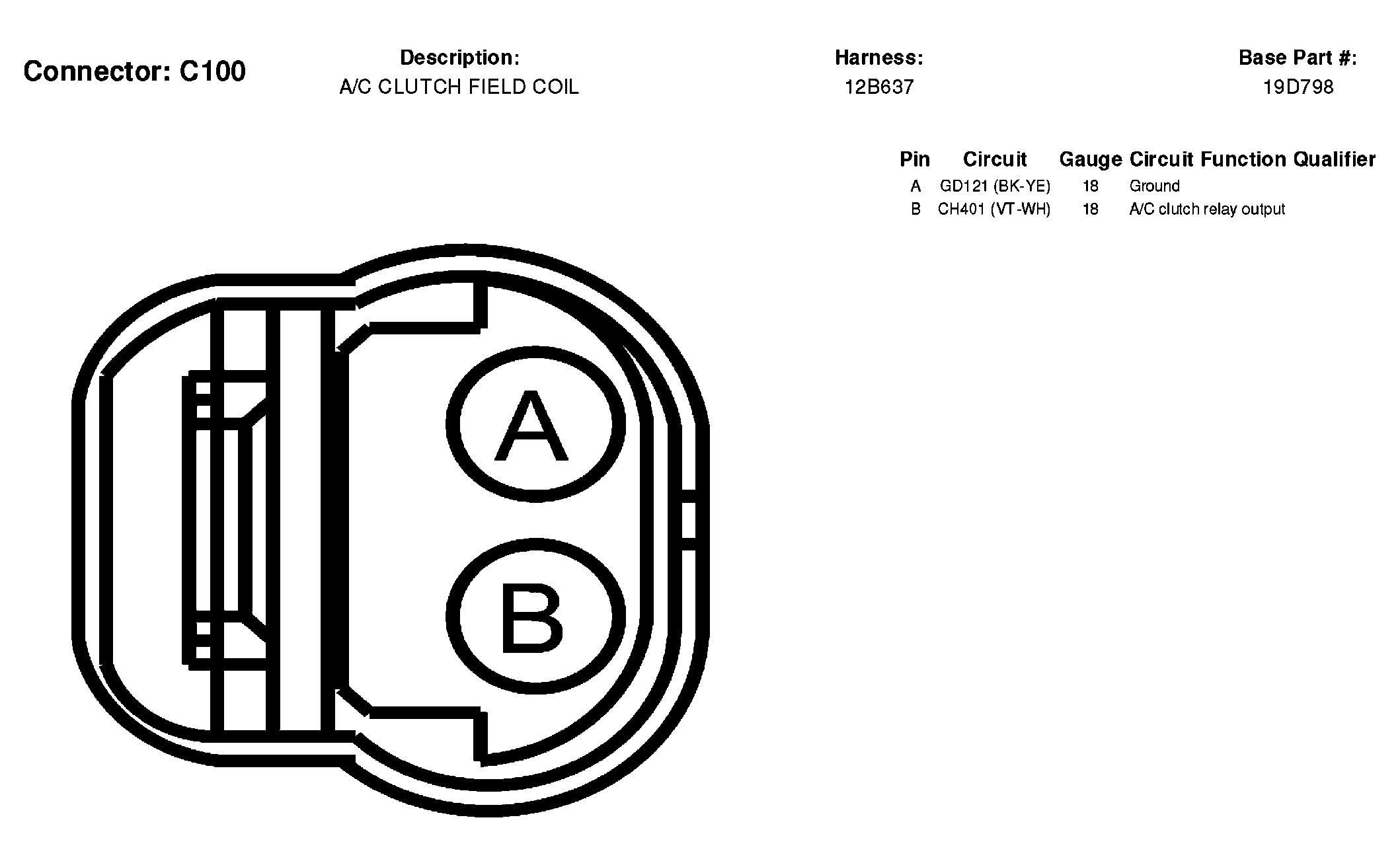

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

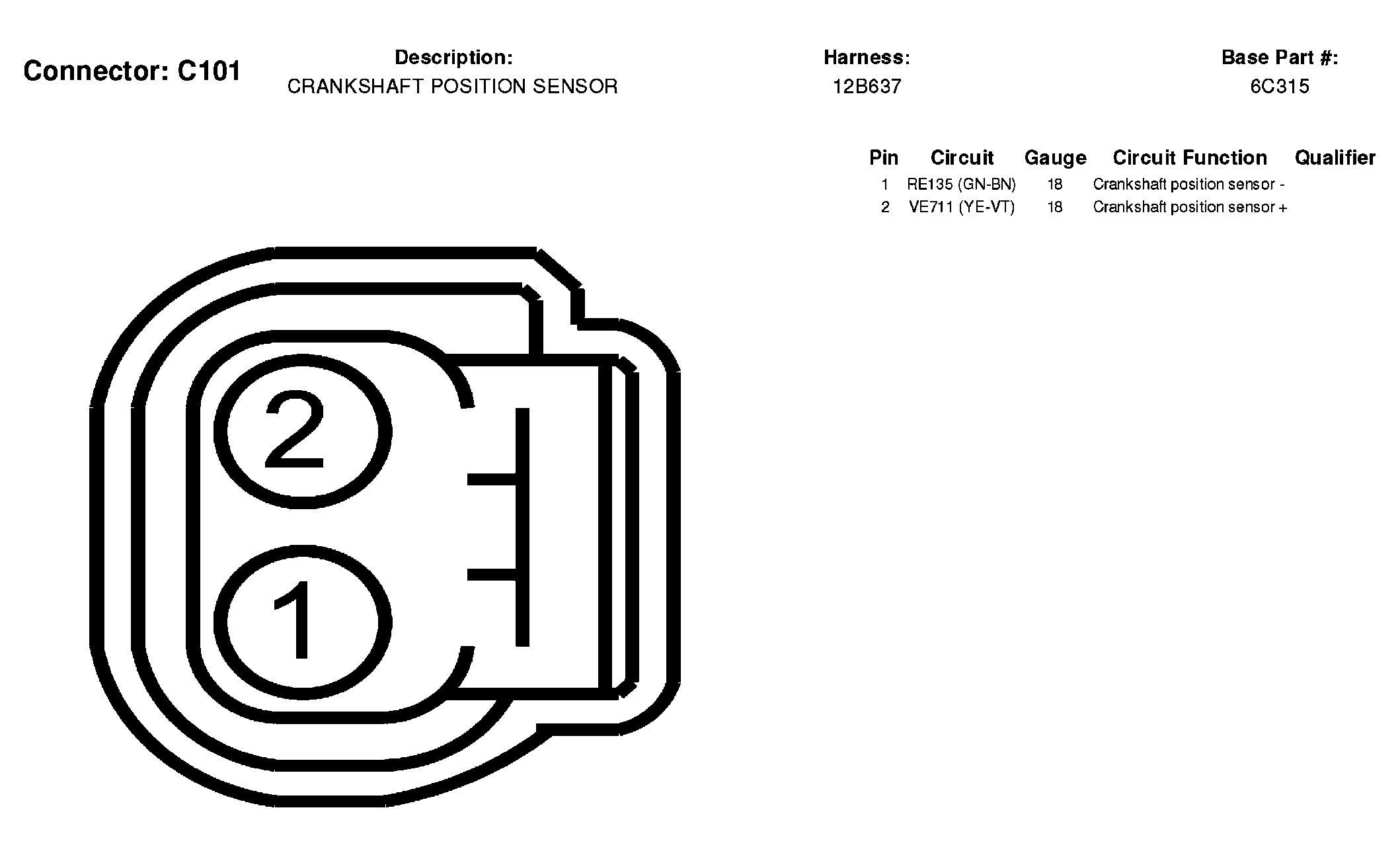

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

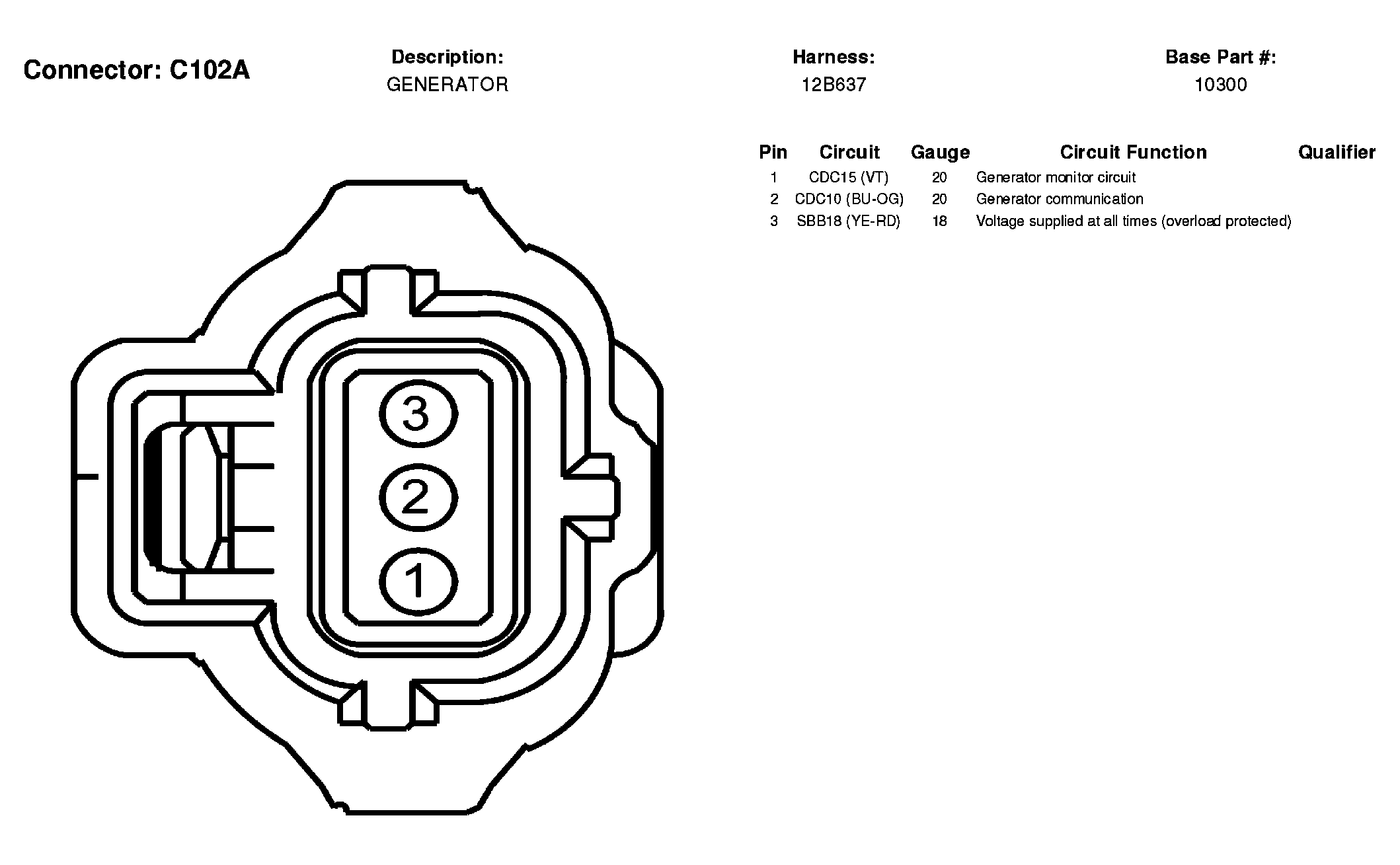

Fig 3: Generator Connector End View (C102A)
Courtesy of FORD MOTOR CO.

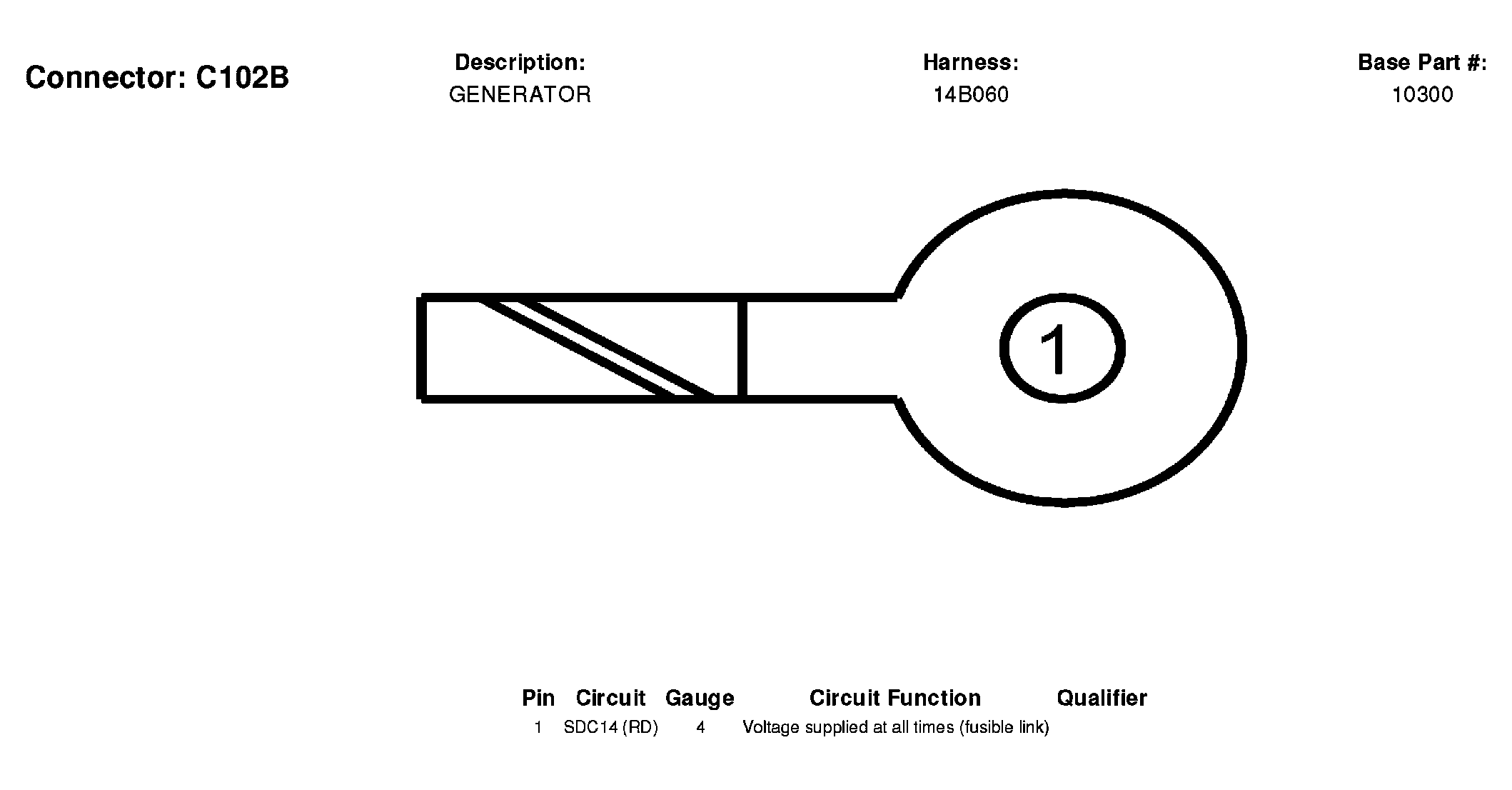

Fig 4: Generator Connector End View (C102B)
Courtesy of FORD MOTOR CO.

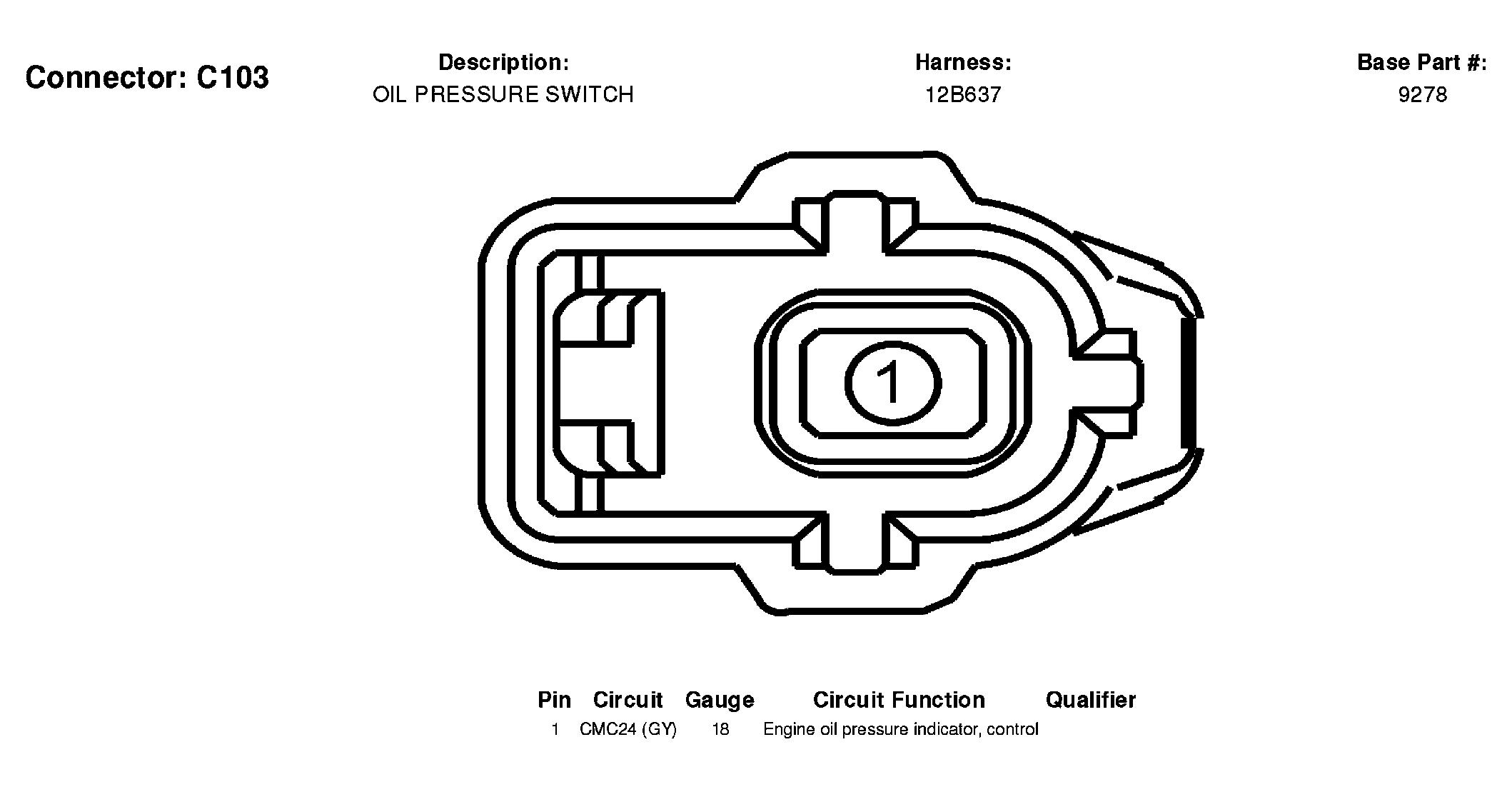

Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

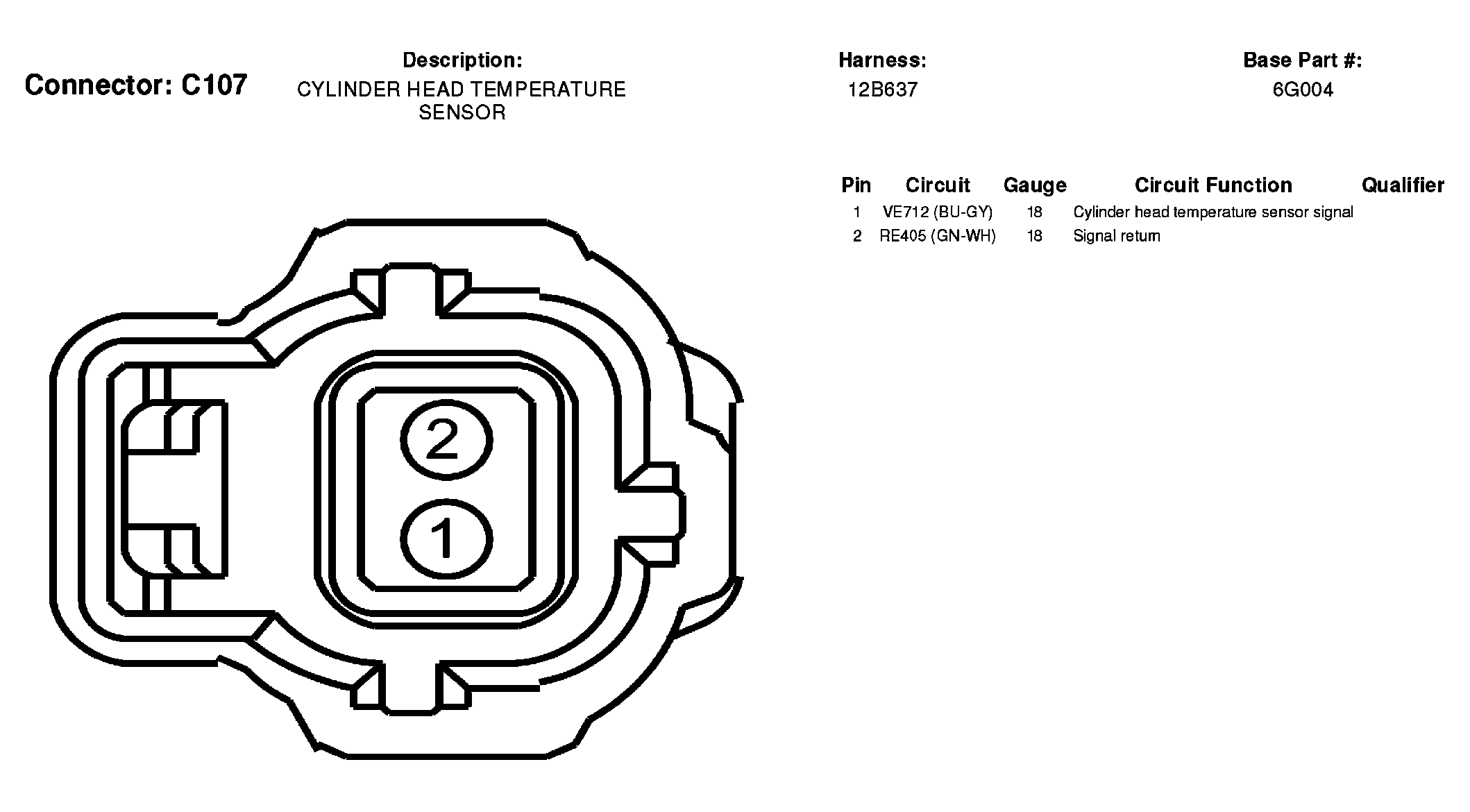

Fig 6: Cylinder Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

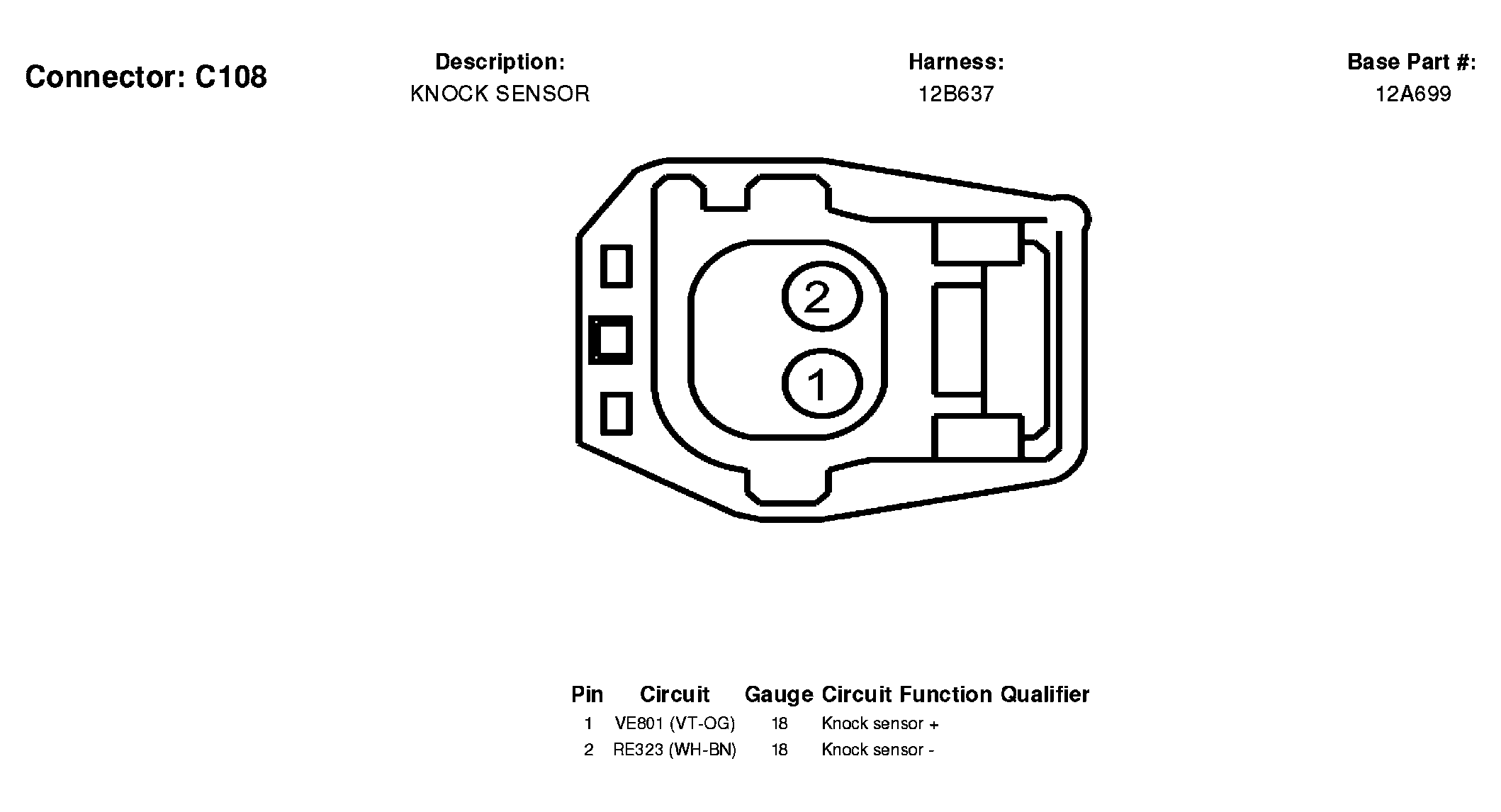

Fig 7: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.

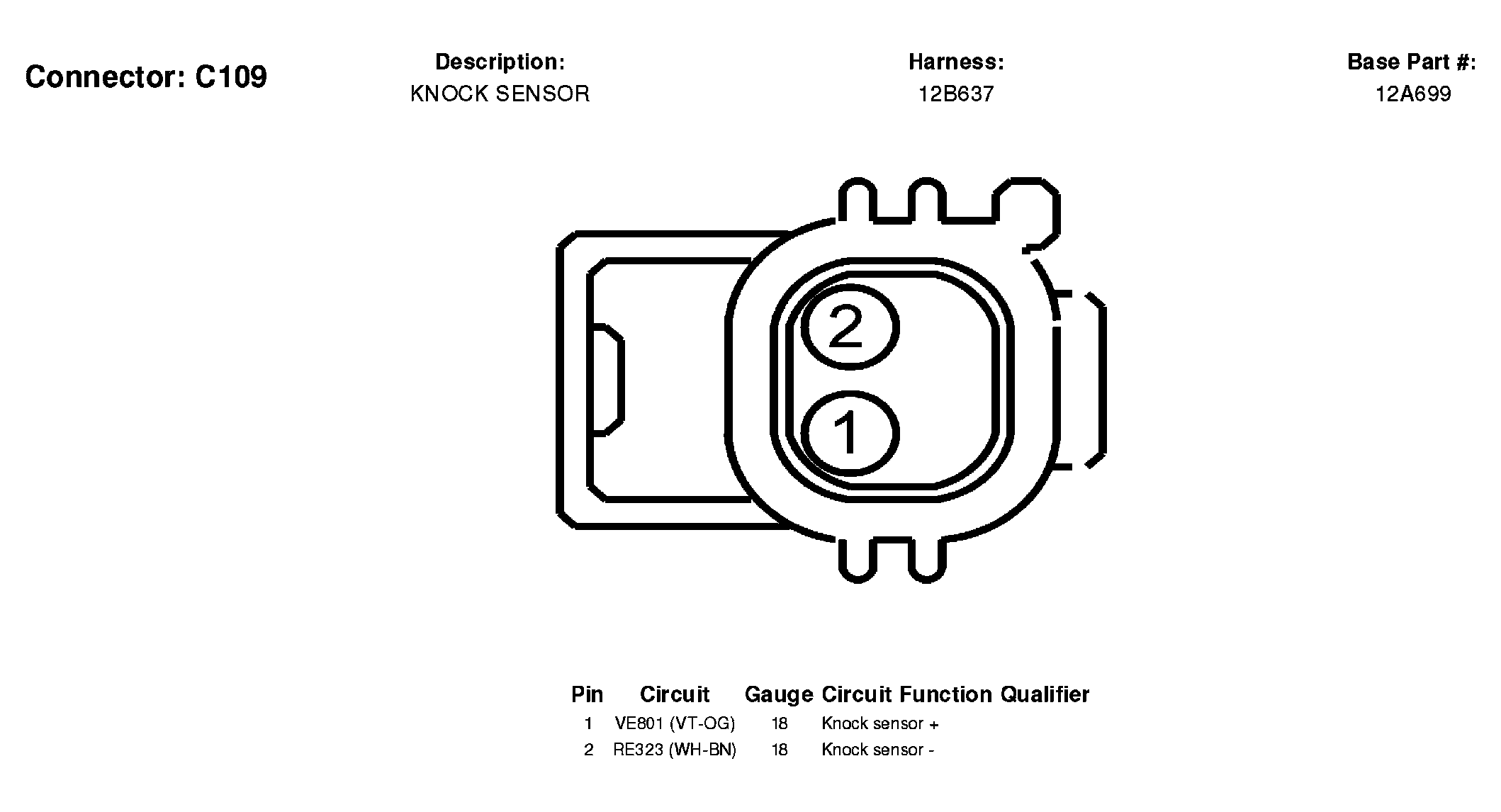

Fig 8: Knock Sensor Connector End View (C109)
Courtesy of FORD MOTOR CO.
Fig 9: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.
Fig 10: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.
Fig 11: Coil On Plug (COP) 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.
Fig 12: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.

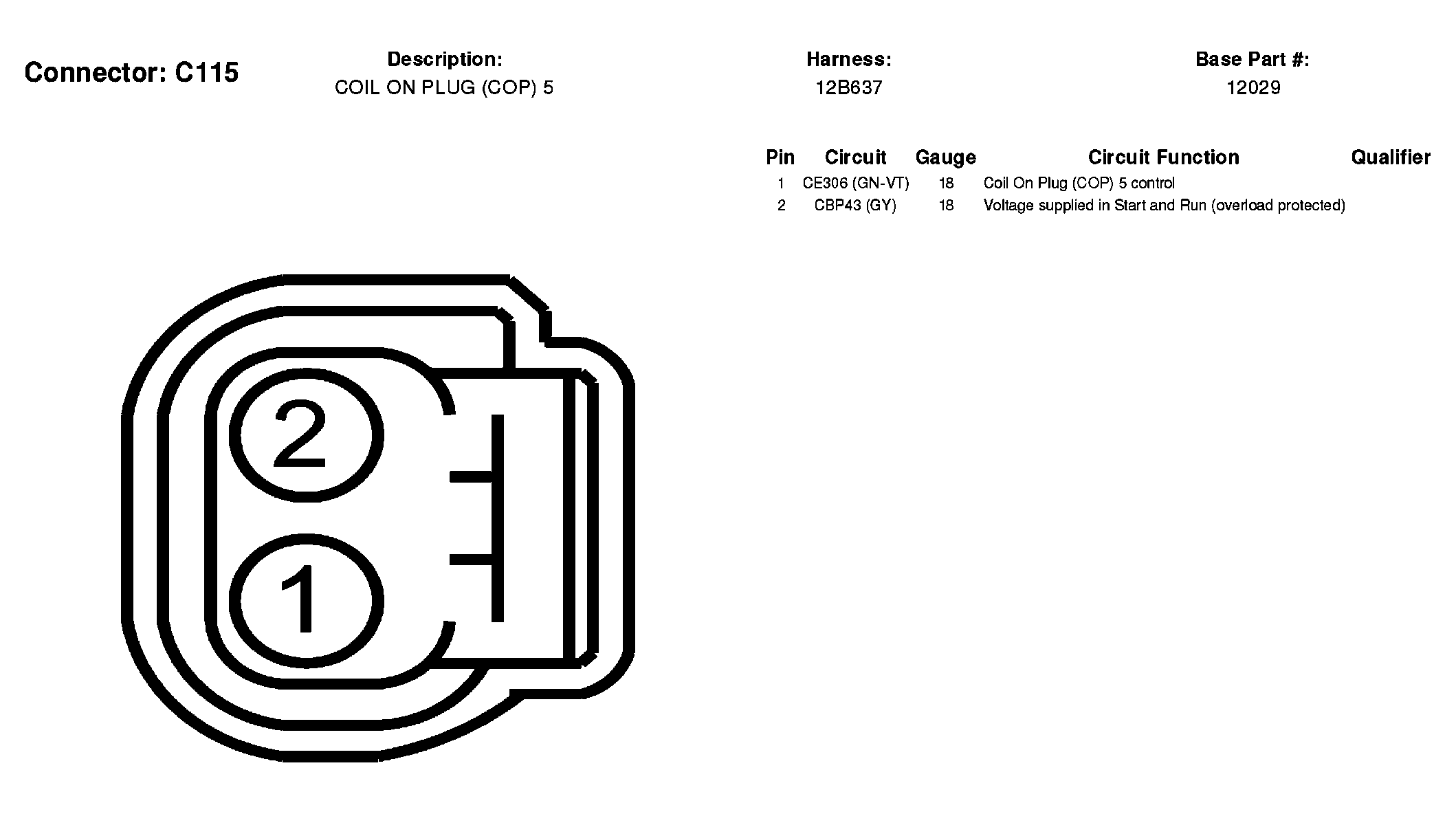

Fig 13: Coil On Plug (COP) 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.

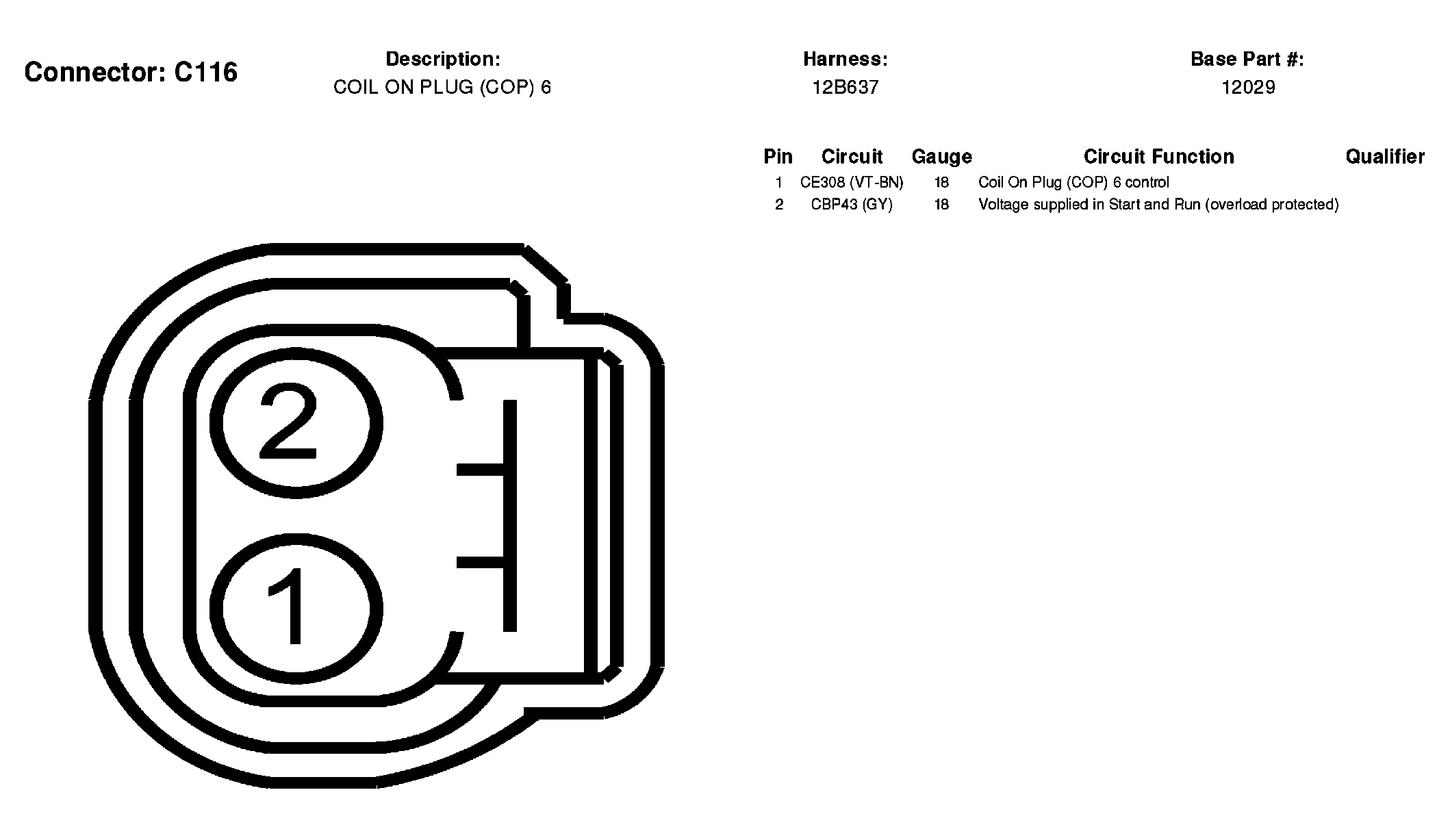

Fig 14: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.

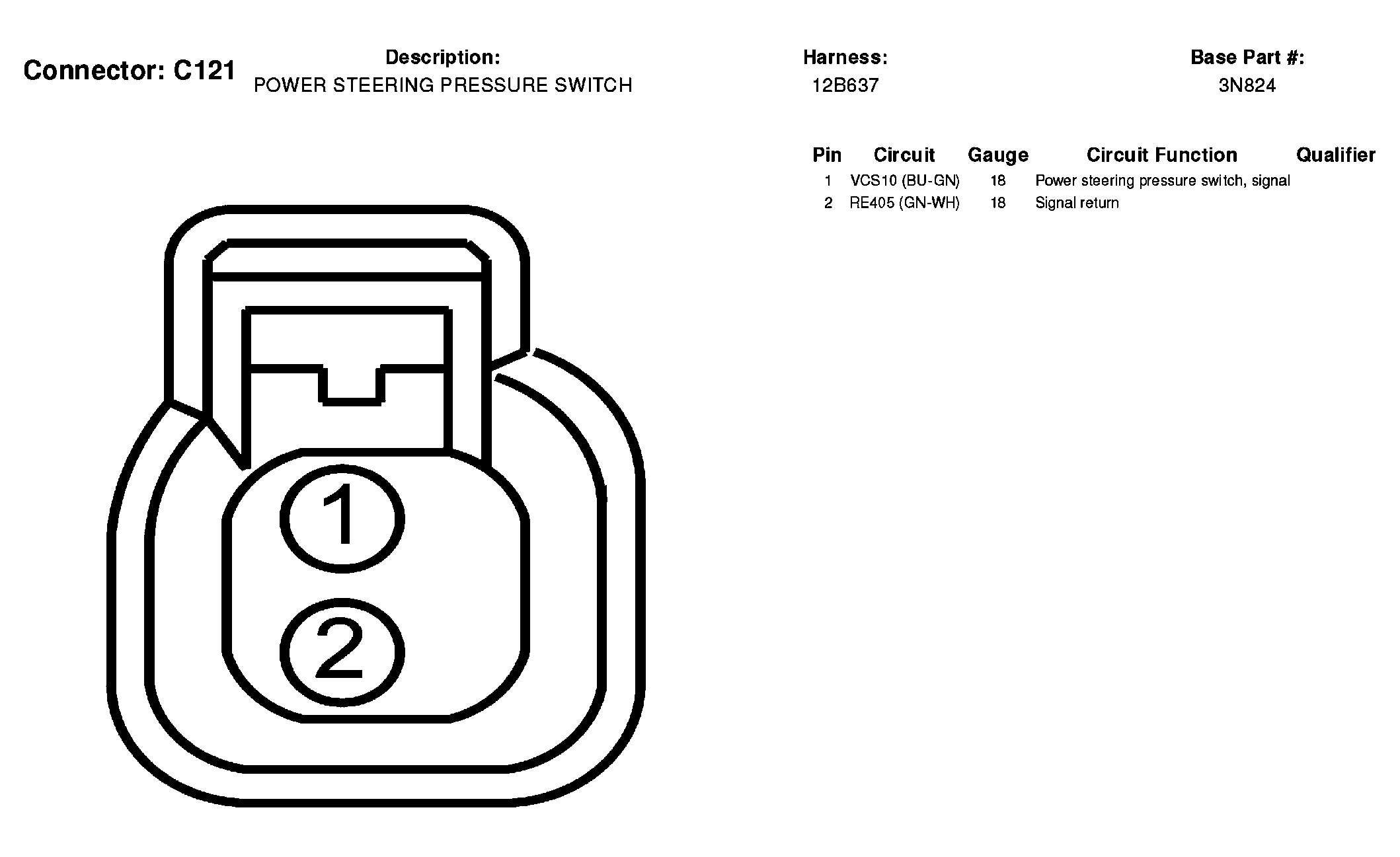

Fig 15: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.

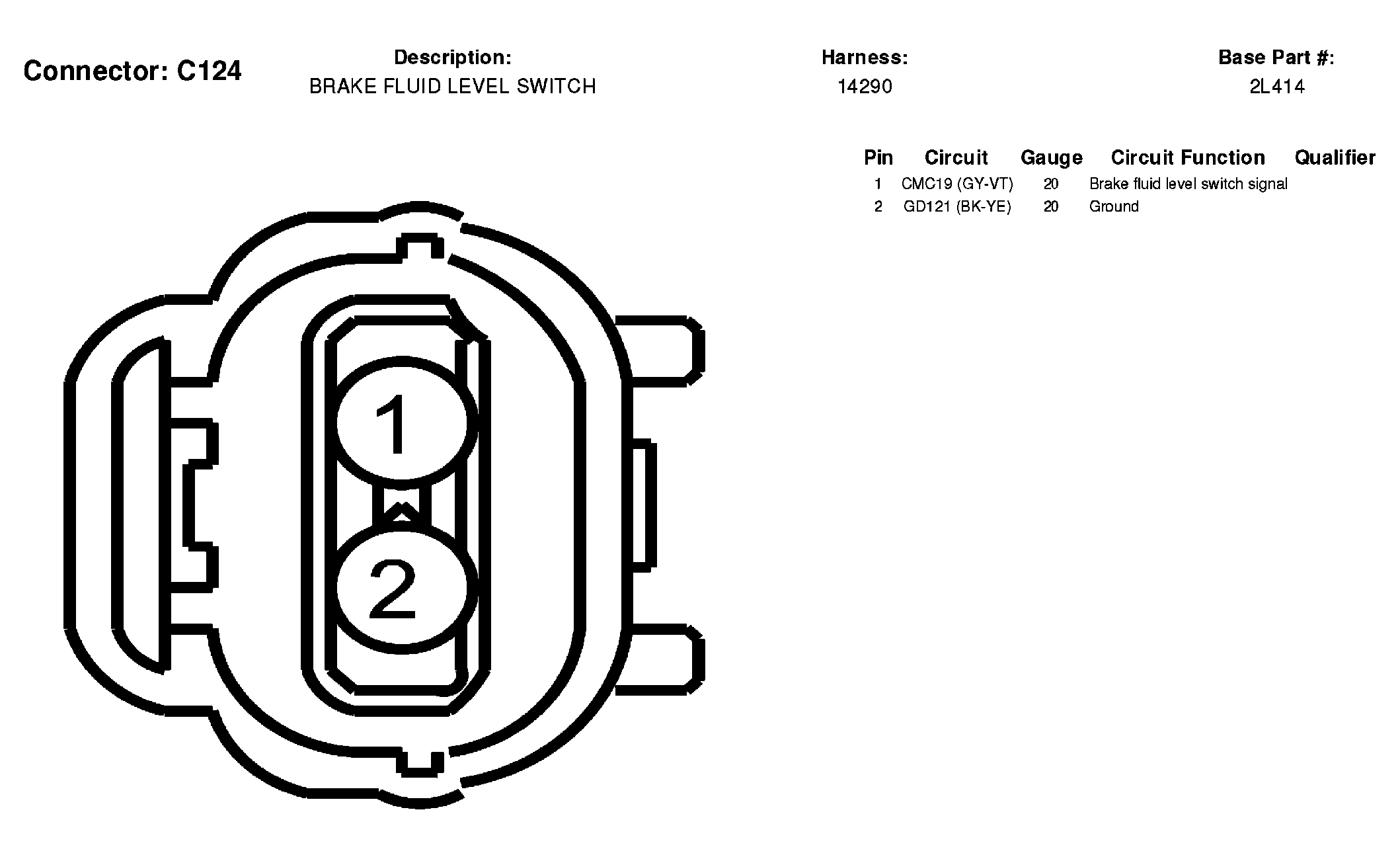

Fig 16: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

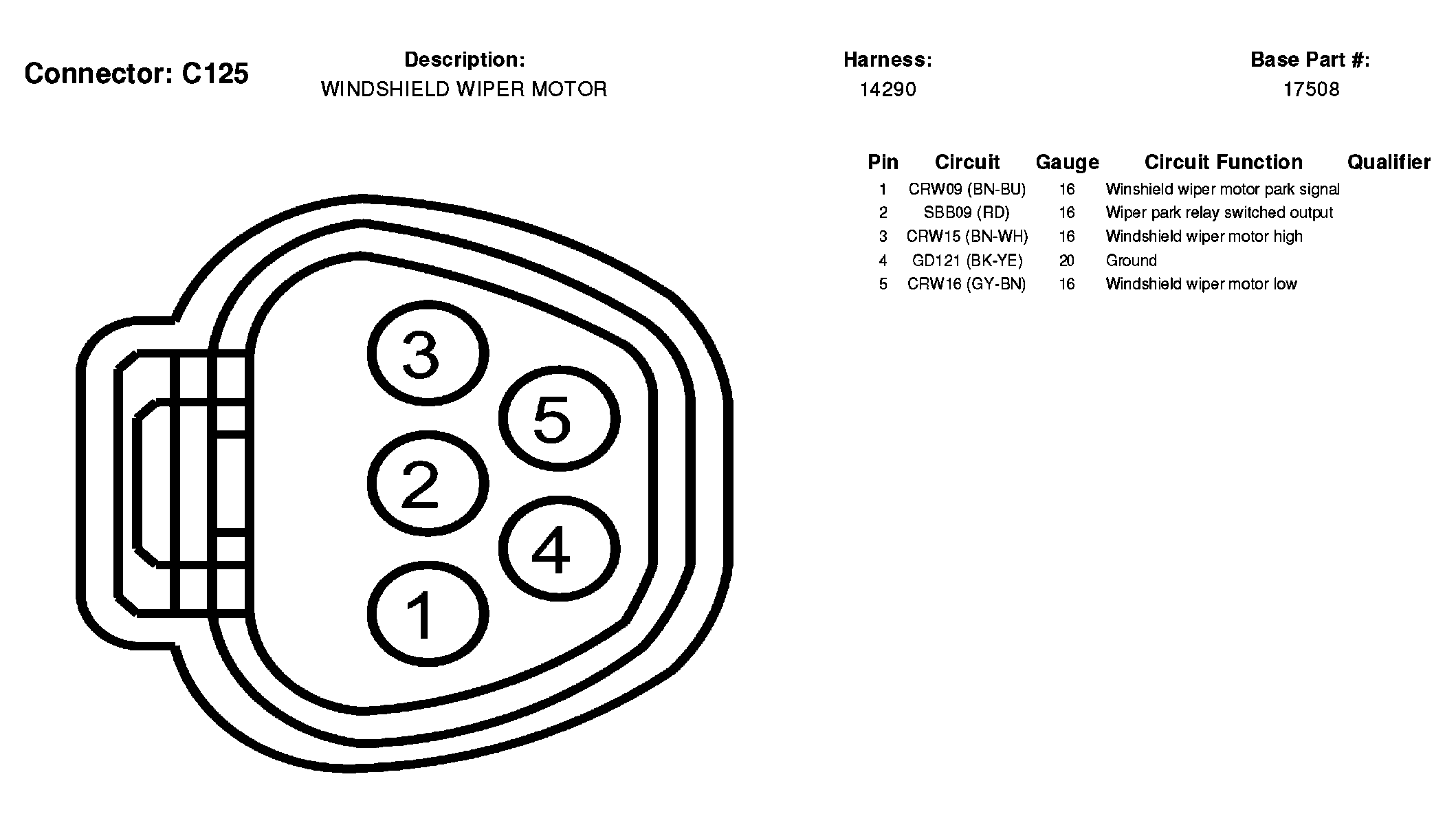

Fig 17: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

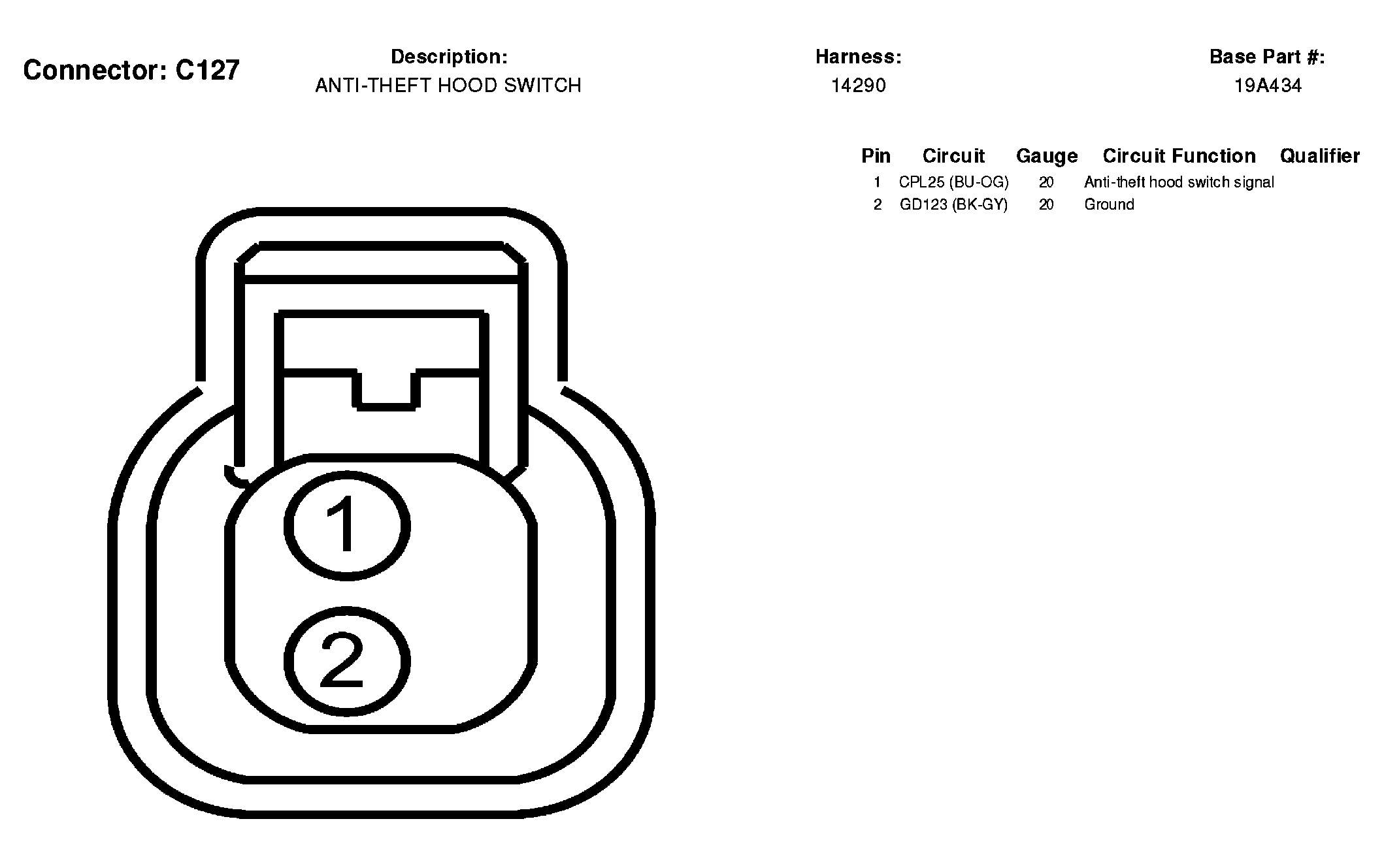

Fig 18: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.

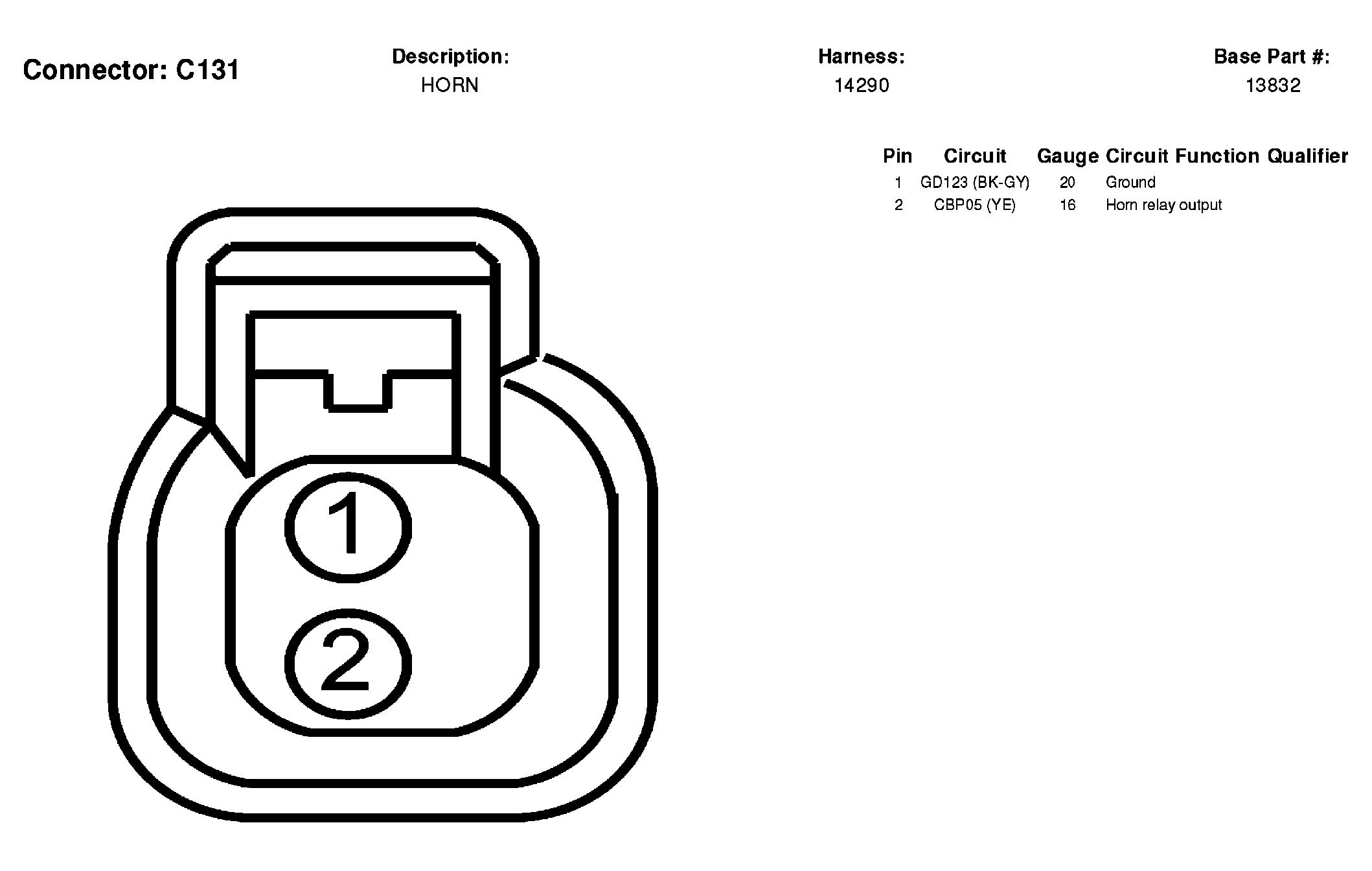

Fig 19: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

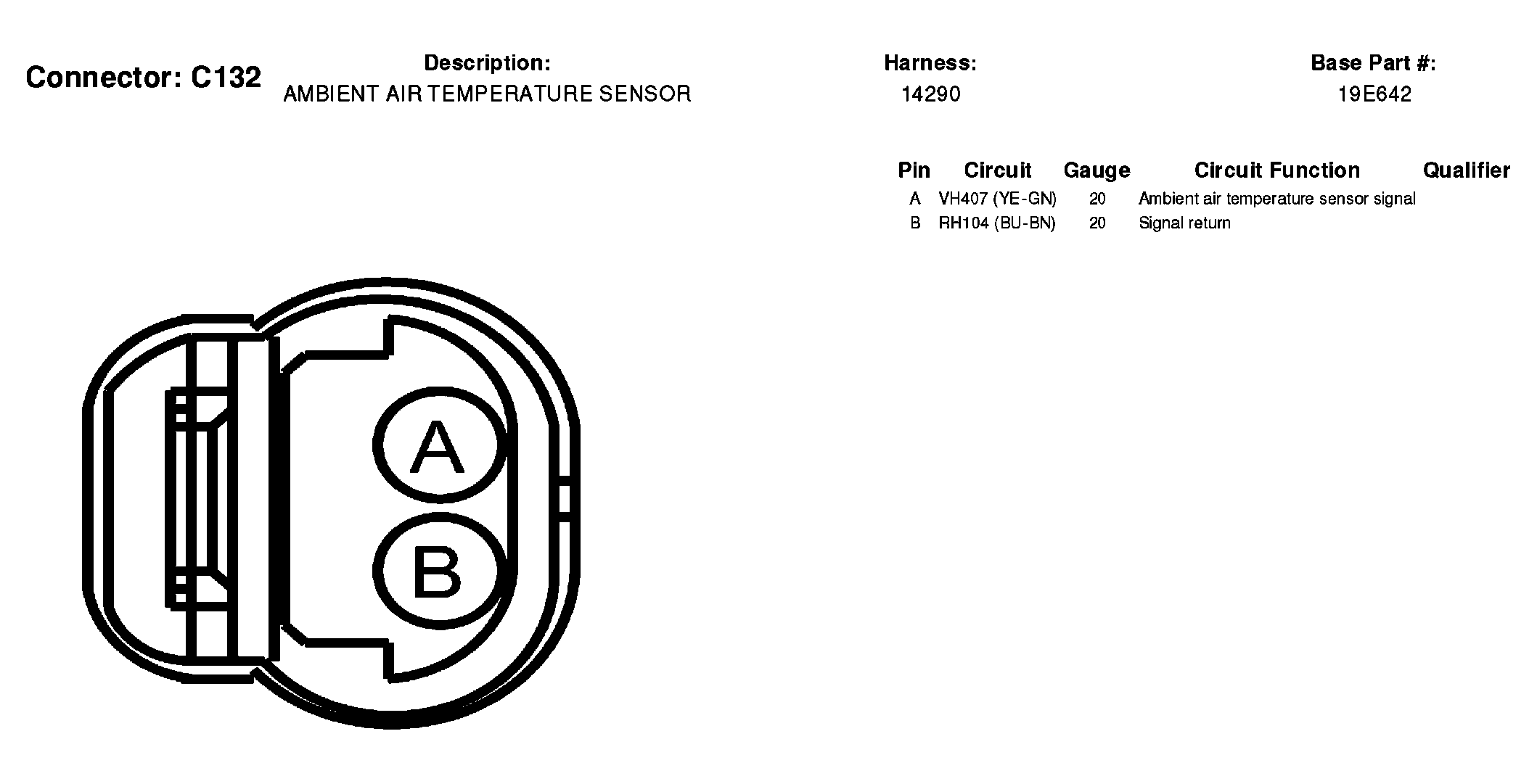

Fig 20: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.

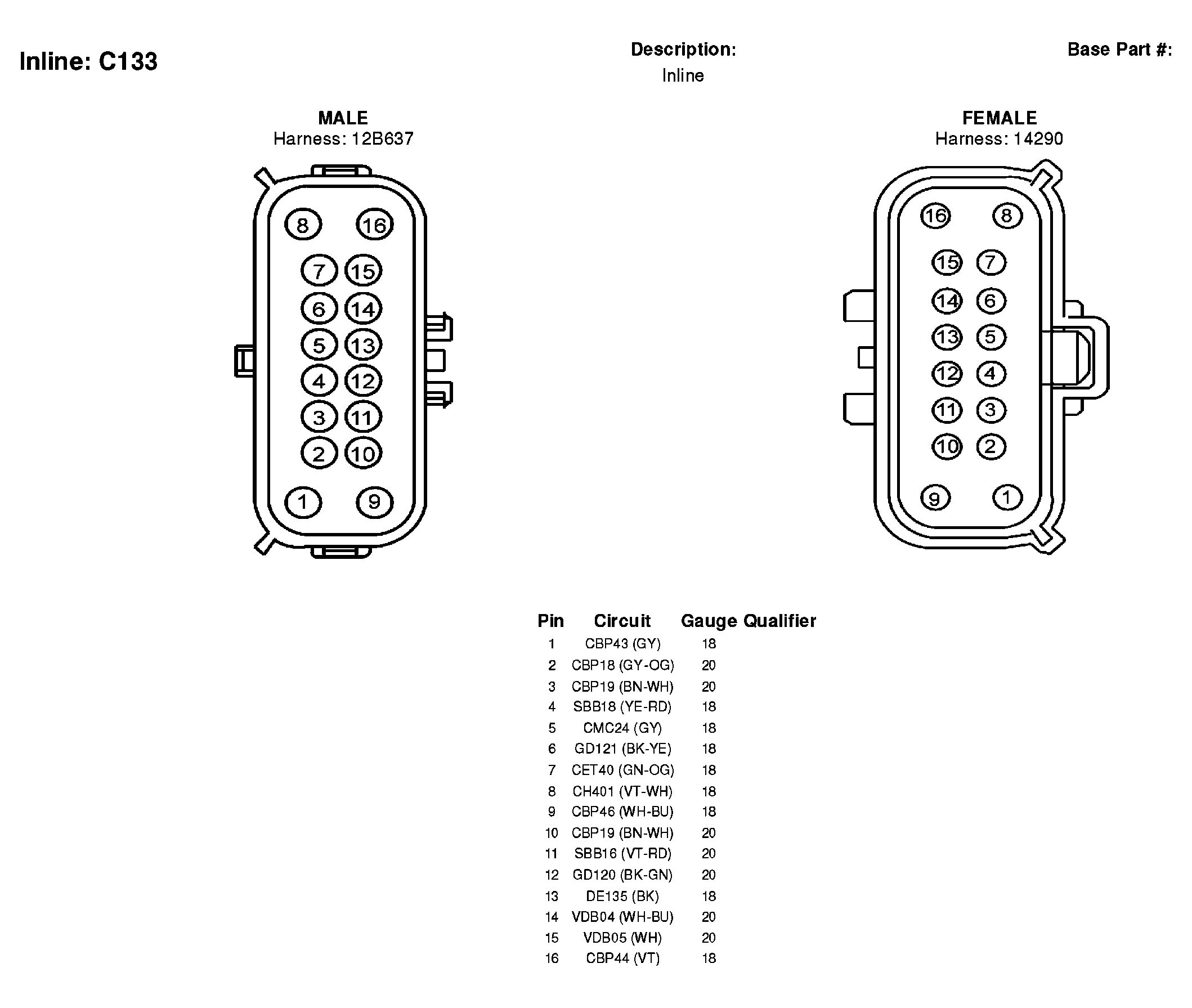

Fig 21: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

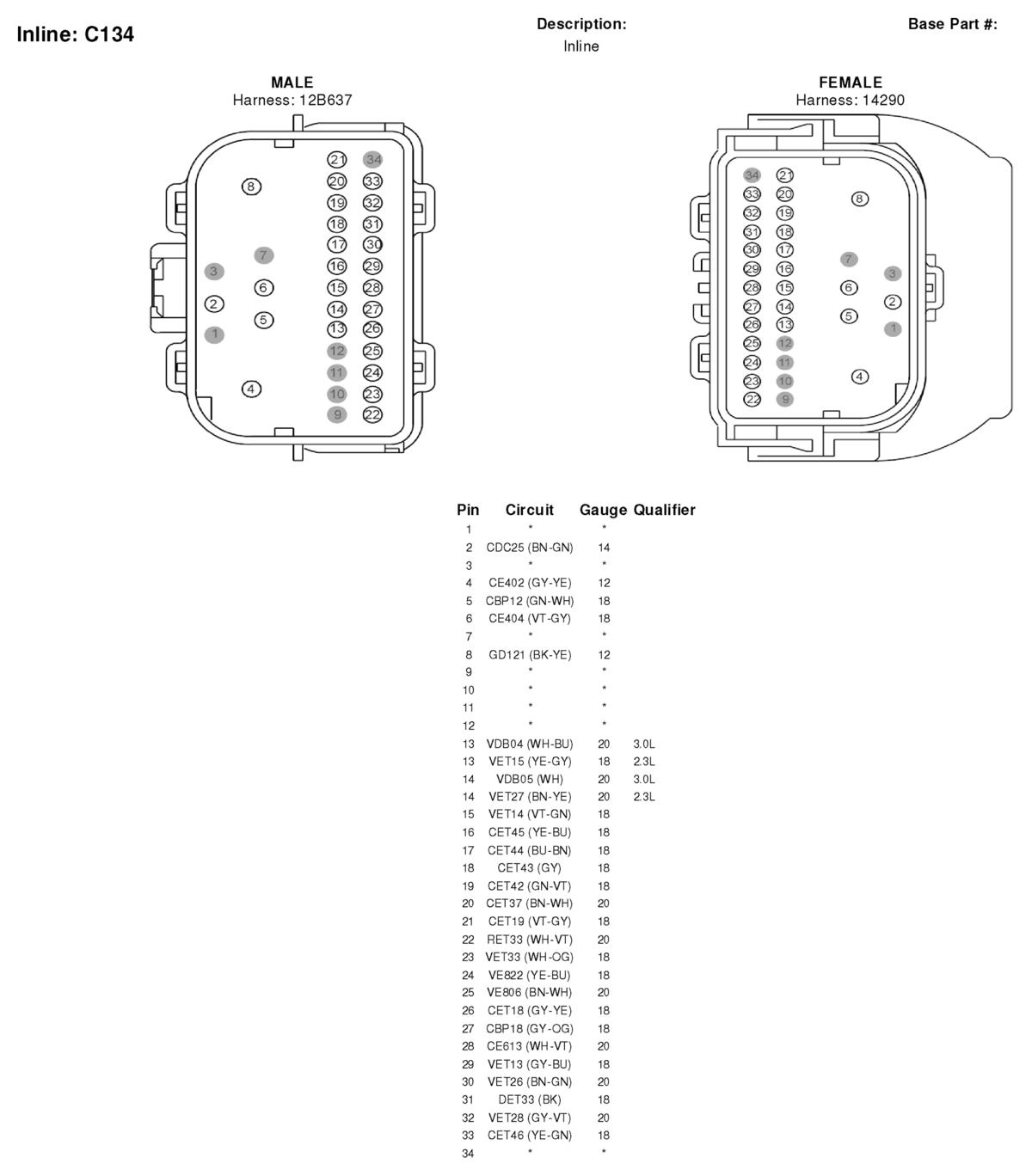

Fig 22: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

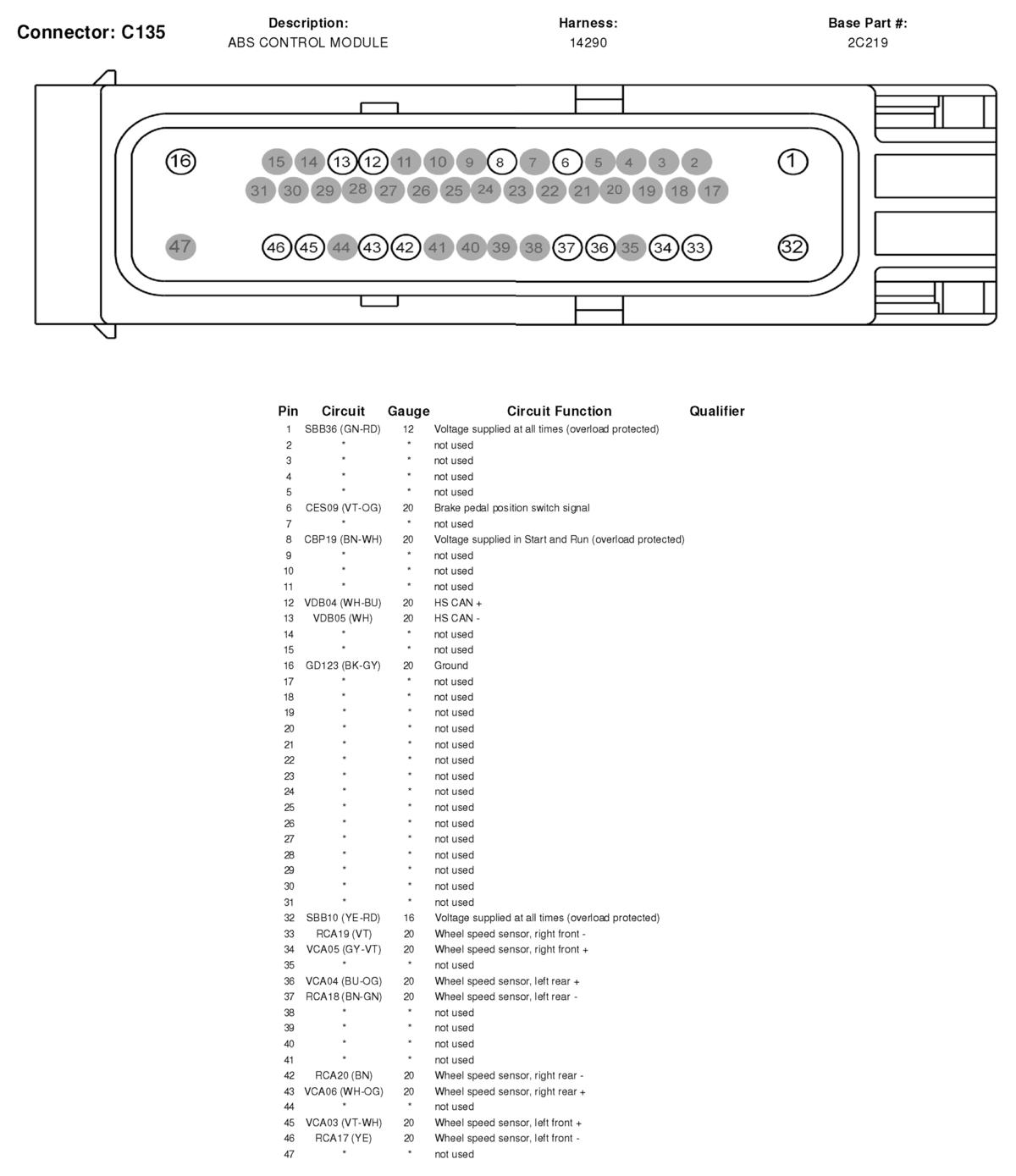

Fig 23: ABS Control Module Connector End View (C135)
Courtesy of FORD MOTOR CO.

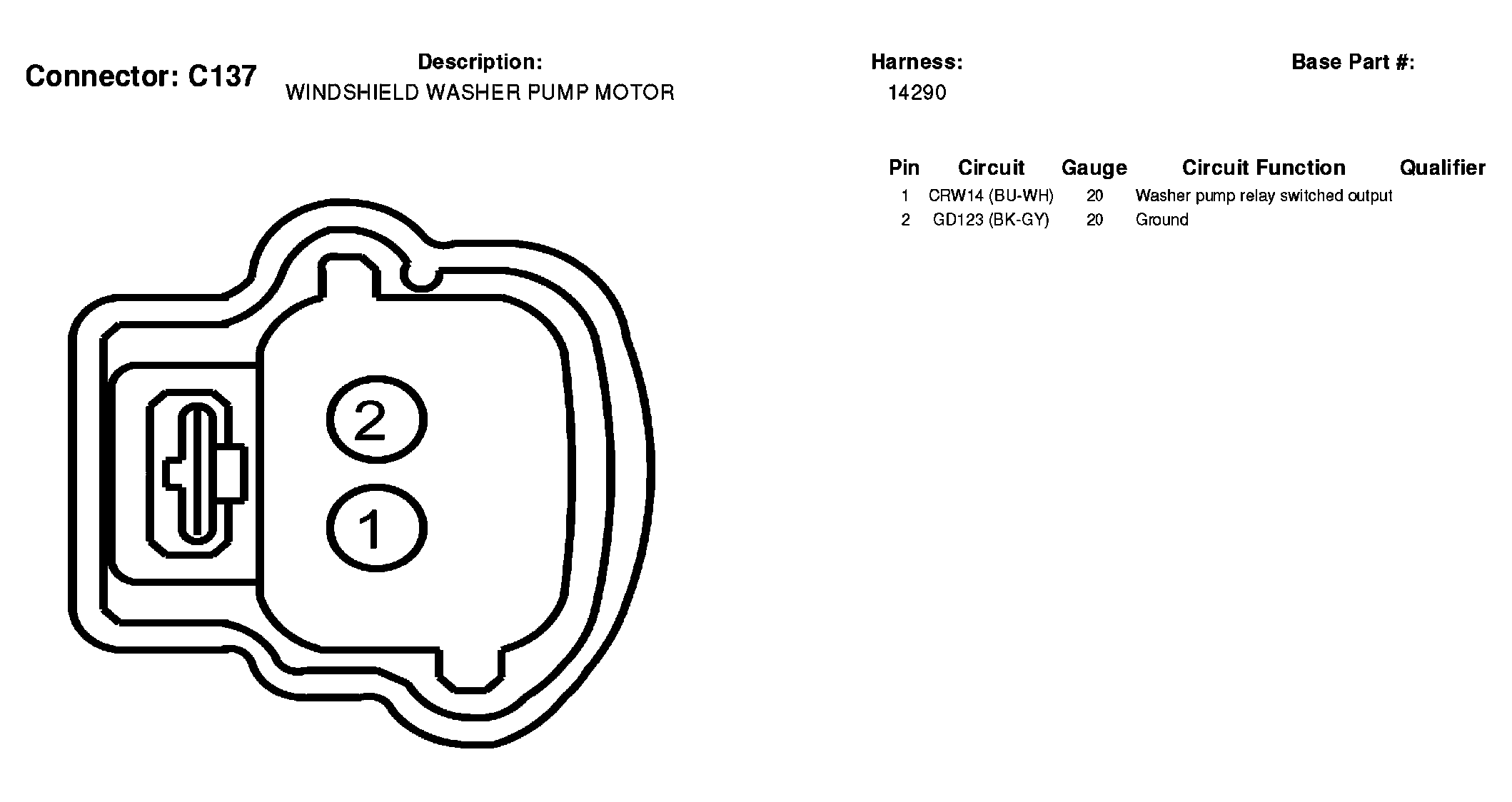

Fig 24: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

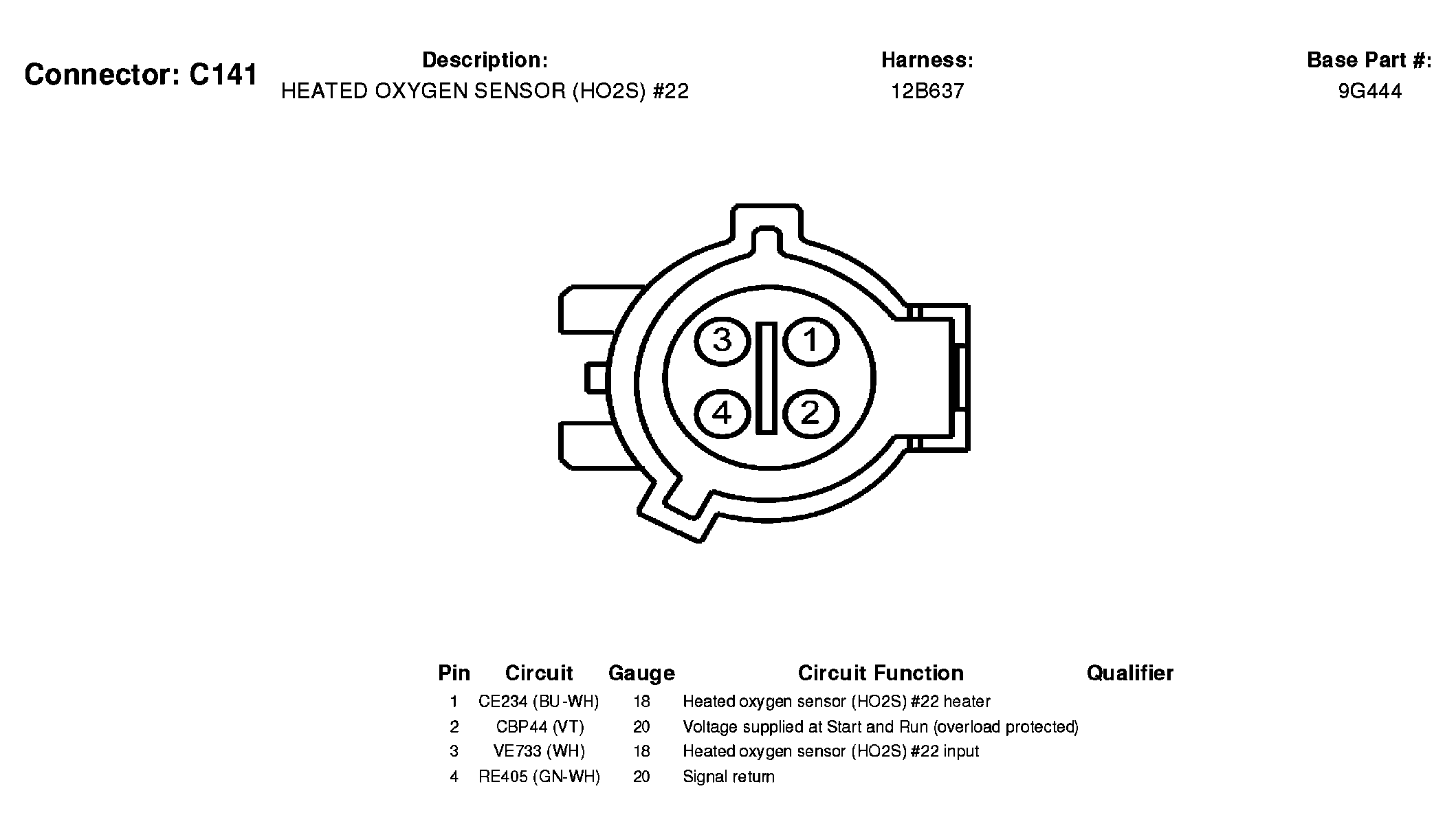

Fig 25: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

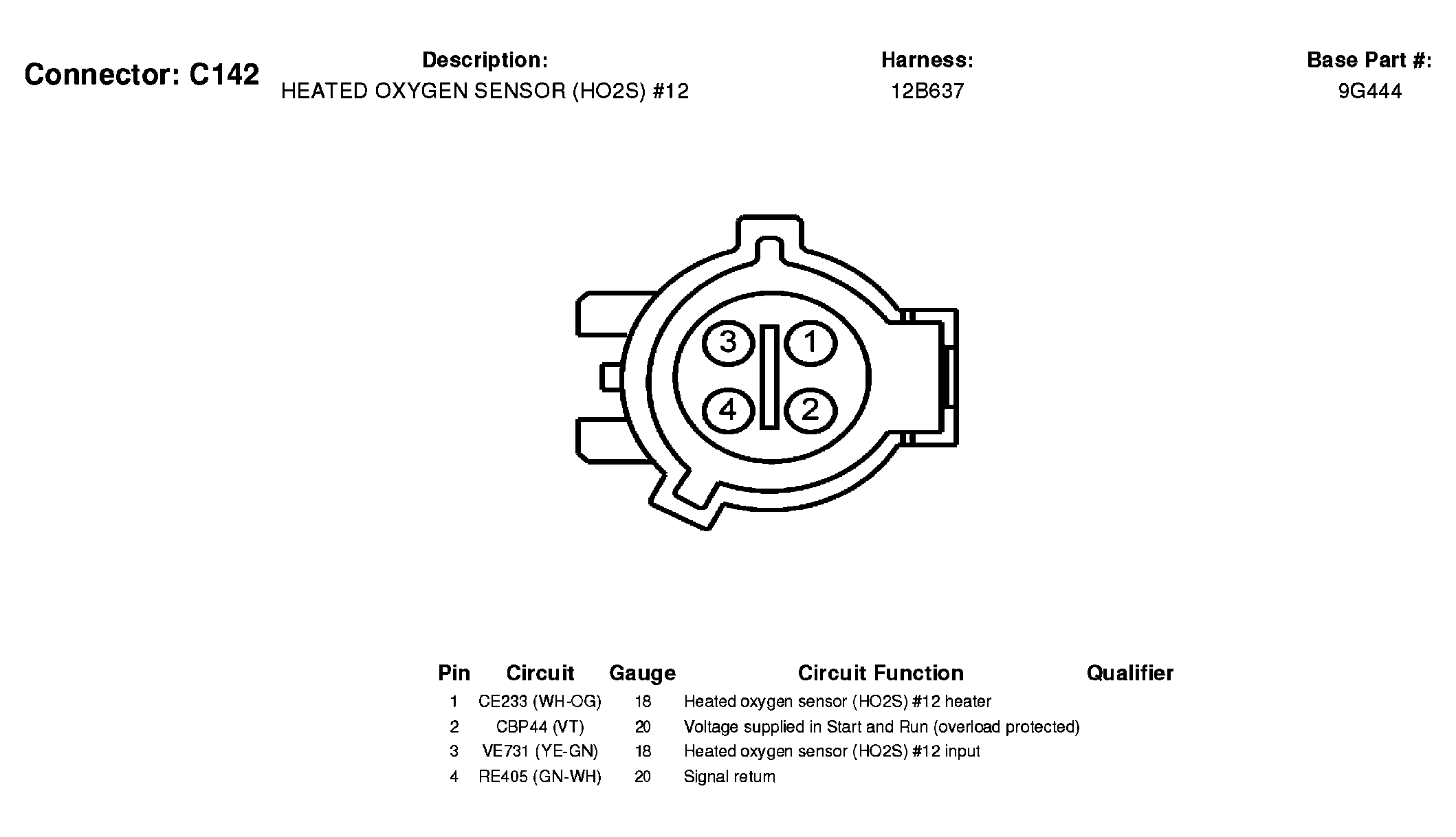

Fig 26: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.
Fig 27: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

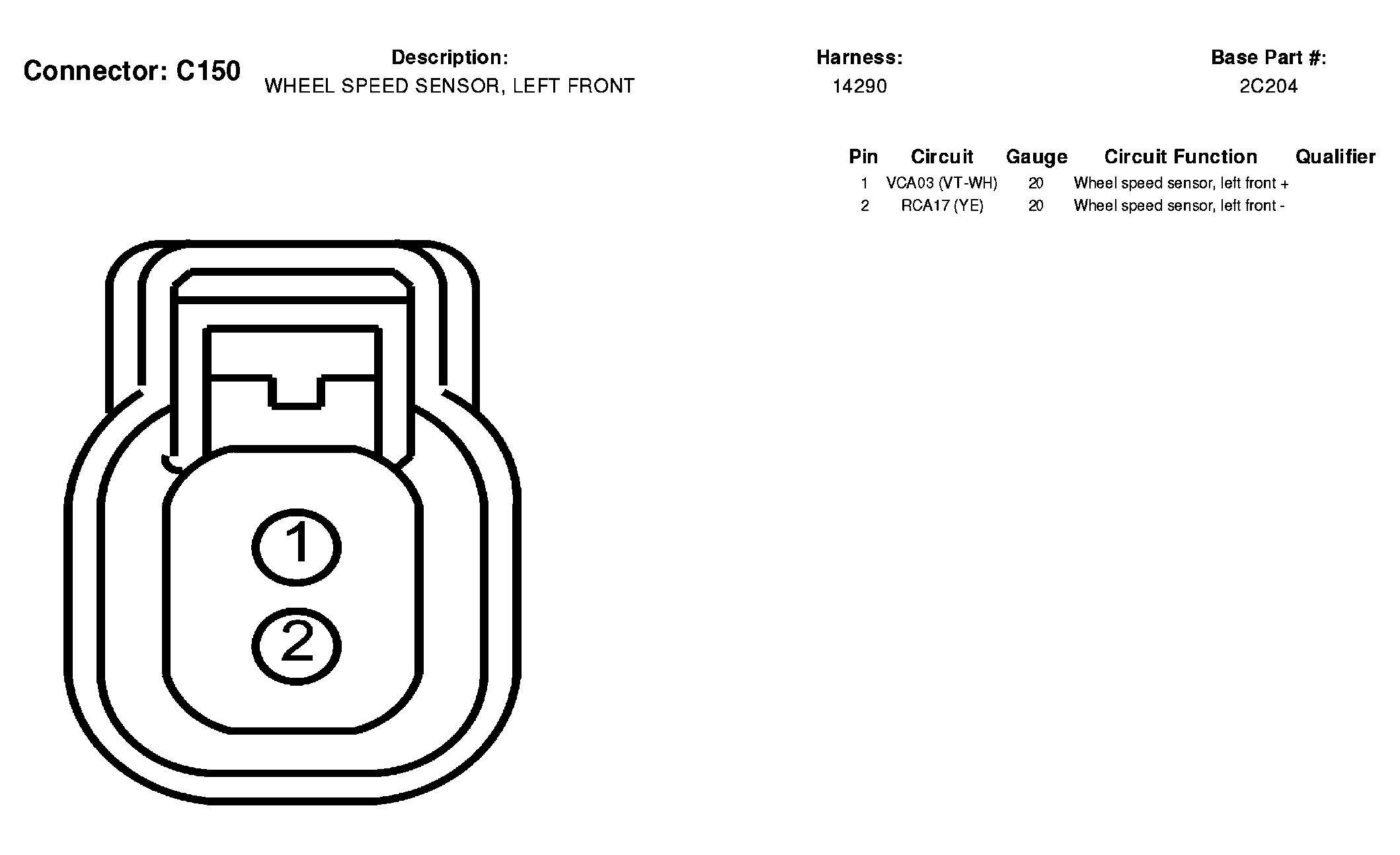

Fig 28: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

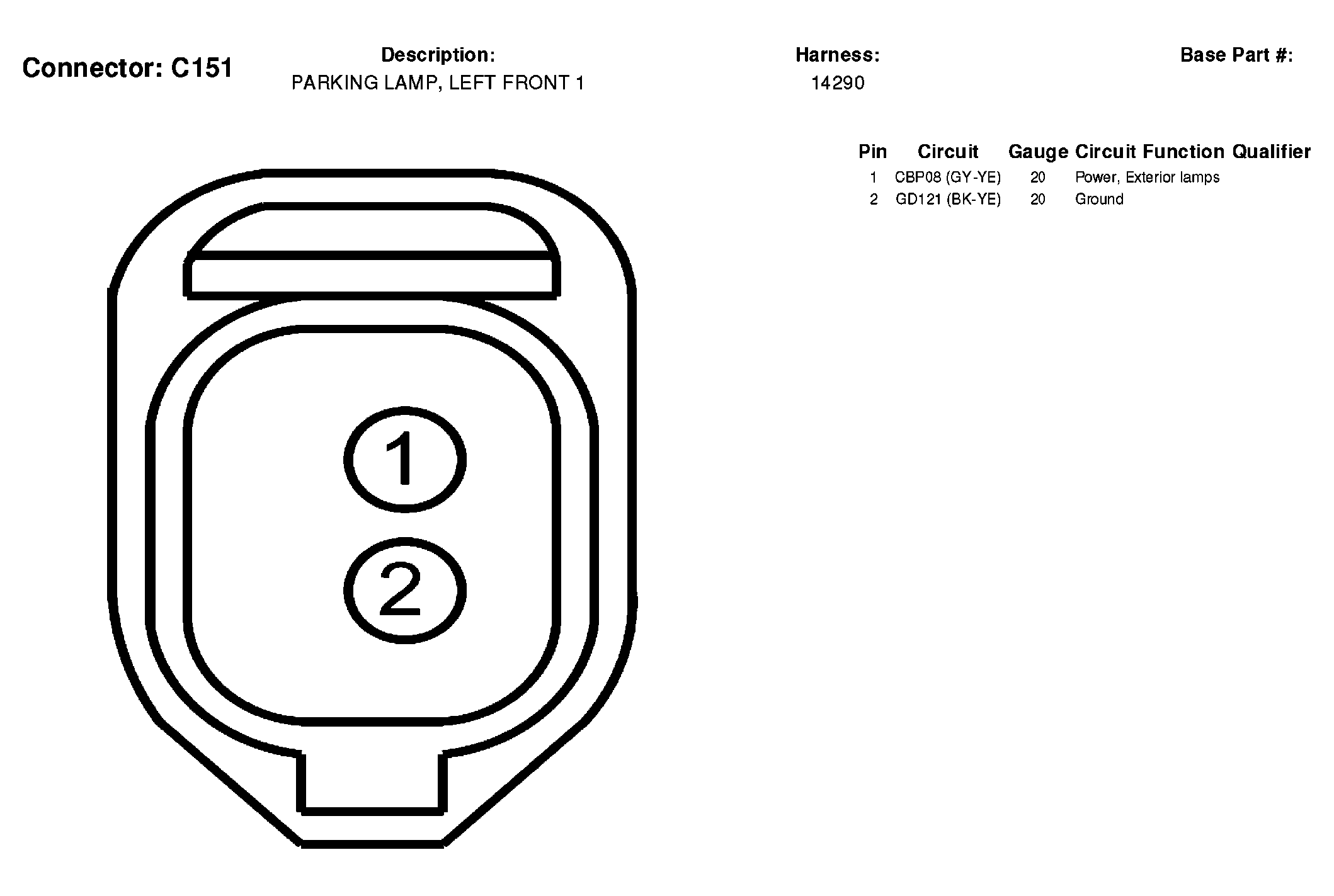

Fig 29: Parking Lamp, Left Front 1 Connector End View (C151)
Courtesy of FORD MOTOR CO.

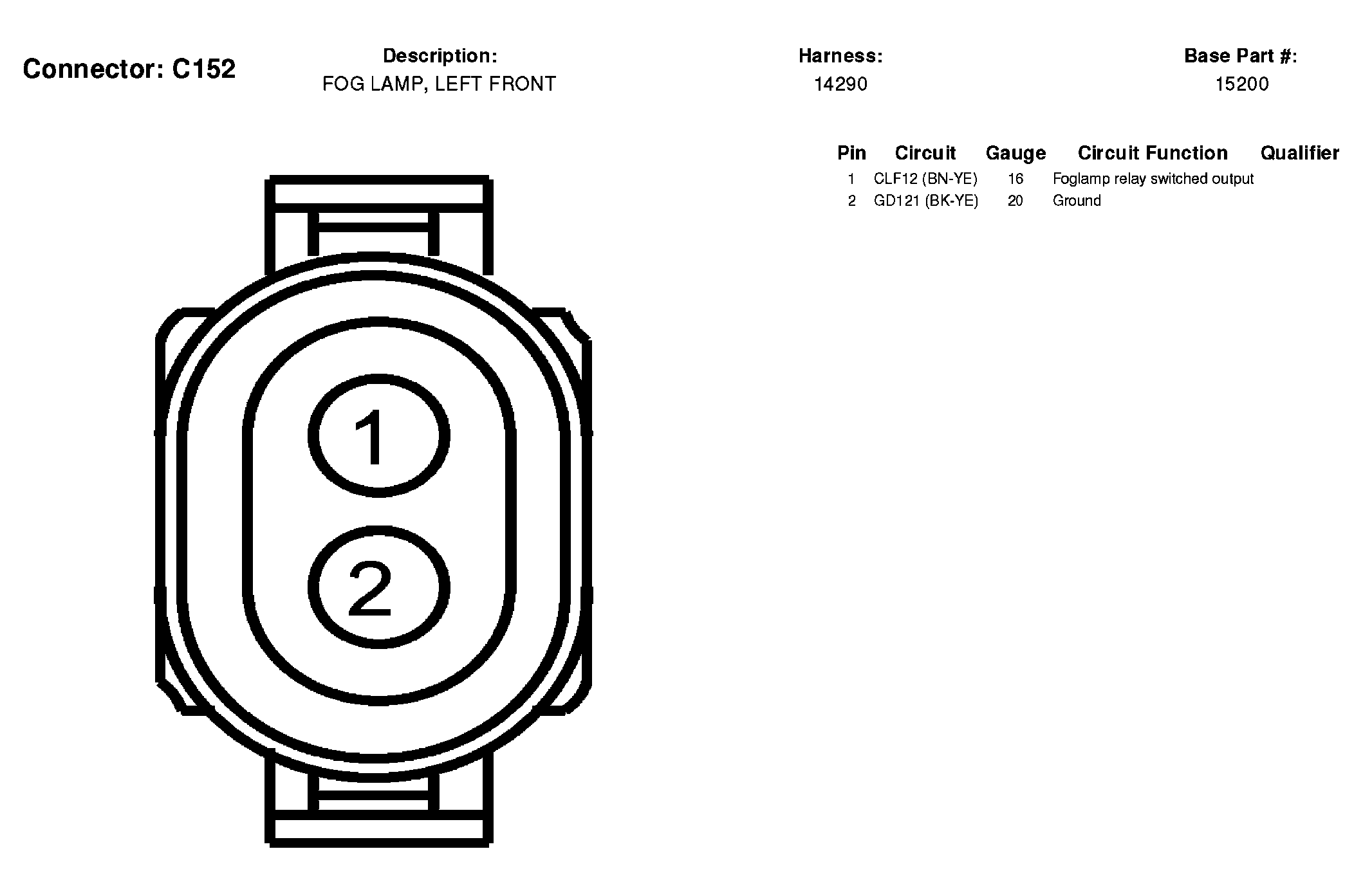

Fig 30: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.
Fig 31: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.
Fig 32: Parking Lamp, Right Front 1 Connector End View (C161)
Courtesy of FORD MOTOR CO.
Fig 33: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

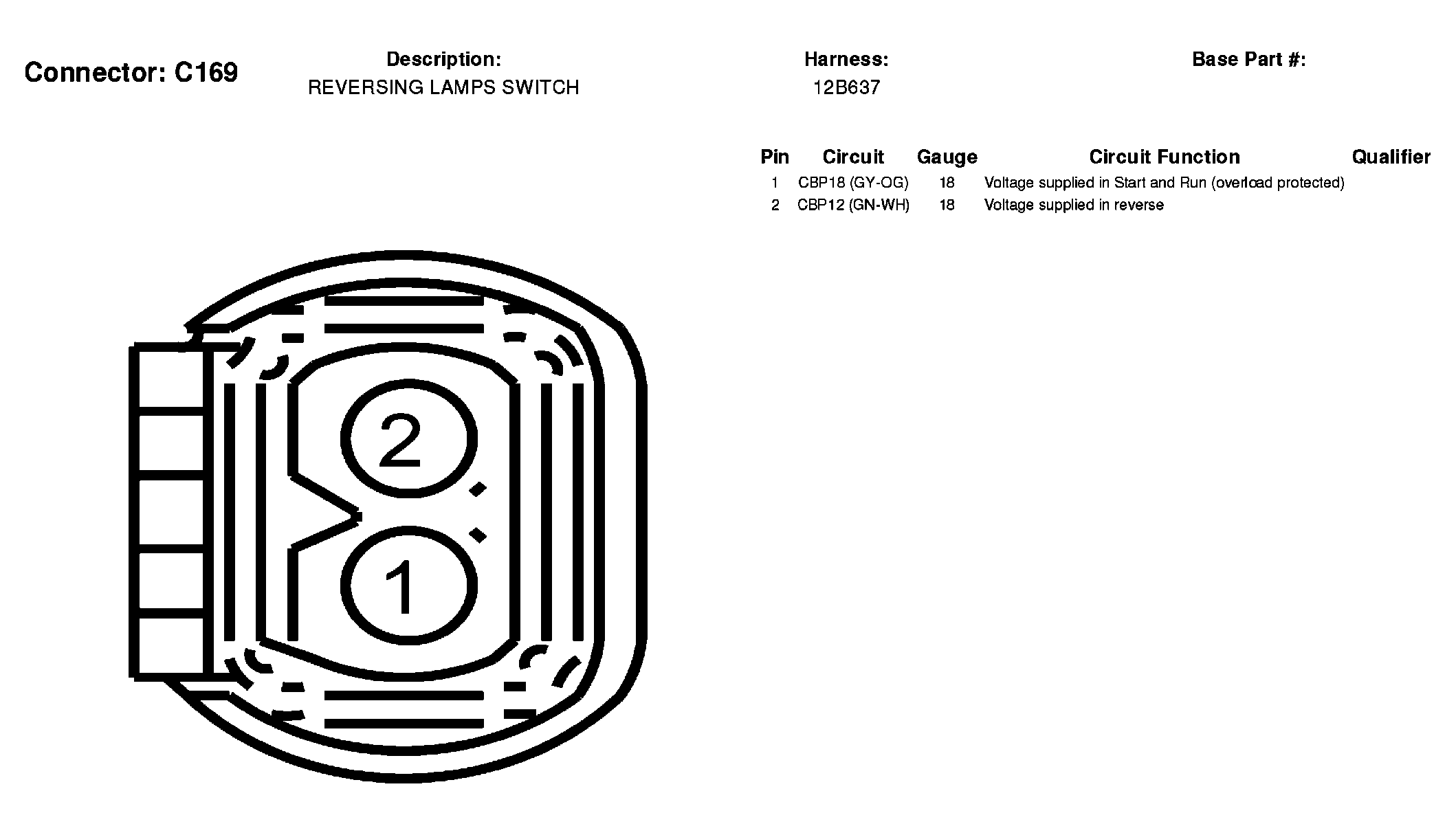

Fig 34: Reversing Lamps Switch Connector End View (C169)
Courtesy of FORD MOTOR CO.
Fig 35: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

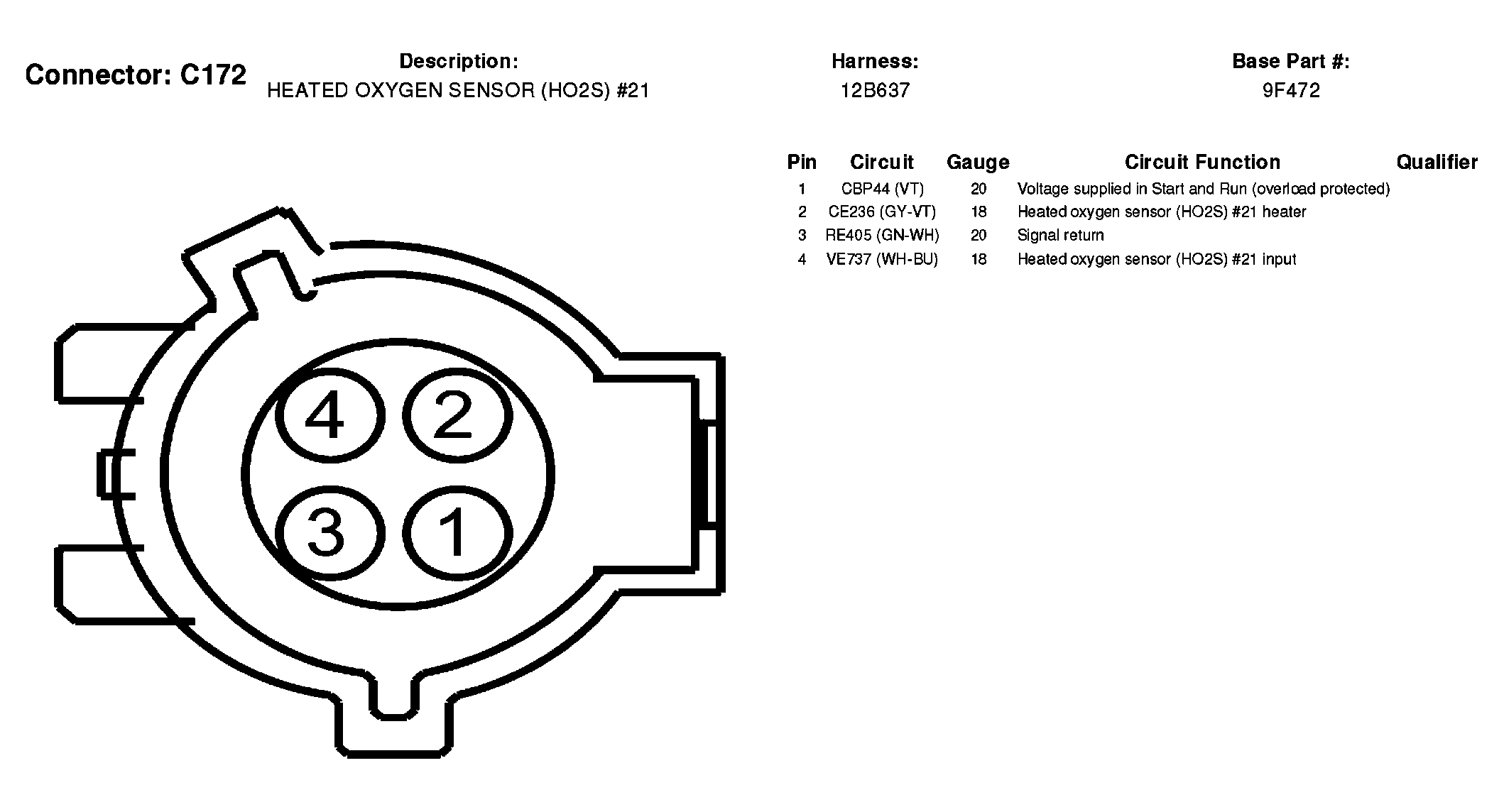

Fig 36: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

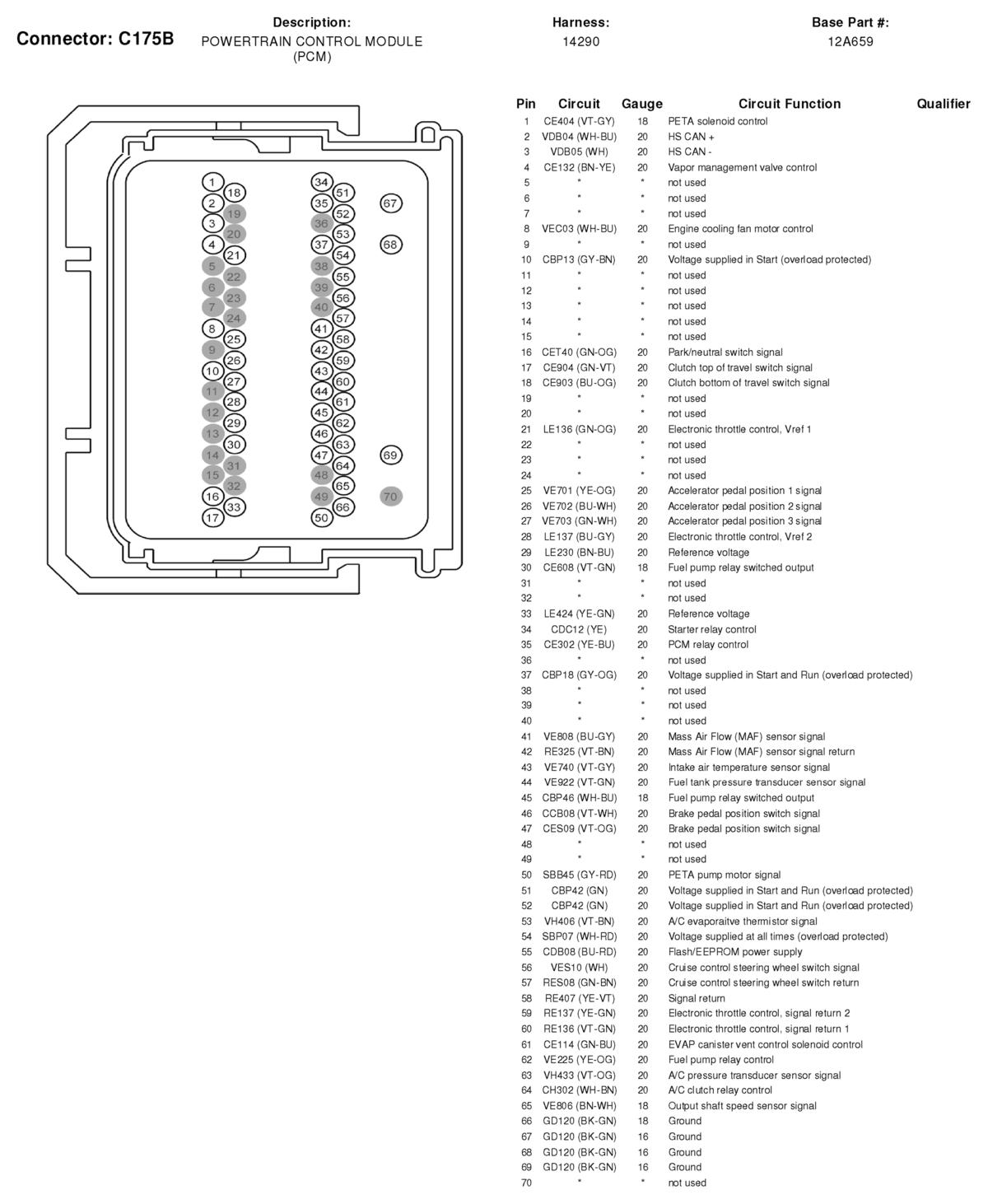

Fig 37: Powertrain Control Module (PCM) Connector End View (C175B)
Courtesy of FORD MOTOR CO.

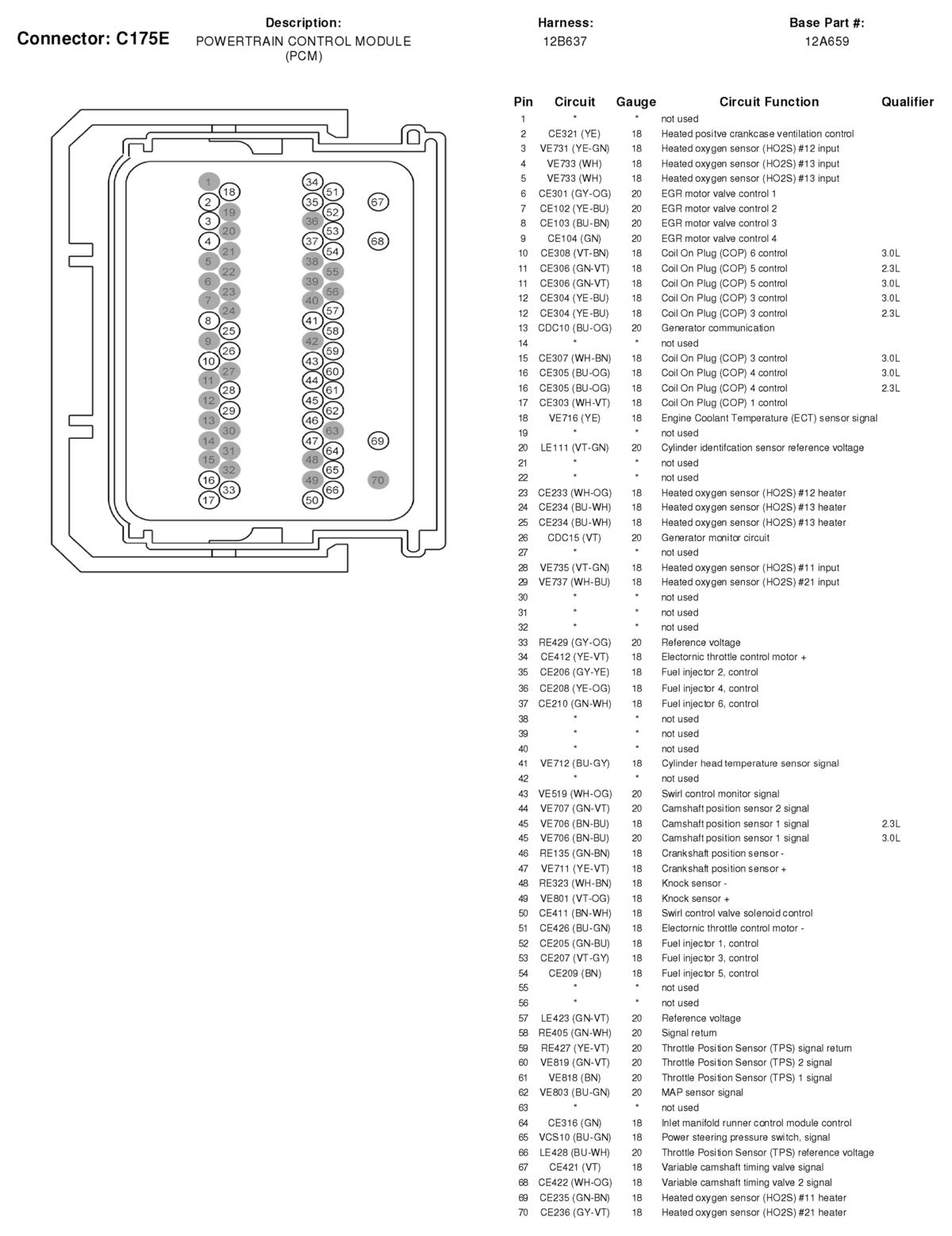

Fig 38: Powertrain Control Module (PCM) Connector End View (C175E)
Courtesy of FORD MOTOR CO.

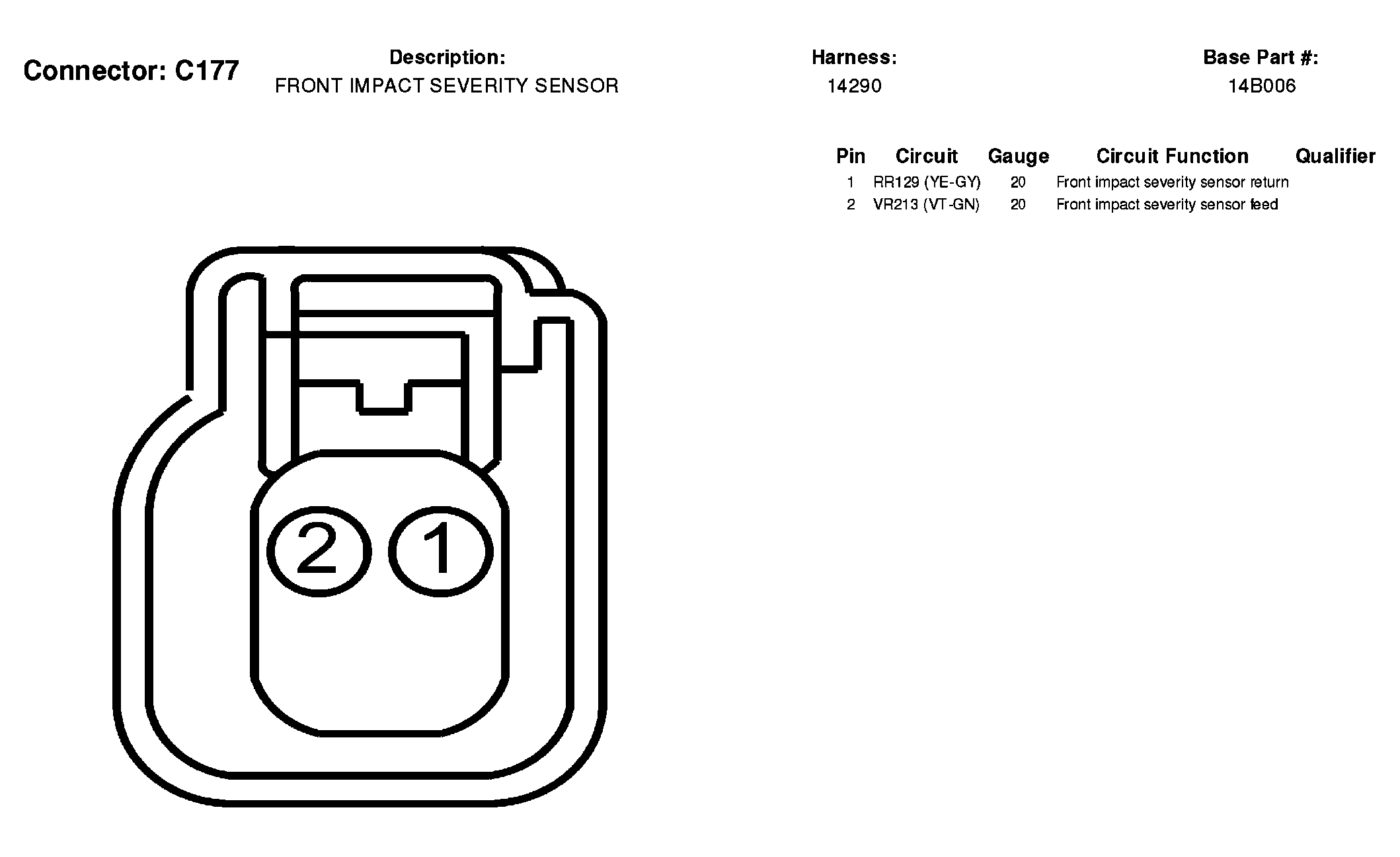

Fig 39: Front Impact Severity Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.
Fig 40: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 41: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.

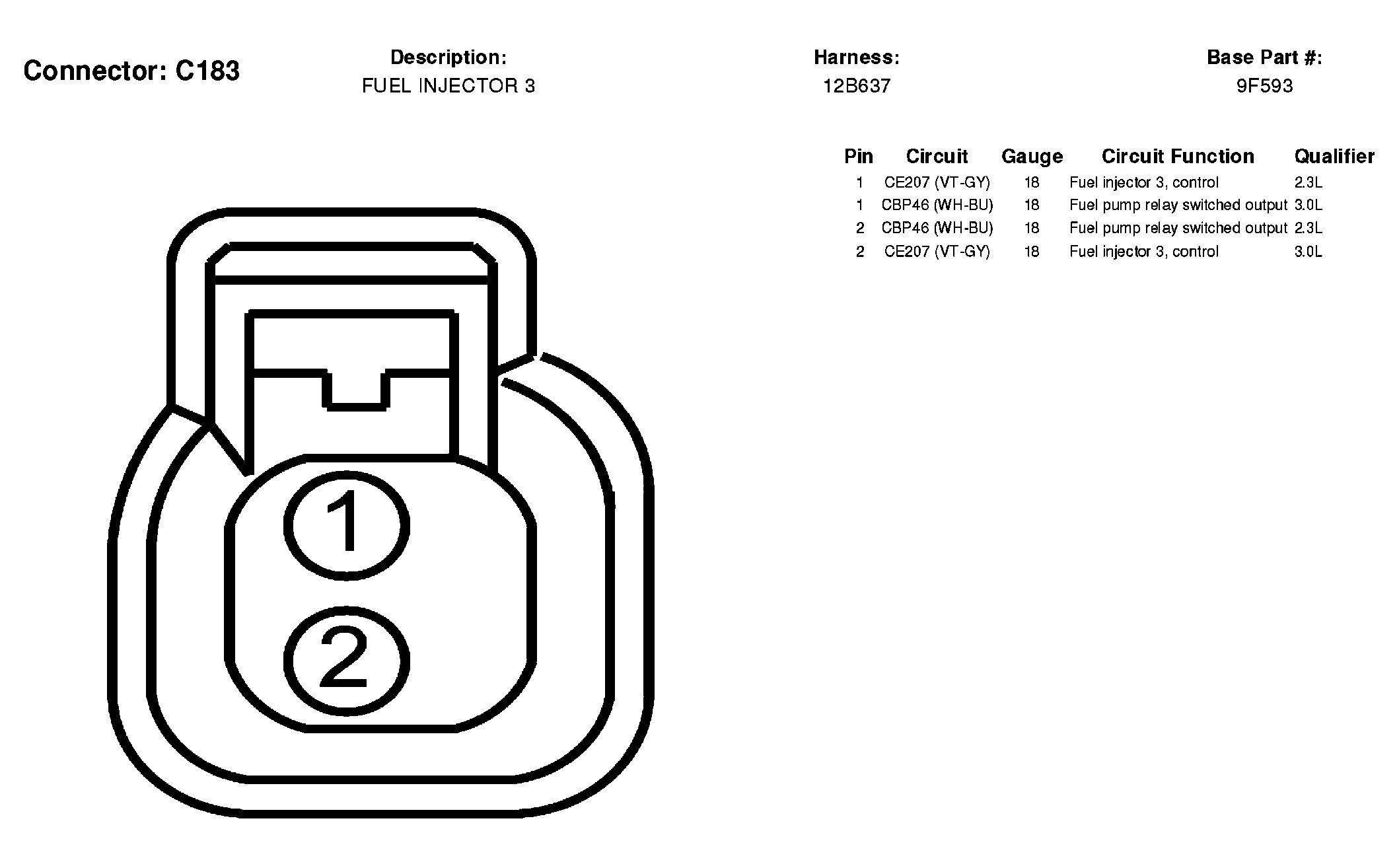

Fig 42: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.
Fig 43: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.

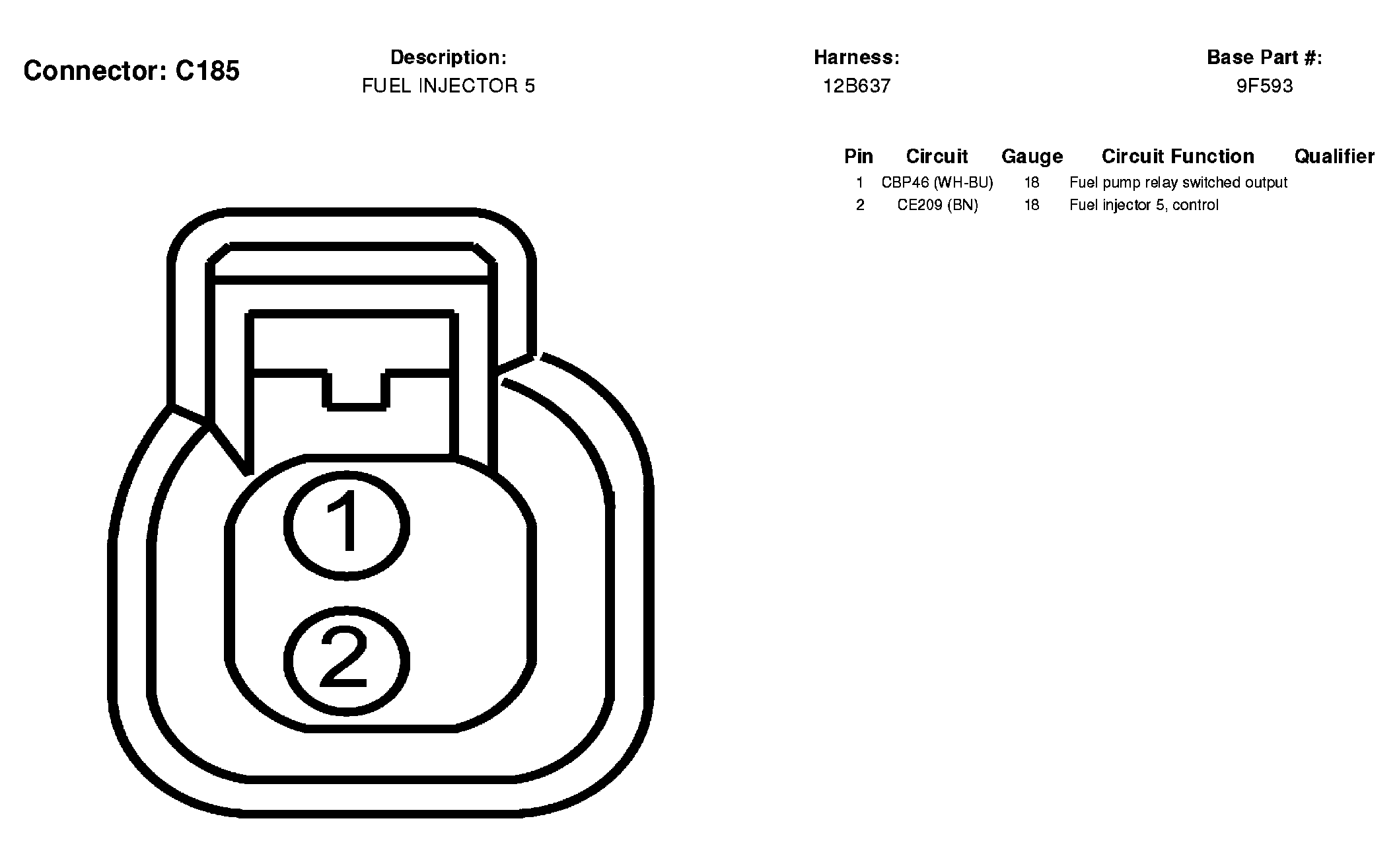

Fig 44: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.
Fig 45: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.

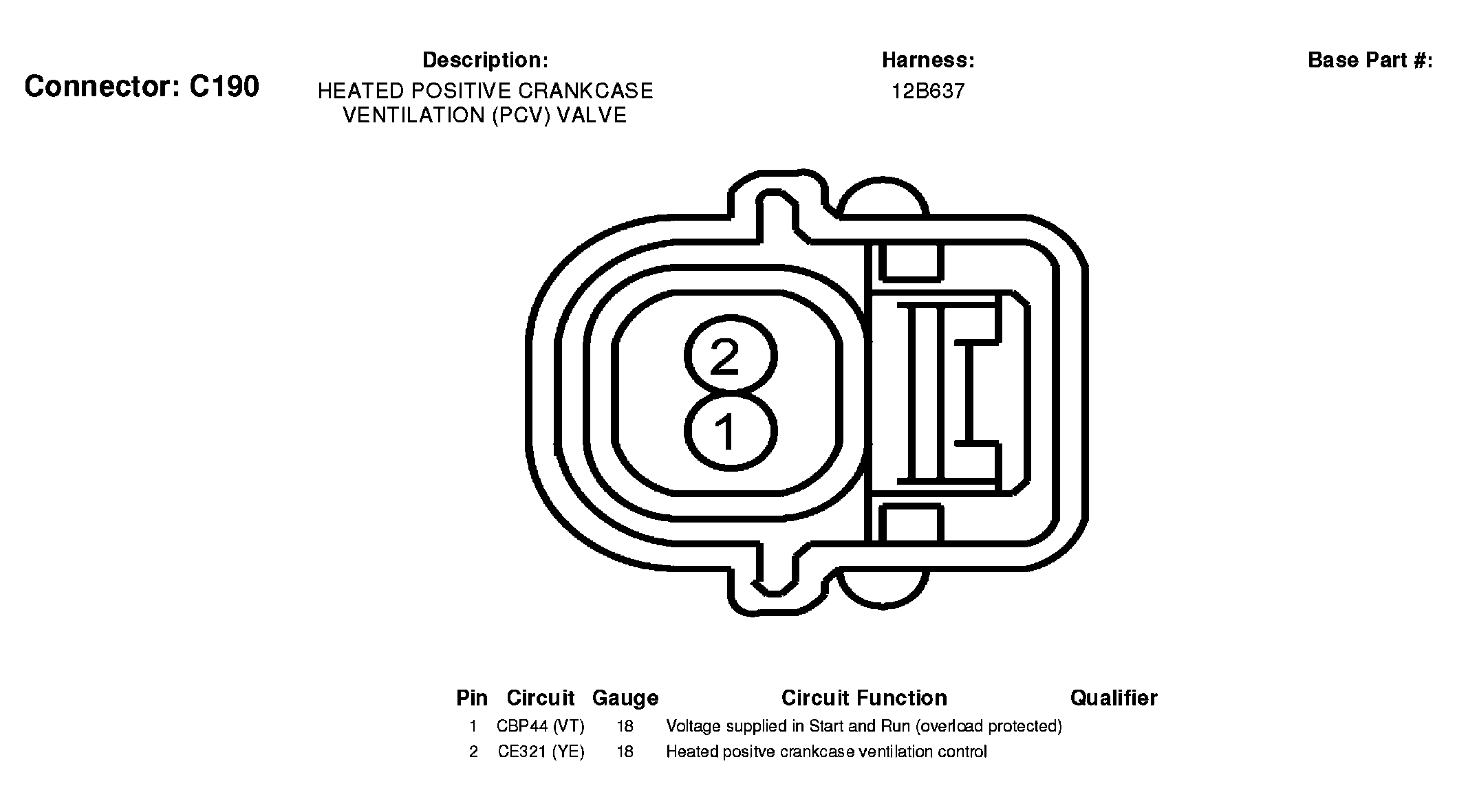

Fig 46: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)
Courtesy of FORD MOTOR CO.
Fig 47: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)
Courtesy of FORD MOTOR CO.

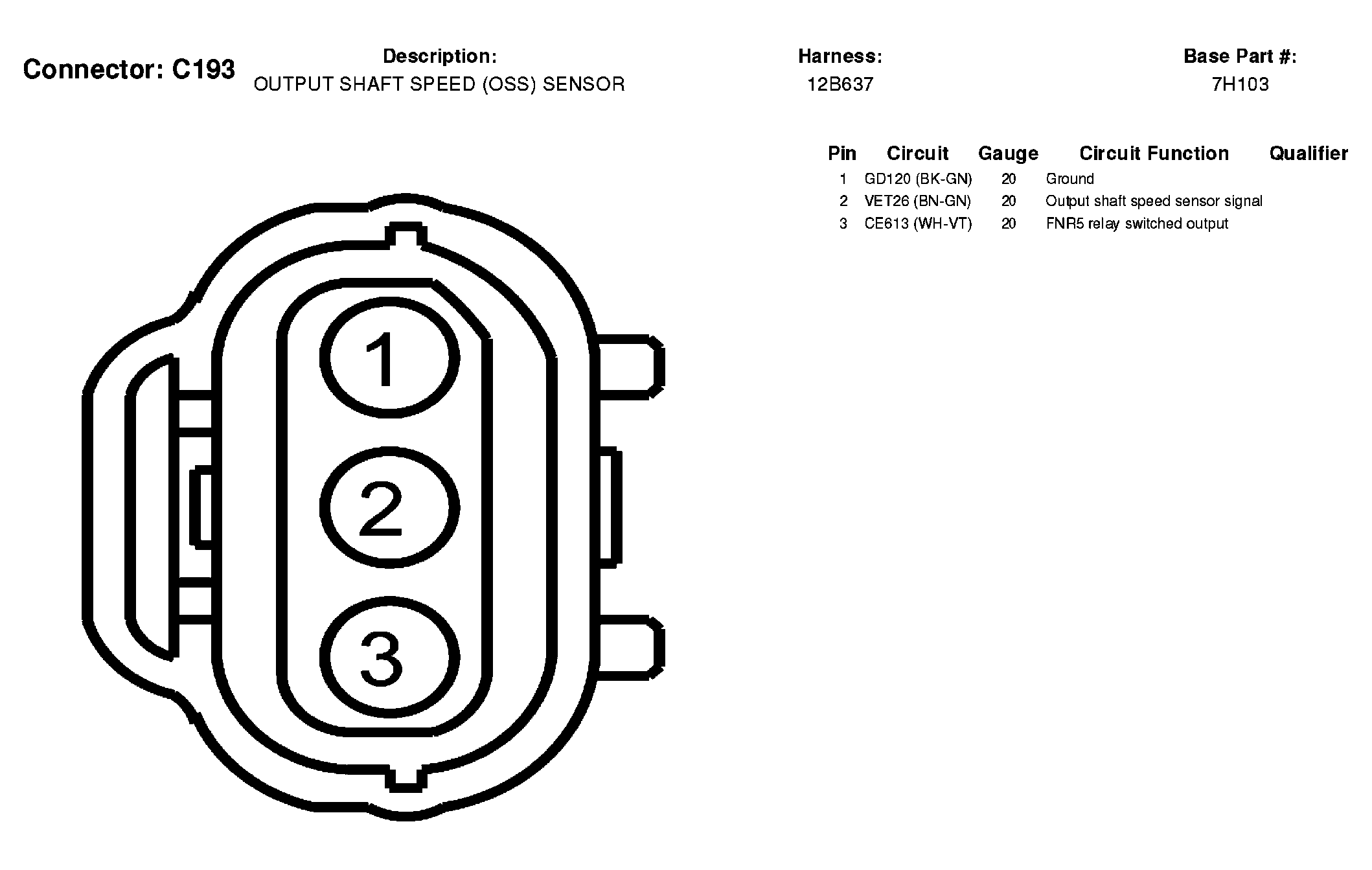

Fig 48: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.

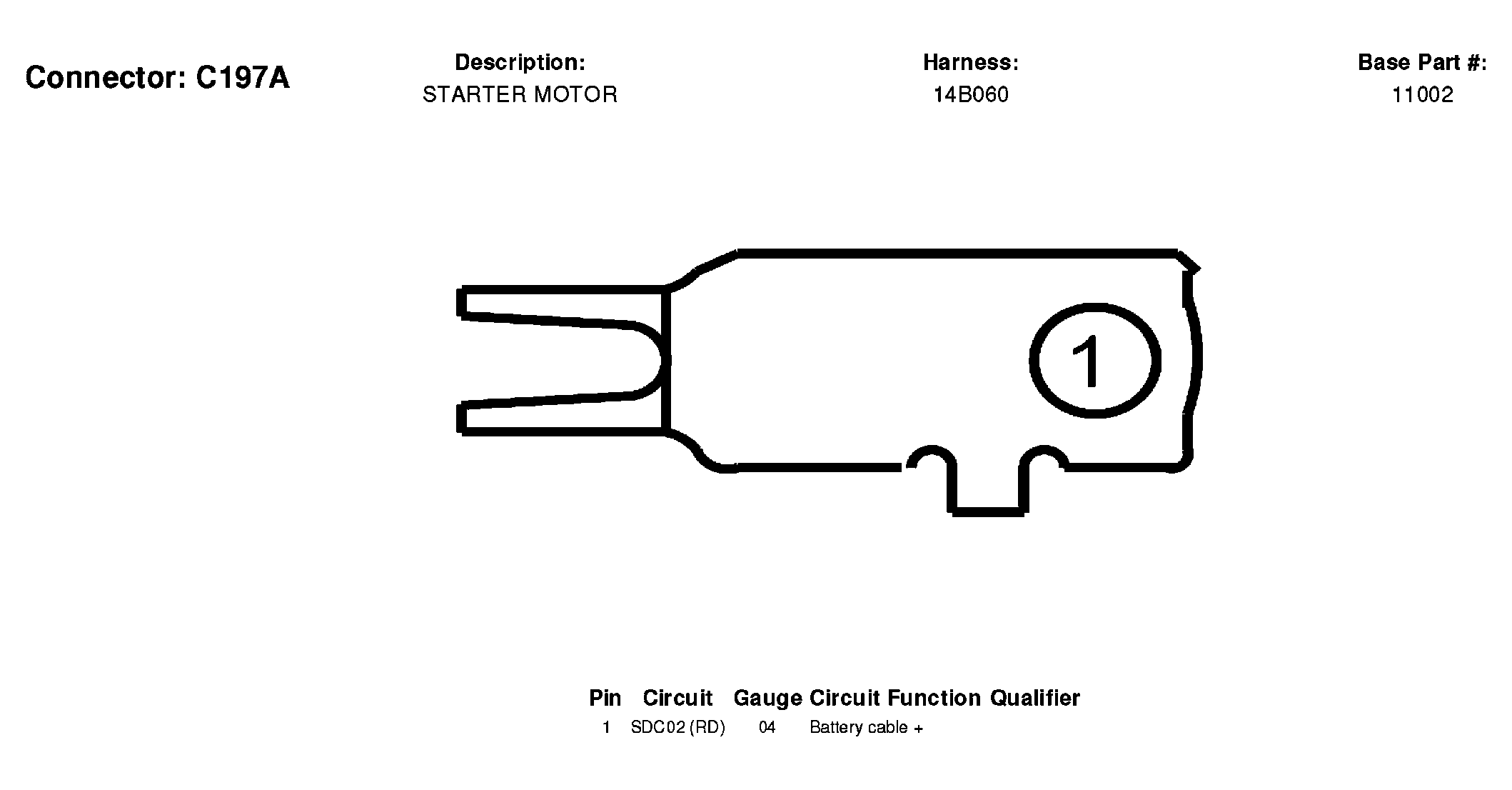

Fig 49: Starter Motor Connector End View (C197A)
Courtesy of FORD MOTOR CO.

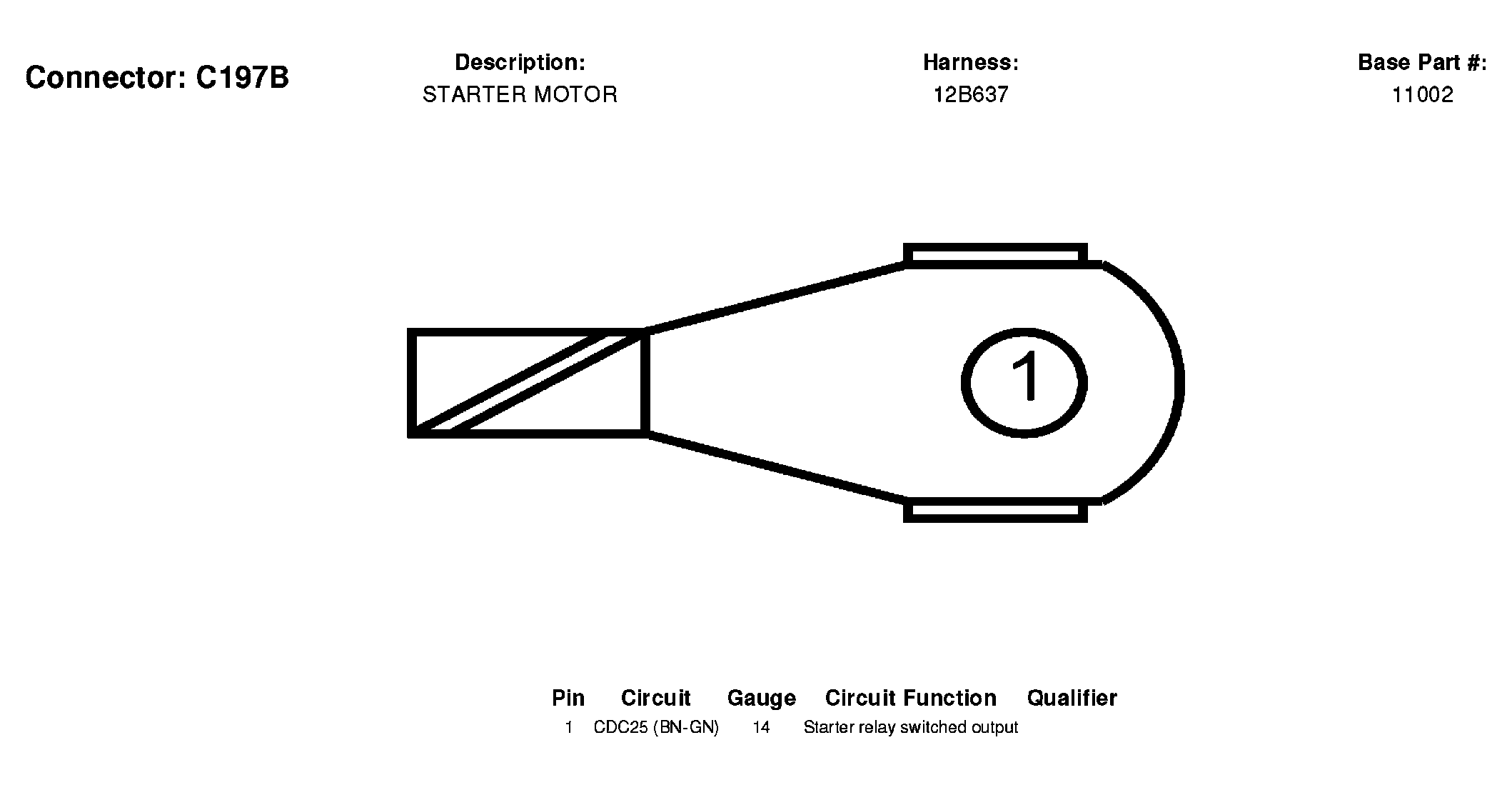

Fig 50: Starter Motor Connector End View (C197B)
Courtesy of FORD MOTOR CO.

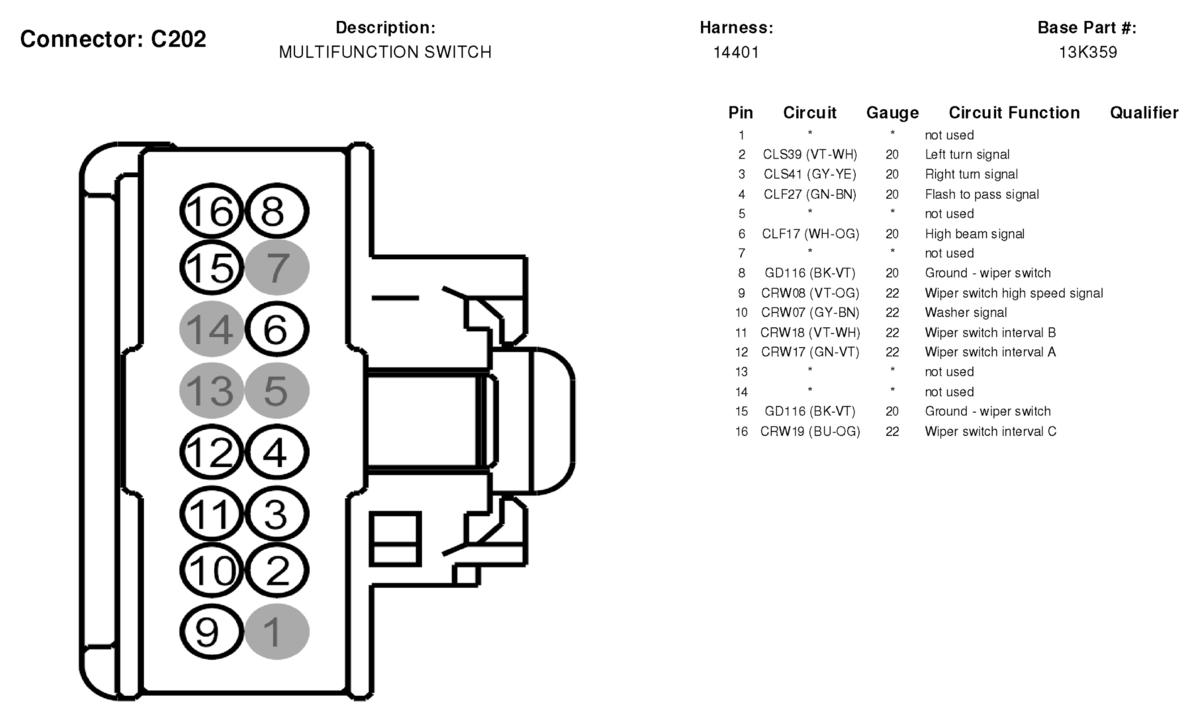

Fig 51: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.

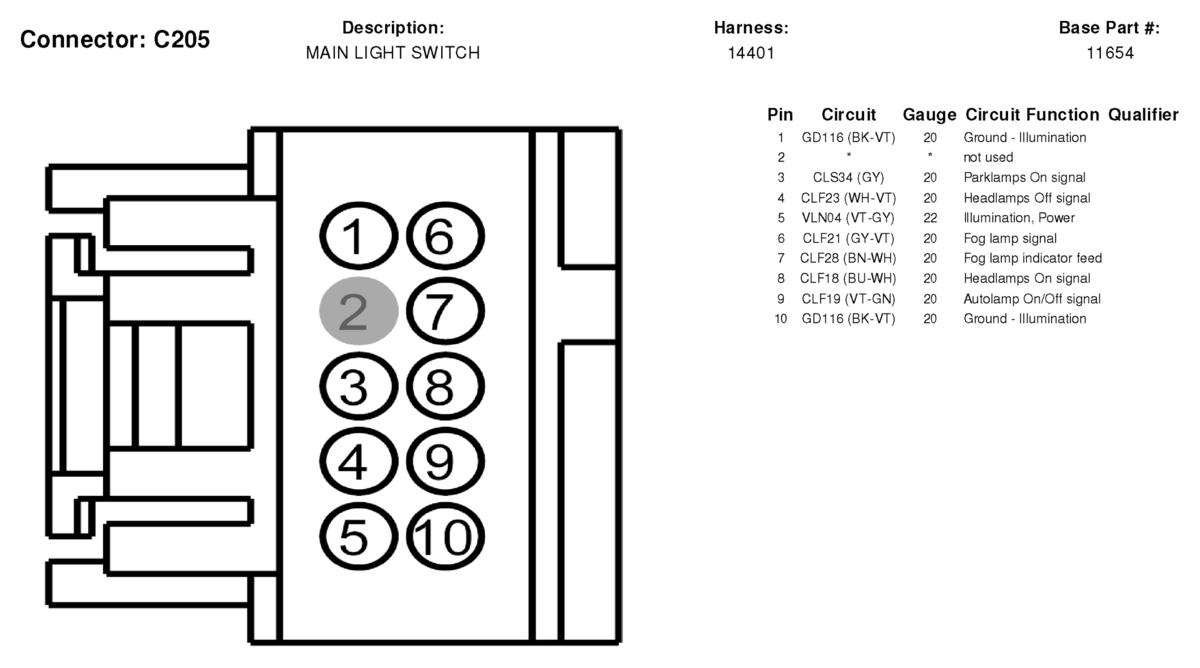

Fig 52: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.

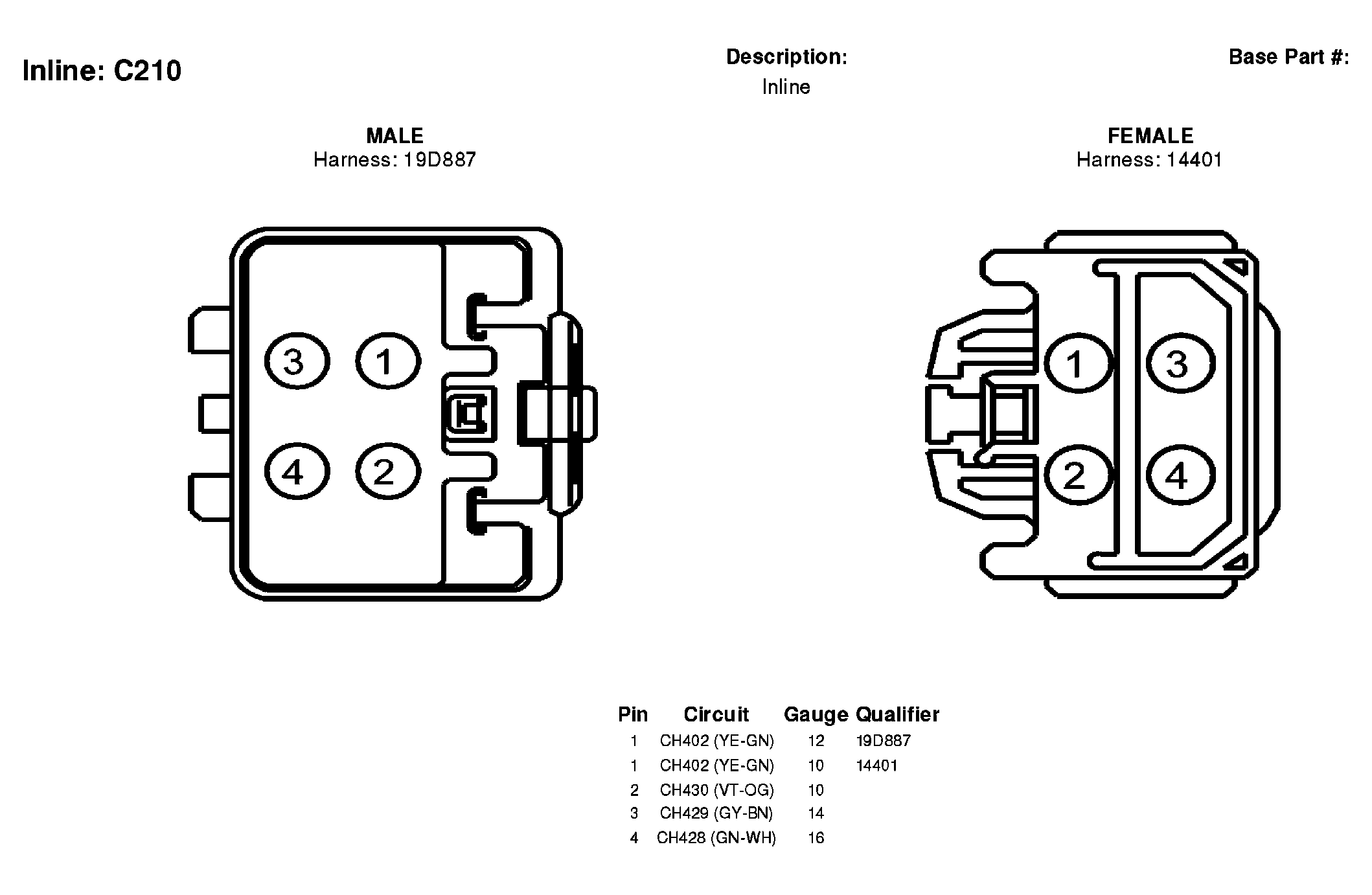

Fig 53: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

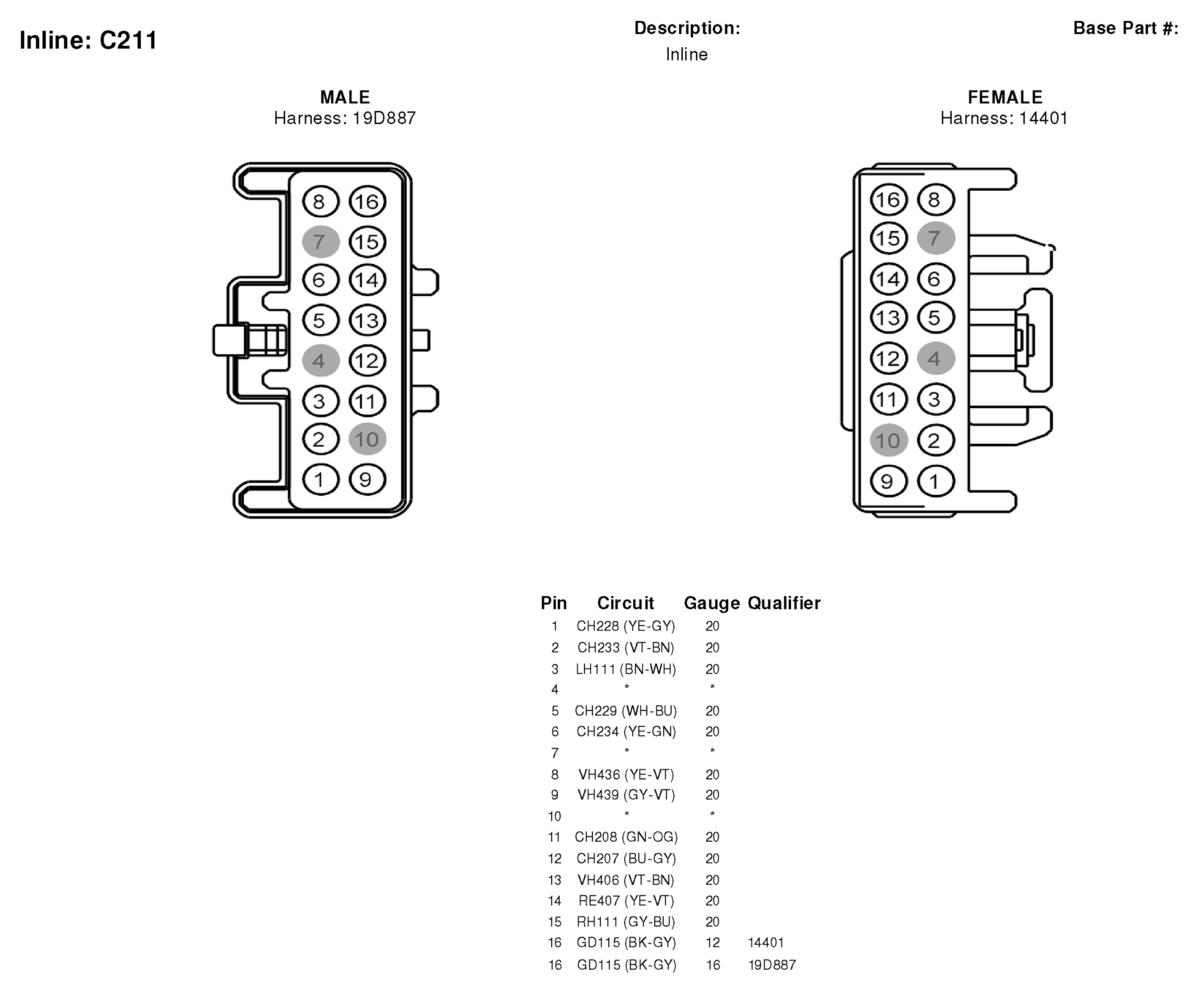

Fig 54: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

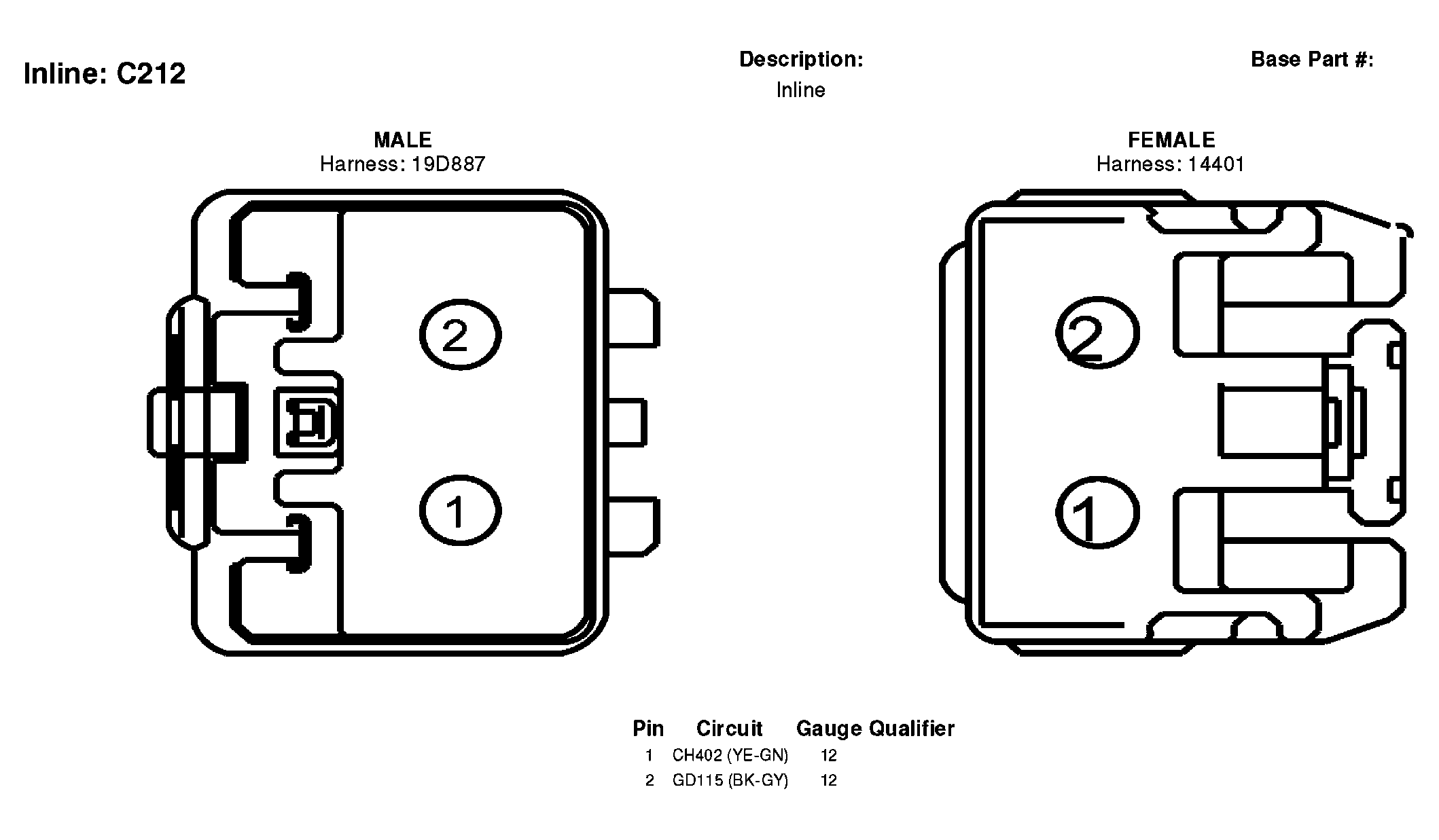

Fig 55: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

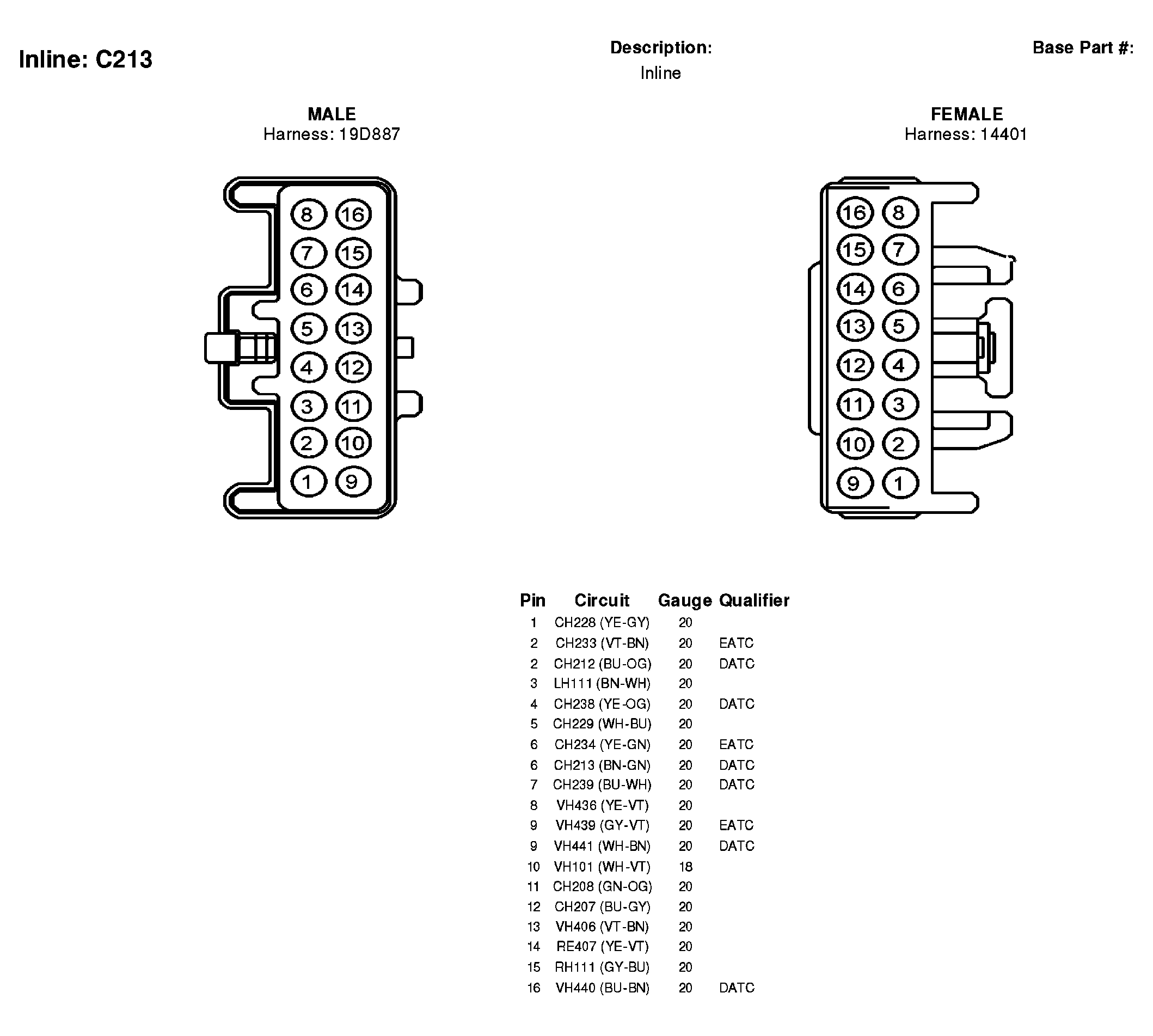

Fig 56: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

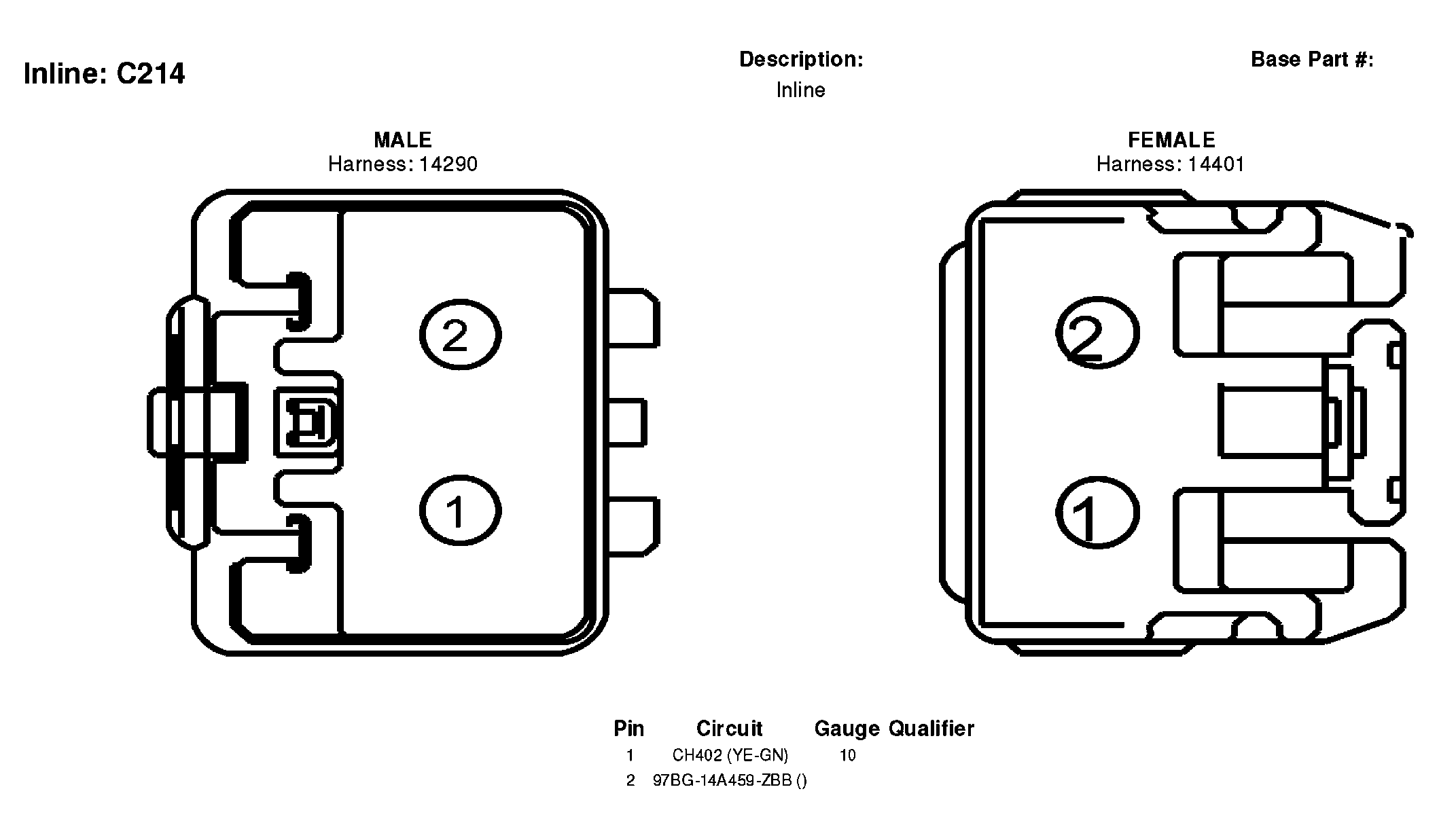

Fig 57: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

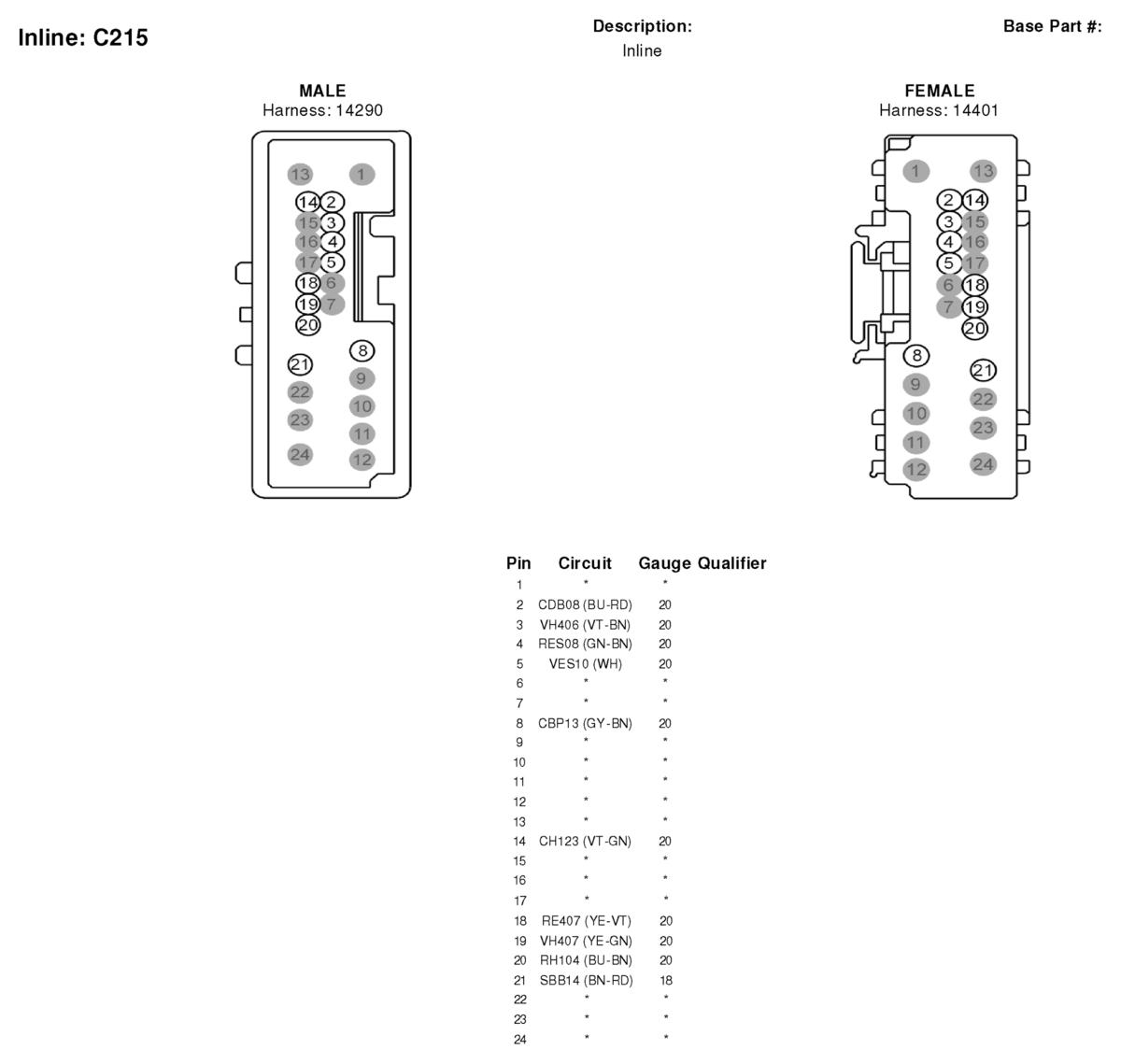

Fig 58: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

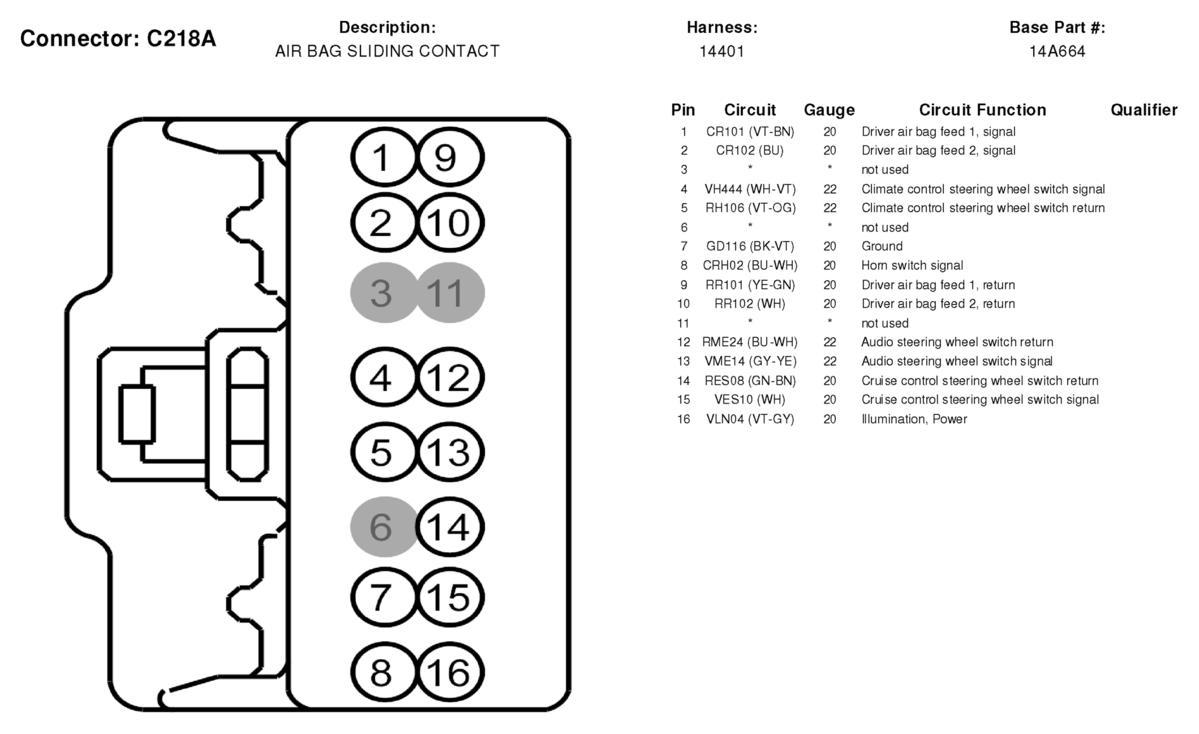

Fig 59: Air Bag Sliding Contact Connector End View (C218A)
Courtesy of FORD MOTOR CO.

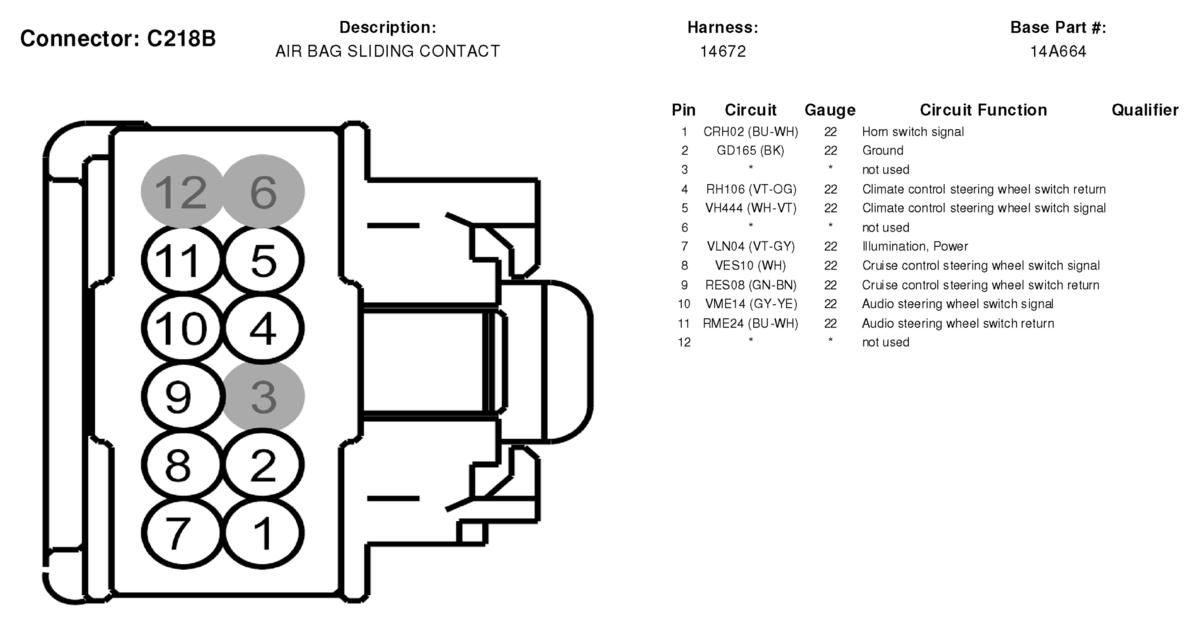

Fig 60: Air Bag Sliding Contact Connector End View (C218B)
Courtesy of FORD MOTOR CO.

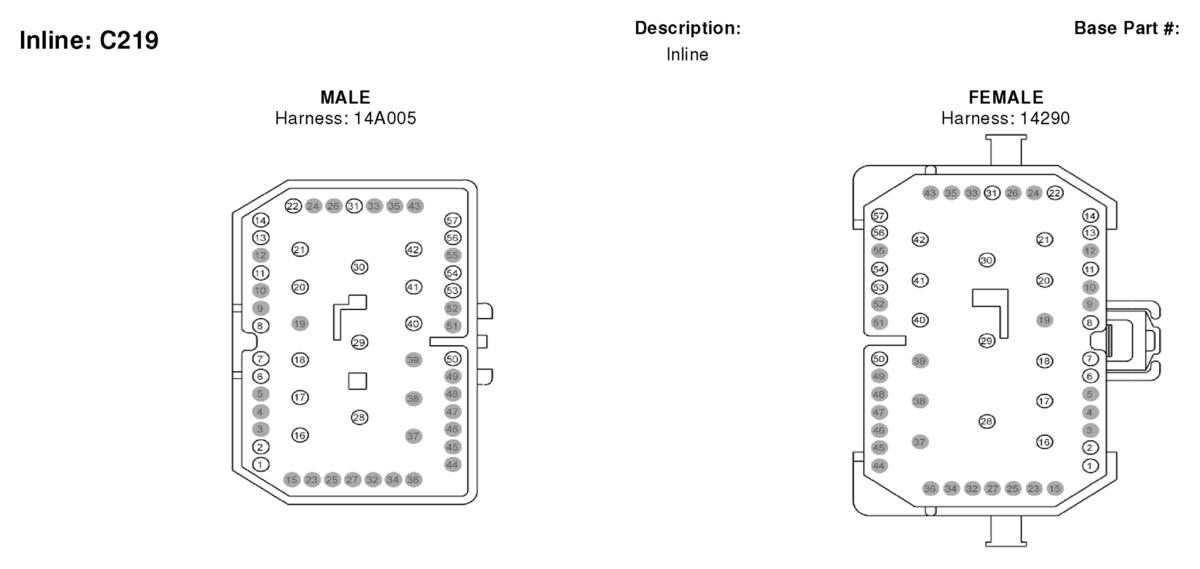

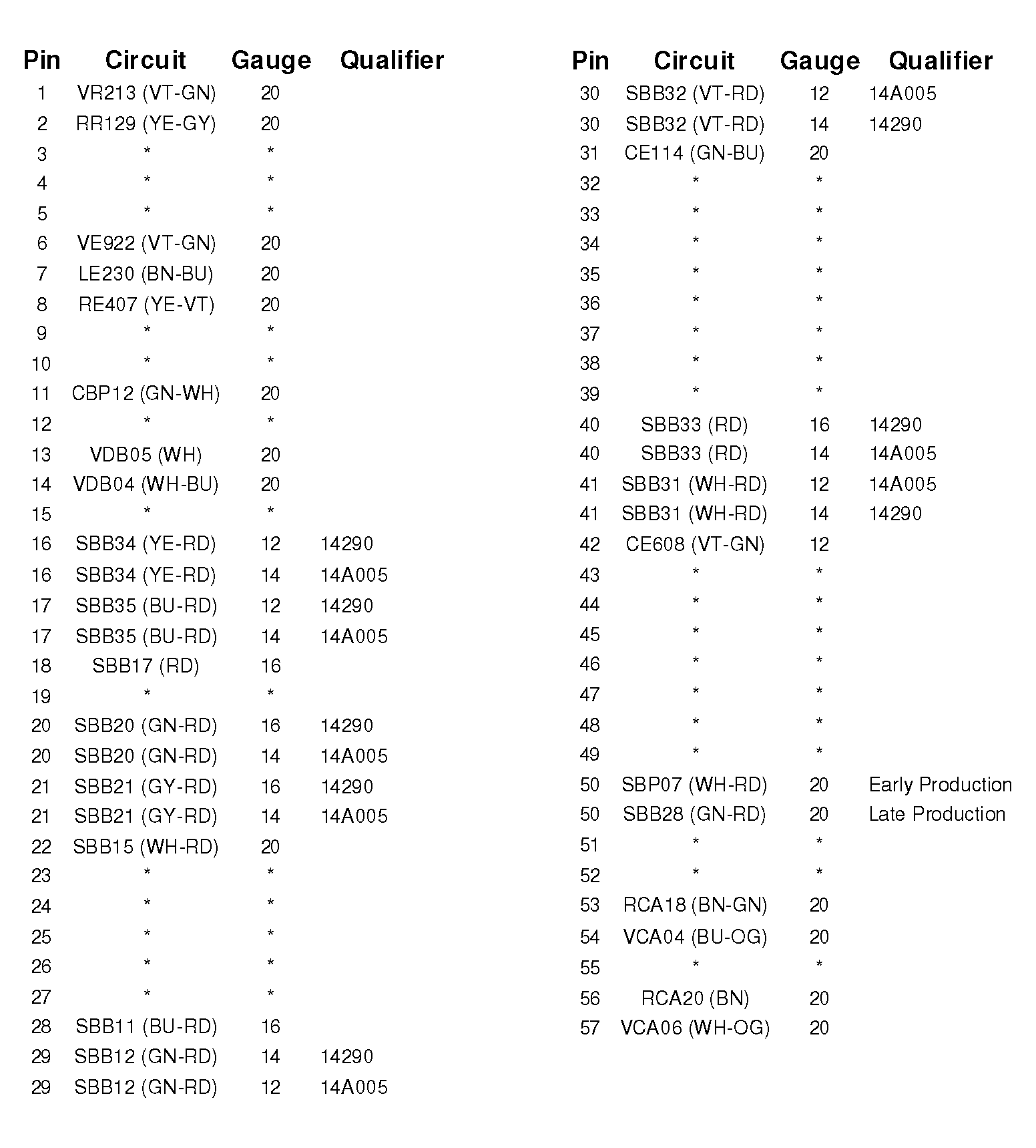

Fig 61: Inline Connector End View (C219) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 62: Inline Connector End View (C219) (2 Of 2)
Courtesy of FORD MOTOR CO.

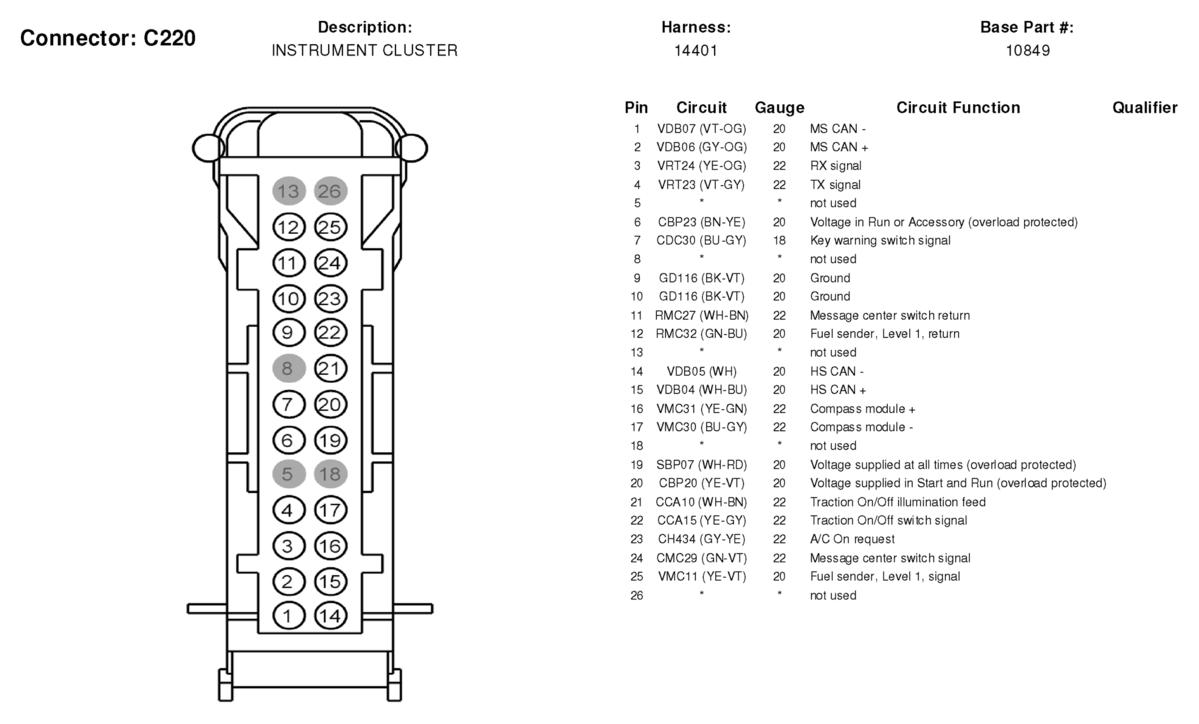

Fig 63: Instrument Cluster Connector End View (C220)
Courtesy of FORD MOTOR CO.

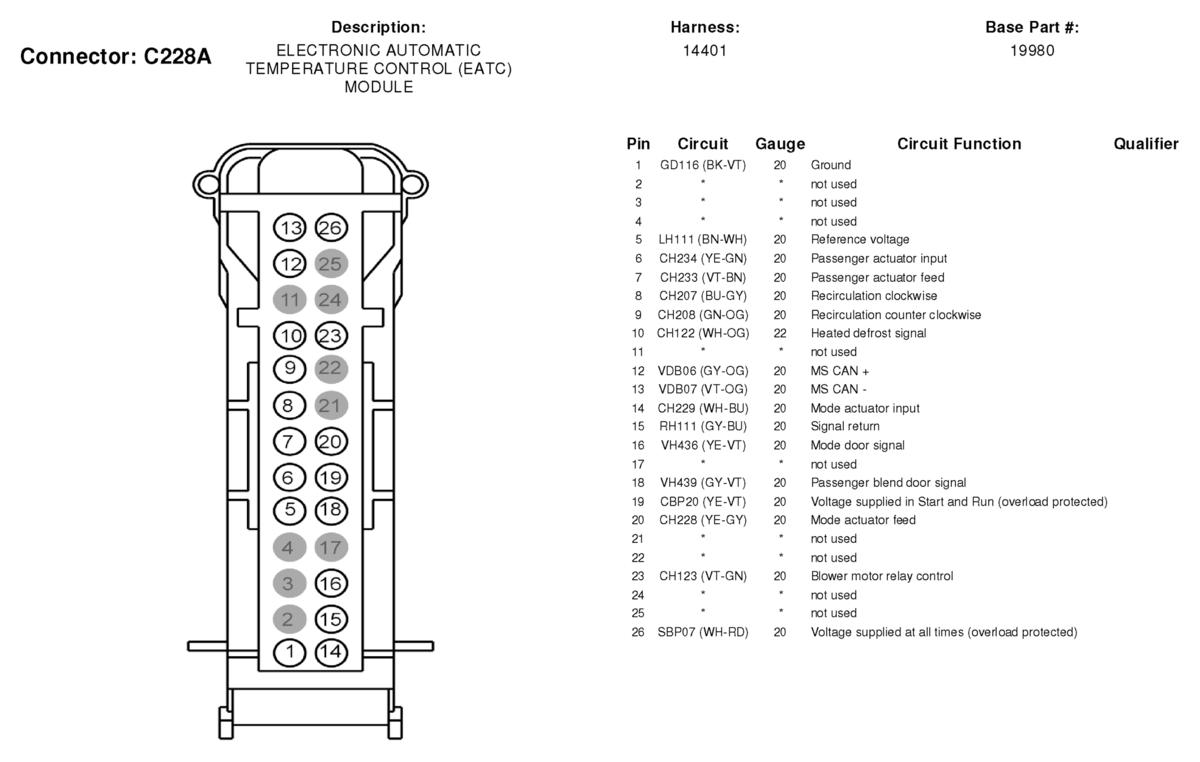

Fig 64: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228A)
Courtesy of FORD MOTOR CO.

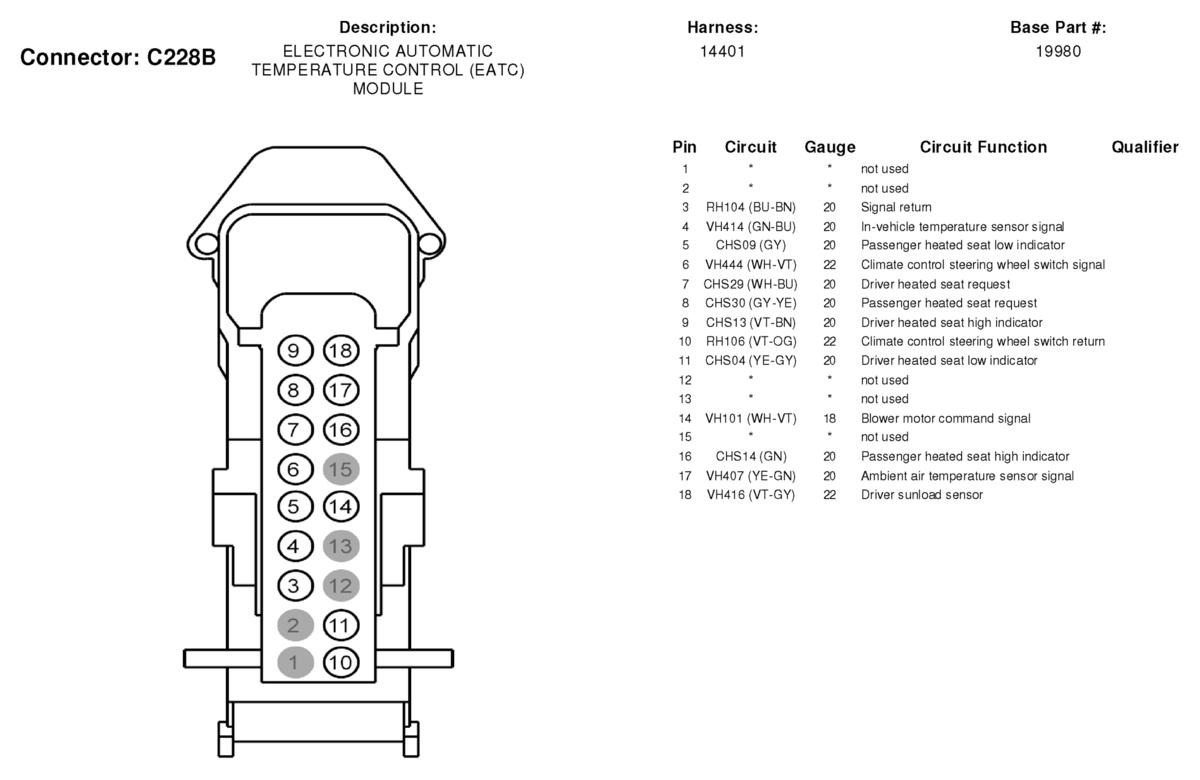

Fig 65: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228B)
Courtesy of FORD MOTOR CO.

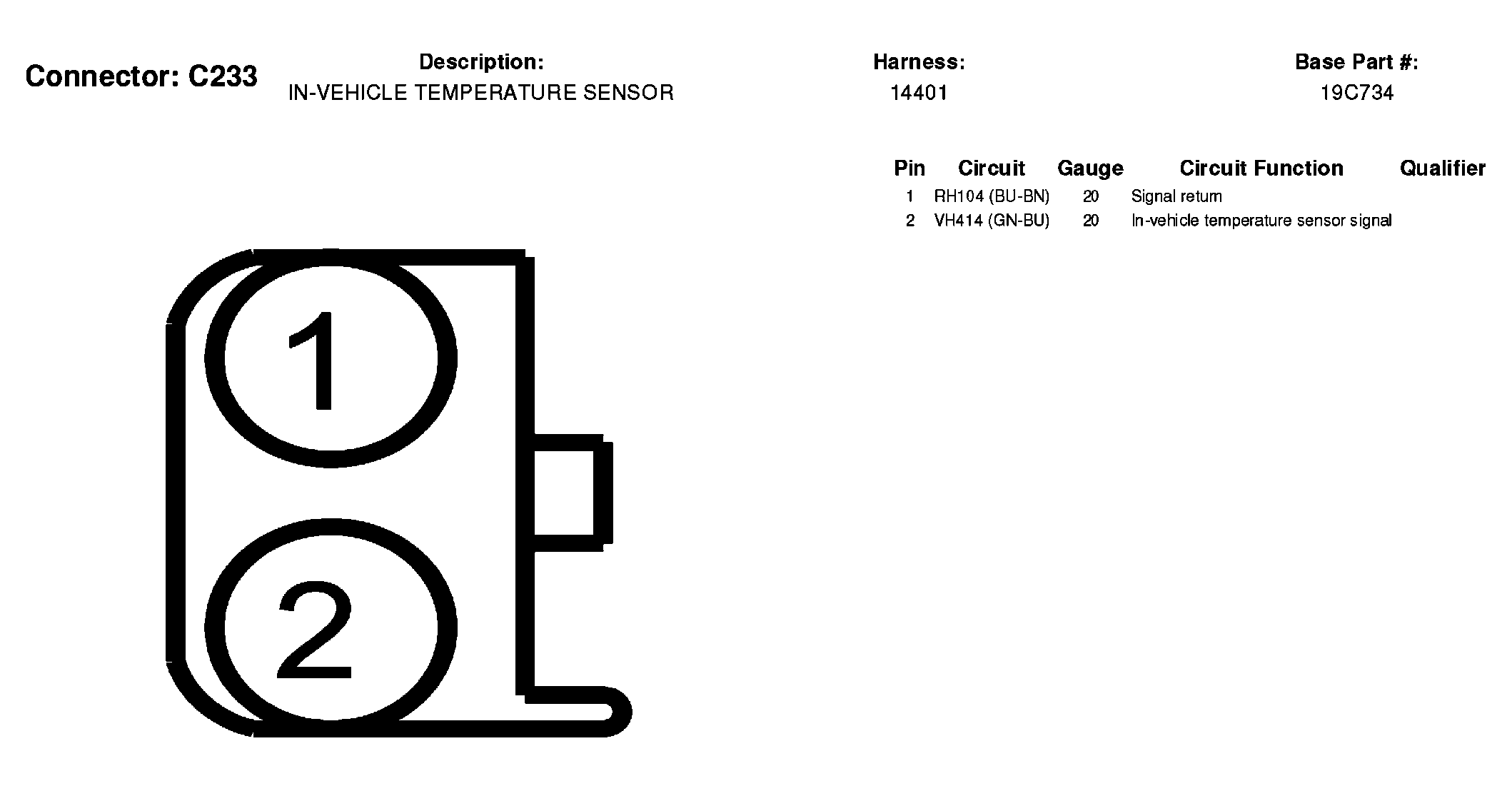

Fig 66: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.

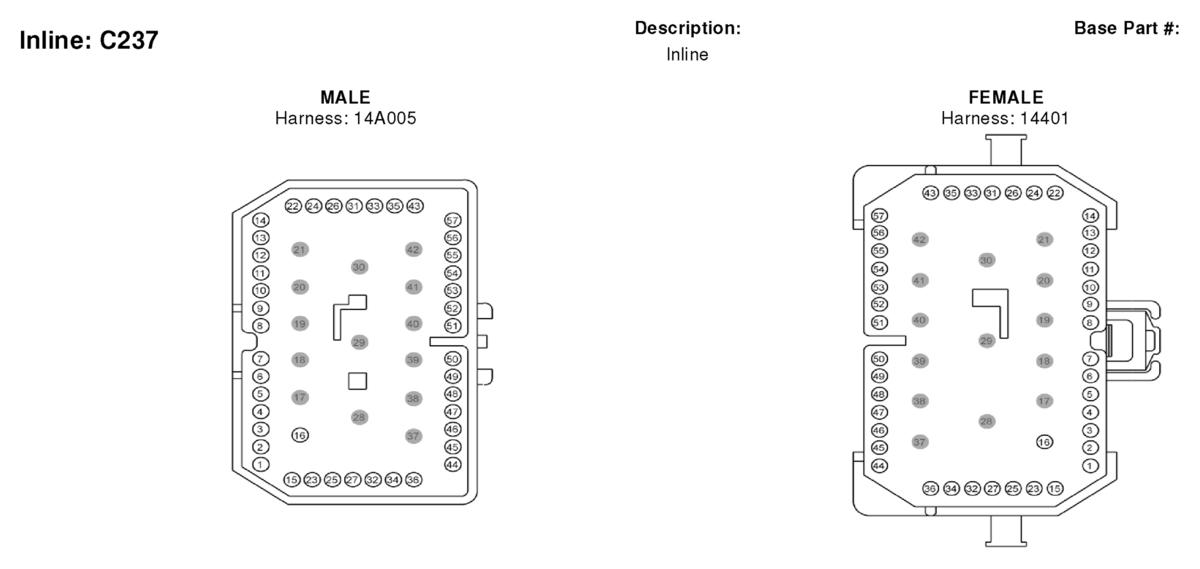

Fig 67: Inline Connector End View (C237) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 68: Inline Connector End View (C237) (2 Of 2)
Courtesy of FORD MOTOR CO.

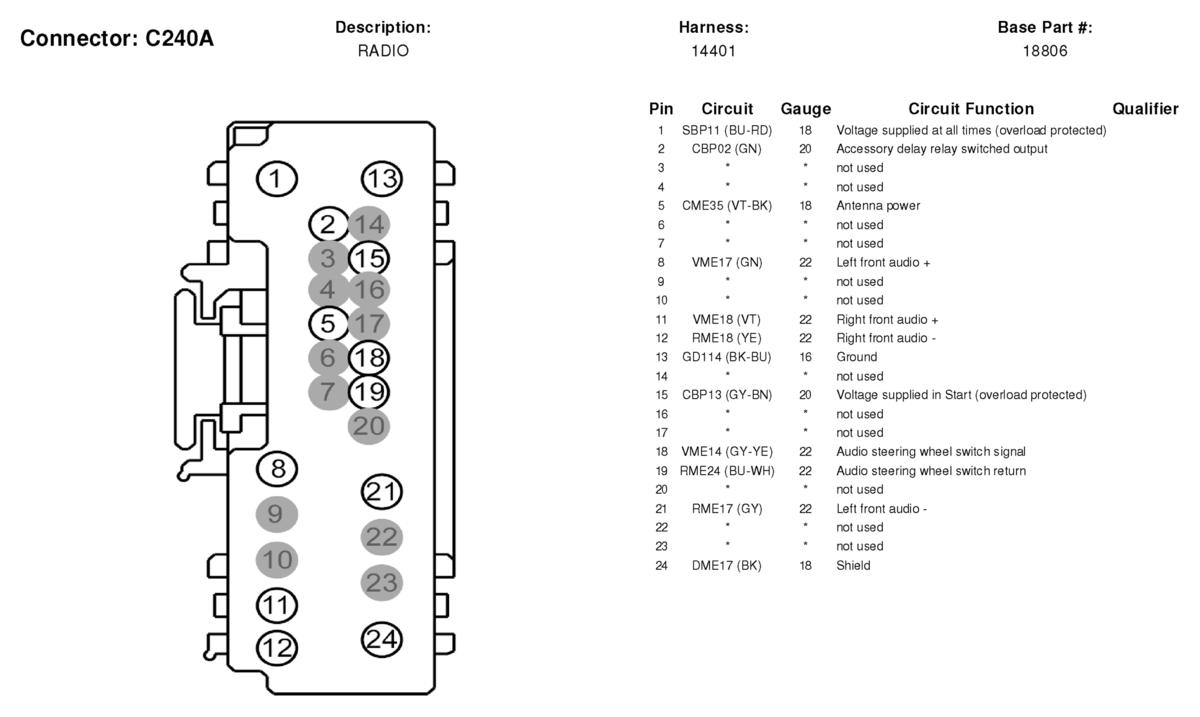

Fig 69: Radio Connector End View (C240A)
Courtesy of FORD MOTOR CO.

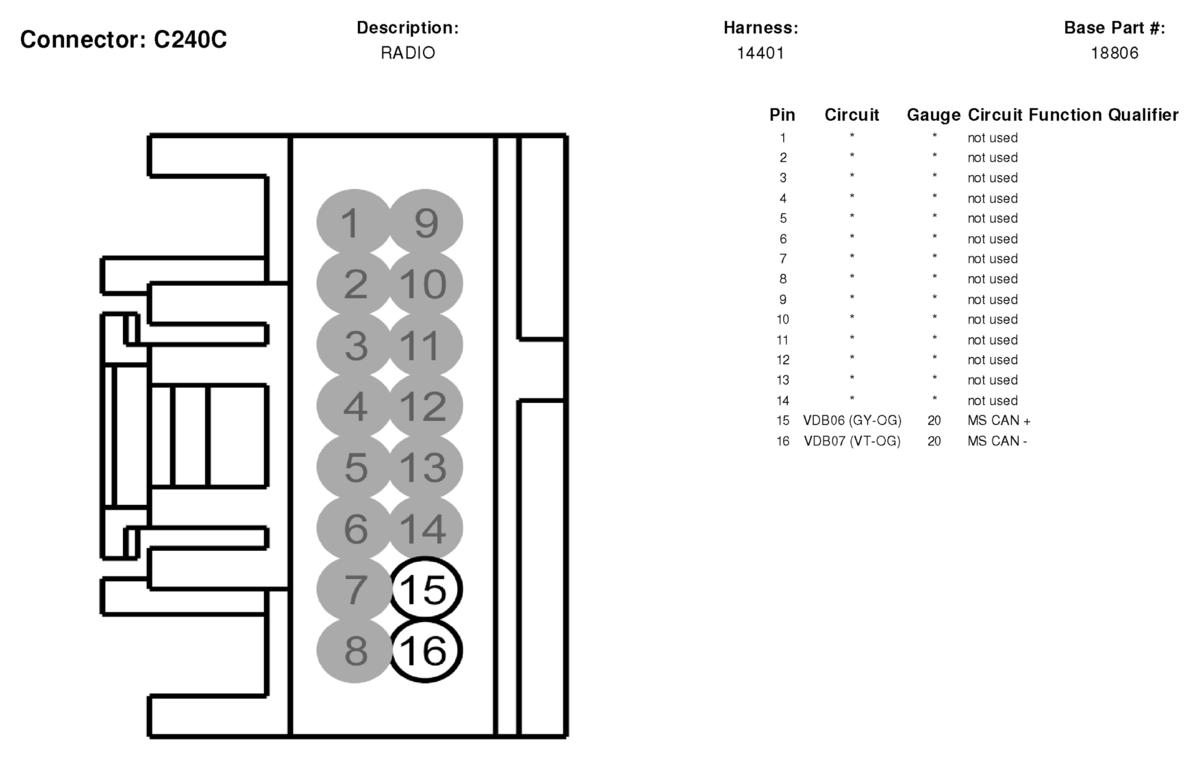

Fig 70: Radio Connector End View (C240C)
Courtesy of FORD MOTOR CO.

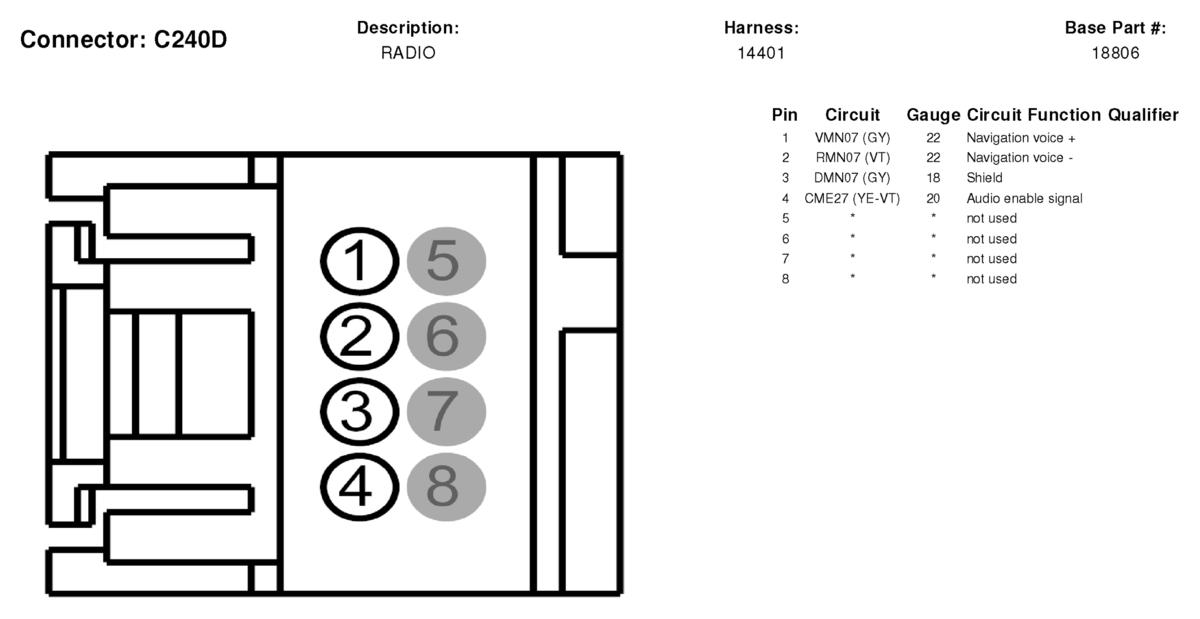

Fig 71: Radio Connector End View (C240D)
Courtesy of FORD MOTOR CO.

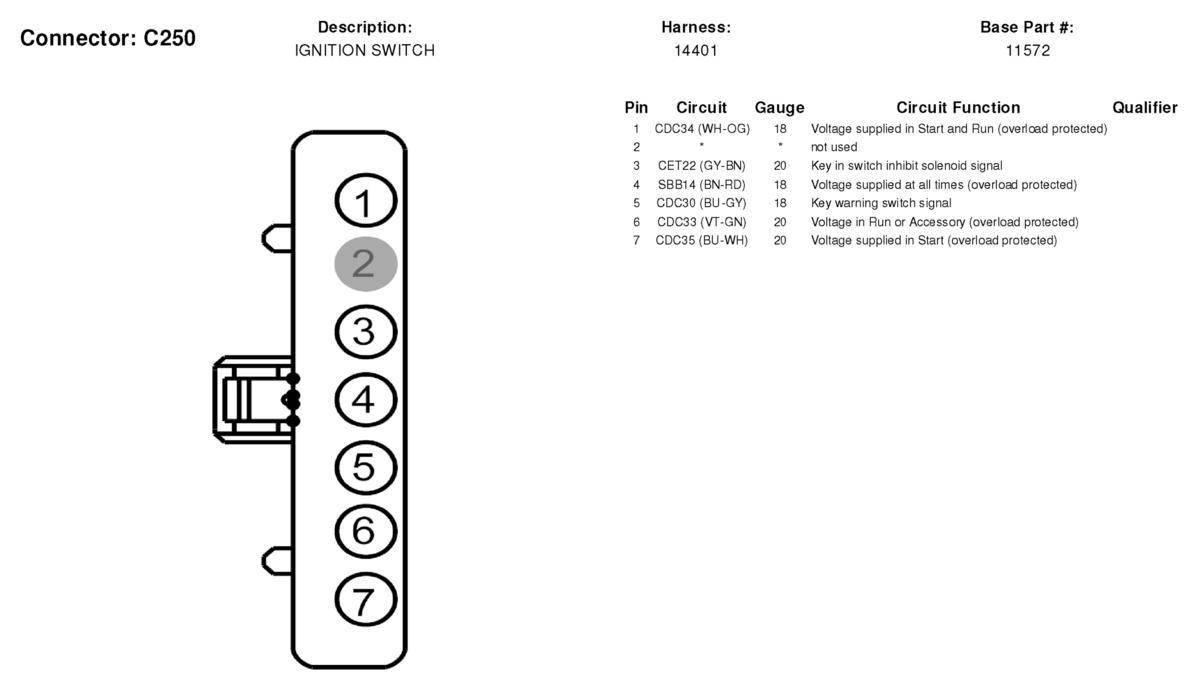

Fig 72: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

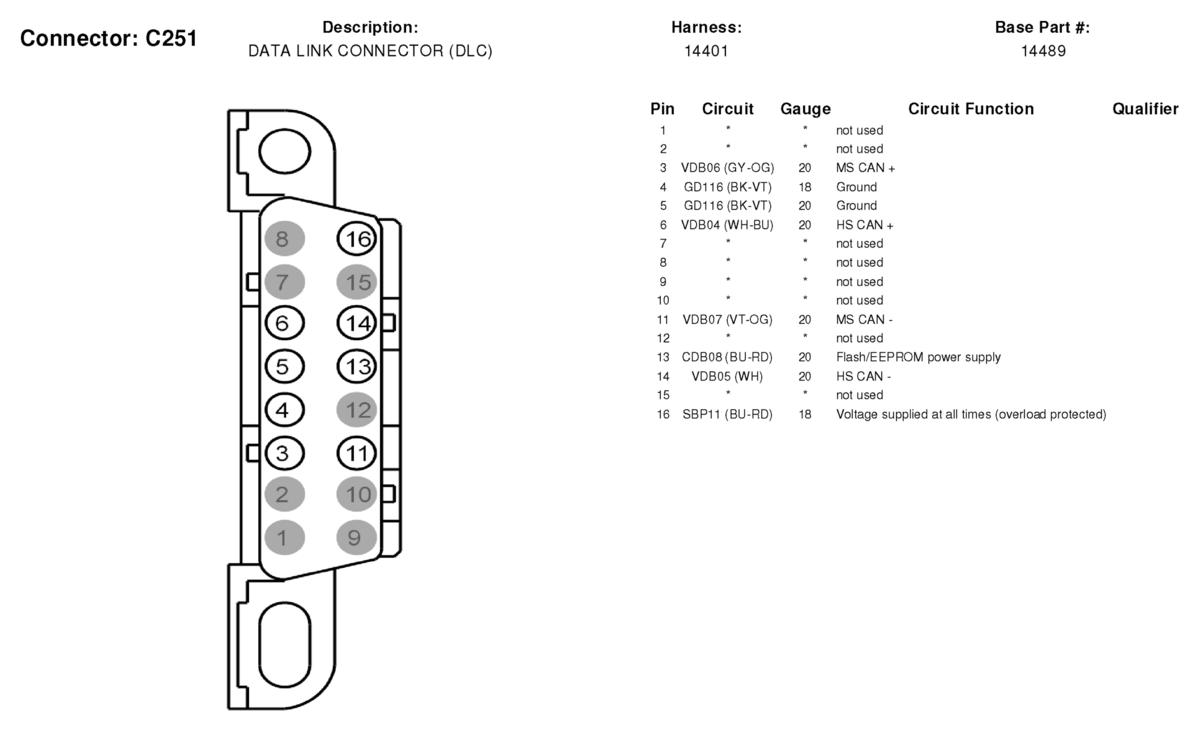

Fig 73: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

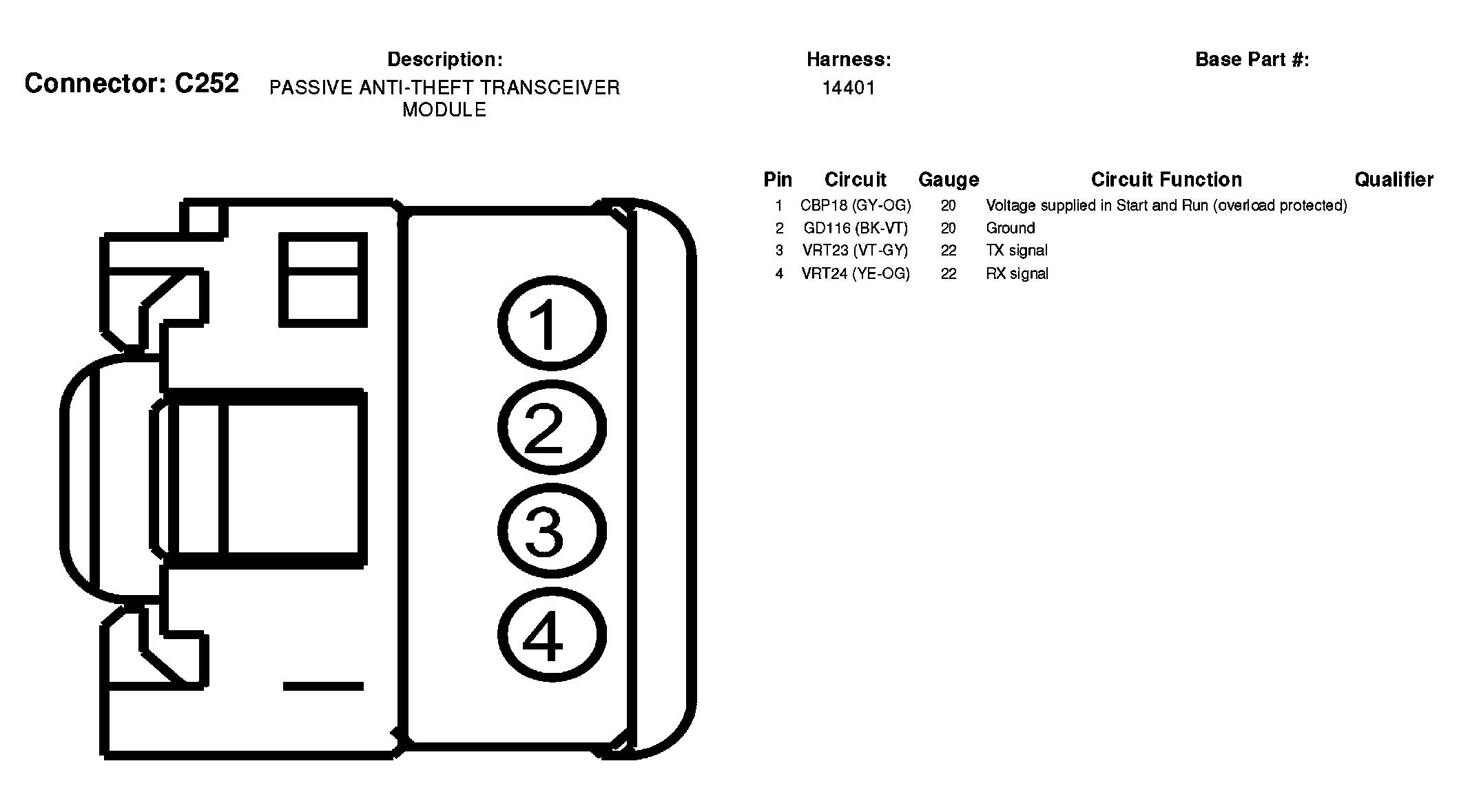

Fig 74: Passive Anti-Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.

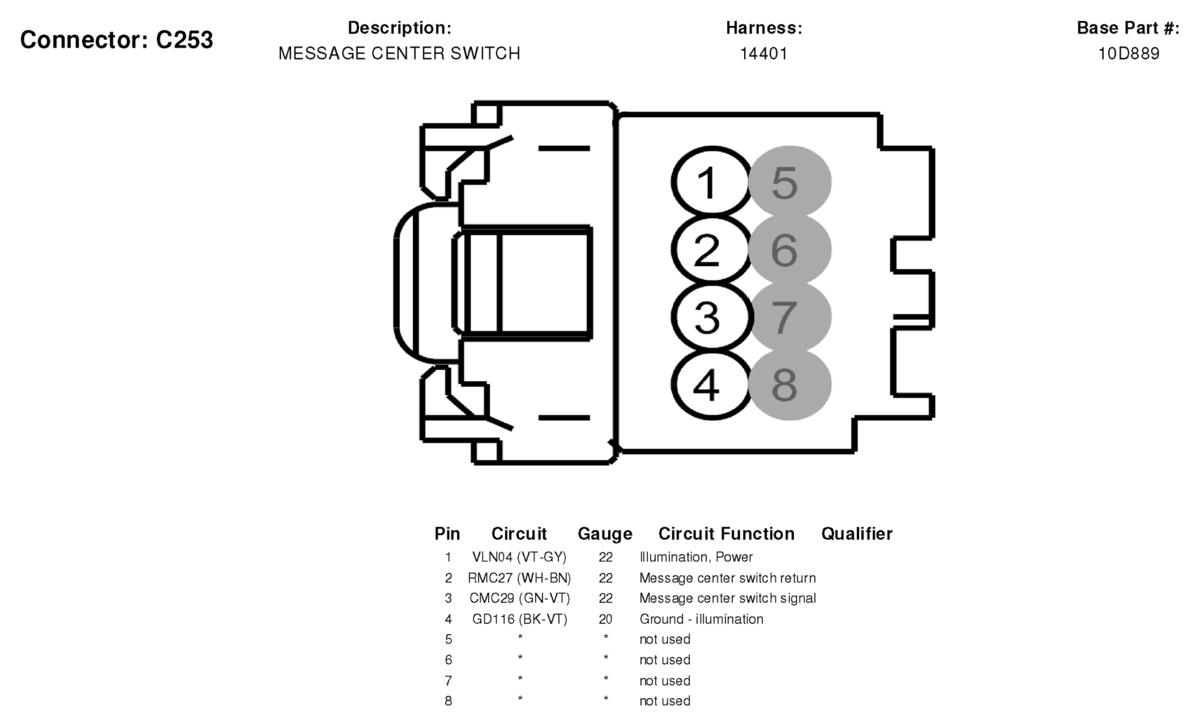

Fig 75: Massage Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

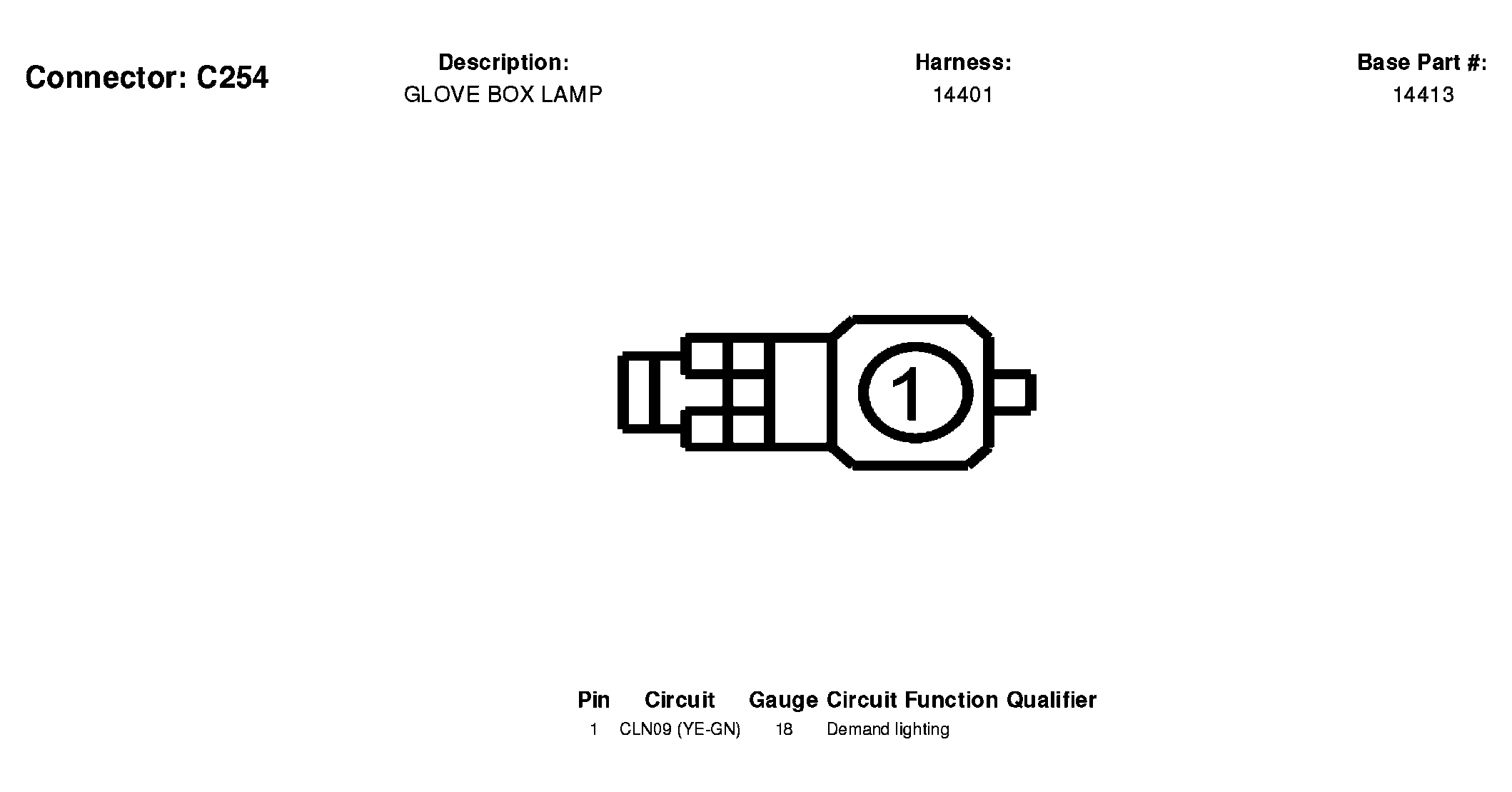

Fig 76: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.

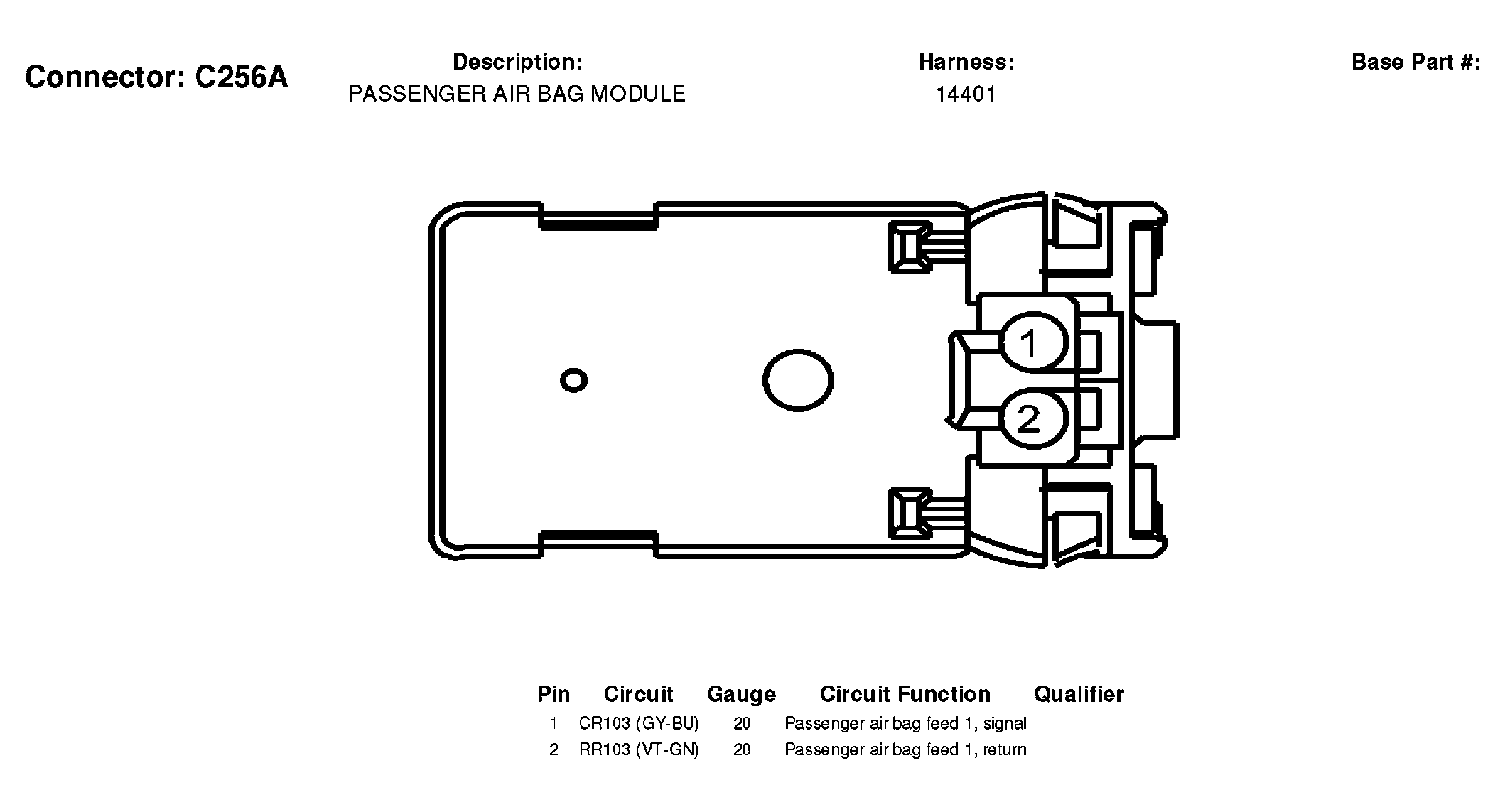

Fig 77: Passenger Air Bag Module Connector End View (C256A)
Courtesy of FORD MOTOR CO.

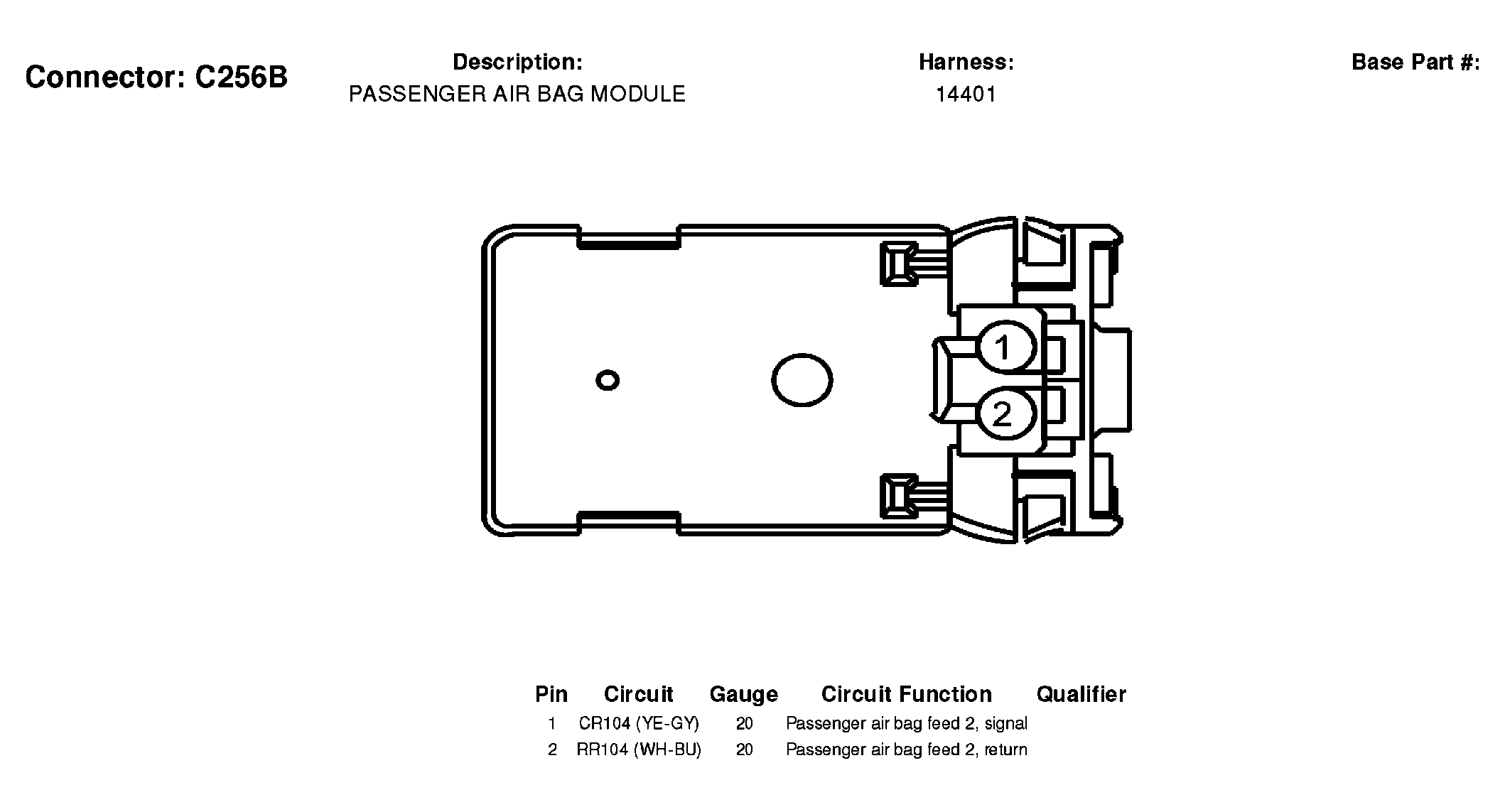

Fig 78: Passenger Air Bag Module Connector End View (C256B)
Courtesy of FORD MOTOR CO.

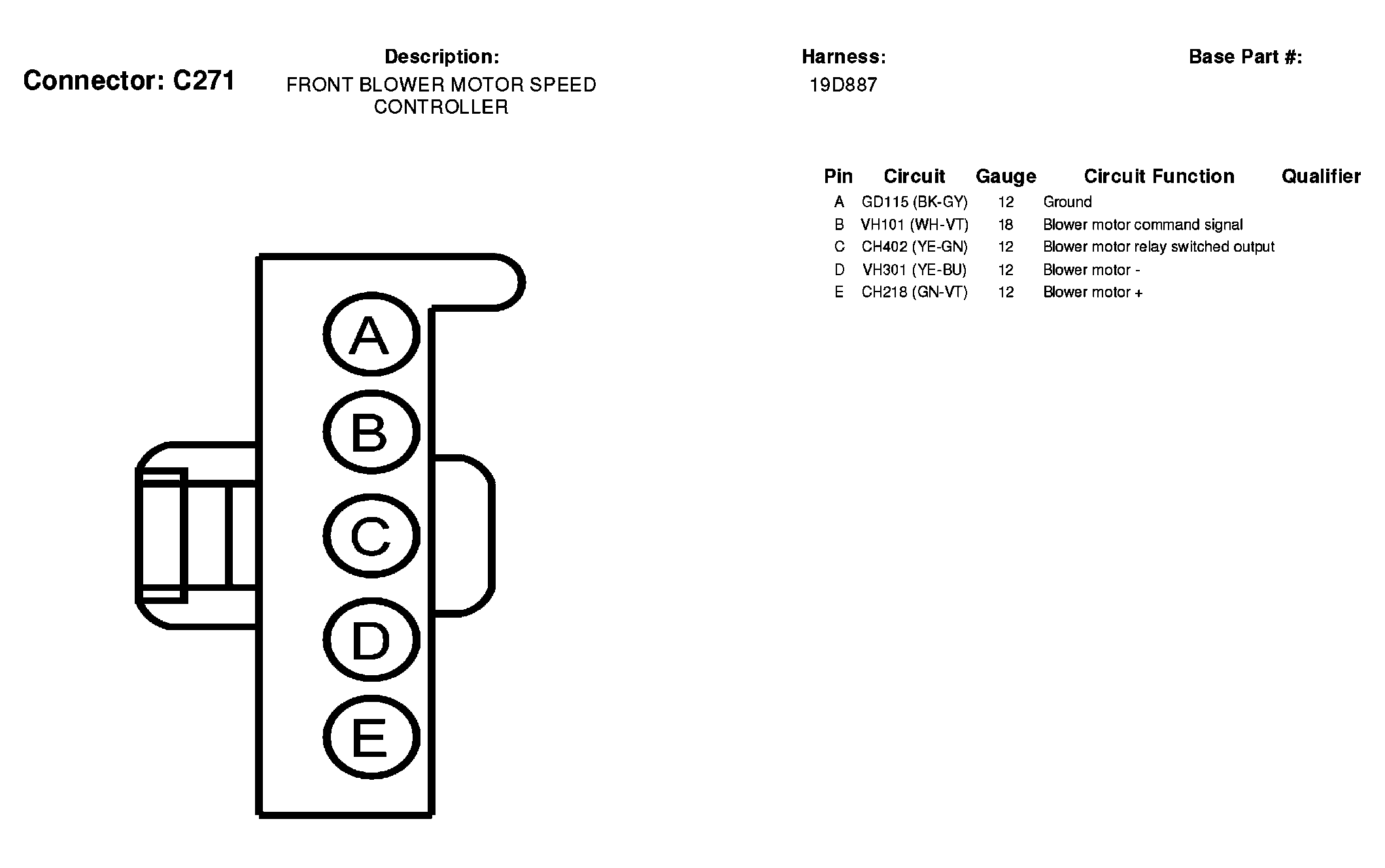

Fig 79: Front Blower Motor Speed Controller Connector End View (C271)
Courtesy of FORD MOTOR CO.

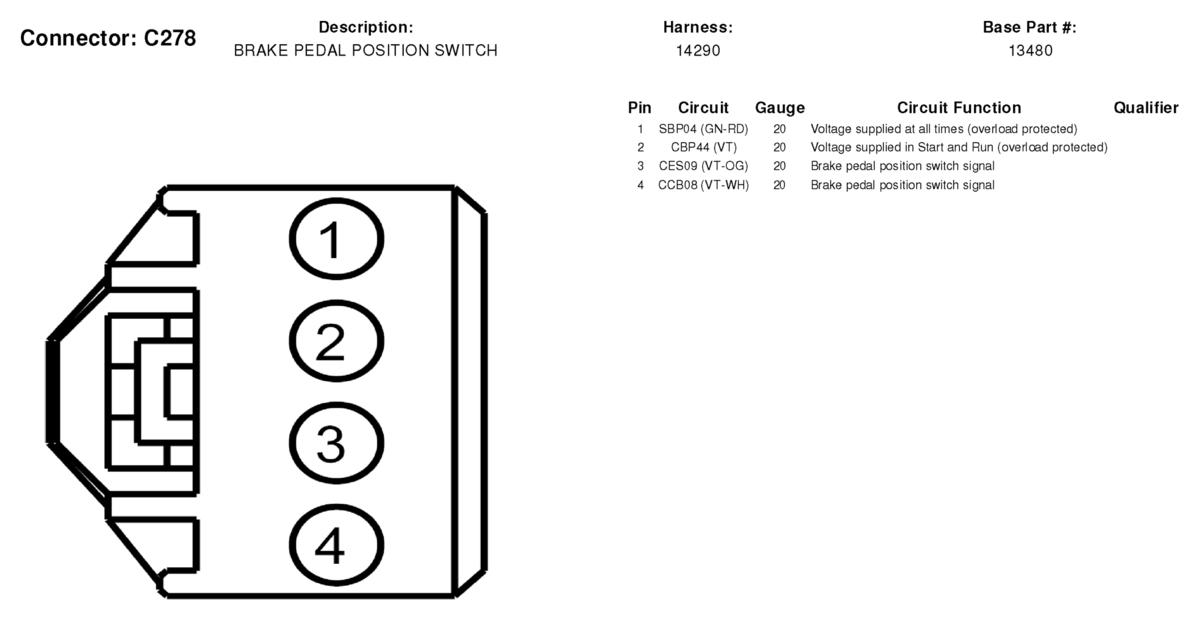

Fig 80: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

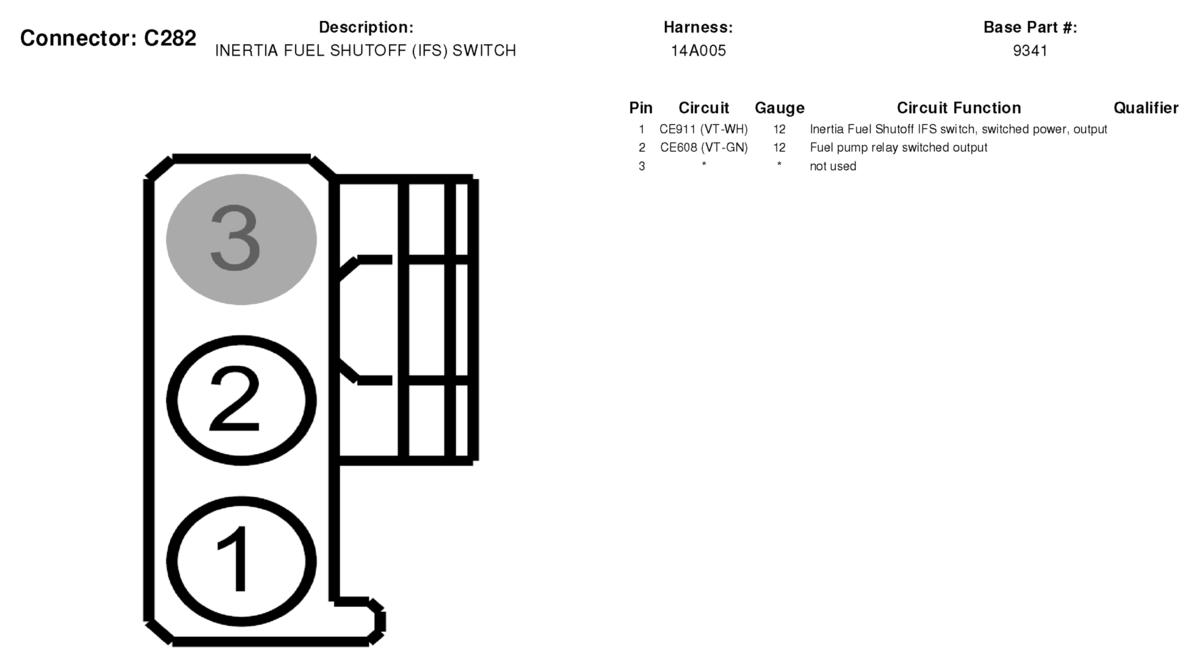

Fig 81: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)
Courtesy of FORD MOTOR CO.

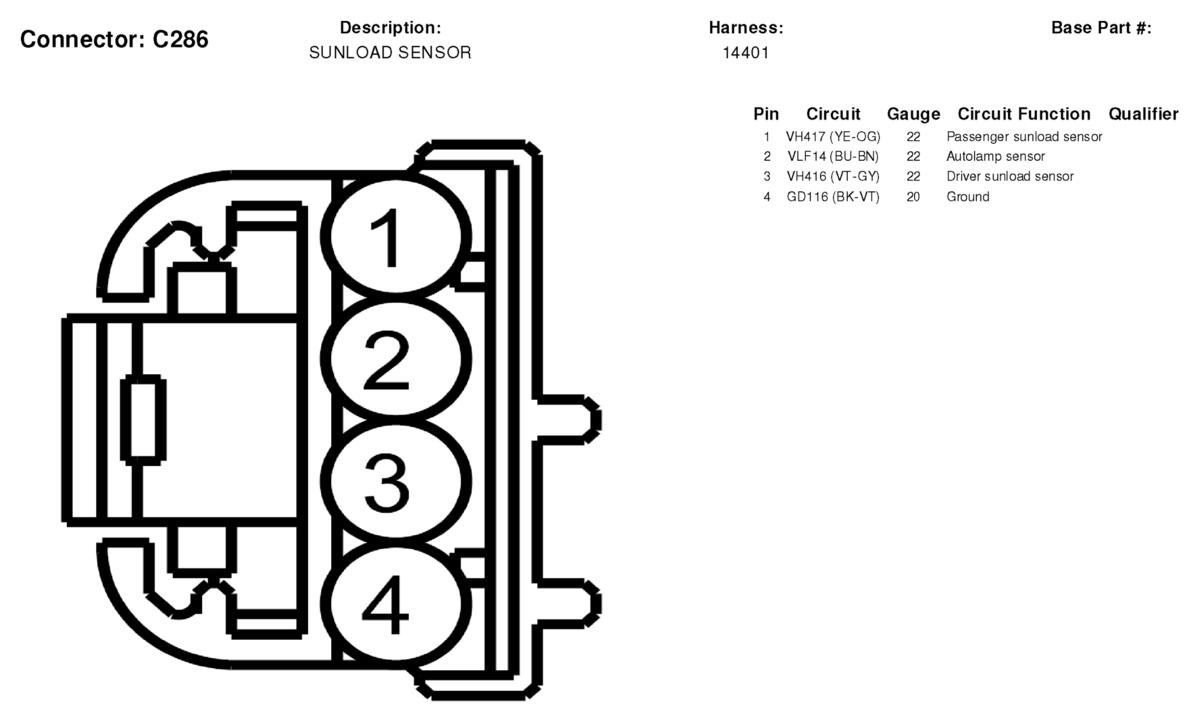

Fig 82: Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.

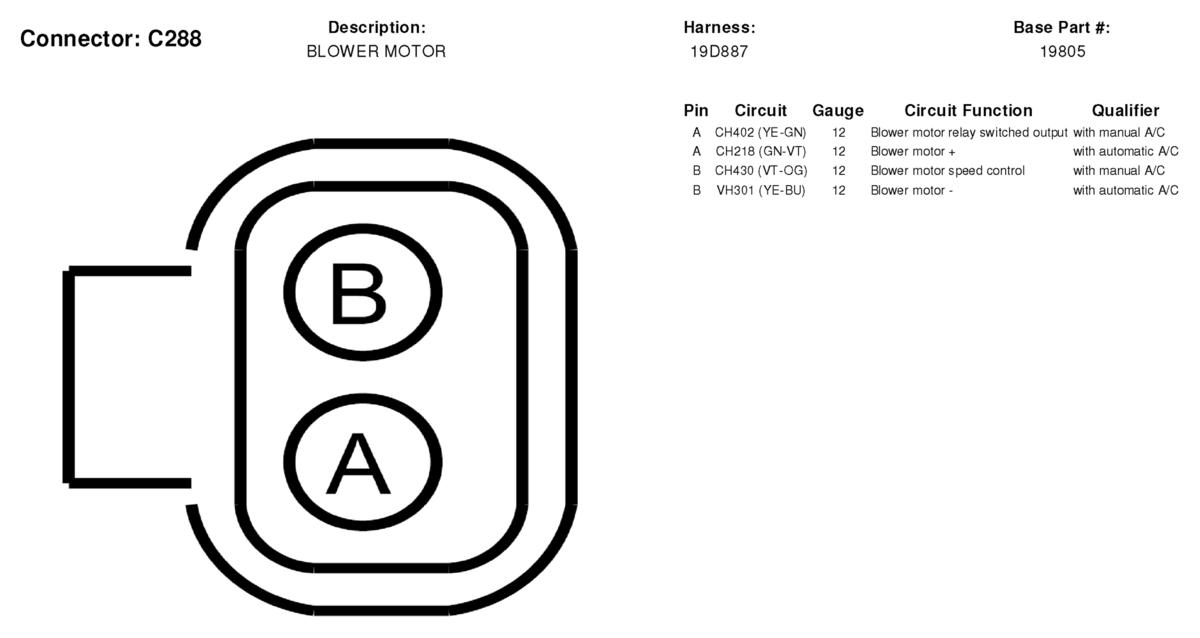

Fig 83: Blower Motor Connector End View (C288)
Courtesy of FORD MOTOR CO.

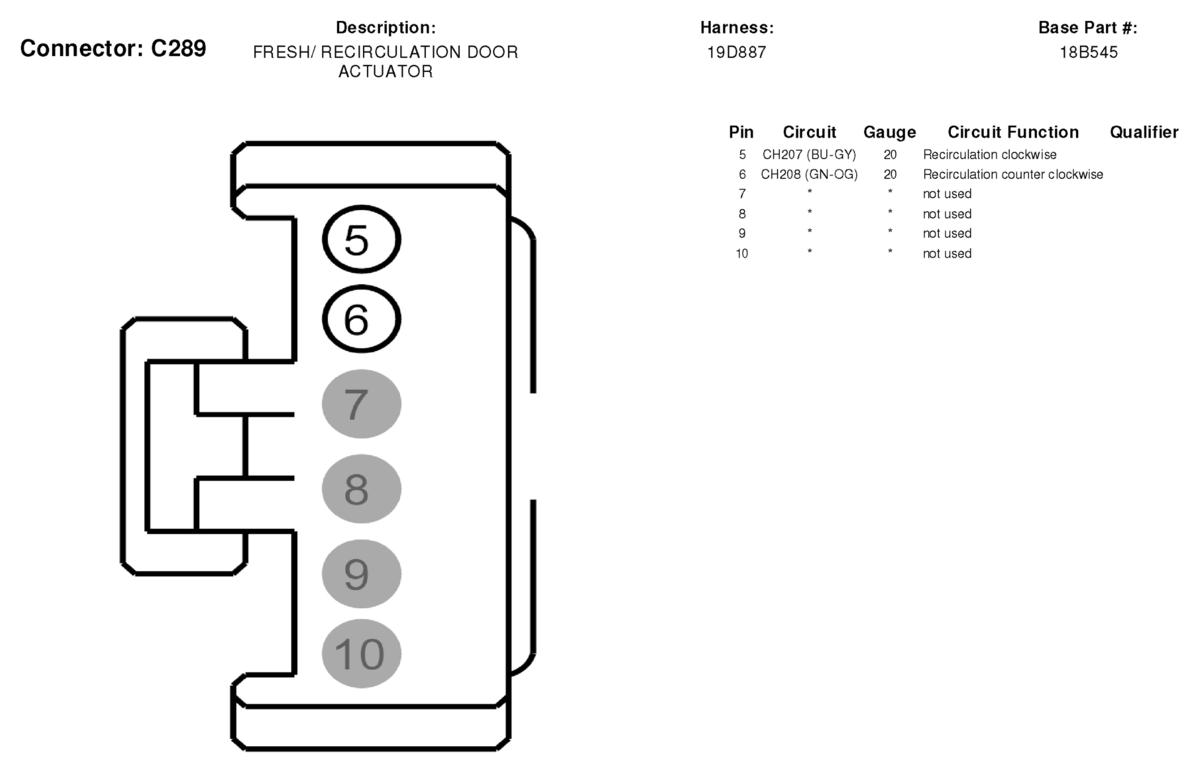

Fig 84: Fresh/Recirculation Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

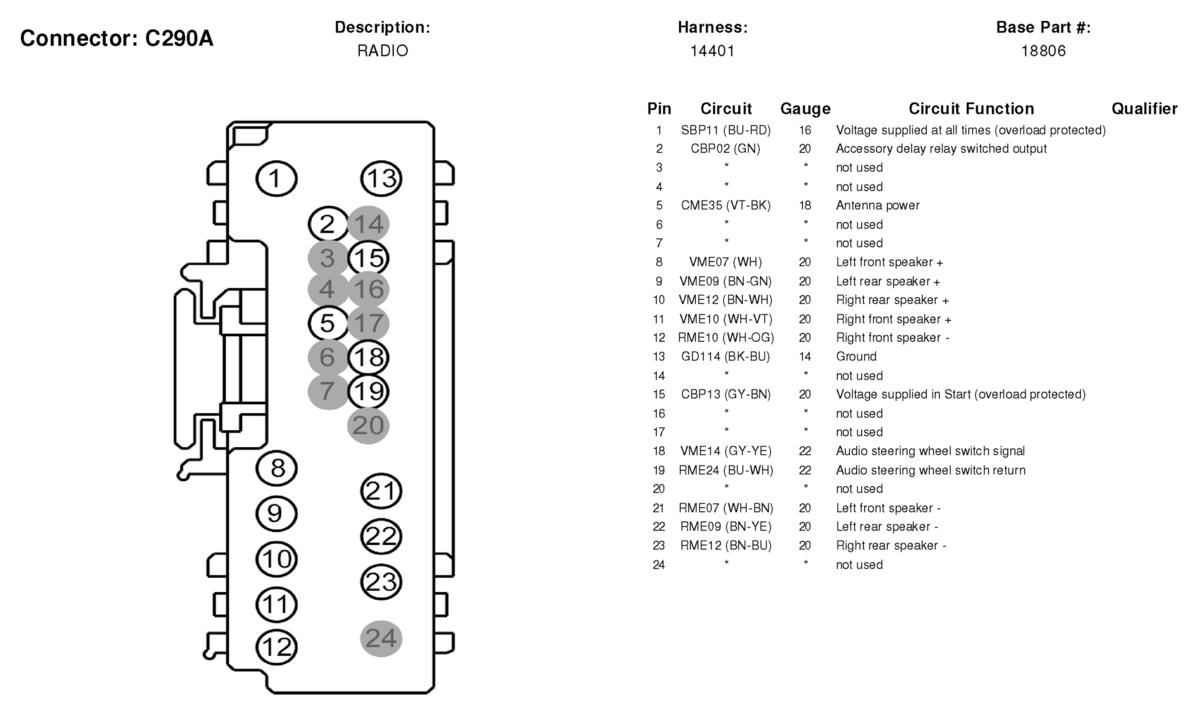

Fig 85: Radio Connector End View (C290A)
Courtesy of FORD MOTOR CO.

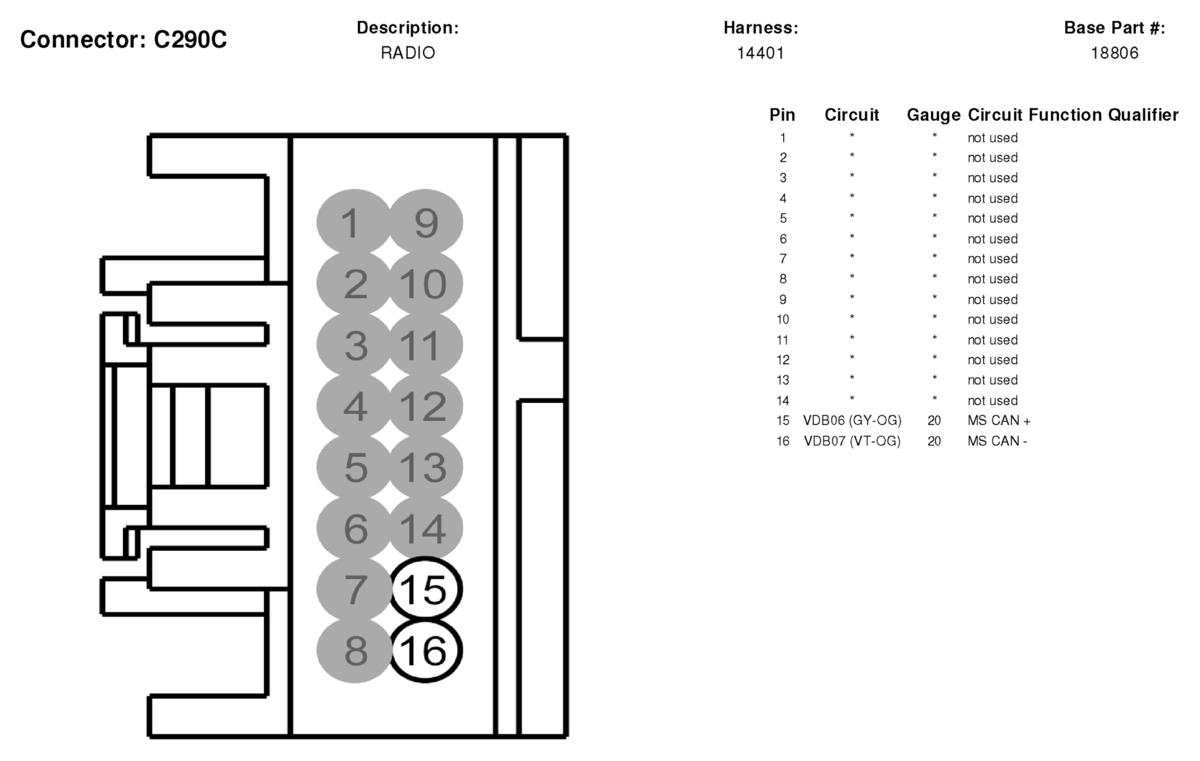

Fig 86: Radio Connector End View (C290C)
Courtesy of FORD MOTOR CO.

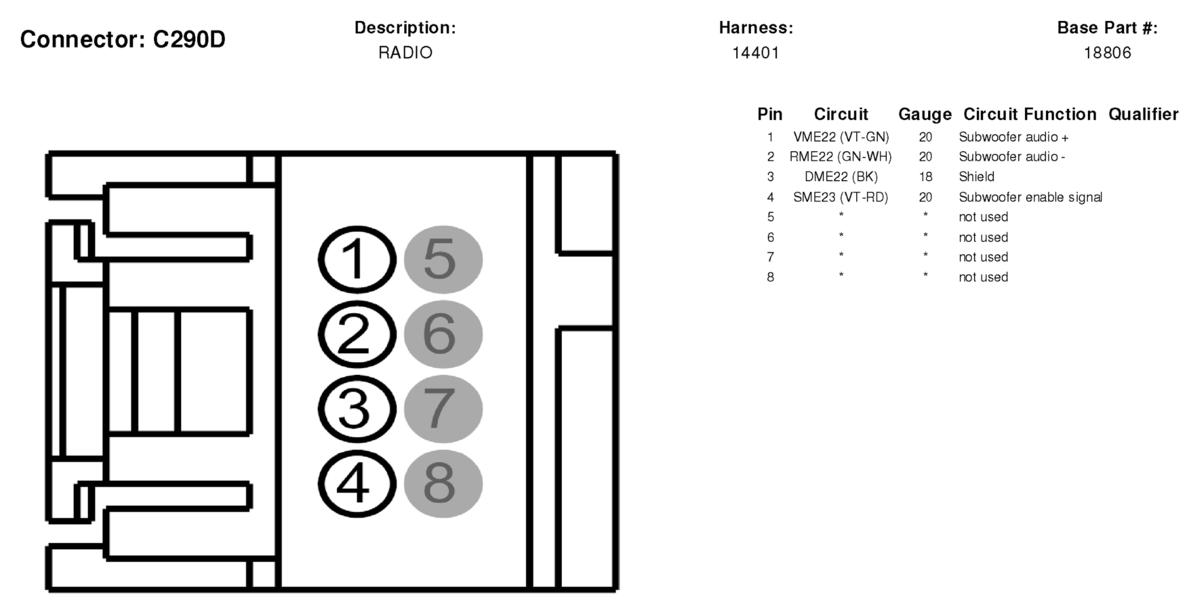

Fig 87: Radio Connector End View (C290D)
Courtesy of FORD MOTOR CO.

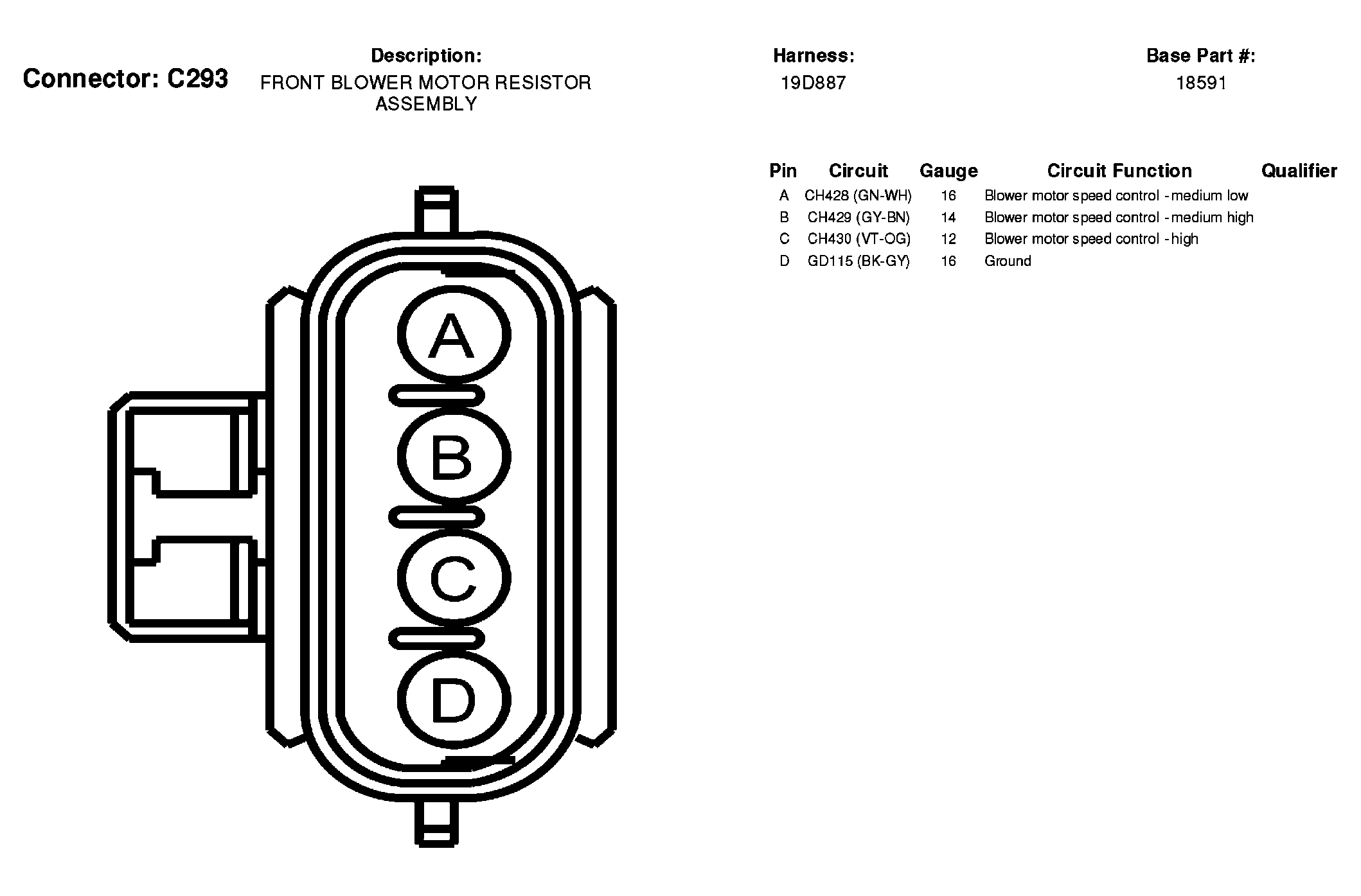

Fig 88: Front Blower Motor Resistor Assembly Connector End View (C293)
Courtesy of FORD MOTOR CO.

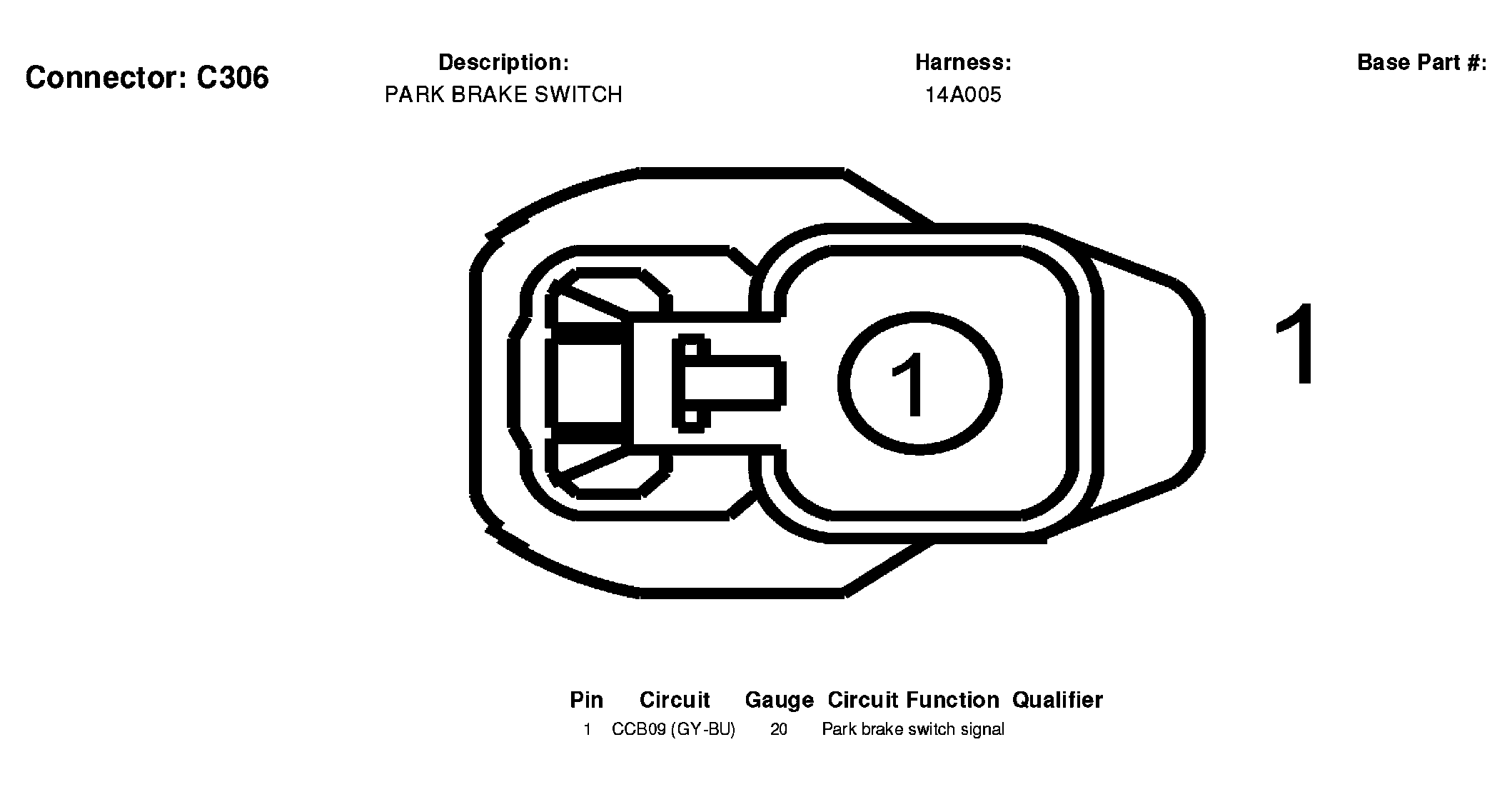

Fig 89: Park Brake Switch Connector End View (C306)
Courtesy of FORD MOTOR CO.

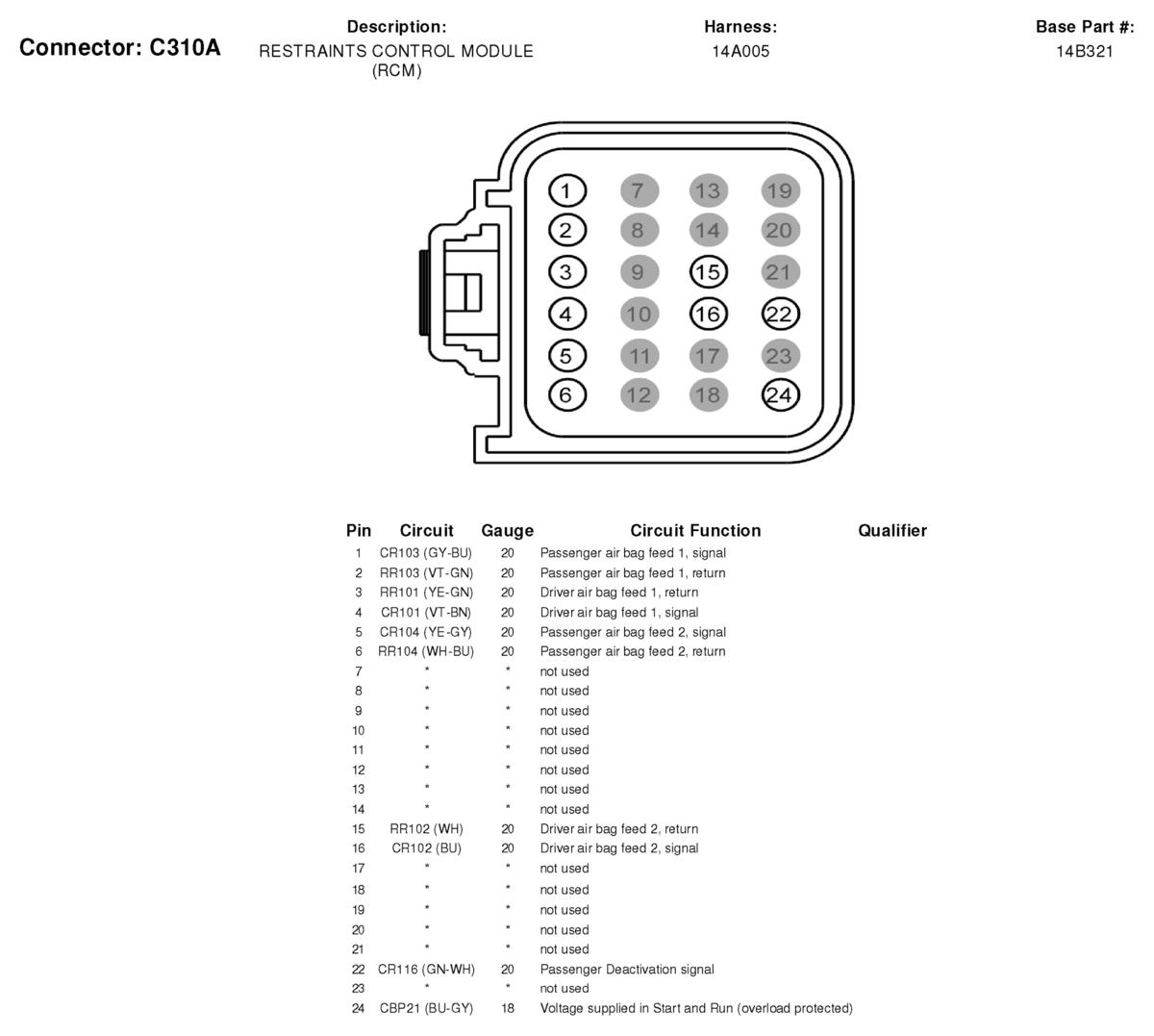

Fig 90: Restraints Control Module (RCM) Connector End View (C310A)
Courtesy of FORD MOTOR CO.

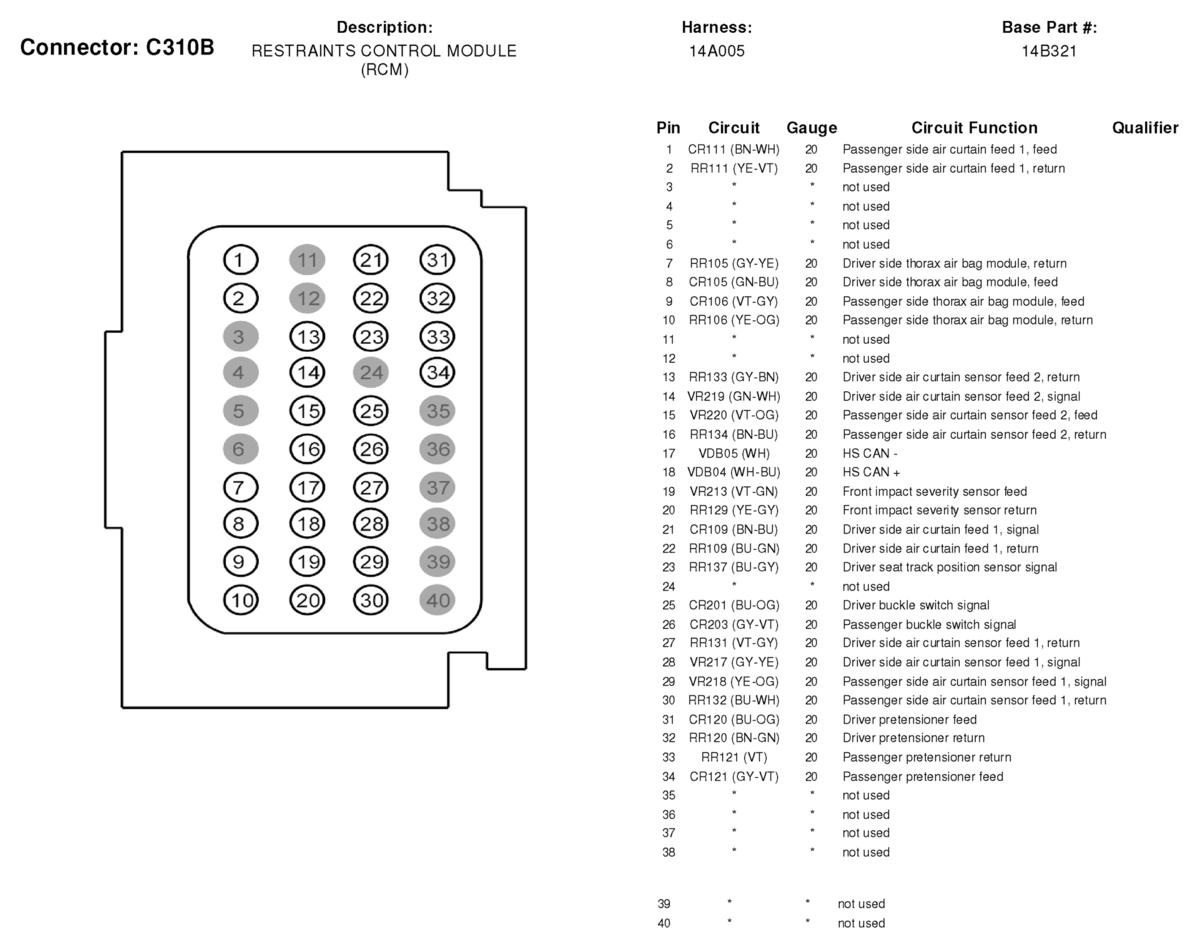

Fig 91: Restraints Control Module (RCM) Connector End View (C310B)
Courtesy of FORD MOTOR CO.

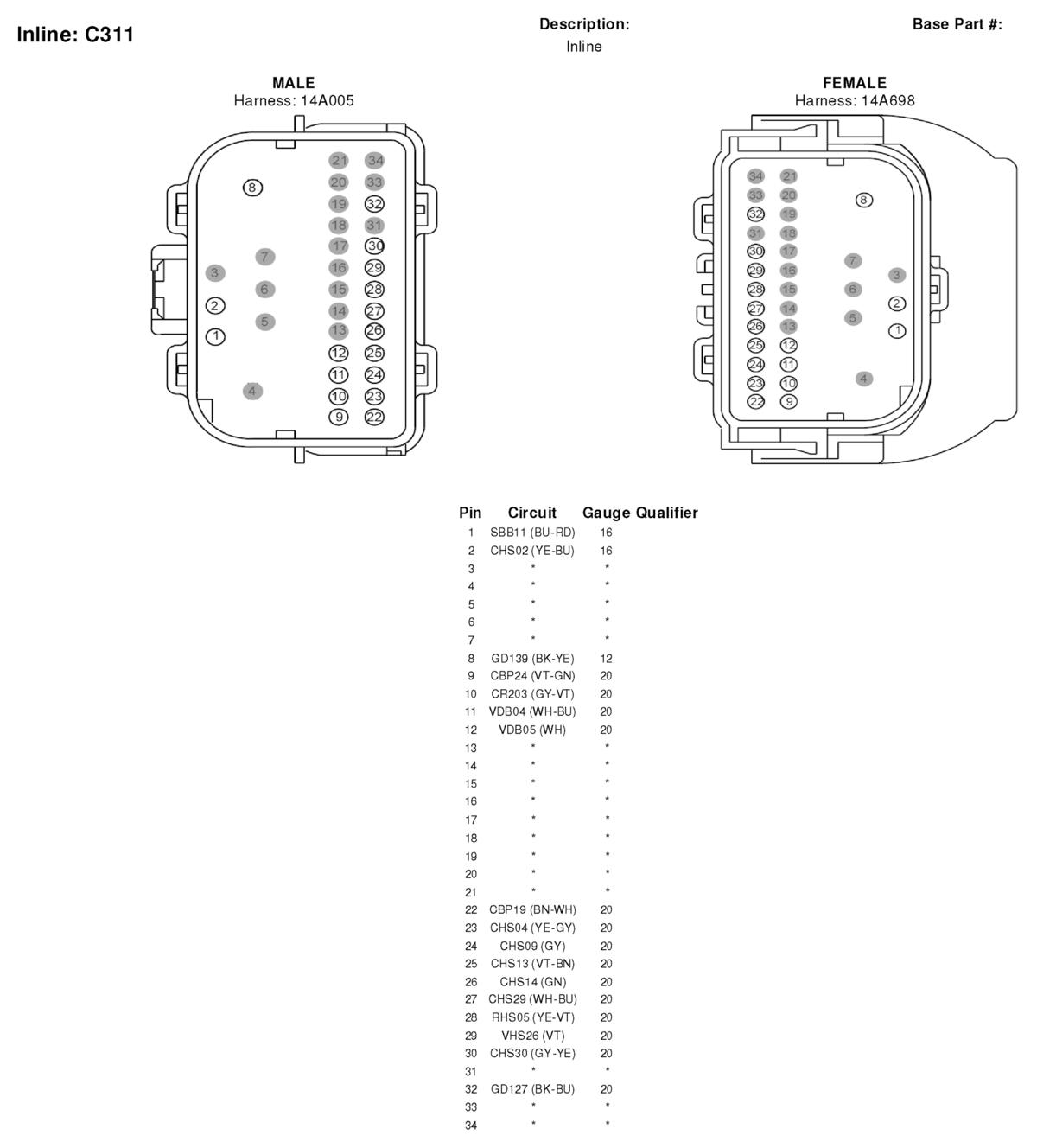

Fig 92: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

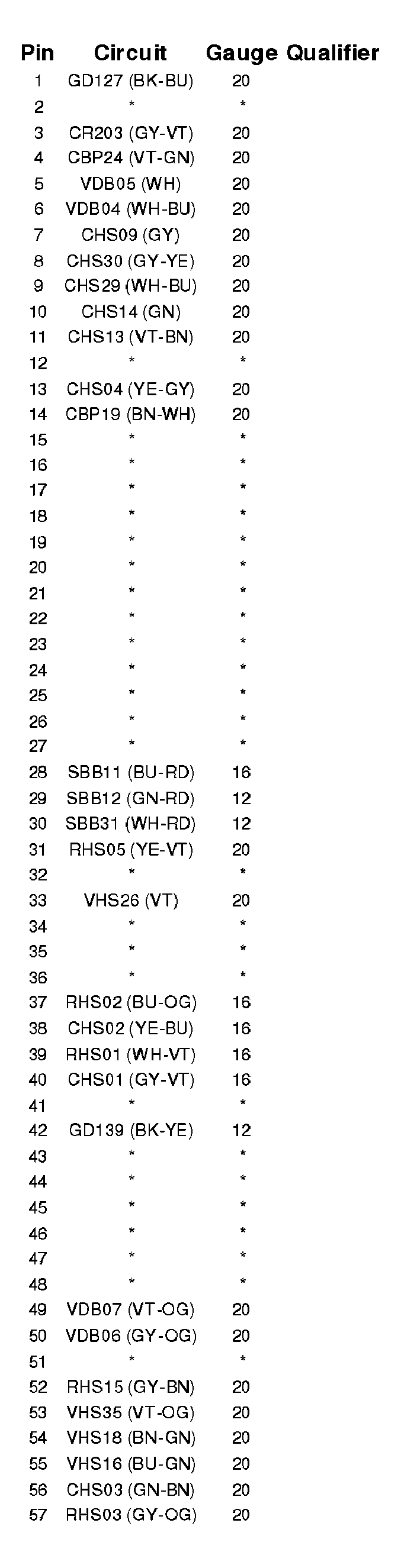

Fig 93: Inline Connector End View (C312) (1 Of 2)
Courtesy of FORD MOTOR CO.

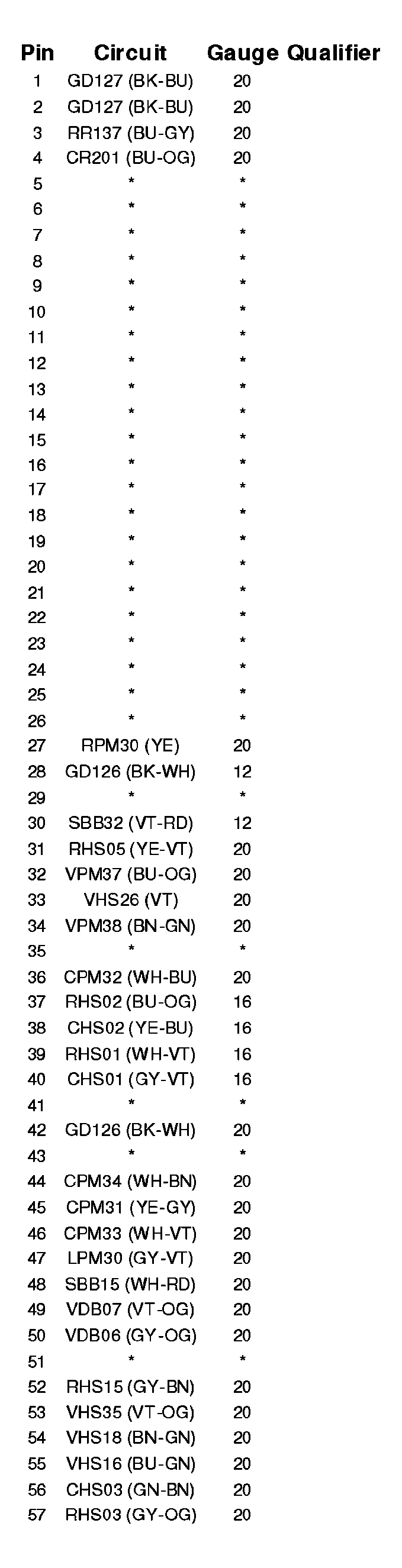

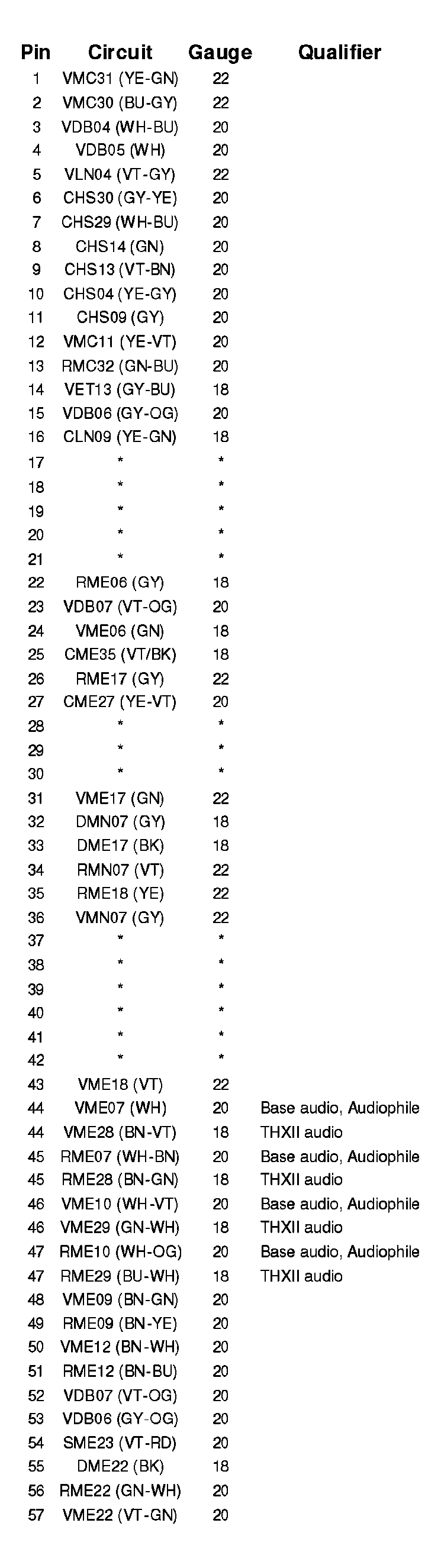

Fig 94: Inline Connector End View (C312) (2 Of 2)
Courtesy of FORD MOTOR CO.

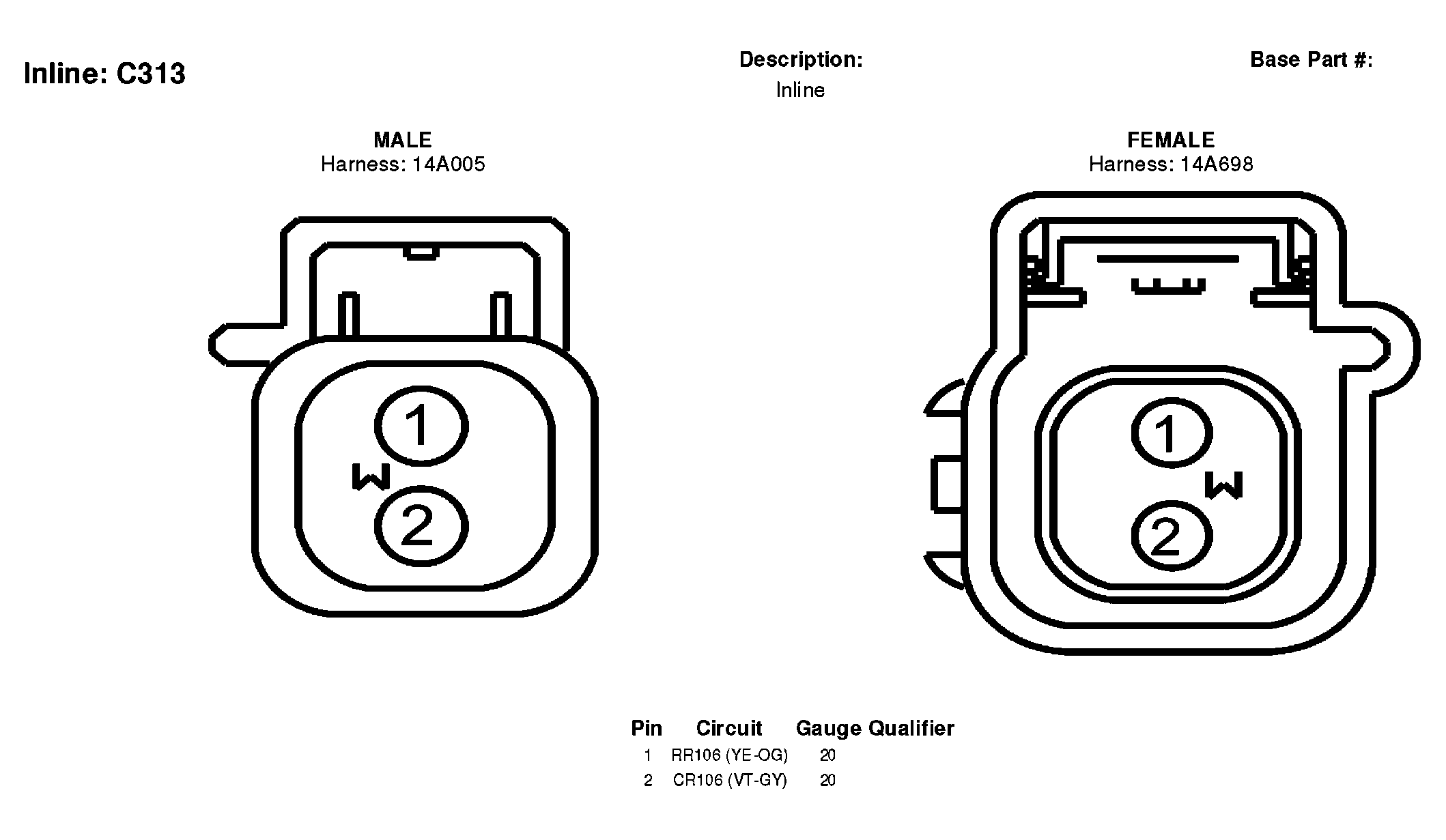

Fig 95: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

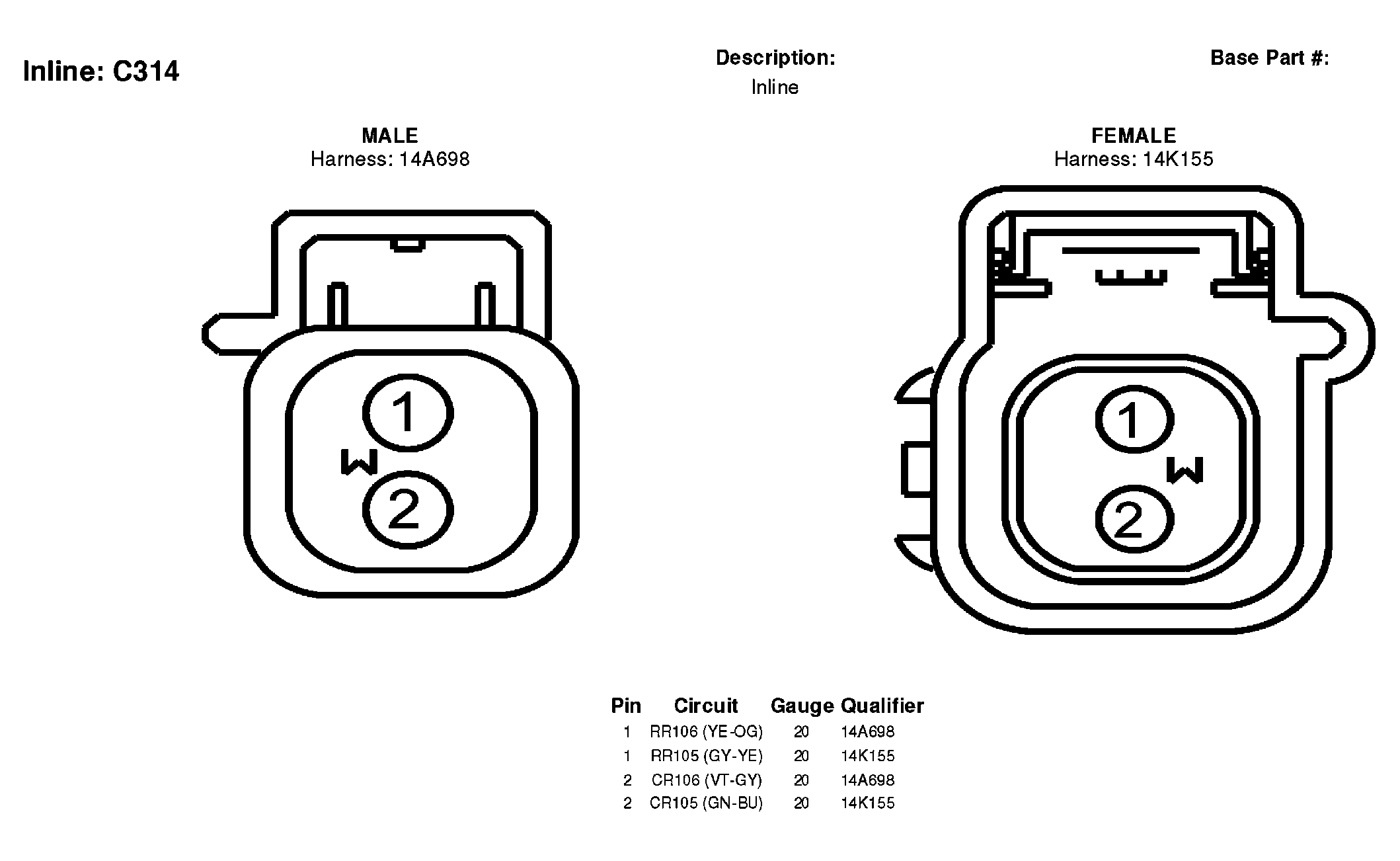

Fig 96: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.

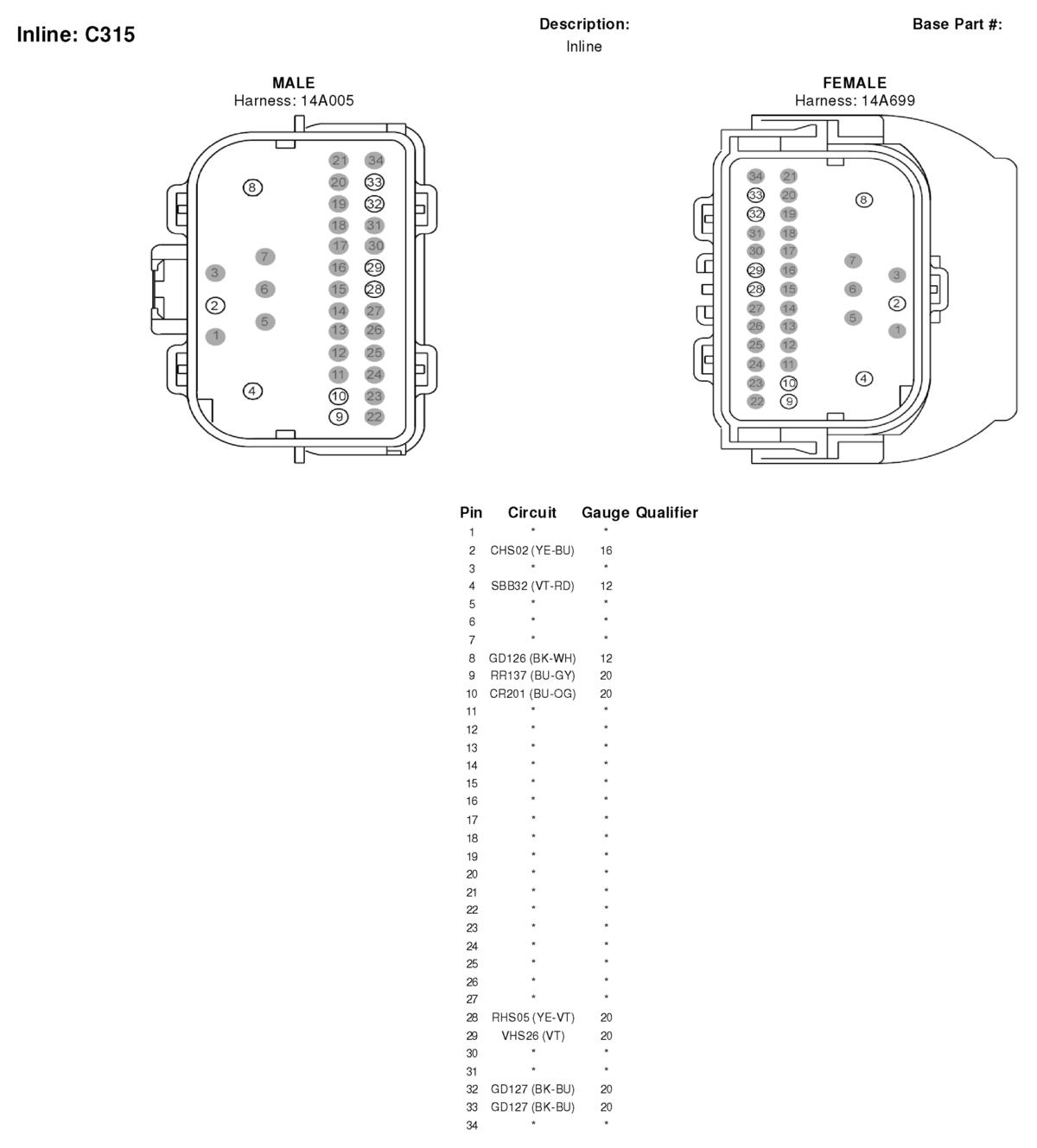

Fig 97: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.
Fig 98: Inline Connector End View (C316) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 99: Inline Connector End View (C316) (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 100: Cigar Lighter, Front Connector End View (C319)
Courtesy of FORD MOTOR CO.

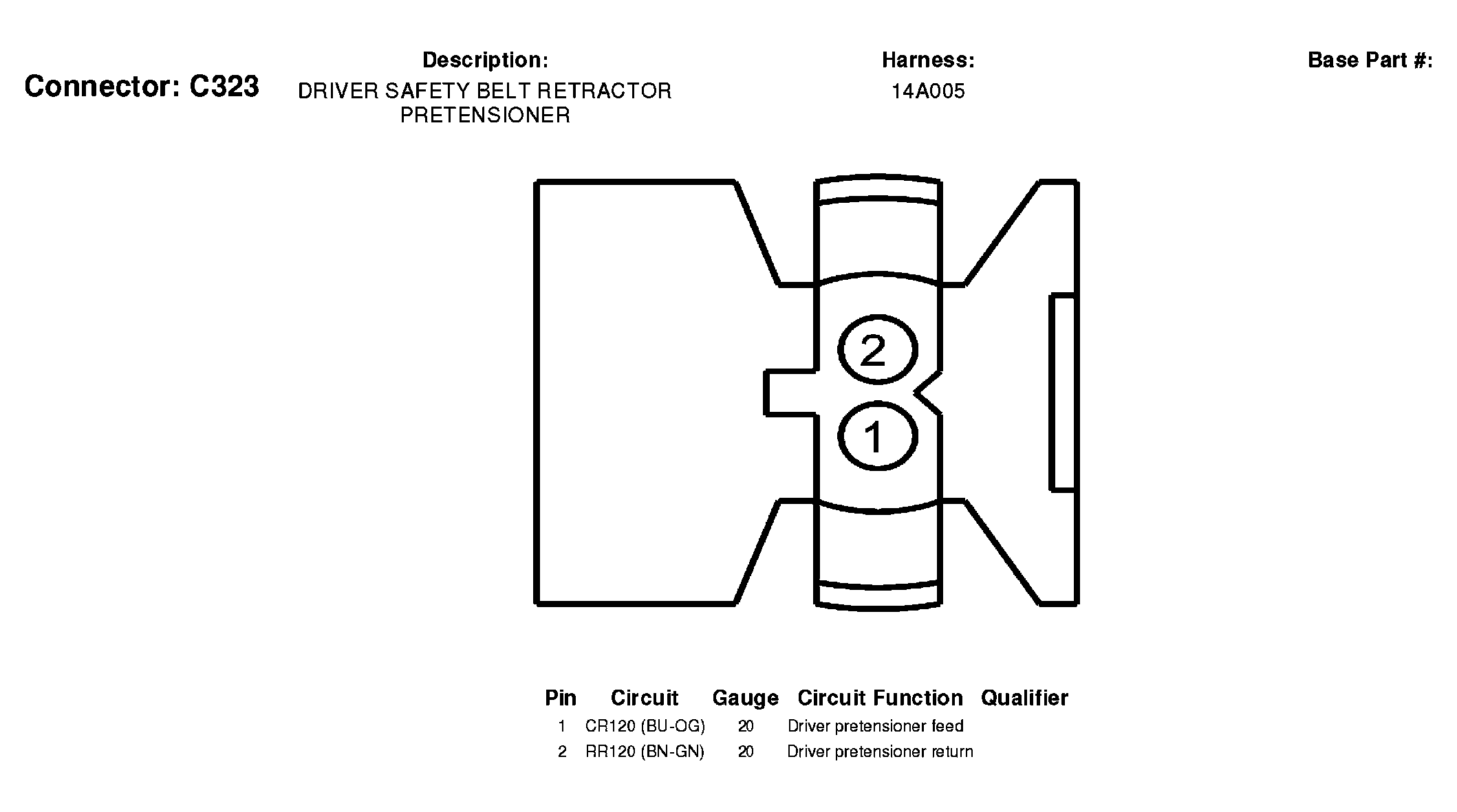

Fig 101: Driver Safety Belt Retractor Pretensioner Connector End View (C323)
Courtesy of FORD MOTOR CO.
Fig 102: Inline Connector End View (C327)
Courtesy of FORD MOTOR CO.

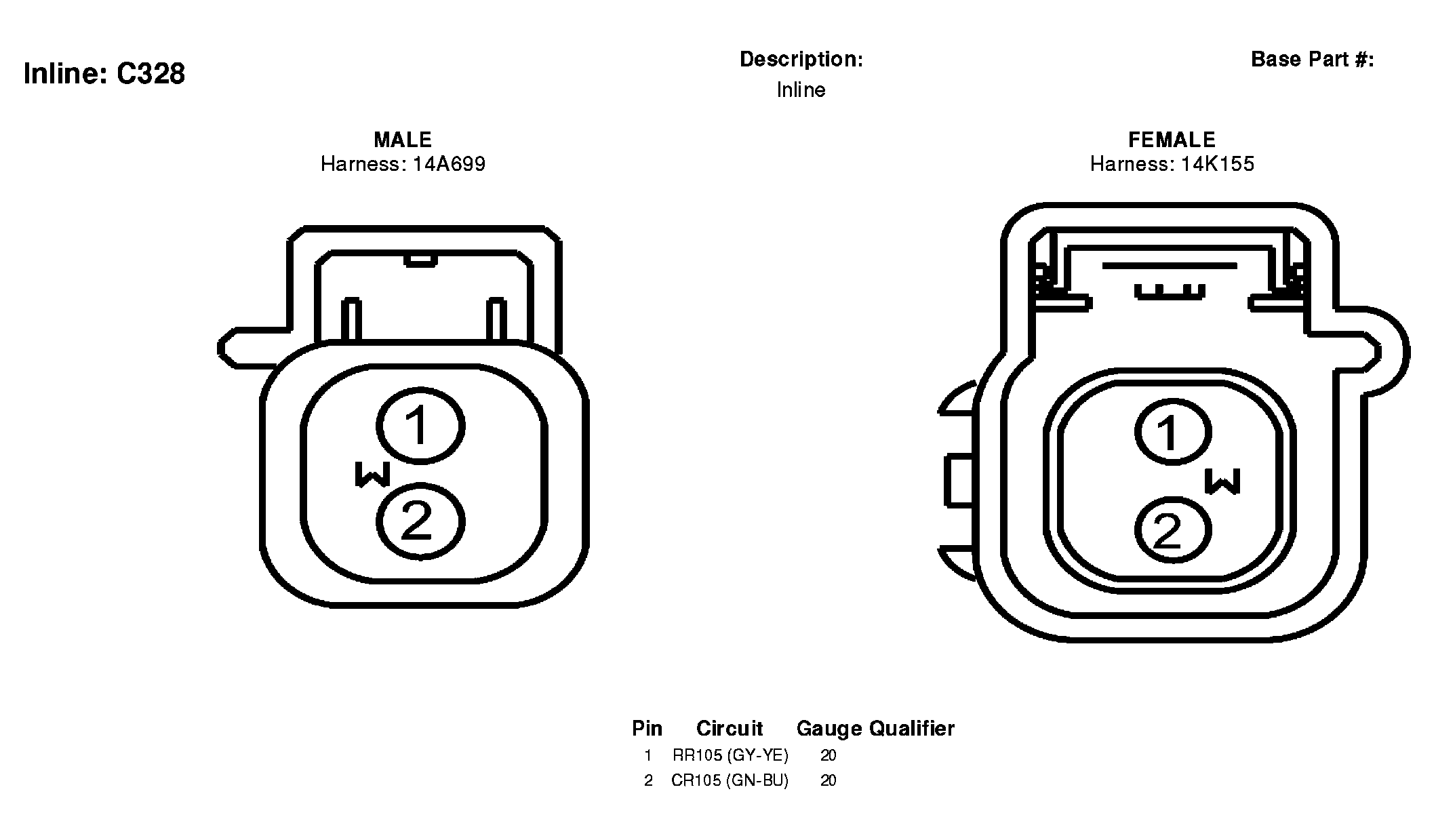

Fig 103: Inline Connector End View (C328)
Courtesy of FORD MOTOR CO.
Fig 104: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
Courtesy of FORD MOTOR CO.

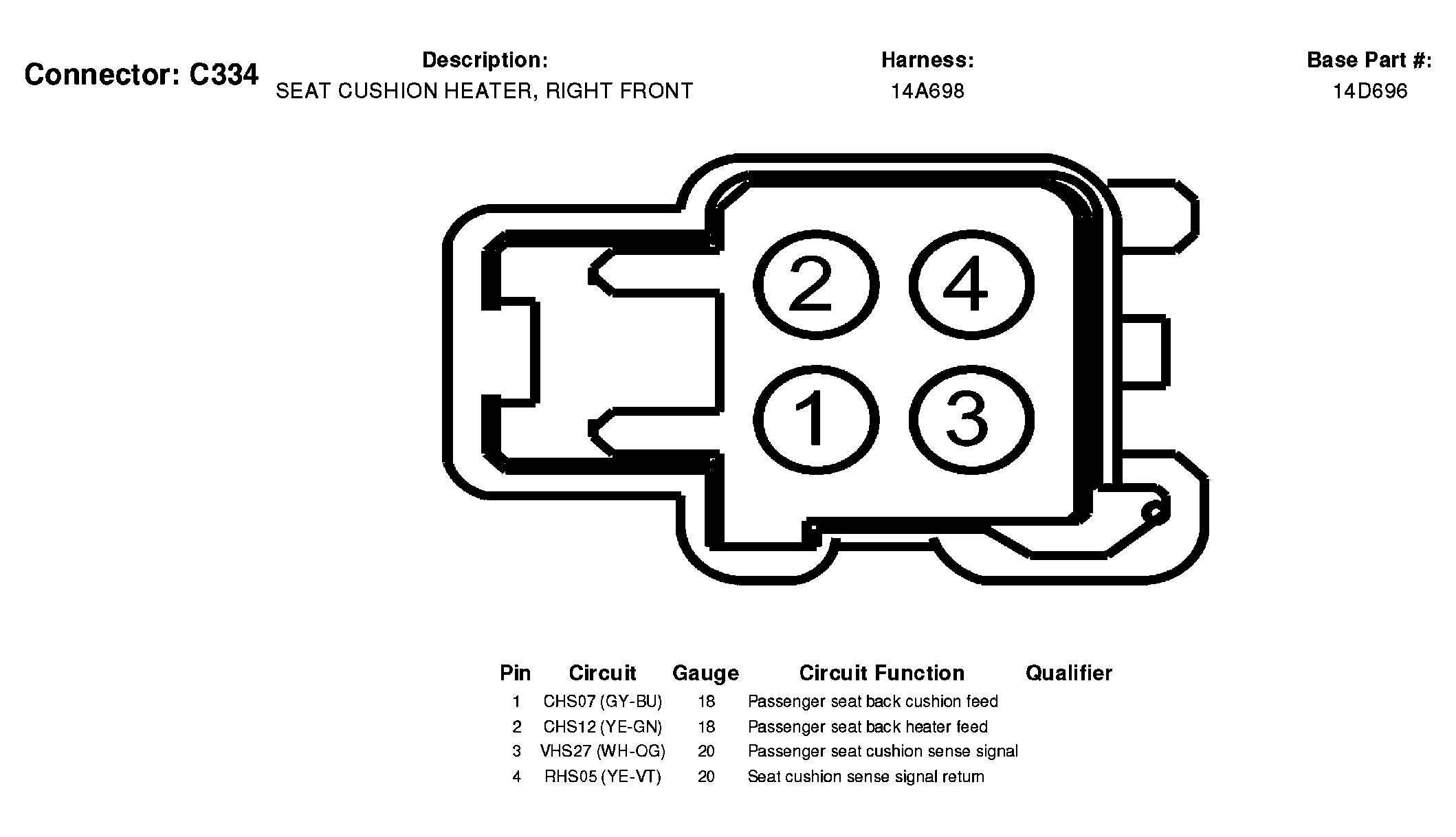

Fig 105: Seat Cushion Heater, Right Front Connector End View (C334)
Courtesy of FORD MOTOR CO.

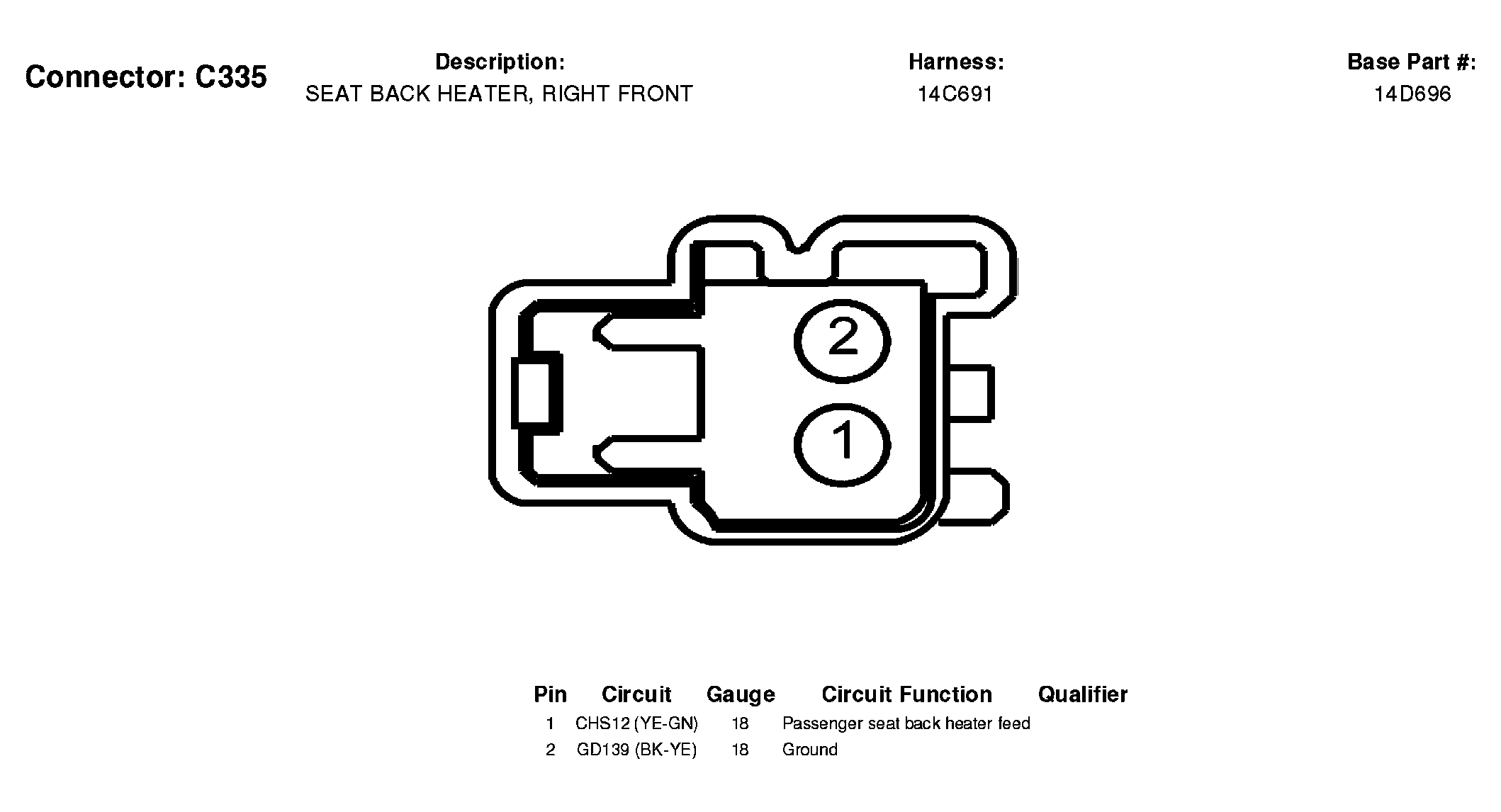

Fig 106: Seat Back Heater, Right Front Connector End View (C335)
Courtesy of FORD MOTOR CO.

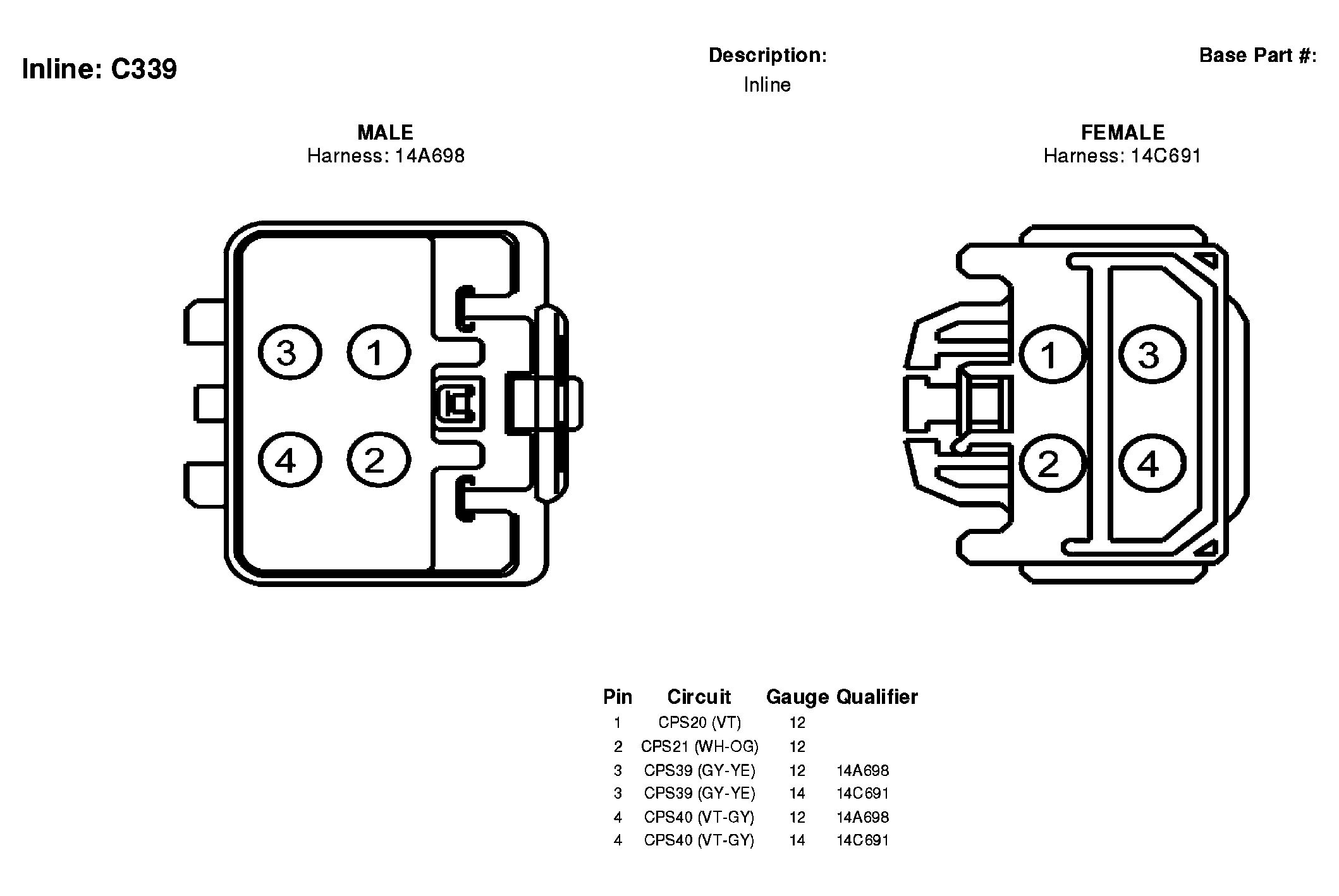

Fig 107: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.

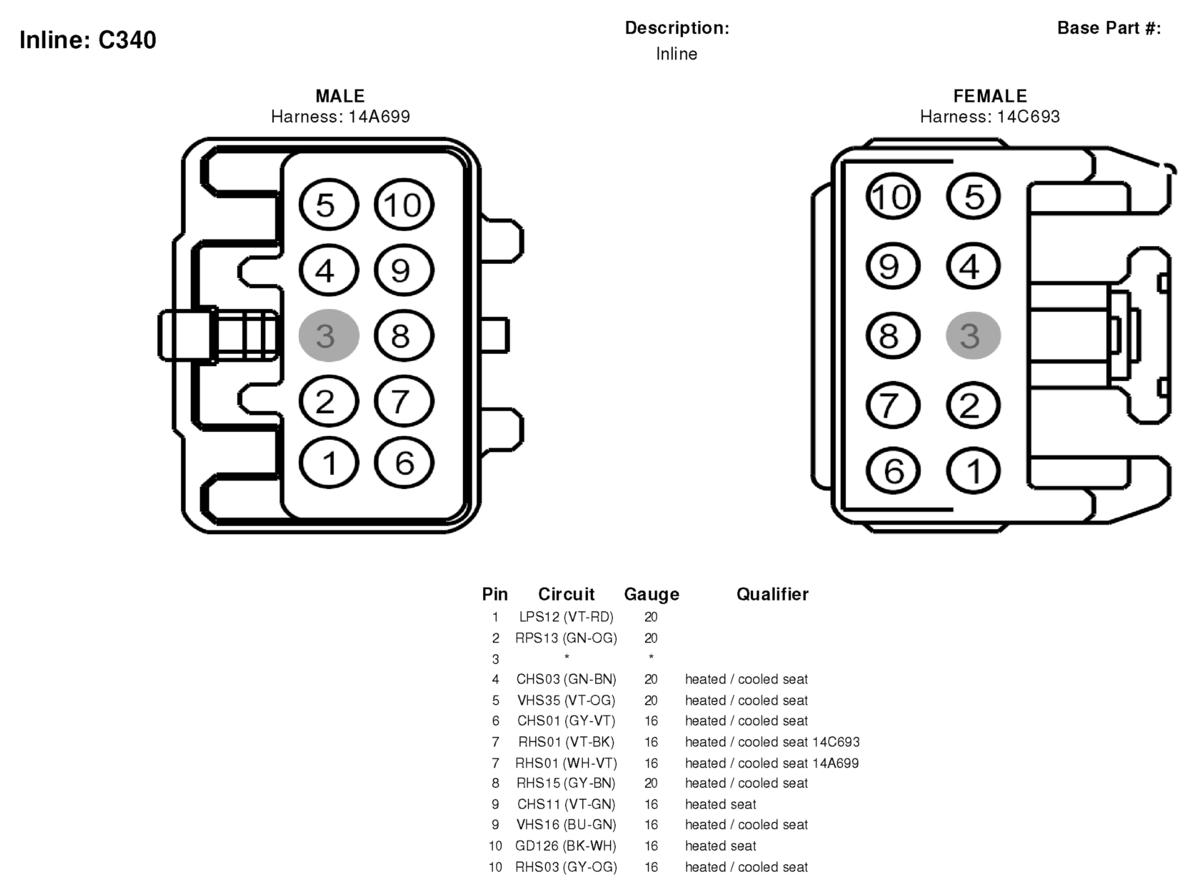

Fig 108: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

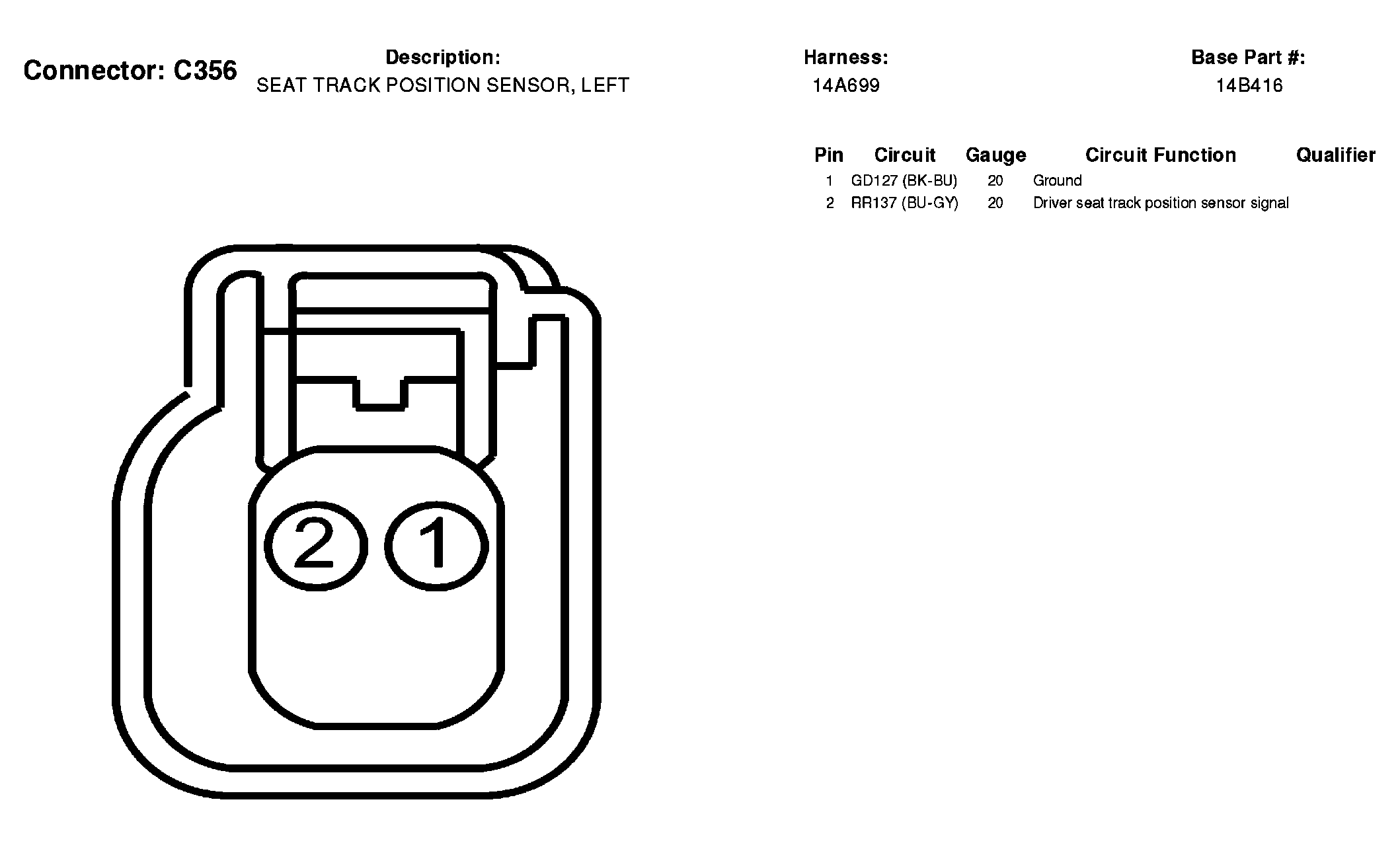

Fig 109: Seat Track Position Sensor, Left Connector End View (C356)
Courtesy of FORD MOTOR CO.

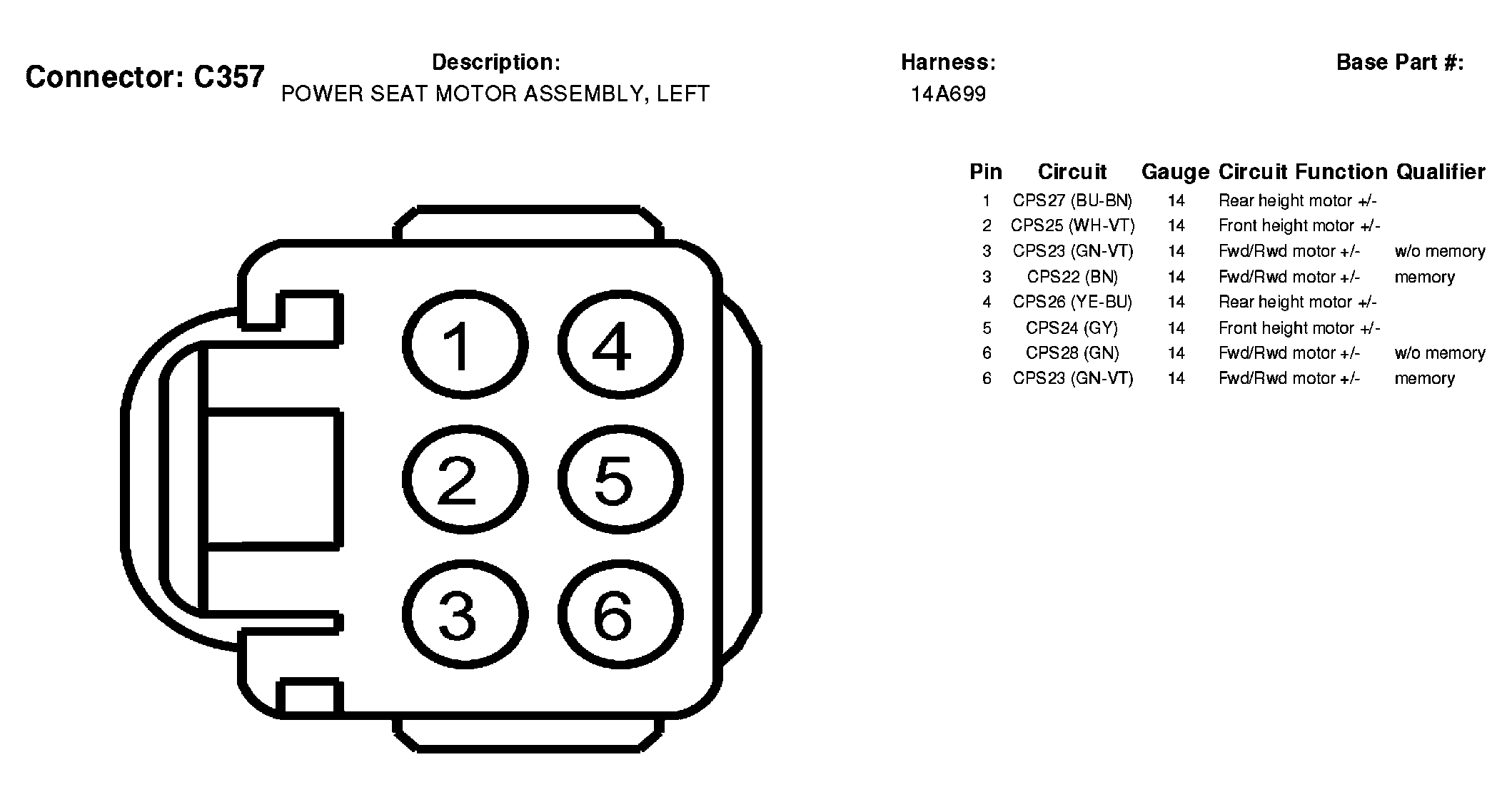

Fig 110: Power Seat Motor Assembly, Left Connector End View (C357)
Courtesy of FORD MOTOR CO.

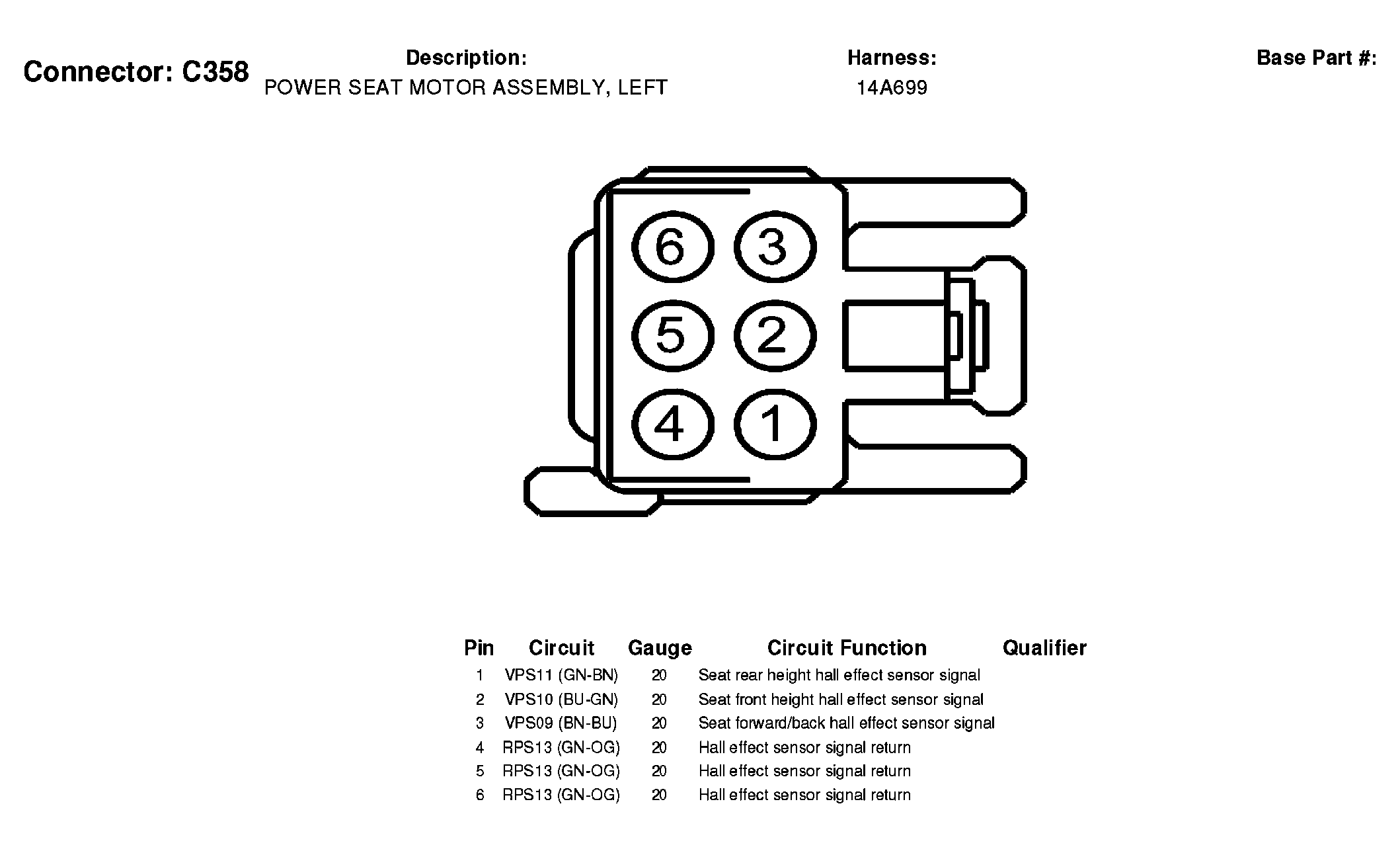

Fig 111: Power Seat Motor Assembly, Left Connector End View (C358)
Courtesy of FORD MOTOR CO.

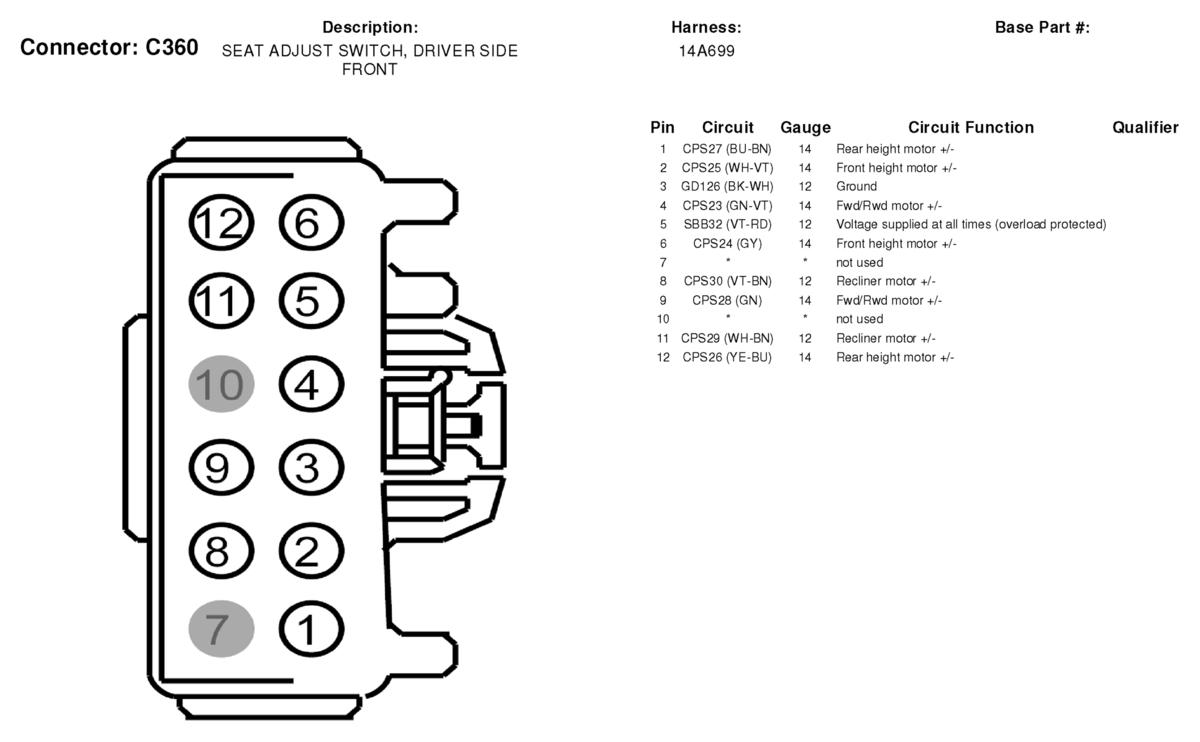

Fig 112: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.

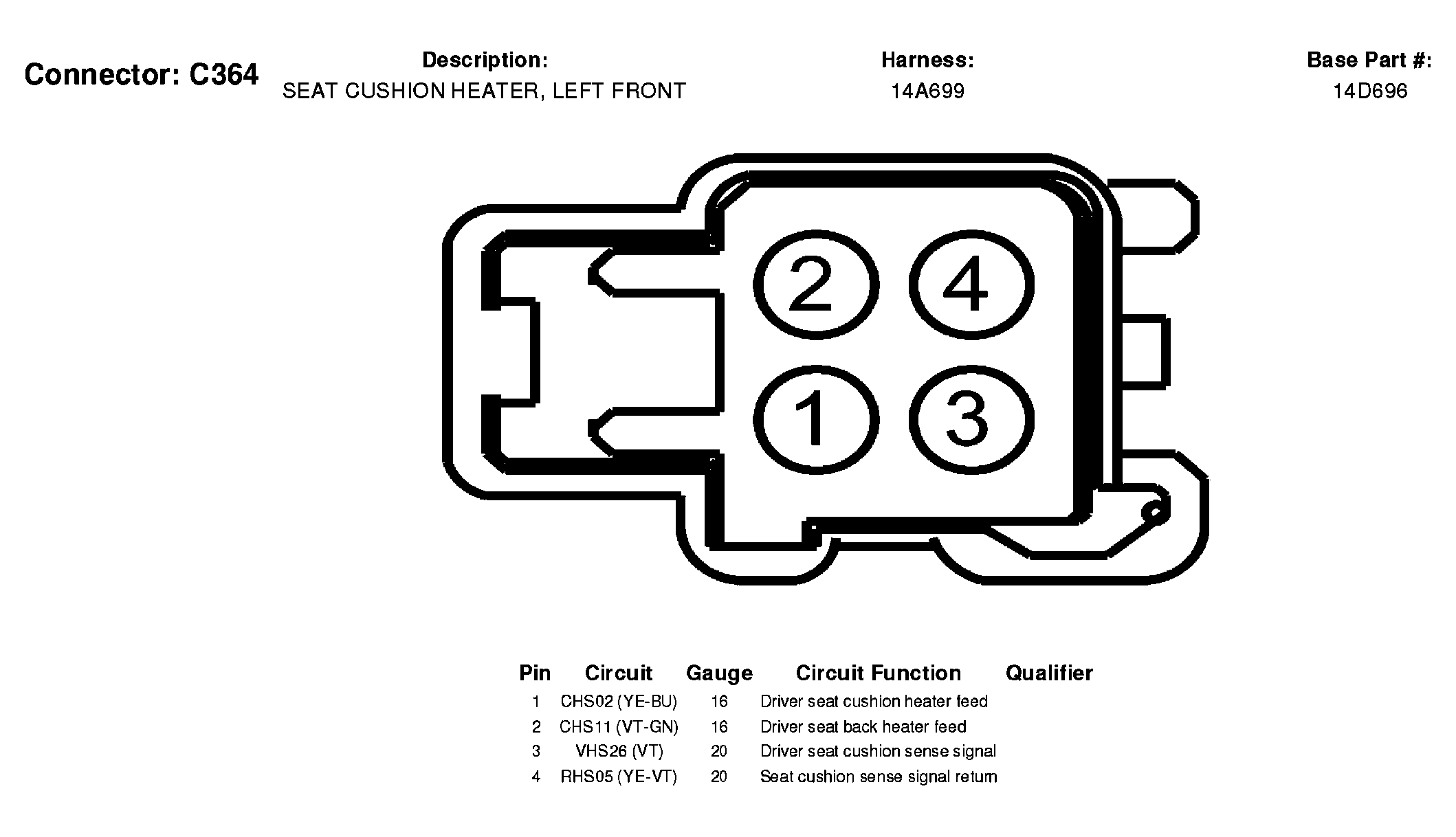

Fig 113: Seat Cushion Heater, Left Front Connector End View (C364)
Courtesy of FORD MOTOR CO.

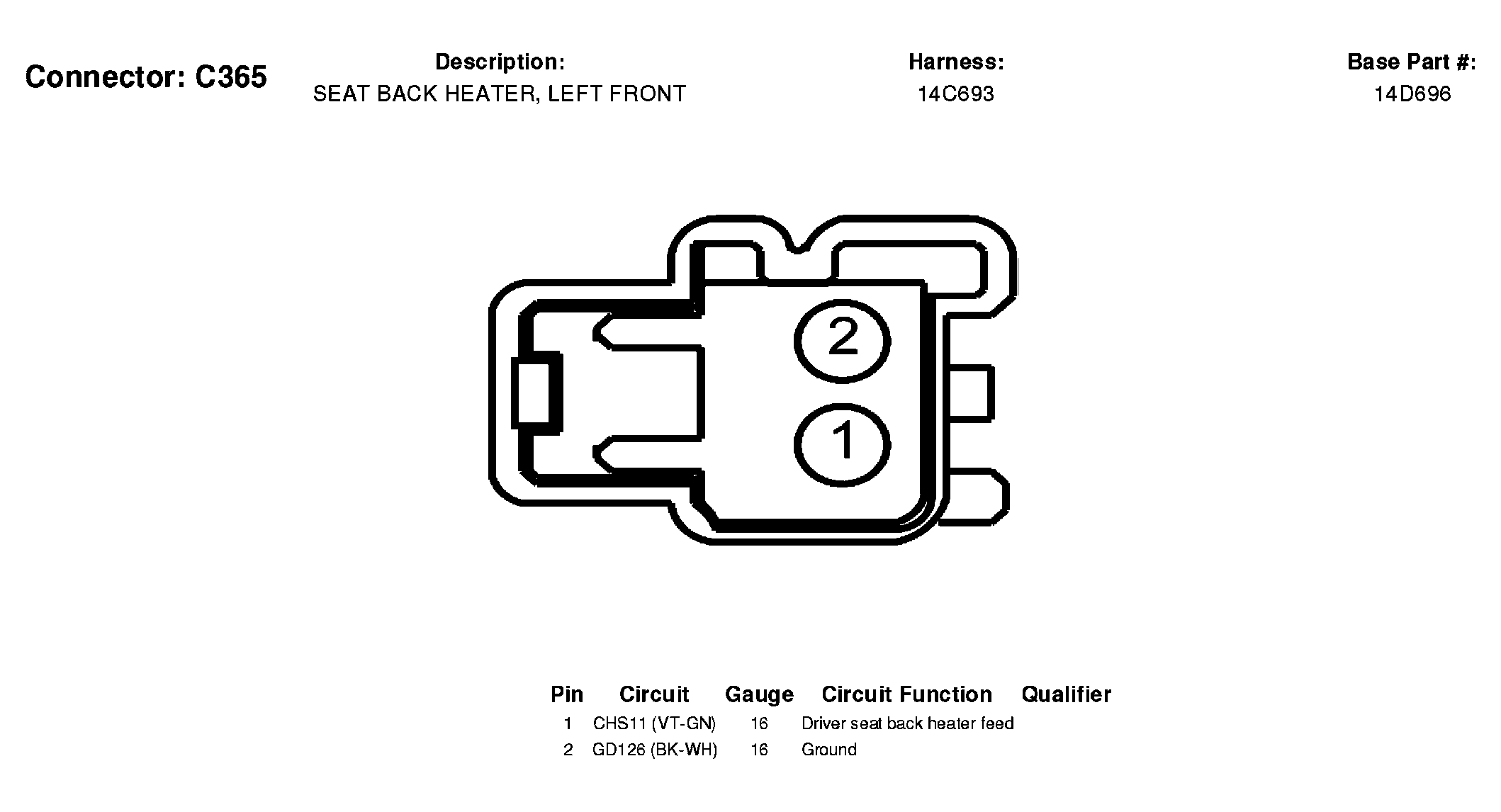

Fig 114: Seat Back Heater, Left Front Connector End View (C365)
Courtesy of FORD MOTOR CO.

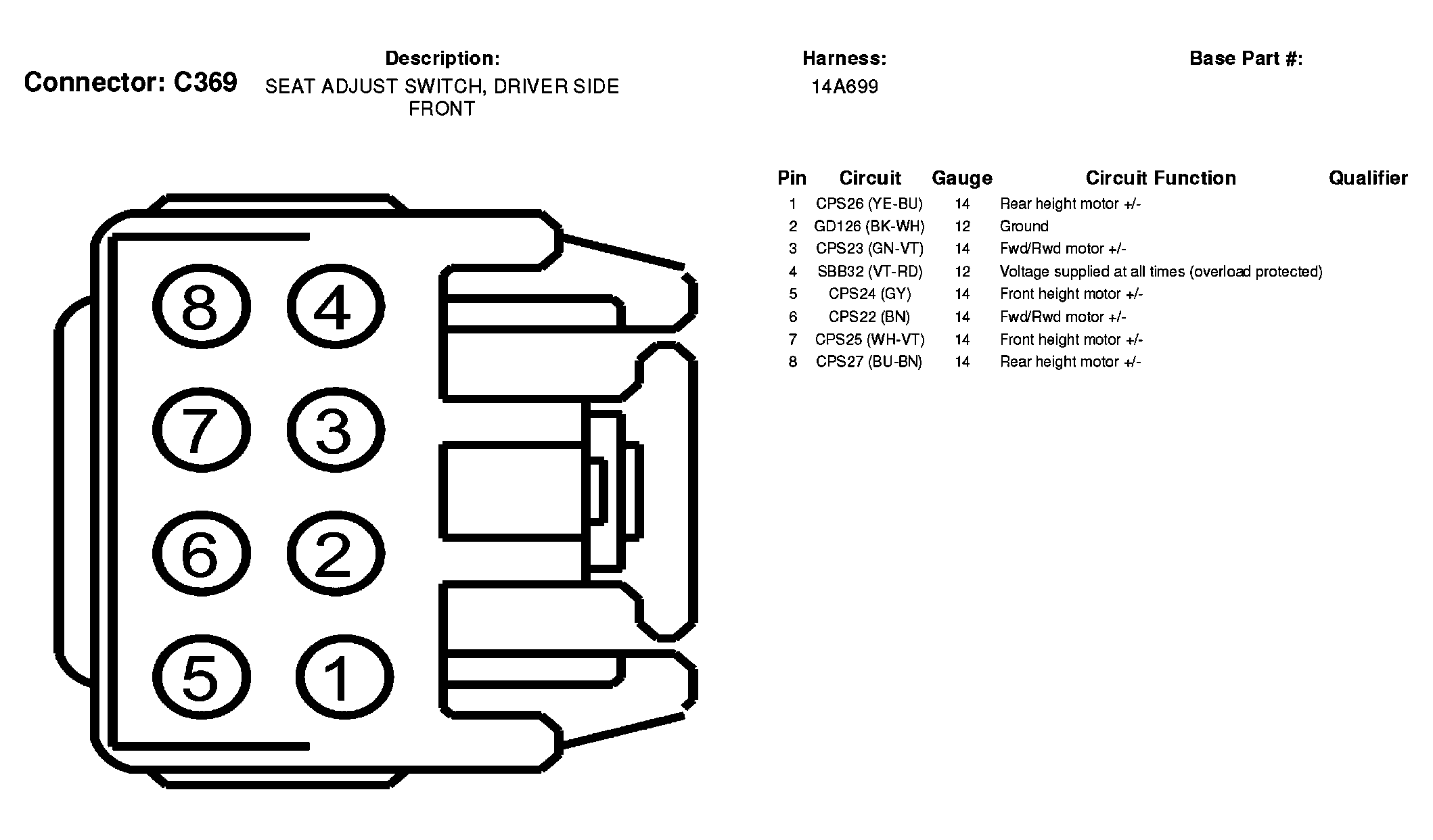

Fig 115: Seat Adjust Switch, Driver Side Front Connector End View (C369)
Courtesy of FORD MOTOR CO.

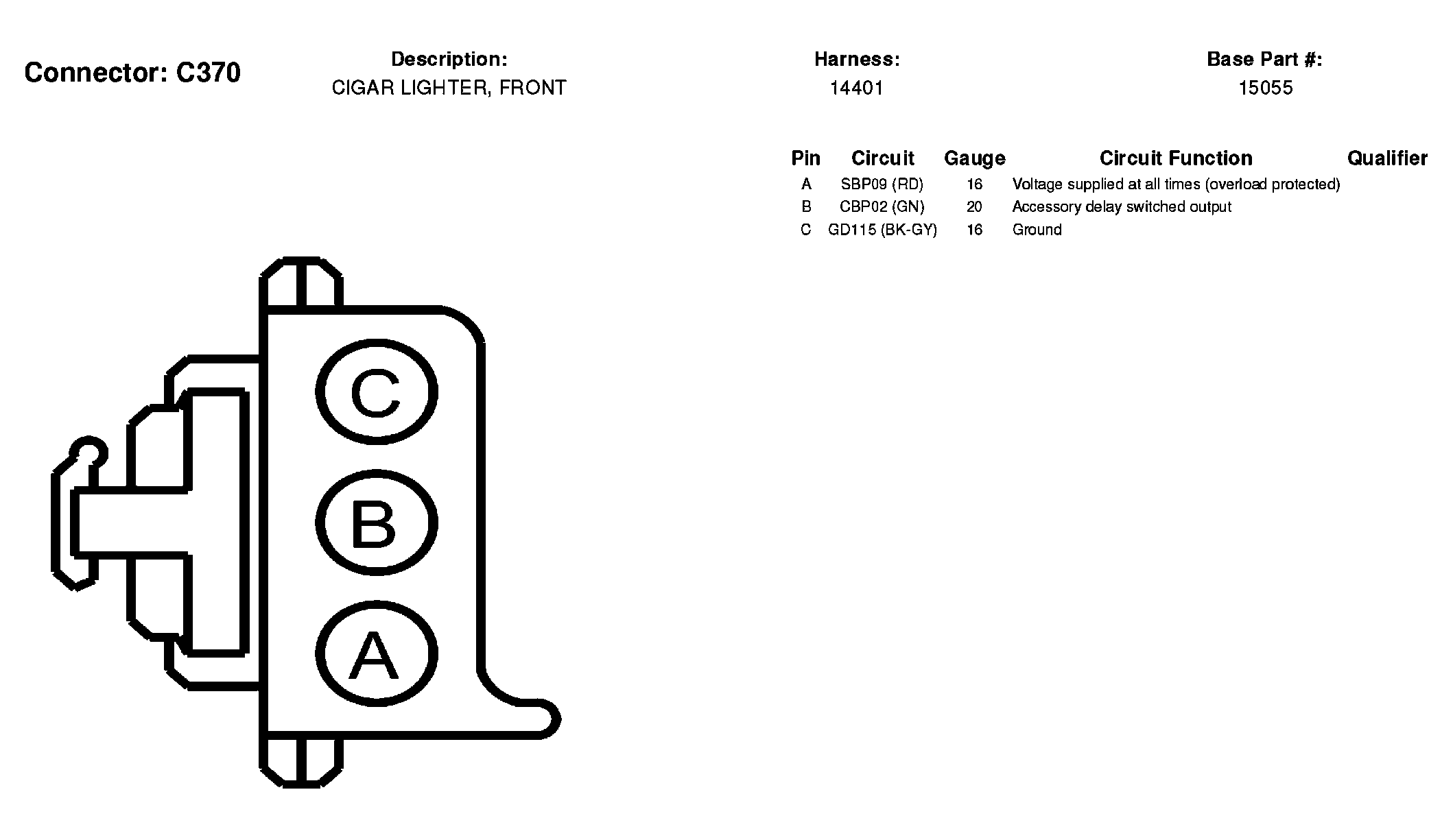

Fig 116: Cigar Lighter, Front Connector End View (C370)
Courtesy of FORD MOTOR CO.

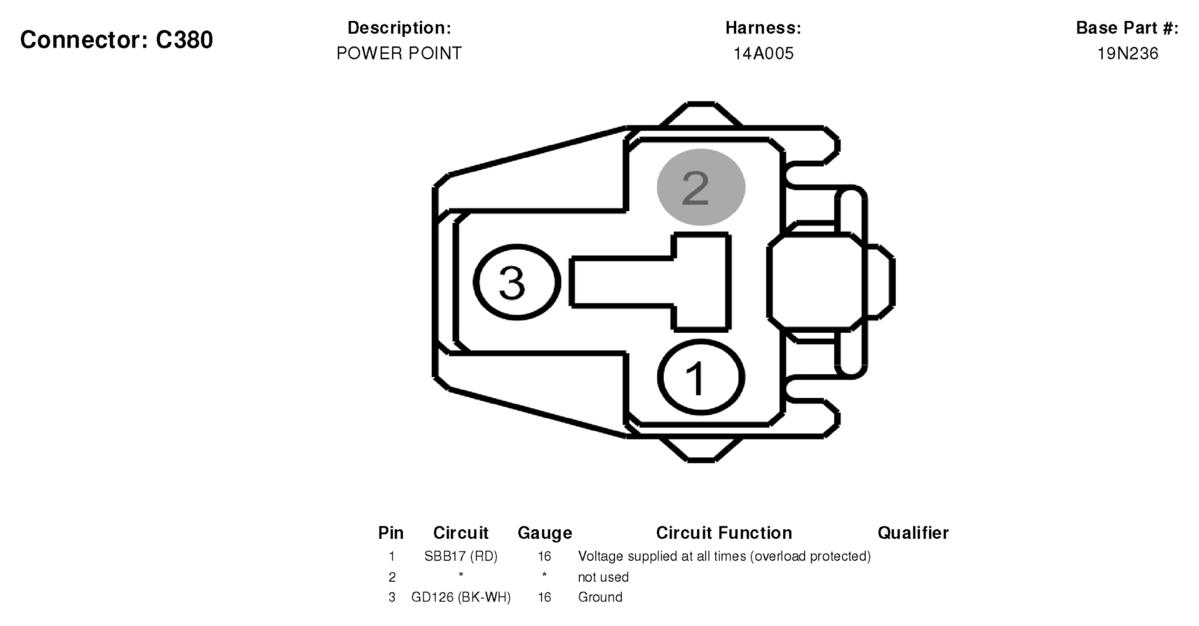

Fig 117: Power Point Connector End View (C380)
Courtesy of FORD MOTOR CO.

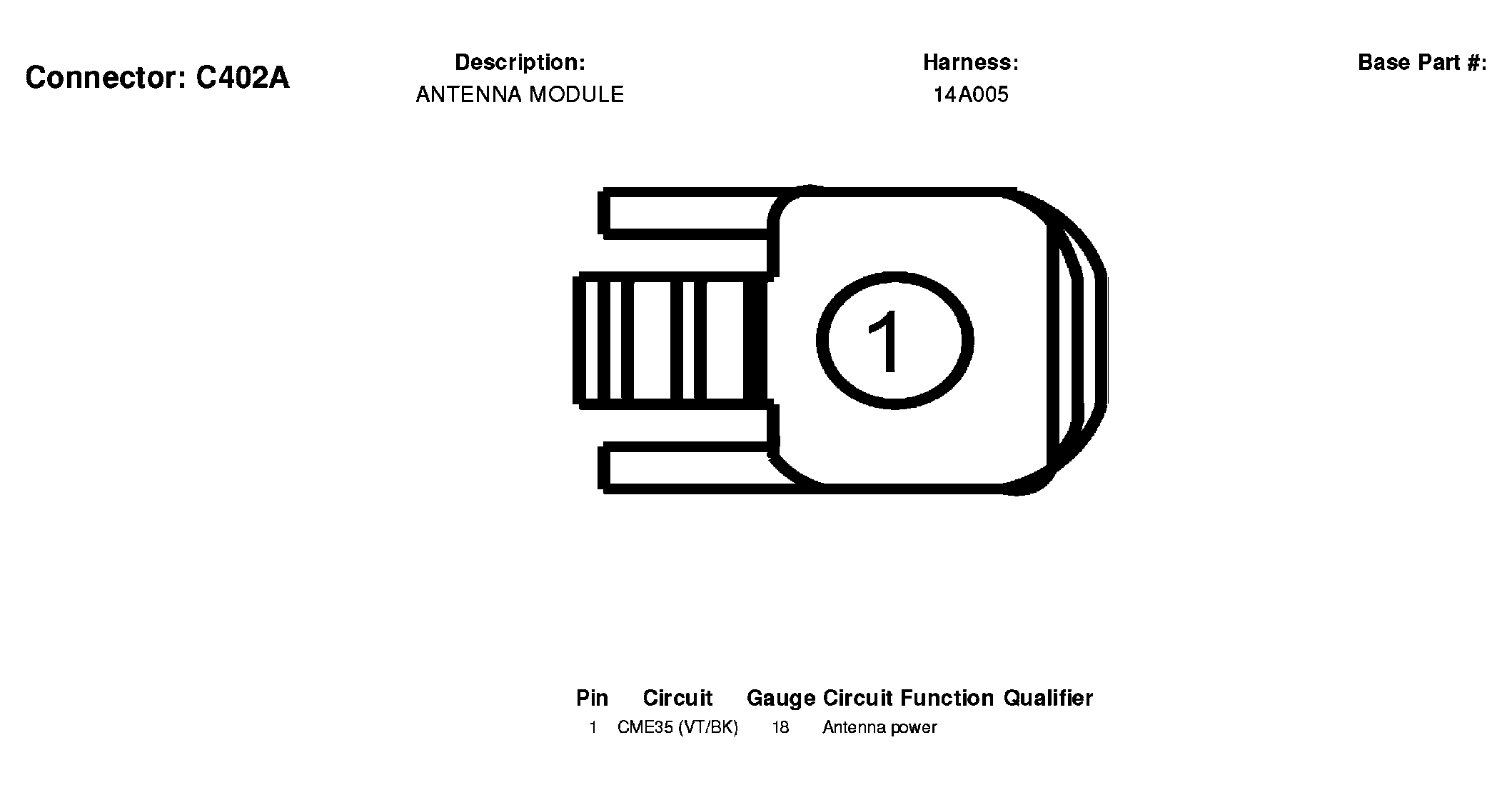

Fig 118: Antenna Module Connector End View (C402A)
Courtesy of FORD MOTOR CO.

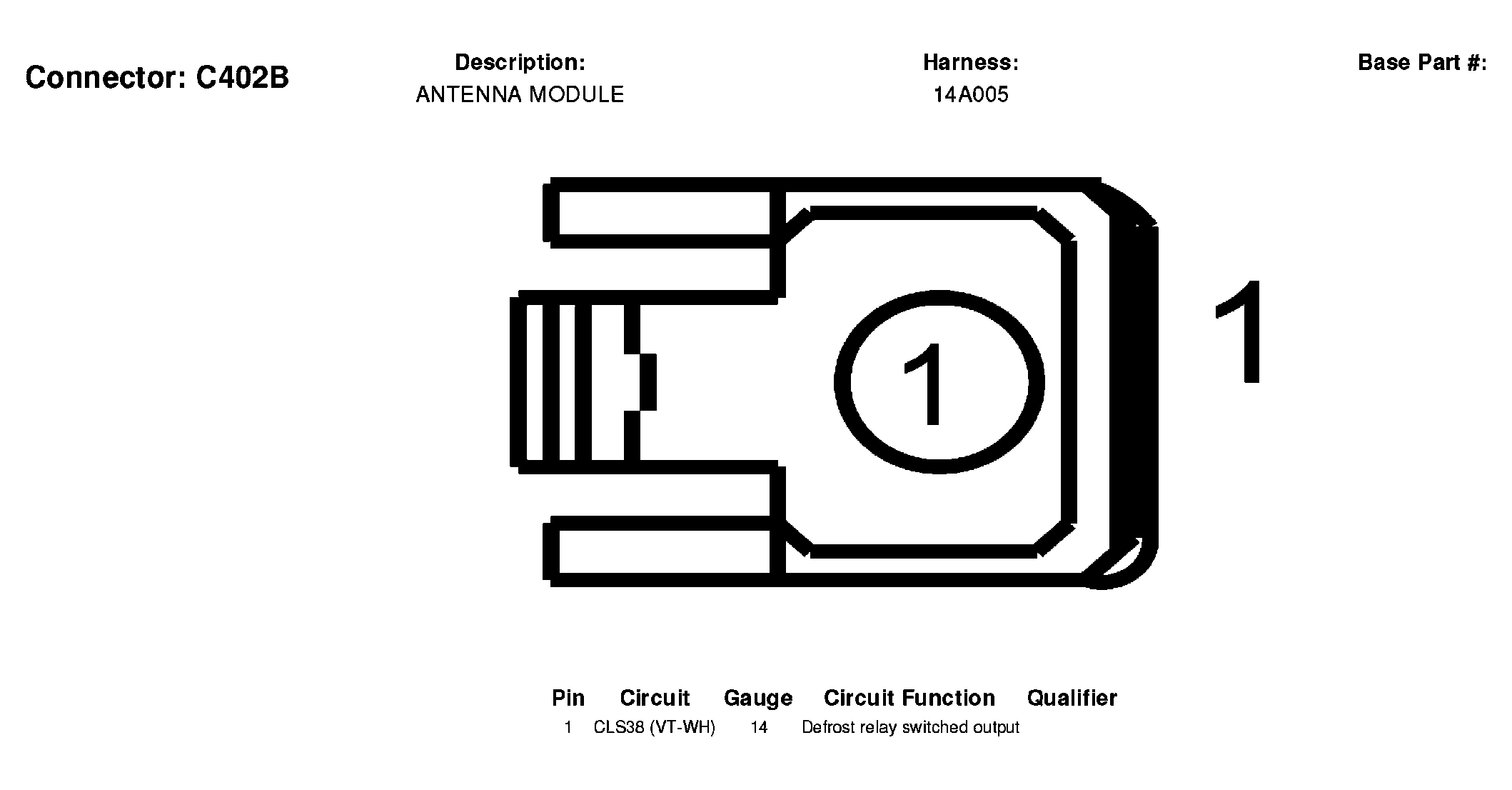

Fig 119: Antenna Module Connector End View (C402B)
Courtesy of FORD MOTOR CO.

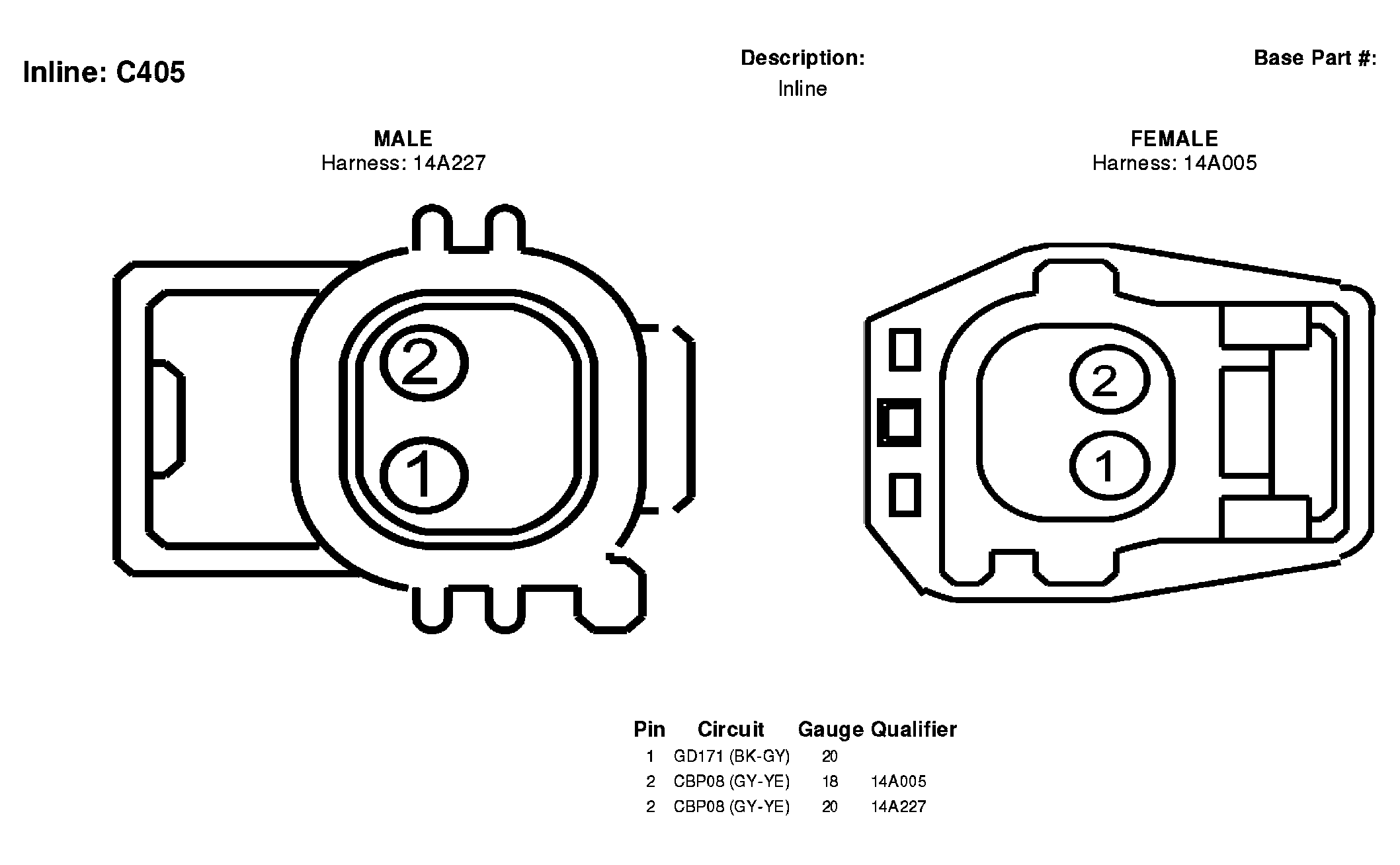

Fig 120: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

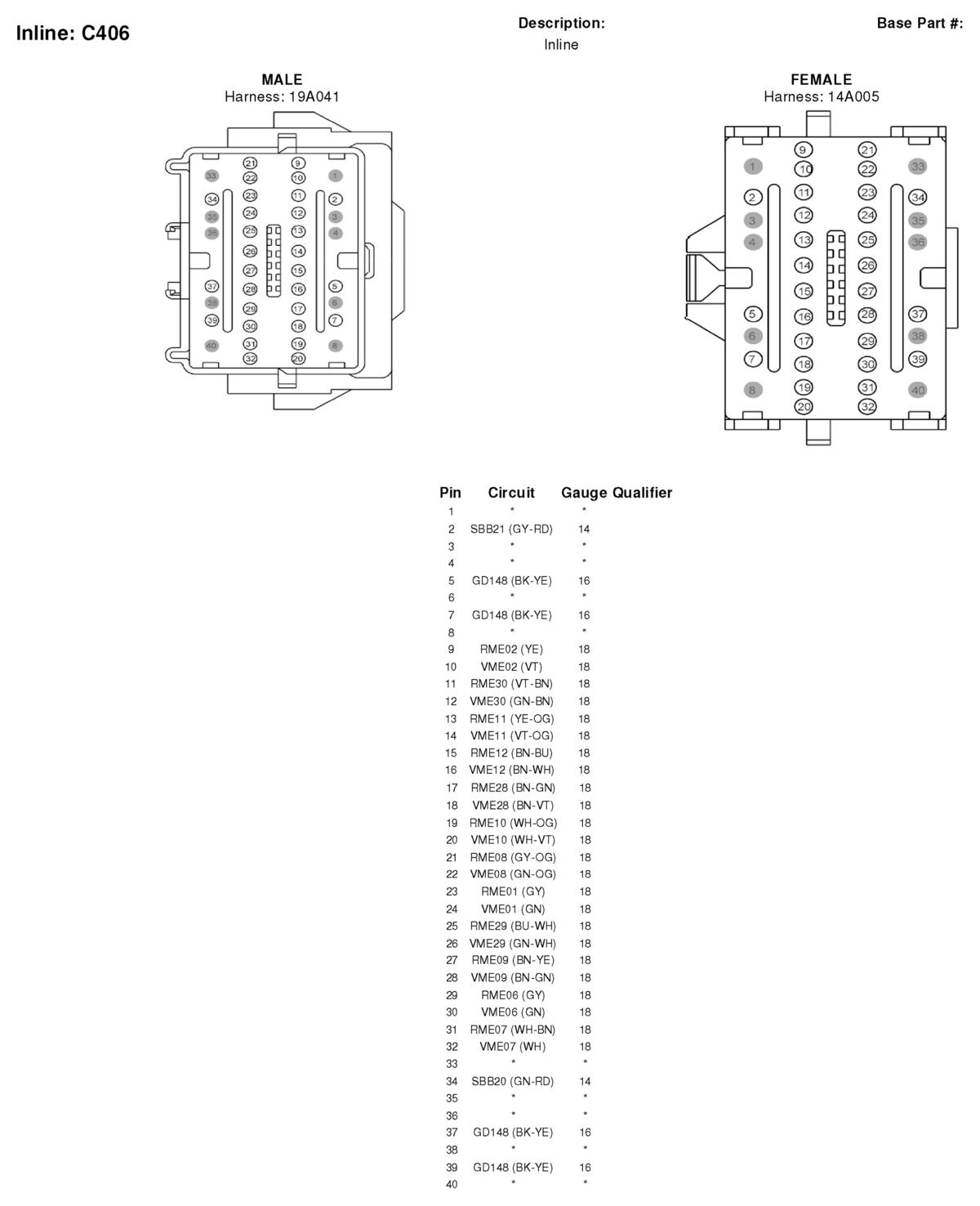

Fig 121: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

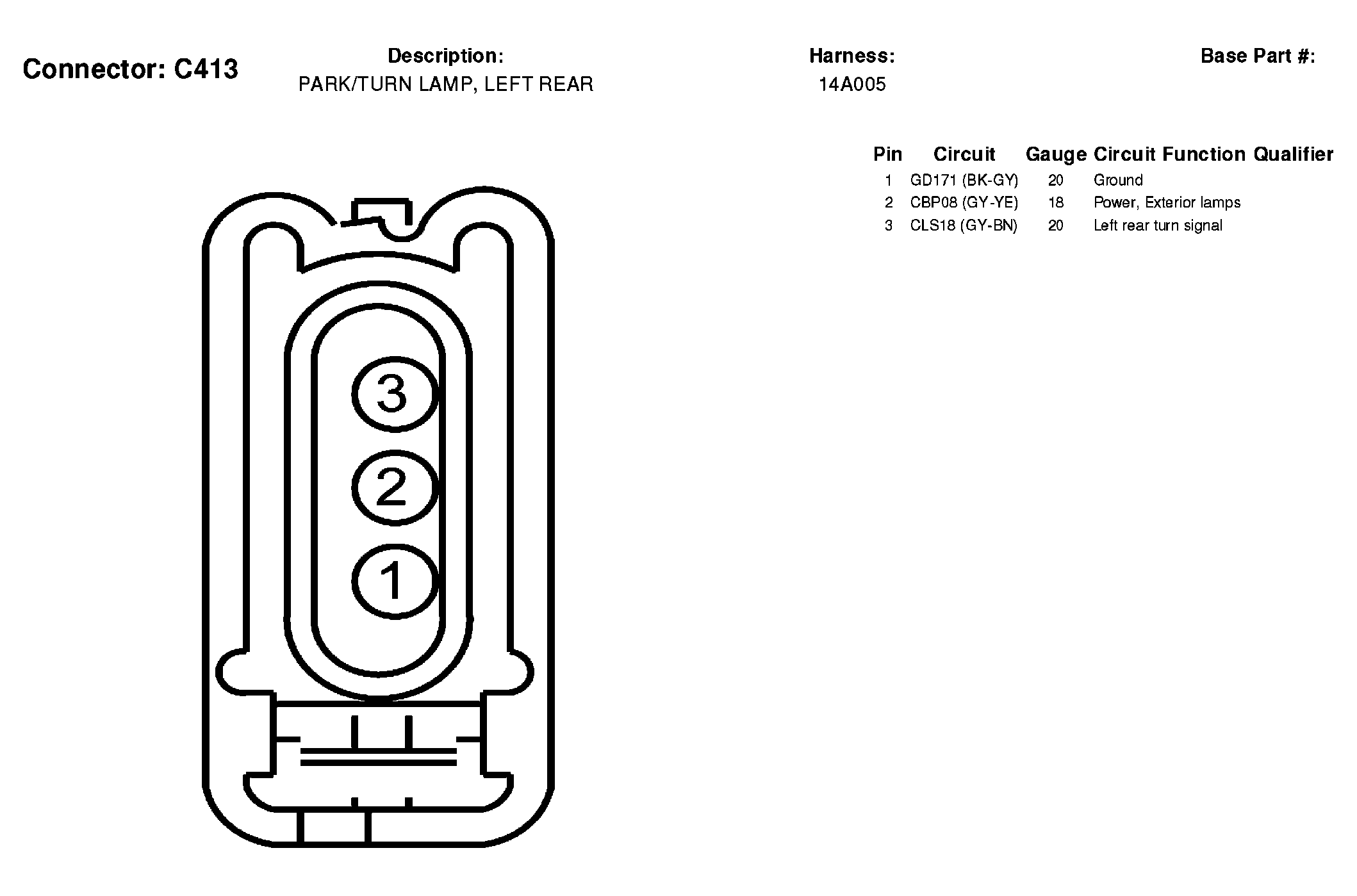

Fig 122: Park/Turn Lamp, Left Rear Connector End View (C413)
Courtesy of FORD MOTOR CO.
Fig 123: Lamp Assembly, Left Rear Connector End View (C414A)
Courtesy of FORD MOTOR CO.
Fig 124: Lamp Assembly, Left Rear Connector End View (C414B)
Courtesy of FORD MOTOR CO.
Fig 125: Lamp Assembly, Left Rear Connector End View (C414C)
Courtesy of FORD MOTOR CO.
Fig 126: Lamp Assembly, Left Rear Connector End View (C414D)
Courtesy of FORD MOTOR CO.

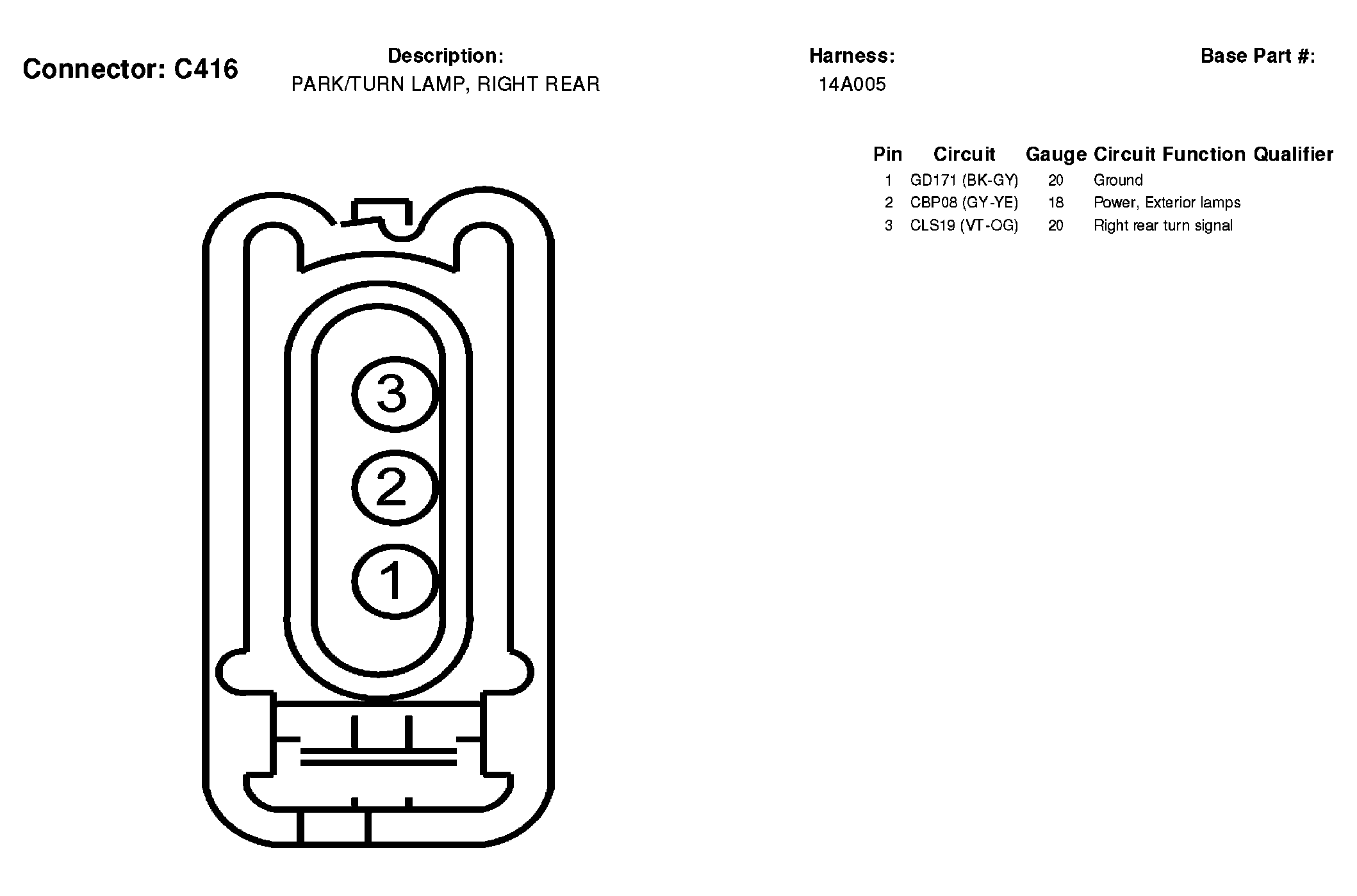

Fig 127: Park/Turn Lamp, Right Rear Connector End View (C416)
Courtesy of FORD MOTOR CO.
Fig 128: Lamp Assembly, Right Rear Connector End View (C417A)
Courtesy of FORD MOTOR CO.

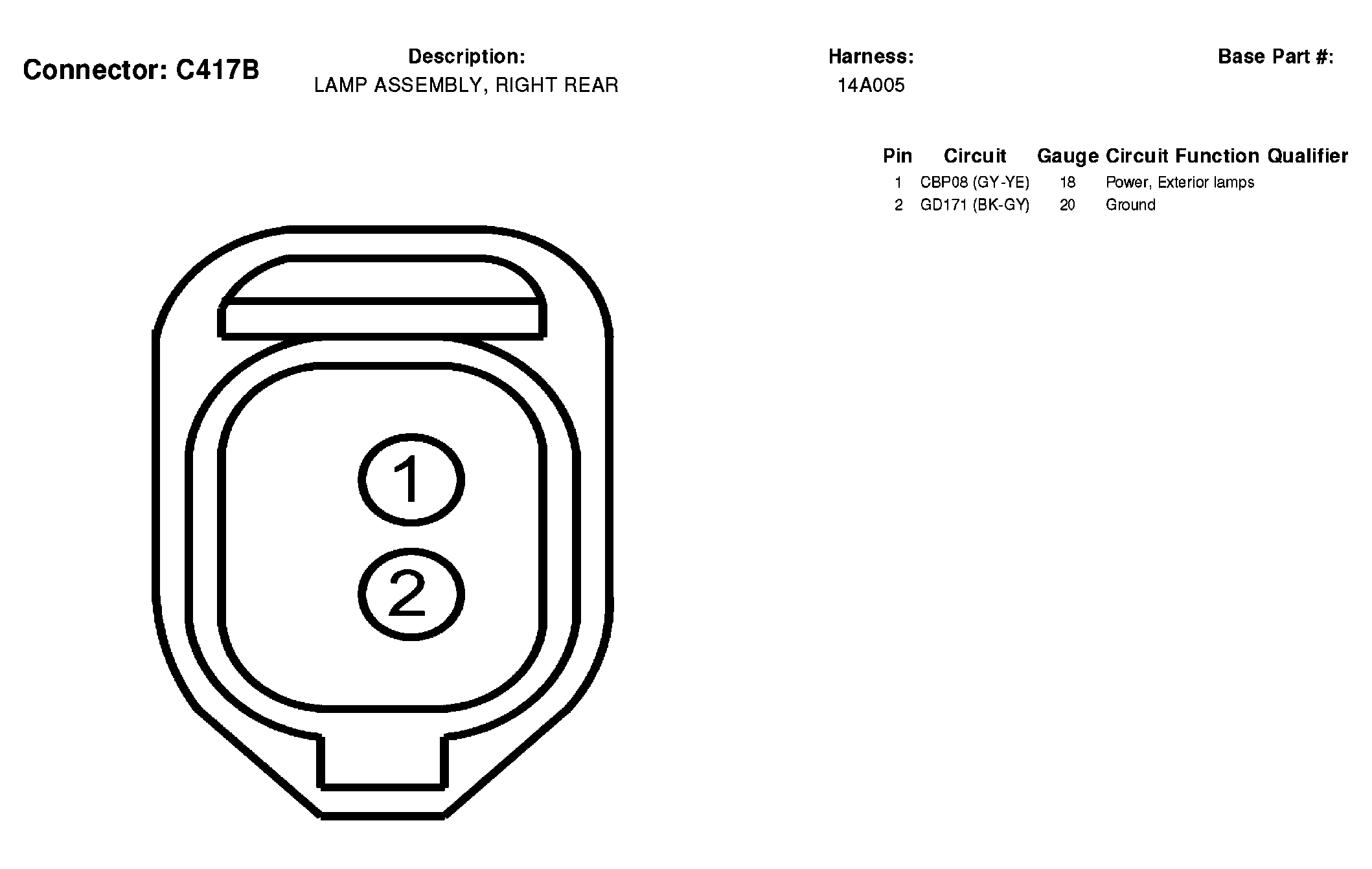

Fig 129: Lamp Assembly, Right Rear Connector End View (C417B)
Courtesy of FORD MOTOR CO.
Fig 130: Lamp Assembly, Right Rear Connector End View (C417C)
Courtesy of FORD MOTOR CO.

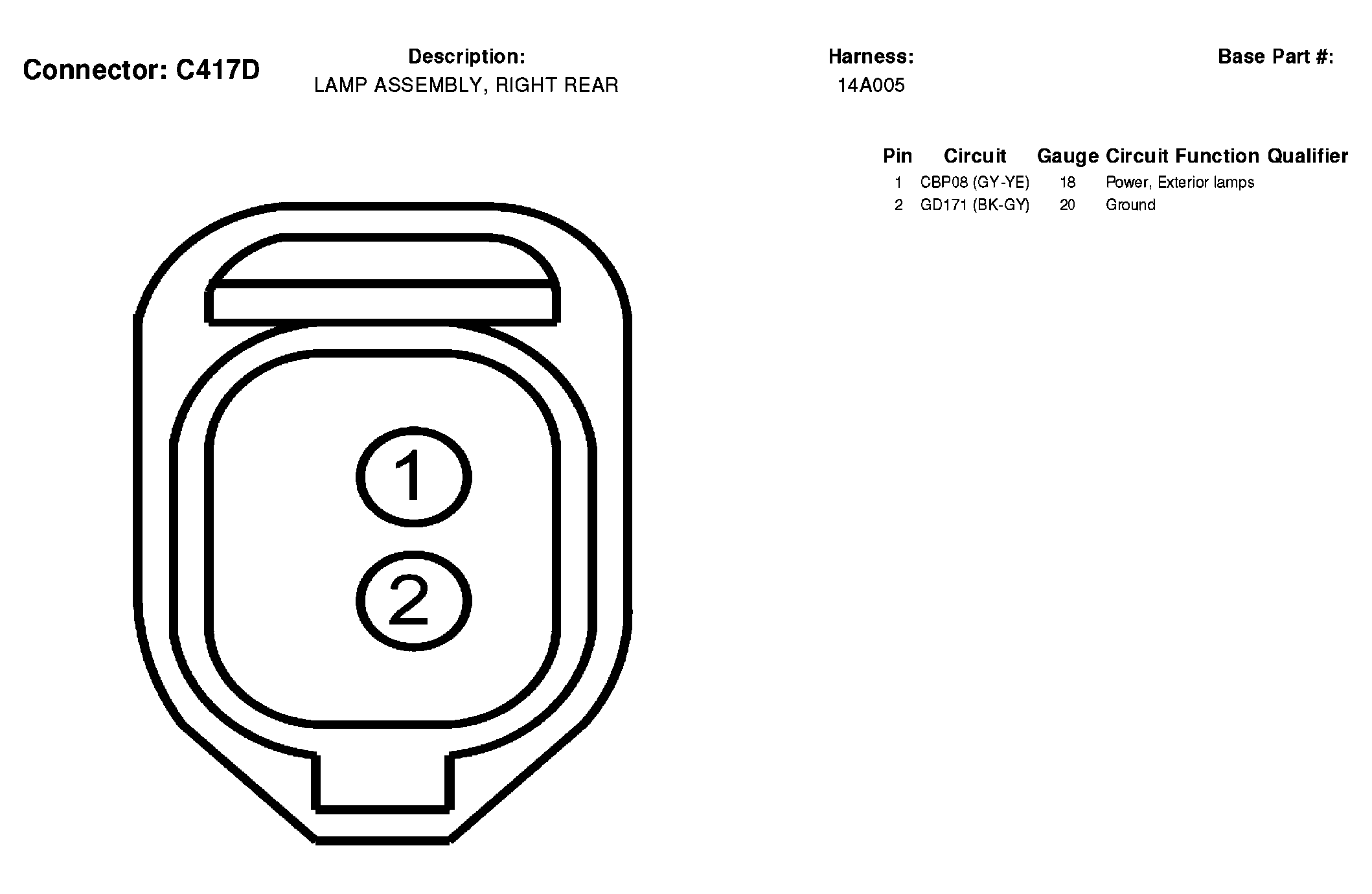

Fig 131: Lamp Assembly, Right Rear Connector End View (C417D)
Courtesy of FORD MOTOR CO.
Fig 132: Park/Stop Lamp, Right Rear Connector End View (C418)
Courtesy of FORD MOTOR CO.

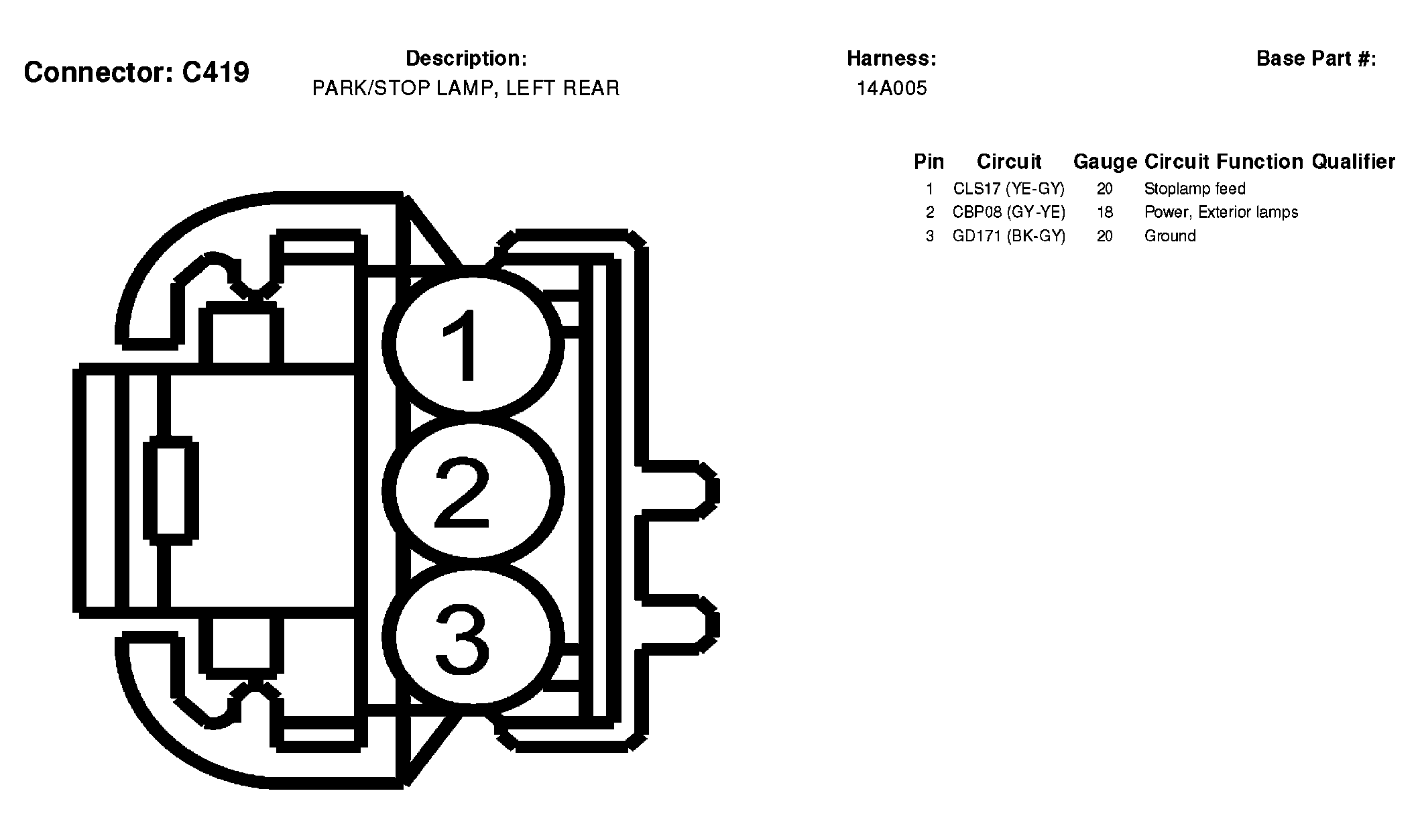

Fig 133: Park/Stop Lamp, Left Rear Connector End View (C419)
Courtesy of FORD MOTOR CO.

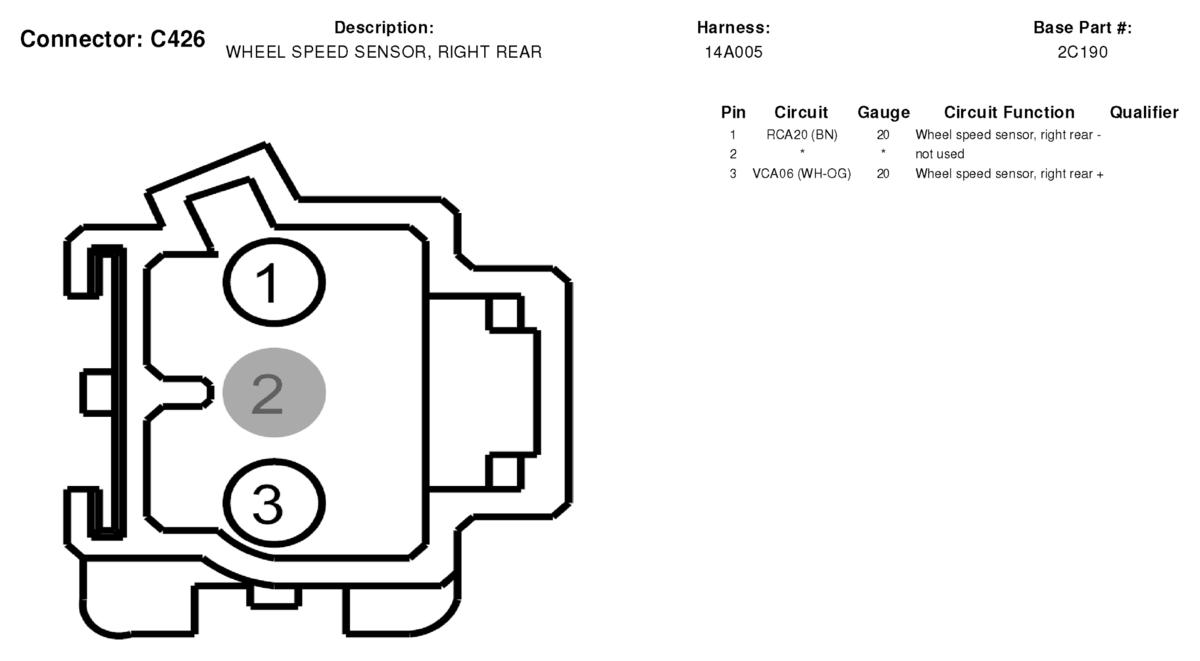

Fig 134: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.

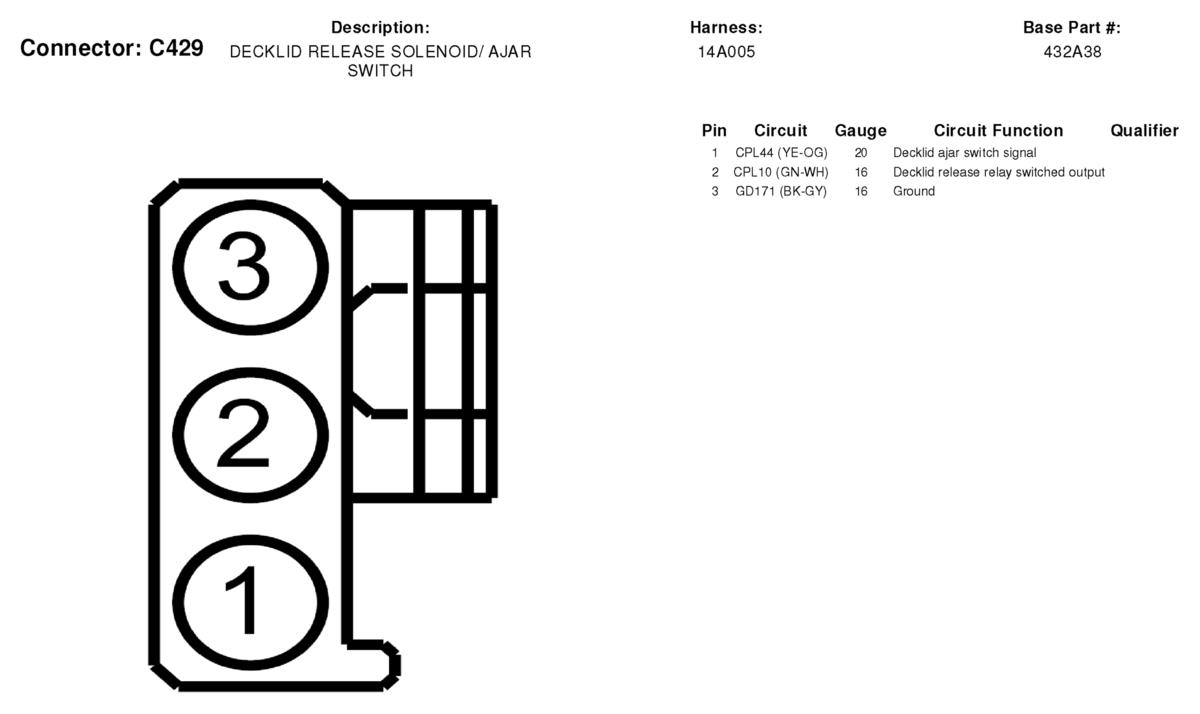

Fig 135: Decklid Release Solenoid/Ajar Switch Connector End View (C429)
Courtesy of FORD MOTOR CO.

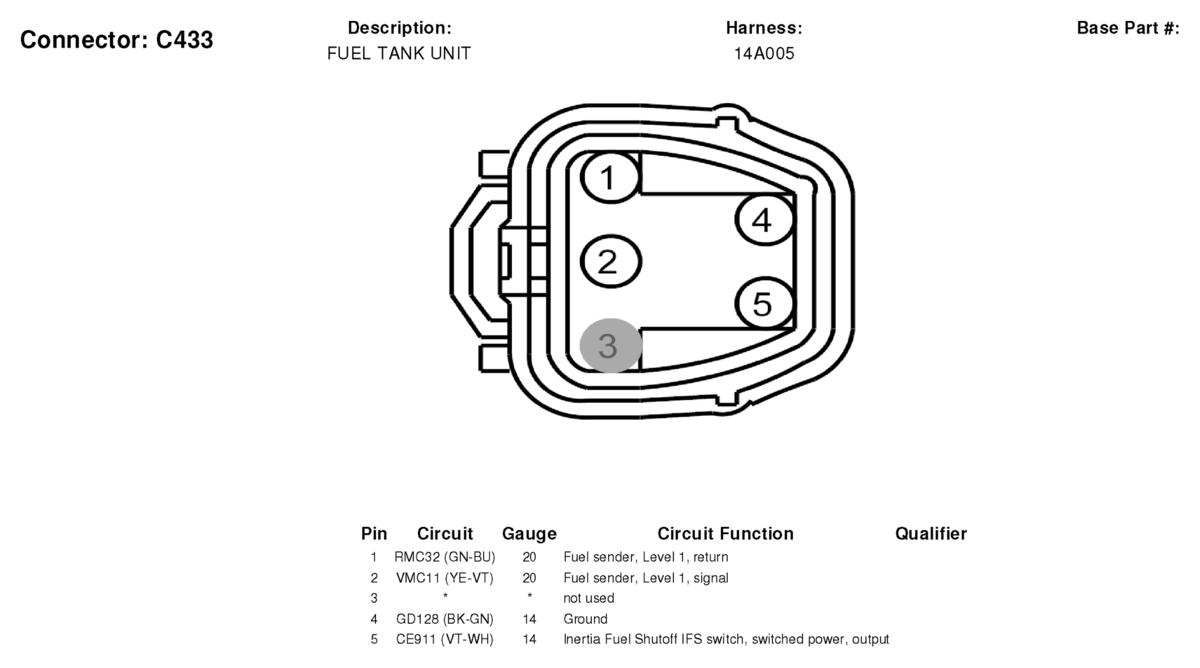

Fig 136: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

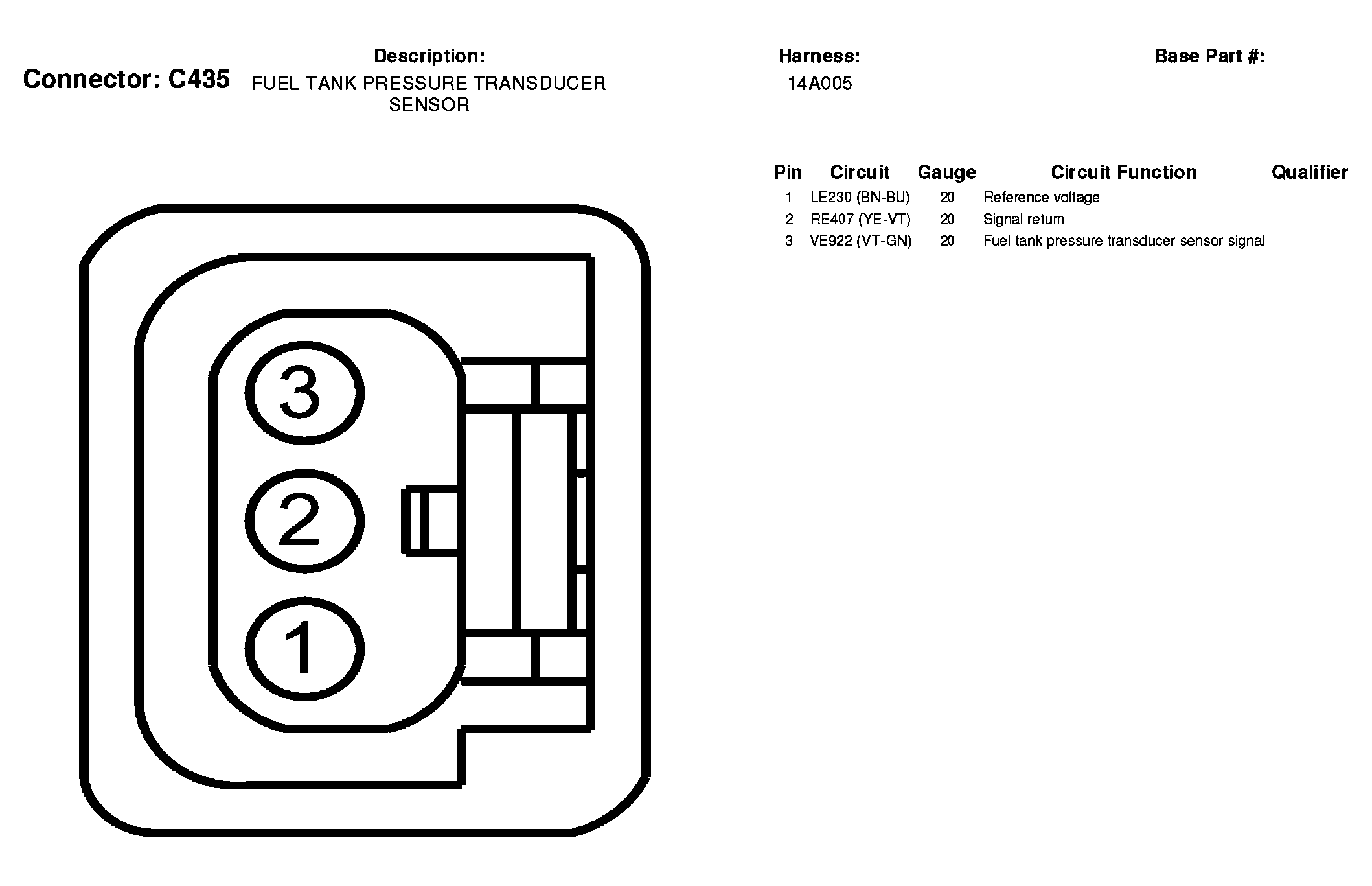

Fig 137: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.

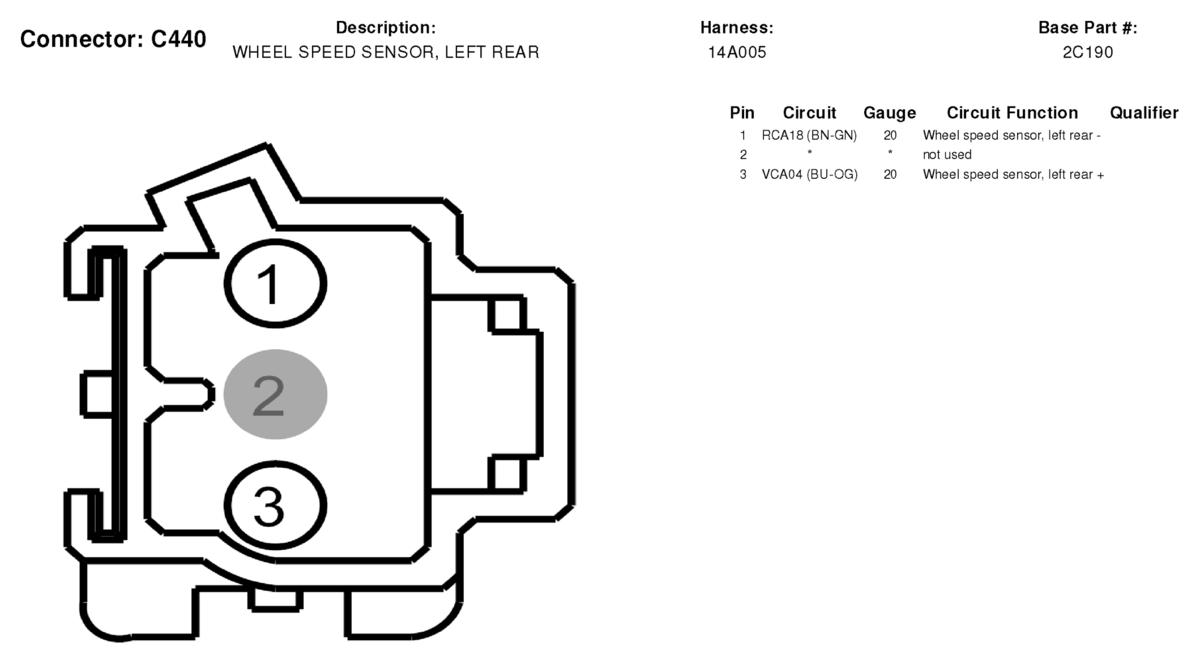

Fig 138: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

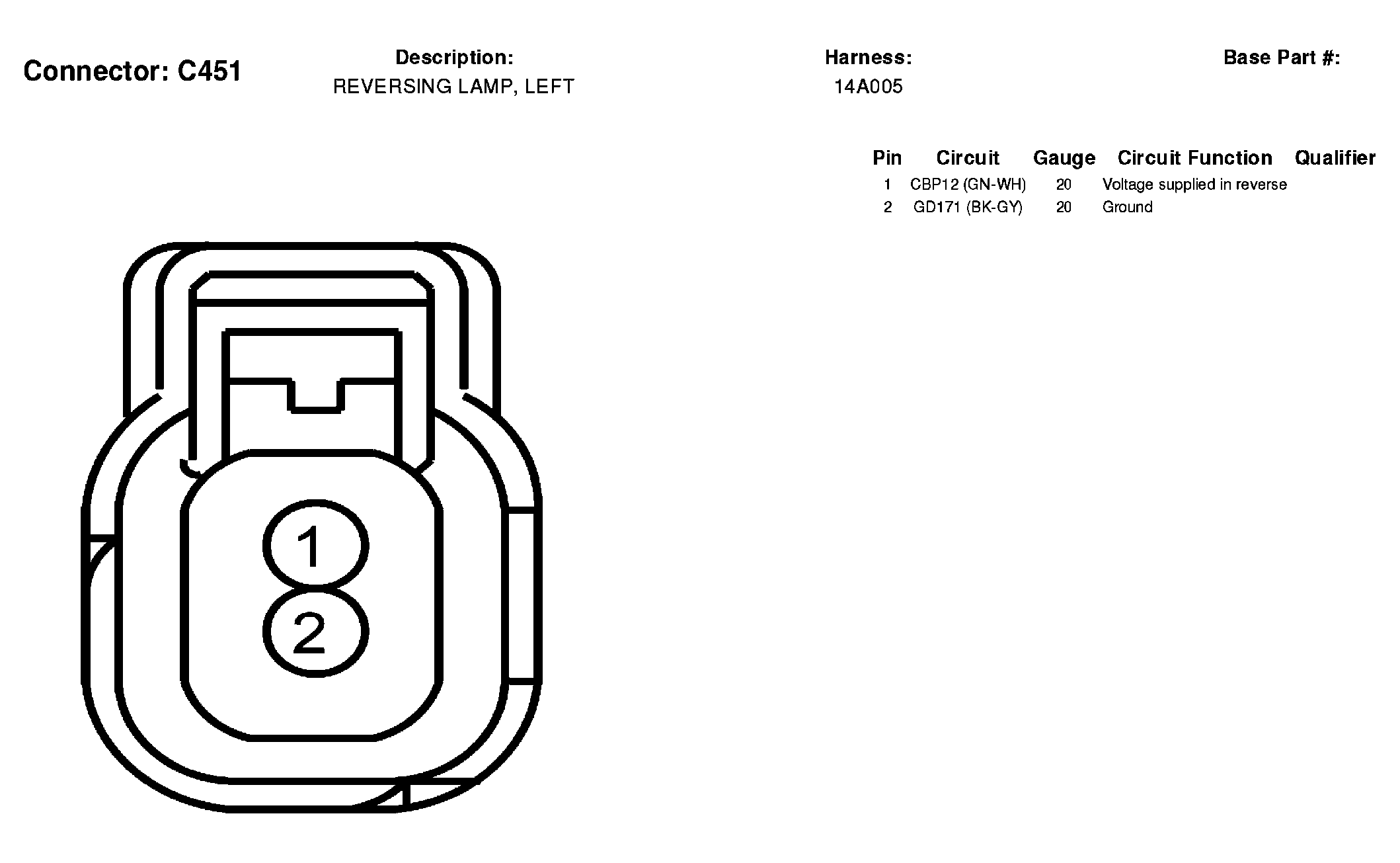

Fig 139: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.
Fig 140: License Plate Lamp, Left Connector End View (C452)
Courtesy of FORD MOTOR CO.
Fig 141: License Plate Lamp, Left Connector End View (C454)
Courtesy of FORD MOTOR CO.
Fig 142: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

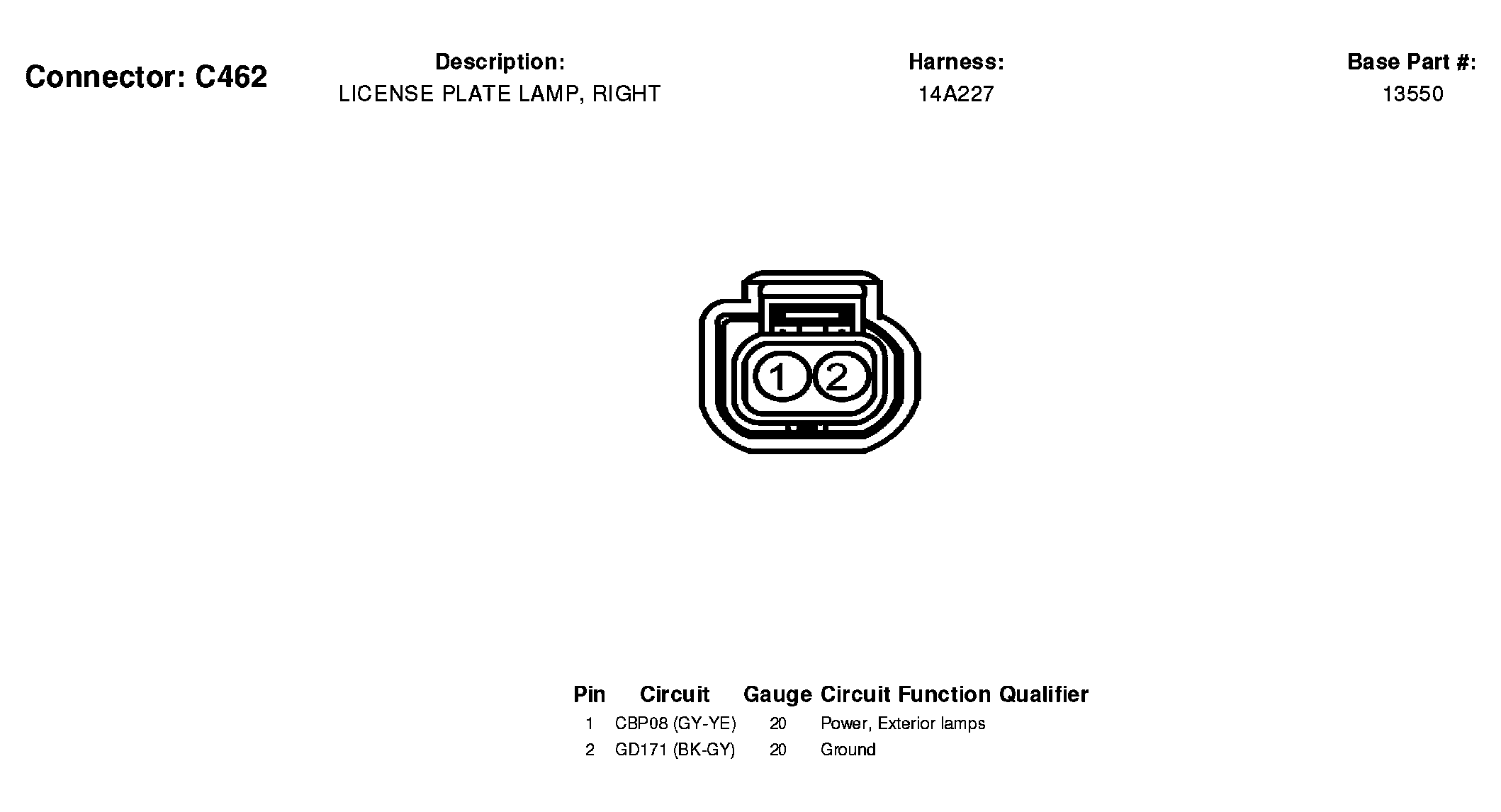

Fig 143: License Plate Lamp, Right Connector End View (C462)
Courtesy of FORD MOTOR CO.

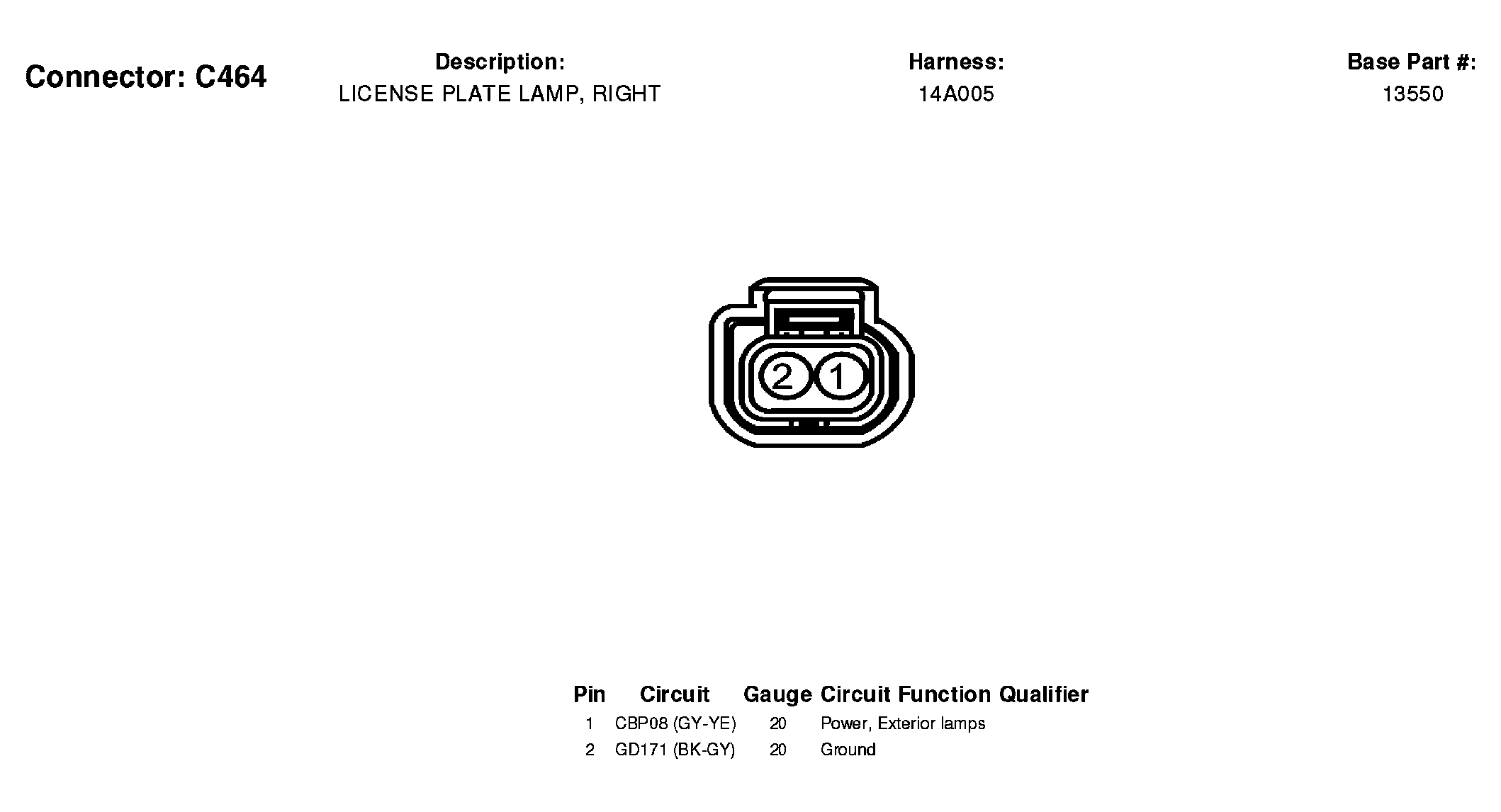

Fig 144: License Plate Lamp, Right Connector End View (C464)
Courtesy of FORD MOTOR CO.

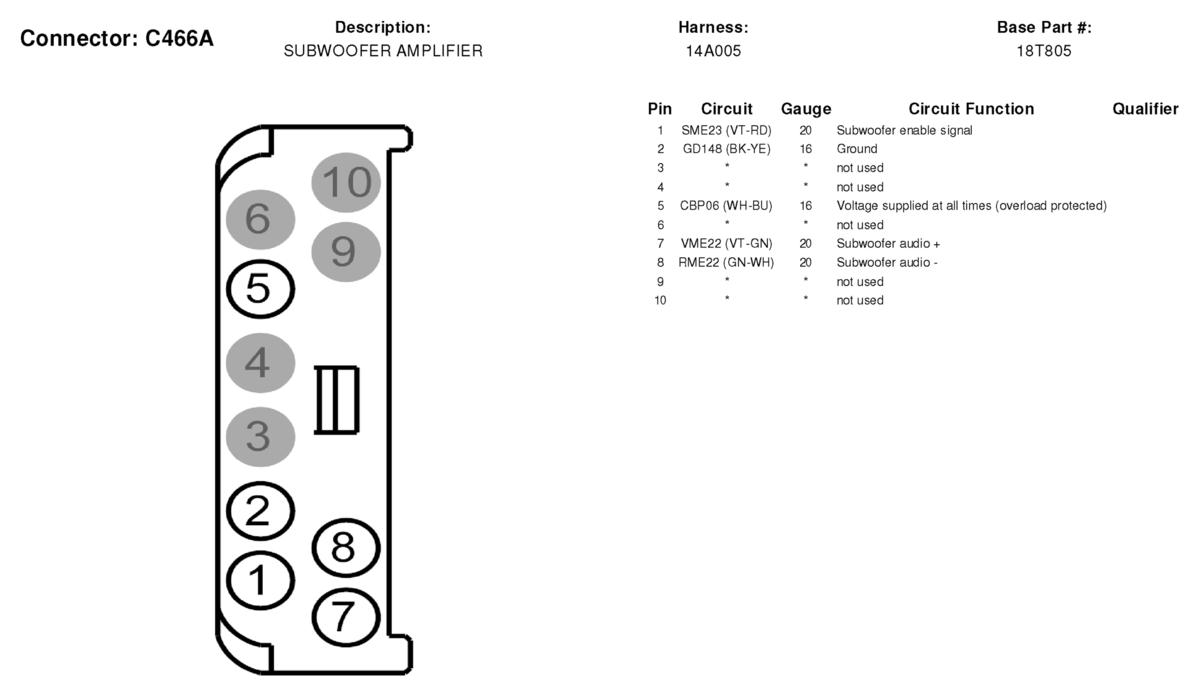

Fig 145: Subwoofer Amplifier Connector End View (C466A)
Courtesy of FORD MOTOR CO.

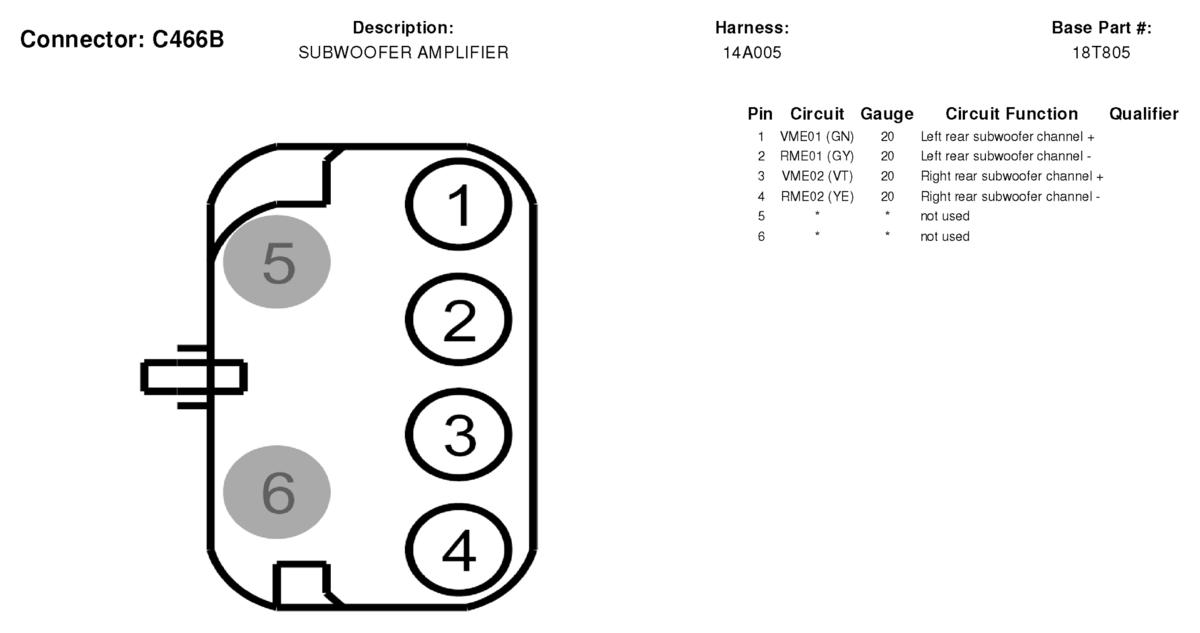

Fig 146: Subwoofer Amplifier Connector End View (C466B)
Courtesy of FORD MOTOR CO.

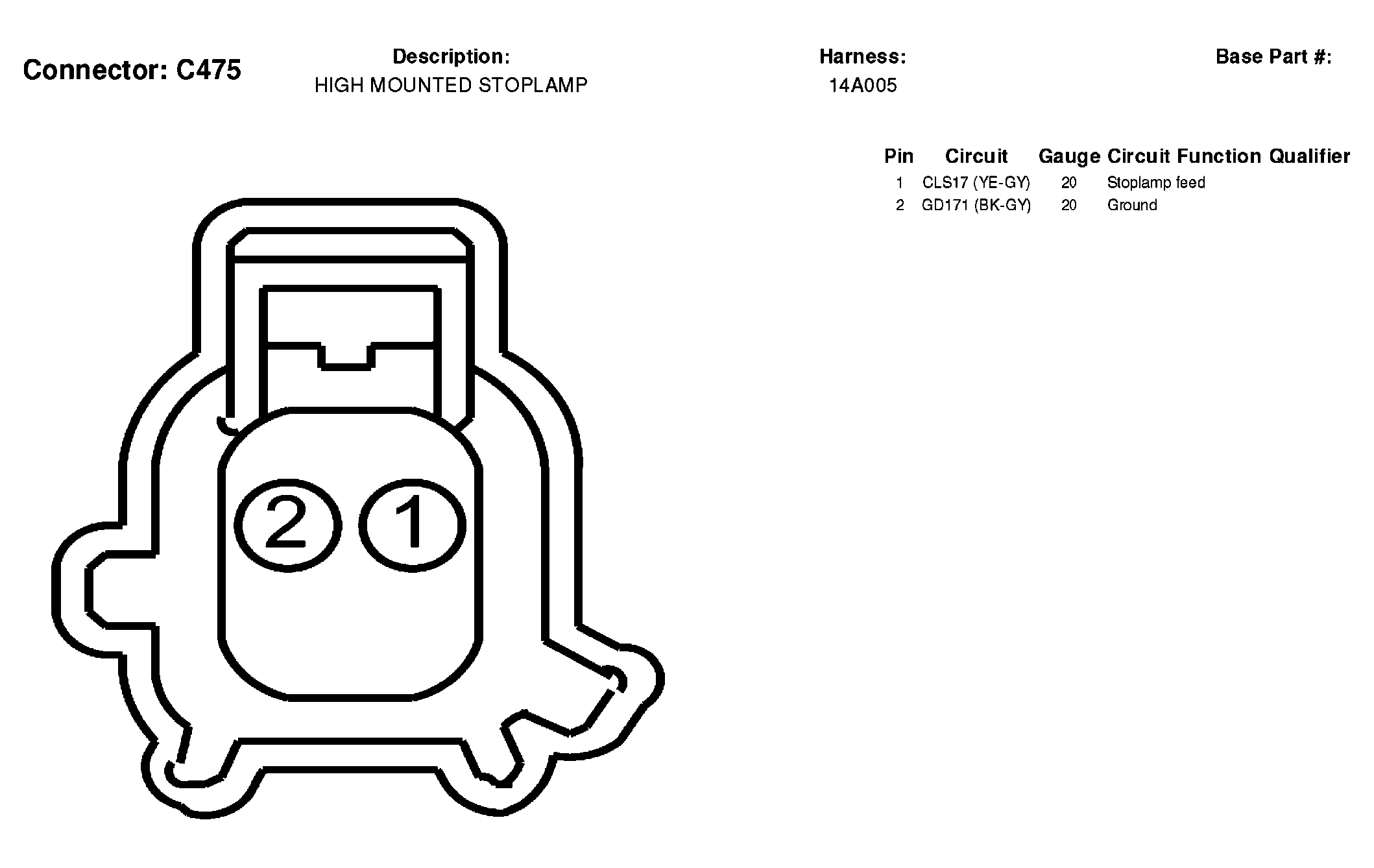

Fig 147: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.

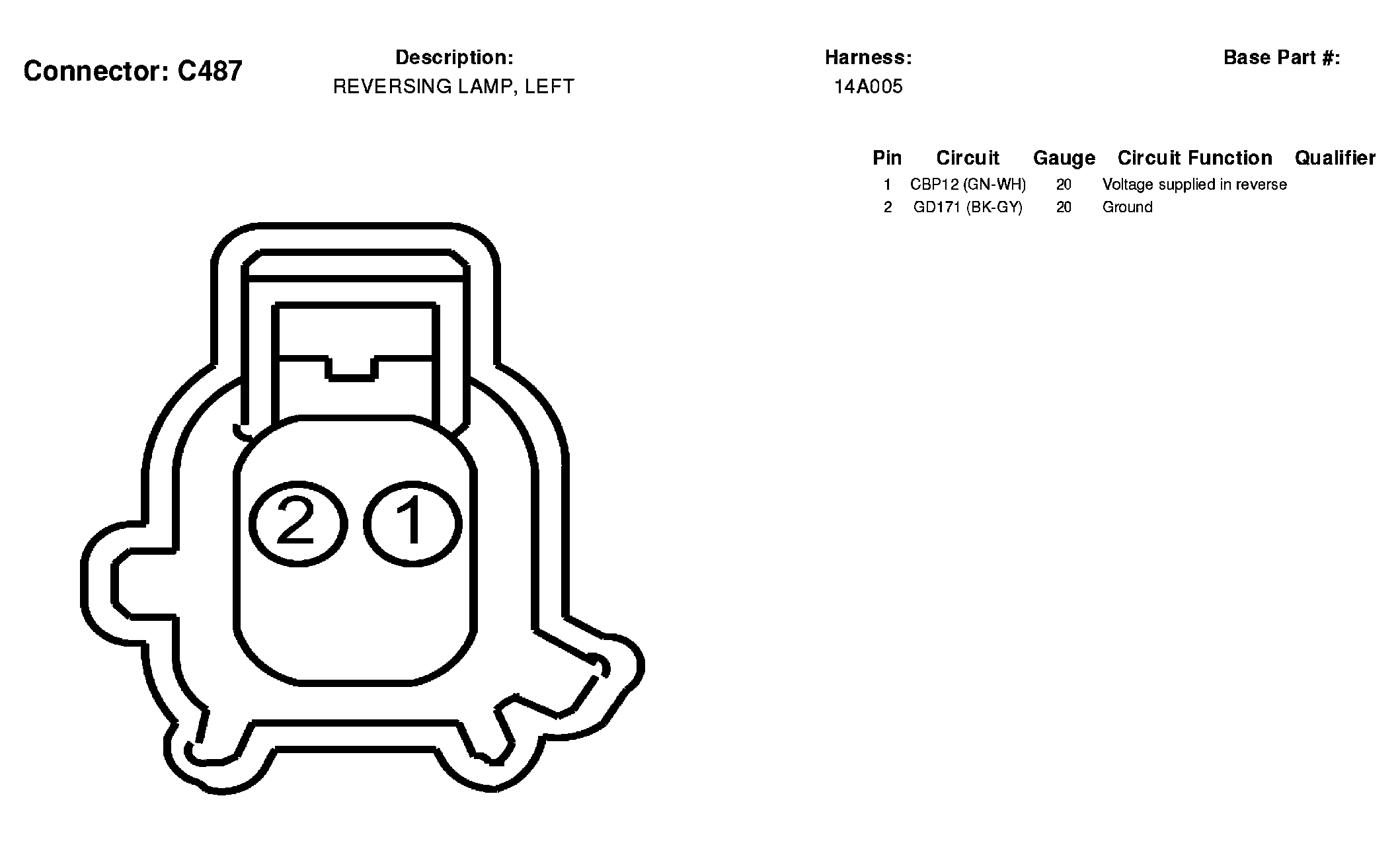

Fig 148: Reversing Lamp, Left Connector End View (C487)
Courtesy of FORD MOTOR CO.

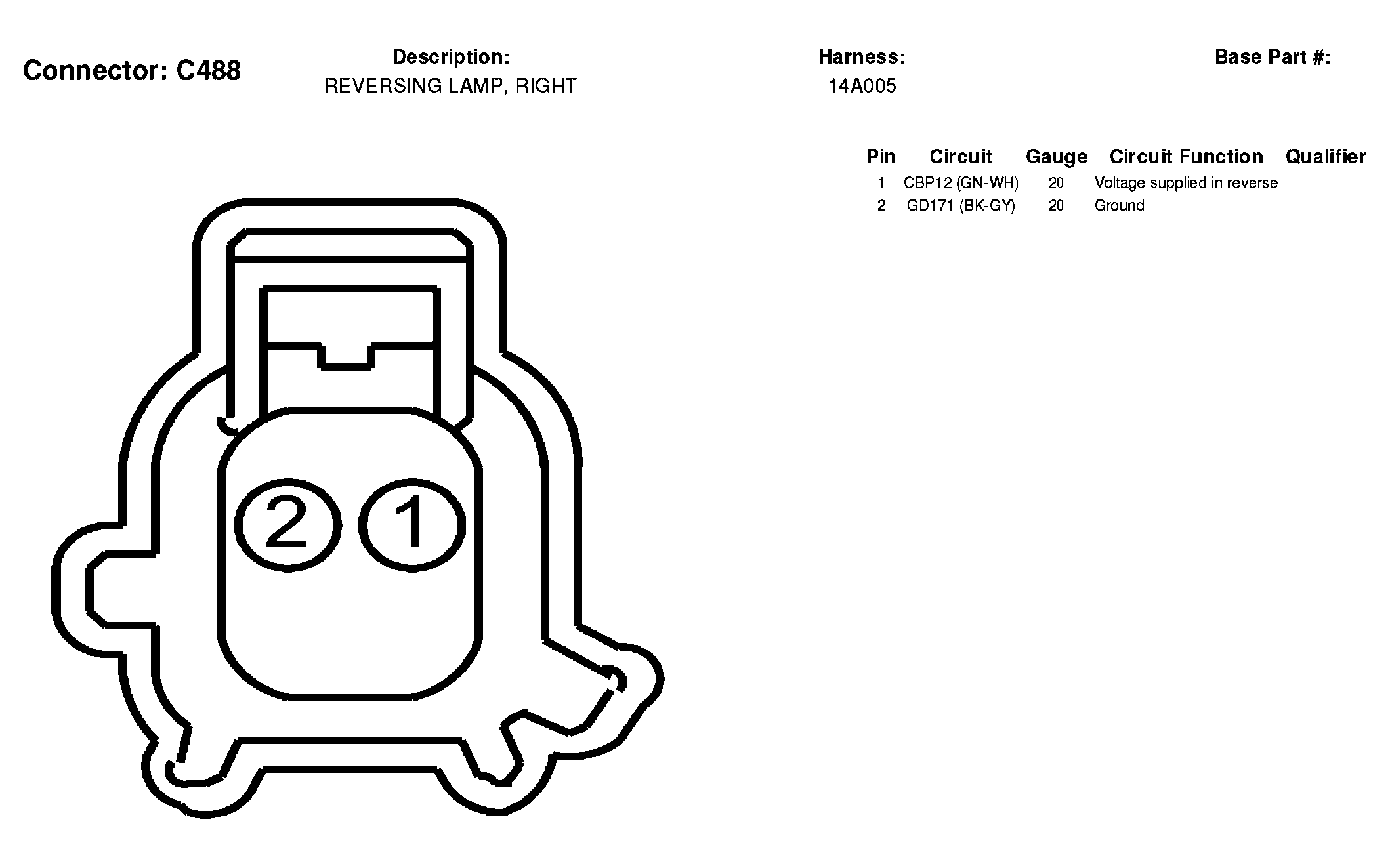

Fig 149: Reversing Lamp, Right Connector End View (C488)
Courtesy of FORD MOTOR CO.

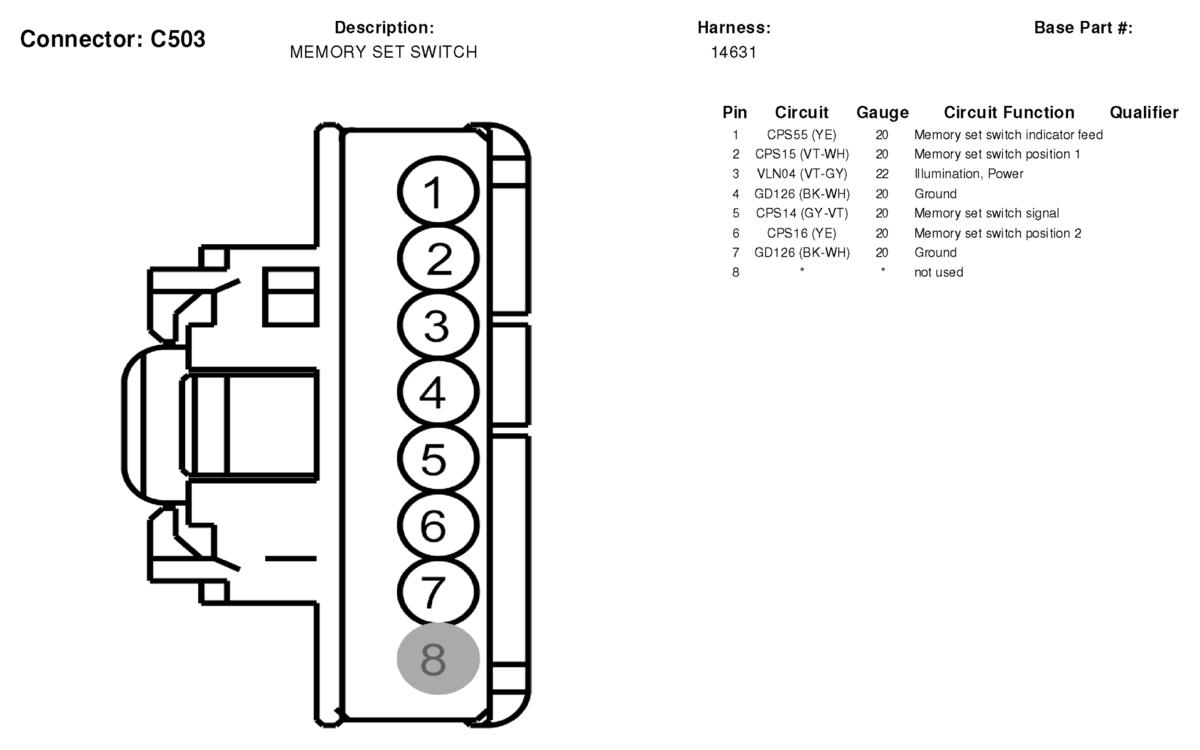

Fig 150: Memory Set Switch Connector End View (C503)
Courtesy of FORD MOTOR CO.

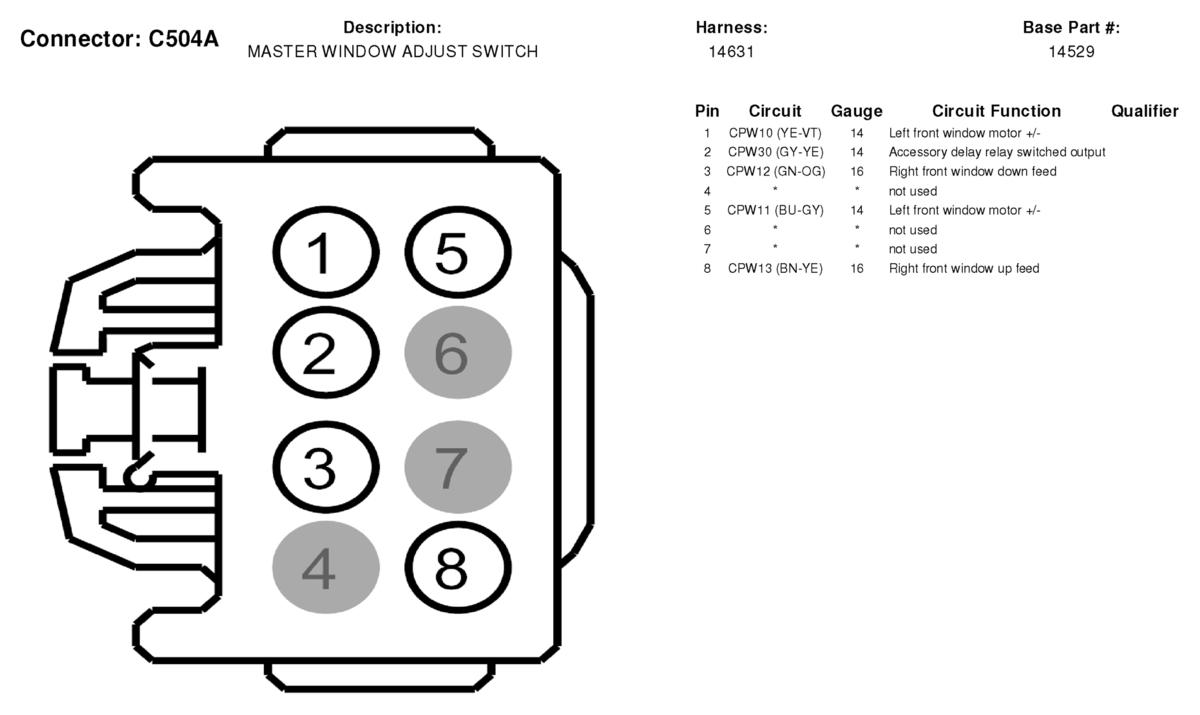

Fig 151: Master Window Adjust Switch Connector End View (C504A)
Courtesy of FORD MOTOR CO.

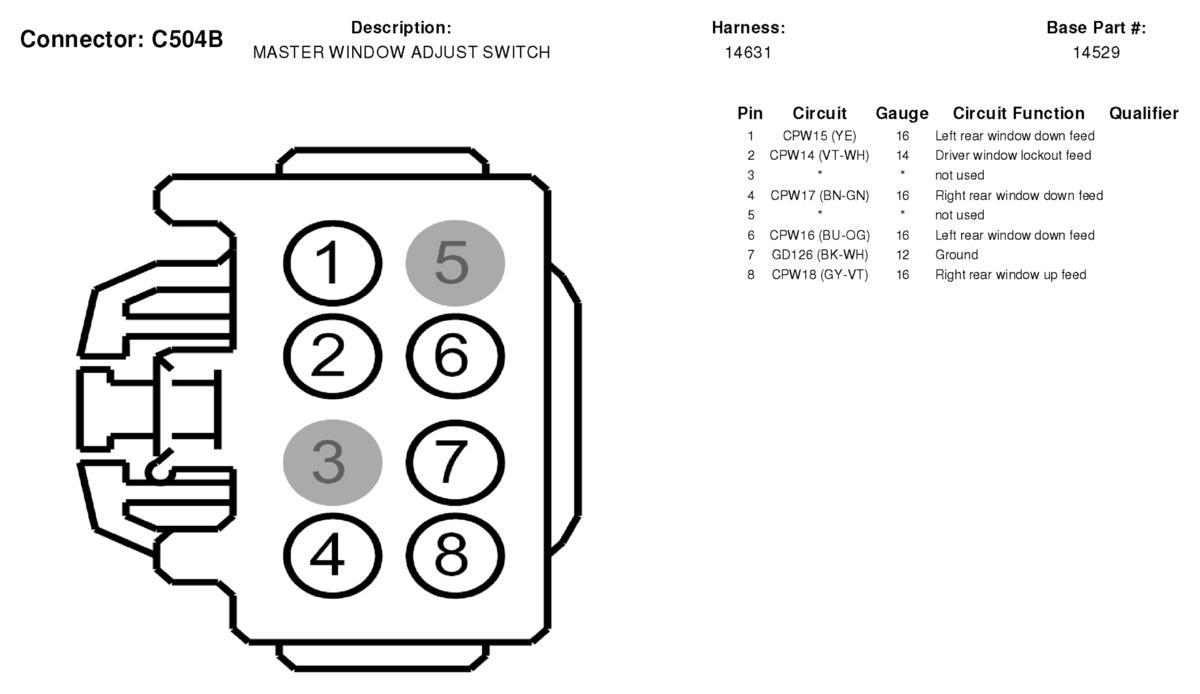

Fig 152: Master Window Adjust Switch Connector End View (C504B)
Courtesy of FORD MOTOR CO.

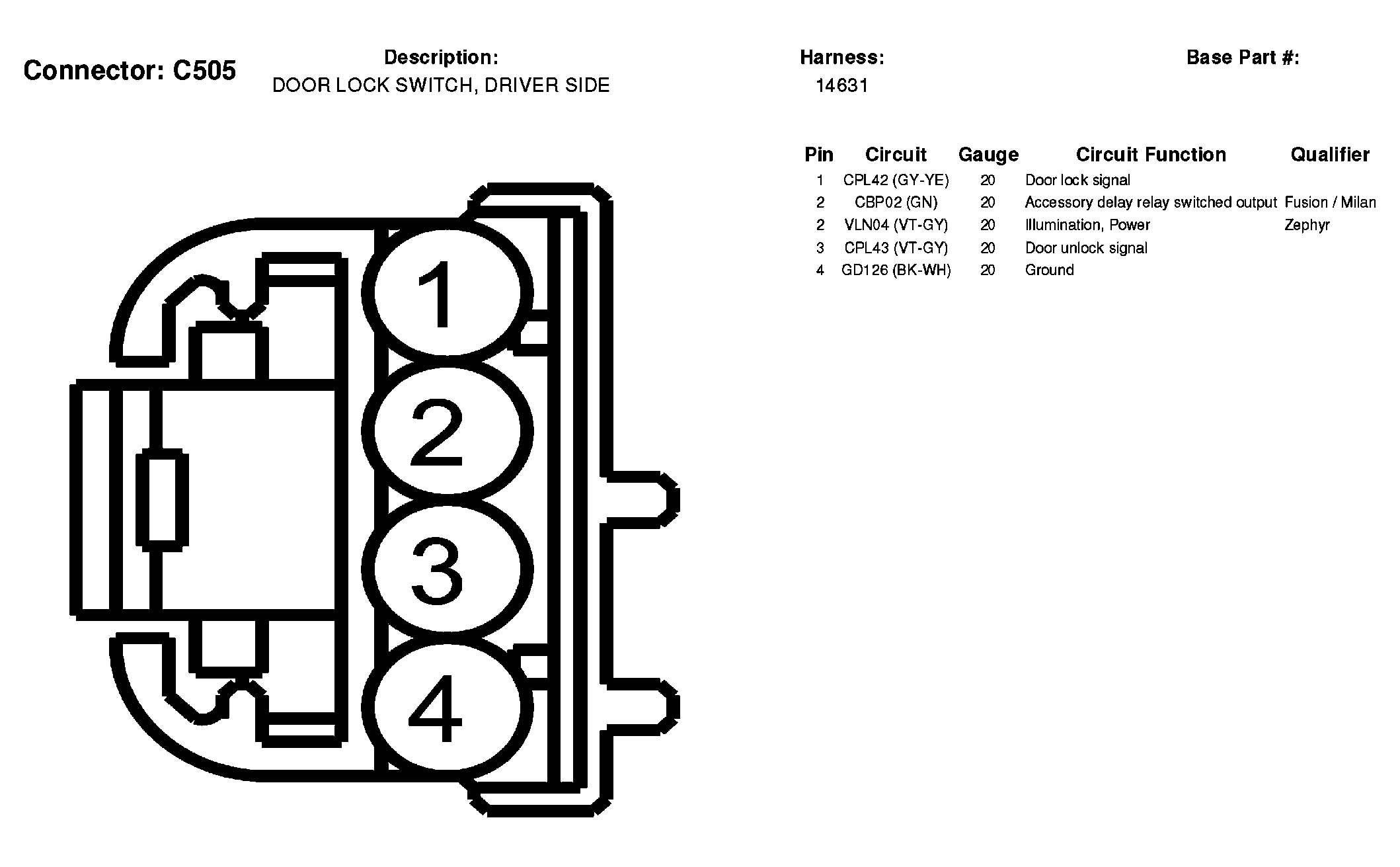

Fig 153: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

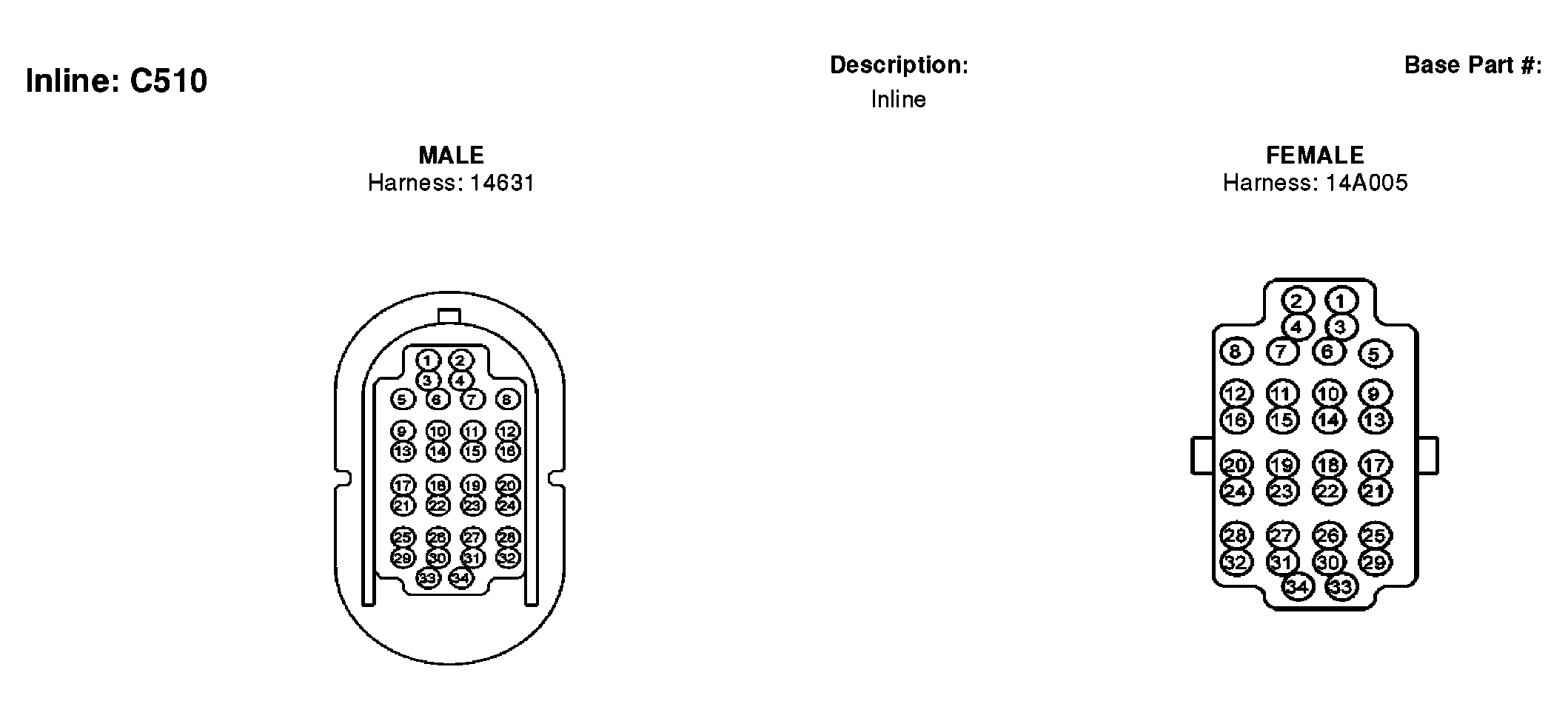

Fig 154: Inline Connector End View (C510) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 155: Inline Connector End View (C510) (2 Of 2)
Courtesy of FORD MOTOR CO.

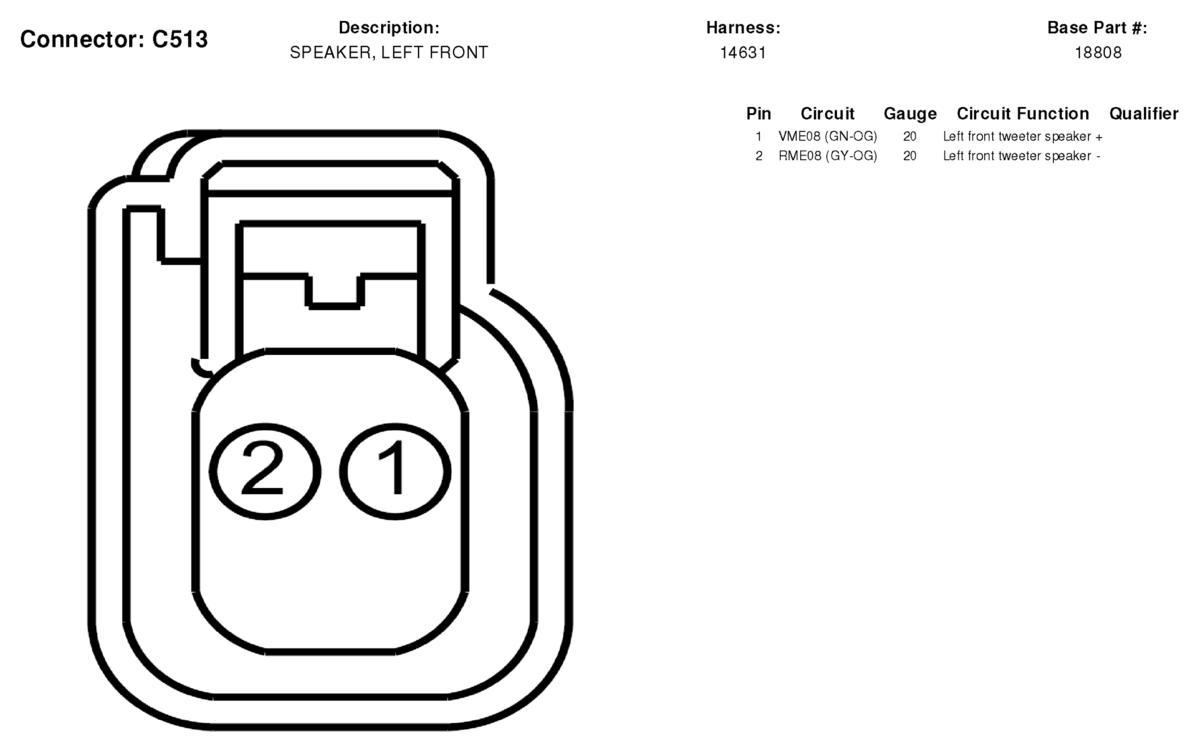

Fig 156: Speaker, Left Front Connector End View (C513)
Courtesy of FORD MOTOR CO.
Fig 157: Exterior Rear View Mirror, LH Side Connector End View (C516)
Courtesy of FORD MOTOR CO.
Fig 158: Exterior Rear View Mirror, LH Side Connector End View (C517)
Courtesy of FORD MOTOR CO.
Fig 159: Power Window Motor, Left Front Connector End View (C518)
Courtesy of FORD MOTOR CO.

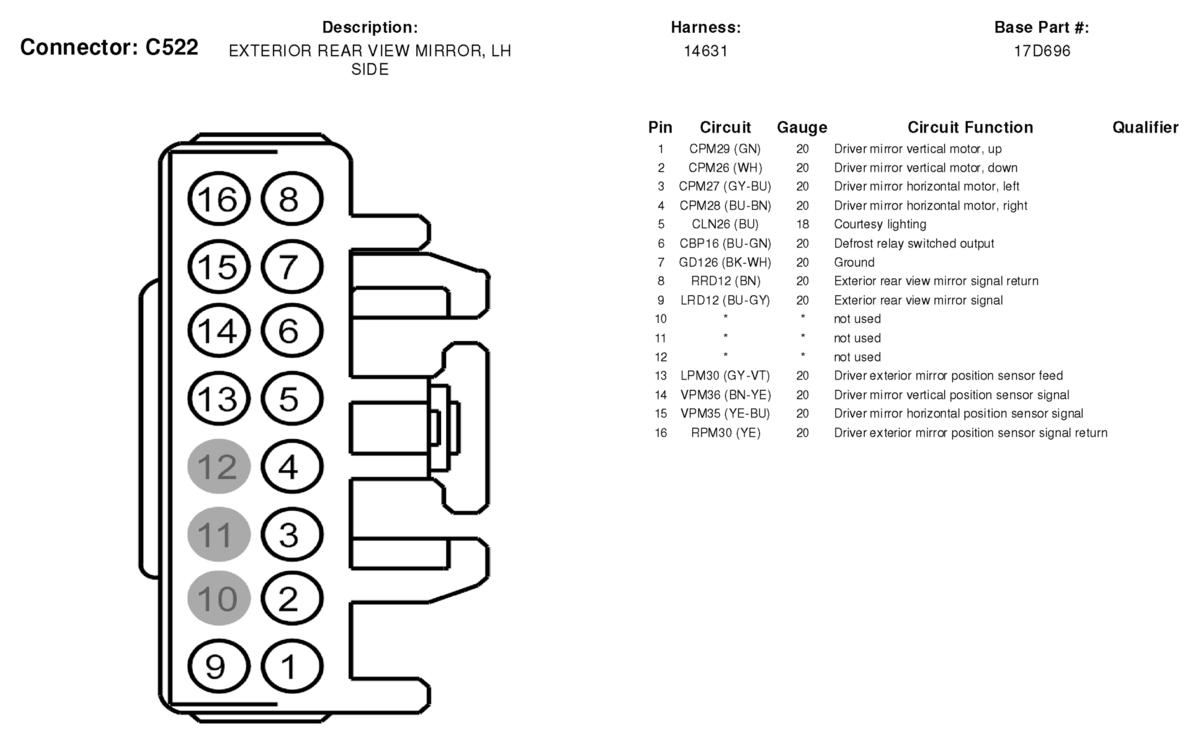

Fig 160: Exterior Rear View Mirror, LH Side Connector End View (C522)
Courtesy of FORD MOTOR CO.

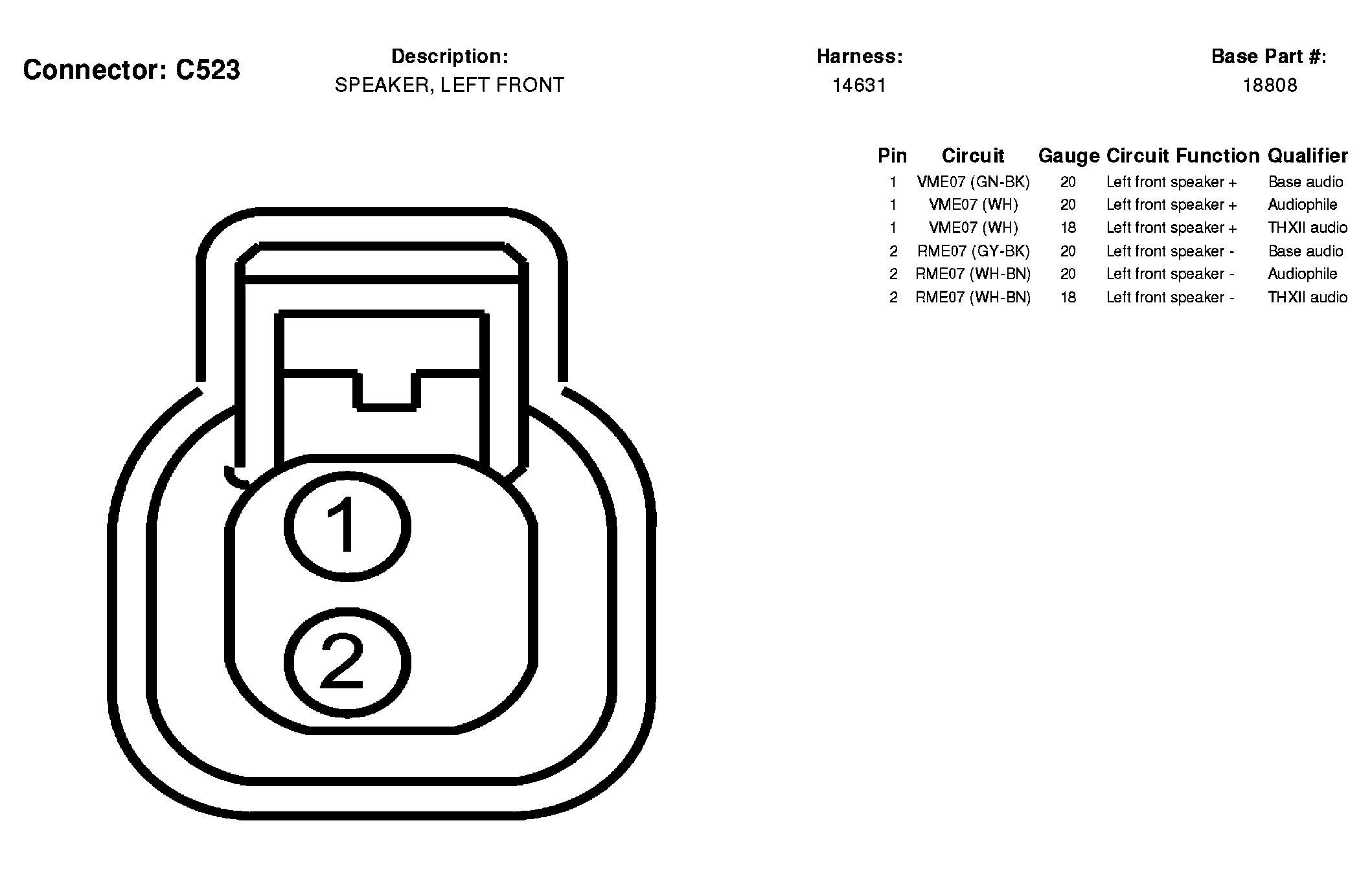

Fig 161: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

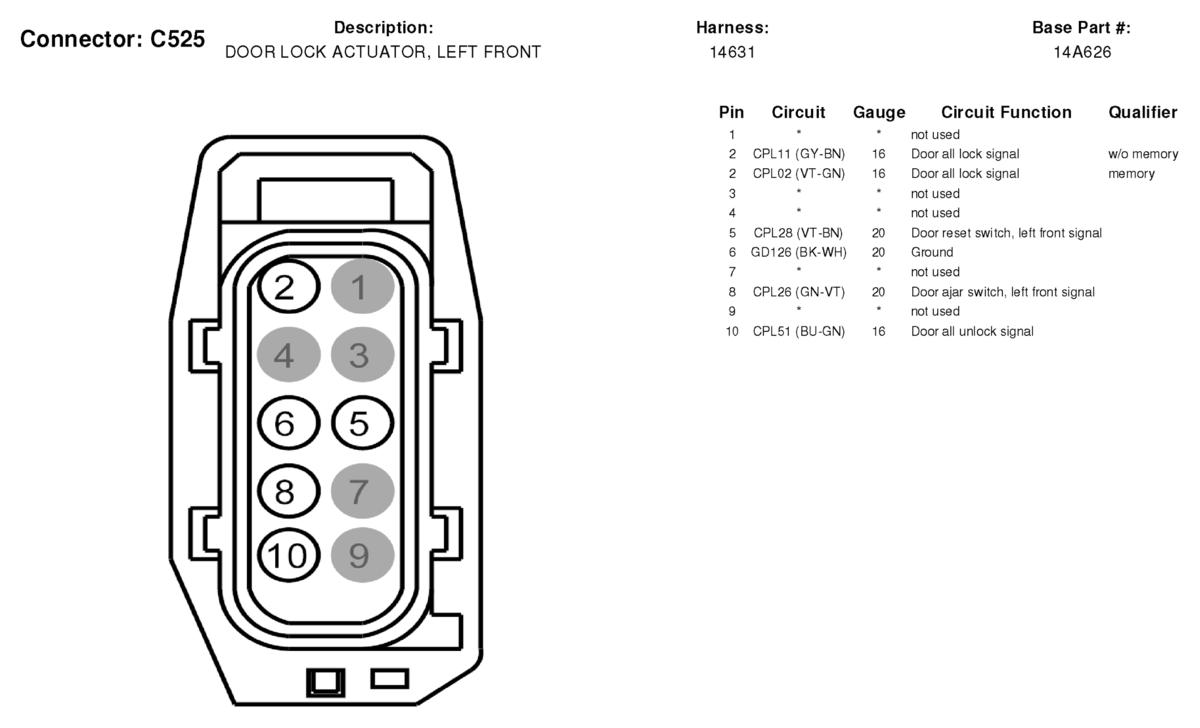

Fig 162: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

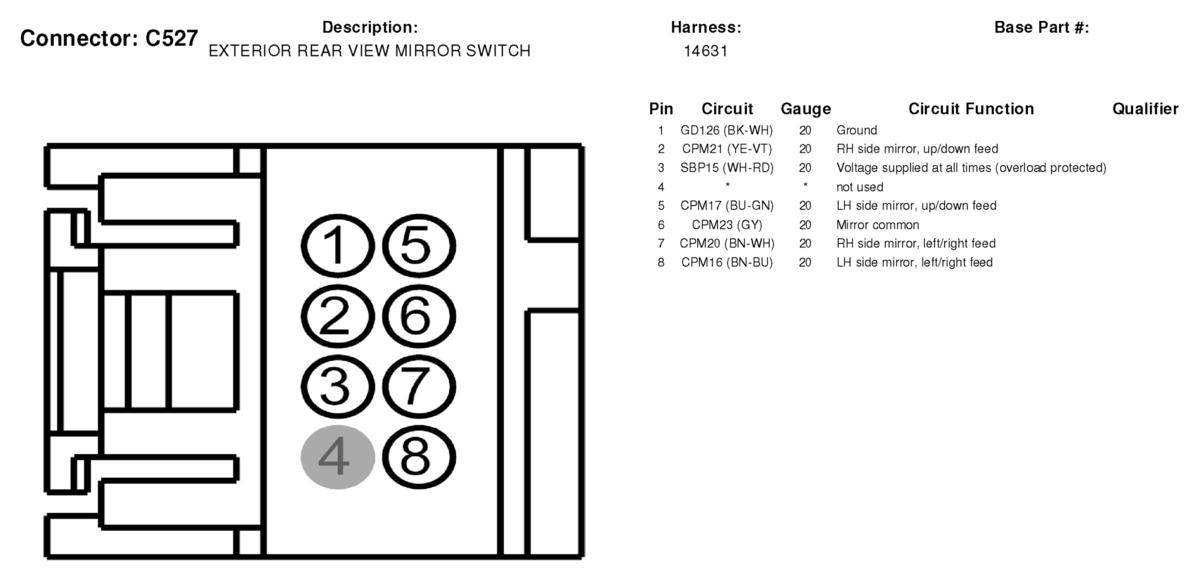

Fig 163: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

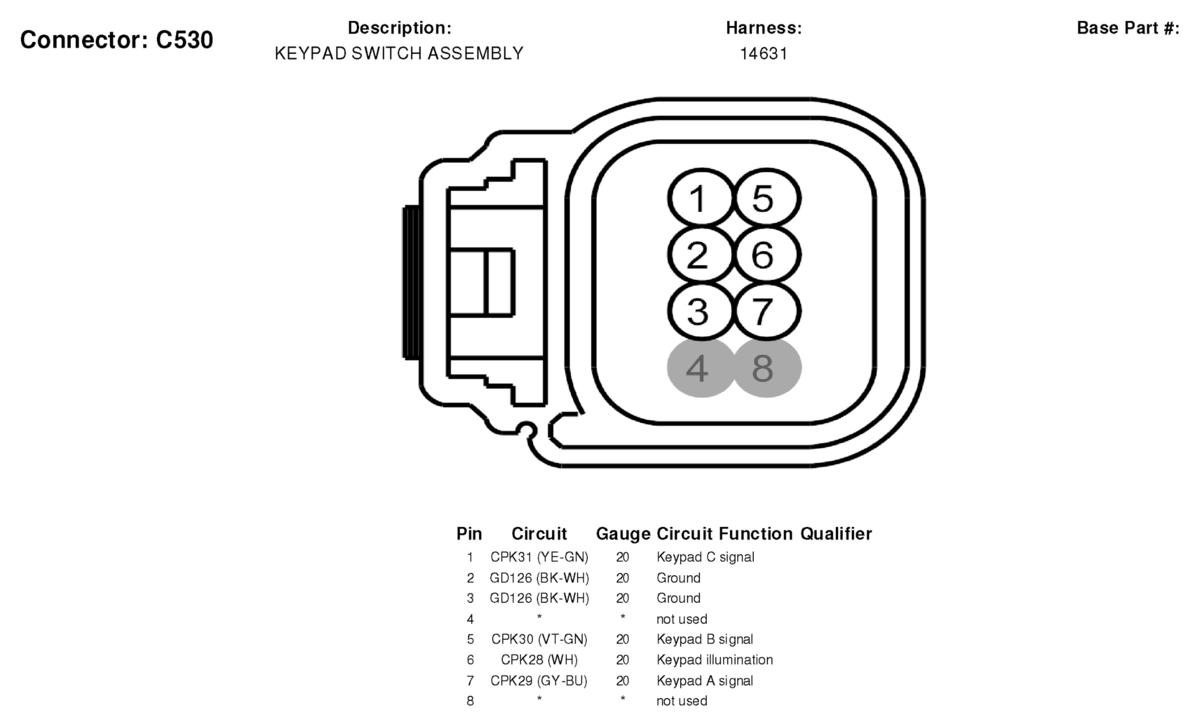

Fig 164: Keypad Switch Assembly Connector End View (C530)
Courtesy of FORD MOTOR CO.

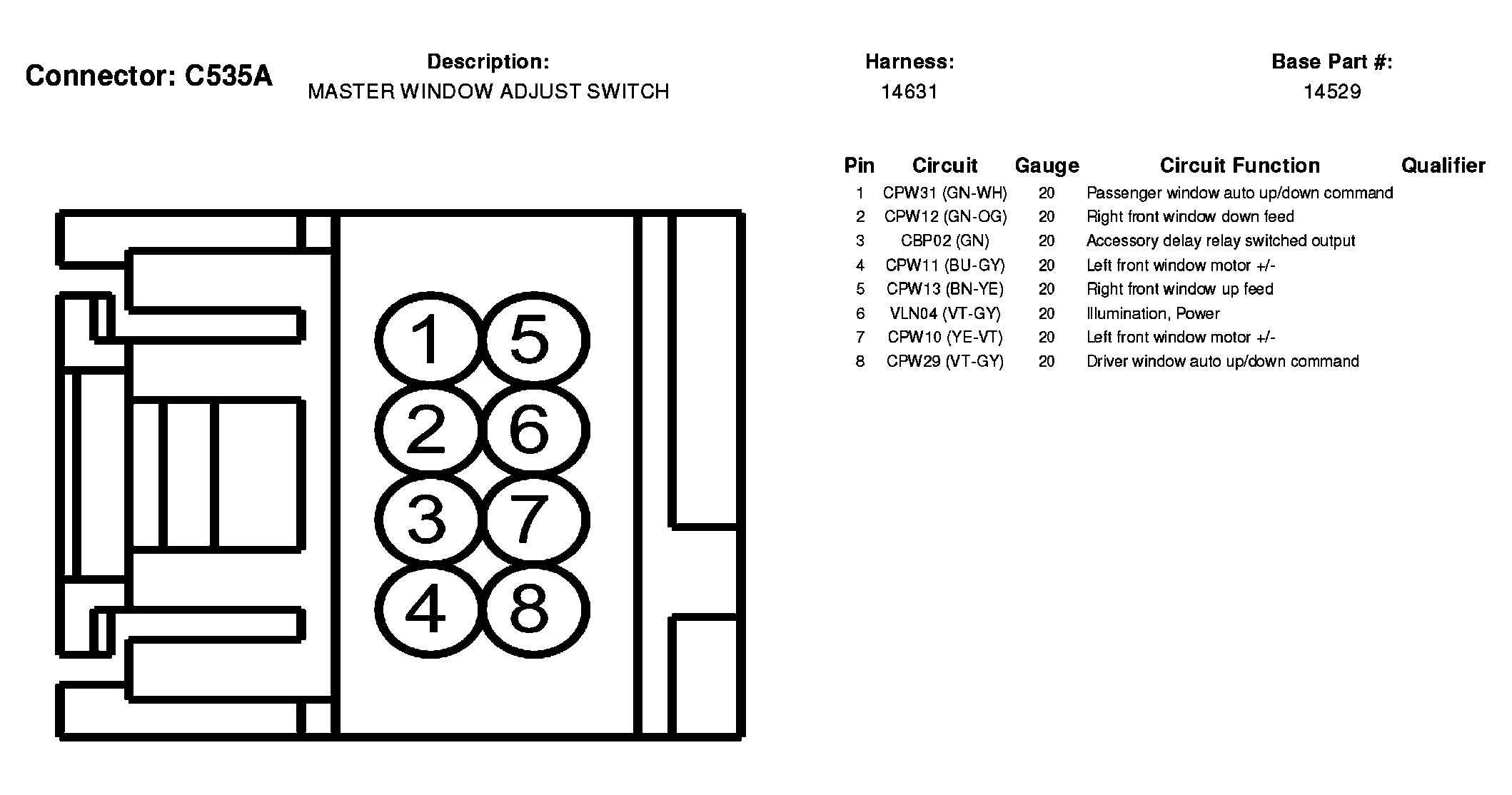

Fig 165: Master Window Adjust Switch Connector End View (C535A)
Courtesy of FORD MOTOR CO.

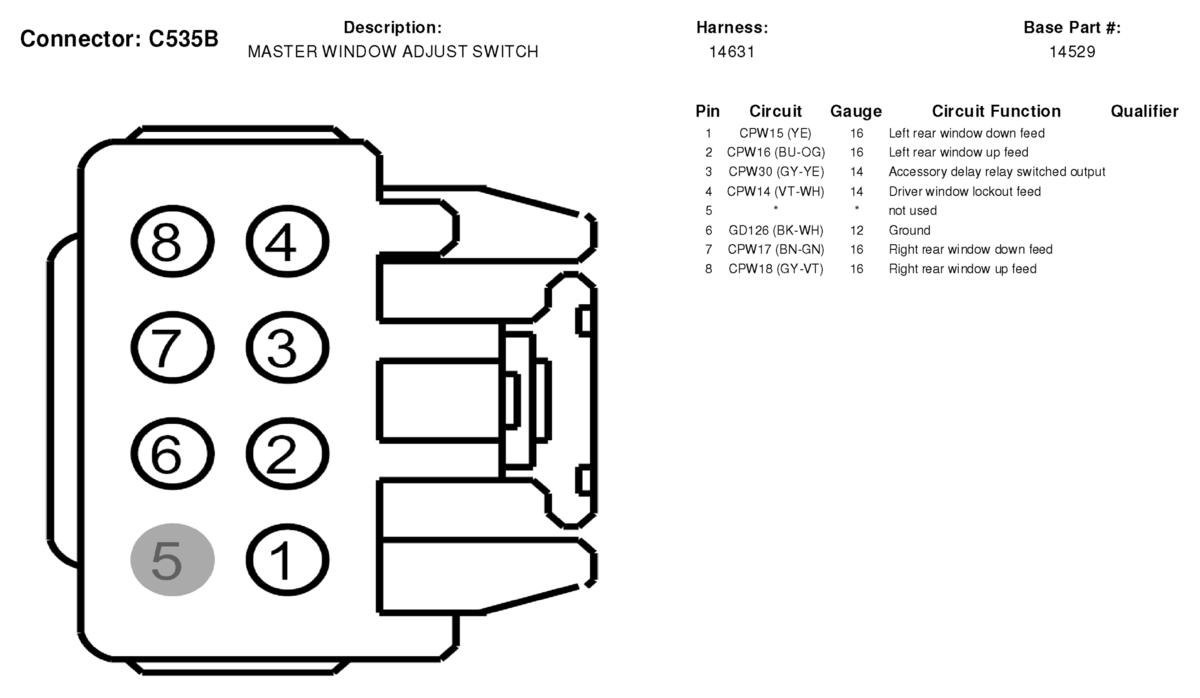

Fig 166: Master Window Adjust Switch Connector End View (C535B)
Courtesy of FORD MOTOR CO.

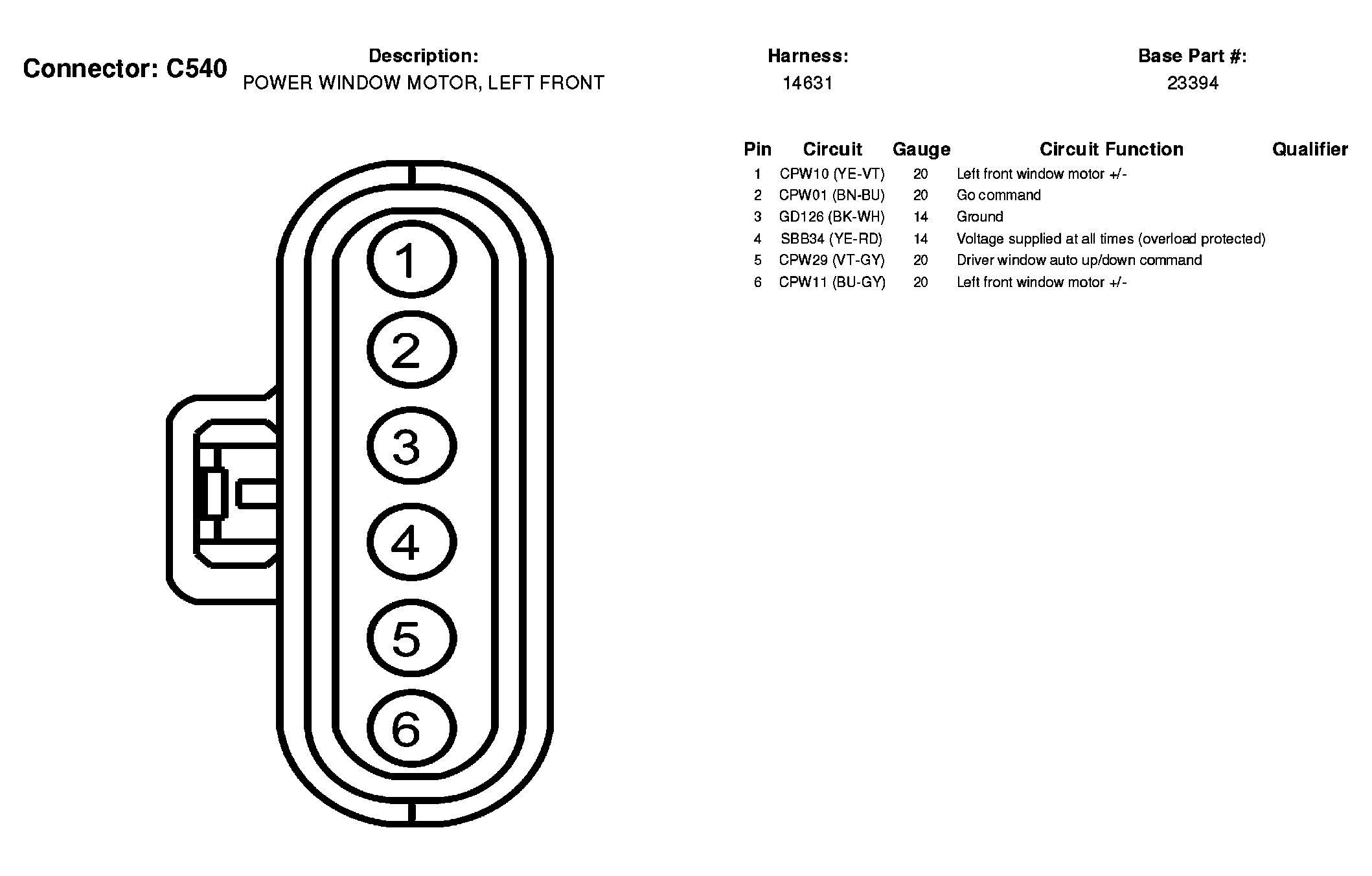

Fig 167: Power Window Motor, Left Front Connector End View (C540)
Courtesy of FORD MOTOR CO.

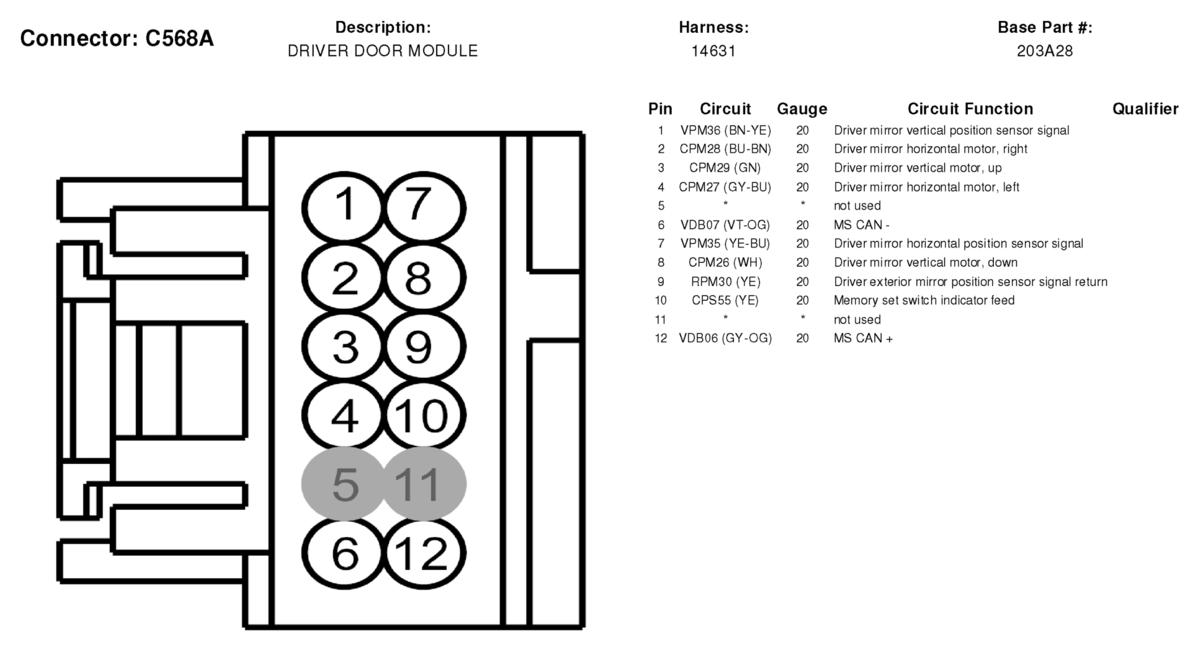

Fig 168: Driver Door Module Connector End View (C568A)
Courtesy of FORD MOTOR CO.

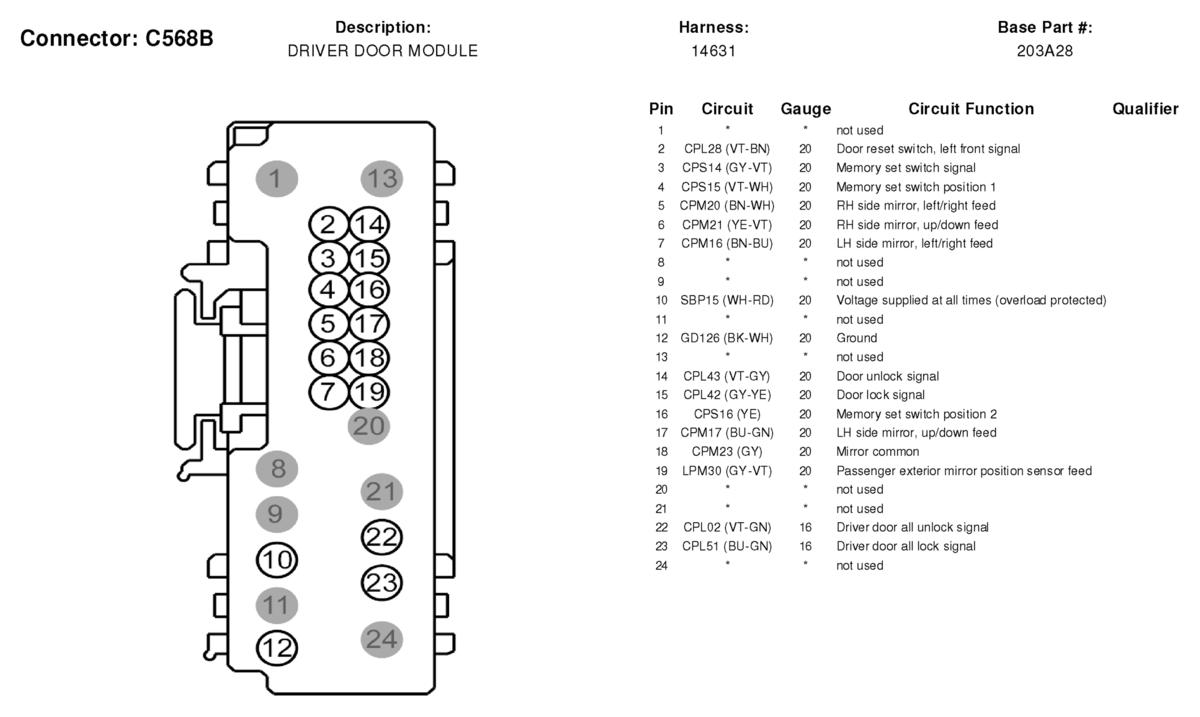

Fig 169: Driver Door Module Connector End View (C568B)
Courtesy of FORD MOTOR CO.

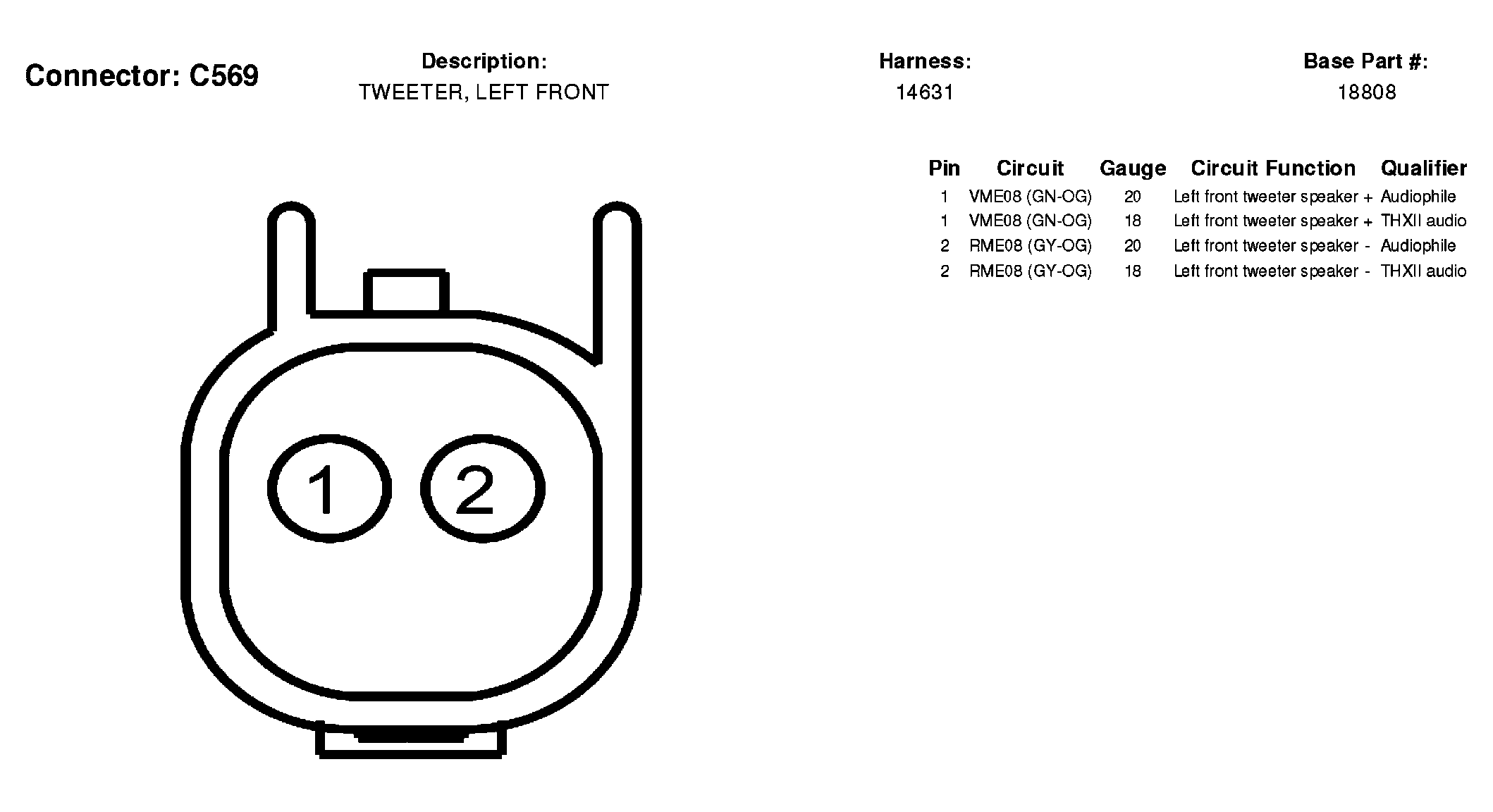

Fig 170: Tweeter, Left Front Connector End View (C569)
Courtesy of FORD MOTOR CO.
Fig 171: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.

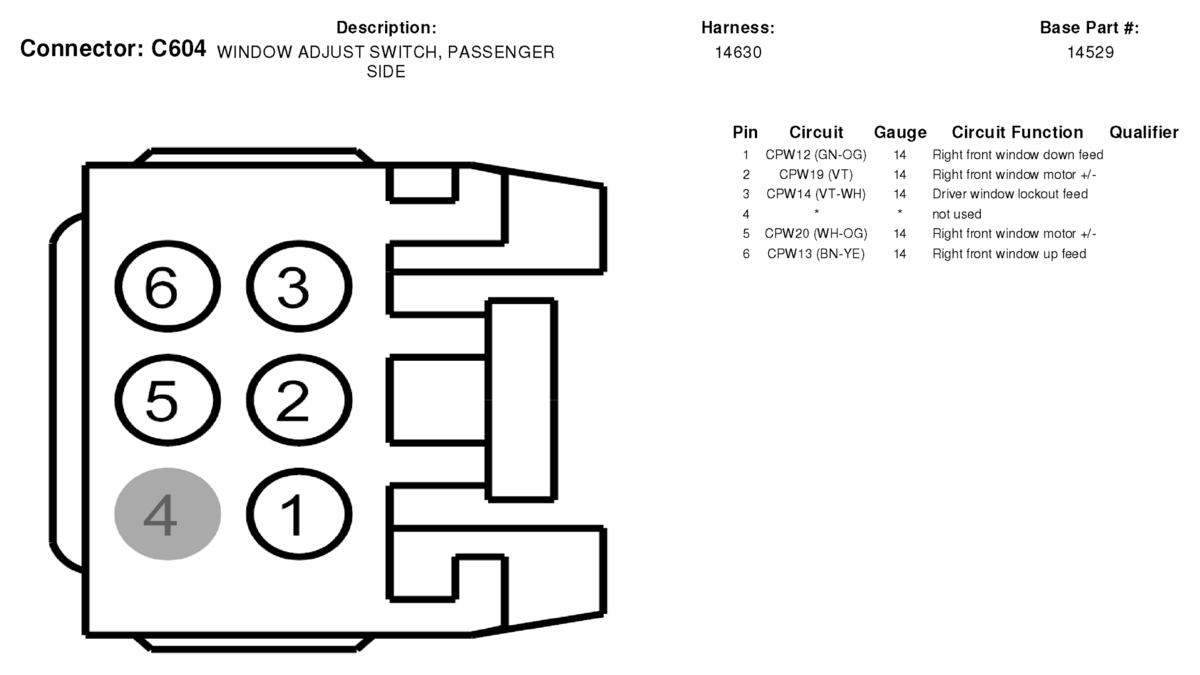

Fig 172: Window Adjust Switch, Passenger Side Connector End View (C604)
Courtesy of FORD MOTOR CO.

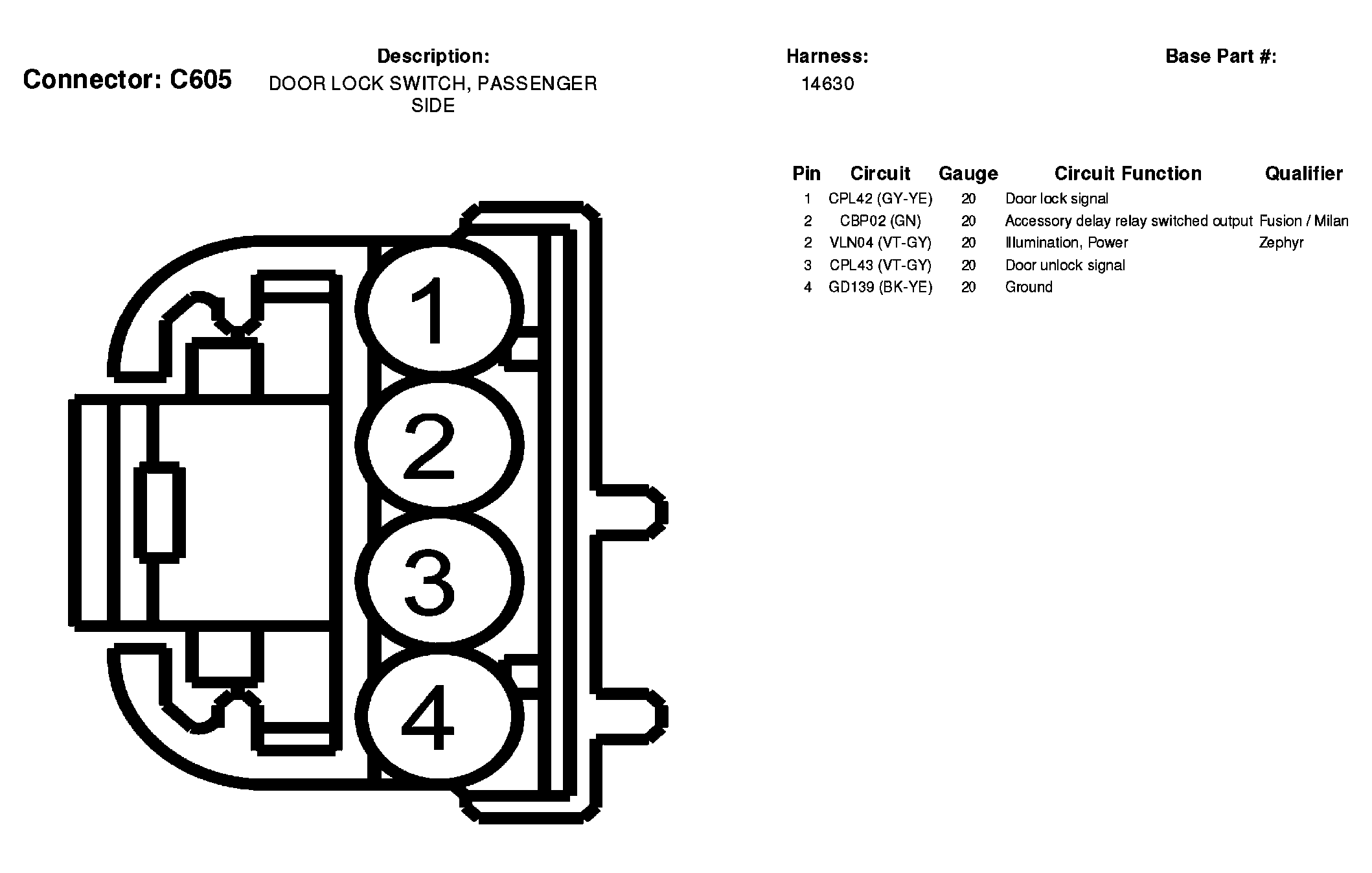

Fig 173: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

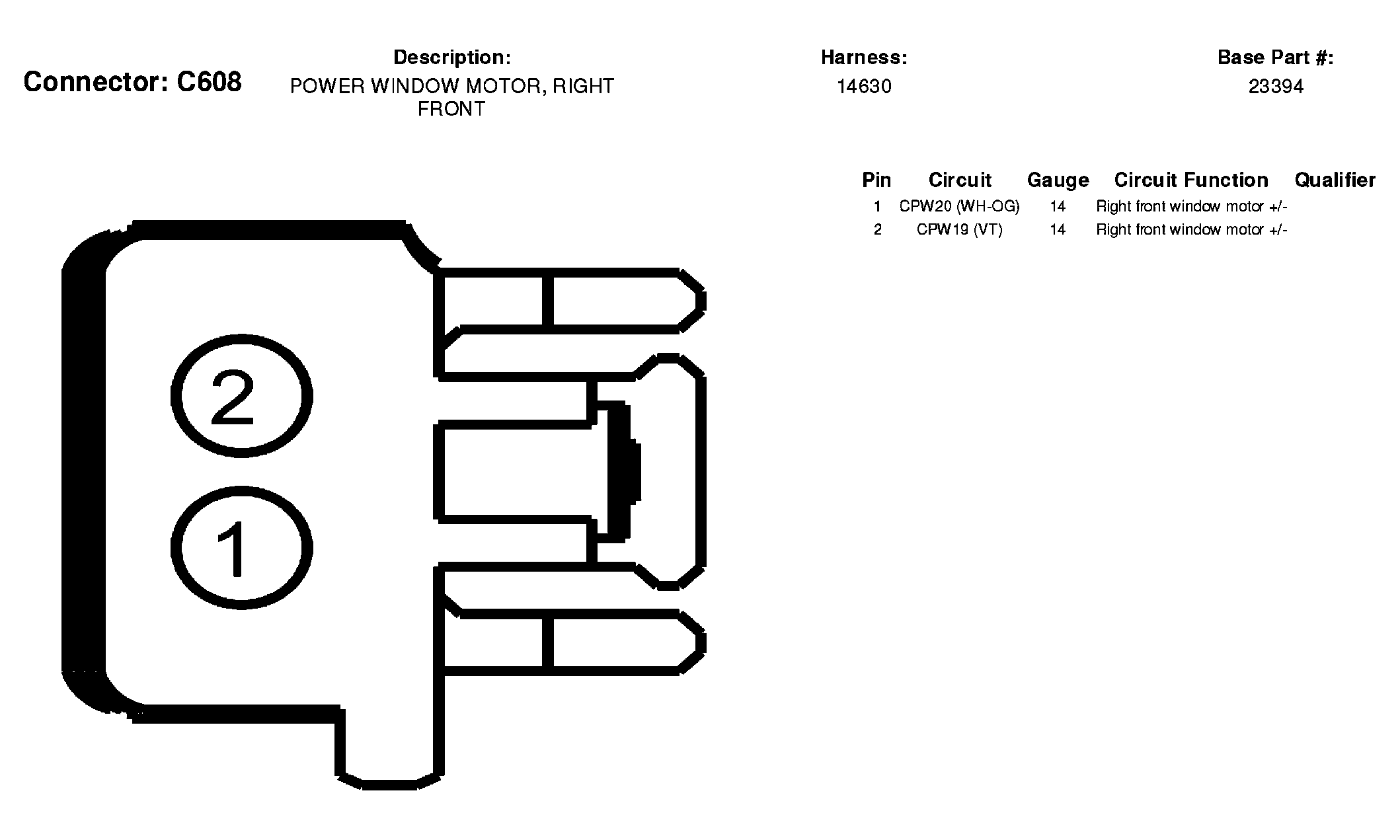

Fig 174: Power Window Motor, Right Front Connector End View (C608)
Courtesy of FORD MOTOR CO.

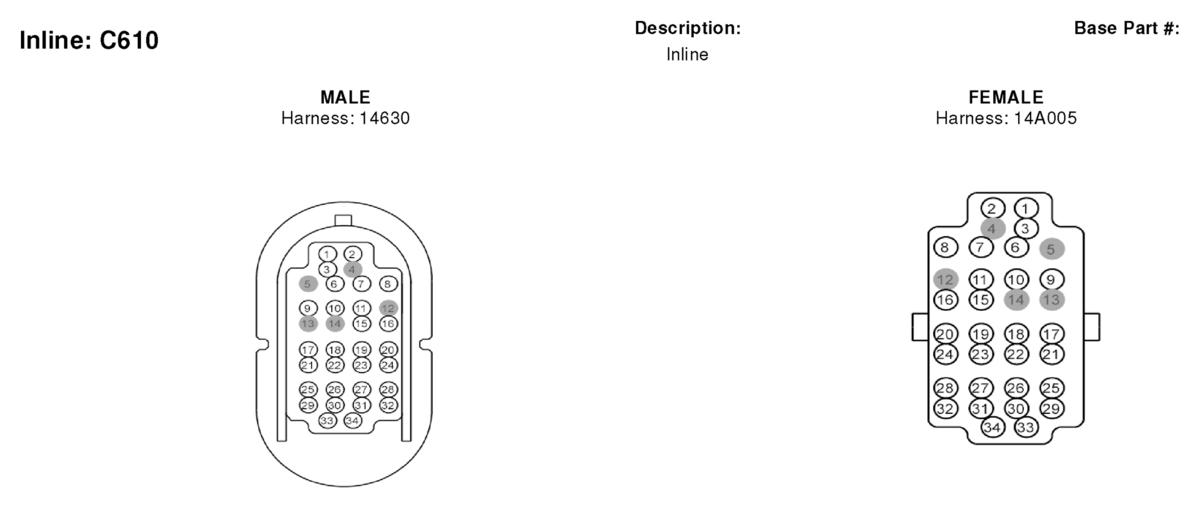

Fig 175: Inline Connector End View (C610) (1 Of 2)
Courtesy of FORD MOTOR CO.

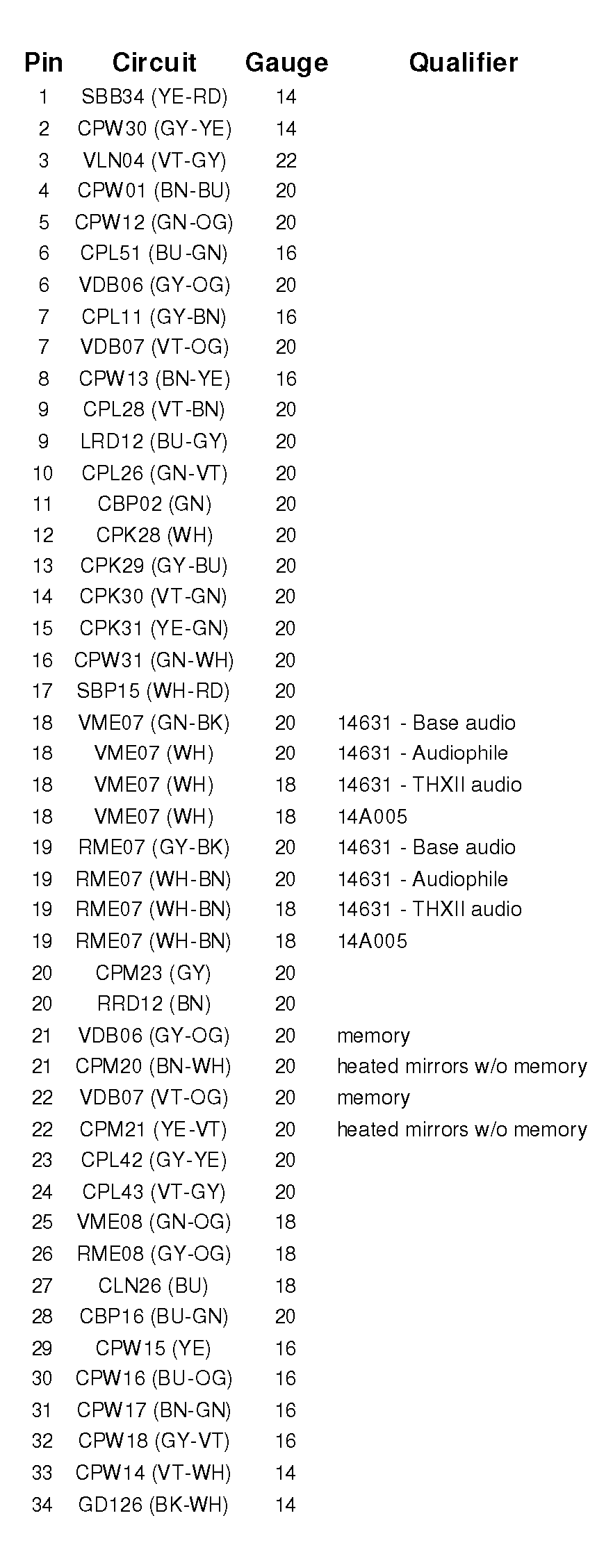

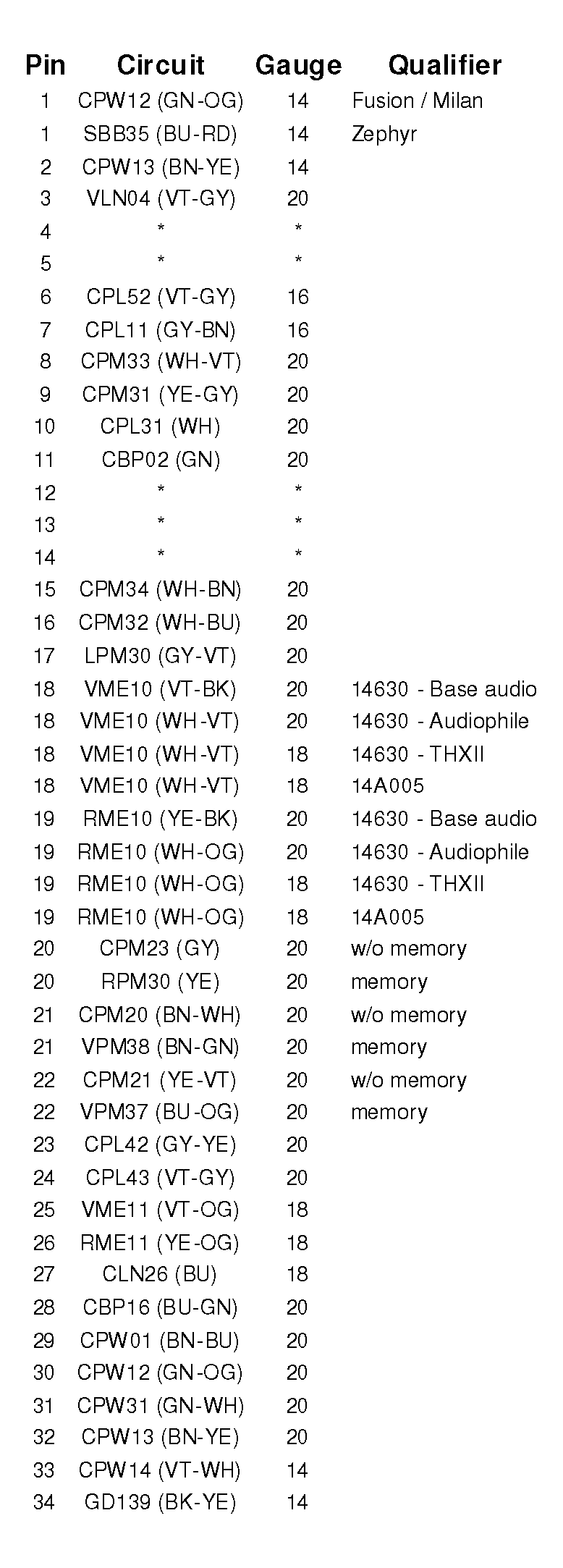

Fig 176: Inline Connector End View (C610) (2 Of 2)
Courtesy of FORD MOTOR CO.

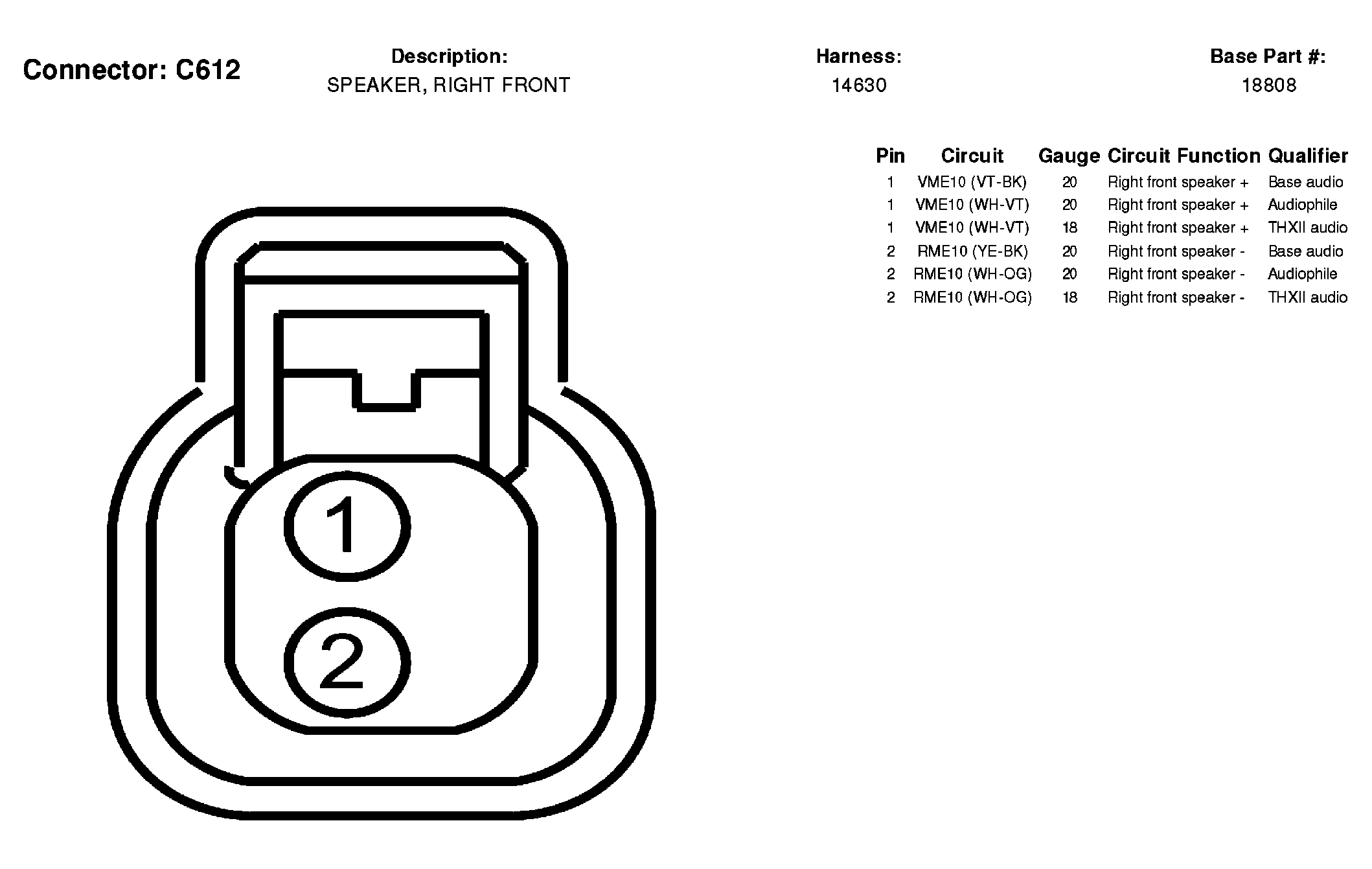

Fig 177: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

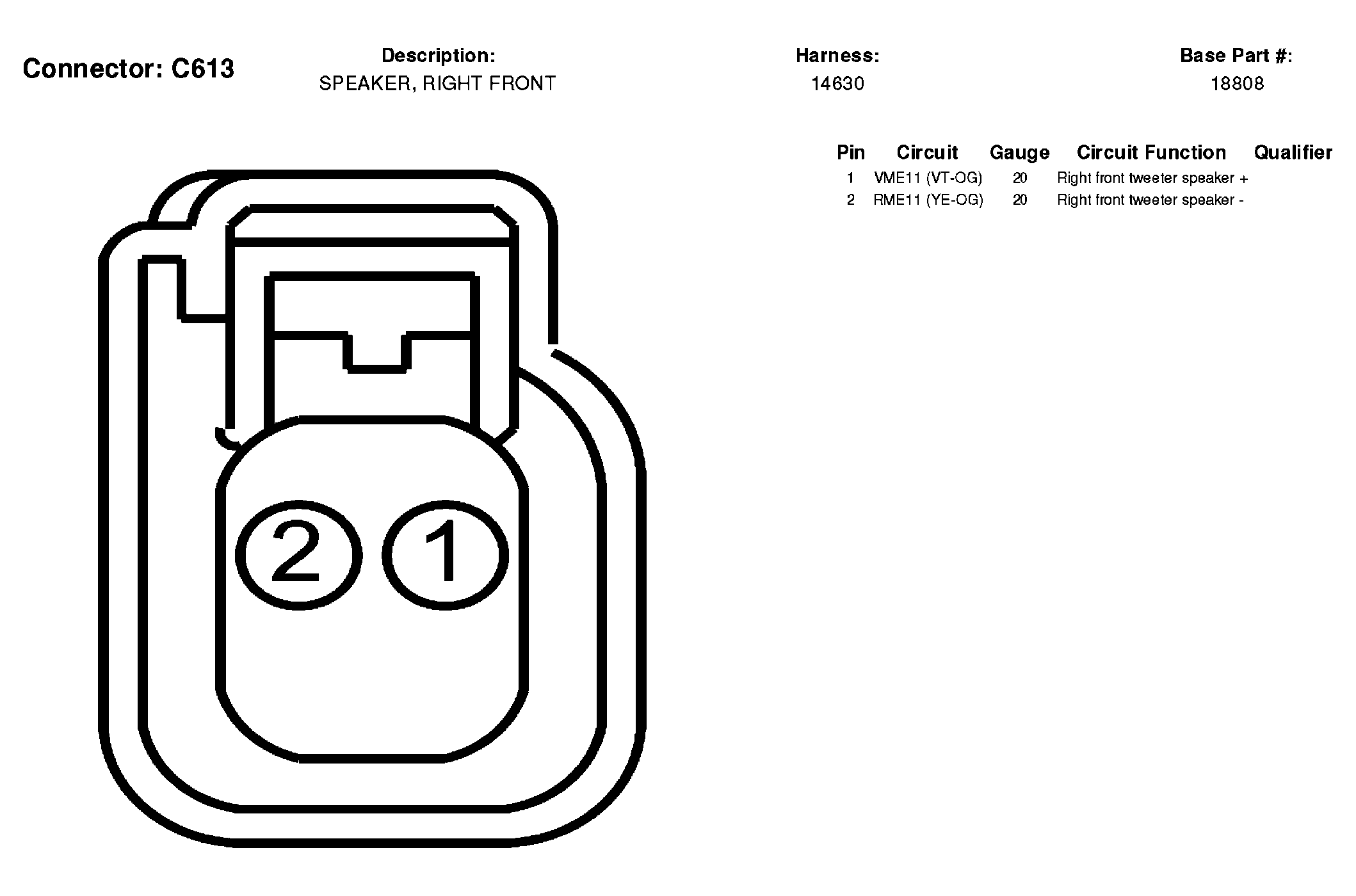

Fig 178: Speaker, Right Front Connector End View (C613)
Courtesy of FORD MOTOR CO.

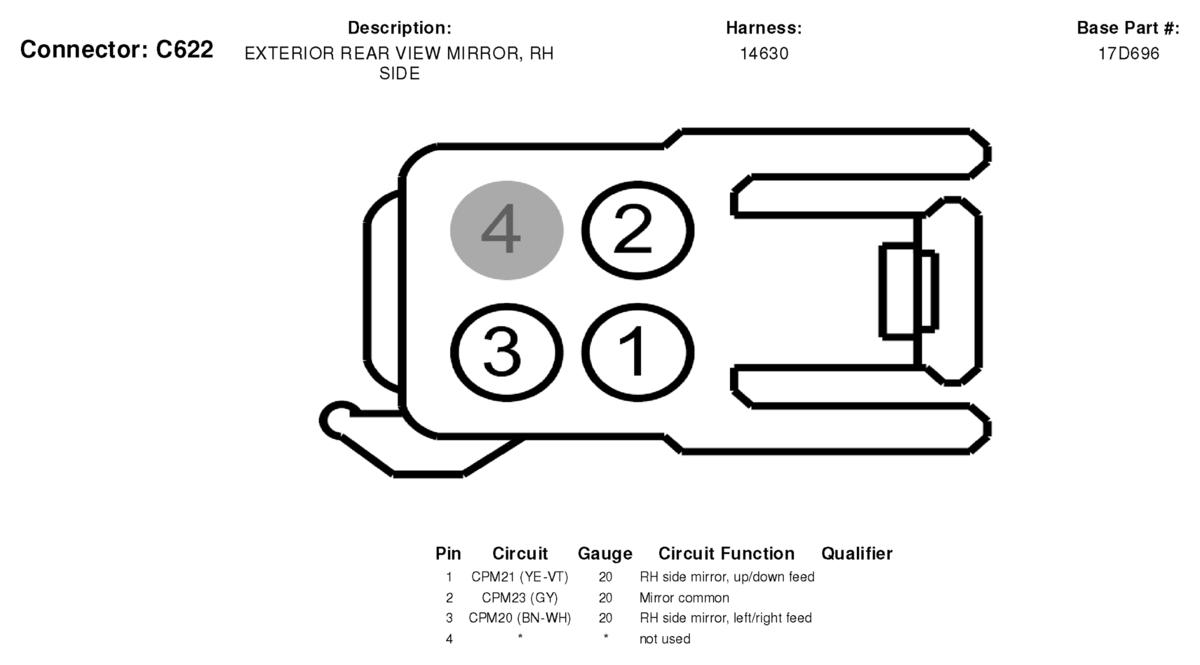

Fig 179: Exterior Rear View Mirror, RH Side Connector End View (C622)
Courtesy of FORD MOTOR CO.

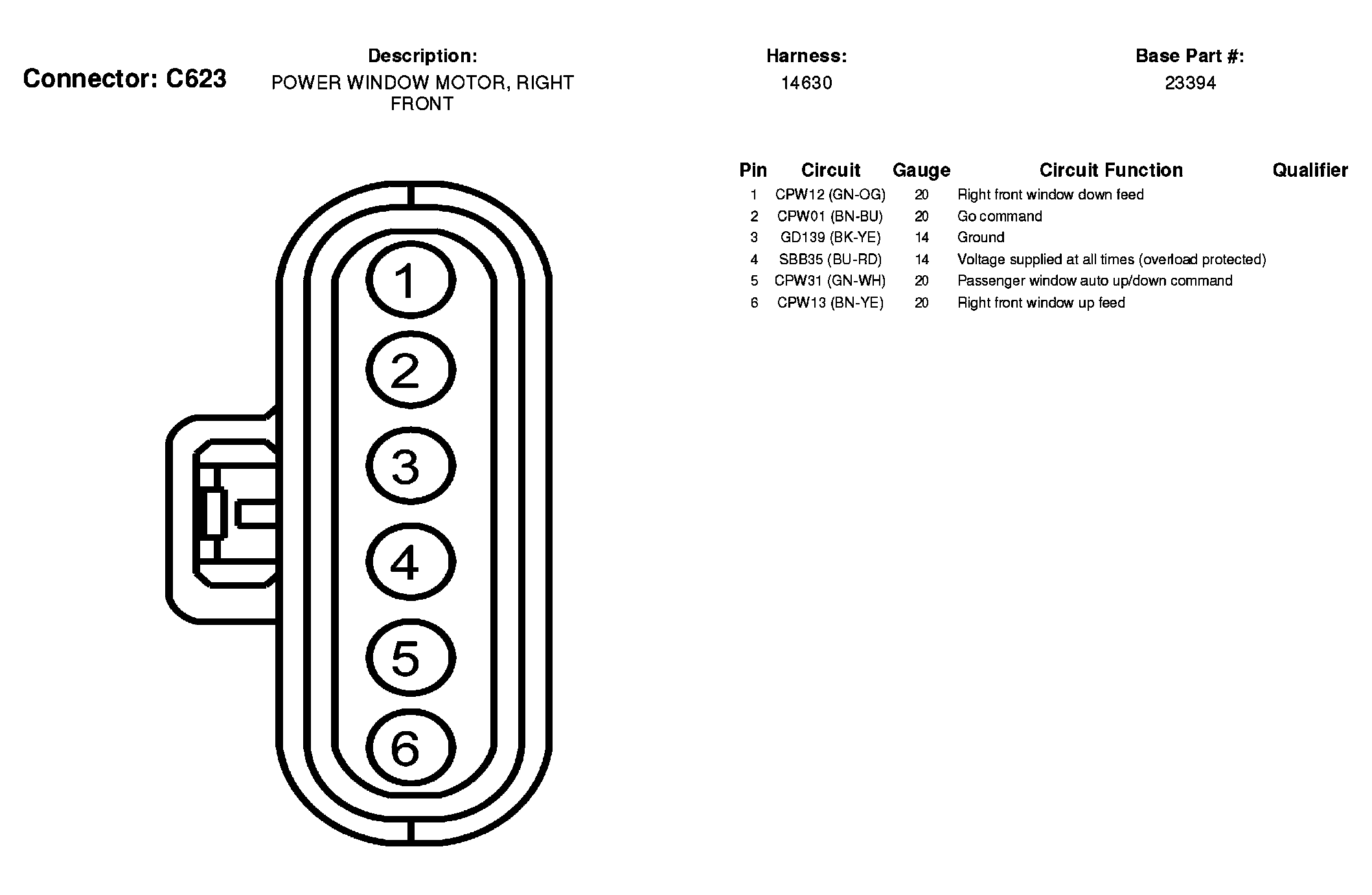

Fig 180: Power Window Motor, Right Front Connector End View (C623)
Courtesy of FORD MOTOR CO.

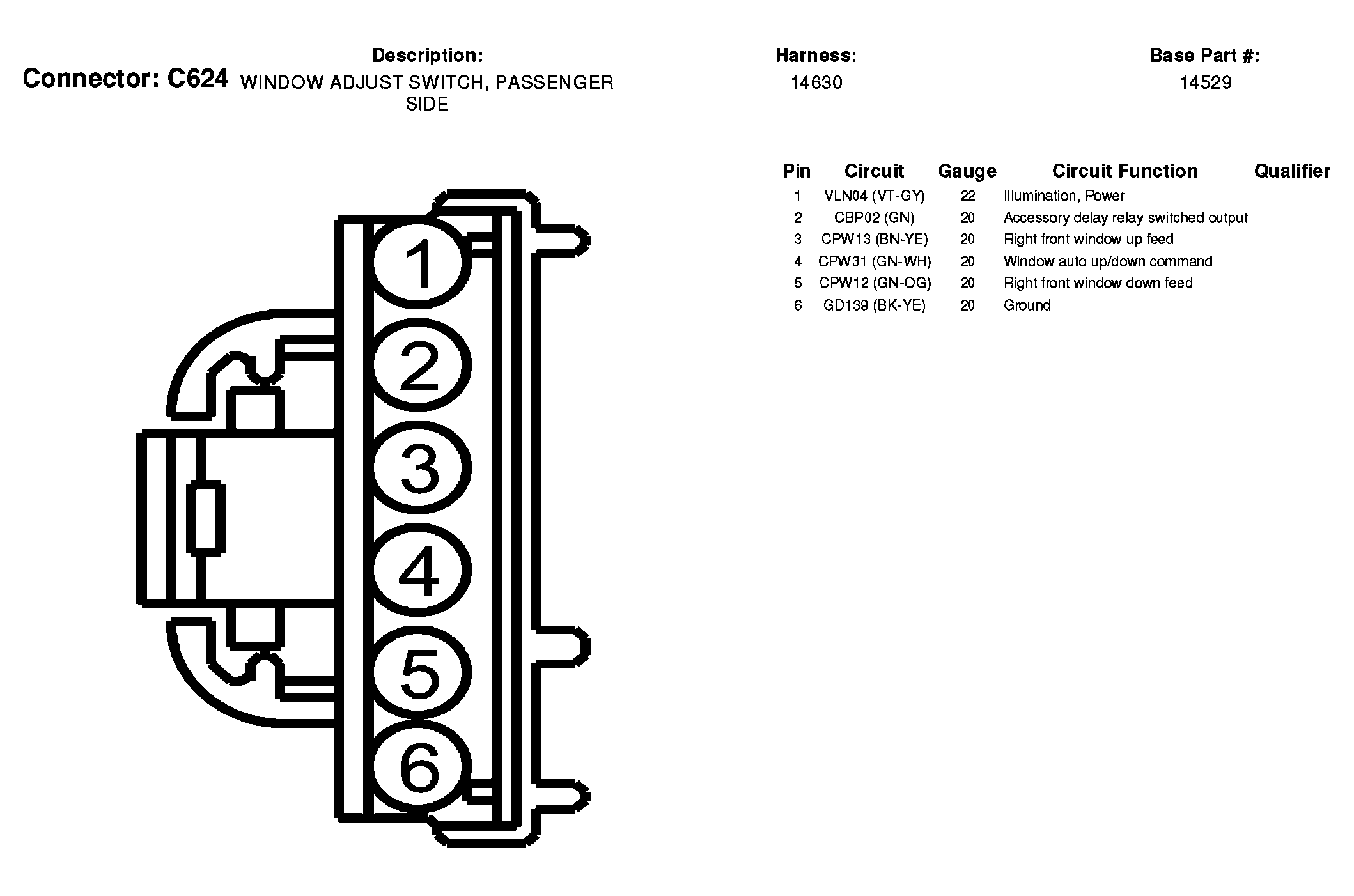

Fig 181: Window Adjust Switch, Passenger Side Connector End View (C624)
Courtesy of FORD MOTOR CO.

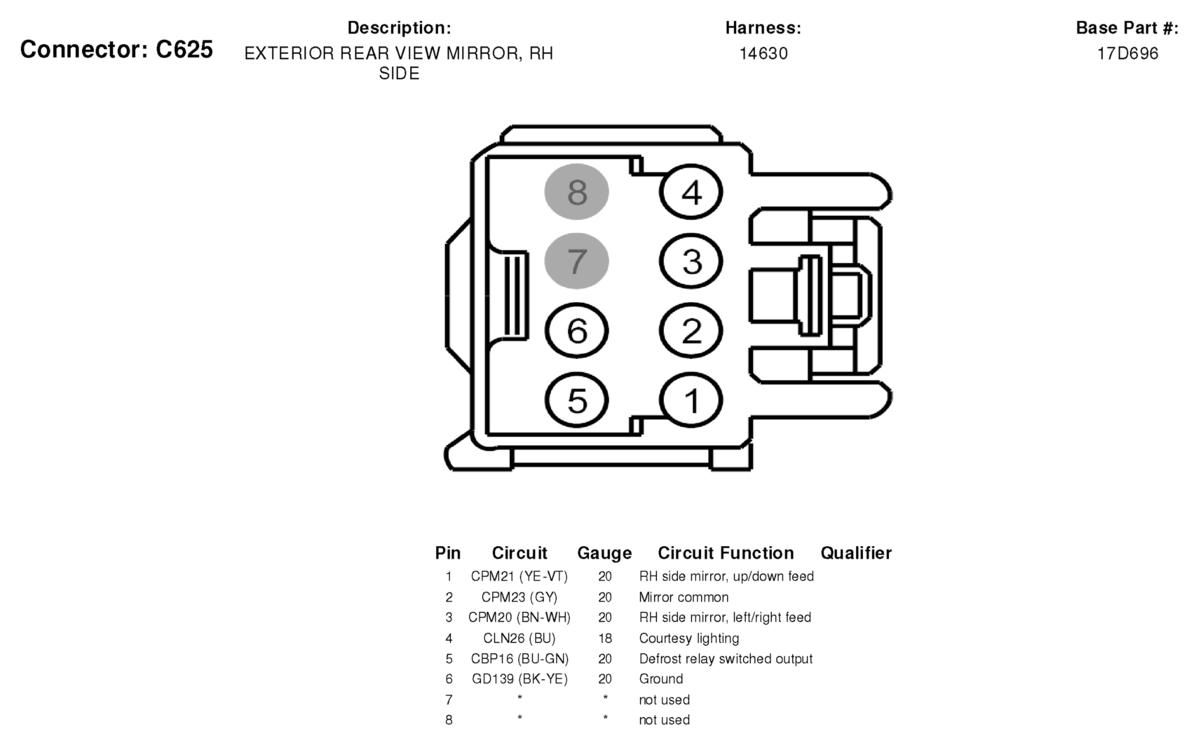

Fig 182: Exterior Rear View Mirror, RH Side Connector End View (C625)
Courtesy of FORD MOTOR CO.

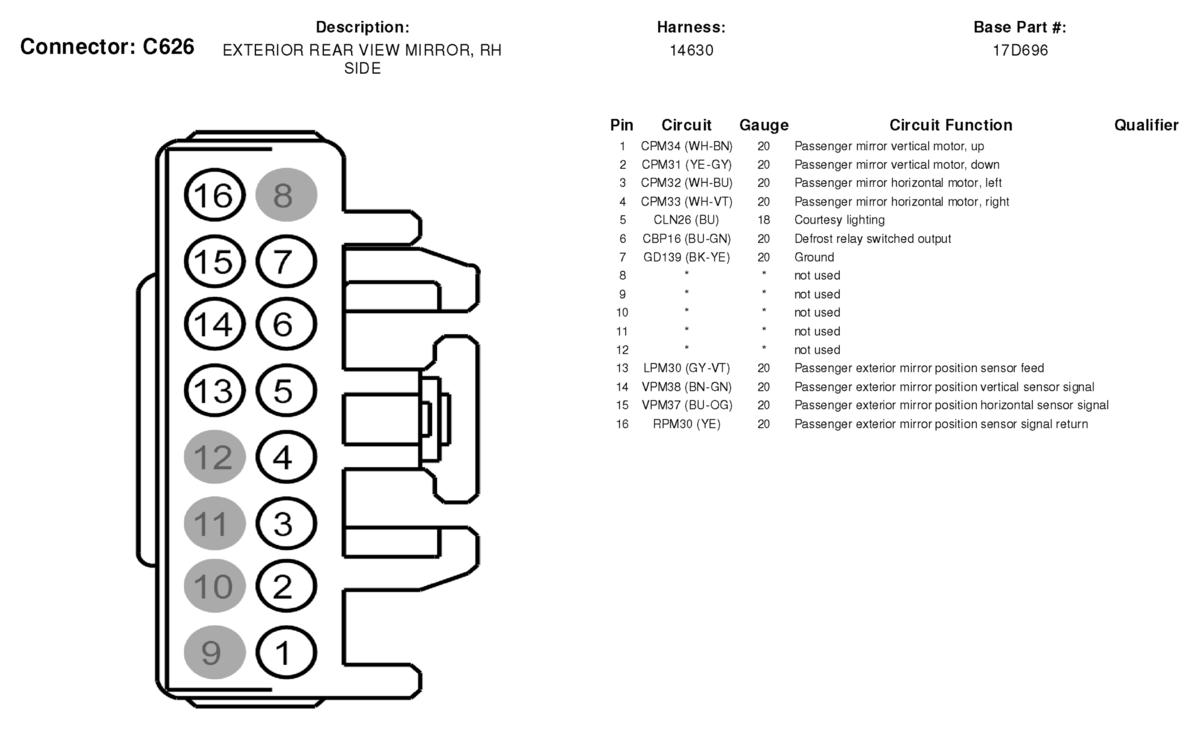

Fig 183: Exterior Rear View Mirror, RH Side Connector End View (C626)
Courtesy of FORD MOTOR CO.
Fig 184: Tweeter, Right Front Connector End View (C645)
Courtesy of FORD MOTOR CO.

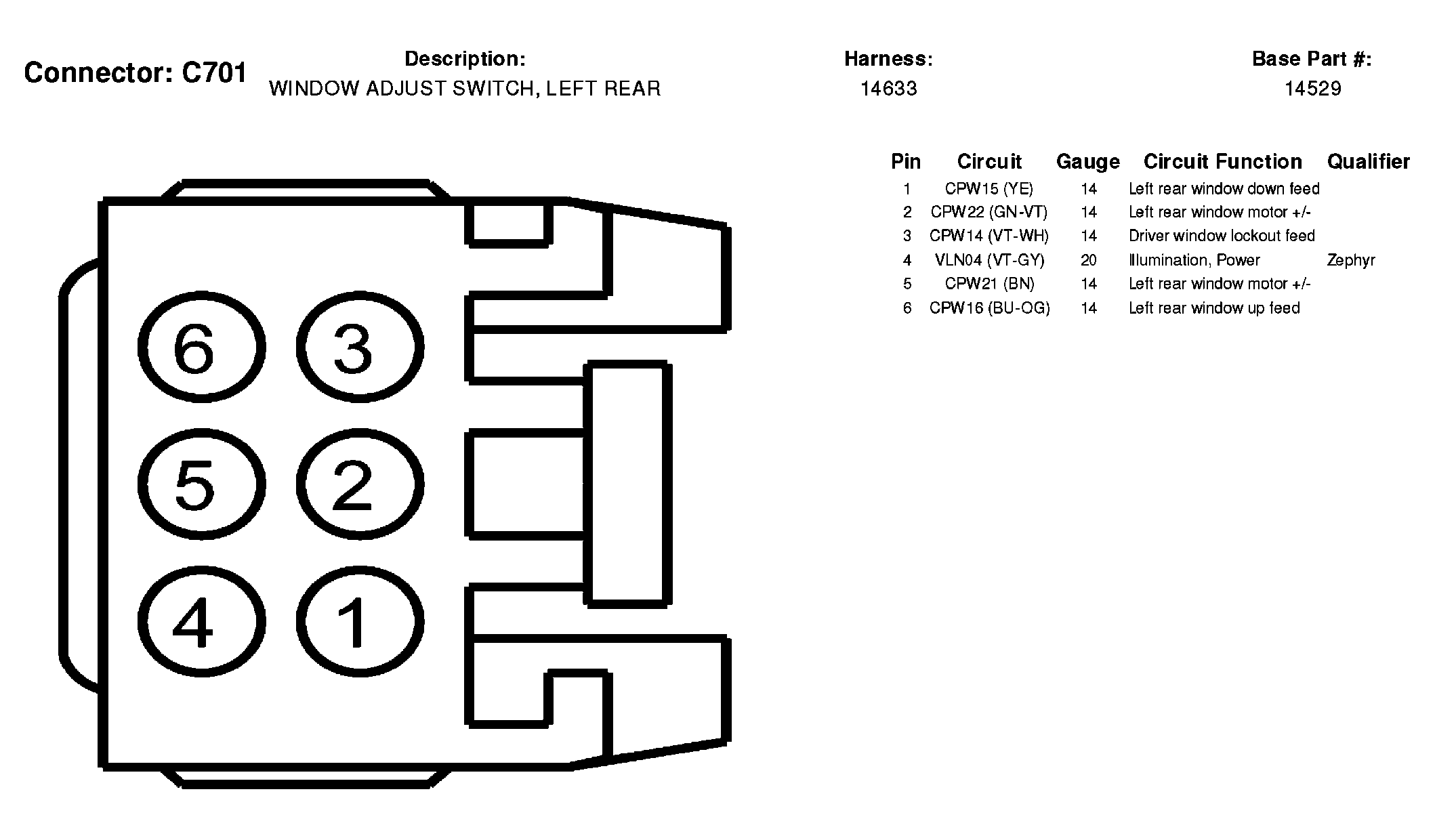

Fig 185: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.

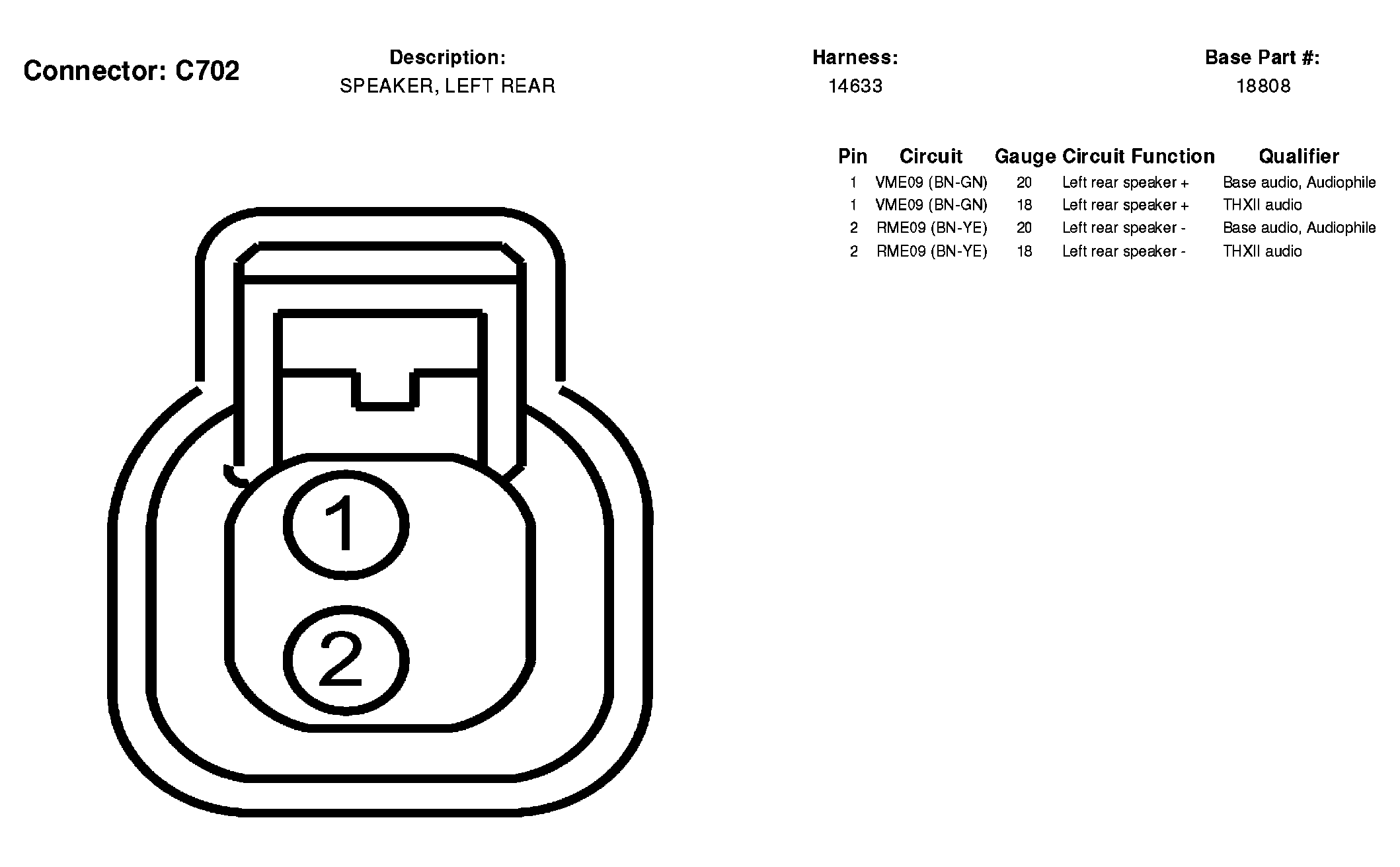

Fig 186: Speaker, Left Rear Connector End View (C702)
Courtesy of FORD MOTOR CO.

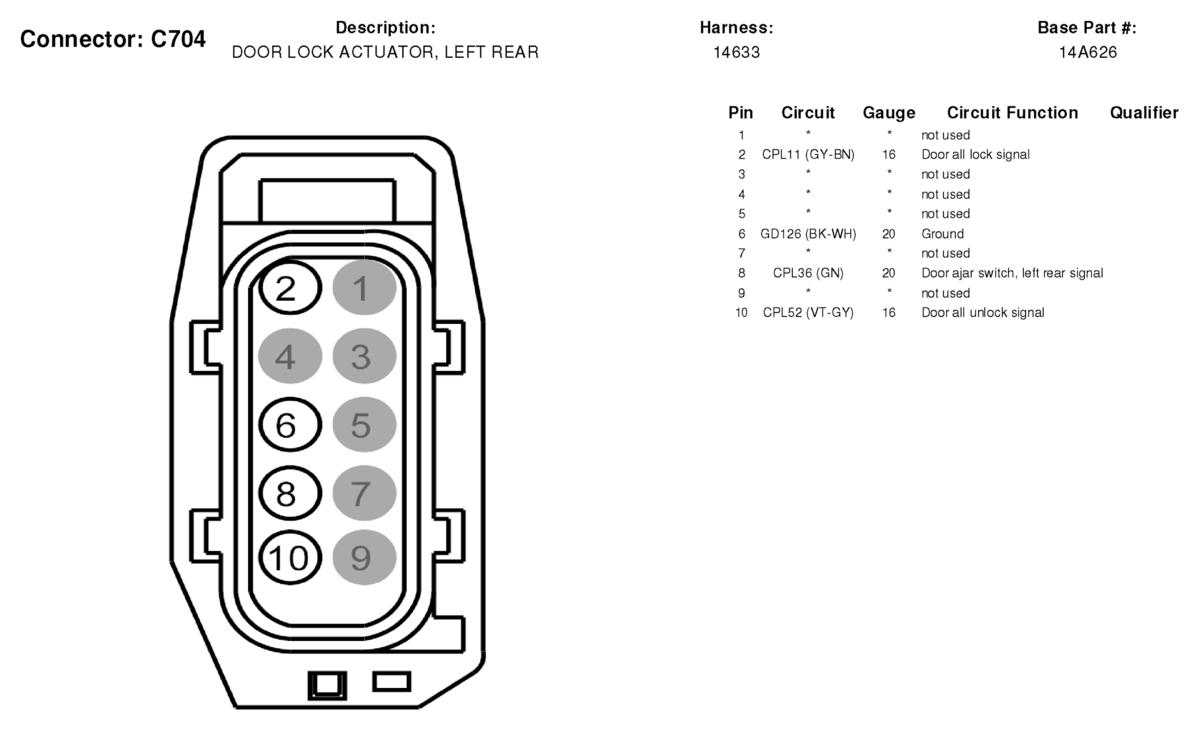

Fig 187: Door Lock Actuator, Left Rear Connector End View (C704)
Courtesy of FORD MOTOR CO.

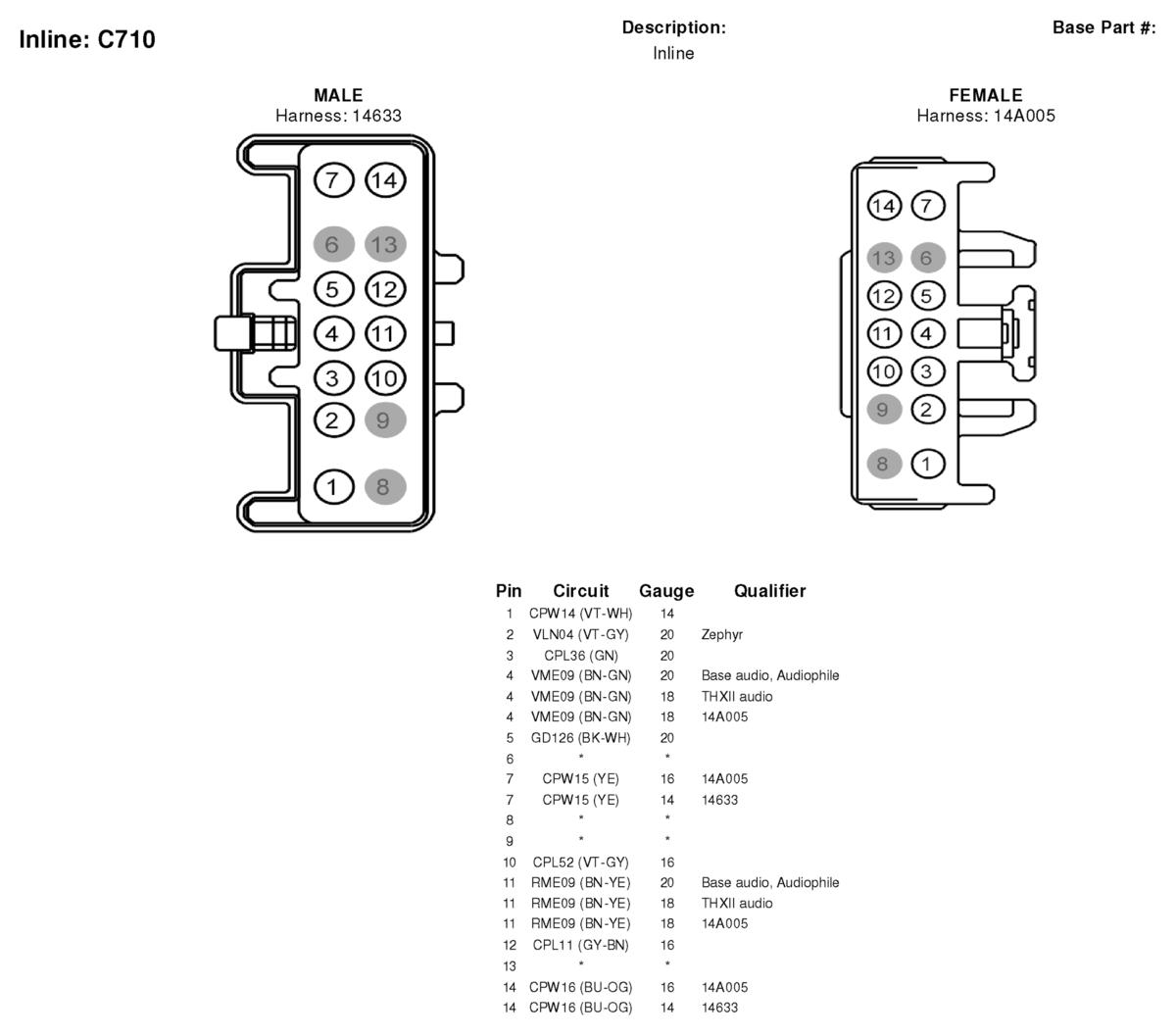

Fig 188: Inline Connector End View (C710)
Courtesy of FORD MOTOR CO.

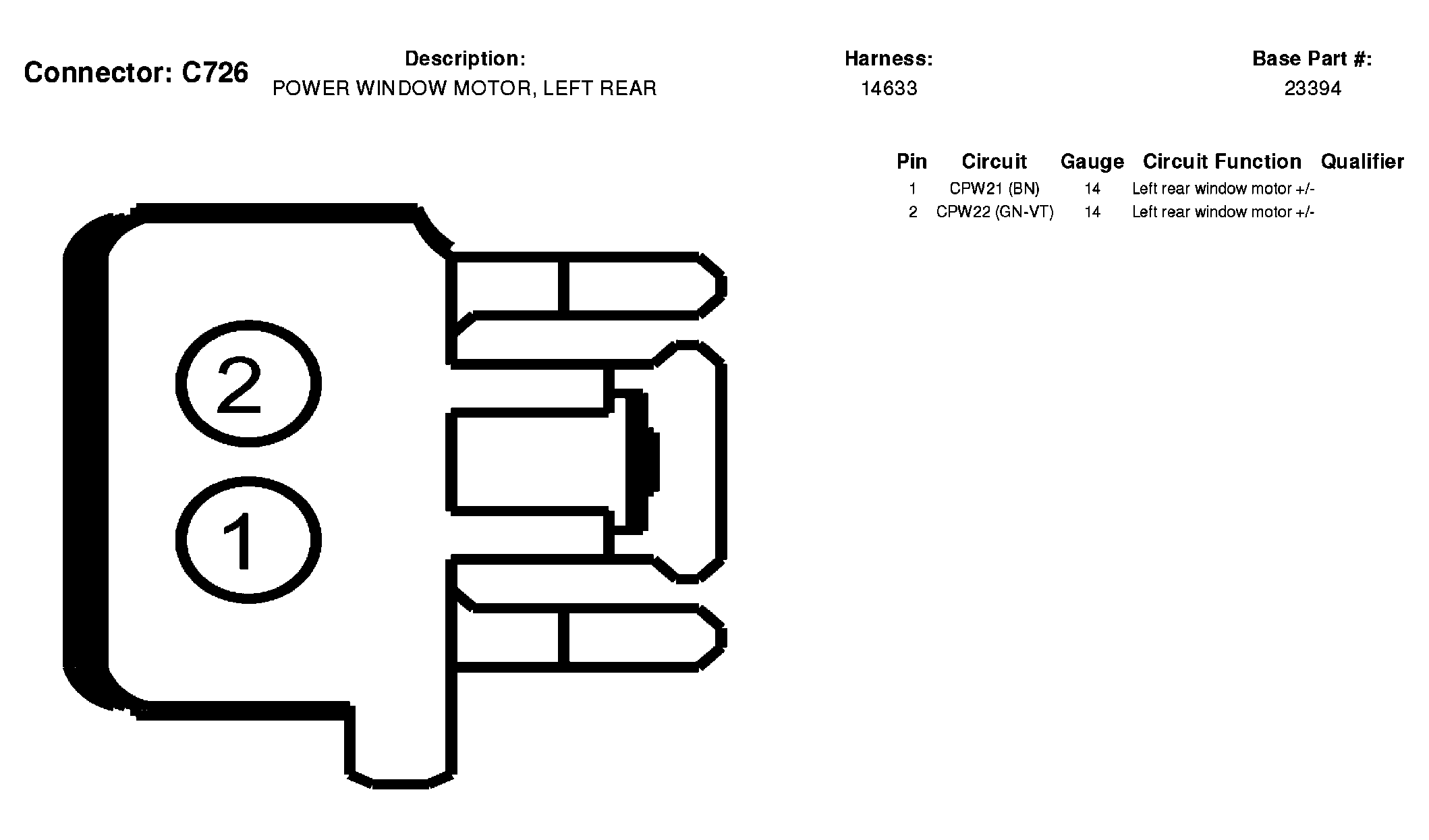

Fig 189: Power Window Motor, Left Rear Connector End View (C726)
Courtesy of FORD MOTOR CO.

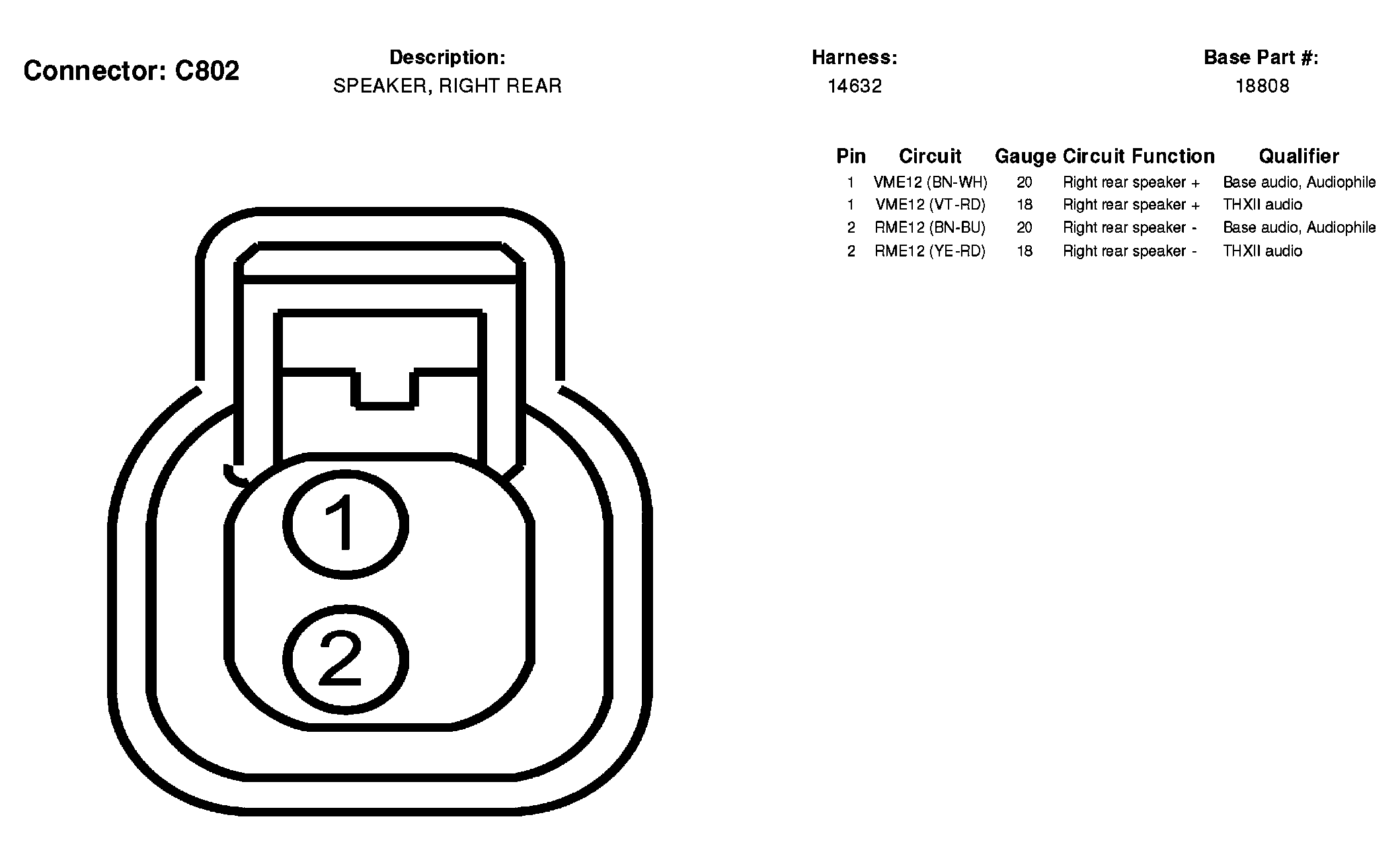

Fig 190: Speaker, Right Rear Connector End View (C802)
Courtesy of FORD MOTOR CO.
Fig 191: Door Lock Actuator, Right Rear Connector End View (C804)
Courtesy of FORD MOTOR CO.

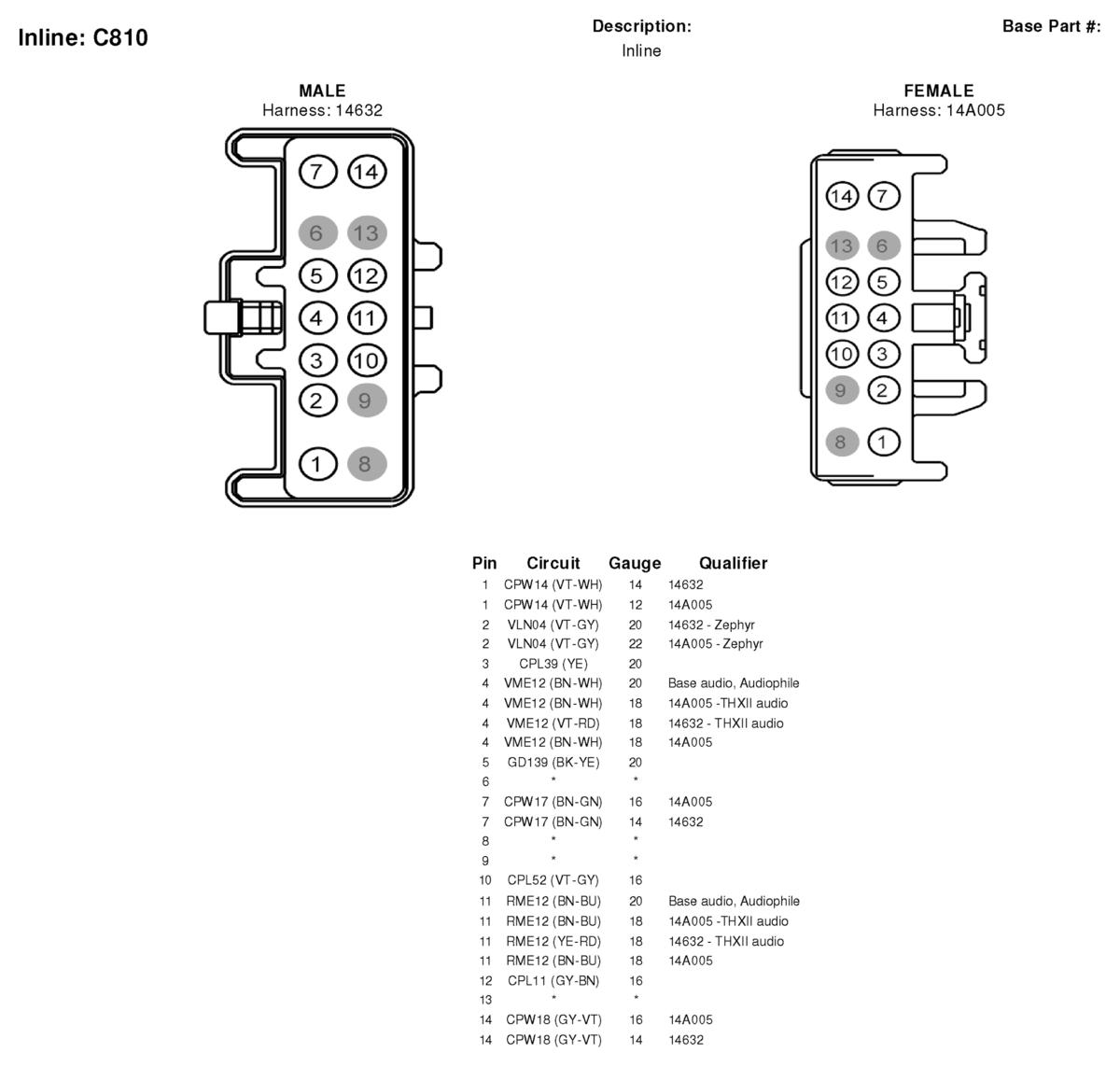

Fig 192: Inline Connector End View (C810)
Courtesy of FORD MOTOR CO.
Fig 193: Window Adjust Switch, Right Rear Connector End View (C819)
Courtesy of FORD MOTOR CO.
Fig 194: Power Window Motor, Right Rear Connector End View (C828)
Courtesy of FORD MOTOR CO.

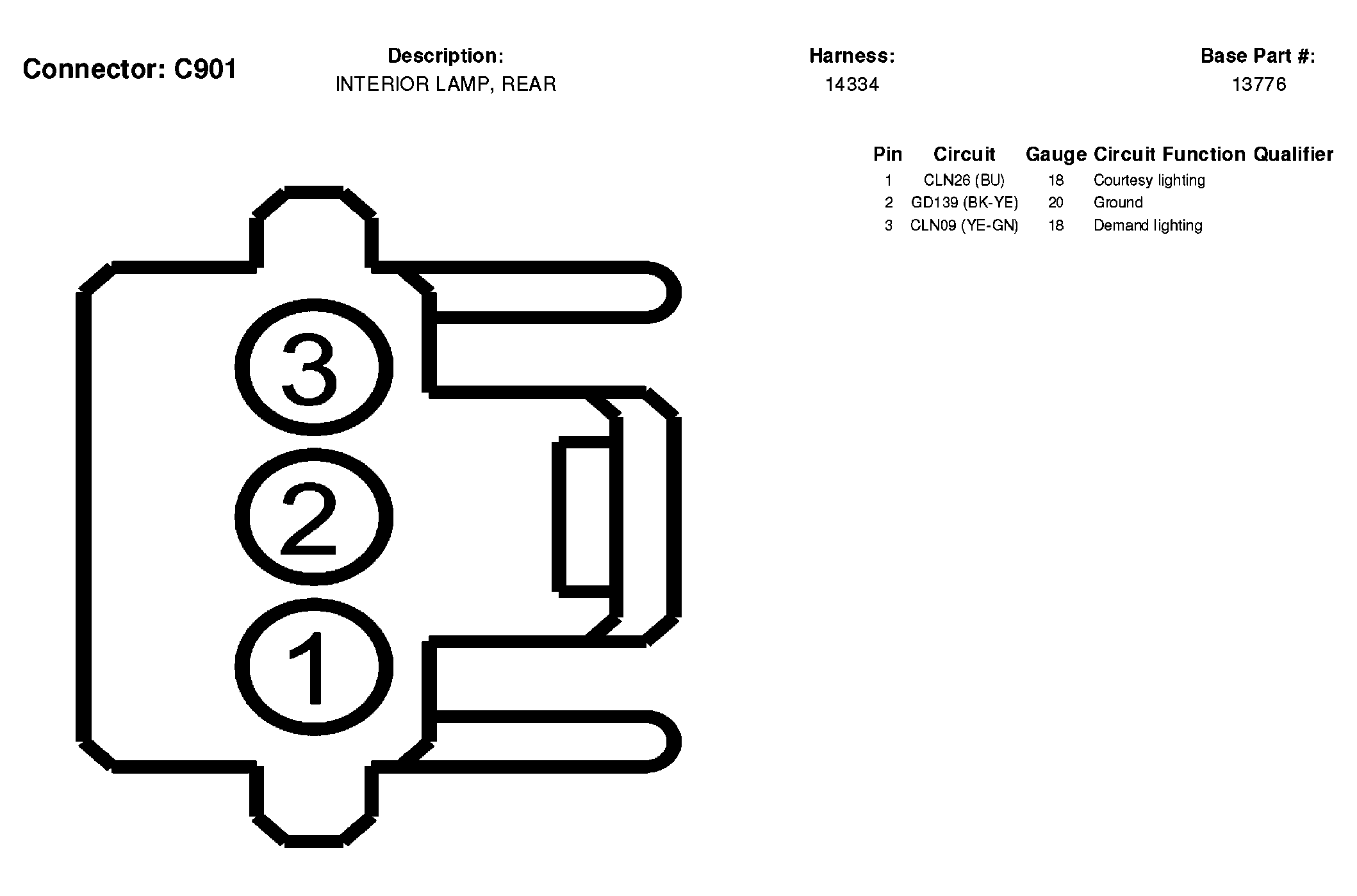

Fig 195: Interior Lamp, Rear Connector End View (C901)
Courtesy of FORD MOTOR CO.

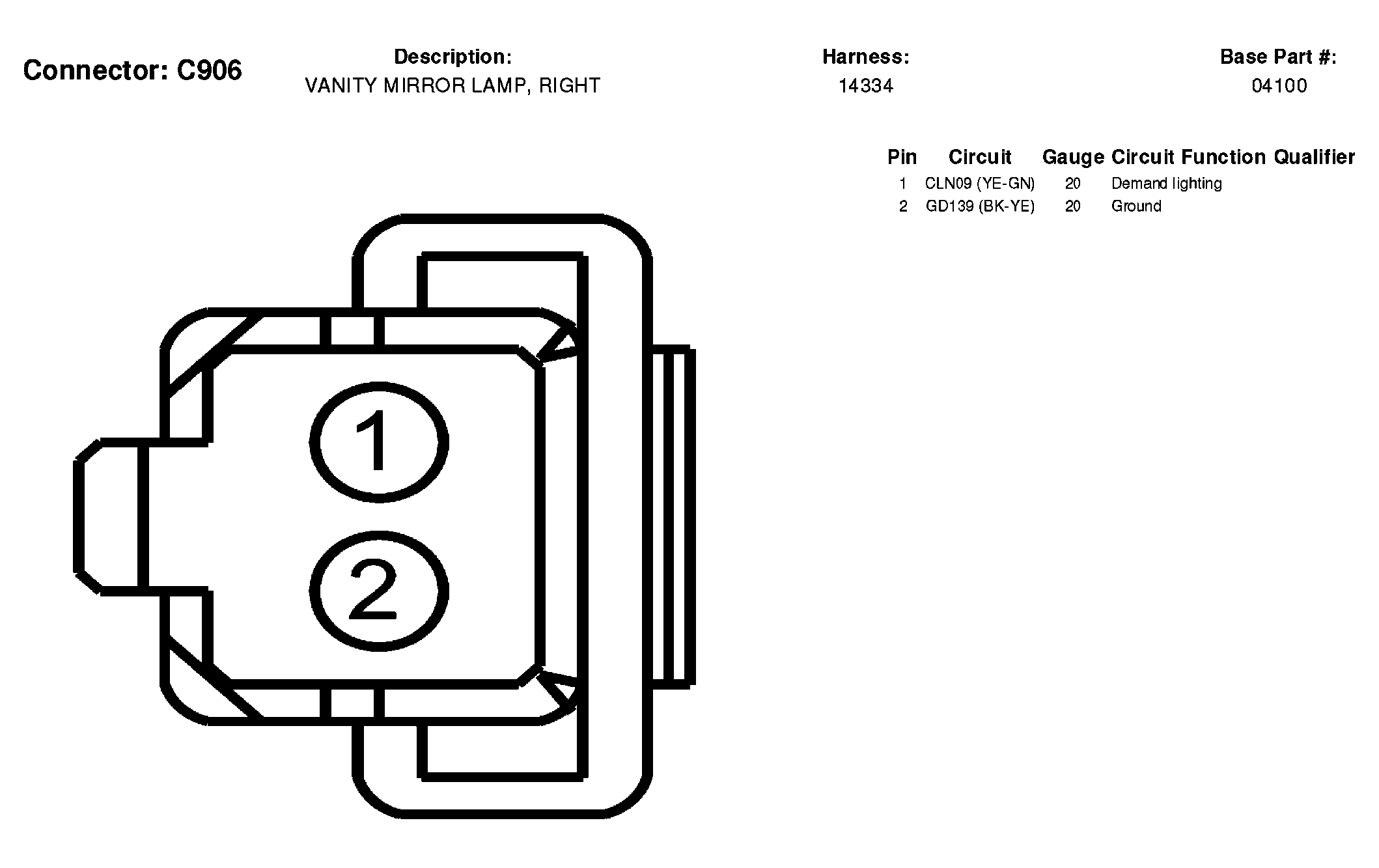

Fig 196: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

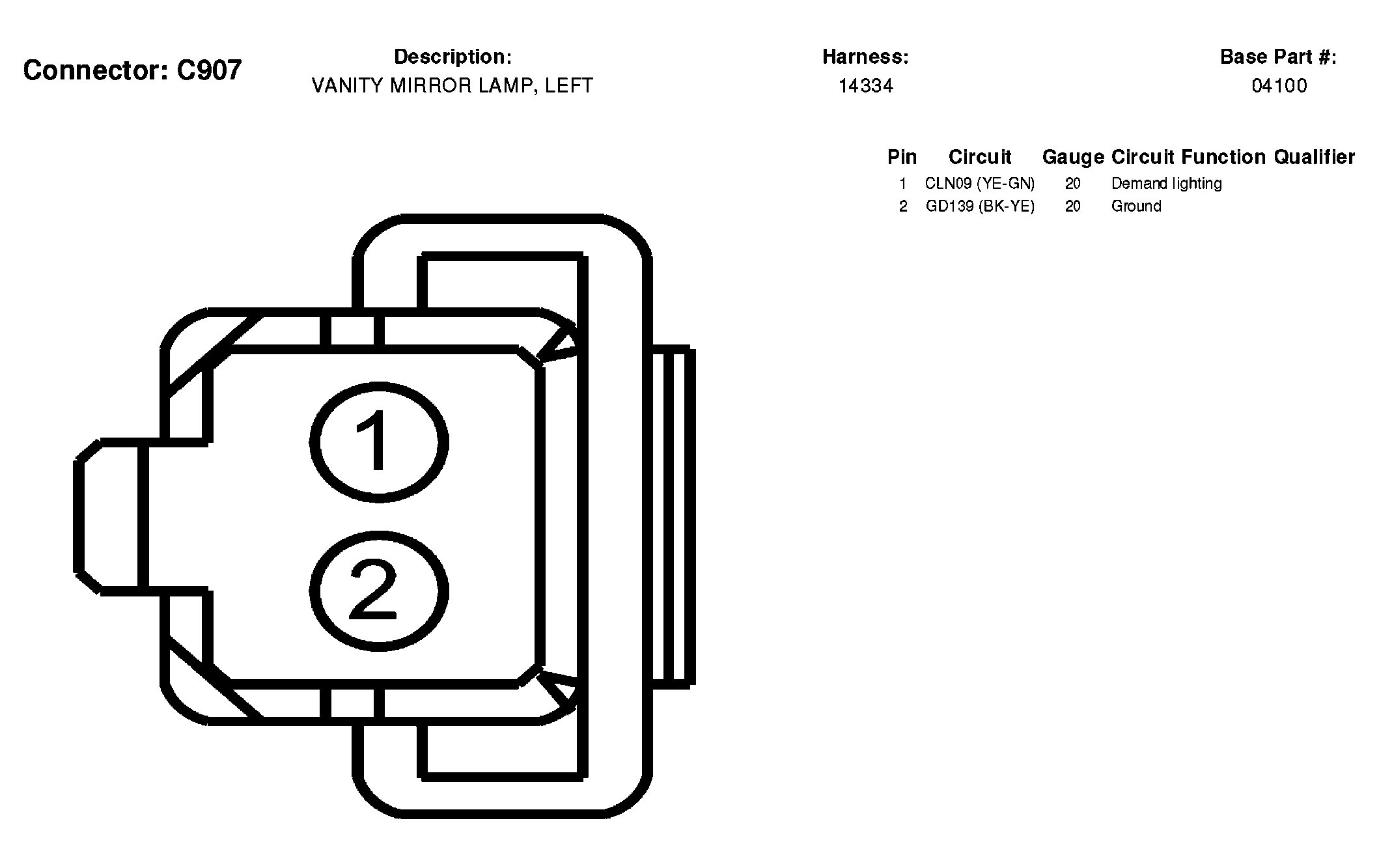

Fig 197: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

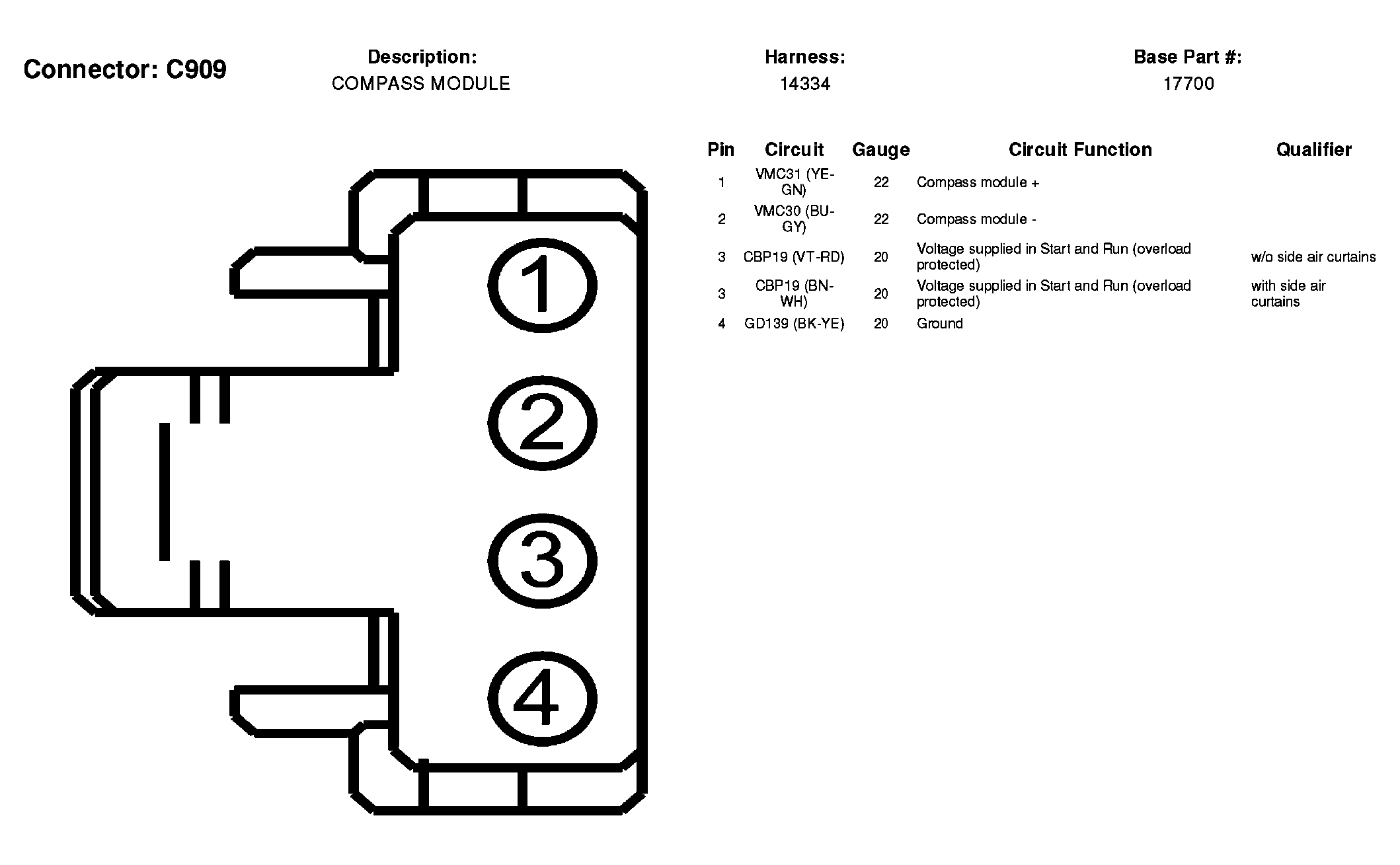

Fig 198: Compass Module Connector End View (C909)
Courtesy of FORD MOTOR CO.

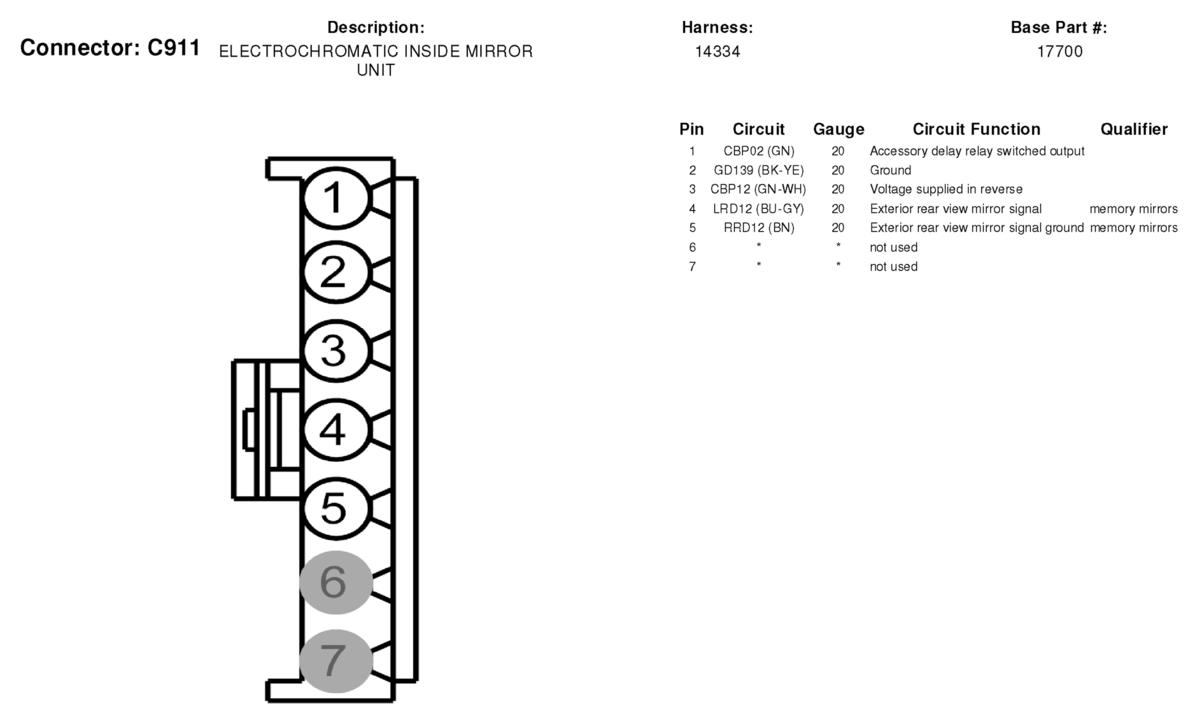

Fig 199: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.

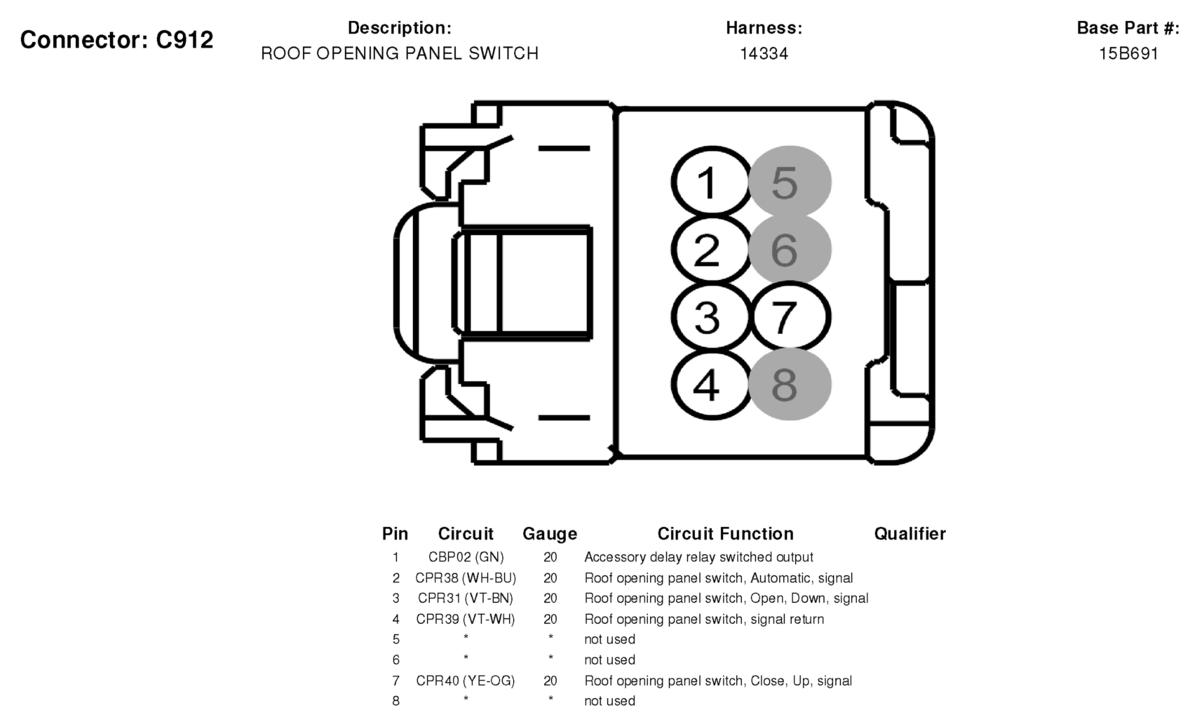

Fig 200: Roof Opening Panel Switch Connector End View (C912)
Courtesy of FORD MOTOR CO.

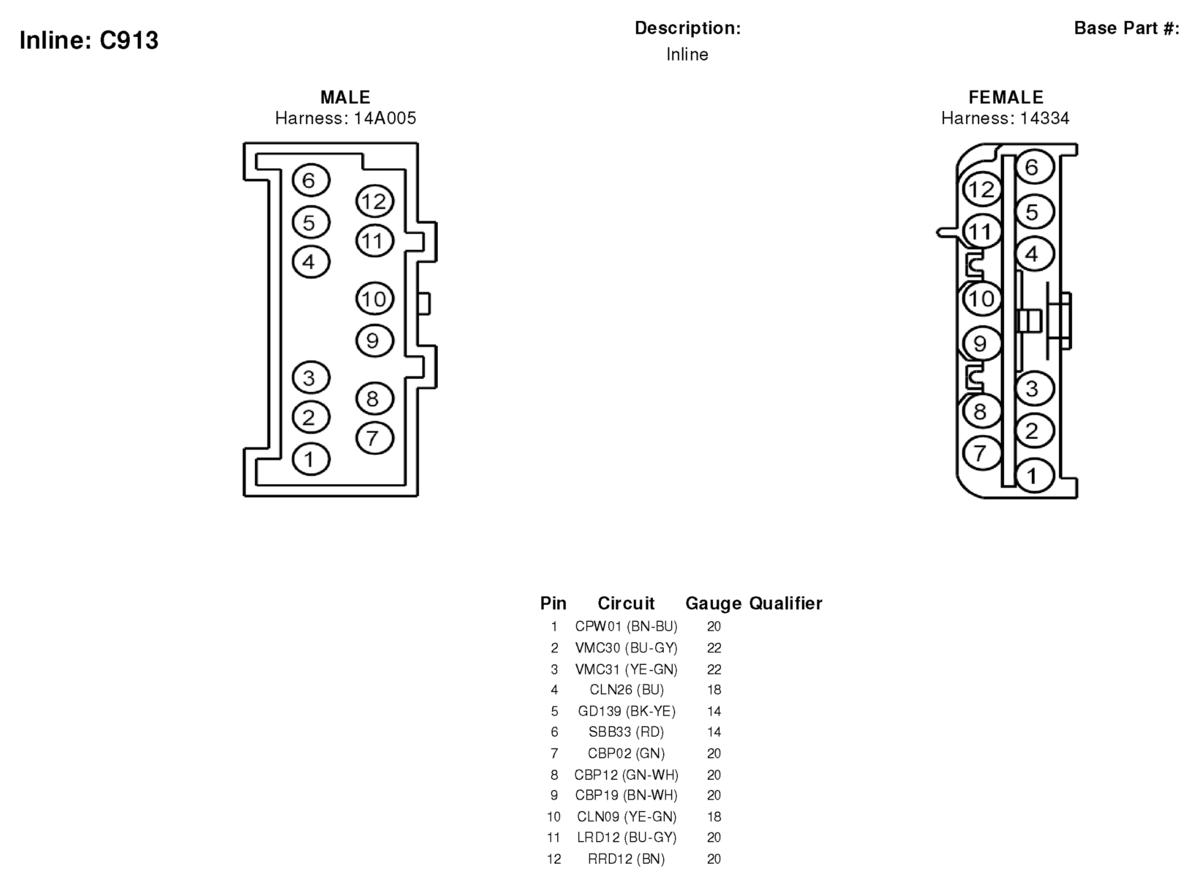

Fig 201: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

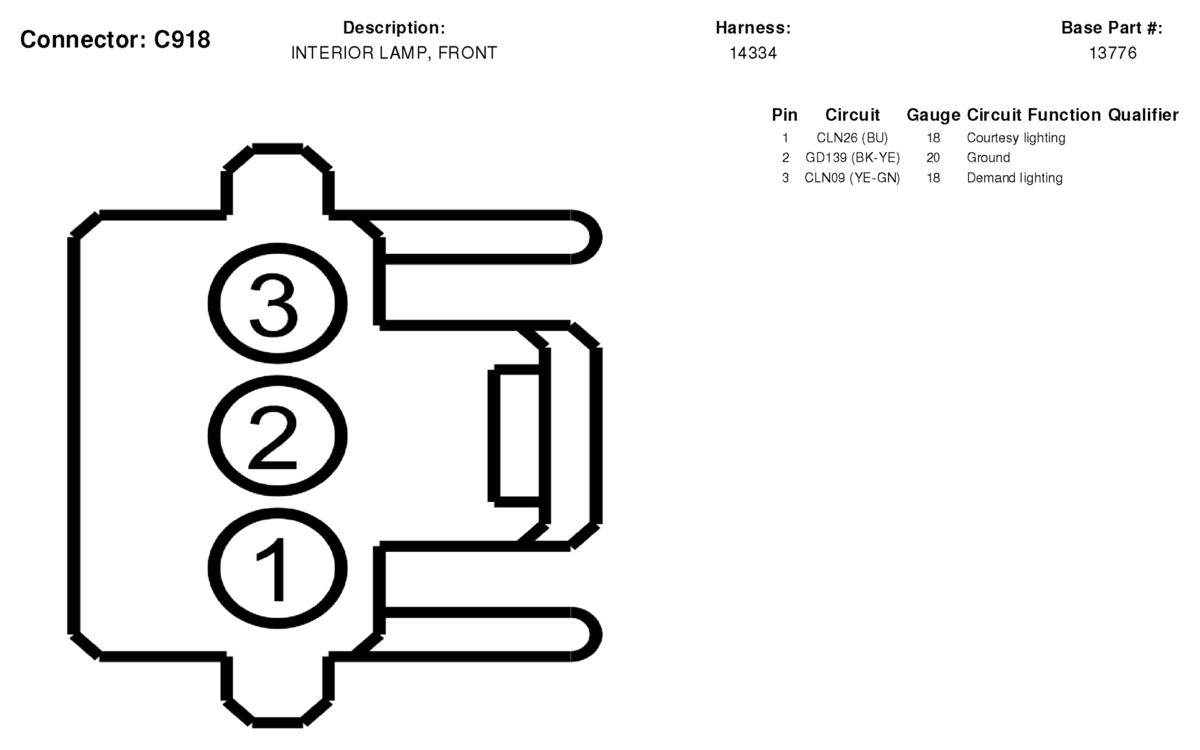

Fig 202: Interior Lamp, Front Connector End View (C918)
Courtesy of FORD MOTOR CO.

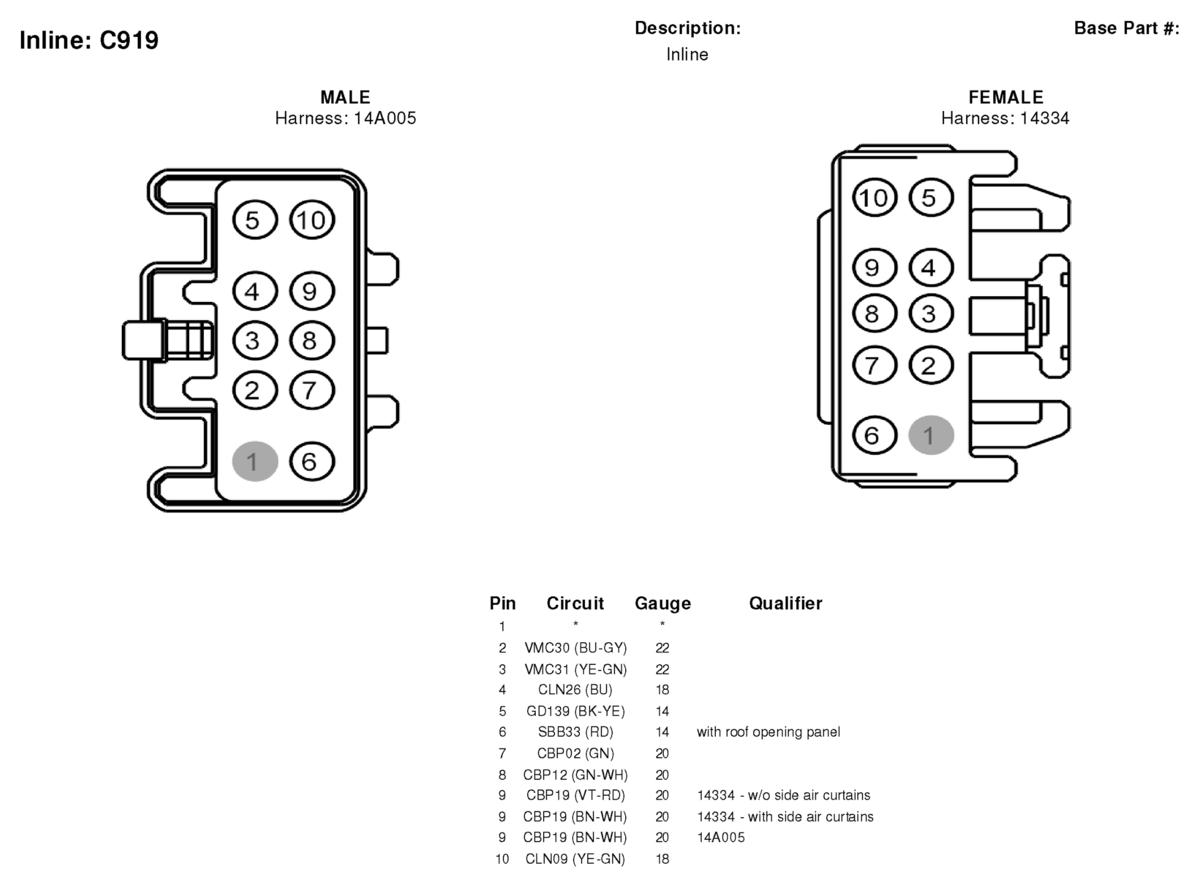

Fig 203: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.

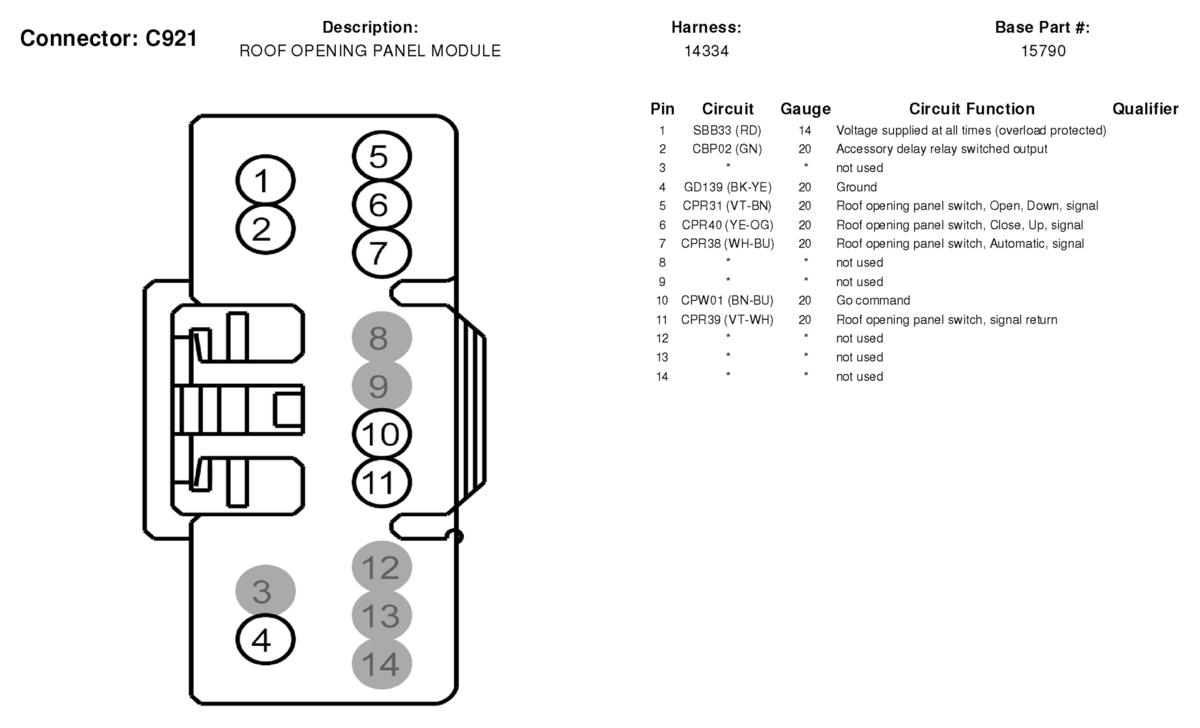

Fig 204: Roof Opening Panel Module Connector End View (C921)
Courtesy of FORD MOTOR CO.

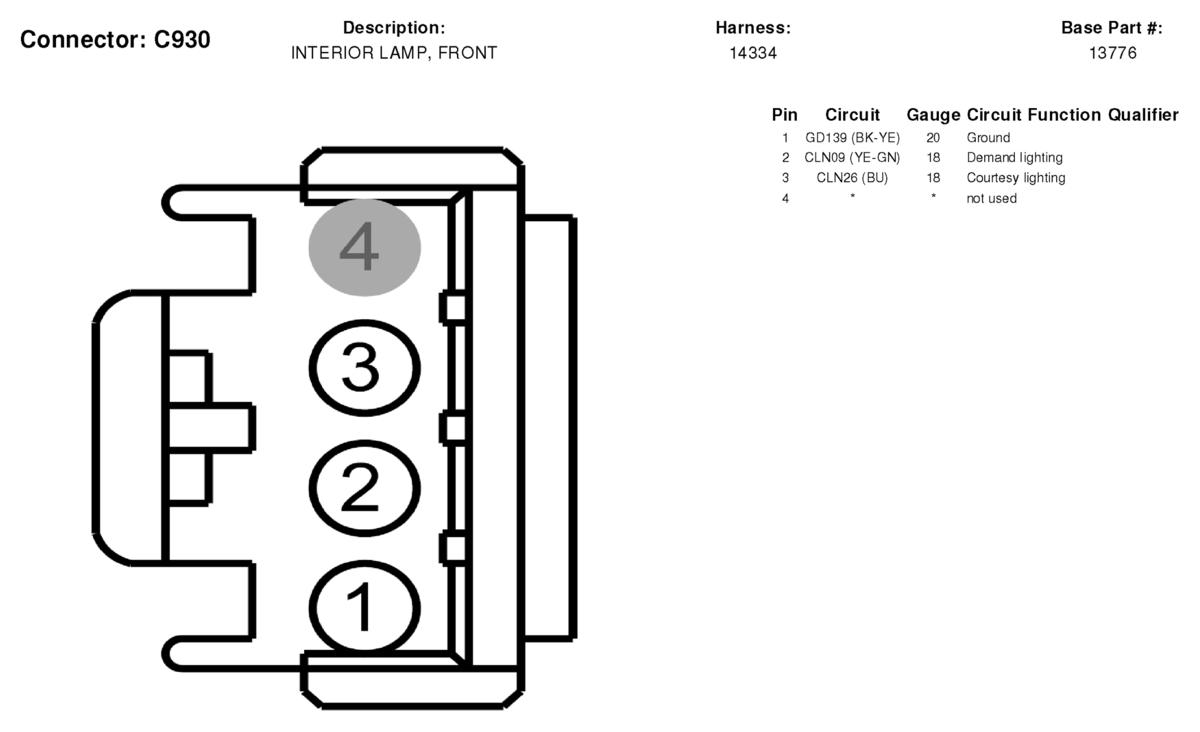

Fig 205: Interior Lamp, Front Connector End View (C930)
Courtesy of FORD MOTOR CO.

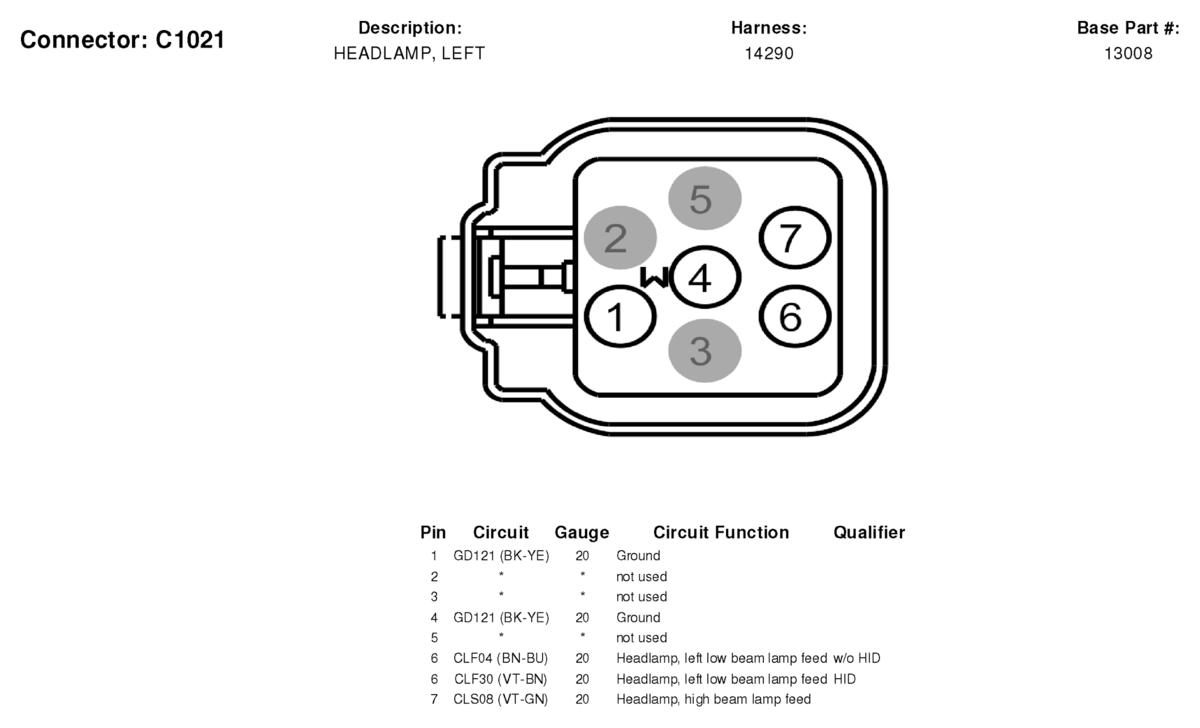

Fig 206: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

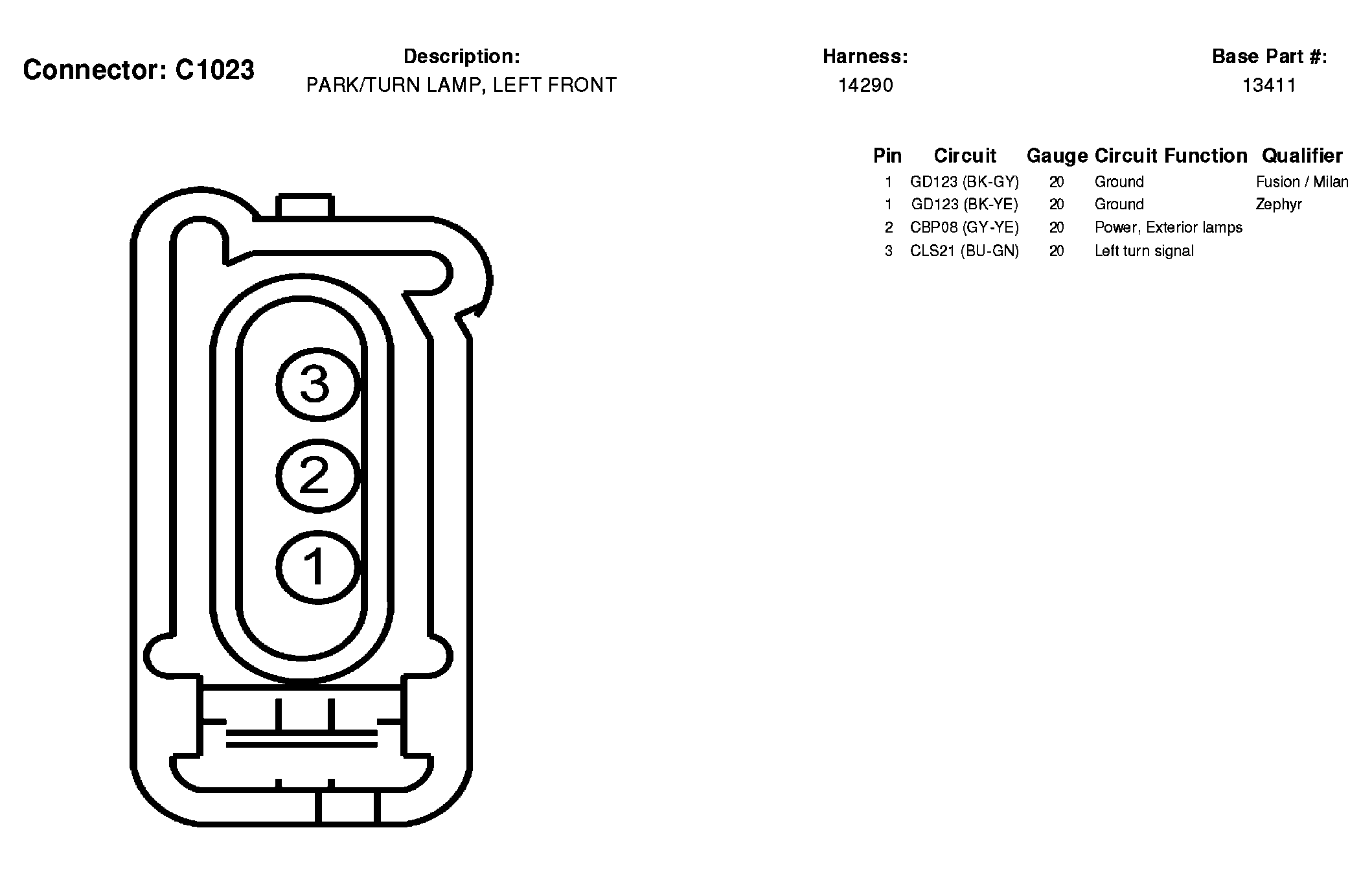

Fig 207: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.

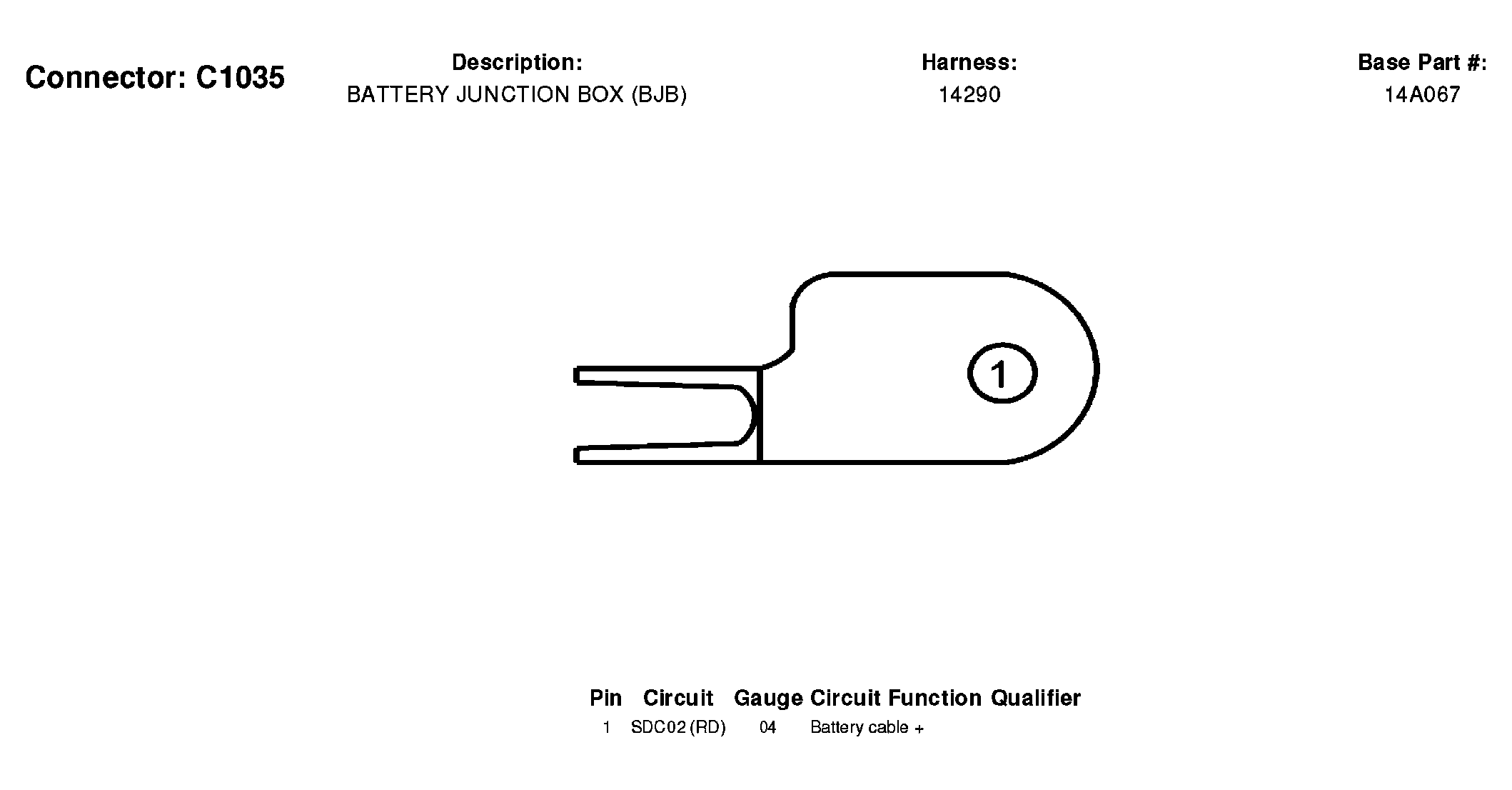

Fig 208: Battery Junction Box (BJB) Connector End View (C1035)
Courtesy of FORD MOTOR CO.
Fig 209: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.

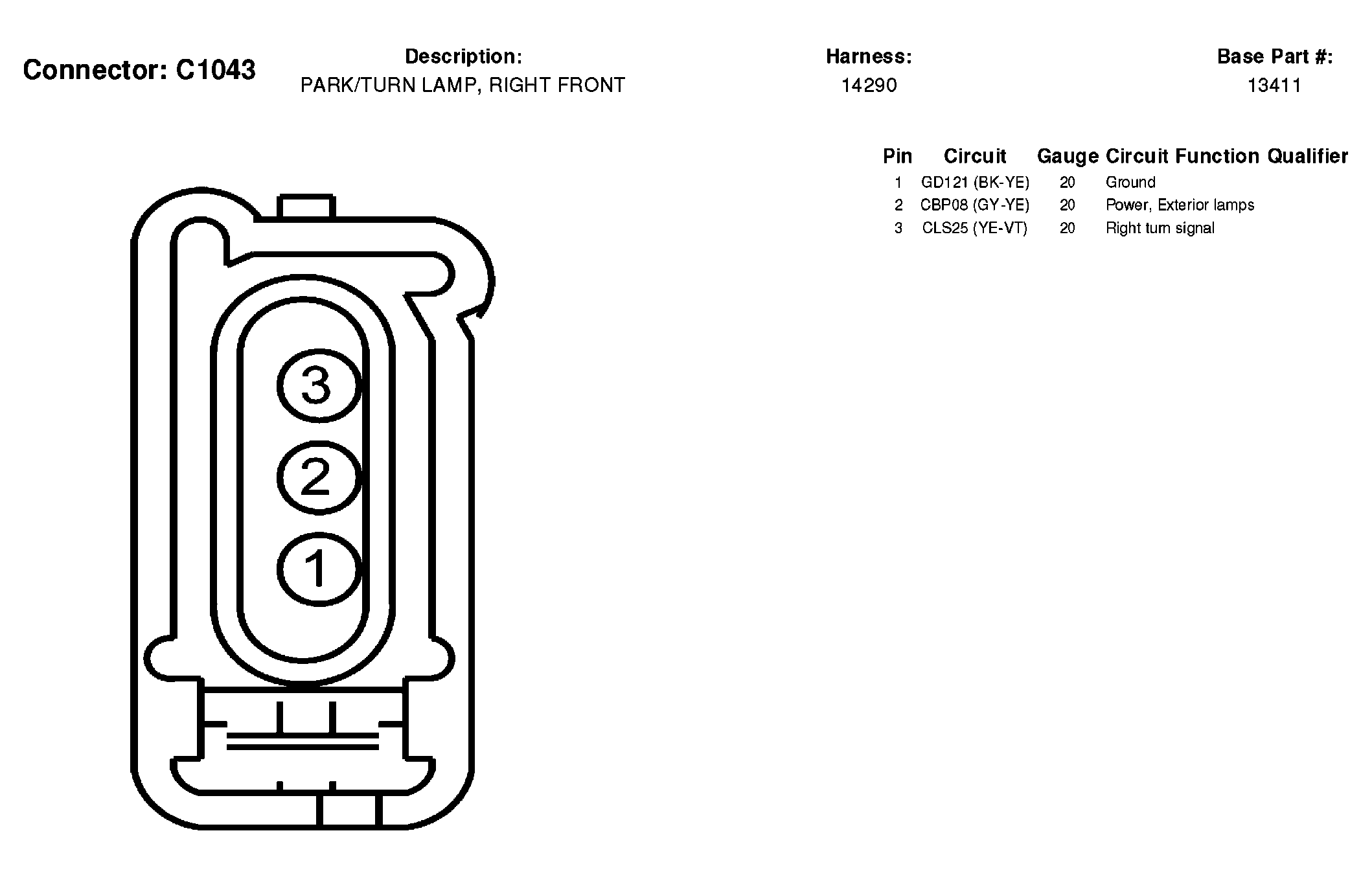

Fig 210: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

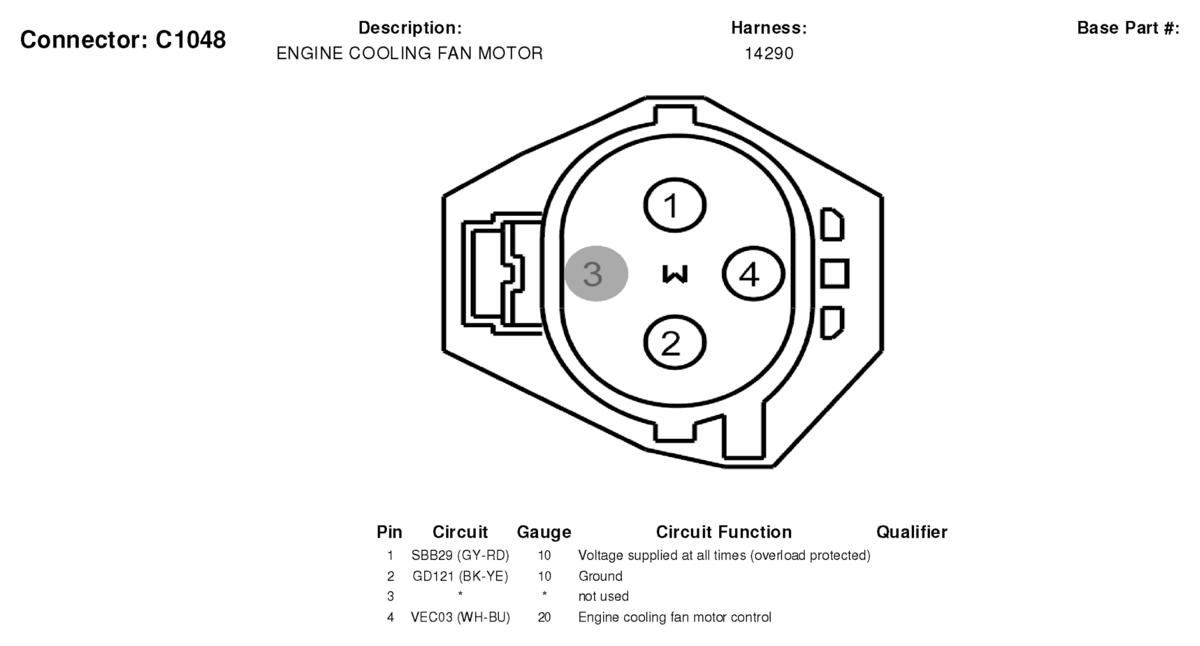

Fig 211: Engine Cooling Fan Motor Connector End View (C1048)
Courtesy of FORD MOTOR CO.

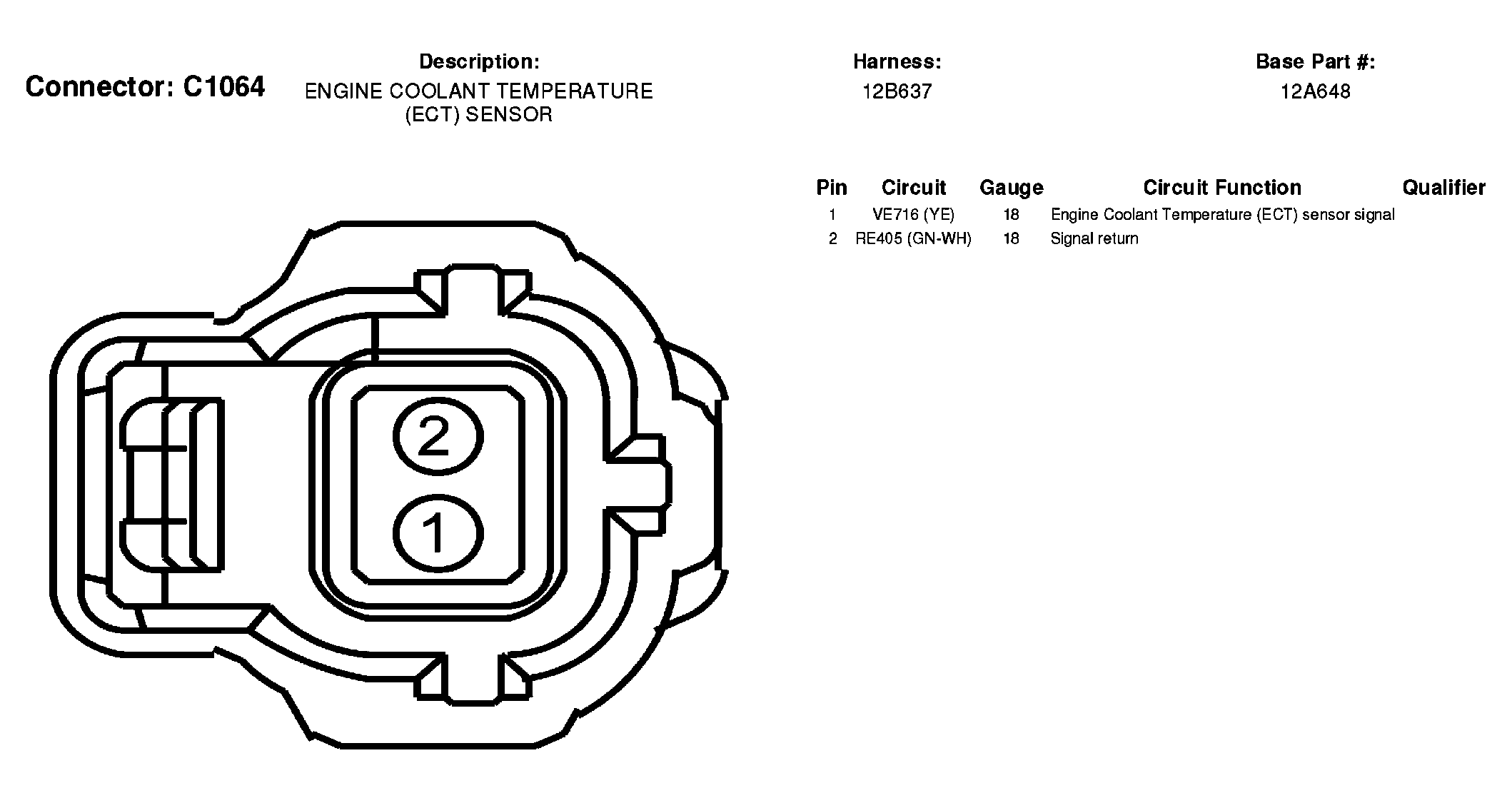

Fig 212: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.

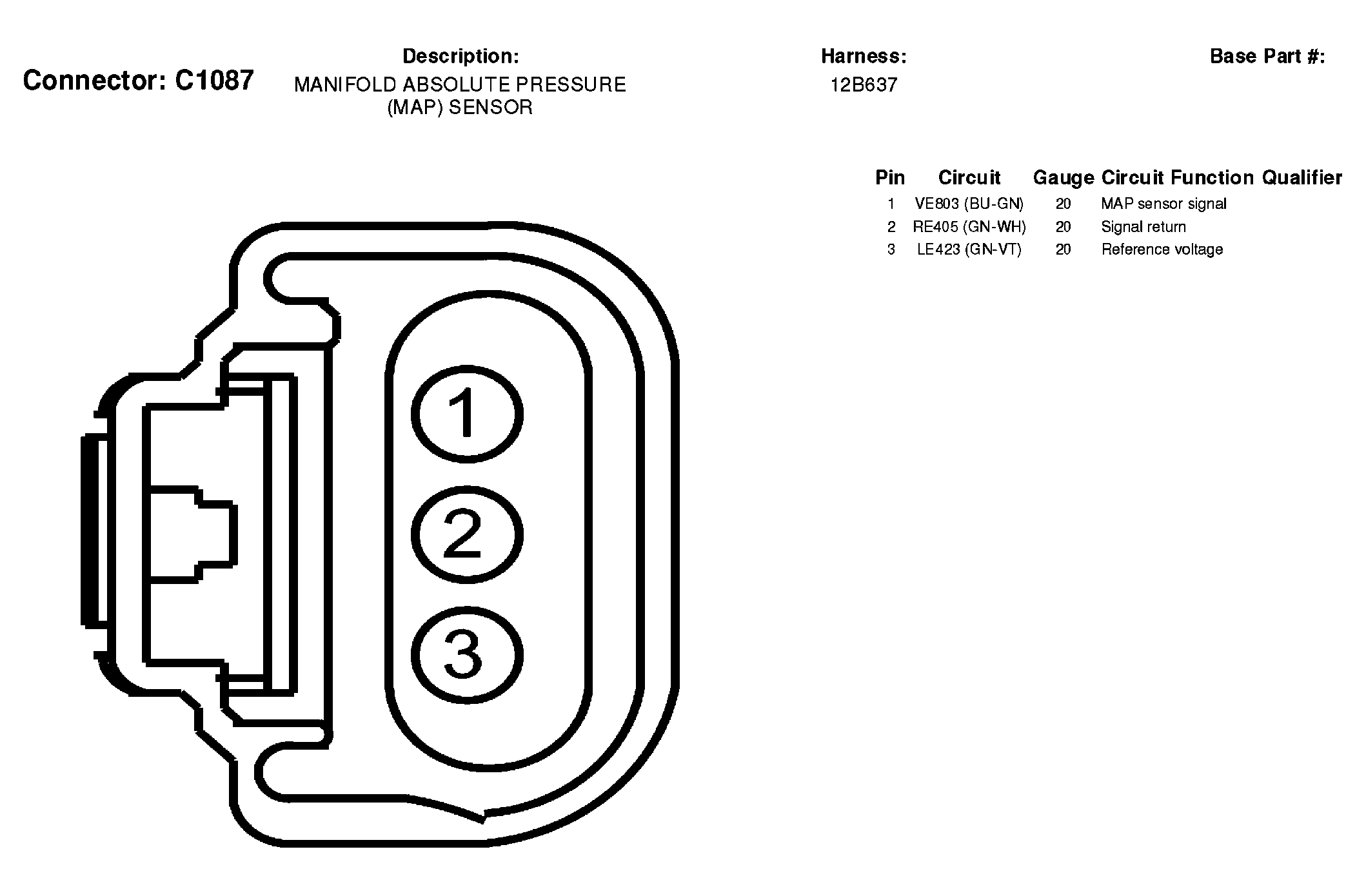

Fig 213: Manifold Absolute Pressure (MAP) Sensor Connector End View (C1087)
Courtesy of FORD MOTOR CO.

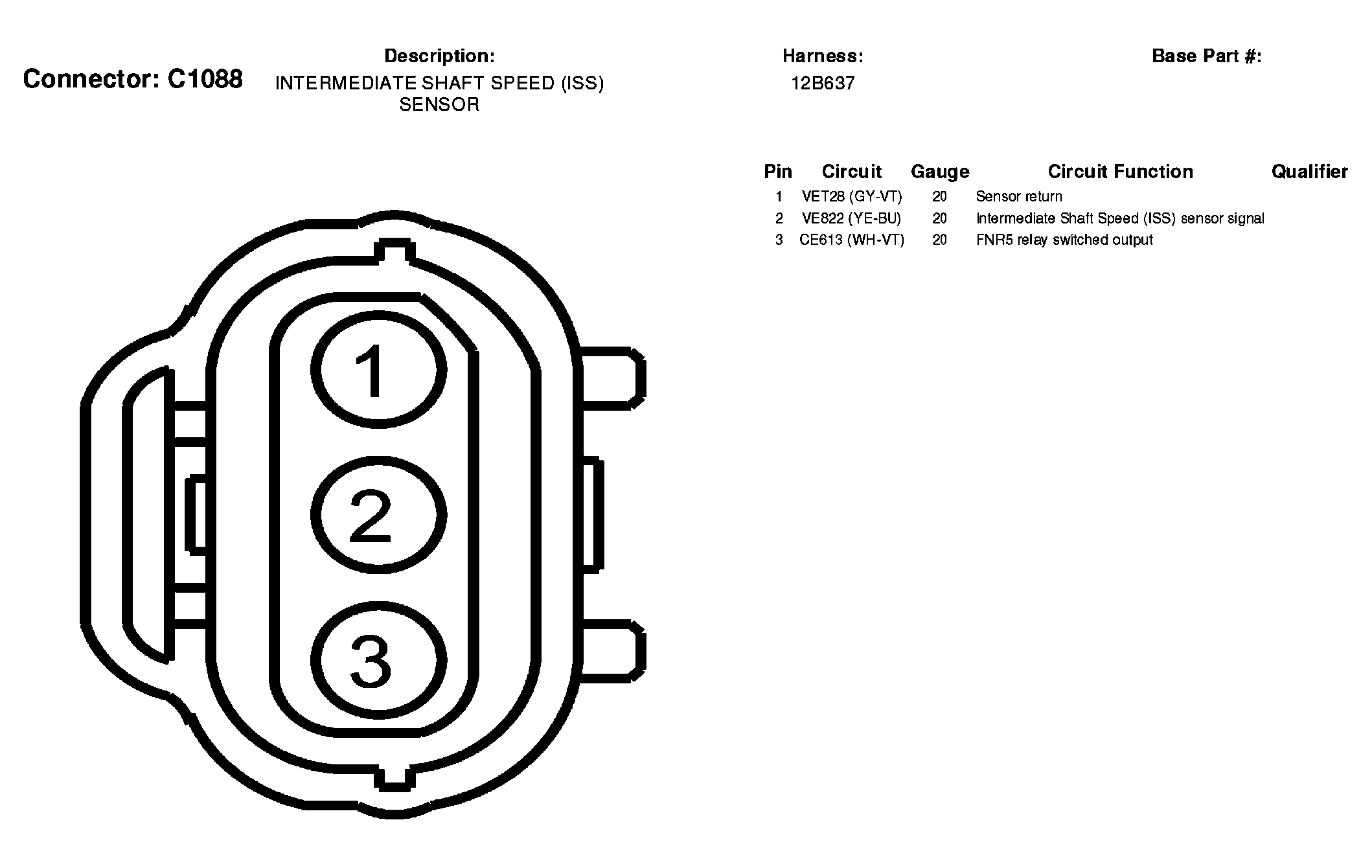

Fig 214: Intermediate Shaft Speed (ISS) Sensor Connector End View (C1088)
Courtesy of FORD MOTOR CO.

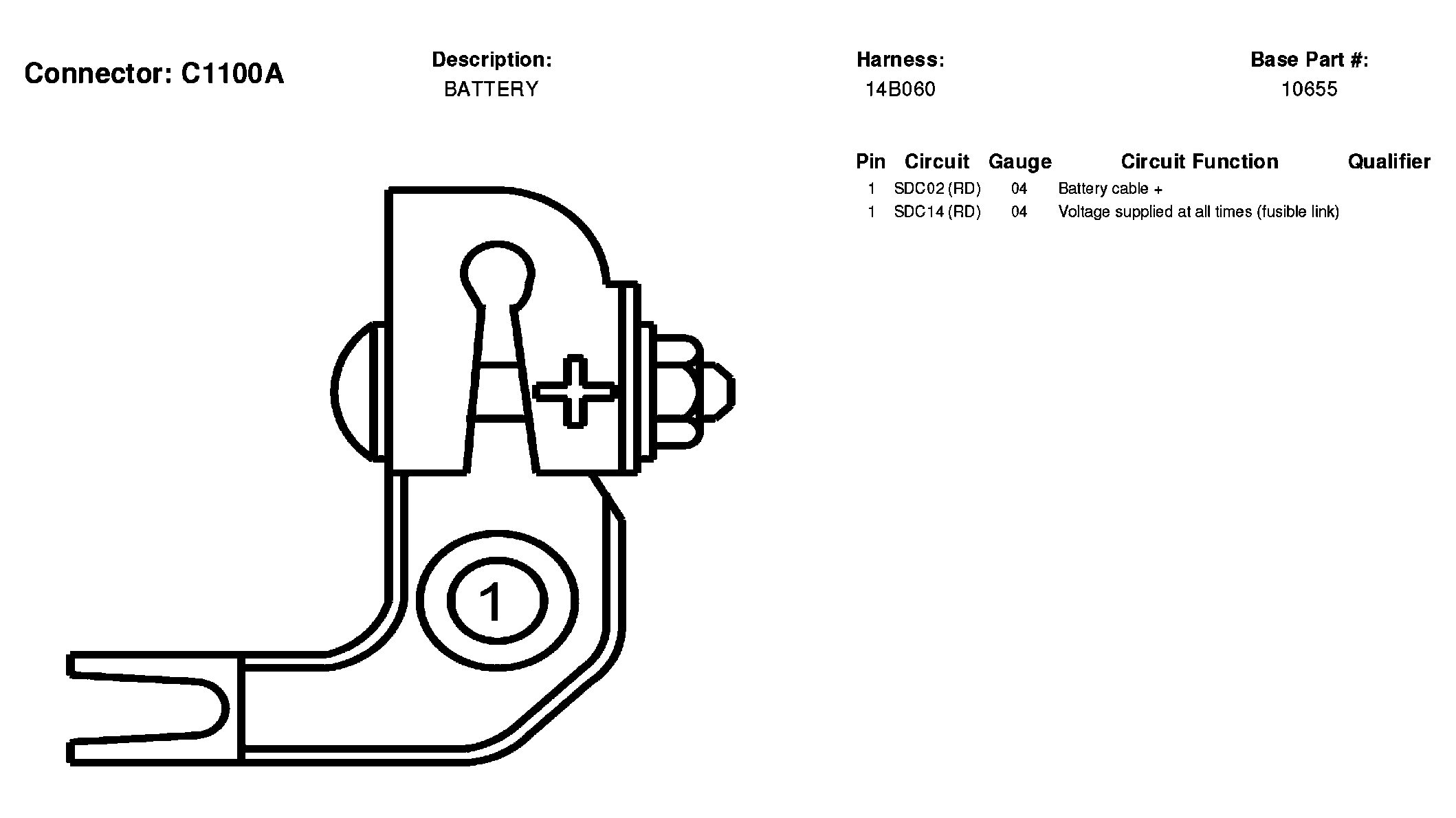

Fig 215: Battery Connector End View (C1100A)
Courtesy of FORD MOTOR CO.

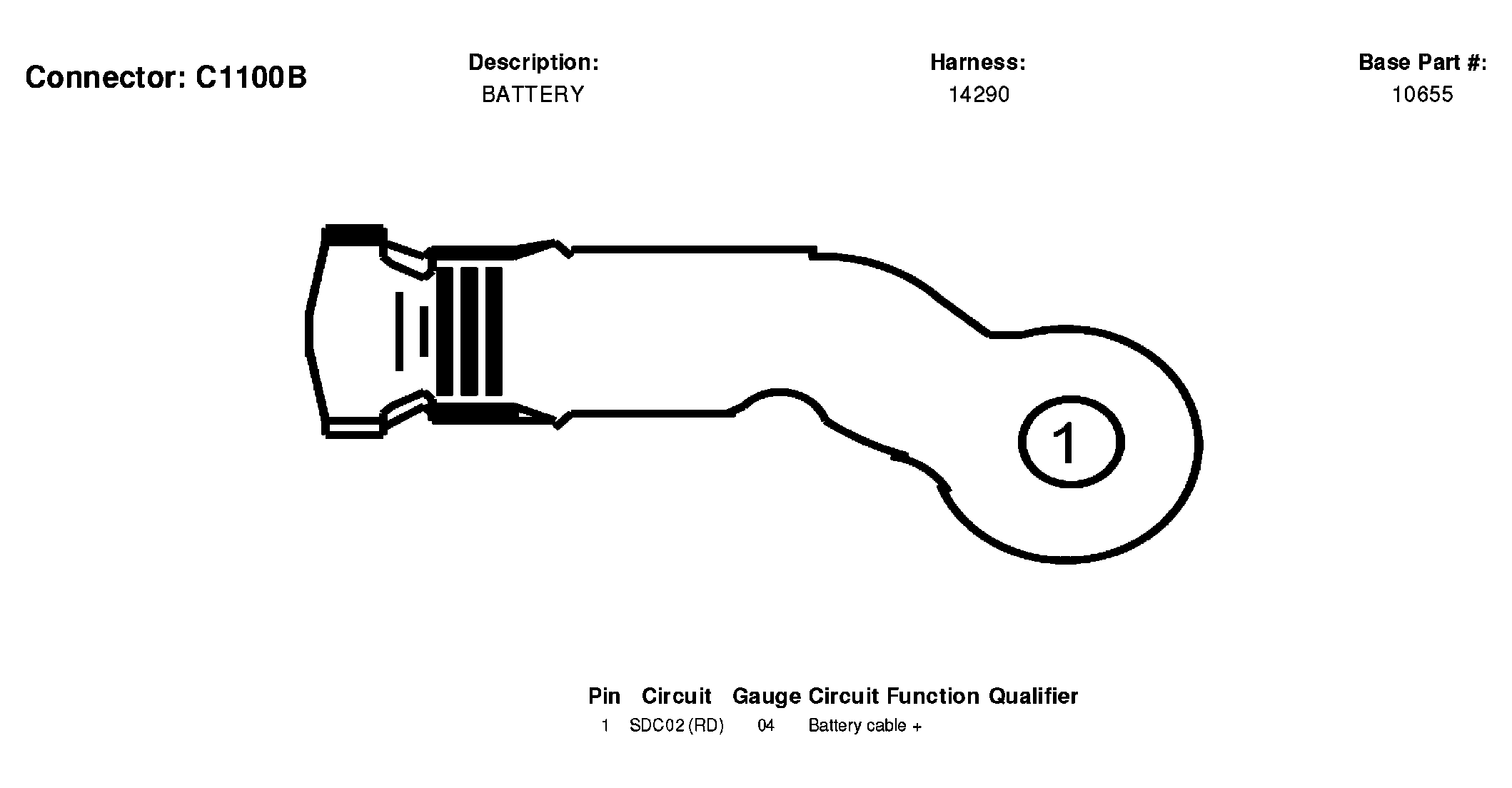

Fig 216: Battery Connector End View (C1100B)
Courtesy of FORD MOTOR CO.

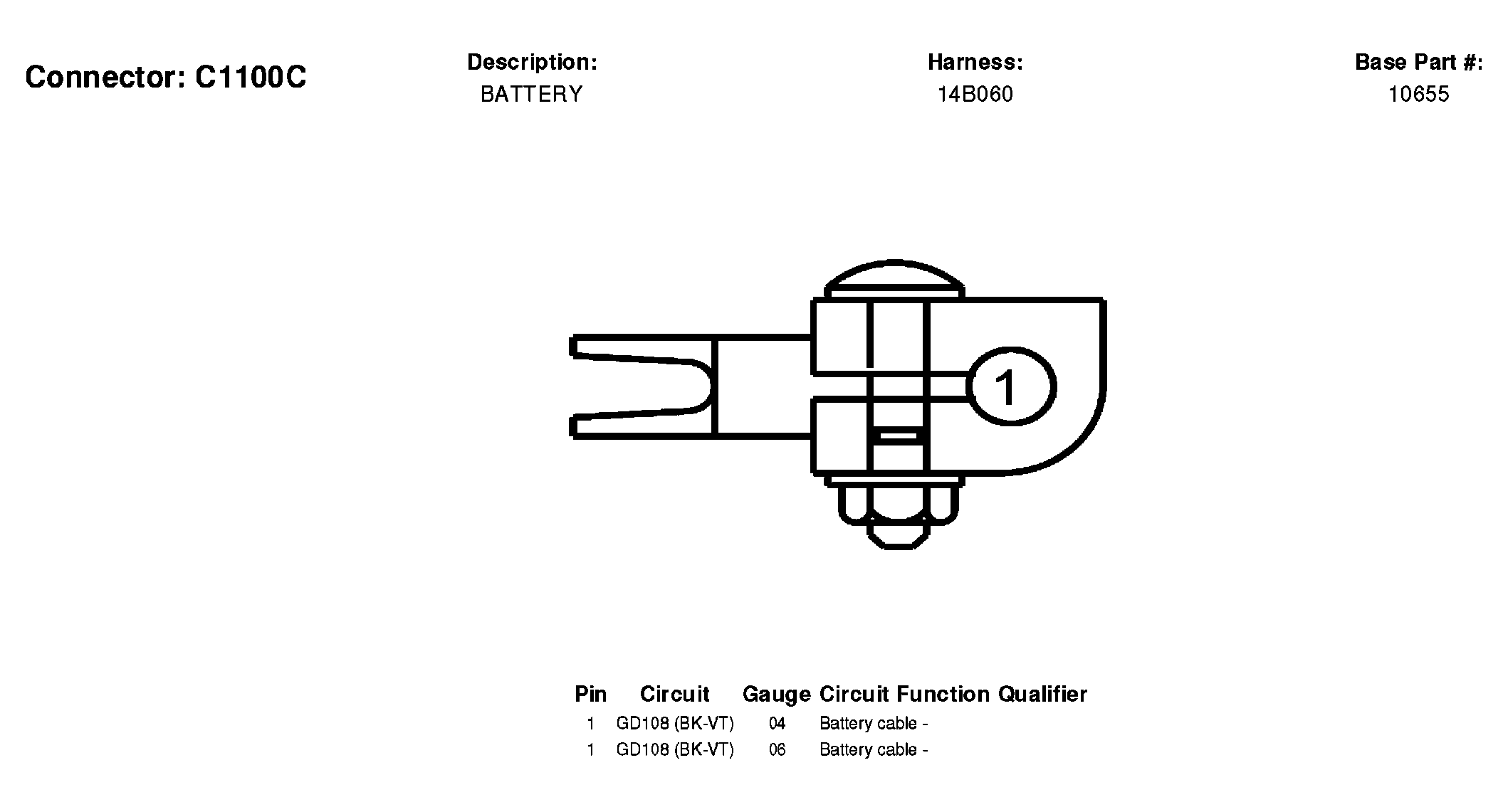

Fig 217: Battery Connector End View (C1100C)
Courtesy of FORD MOTOR CO.

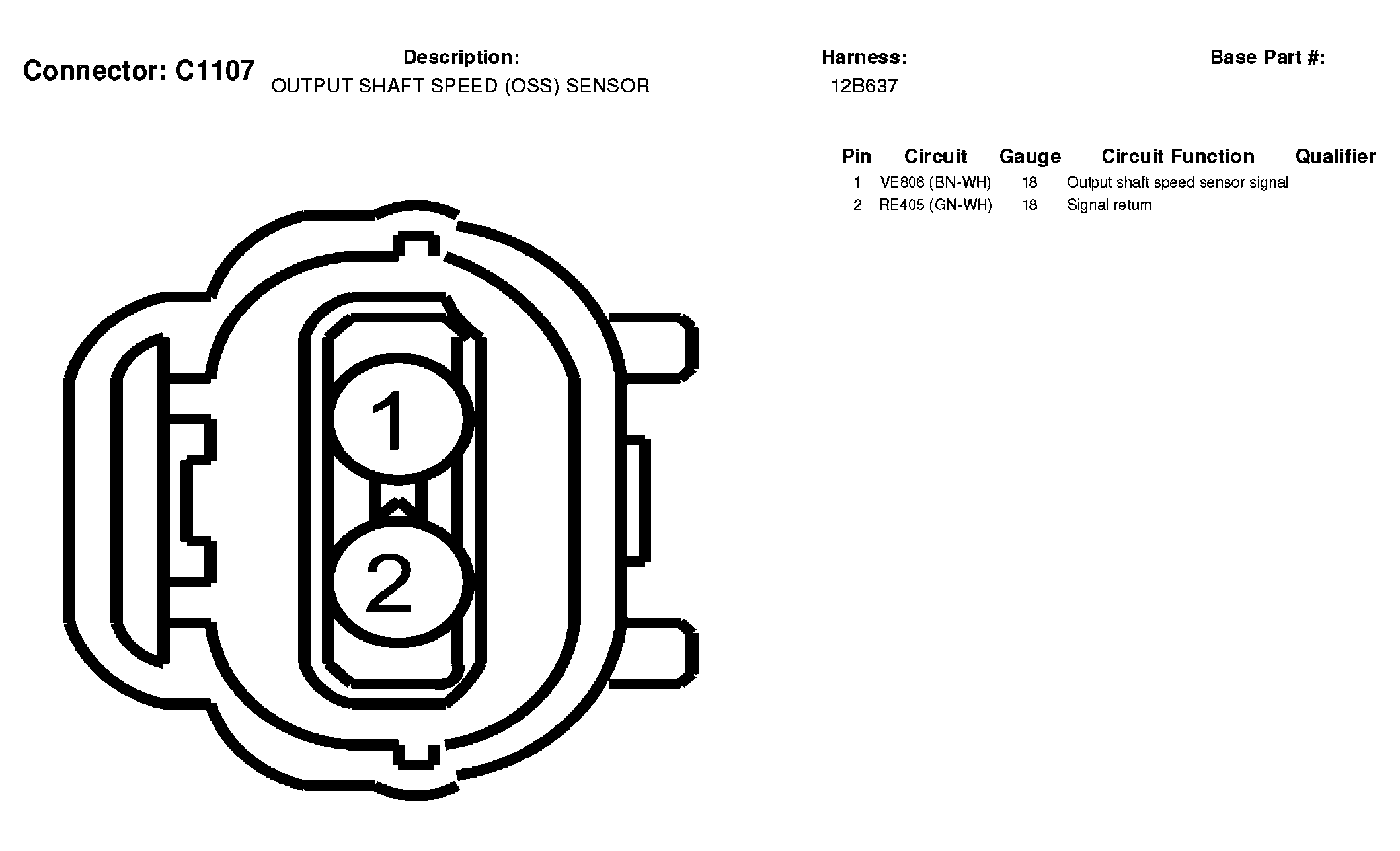

Fig 218: Output Shaft Speed (OSS) Sensor Connector End View (C1107)
Courtesy of FORD MOTOR CO.
Fig 219: Parking Lamp, Left Front 2 Connector End View (C1113)
Courtesy of FORD MOTOR CO.
Fig 220: Parking Lamp, Right Front 2 Connector End View (C1114)
Courtesy of FORD MOTOR CO.

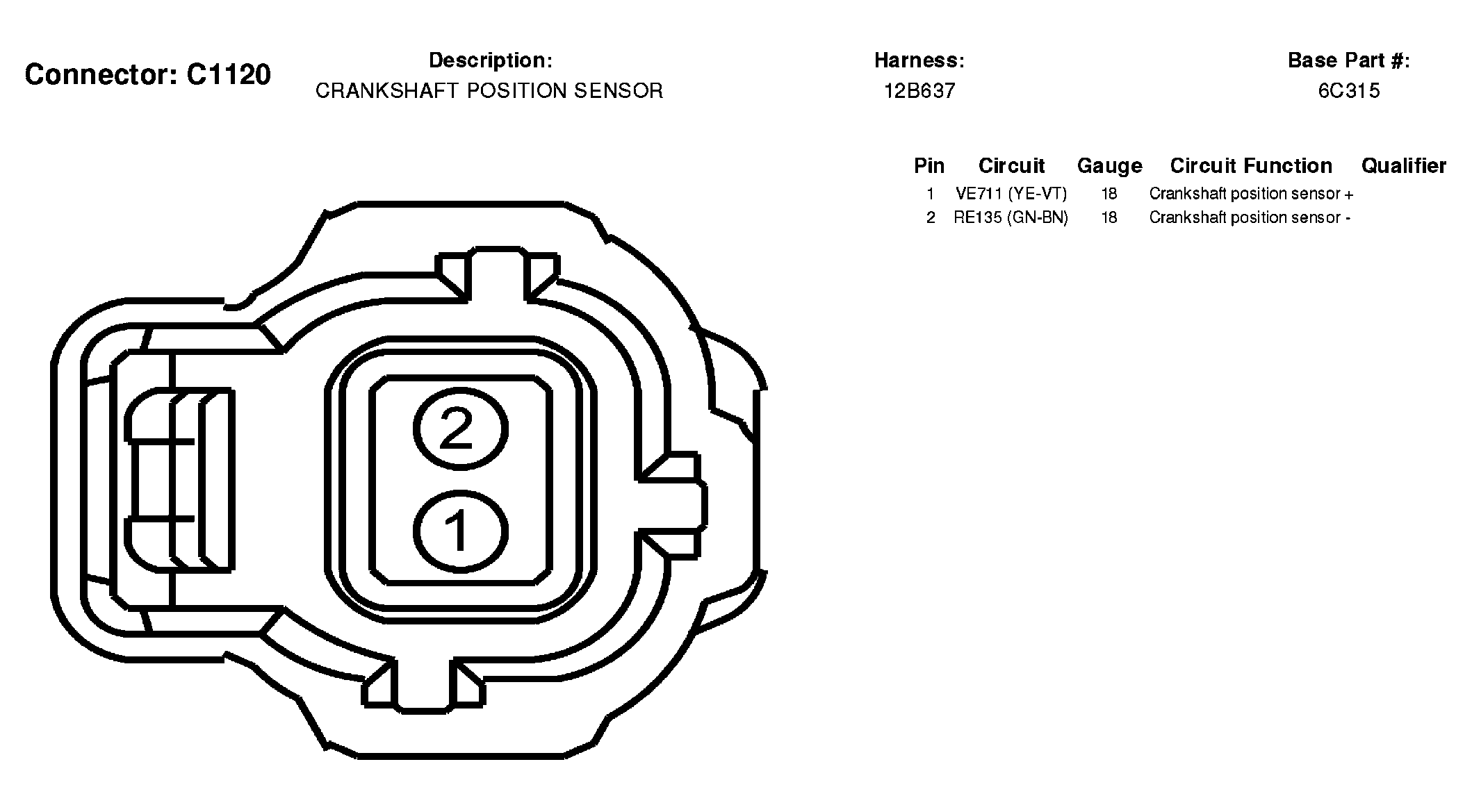

Fig 221: Crankshaft Position Sensor Connector End View (C1120)
Courtesy of FORD MOTOR CO.

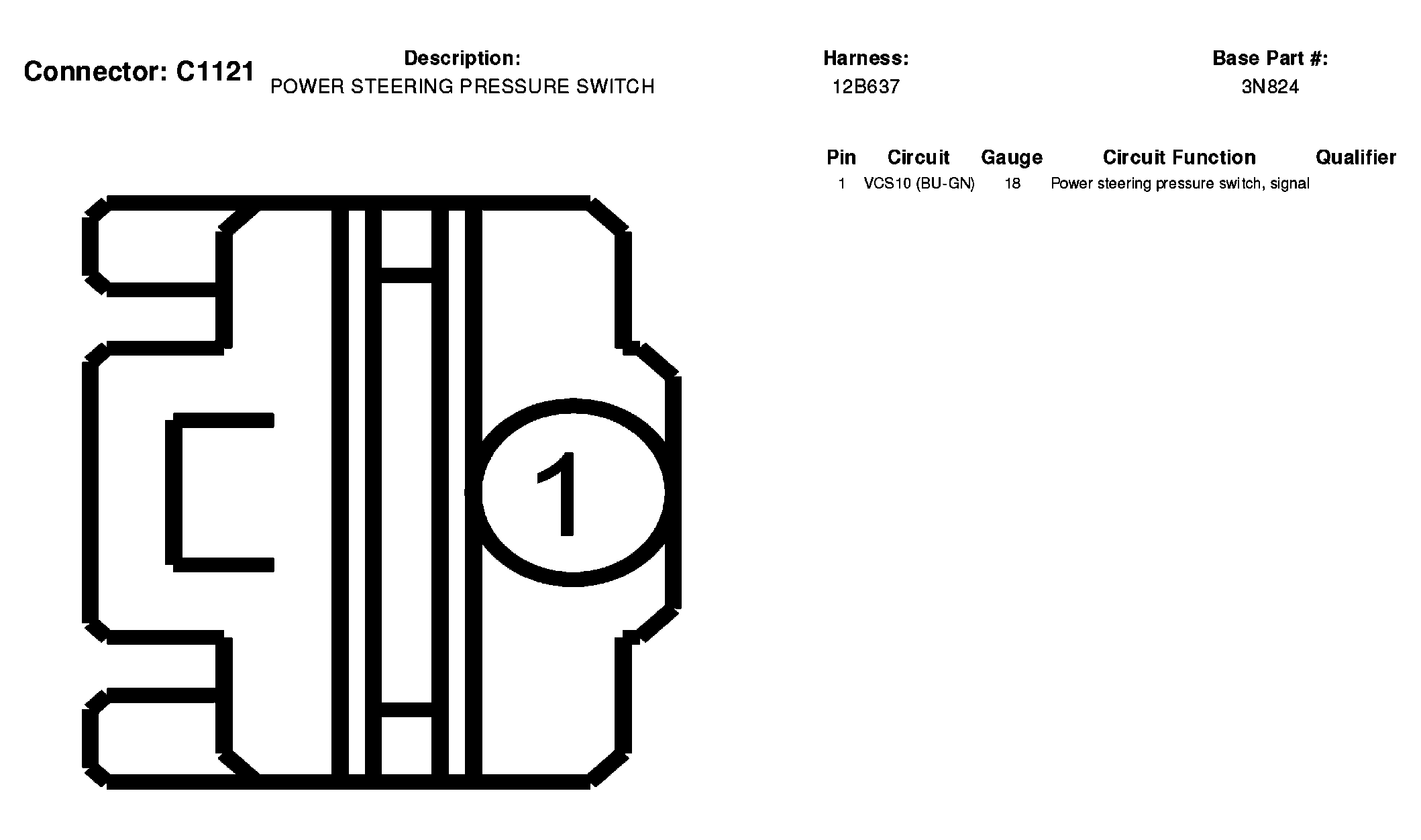

Fig 222: Power Steering Pressure Switch Connector End View (C1121)
Courtesy of FORD MOTOR CO.

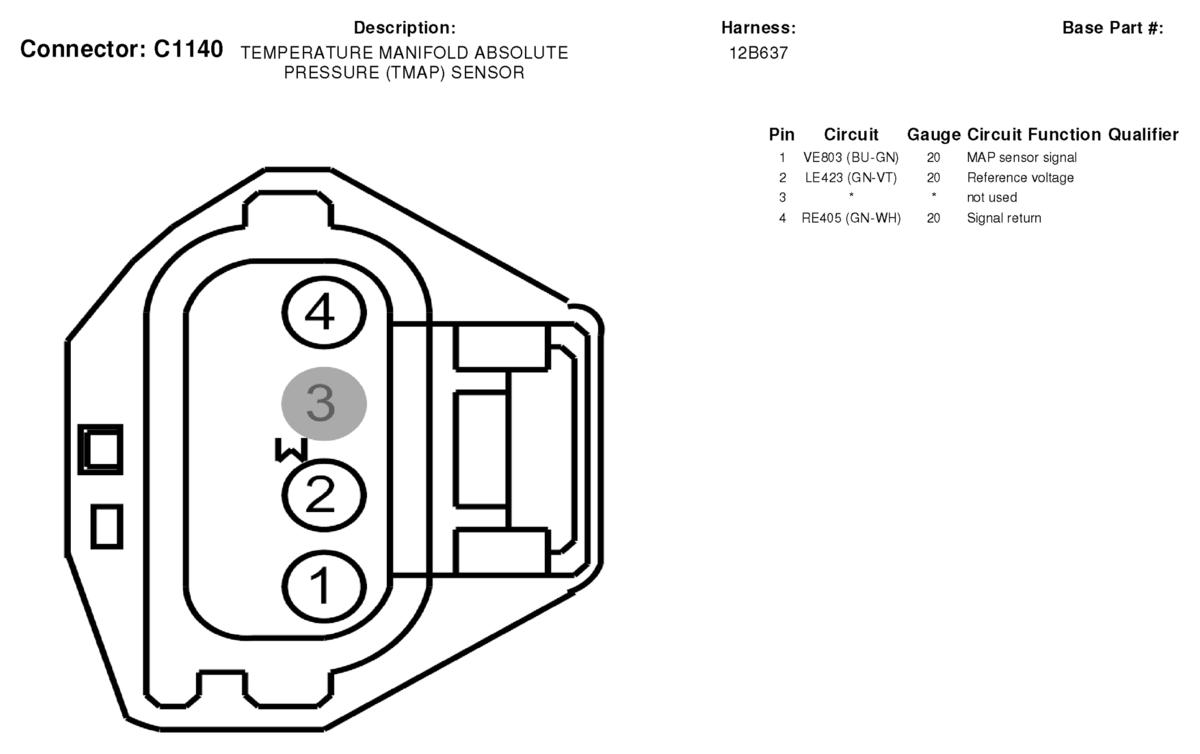

Fig 223: Temperature Manifold Absolute Pressure (TMAP) Sensor Connector End View (C1140)
Courtesy of FORD MOTOR CO.

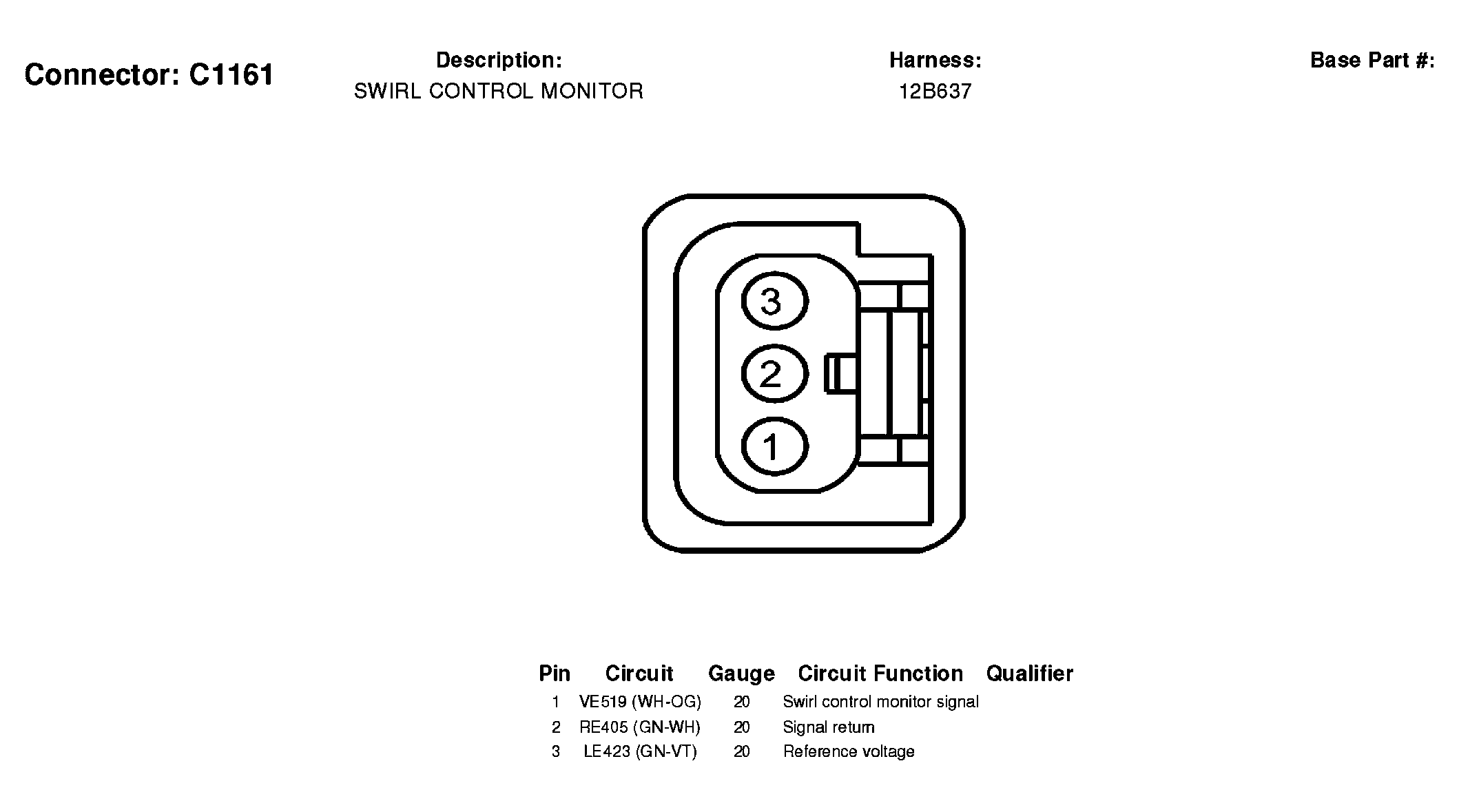

Fig 224: Swirl Control Monitor Connector End View (C1161)
Courtesy of FORD MOTOR CO.

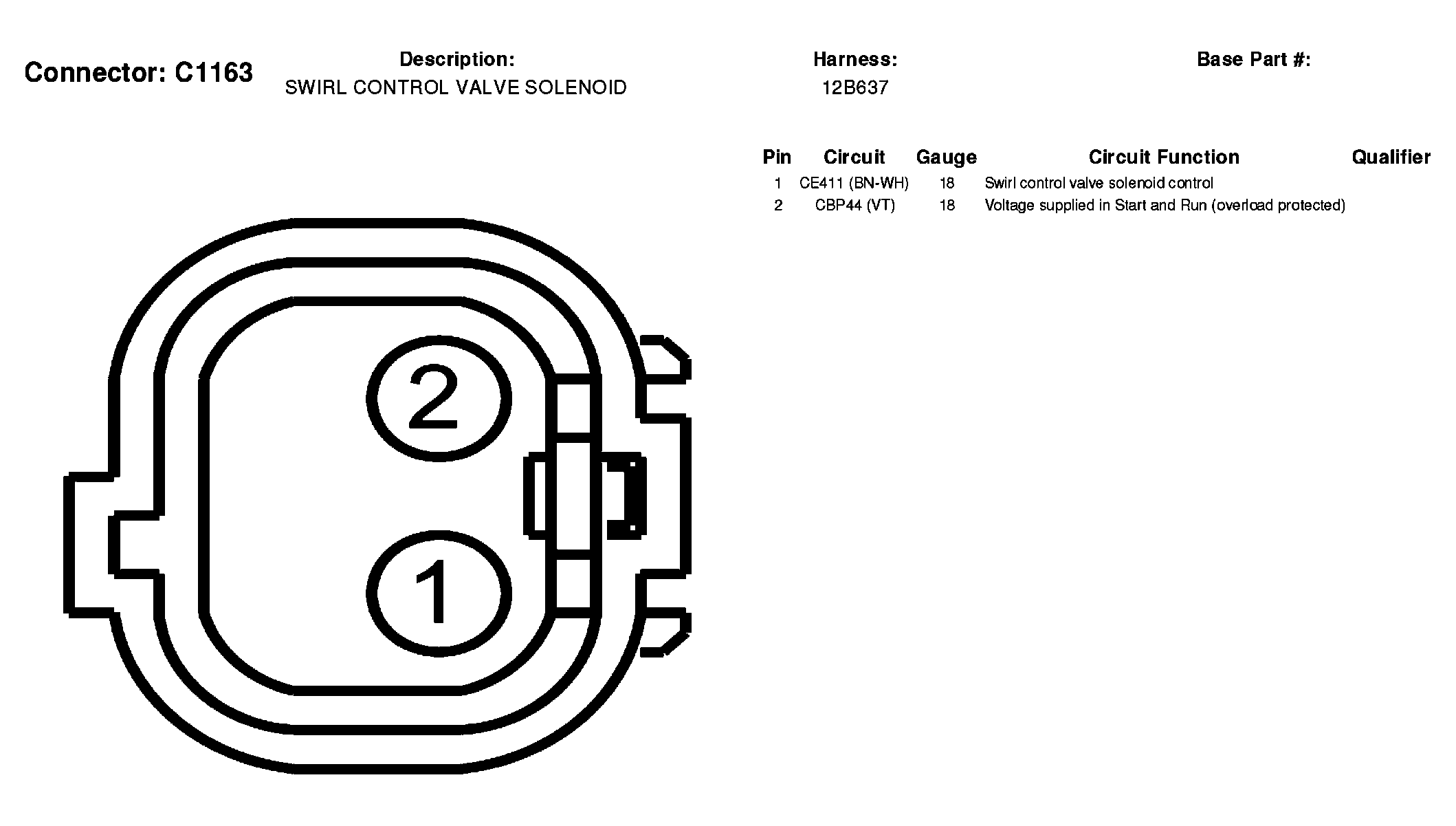

Fig 225: Swirl Control Valve Solenoid Connector End View (C1163)
Courtesy of FORD MOTOR CO.

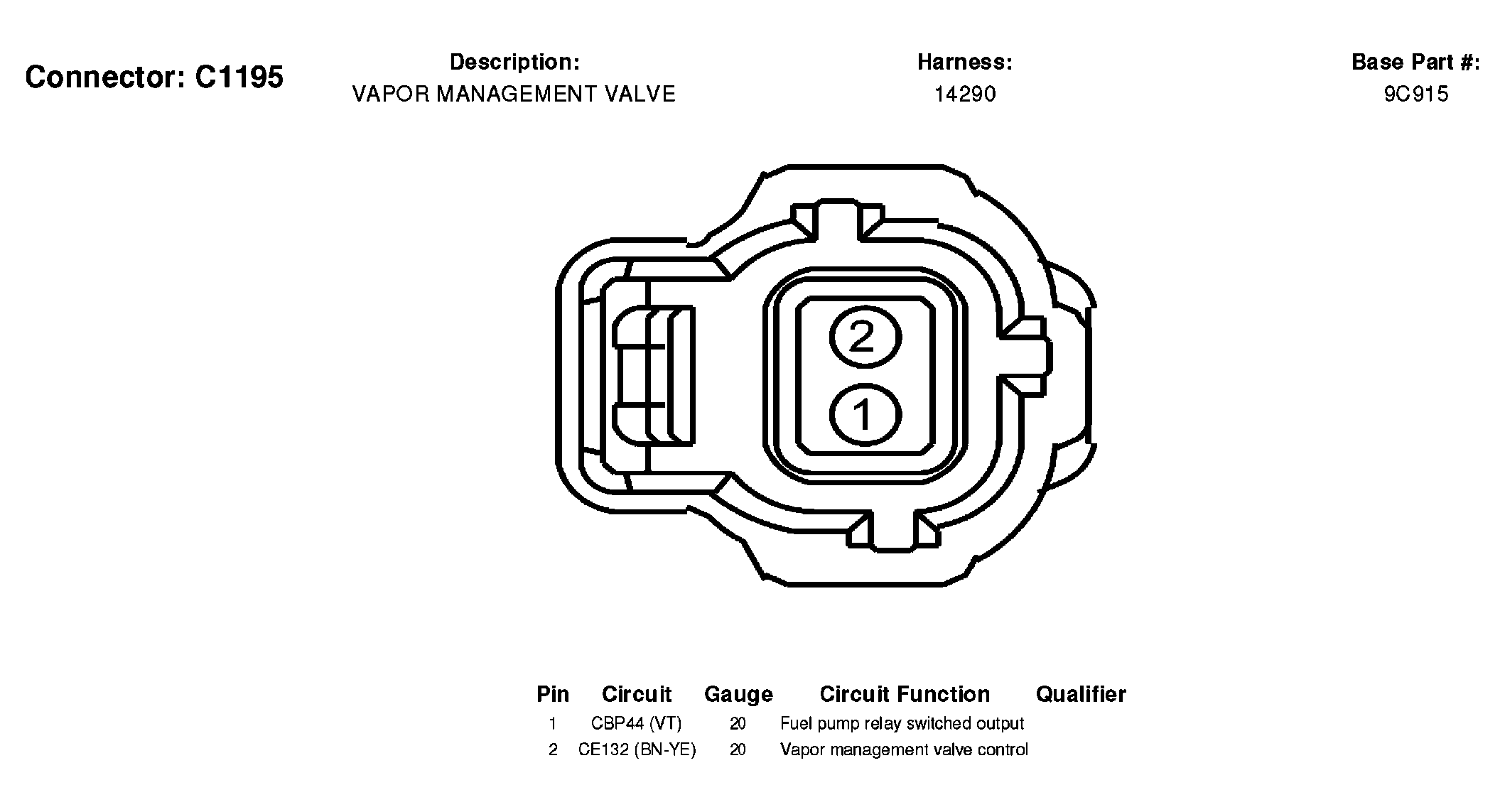

Fig 226: Vapor Management Valve Connector End View (C1195)
Courtesy of FORD MOTOR CO.

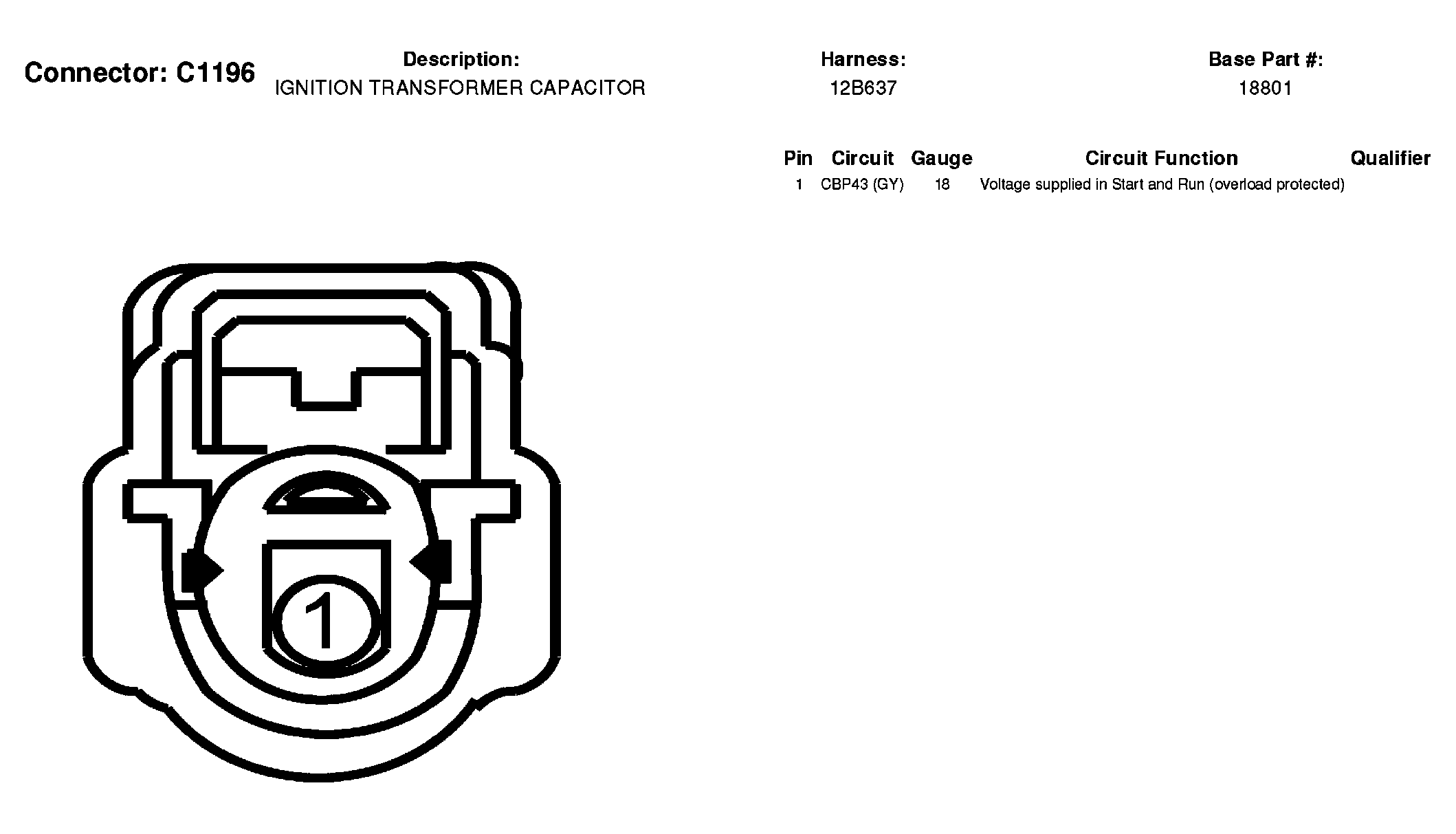

Fig 227: Ignition Transformer Capacitor Connector End View (C1196)
Courtesy of FORD MOTOR CO.

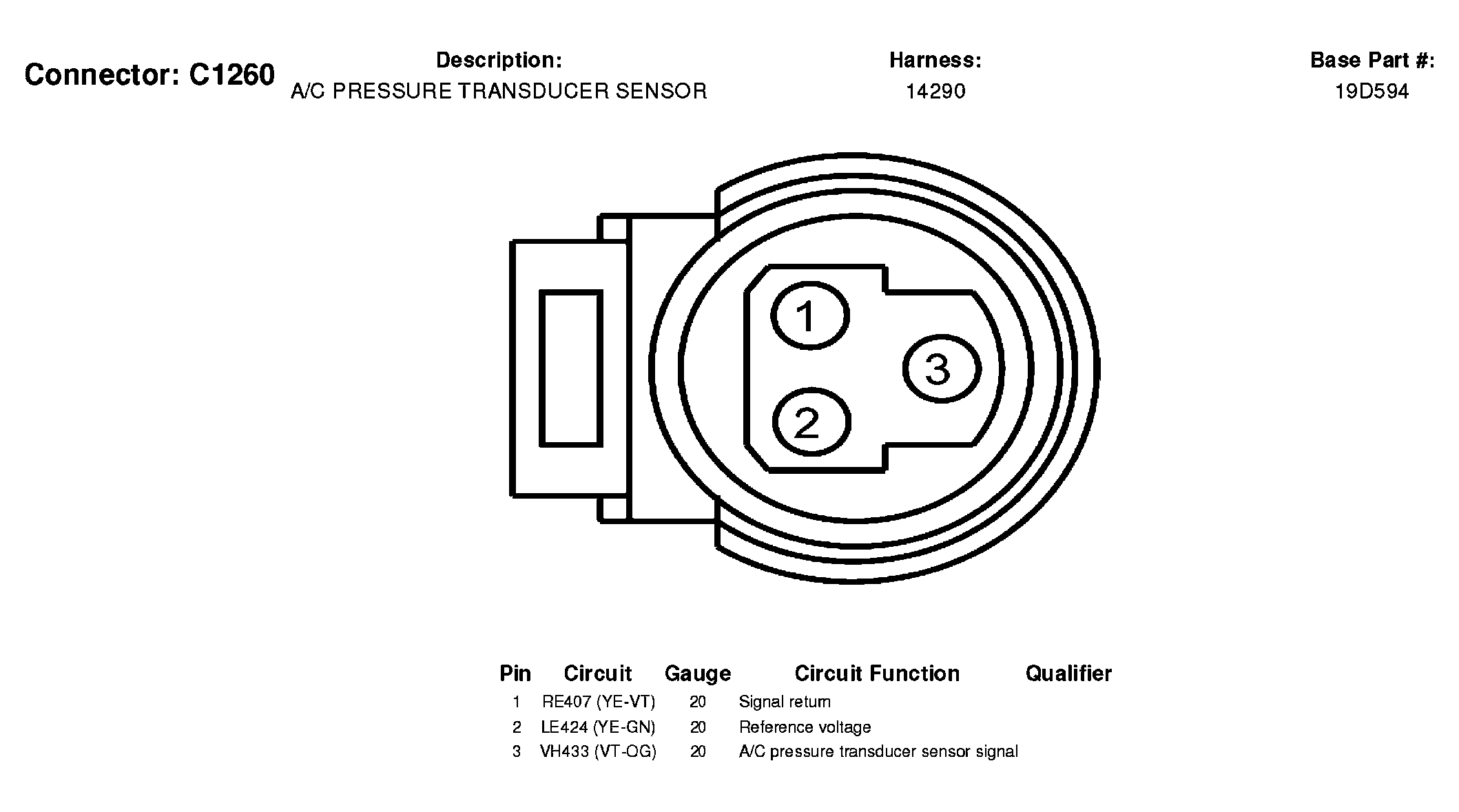

Fig 228: A/C Pressure Transducer Sensor Connector End View (C1260)
Courtesy of FORD MOTOR CO.
Fig 229: Camshaft Position Sensor 1 Connector End View (C1366)
Courtesy of FORD MOTOR CO.

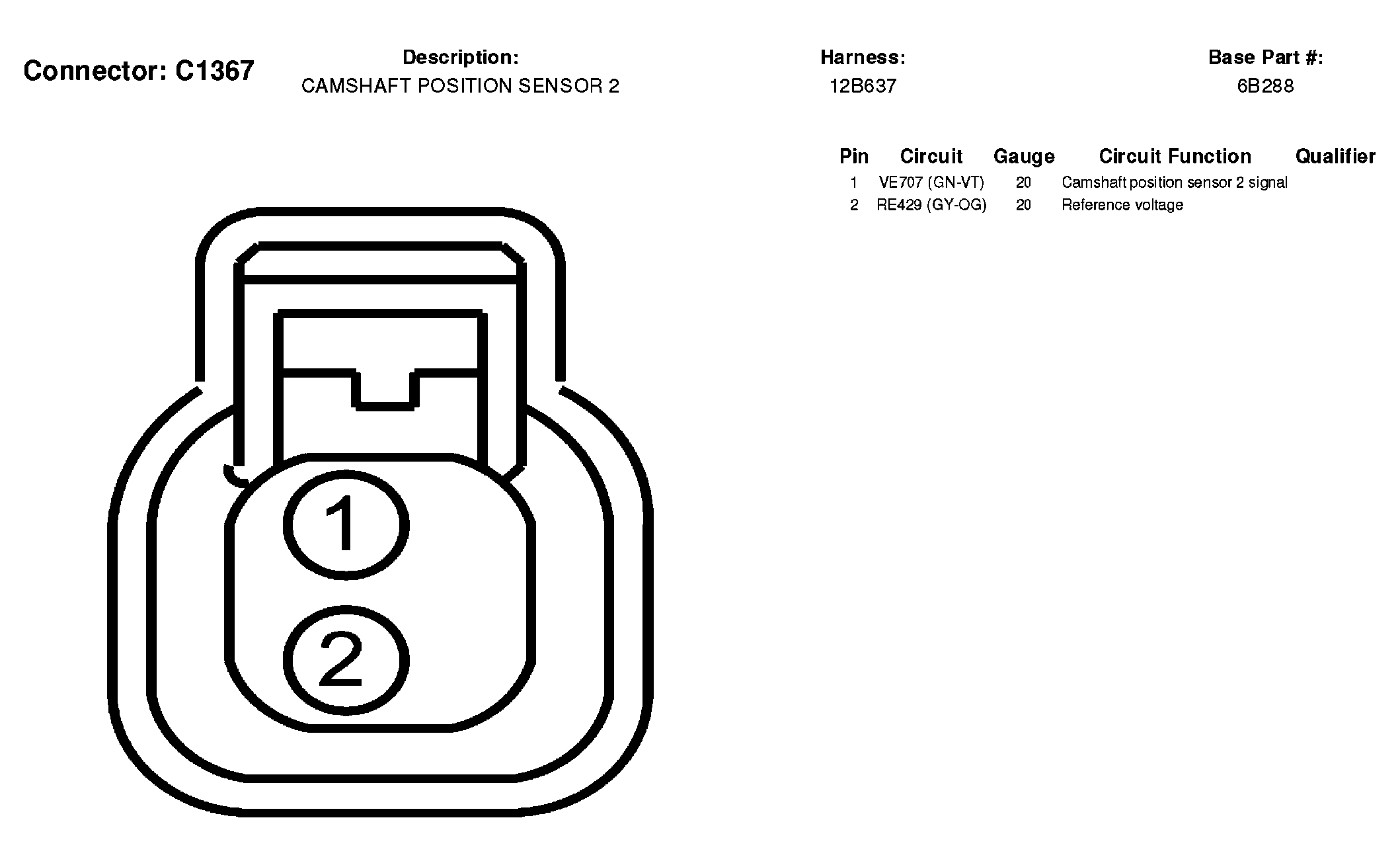

Fig 230: Camshaft Position Sensor 2 Connector End View (C1367)
Courtesy of FORD MOTOR CO.

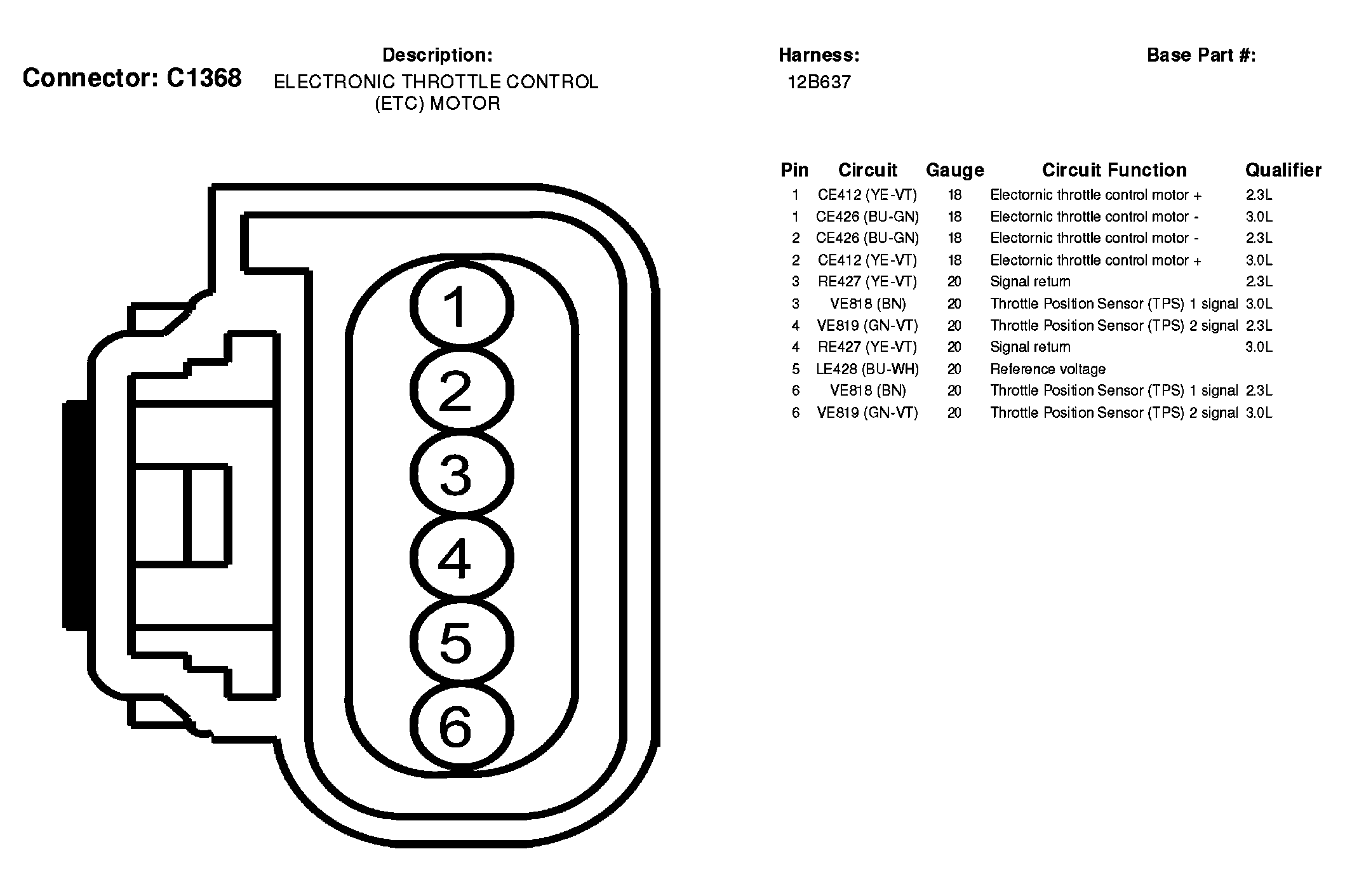

Fig 231: Electronic Throttle Control (ETC) Motor Connector End View (C1368)
Courtesy of FORD MOTOR CO.
Fig 232: Side Lamp, Left Front Connector End View (C1443)
Courtesy of FORD MOTOR CO.

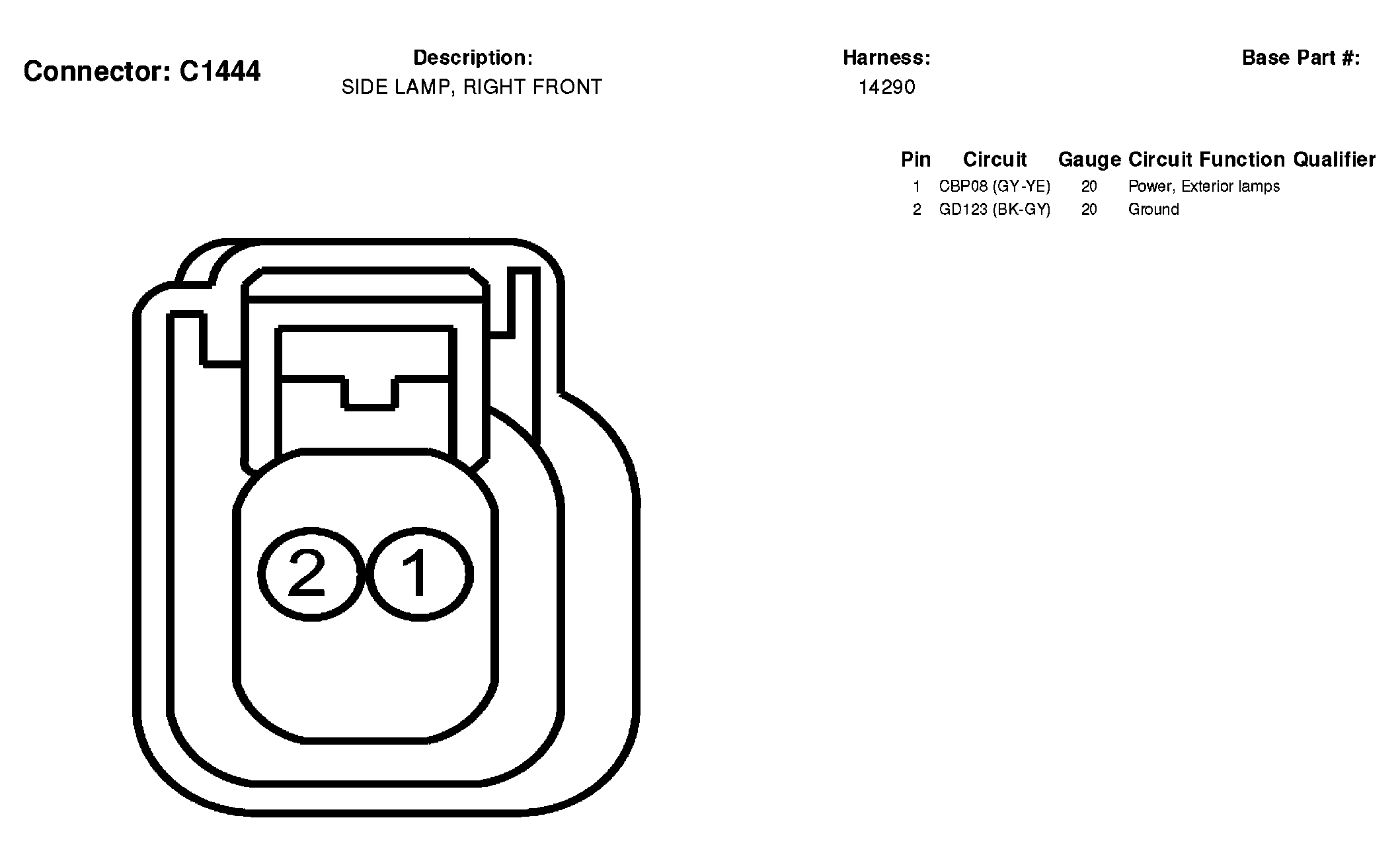

Fig 233: Side Lamp, Right Front Connector End View (C1444)
Courtesy of FORD MOTOR CO.

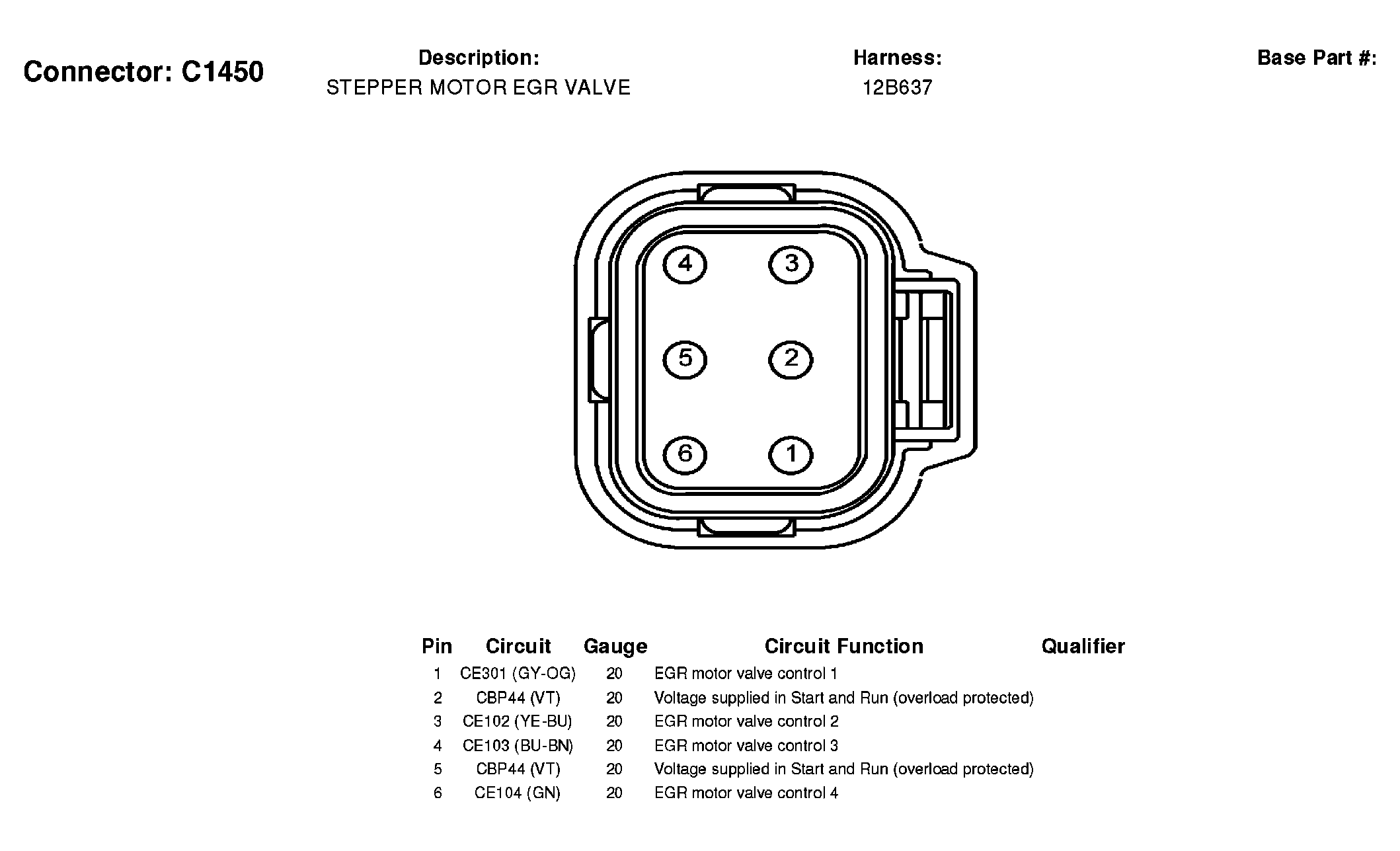

Fig 234: Stepper Motor EGR Valve Connector End View (C1450)
Courtesy of FORD MOTOR CO.

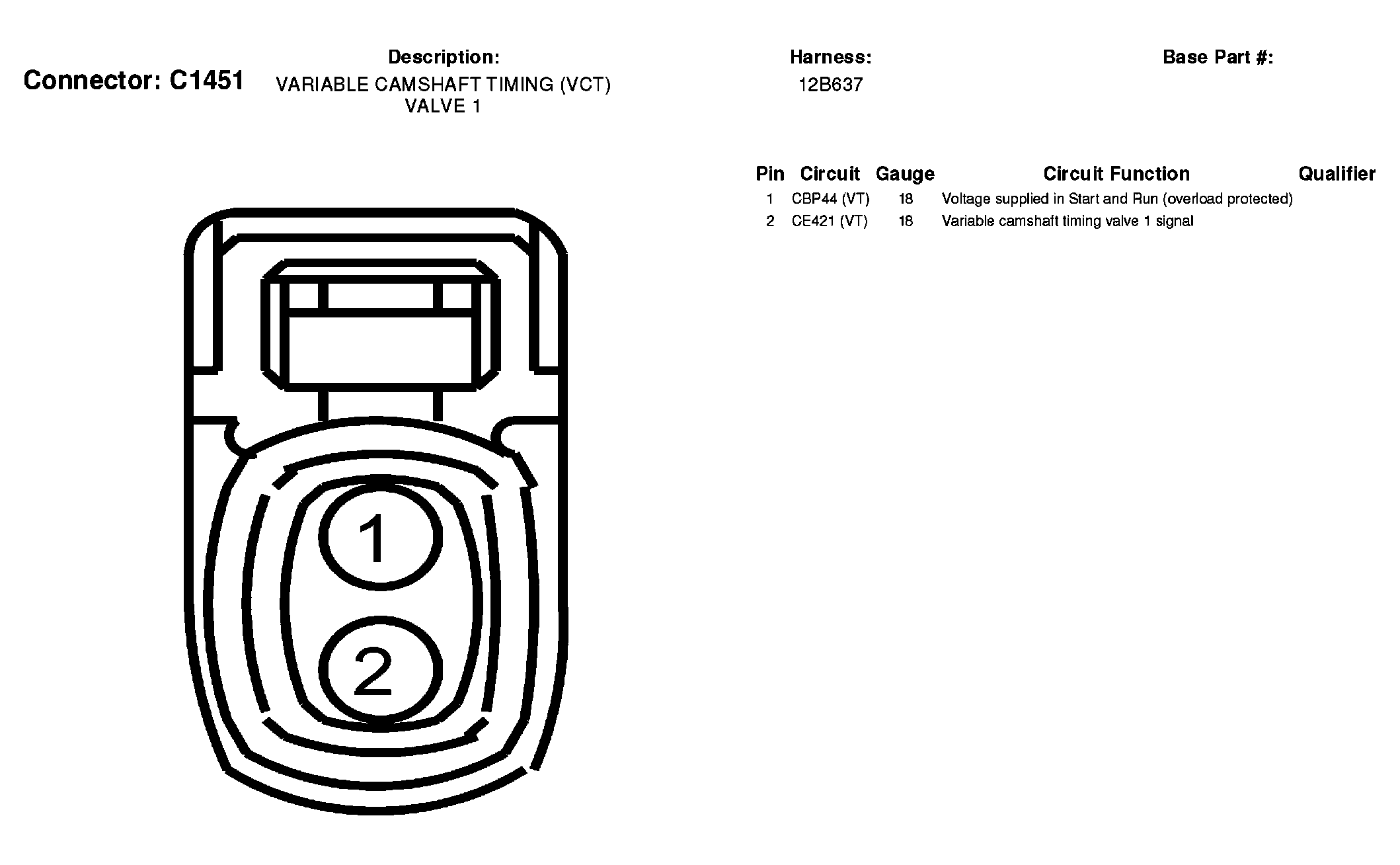

Fig 235: Variable Camshaft Timing (VCT) Valve 1 Connector End View (C1451)
Courtesy of FORD MOTOR CO.
Fig 236: Variable Camshaft Timing (VCT) Valve 2 Connector End View (C1452)
Courtesy of FORD MOTOR CO.

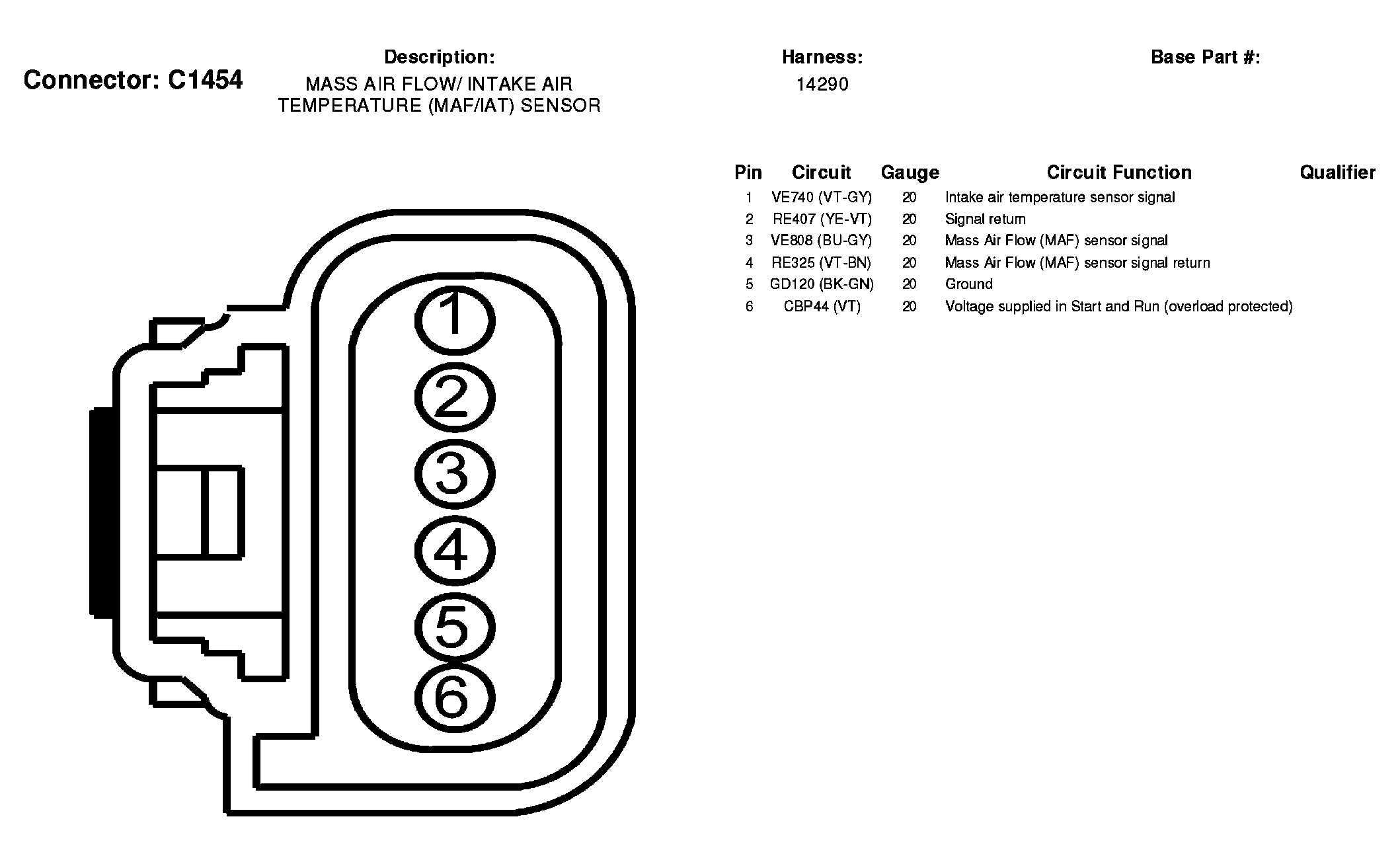

Fig 237: Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector End View (C1454)
Courtesy of FORD MOTOR CO.
Fig 238: Heated Oxygen Sensor (HO2S) #13 Connector End View (C1455)
Courtesy of FORD MOTOR CO.

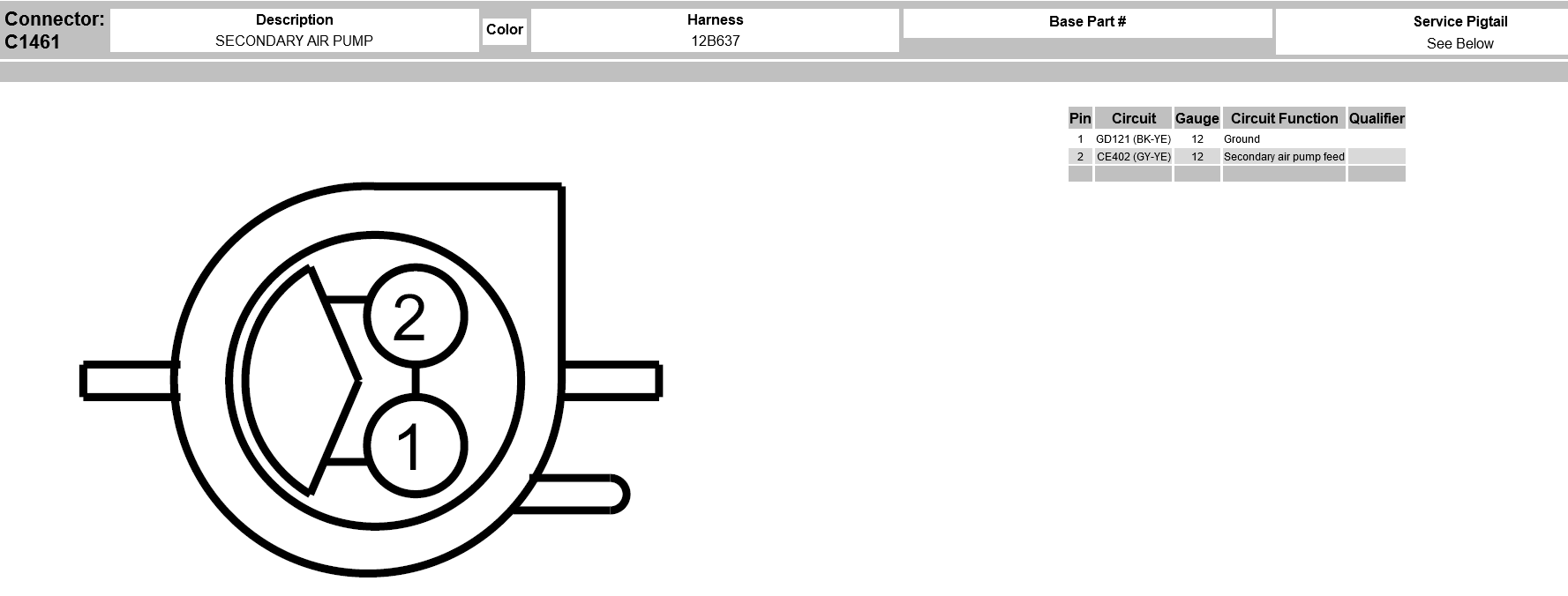

Fig 239: Secondary Air Pump Connector End View (C1461)
Courtesy of FORD MOTOR CO.

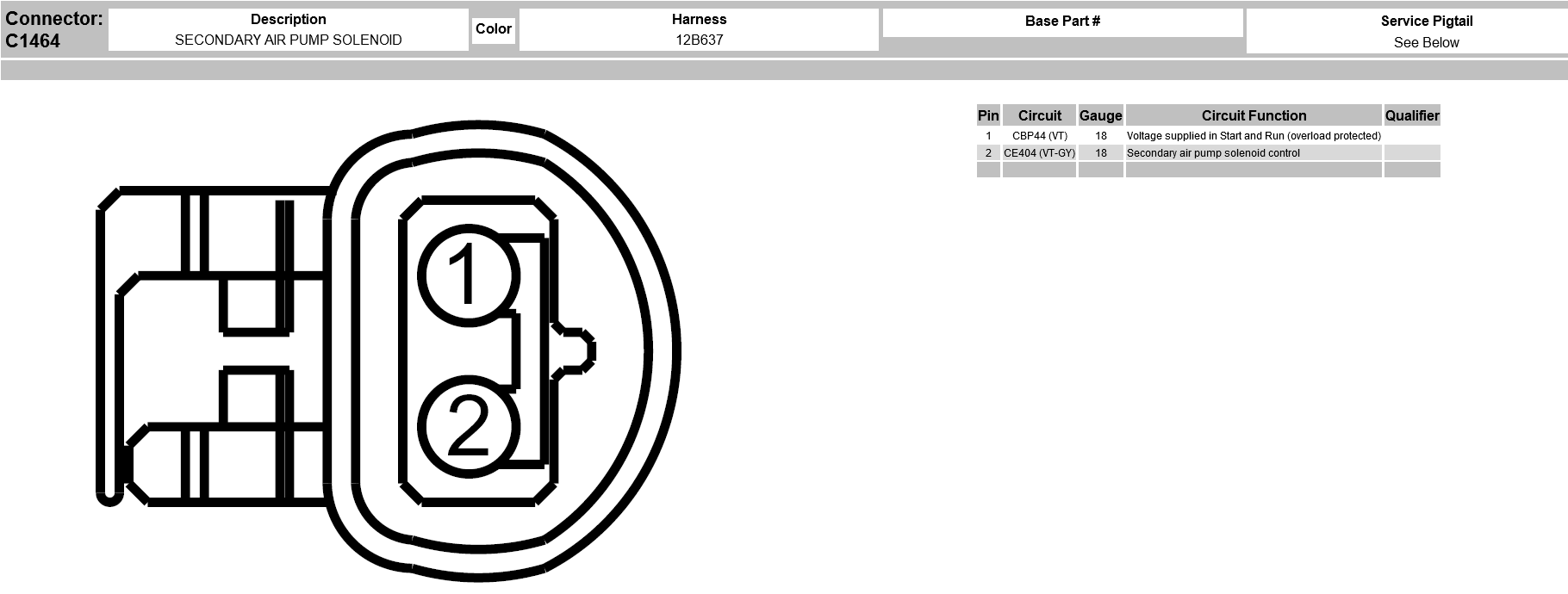

Fig 240: Secondary Air Pump Solenoid Connector End View (C1464)
Courtesy of FORD MOTOR CO.

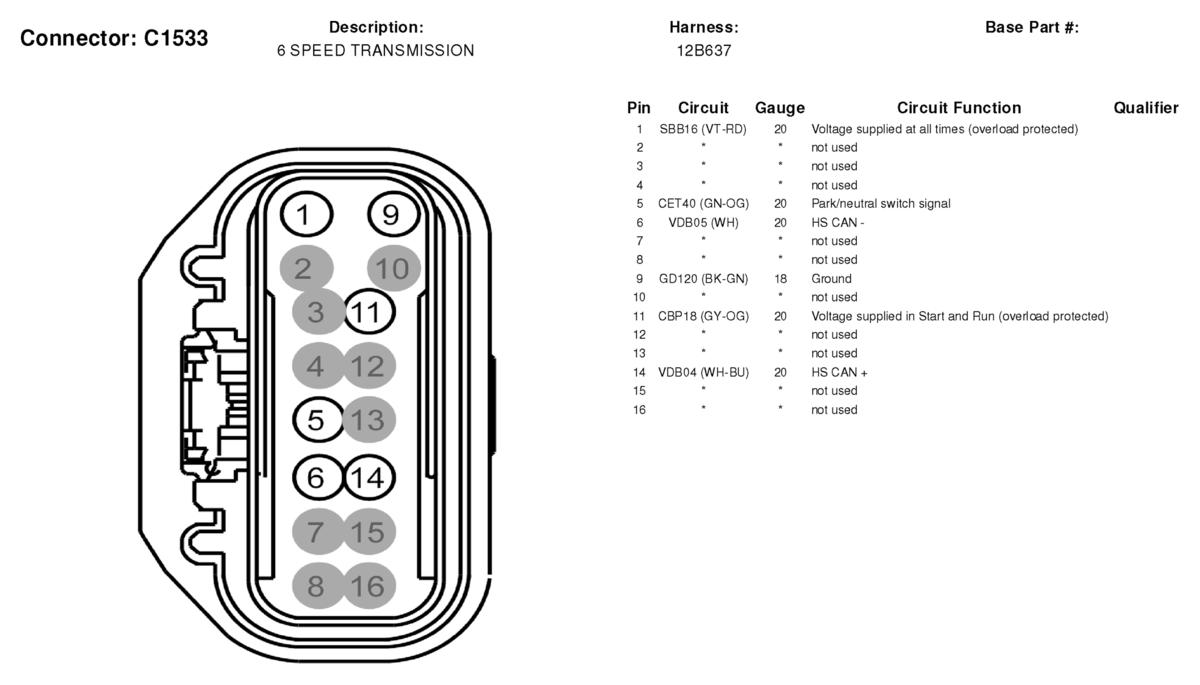

Fig 241: 6 Speed Transmission Connector End View (C1533)
Courtesy of FORD MOTOR CO.

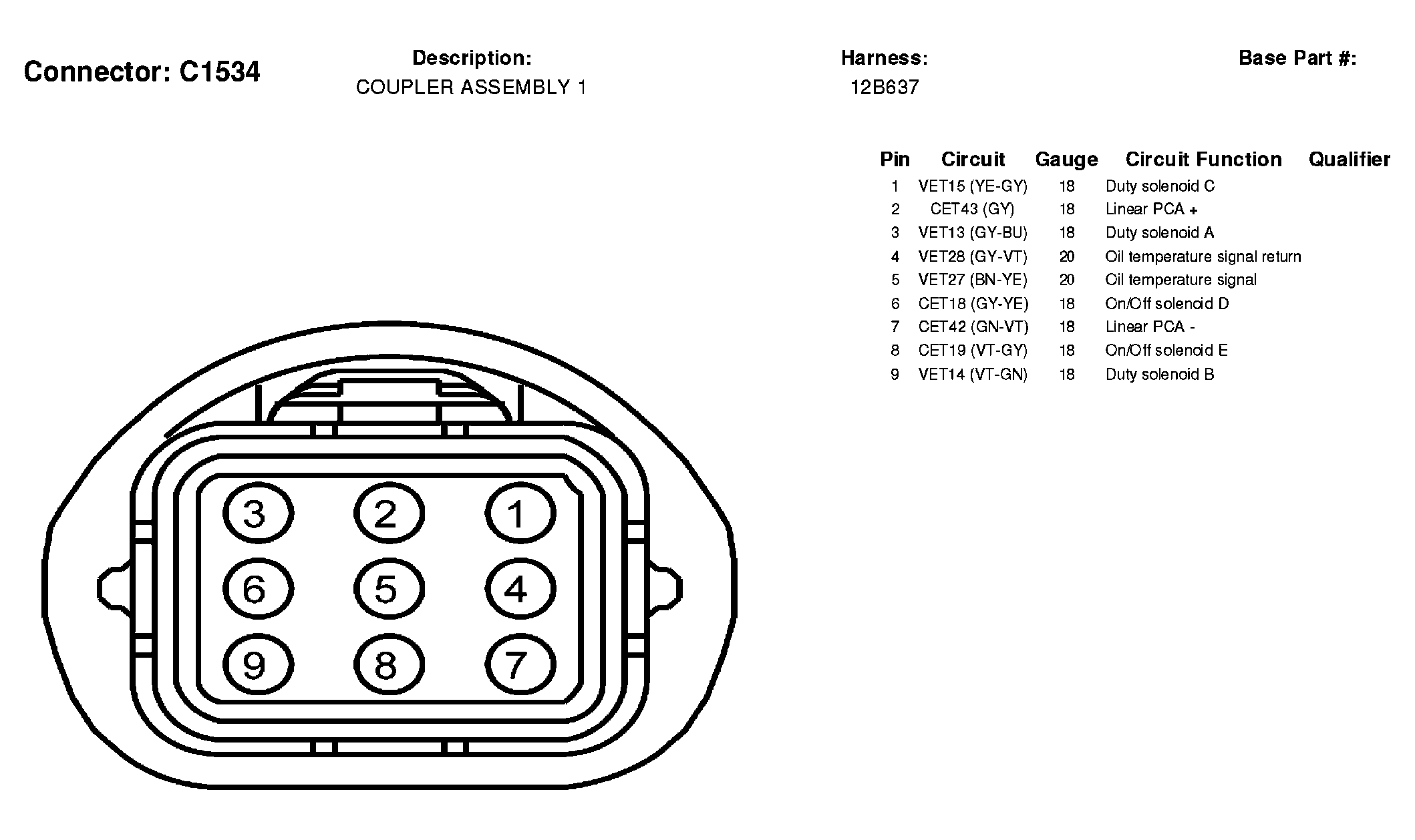

Fig 242: Coupler Assembly 1 Connector End View (C1534)
Courtesy of FORD MOTOR CO.

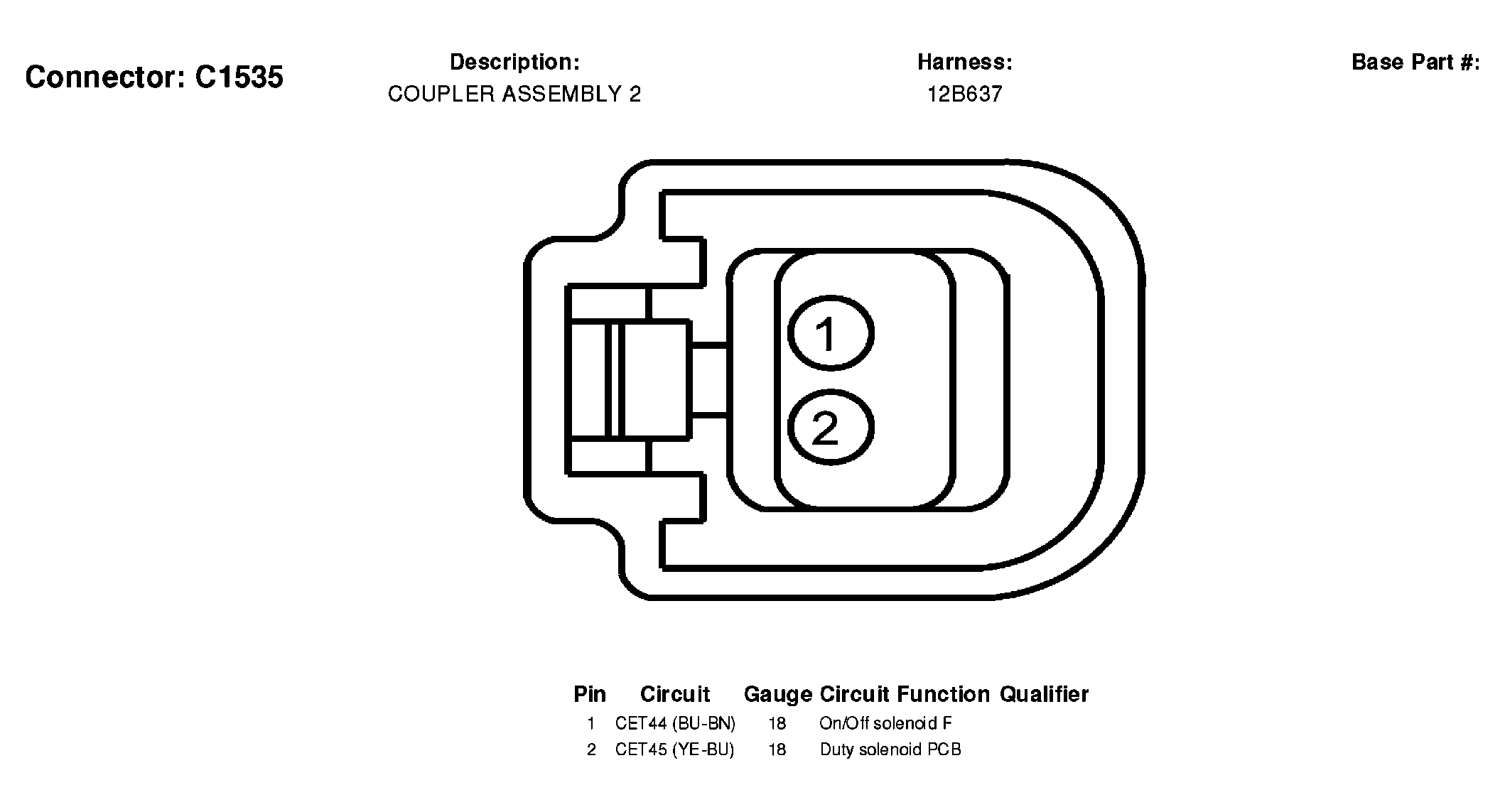

Fig 243: Coupler Assembly 2 Connector End View (C1535)
Courtesy of FORD MOTOR CO.

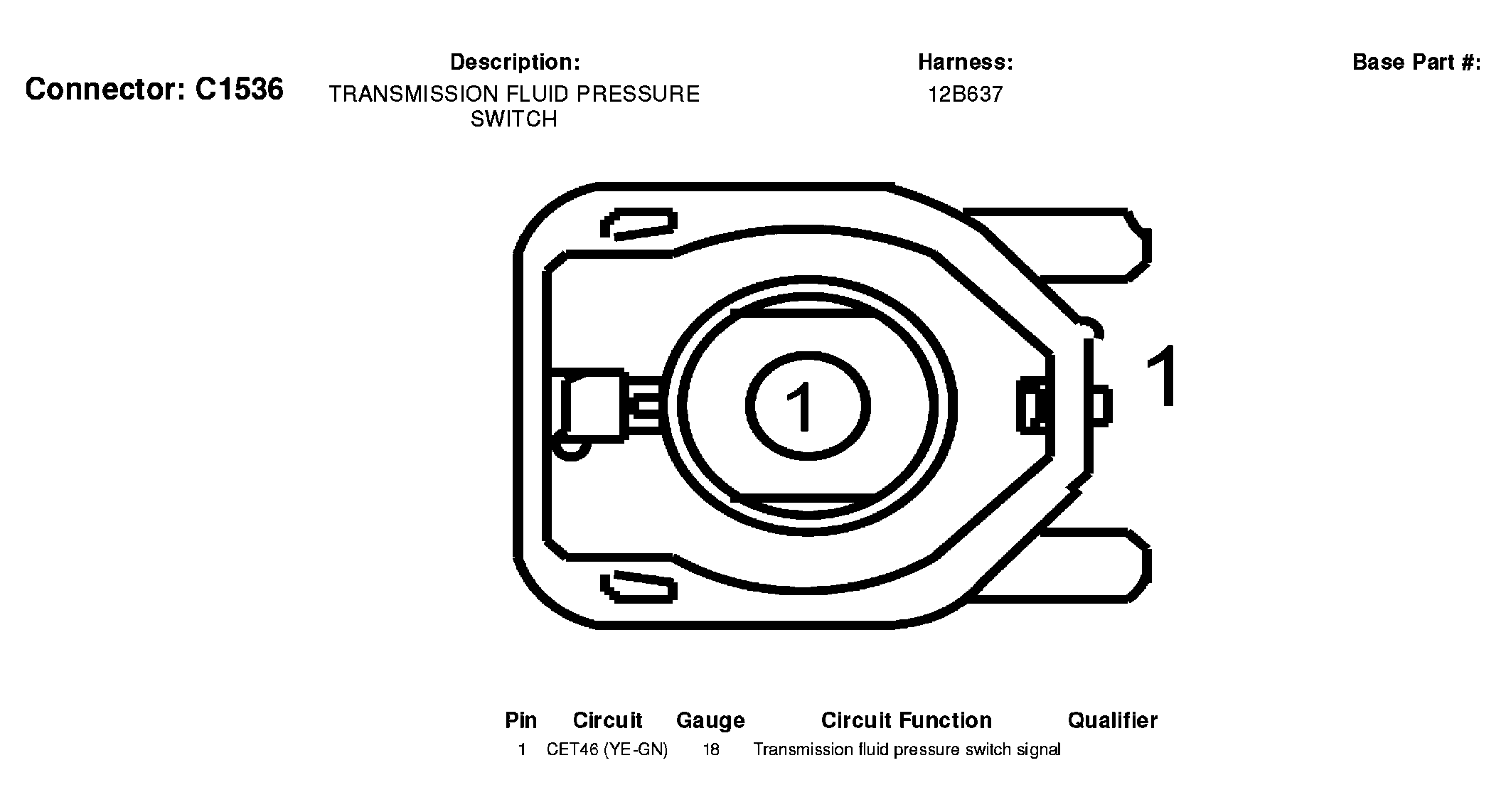

Fig 244: Transmission Fluid Pressure Switch Connector End View (C1536)
Courtesy of FORD MOTOR CO.

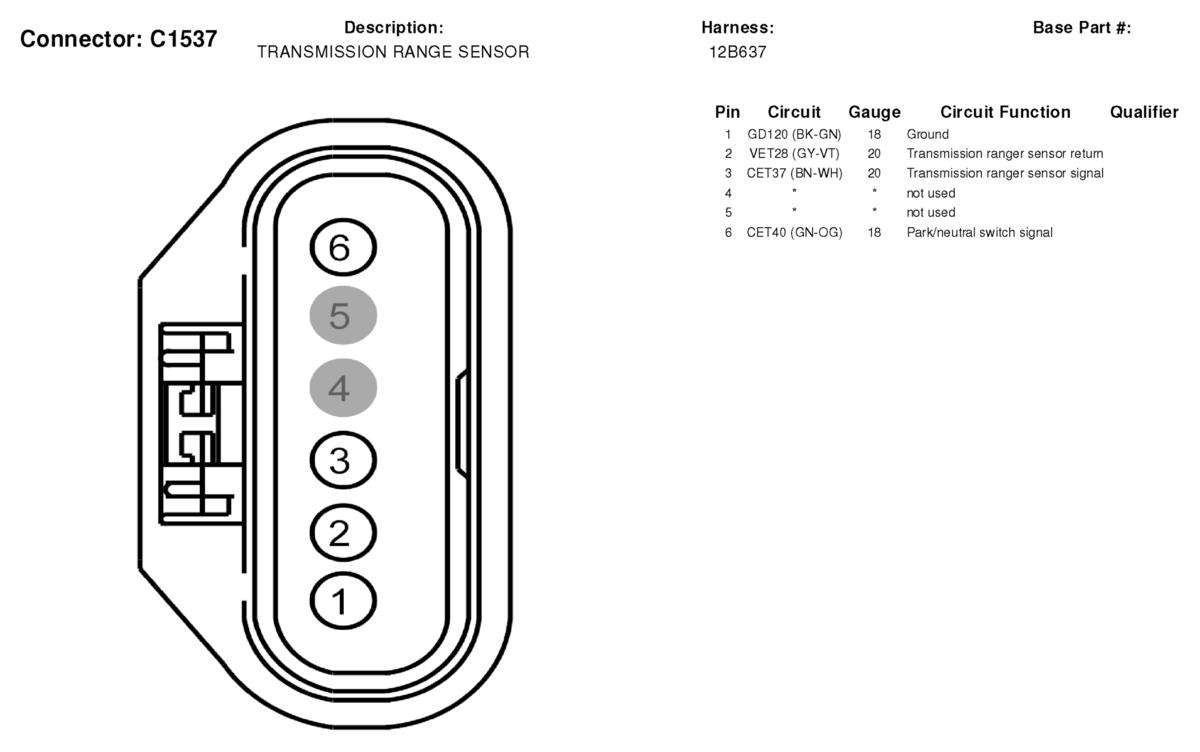

Fig 245: Transmission Range Sensor Connector End View (C1537)
Courtesy of FORD MOTOR CO.
Fig 246: Coil On Plug (COP) 1 Connector End View (C1538)
Courtesy of FORD MOTOR CO.

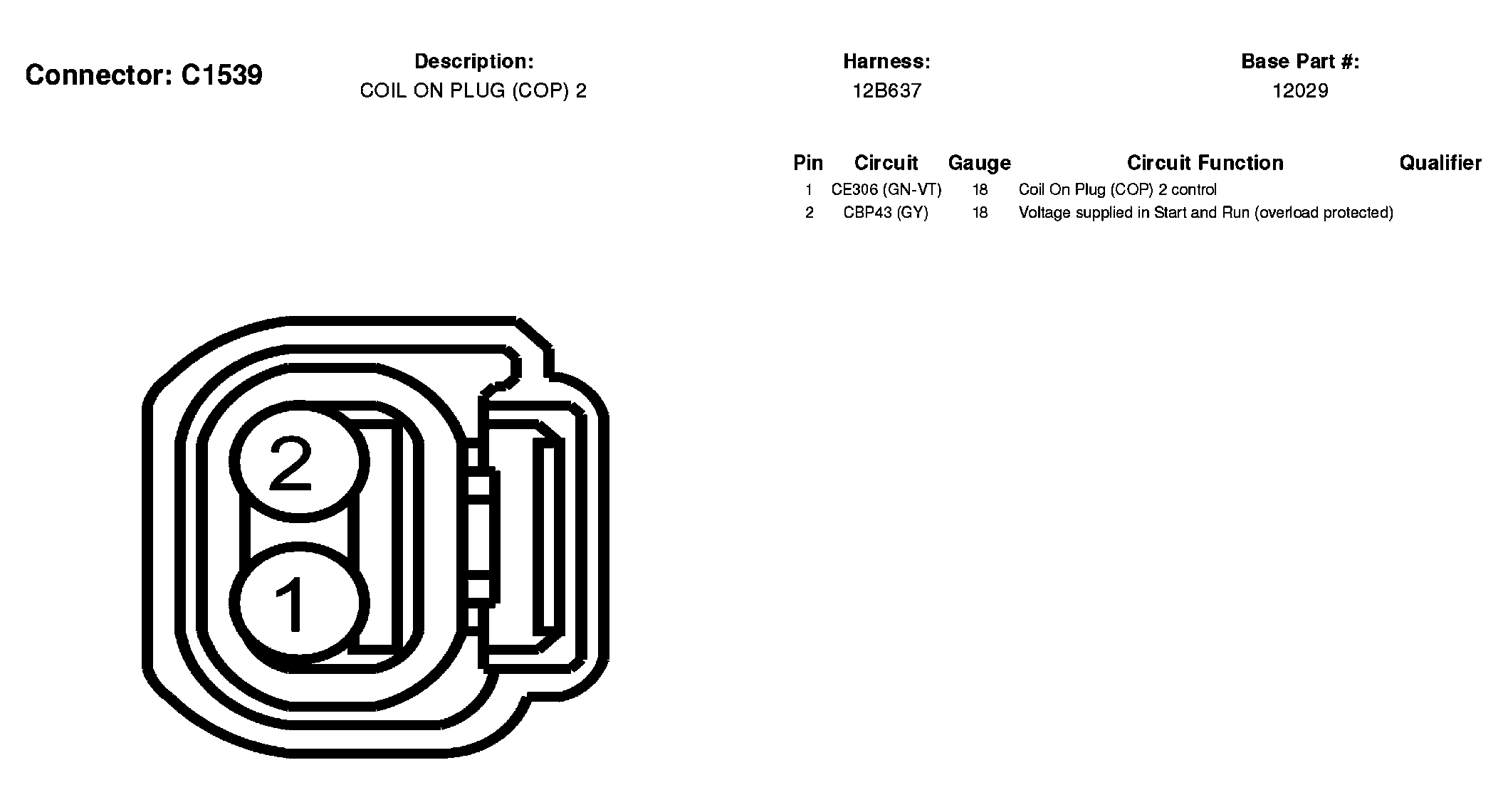

Fig 247: Coil On Plug (COP) 2 Connector End View (C1539)
Courtesy of FORD MOTOR CO.

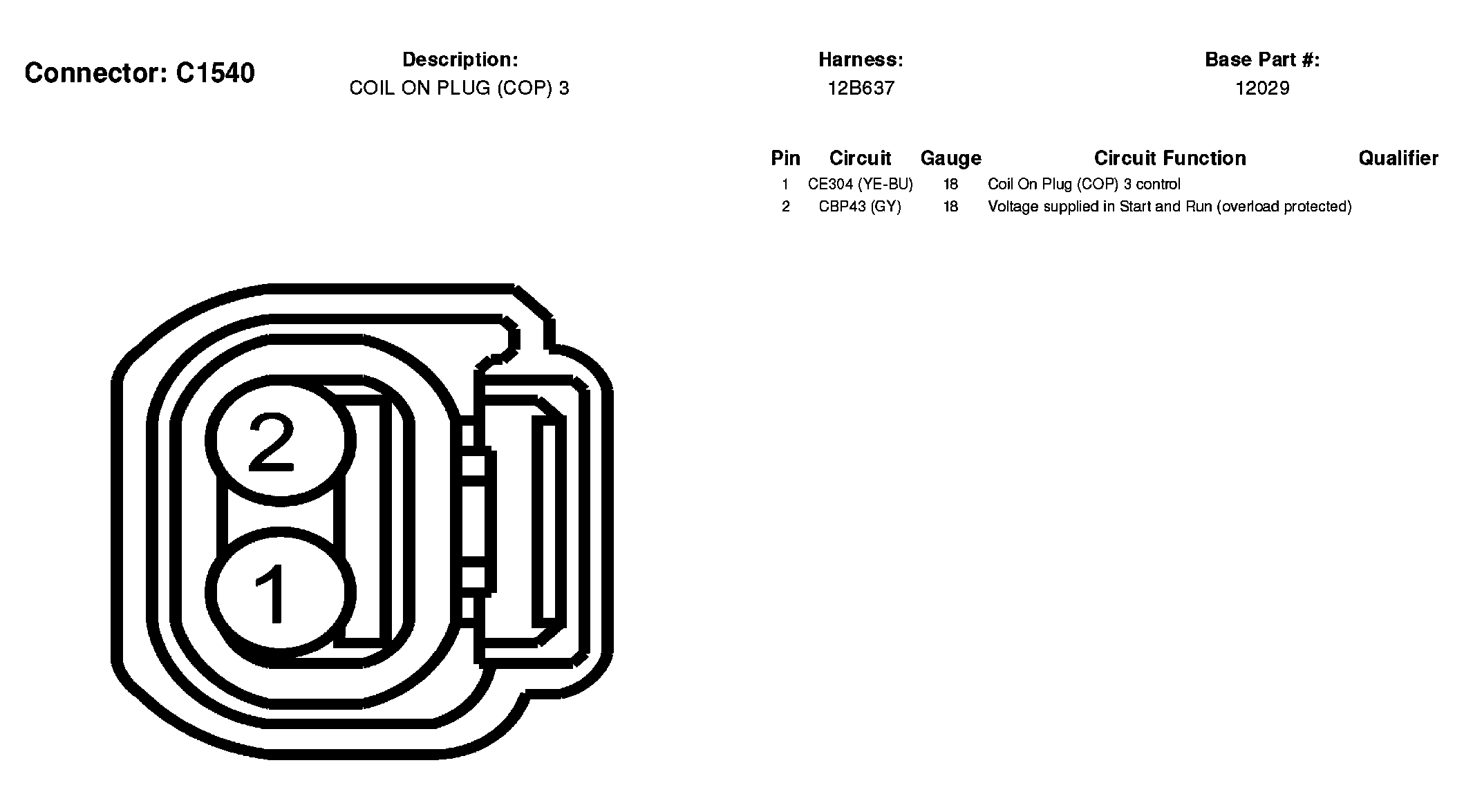

Fig 248: Coil On Plug (COP) 3 Connector End View (C1540)
Courtesy of FORD MOTOR CO.
Fig 249: Coil On Plug (COP) 4 Connector End View (C1541)
Courtesy of FORD MOTOR CO.

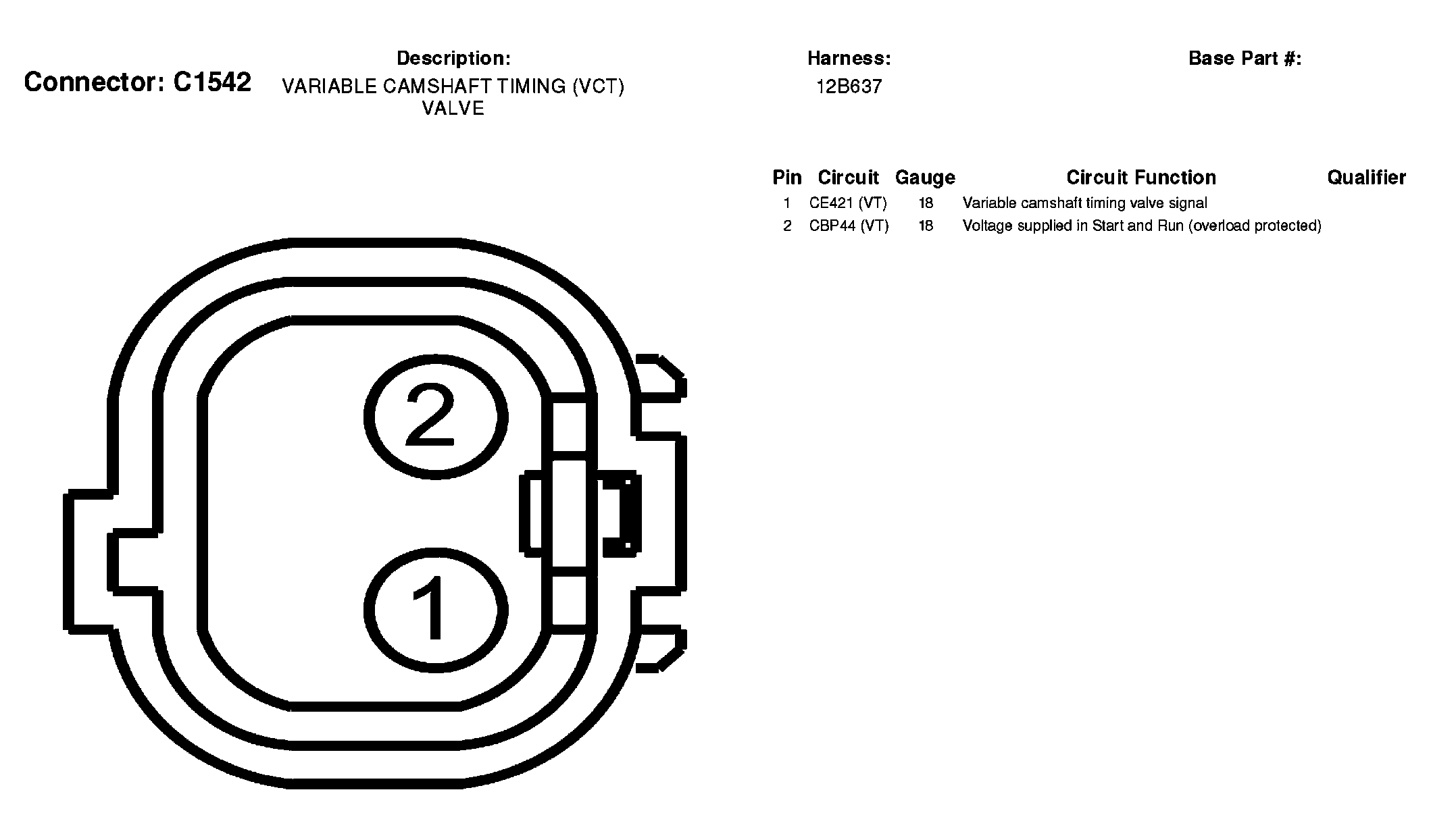

Fig 250: Variable Camshaft Timing (VCT) Valve Connector End View (C1542)
Courtesy of FORD MOTOR CO.

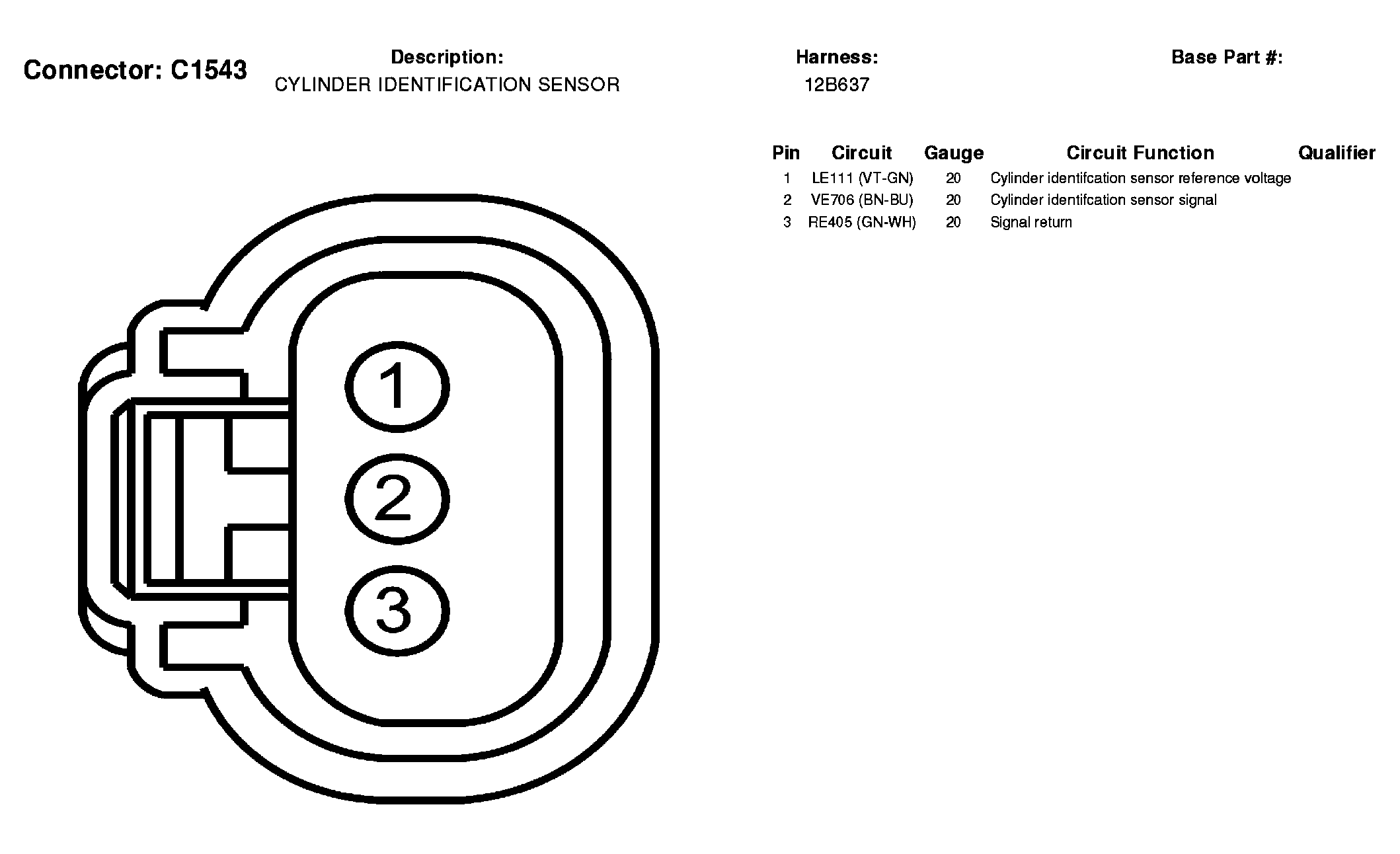

Fig 251: Cylinder Identification Sensor Connector End View (C1543)
Courtesy of FORD MOTOR CO.

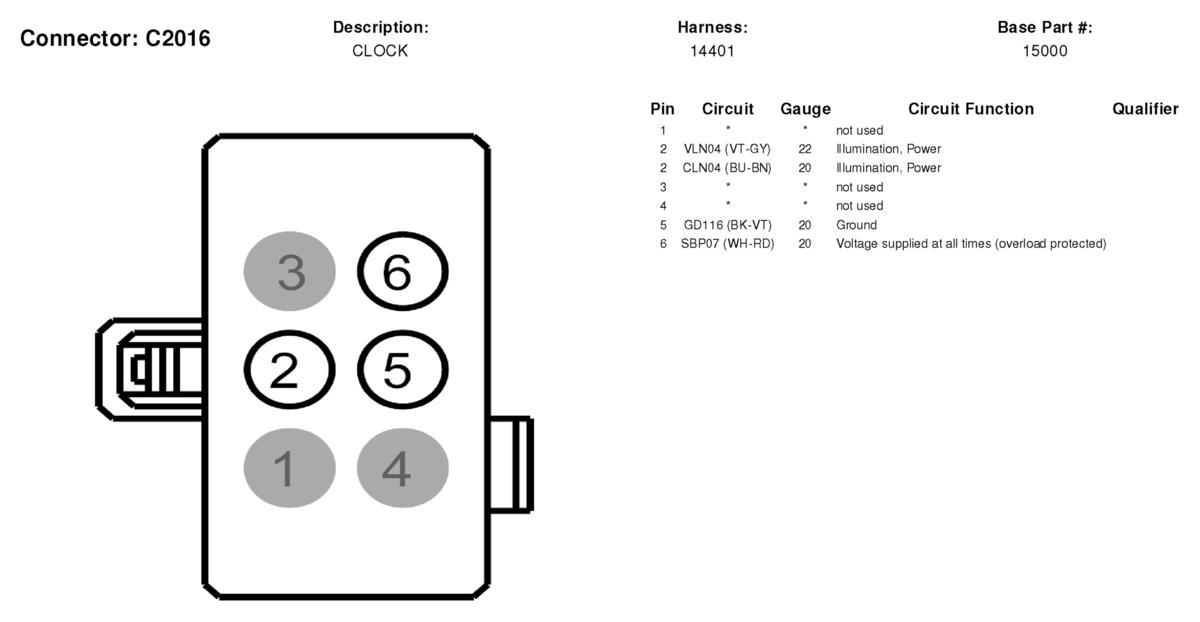

Fig 252: Clock Connector End View (C2016)
Courtesy of FORD MOTOR CO.

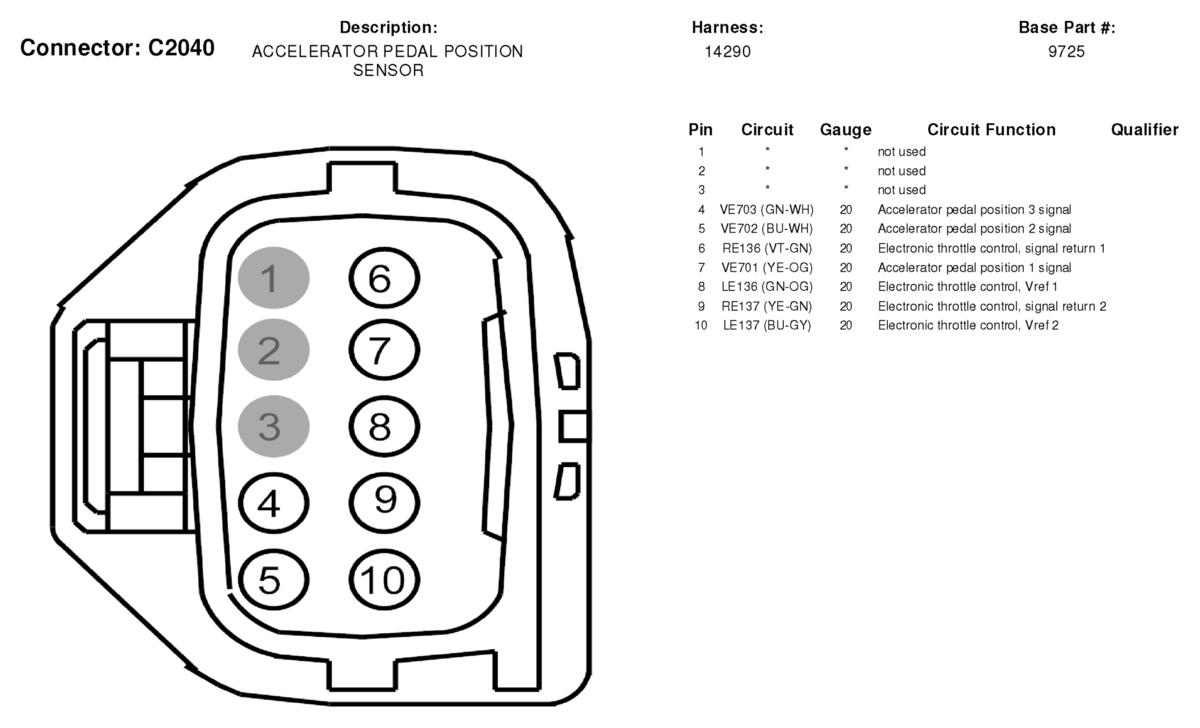

Fig 253: Accelerator Pedal Position Sensor Connector End View (C2040)
Courtesy of FORD MOTOR CO.

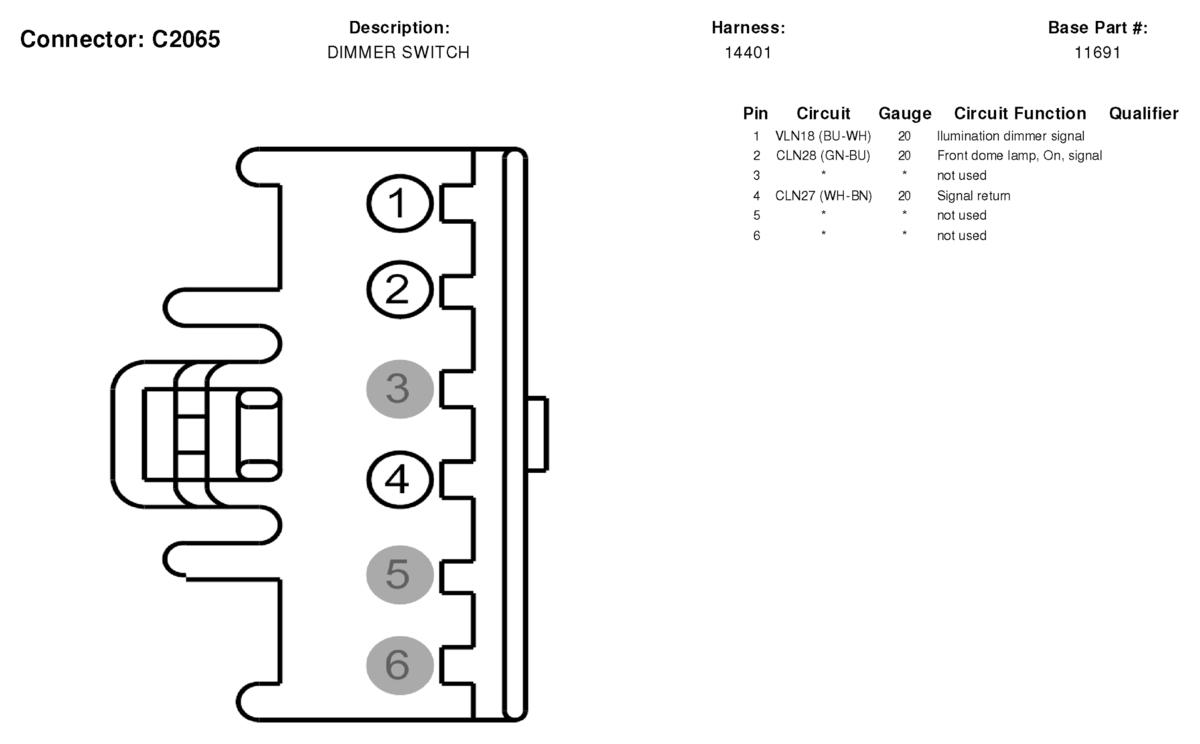

Fig 254: Dimmer Switch Connector End View (C2065)
Courtesy of FORD MOTOR CO.

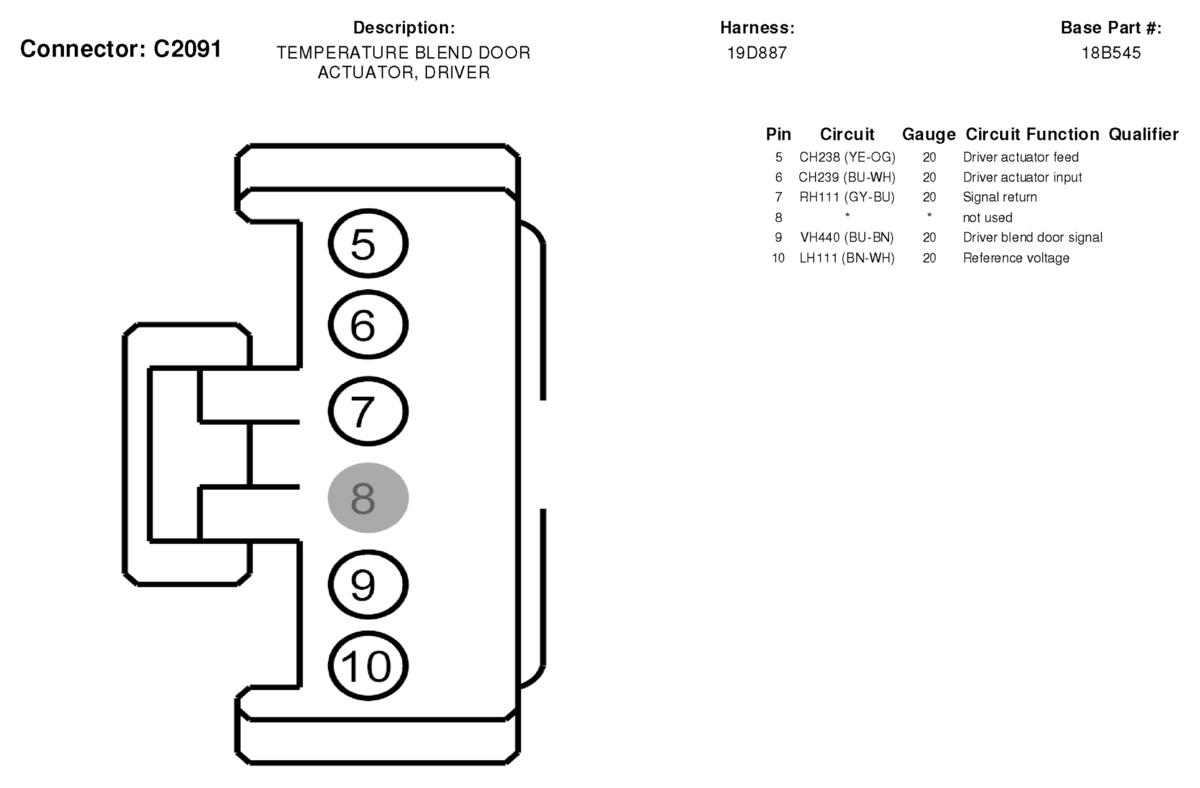

Fig 255: Temperature Blend Door Actuator, Driver Connector End View (C2091)
Courtesy of FORD MOTOR CO.

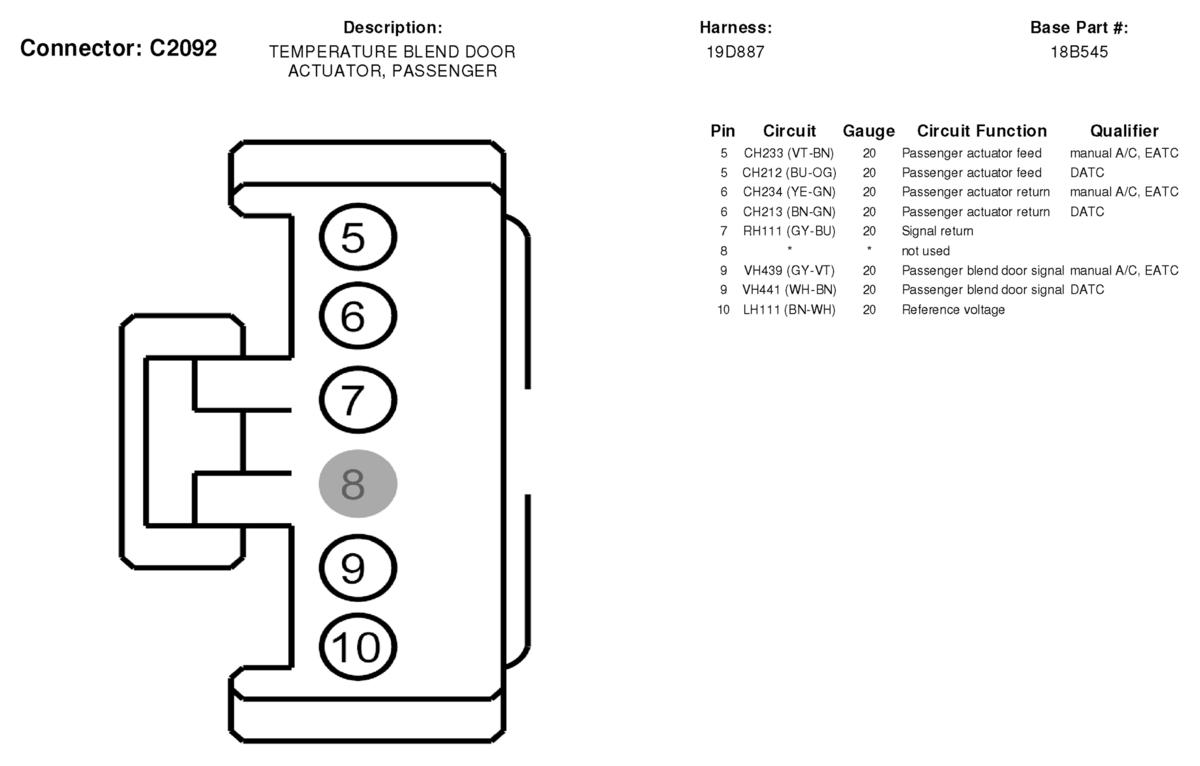

Fig 256: Temperature Blend Door Actuator, Passenger Connector End View (C2092)
Courtesy of FORD MOTOR CO.

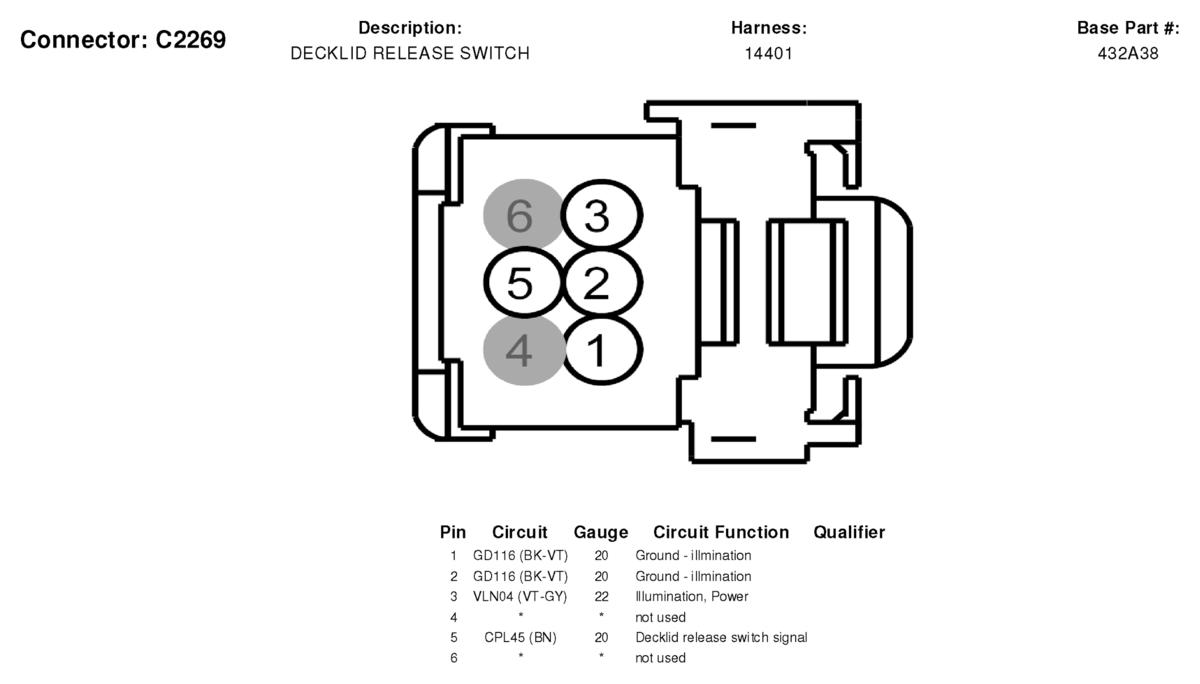

Fig 257: Decklid Release Switch Connector End View (C2269)
Courtesy of FORD MOTOR CO.

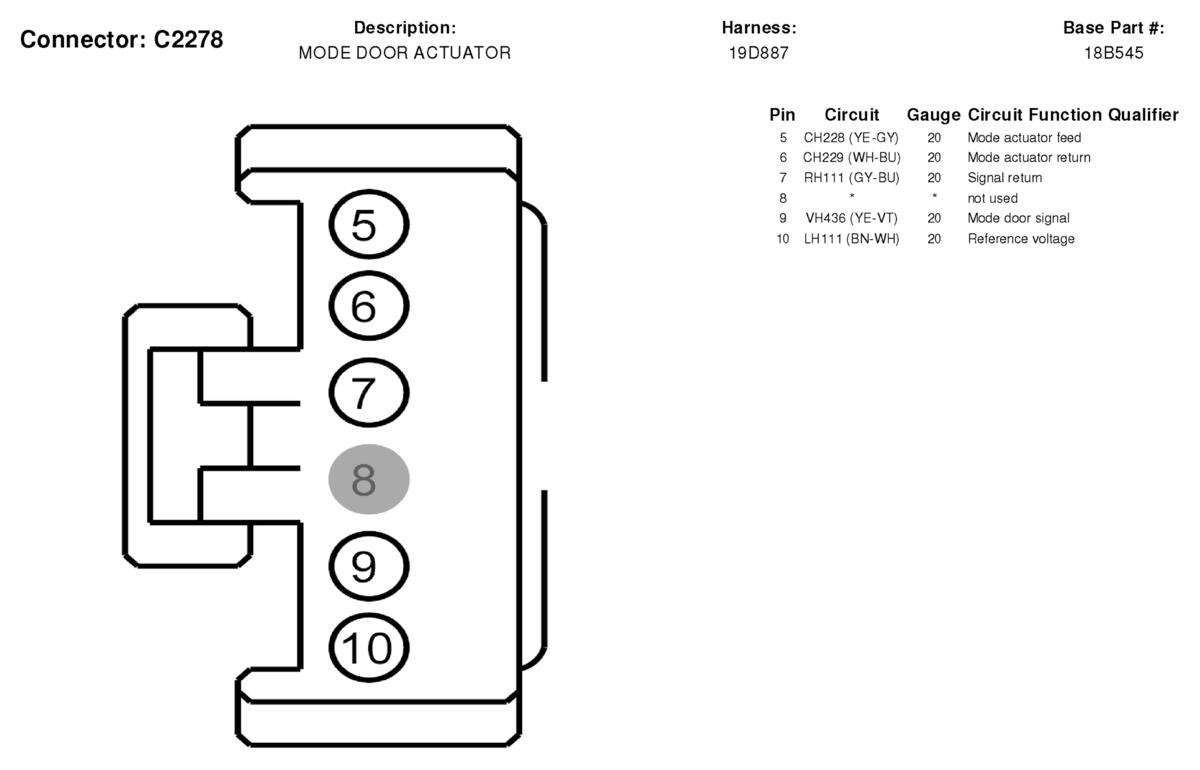

Fig 258: Mode Door Actuator Connector End View (C2278)
Courtesy of FORD MOTOR CO.

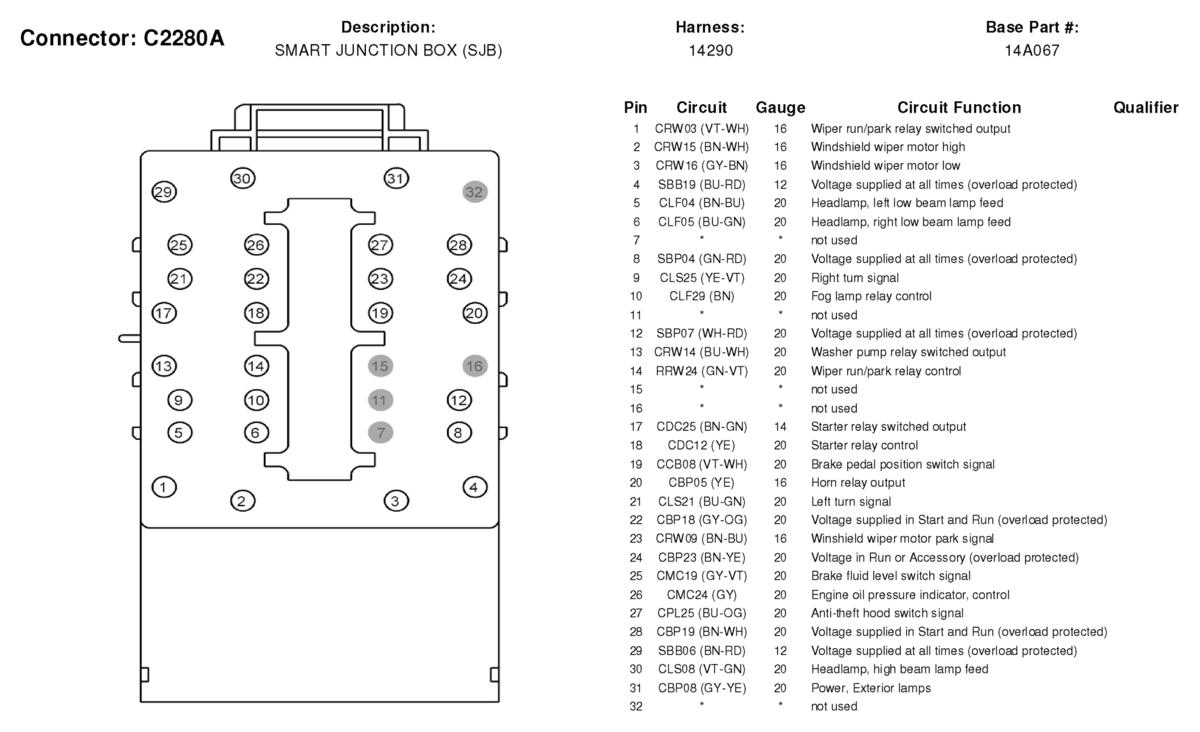

Fig 259: Smart Junction Box (SJB) Connector End View (C2280A)
Courtesy of FORD MOTOR CO.

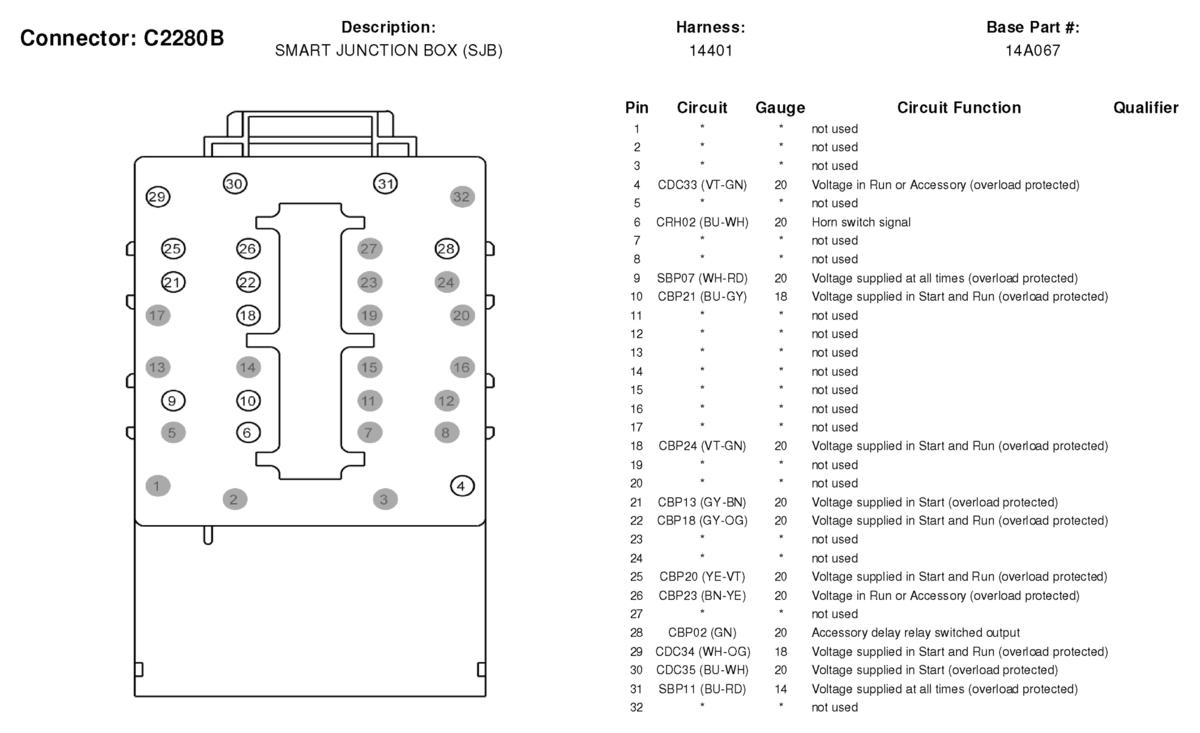

Fig 260: Smart Junction Box (SJB) Connector End View (C2280B)
Courtesy of FORD MOTOR CO.

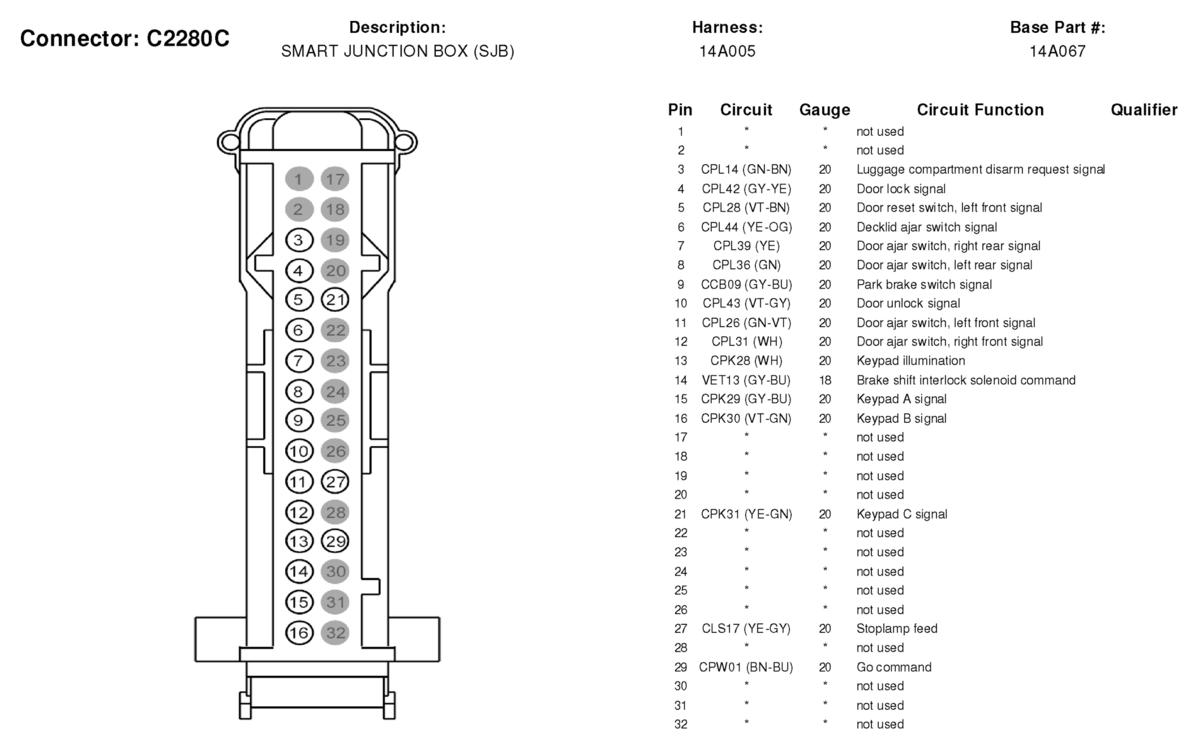

Fig 261: Smart Junction Box (SJB) Connector End View (C2280C)
Courtesy of FORD MOTOR CO.

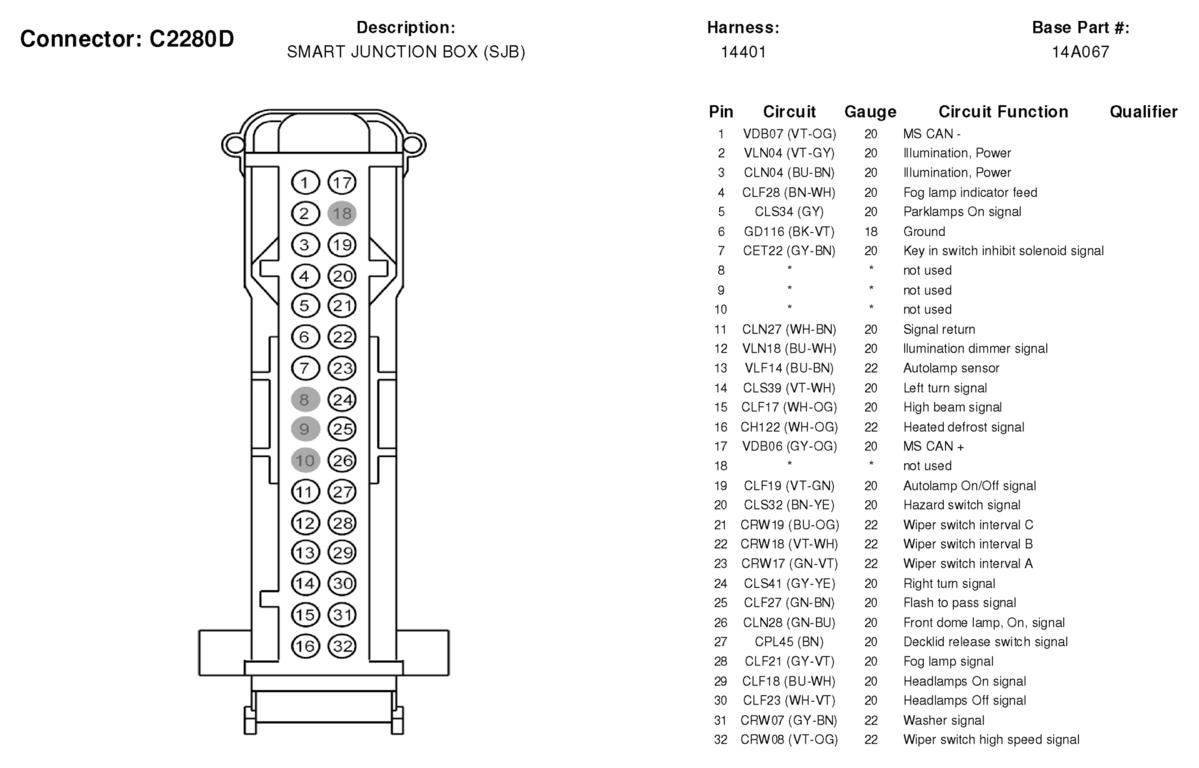

Fig 262: Smart Junction Box (SJB) Connector End View (C2280D)
Courtesy of FORD MOTOR CO.

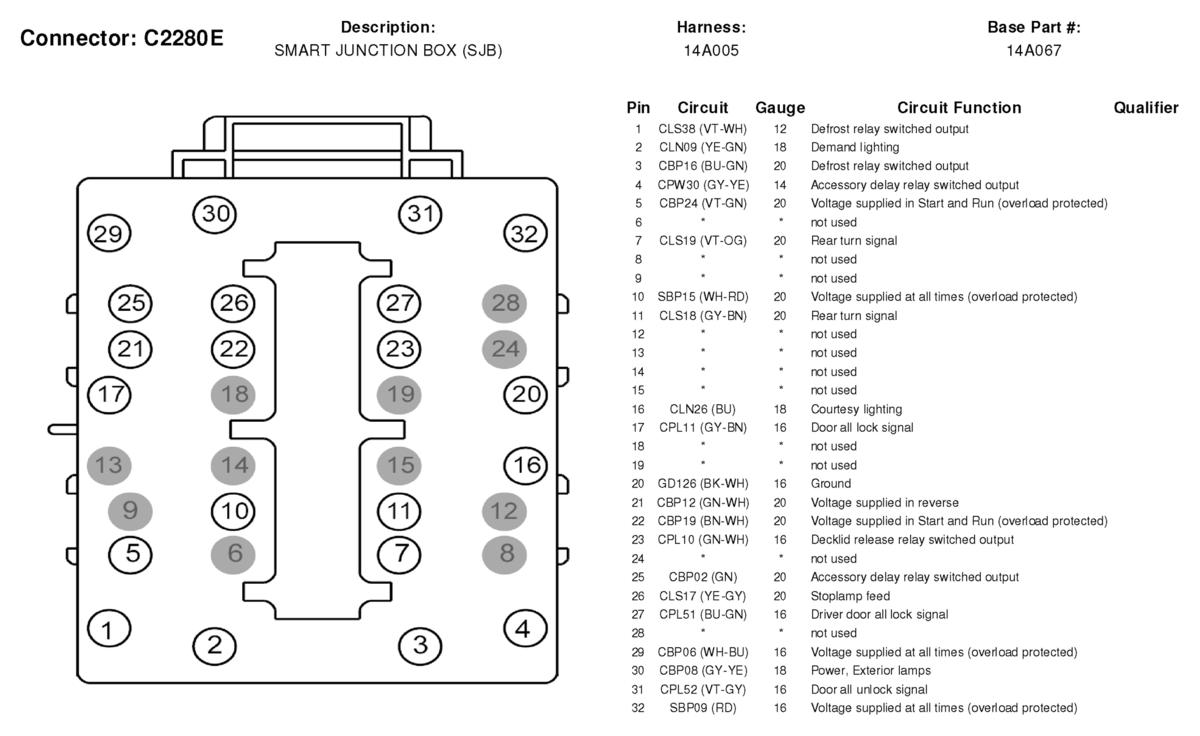

Fig 263: Smart Junction Box (SJB) Connector End View (C2280E)
Courtesy of FORD MOTOR CO.

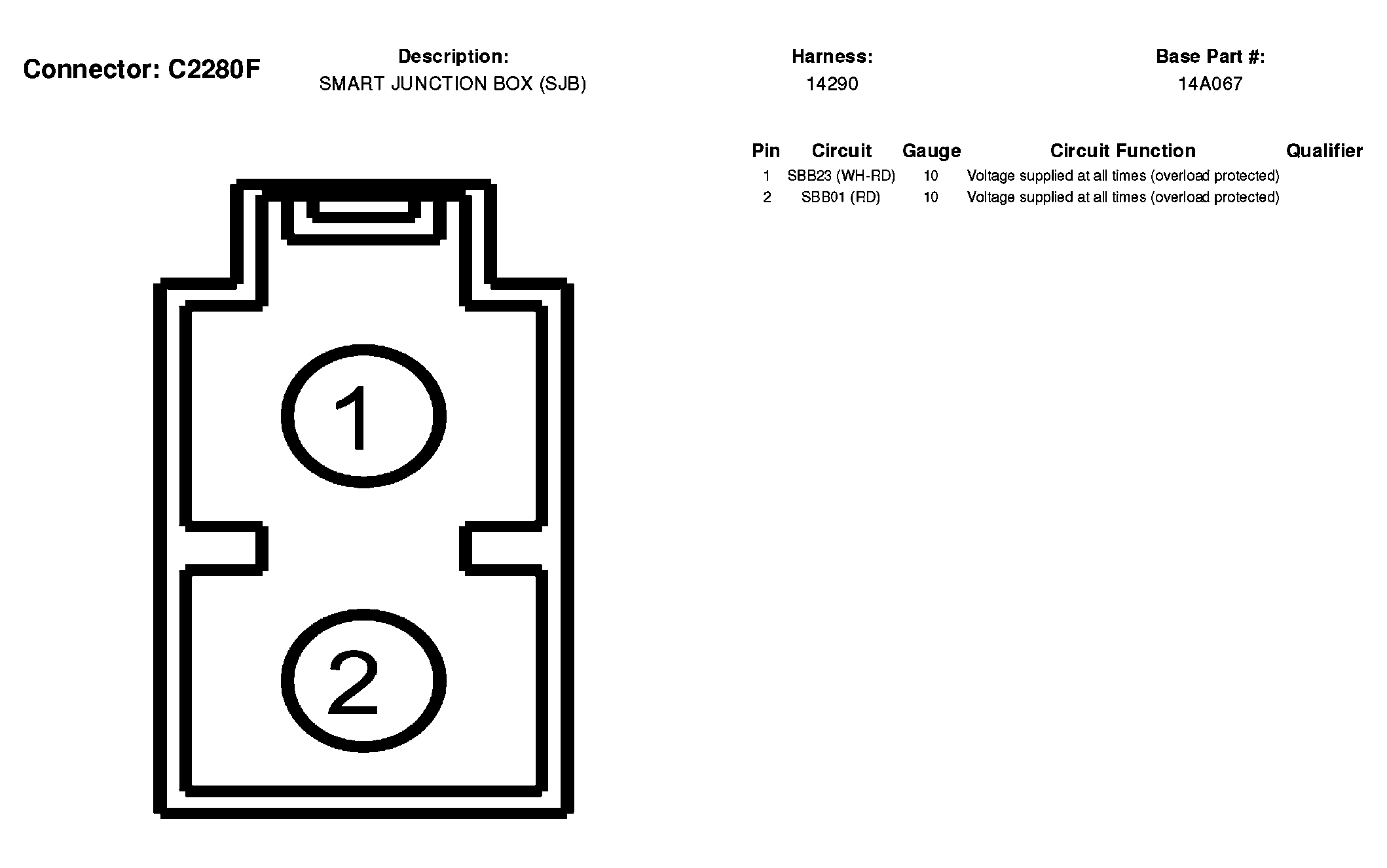

Fig 264: Smart Junction Box (SJB) Connector End View (C2280F)
Courtesy of FORD MOTOR CO.

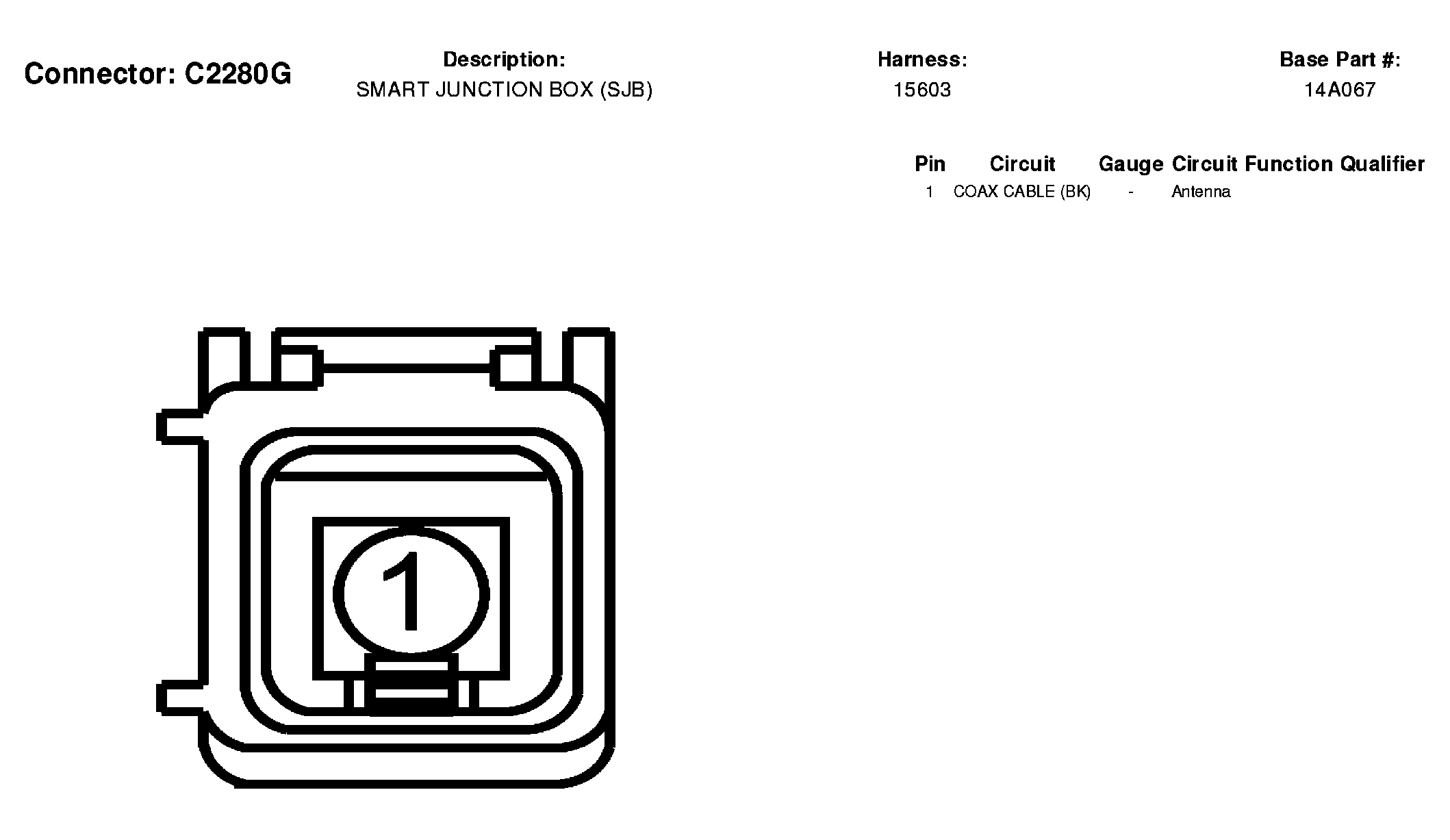

Fig 265: Smart Junction Box (SJB) Connector End View (C2280G)
Courtesy of FORD MOTOR CO.

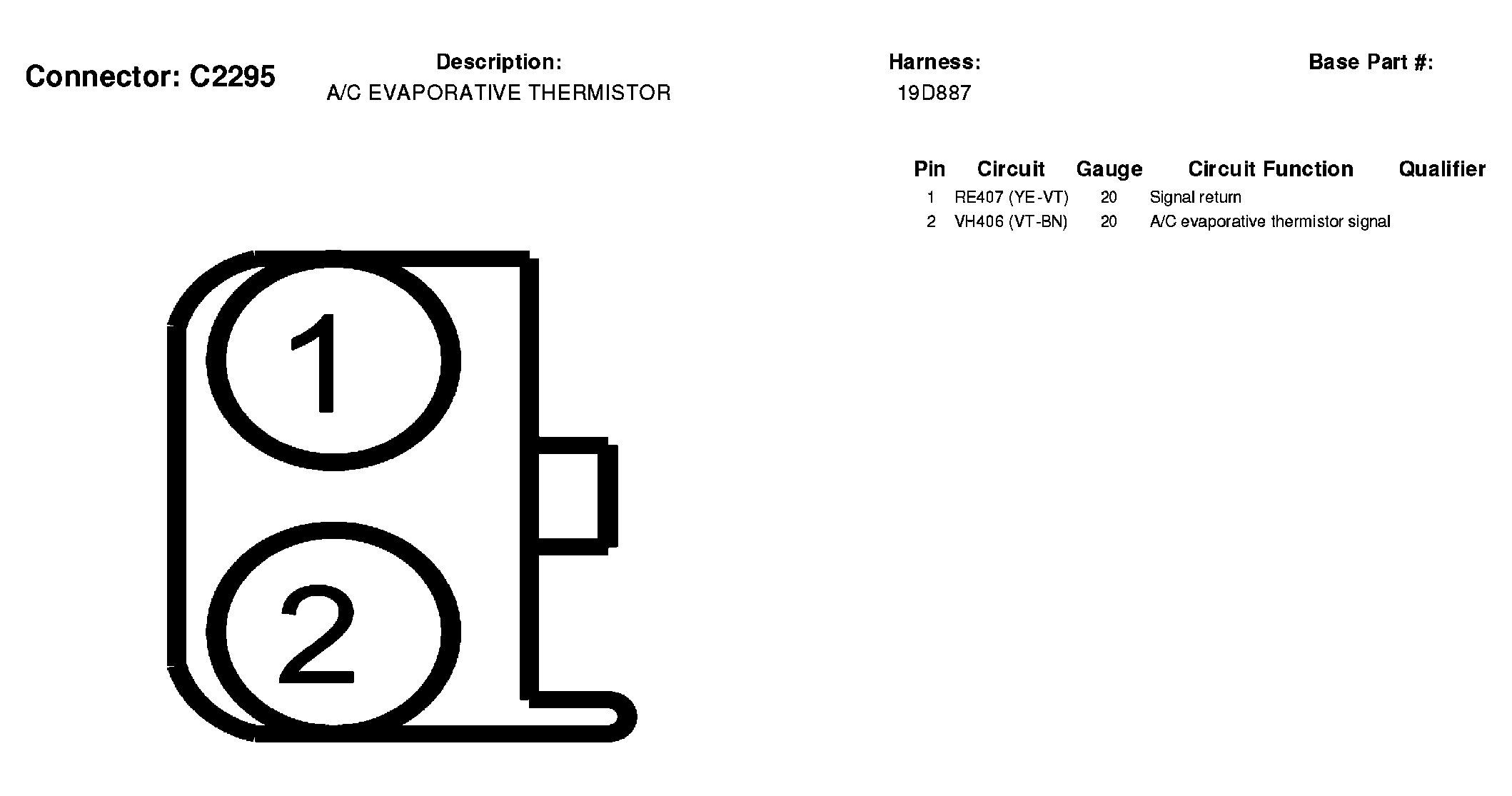

Fig 266: A/C Evaporative Thermistor Connector End View (C2295)
Courtesy of FORD MOTOR CO.

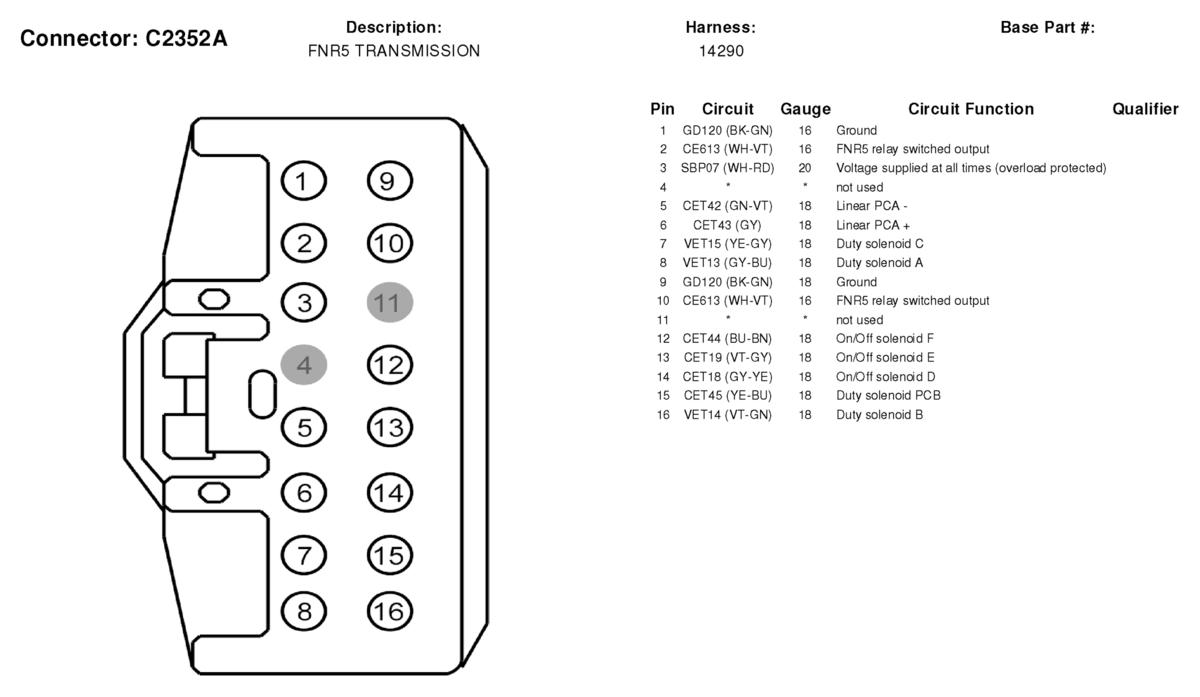

Fig 267: FNR5 Transmission Connector End View (C2352A)
Courtesy of FORD MOTOR CO.

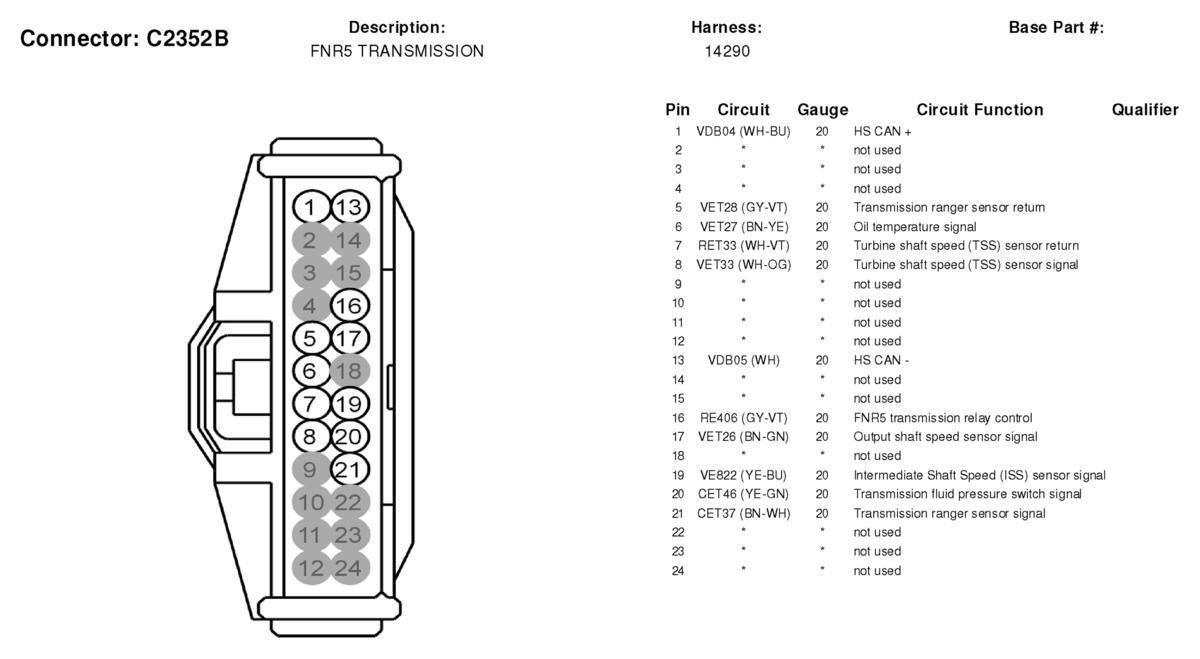

Fig 268: FNR5 Transmission Connector End View (C2352B)
Courtesy of FORD MOTOR CO.

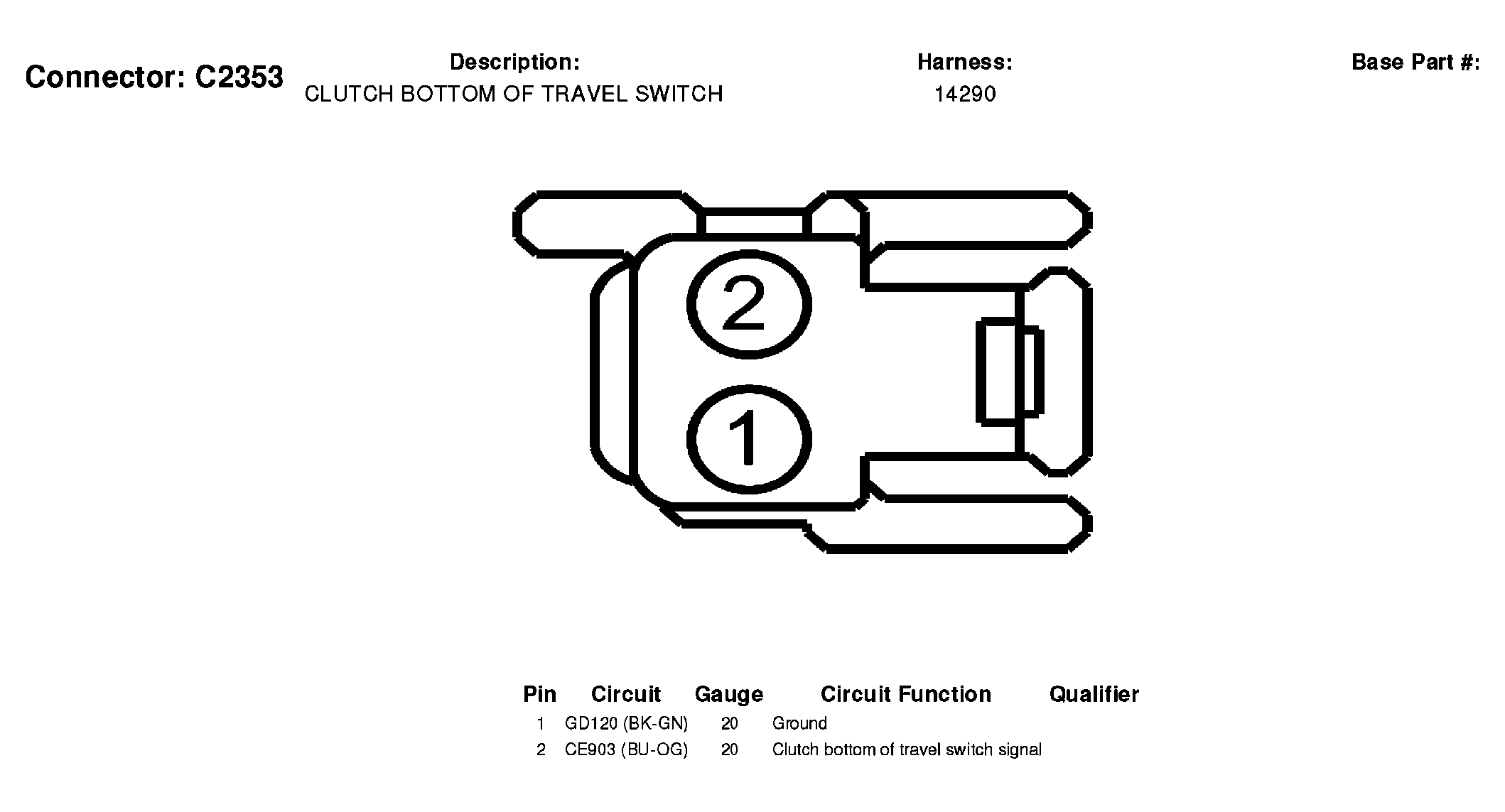

Fig 269: Clutch Bottom Of Travel Switch Connector End View (C2353)
Courtesy of FORD MOTOR CO.

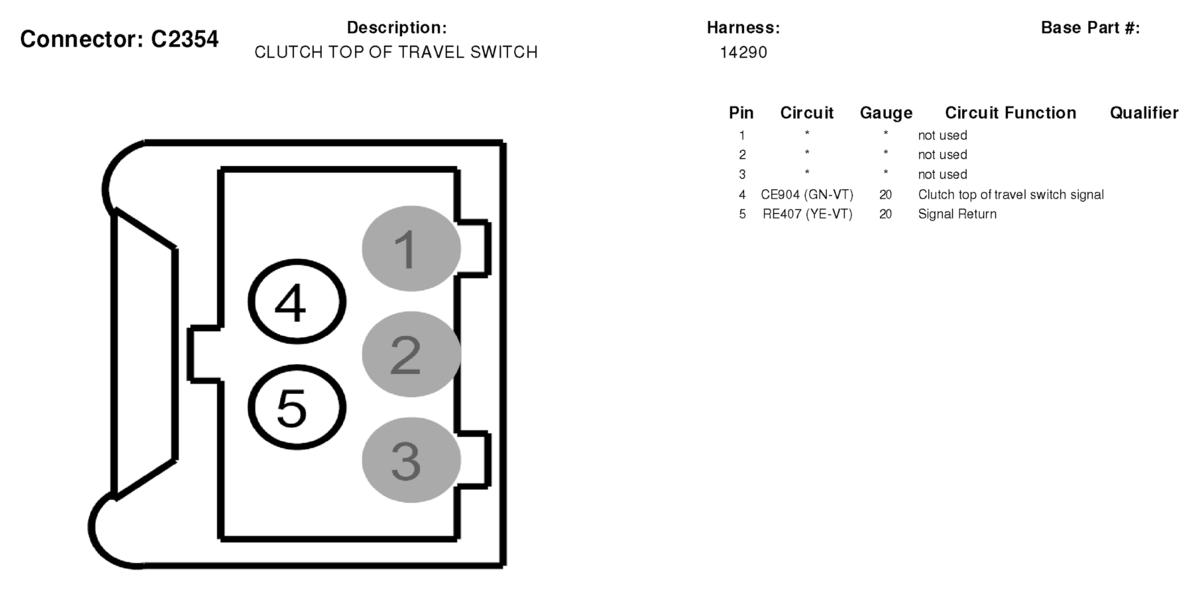

Fig 270: Clutch Top Of Travel Switch Connector End View (C2354)
Courtesy of FORD MOTOR CO.

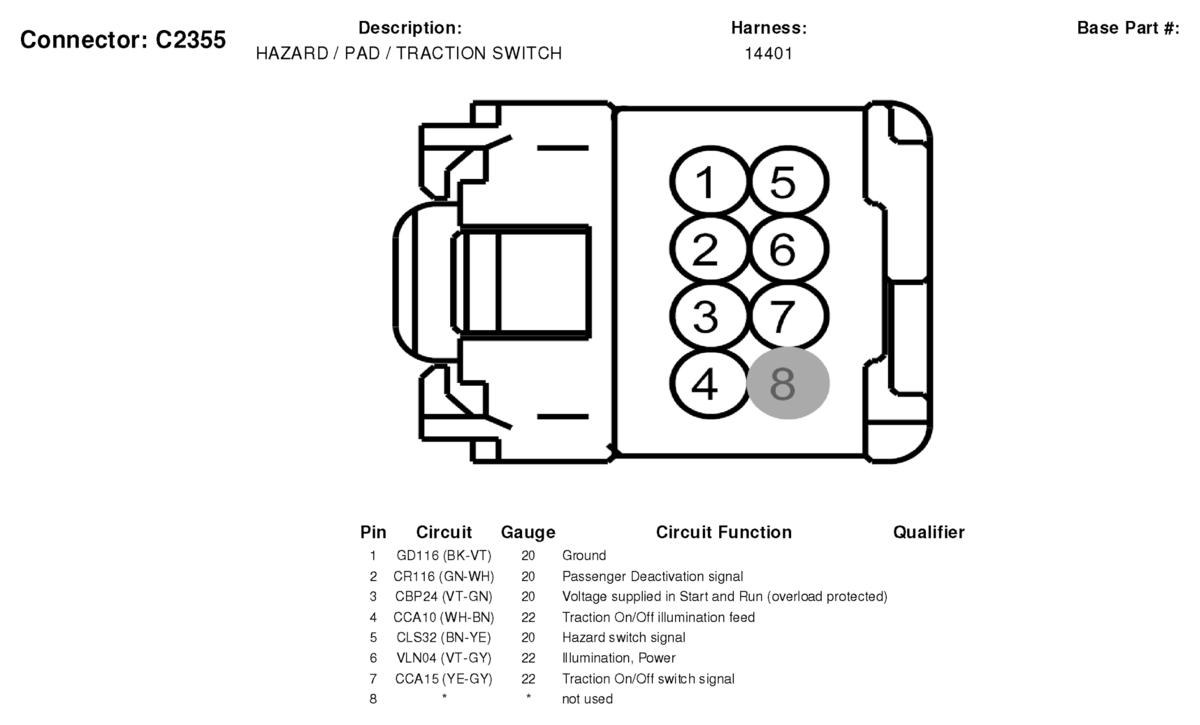

Fig 271: Hazard / Pad / Traction Switch Connector End View (C2355)
Courtesy of FORD MOTOR CO.

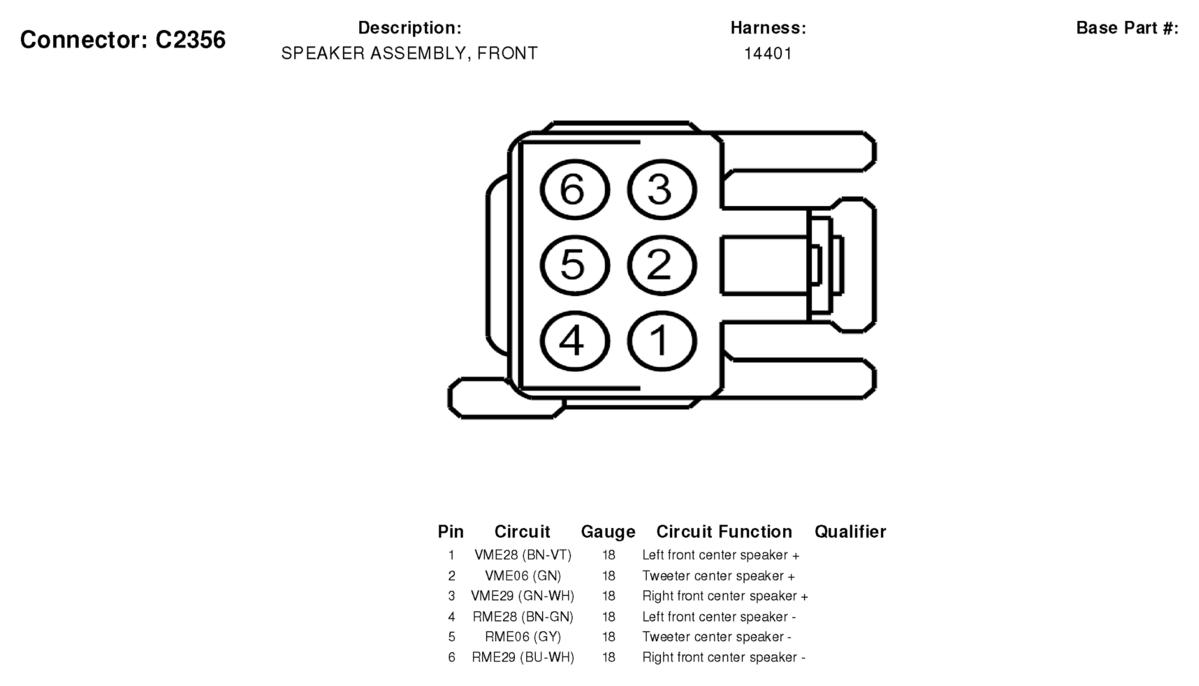

Fig 272: Speaker Assembly, Front Connector End View (C2356)
Courtesy of FORD MOTOR CO.

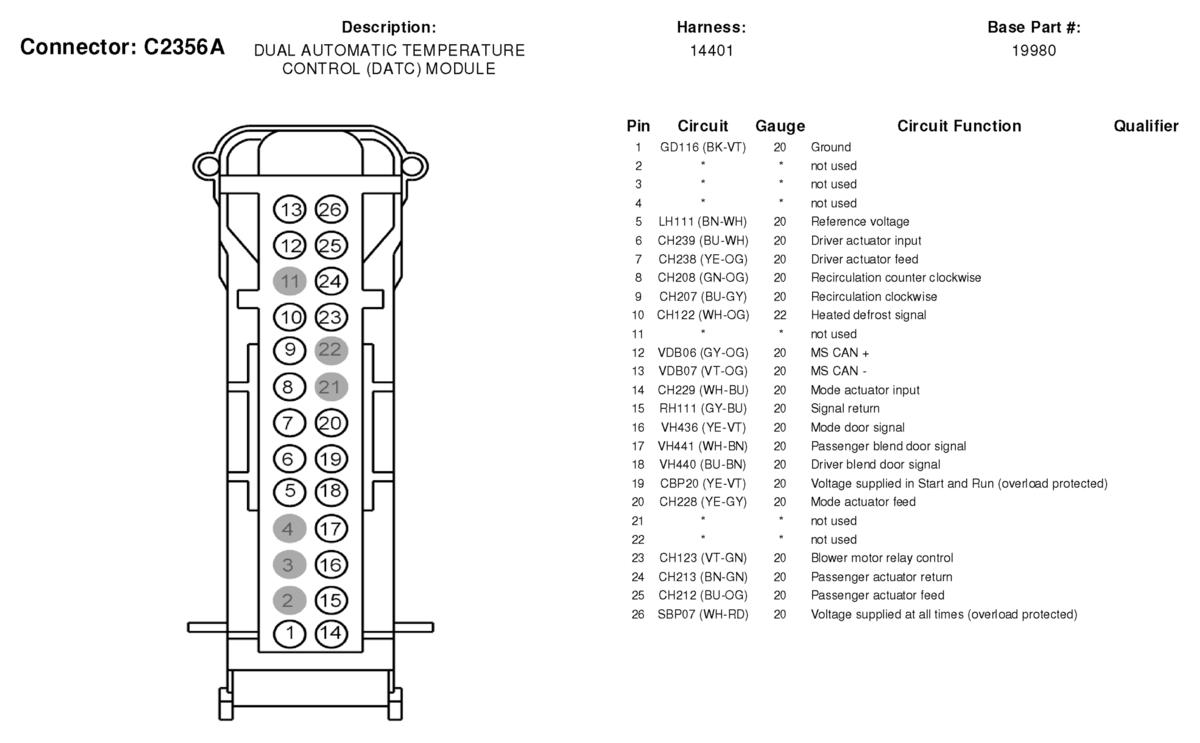

Fig 273: Dual Automatic Temperature Control (DATC) Module Connector End View (C2356A)
Courtesy of FORD MOTOR CO.

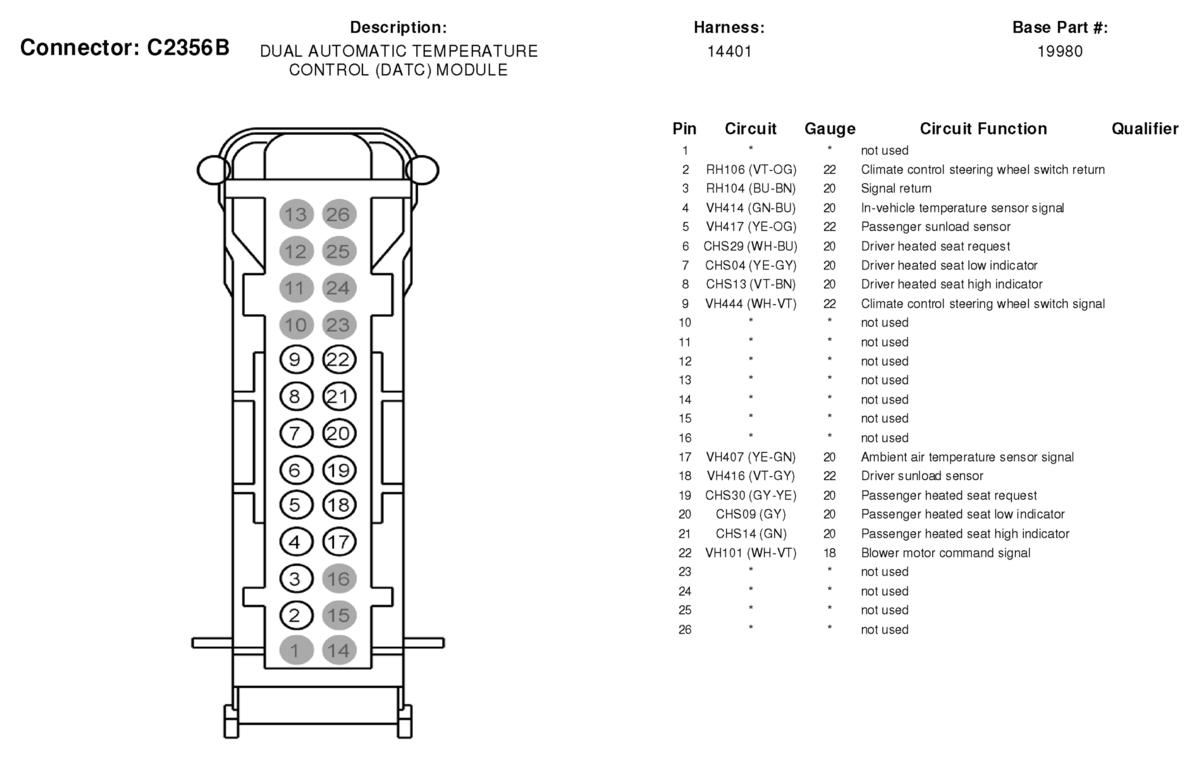

Fig 274: Dual Automatic Temperature Control (DATC) Module Connector End View (C2356B)
Courtesy of FORD MOTOR CO.

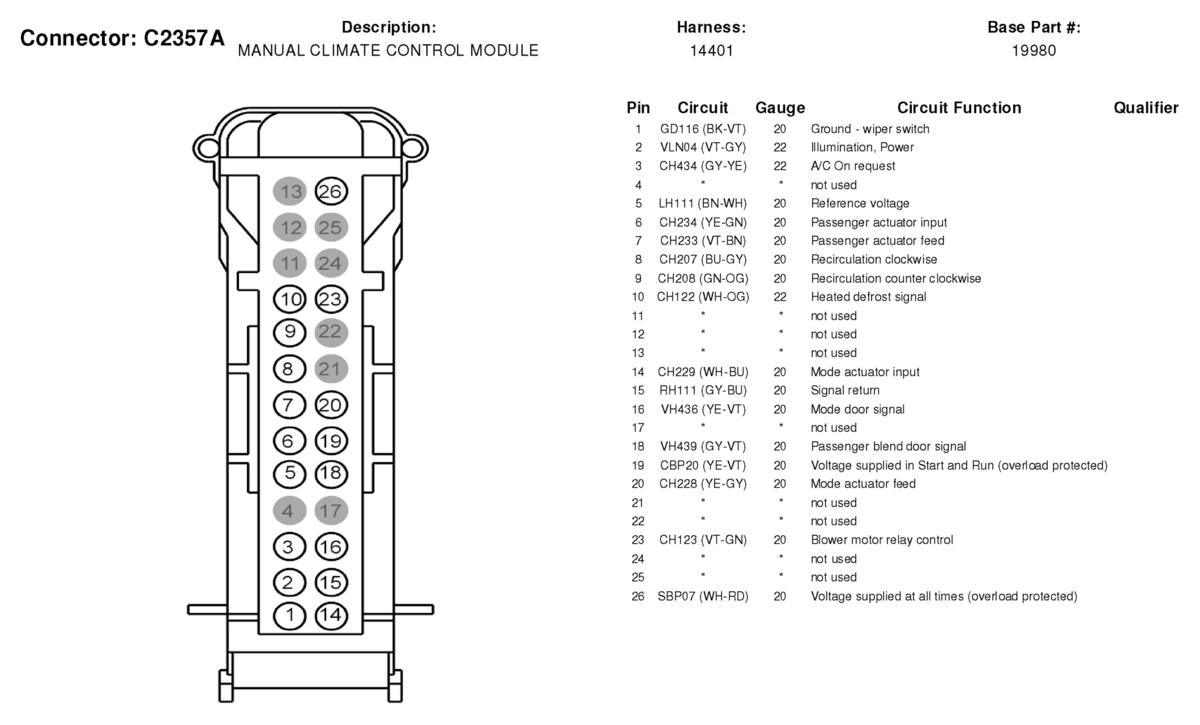

Fig 275: Manual Climate Control Module Connector End View (C2357A)
Courtesy of FORD MOTOR CO.

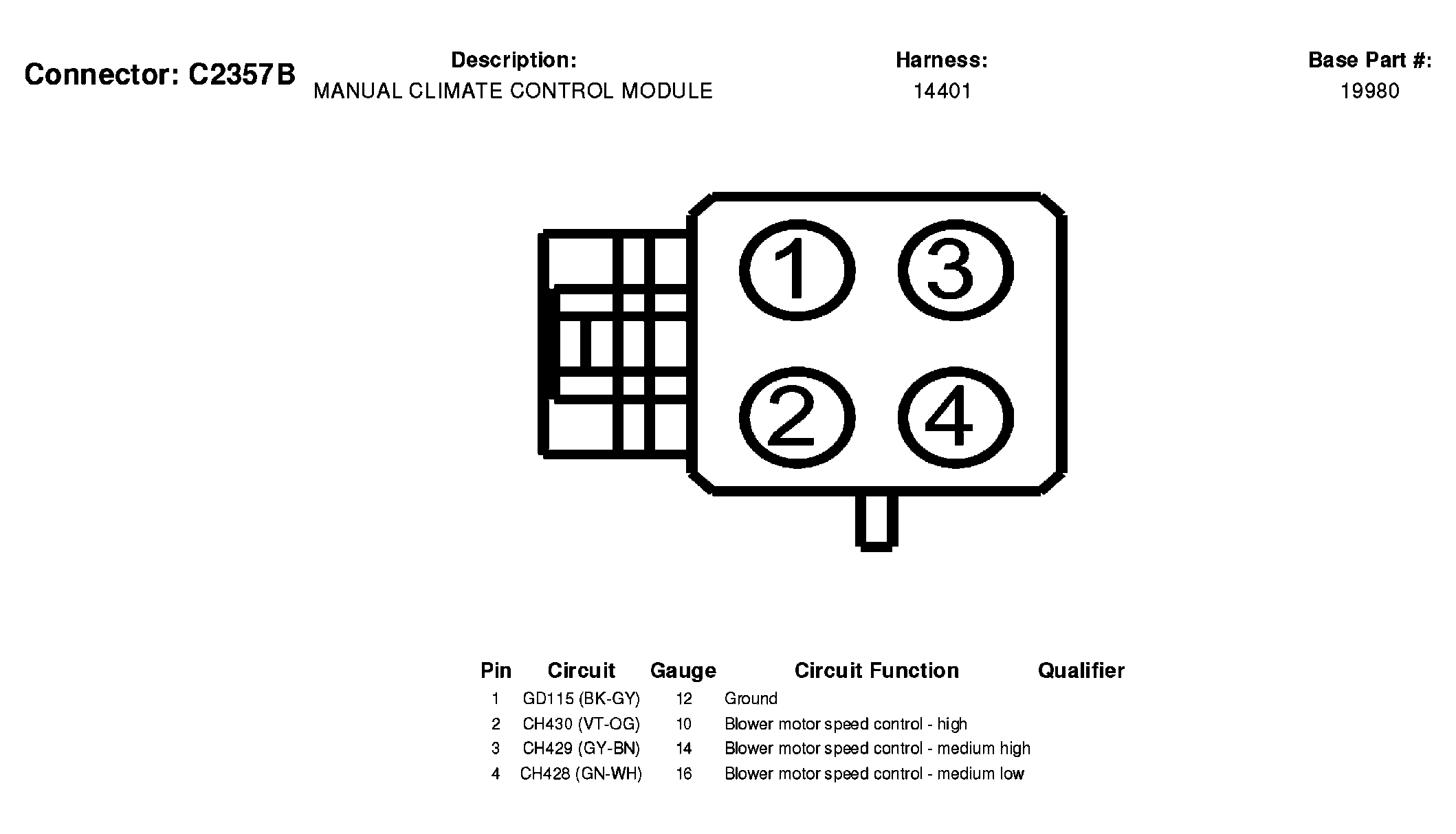

Fig 276: Manual Climate Control Module Connector End View (C2357B)
Courtesy of FORD MOTOR CO.
Fig 277: Horn Switch, Left Connector End View (C2996)
Courtesy of FORD MOTOR CO.

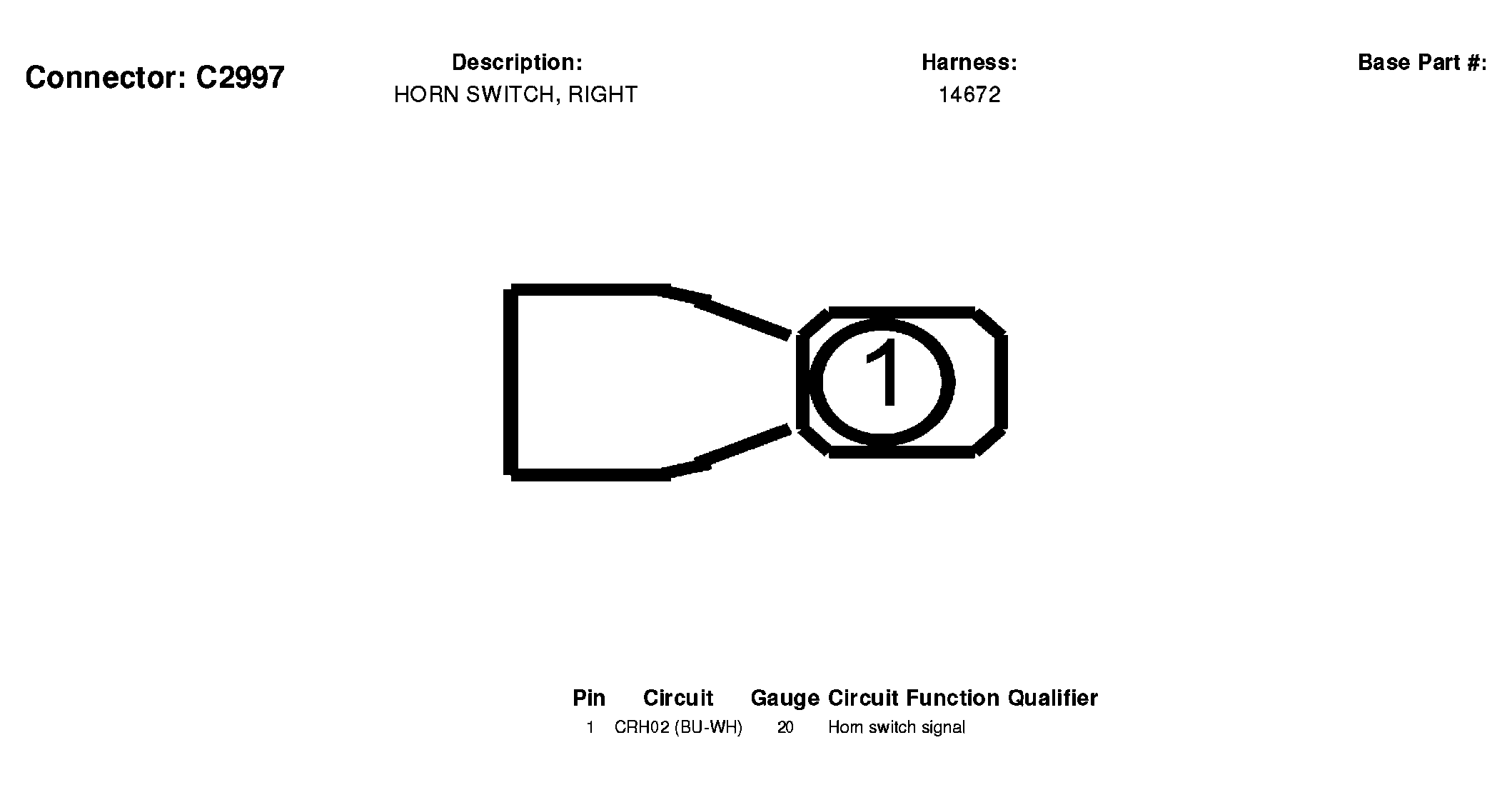

Fig 278: Horn Switch, Right Connector End View (C2997)
Courtesy of FORD MOTOR CO.

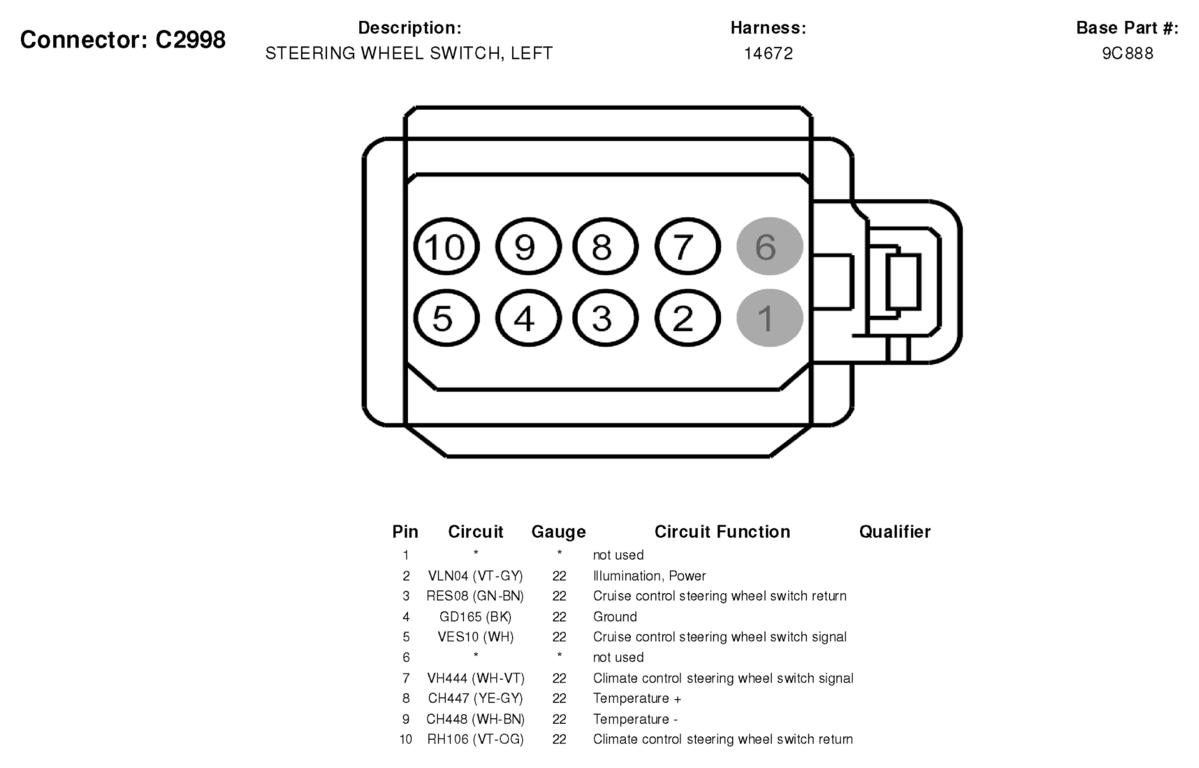

Fig 279: Steering Wheel Switch, Left Connector End View (C2998)
Courtesy of FORD MOTOR CO.

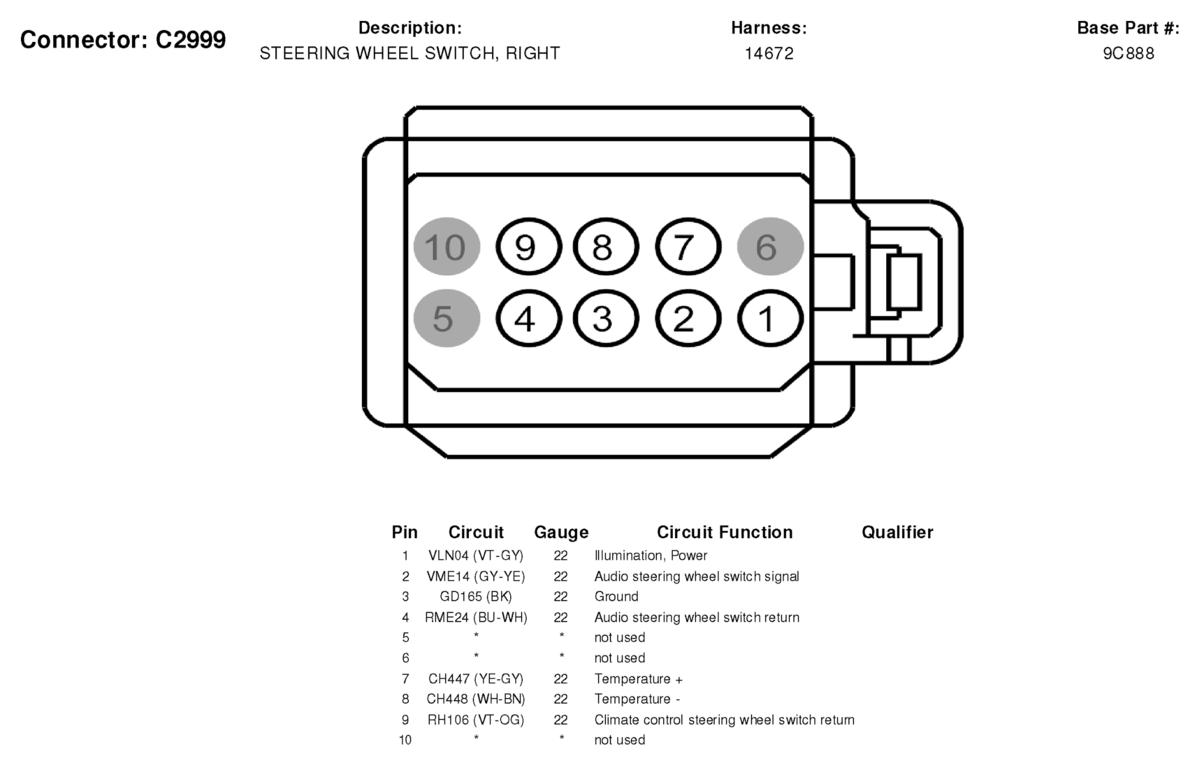

Fig 280: Steering Wheel Switch, Right Connector End View (C2999)
Courtesy of FORD MOTOR CO.

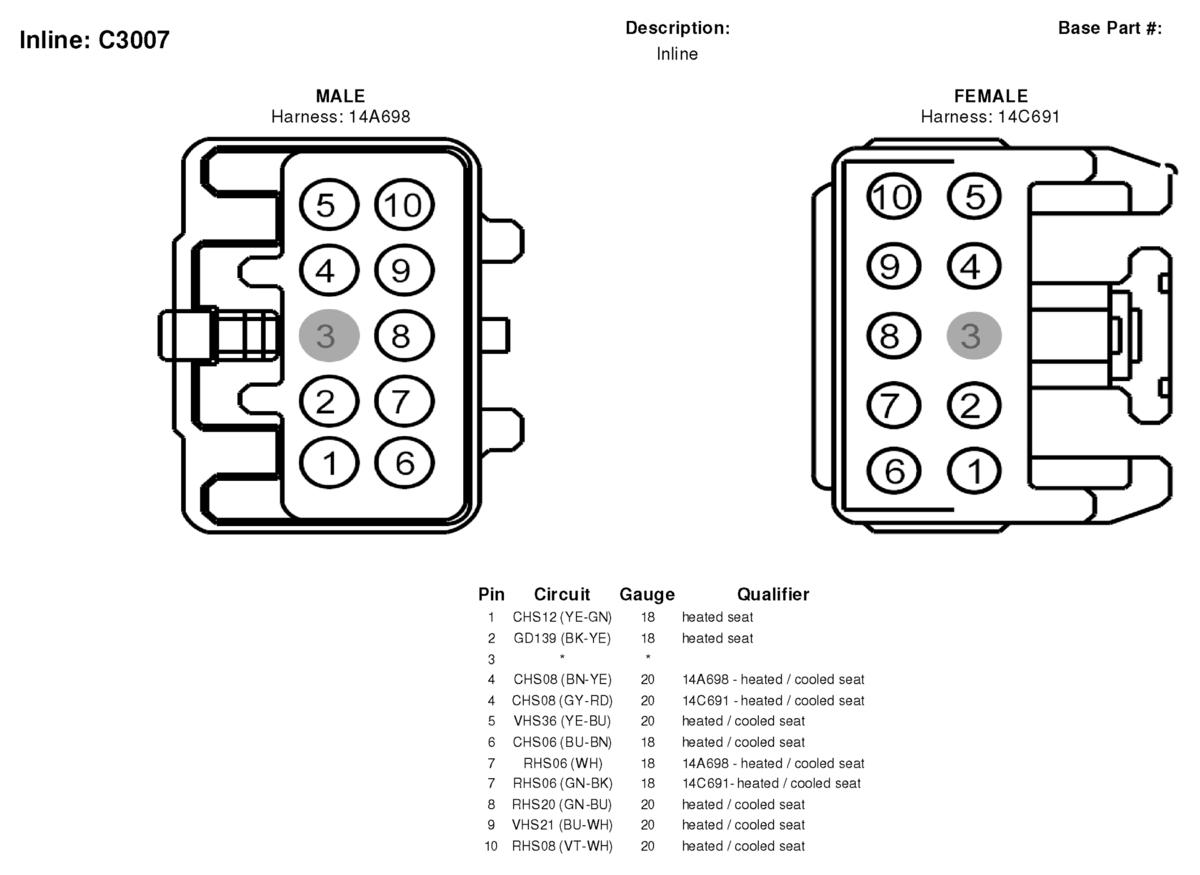

Fig 281: Inline Connector End View (C3007)
Courtesy of FORD MOTOR CO.

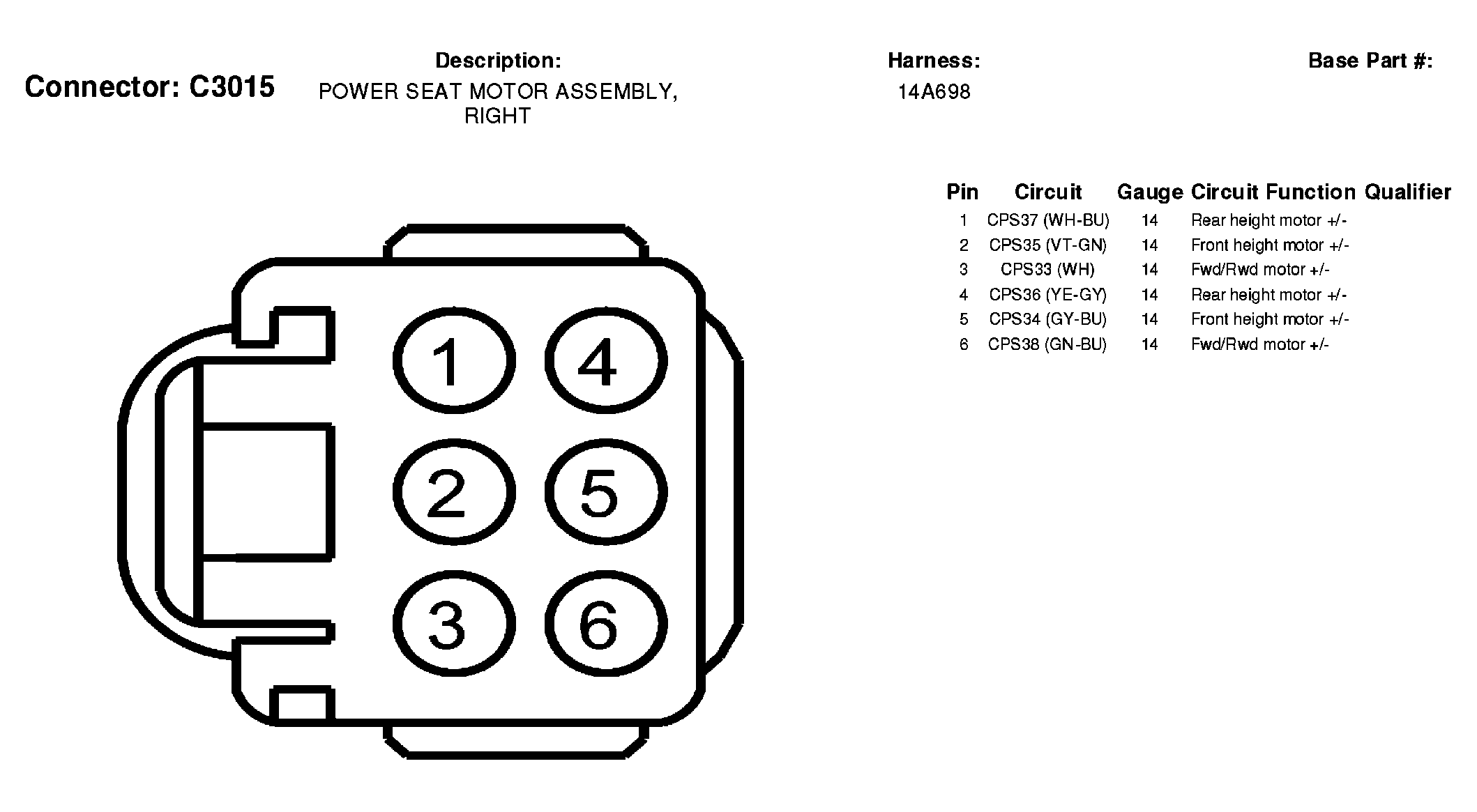

Fig 282: Power Seat Motor Assembly, Right Connector End View (C3015)
Courtesy of FORD MOTOR CO.

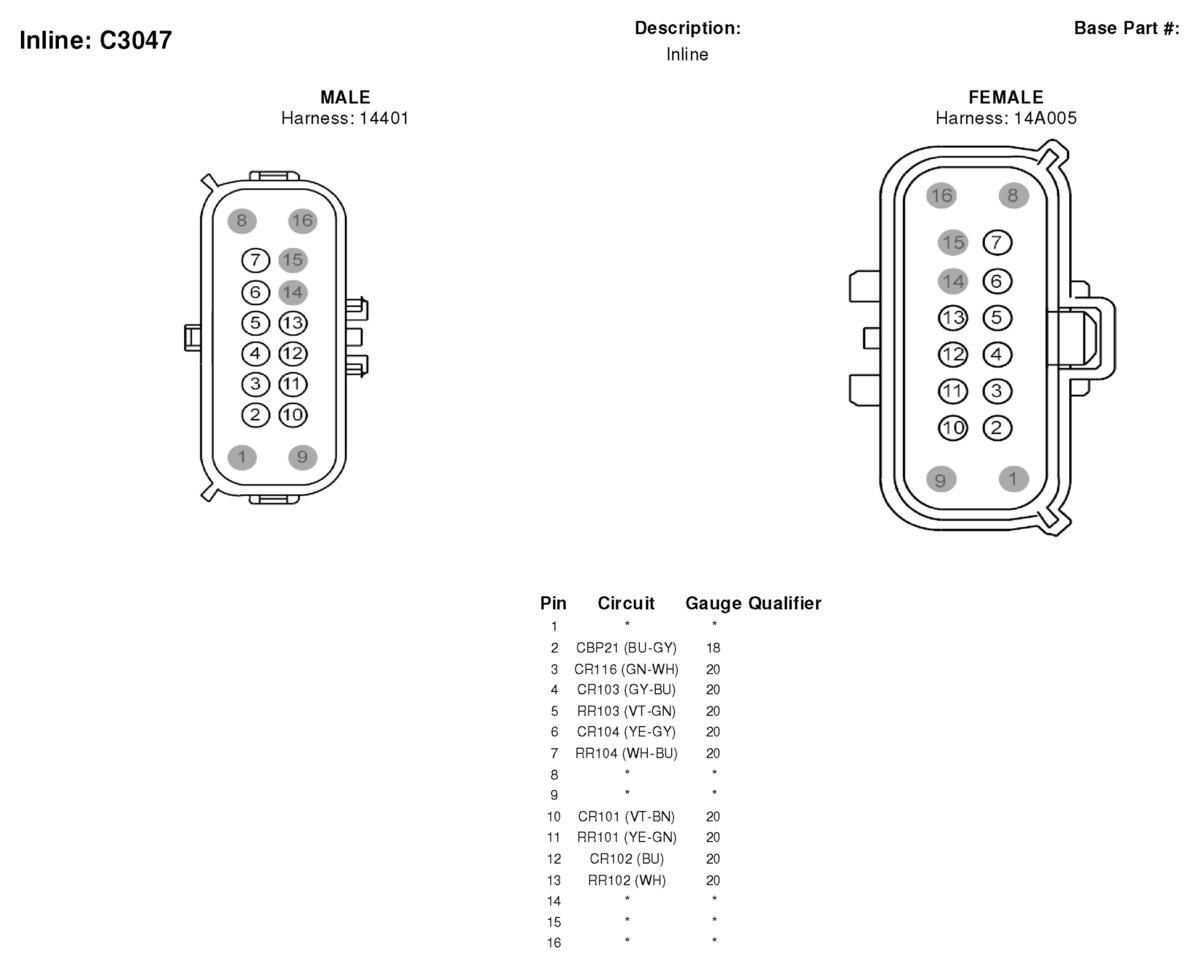

Fig 283: Inline Connector End View (C3047)
Courtesy of FORD MOTOR CO.

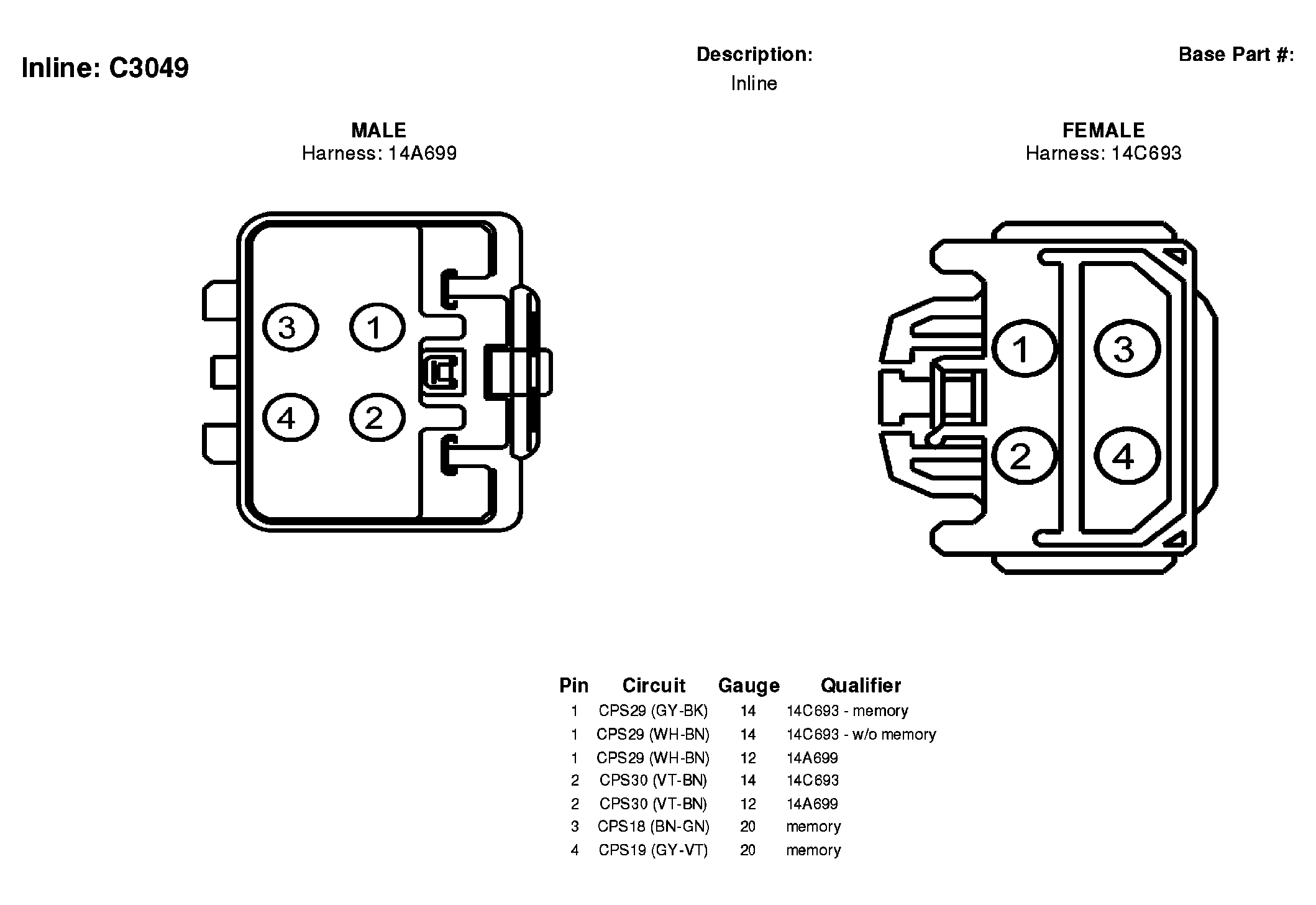

Fig 284: Inline Connector End View (C3049)
Courtesy of FORD MOTOR CO.

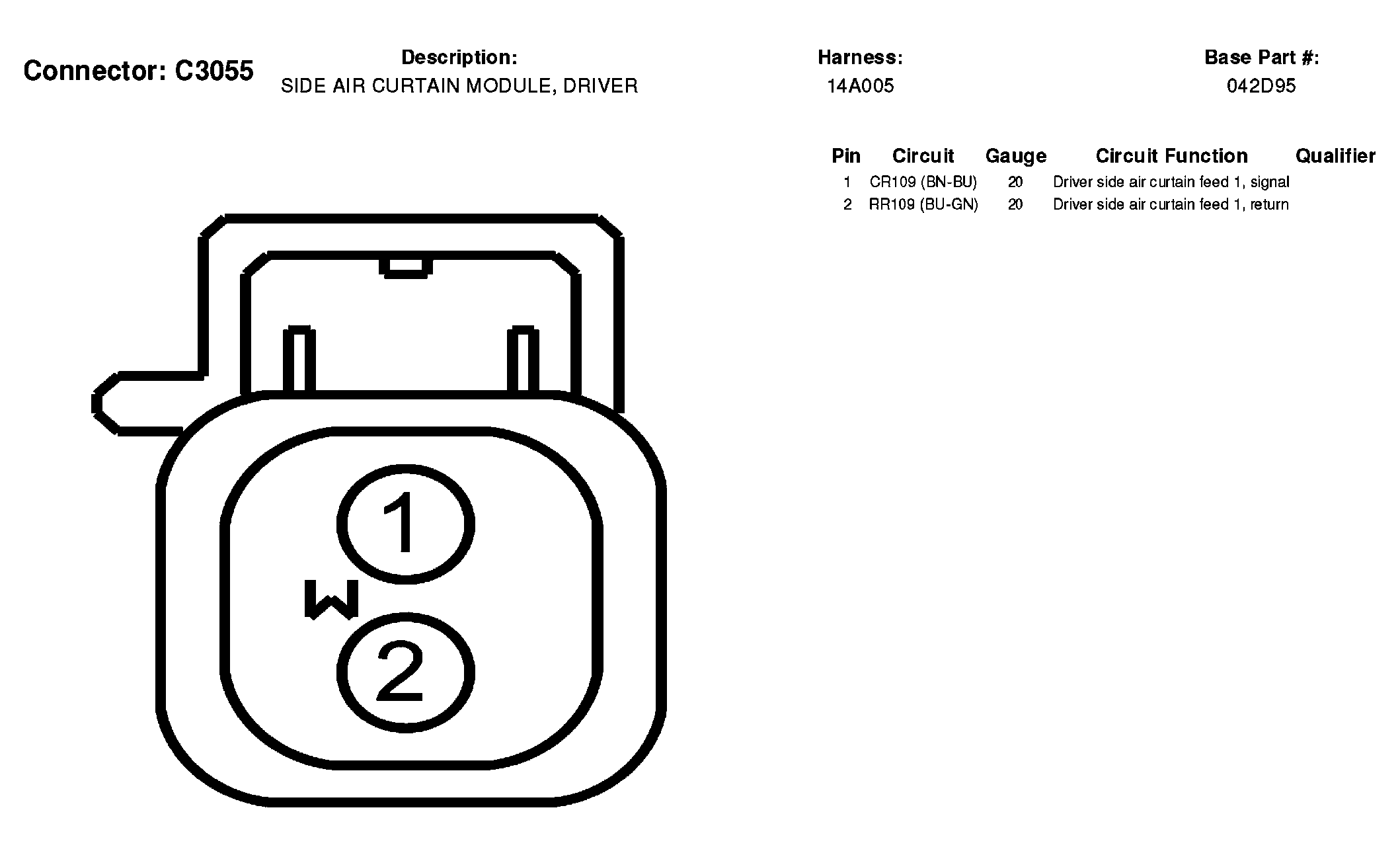

Fig 285: Side Air Curtain Module, Driver Connector End View (C3055)
Courtesy of FORD MOTOR CO.

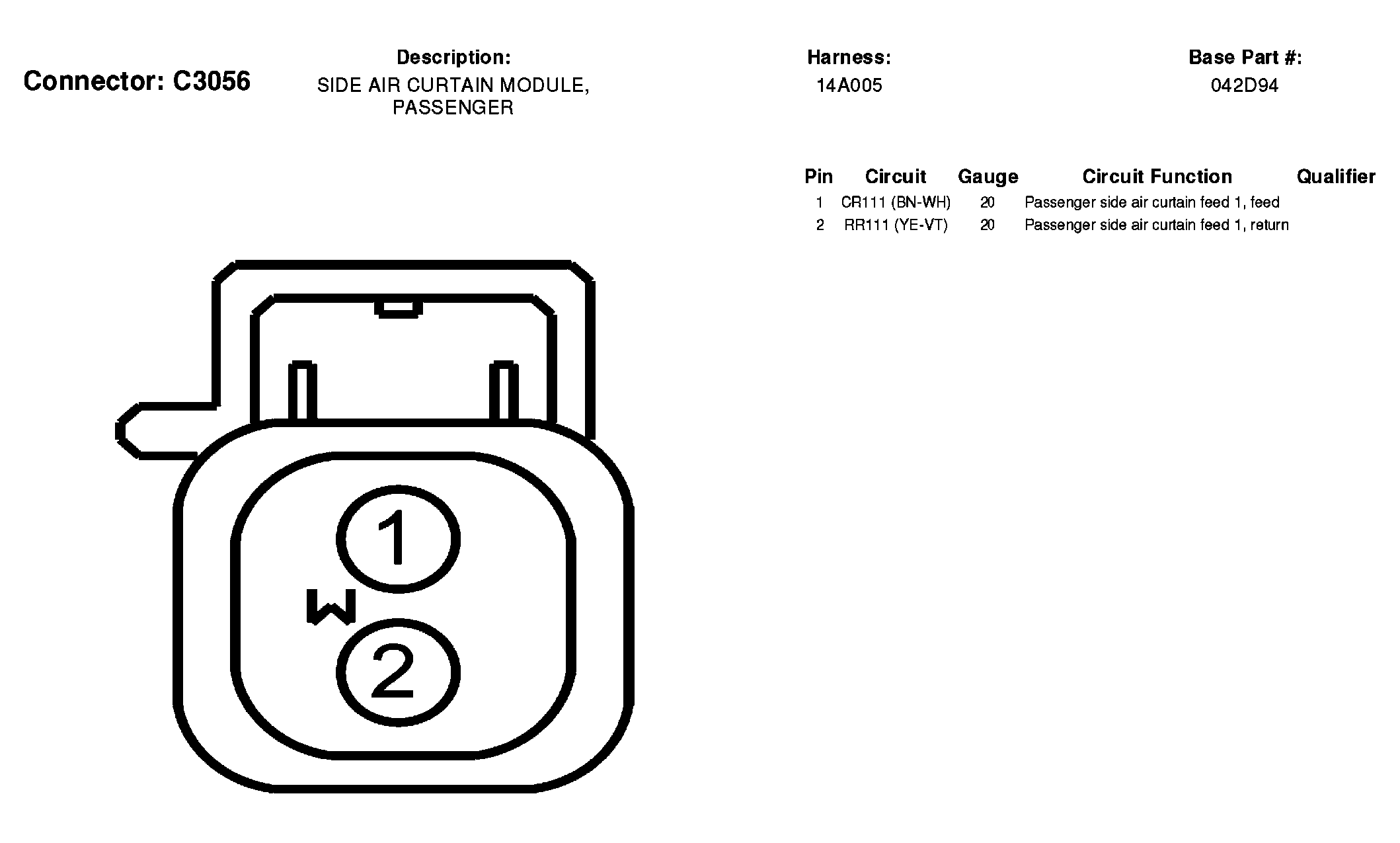

Fig 286: Side Air Curtain Module, Passenger Connector End View (C3056)
Courtesy of FORD MOTOR CO.
Fig 287: Side Air Curtain Sensor, Left 1 Connector End View (C3057)
Courtesy of FORD MOTOR CO.

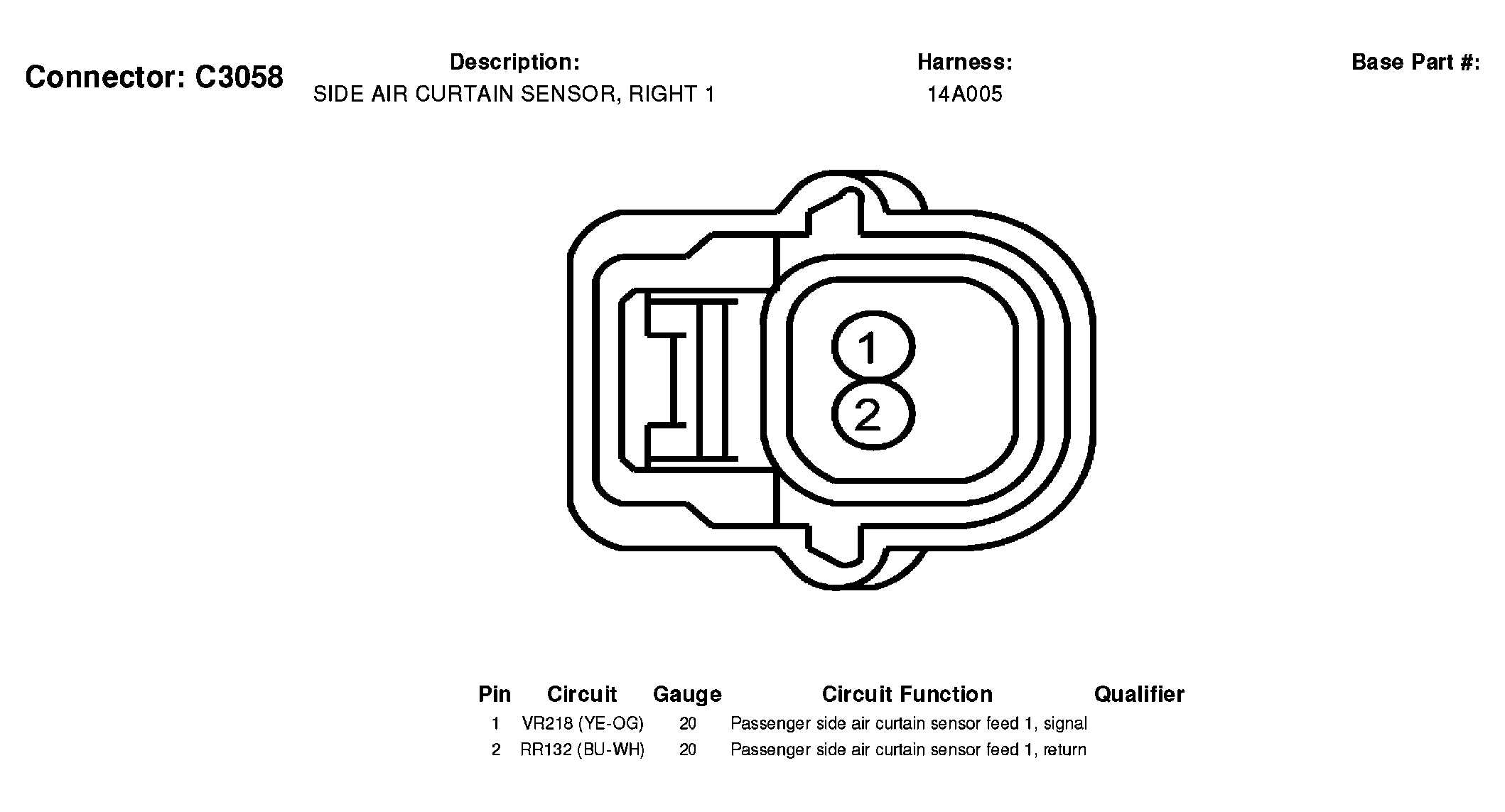

Fig 288: Side Air Curtain Sensor, Right 1 Connector End View (C3058)
Courtesy of FORD MOTOR CO.

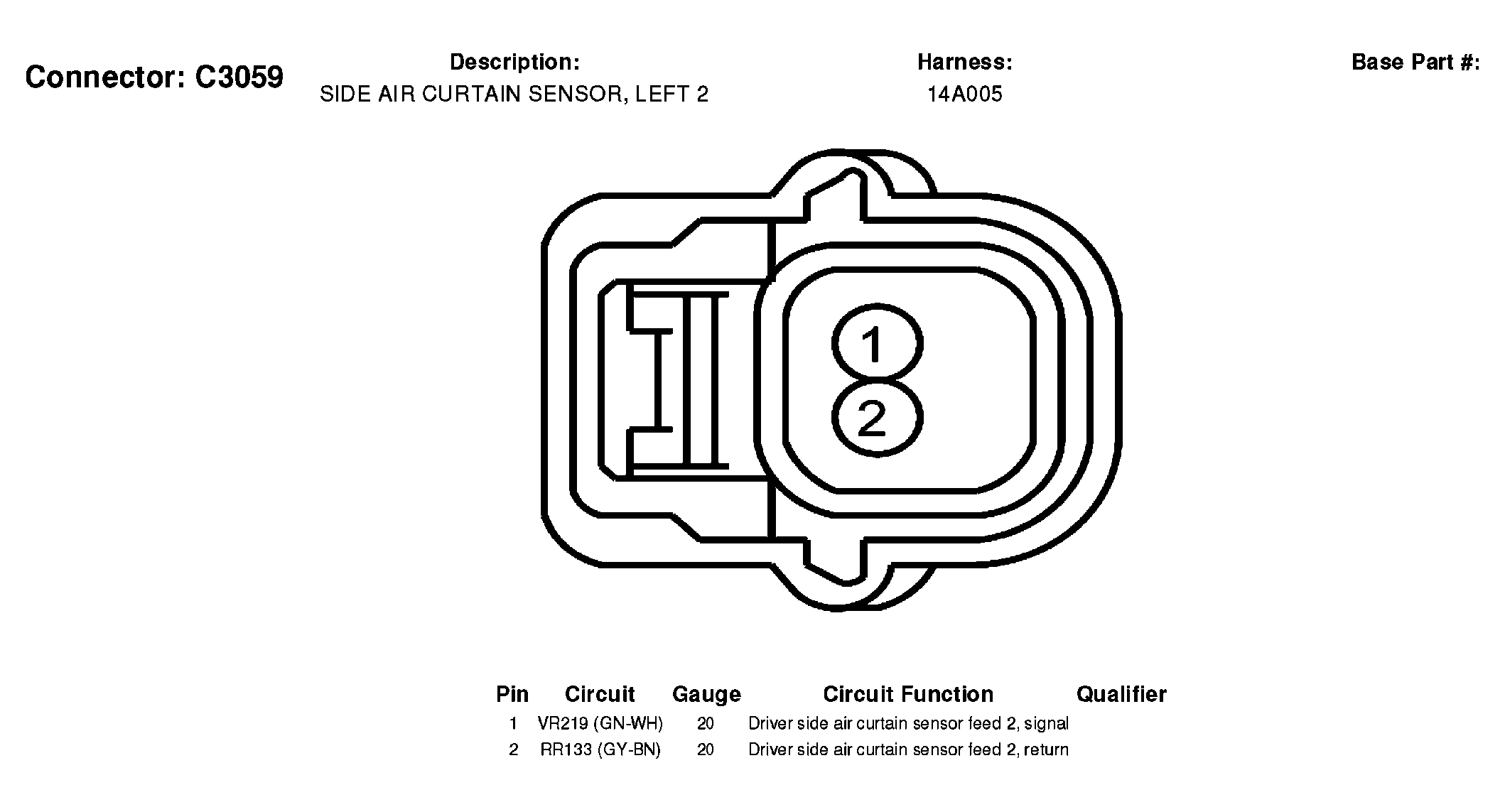

Fig 289: Side Air Curtain Sensor, Left 2 Connector End View (C3059)
Courtesy of FORD MOTOR CO.
Fig 290: Side Air Curtain Sensor, Right 2 Connector End View (C3060)
Courtesy of FORD MOTOR CO.

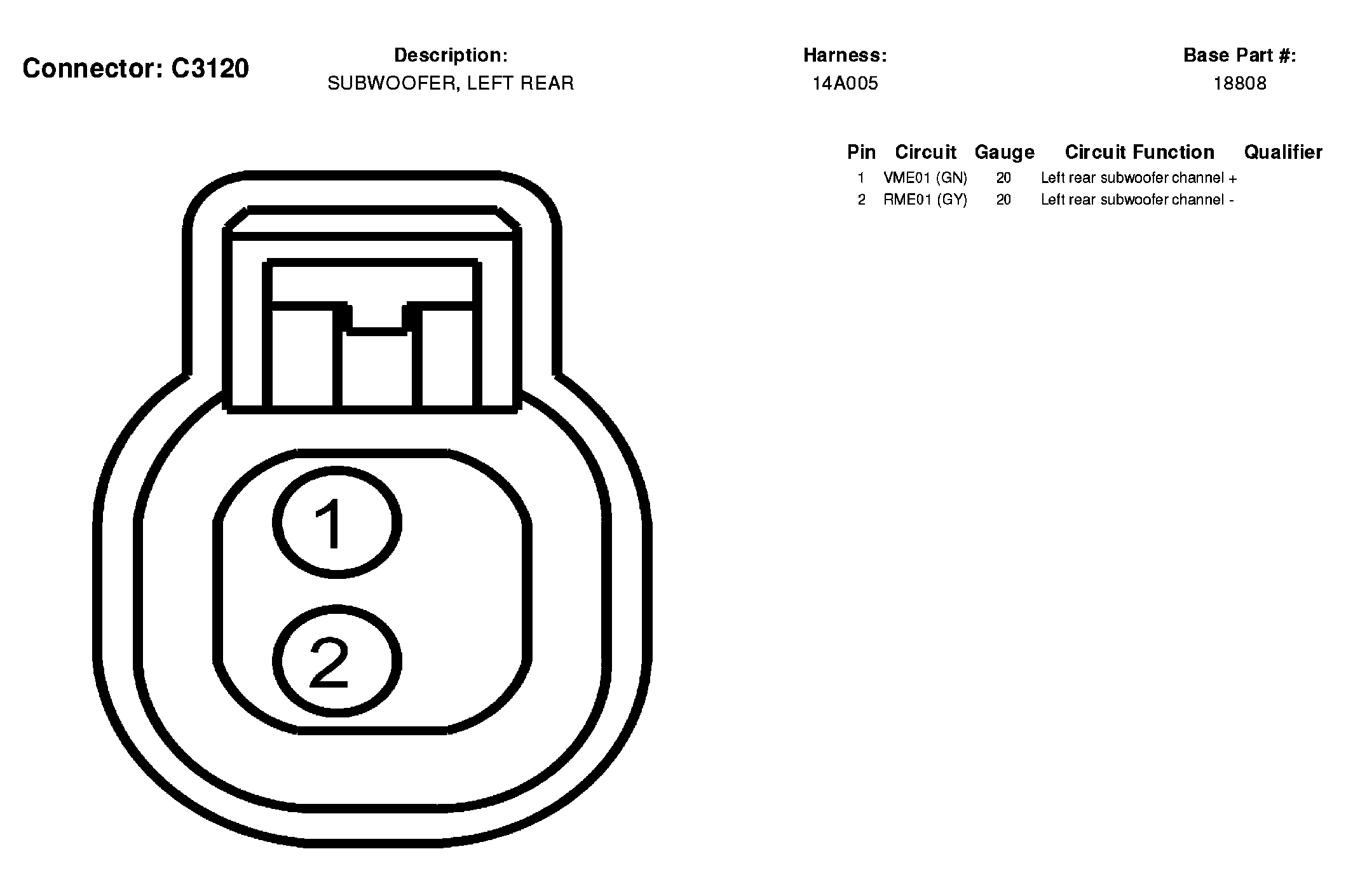

Fig 291: Subwoofer, Left Rear Connector End View (C3120)
Courtesy of FORD MOTOR CO.
Fig 292: Subwoofer, Right Rear Connector End View (C3121)
Courtesy of FORD MOTOR CO.

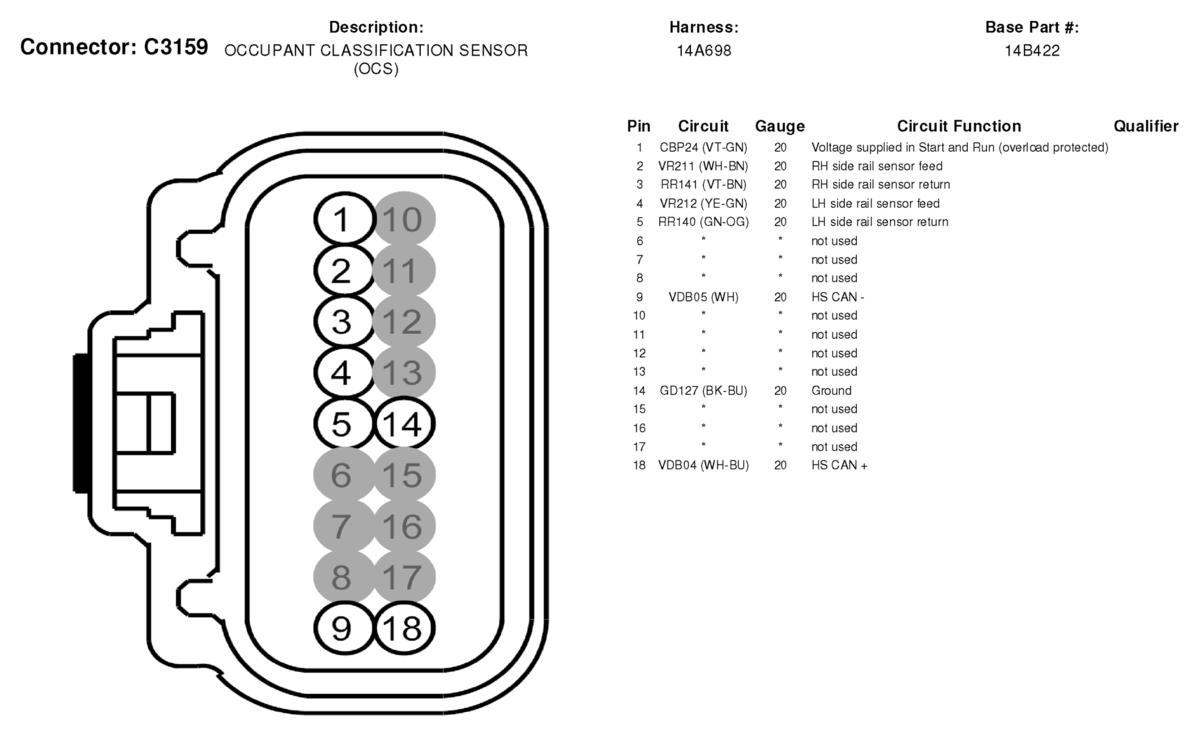

Fig 293: Occupant Classification Sensor, (OCS) Connector End View (C3159)
Courtesy of FORD MOTOR CO.

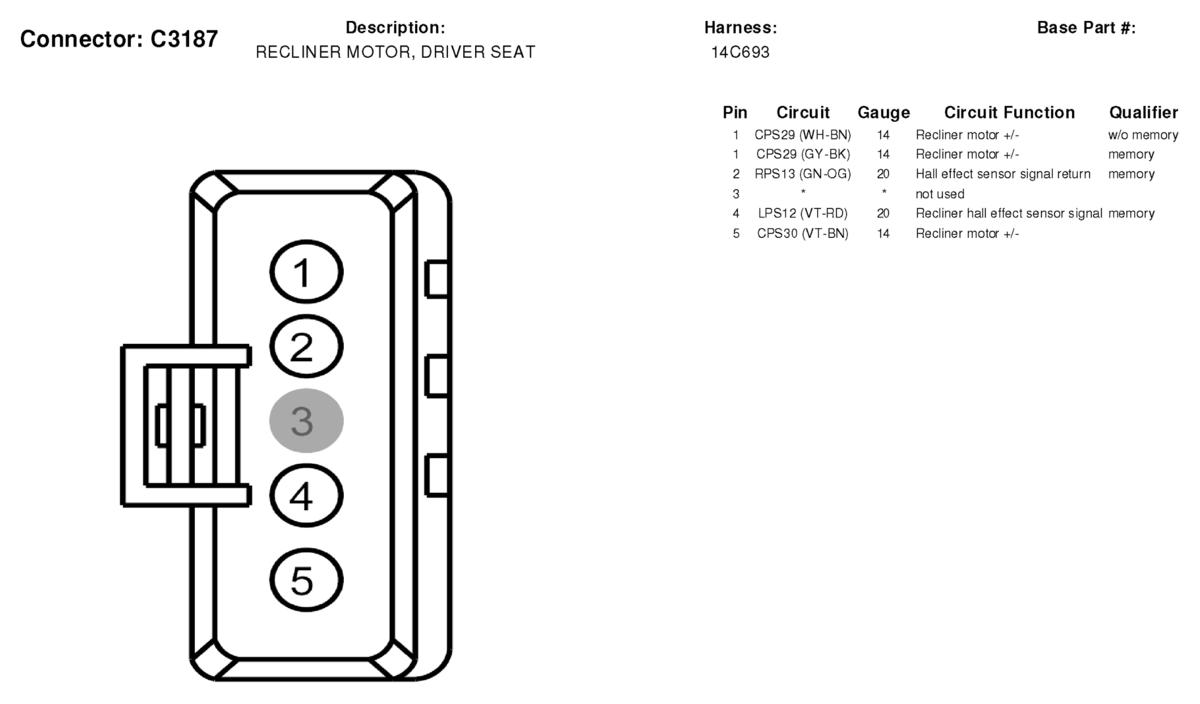

Fig 294: Recliner Motor, Driver Seat Connector End View (C3187)
Courtesy of FORD MOTOR CO.

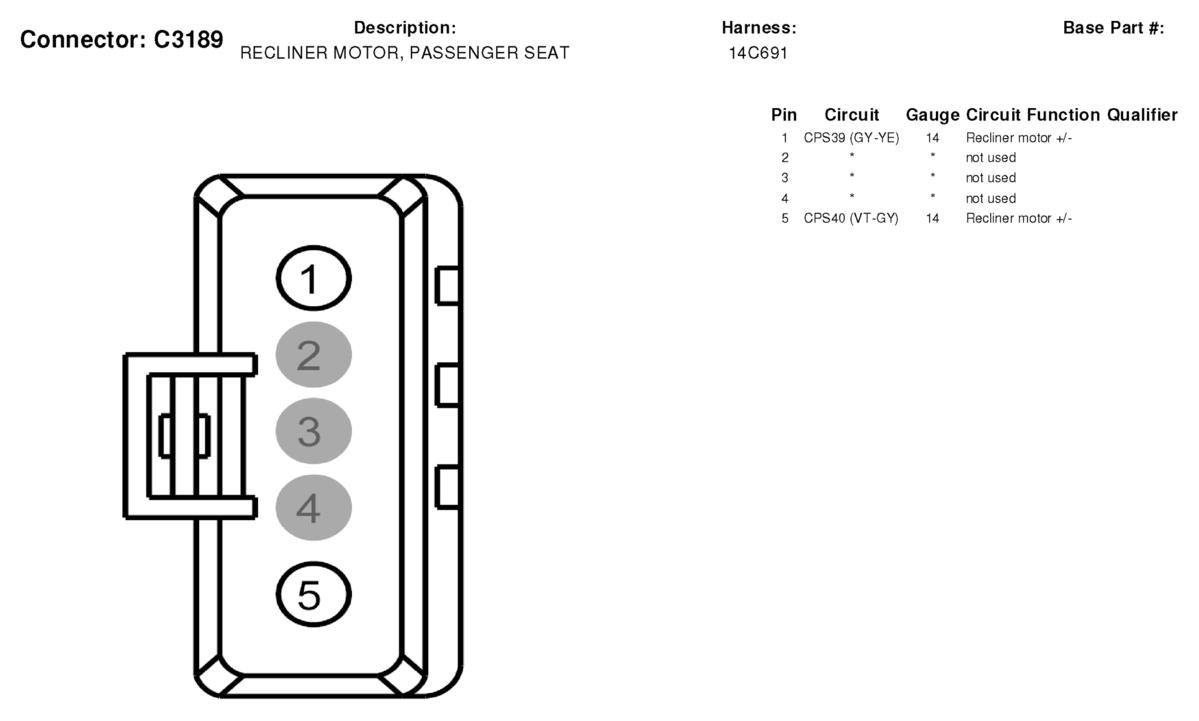

Fig 295: Recliner Motor, Passenger Seat Connector End View (C3189)
Courtesy of FORD MOTOR CO.

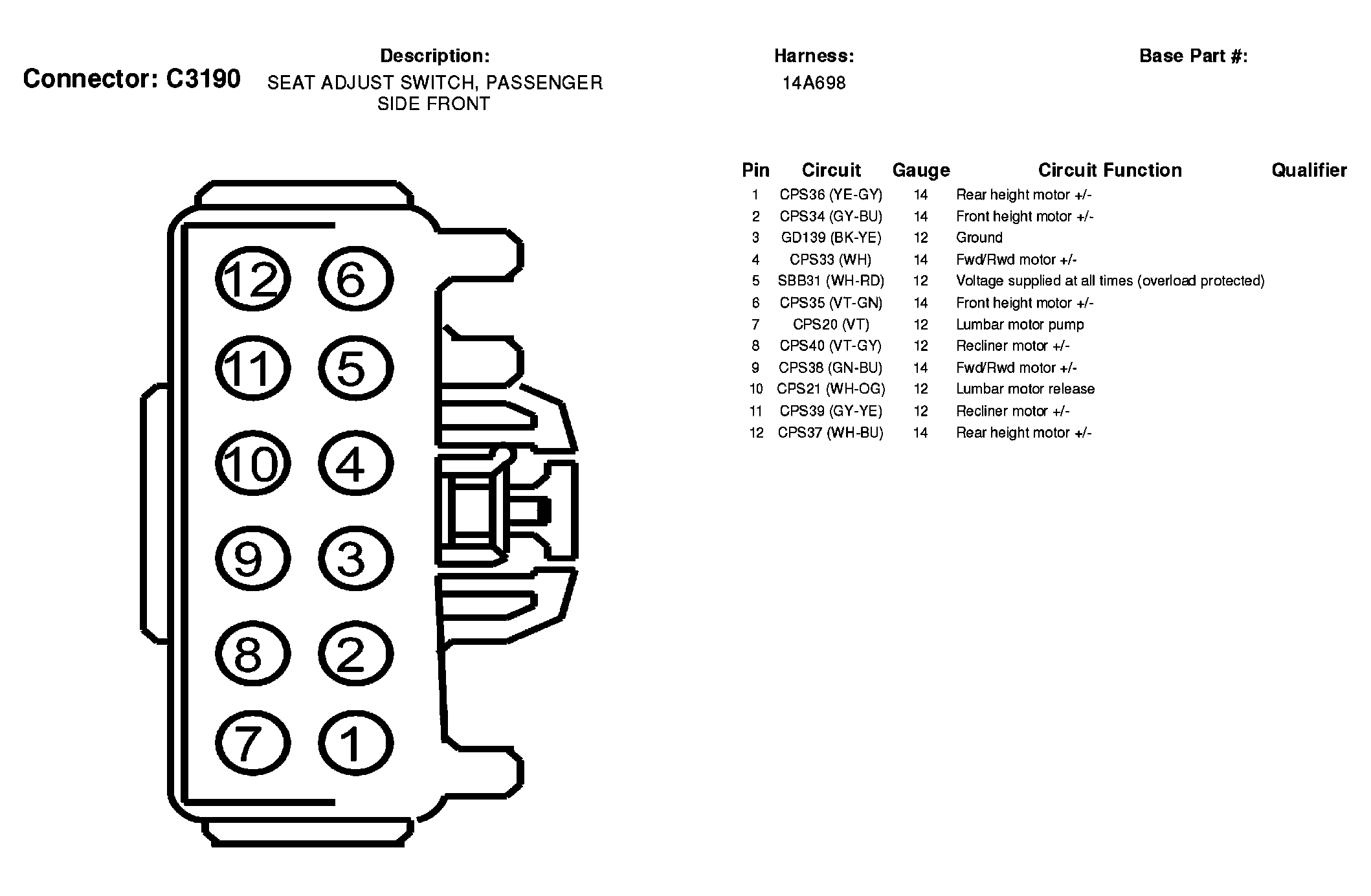

Fig 296: Seat Adjust Switch, Passenger Side Front Connector End View (C3190)
Courtesy of FORD MOTOR CO.
Fig 297: Passenger Safety Belt Retractor Pretensioner Connector End View (C3202)
Courtesy of FORD MOTOR CO.

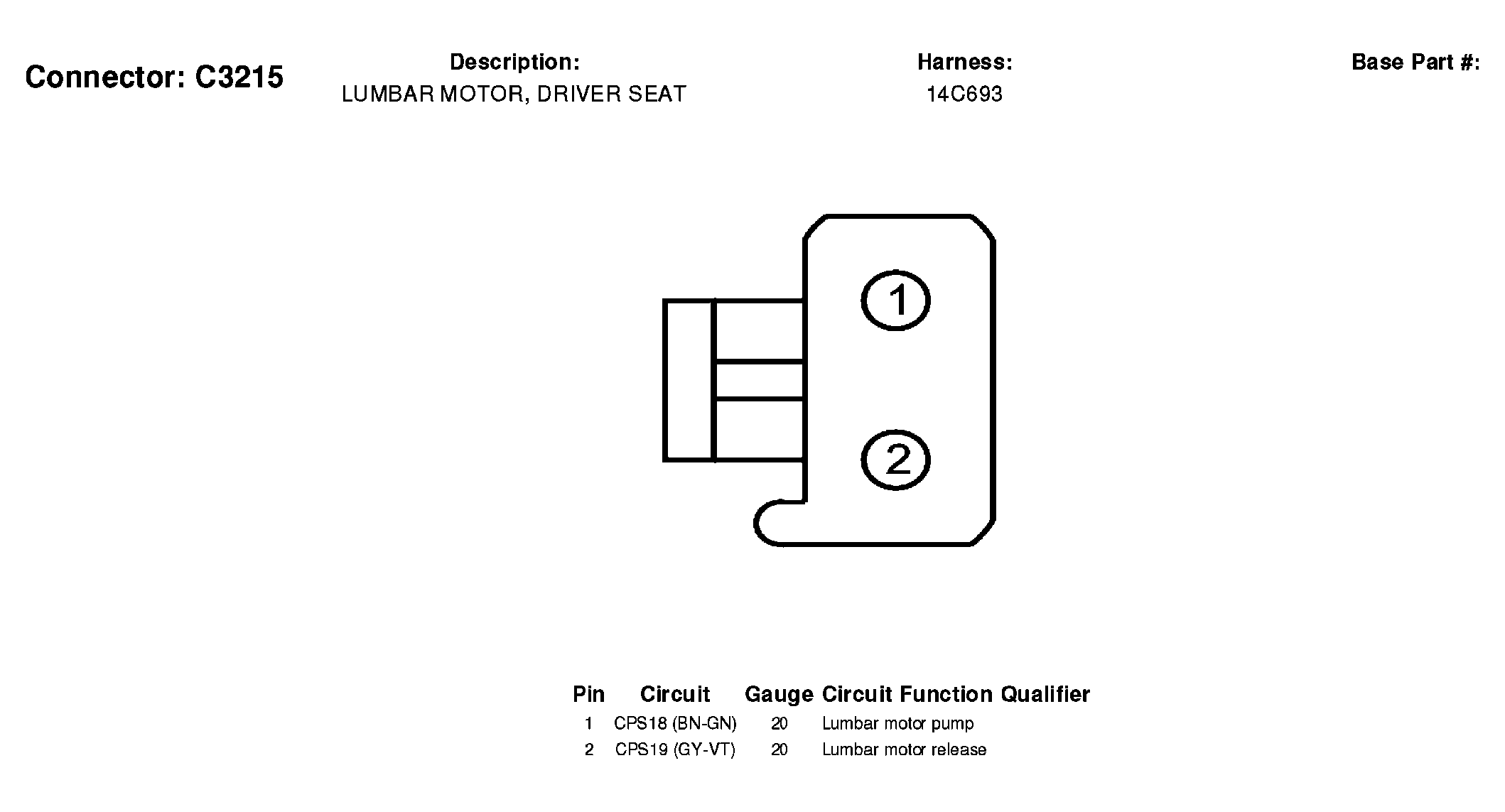

Fig 298: Lumbar Motor, Driver Seat Connector End View (C3215)
Courtesy of FORD MOTOR CO.
Fig 299: Lumbar Motor, Passenger Seat Connector End View (C3216)
Courtesy of FORD MOTOR CO.

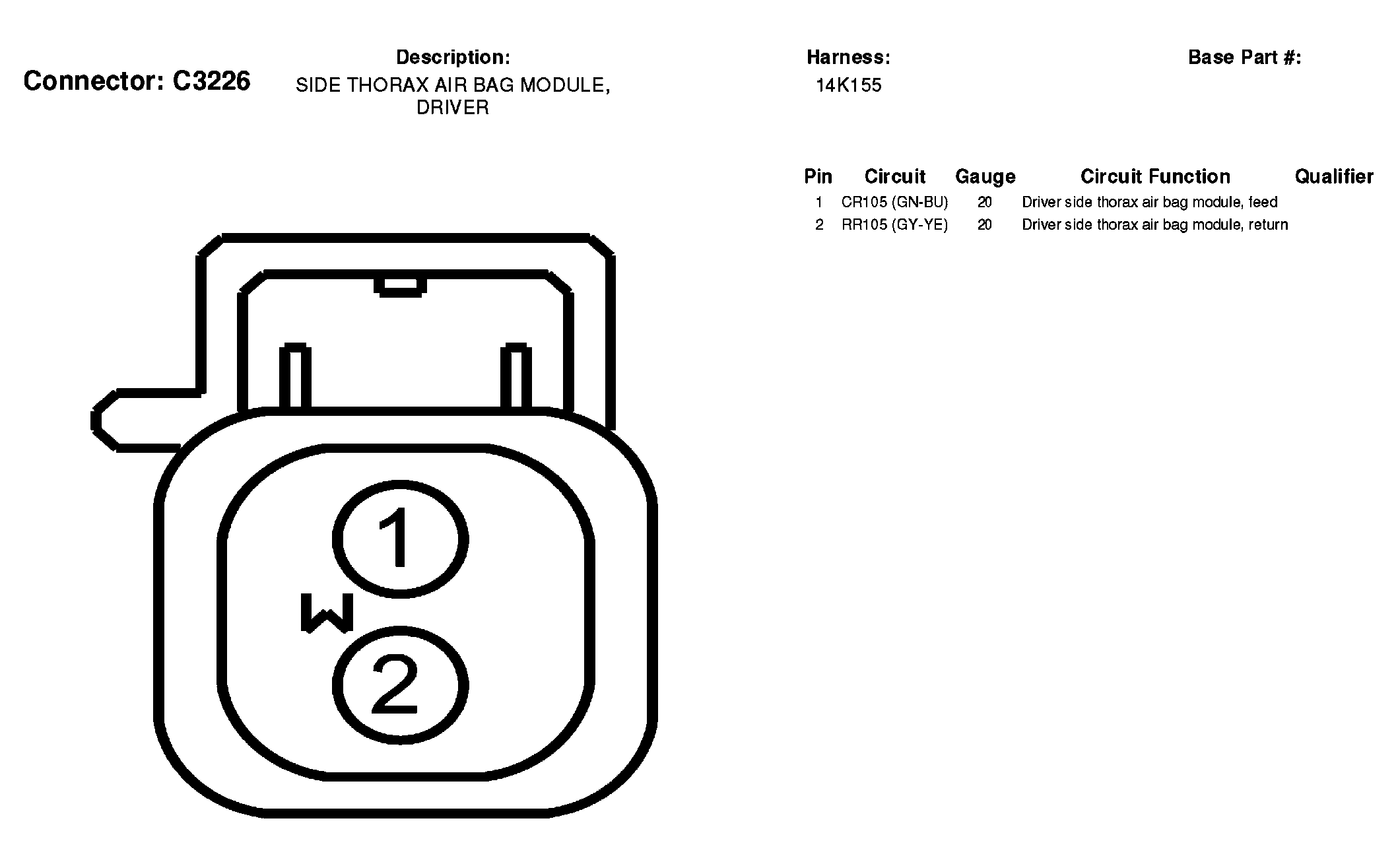

Fig 300: Side Thorax Air Bag Module, Driver Connector End View (C3226)
Courtesy of FORD MOTOR CO.
Fig 301: Side Thorax Air Bag Module, Passenger Connector End View (C3227)
Courtesy of FORD MOTOR CO.

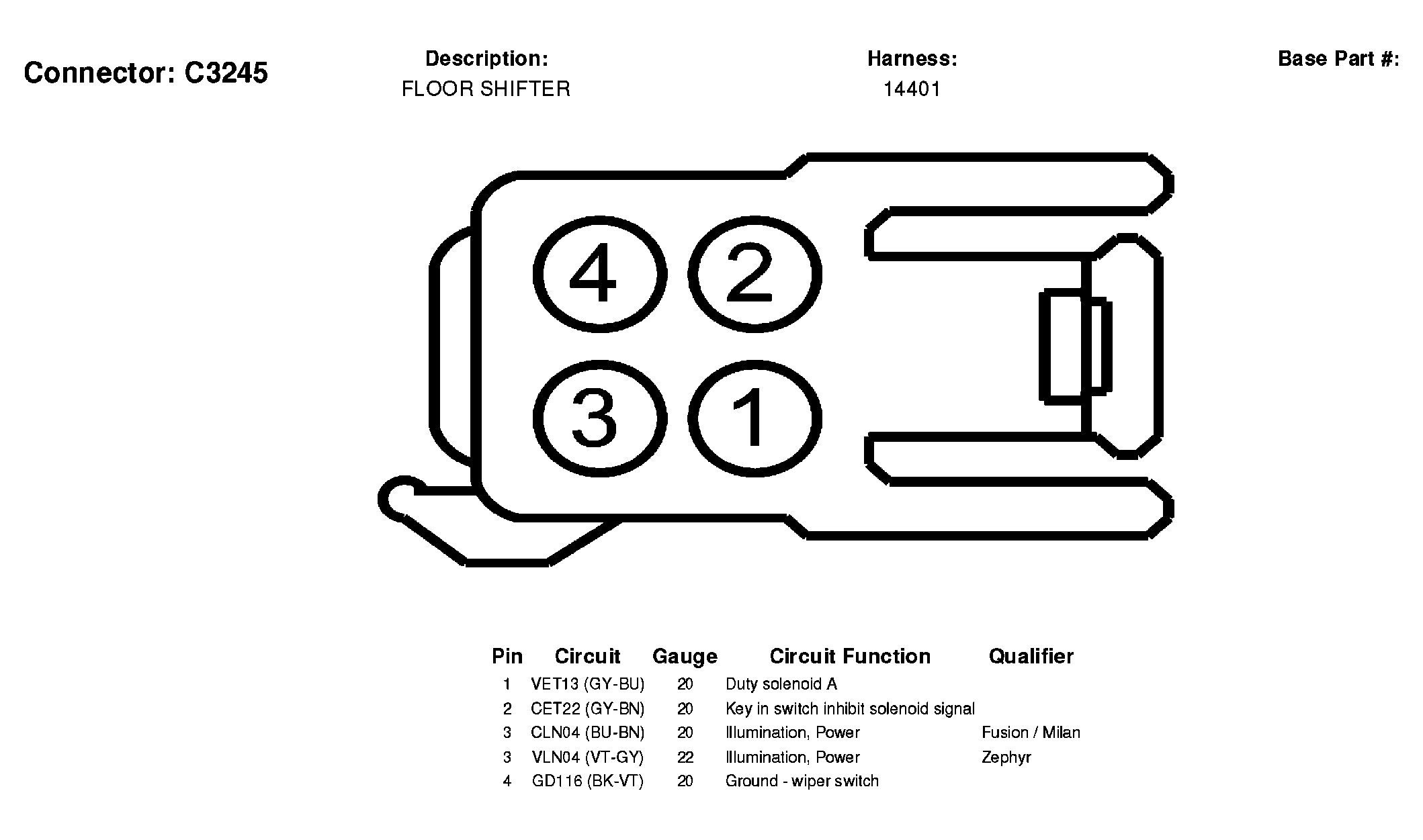

Fig 302: Floor Shifter Connector End View (C3245)
Courtesy of FORD MOTOR CO.

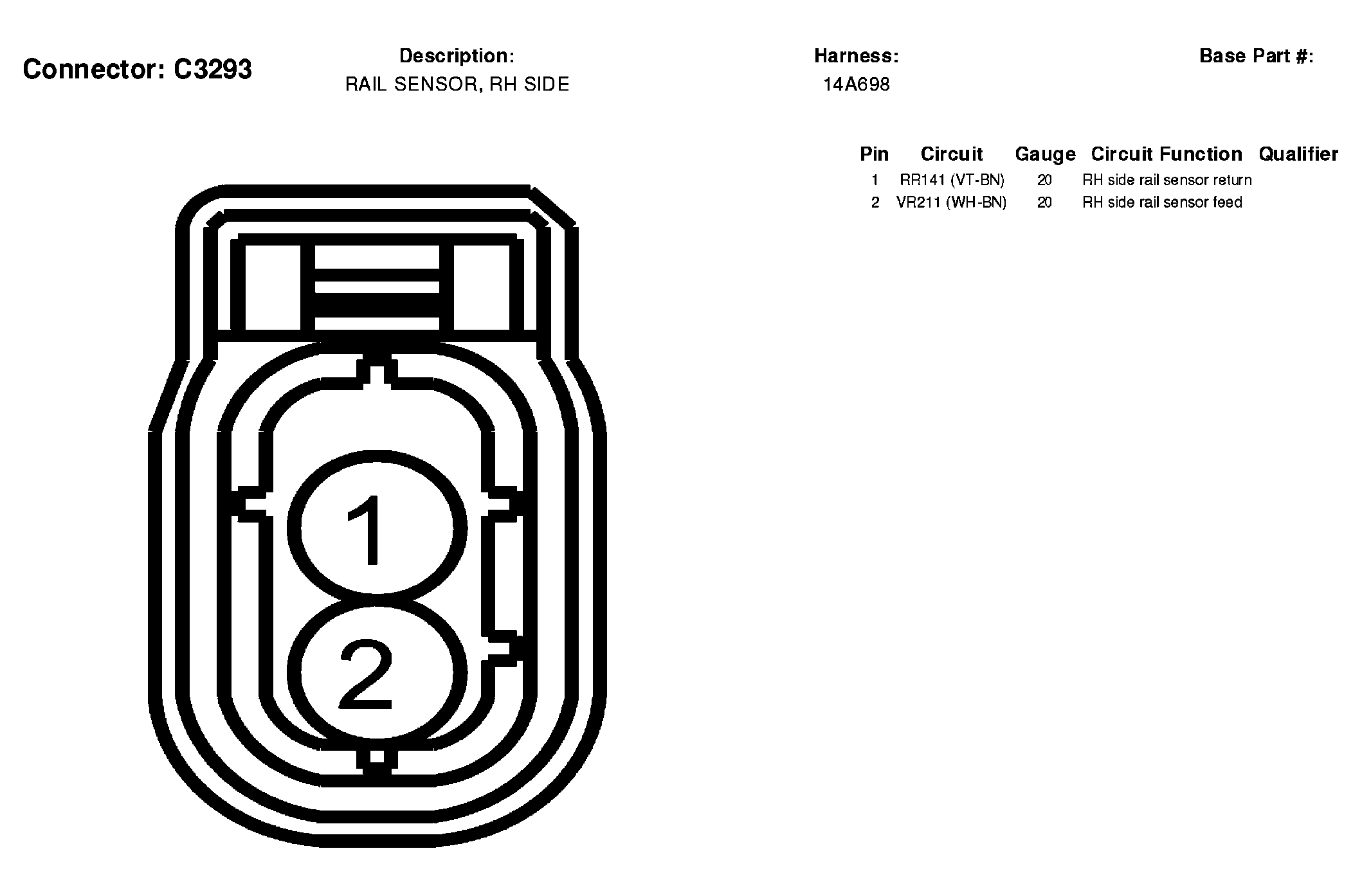

Fig 303: Rail Sensor, RH Side Connector End View (C3293)
Courtesy of FORD MOTOR CO.

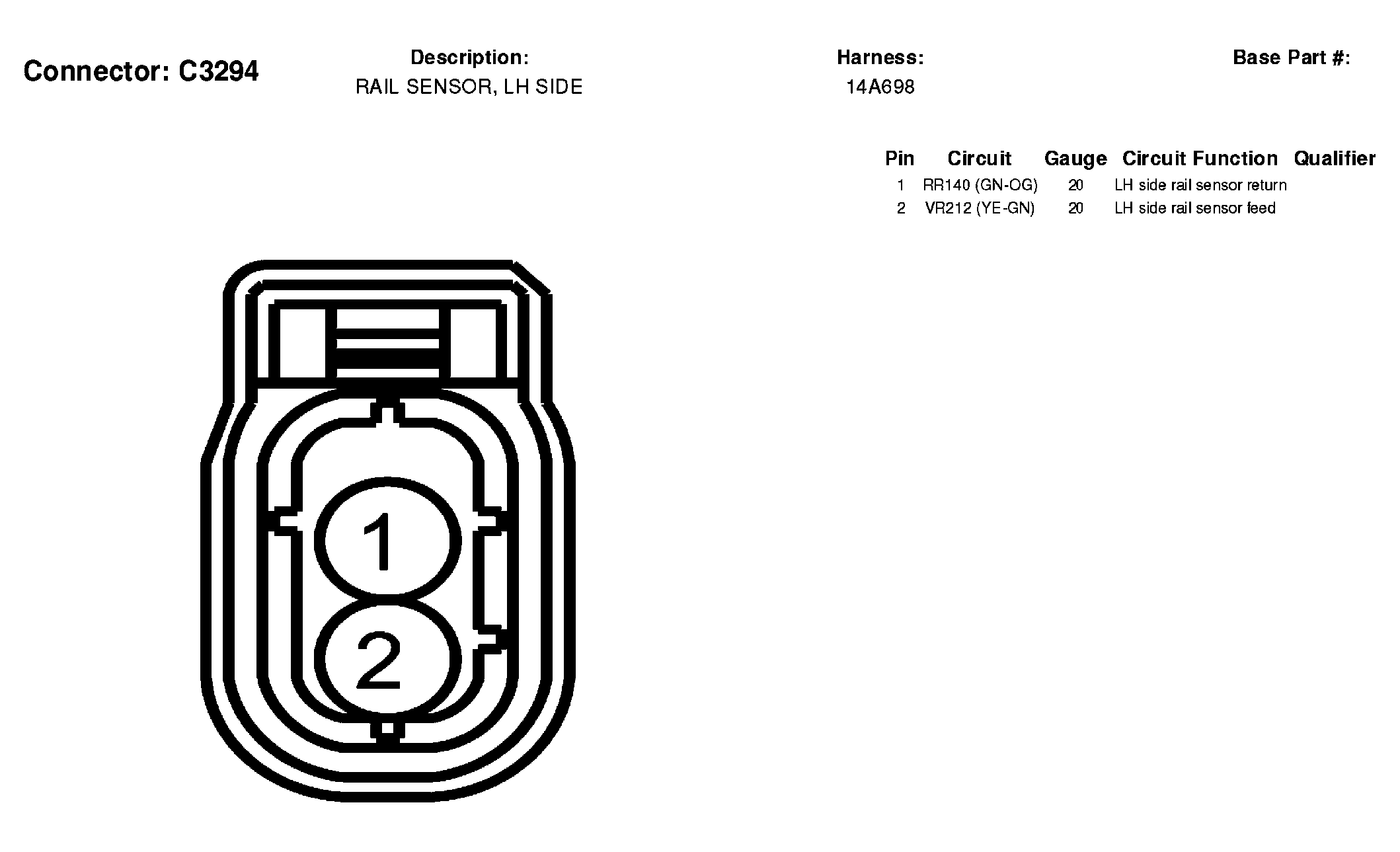

Fig 304: Rail Sensor, LH Side Connector End View (C3294)
Courtesy of FORD MOTOR CO.

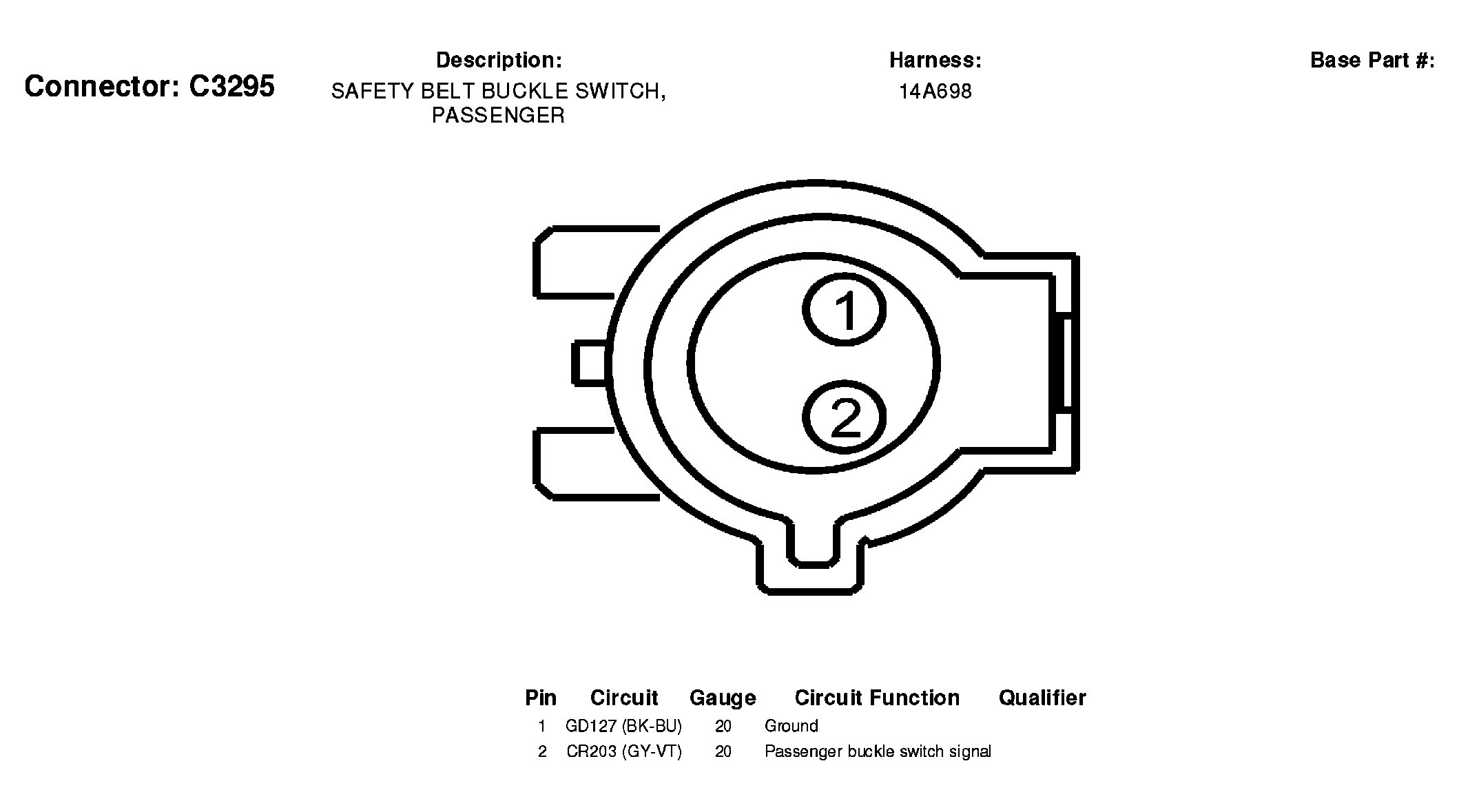

Fig 305: Safety Belt Buckle Switch, Passenger Connector End View (C3295)
Courtesy of FORD MOTOR CO.

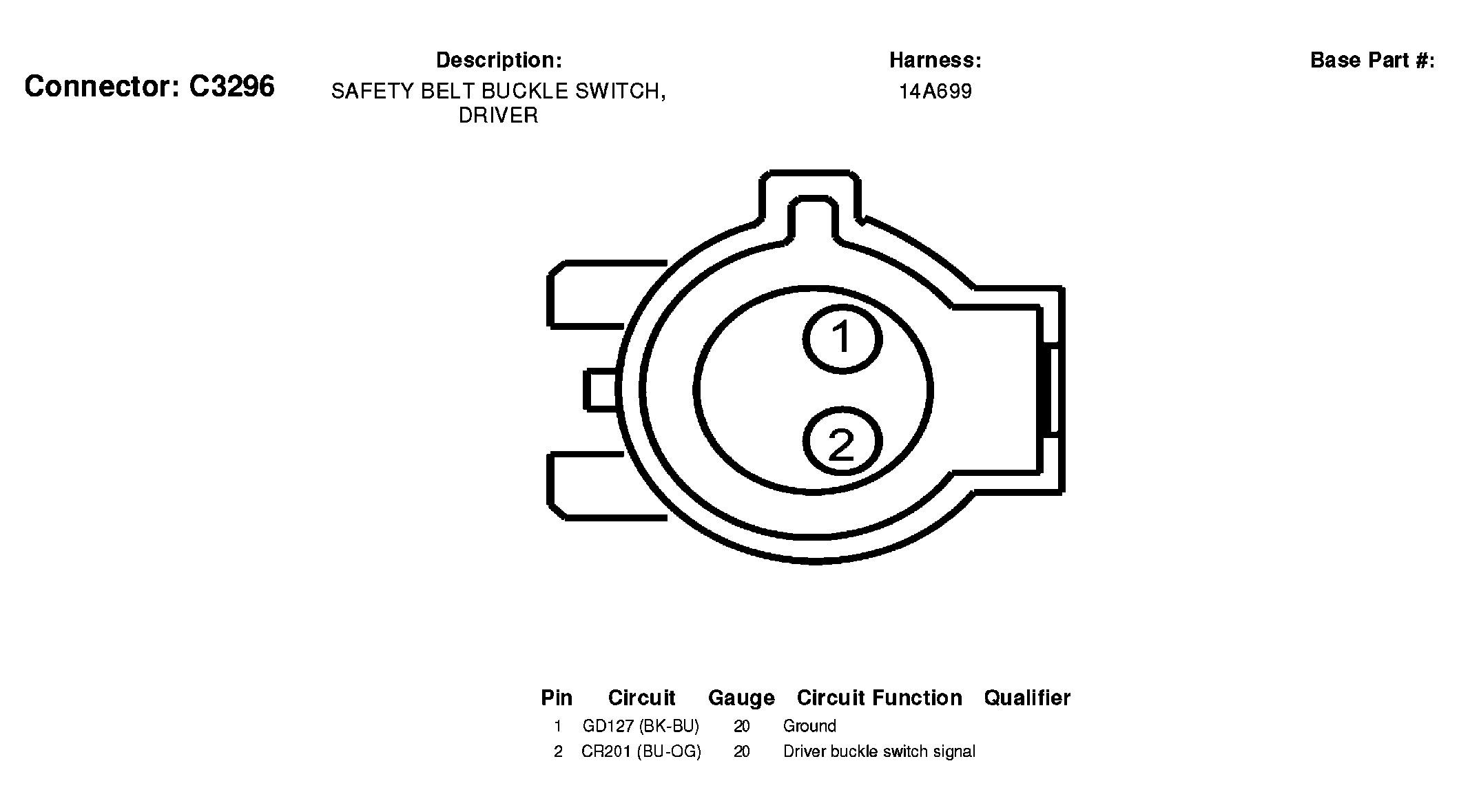

Fig 306: Safety Belt Buckle Switch, Driver Connector End View (C3296)
Courtesy of FORD MOTOR CO.

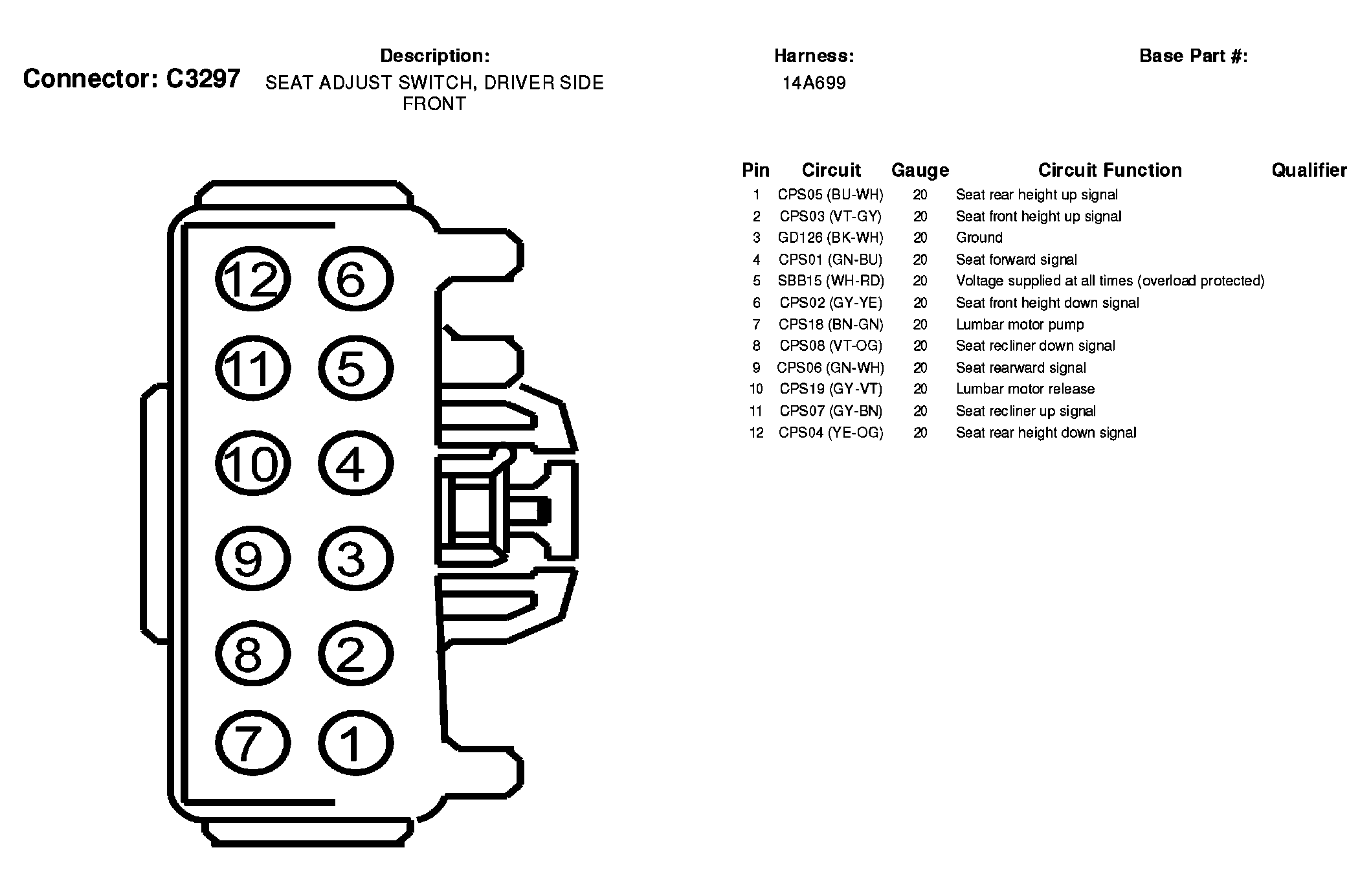

Fig 307: Seat Adjust Switch, Driver Side Front Connector End View (C3297)
Courtesy of FORD MOTOR CO.

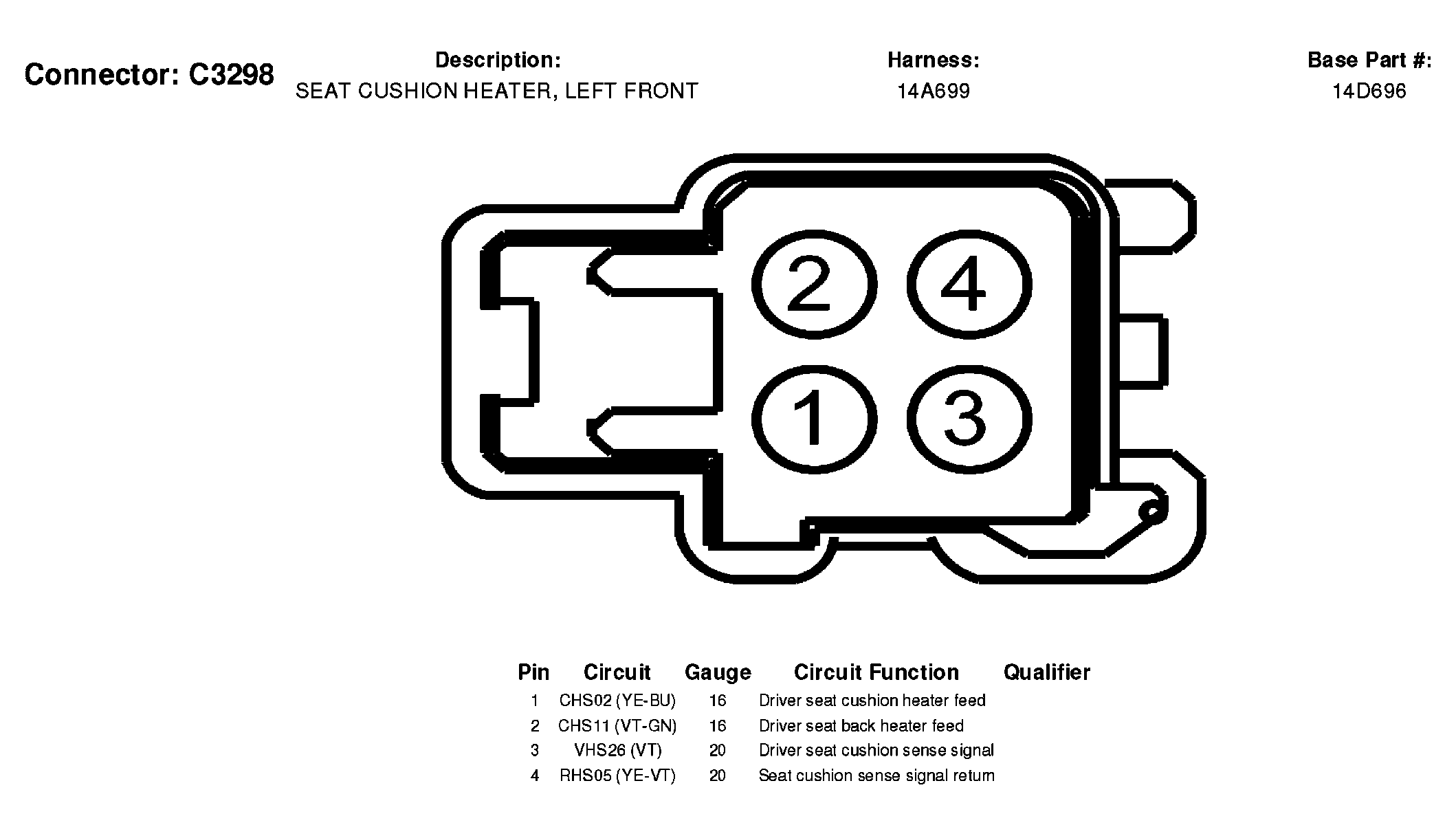

Fig 308: Seat Cushion Heater, Left Front Connector End View (C3298)
Courtesy of FORD MOTOR CO.

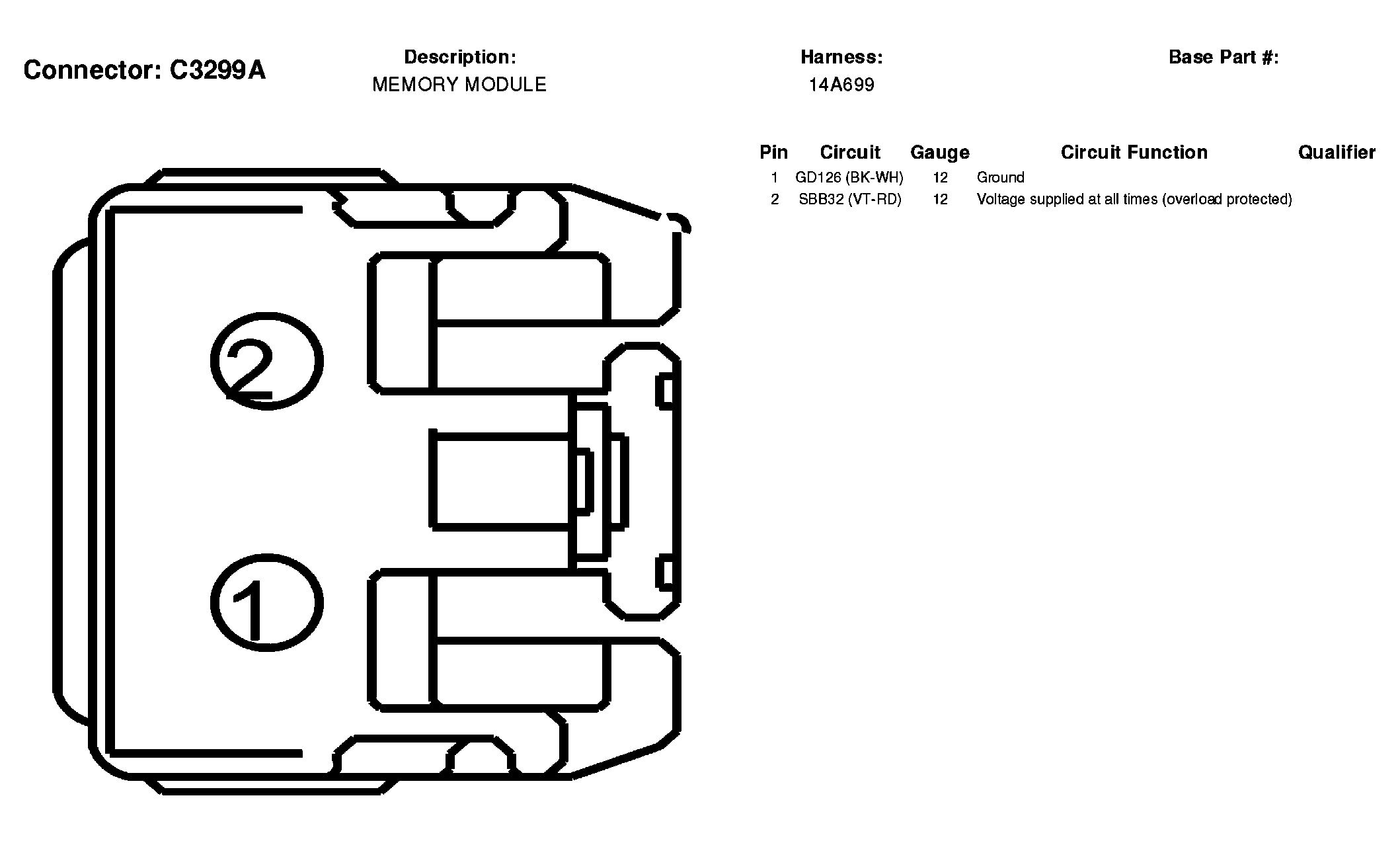

Fig 309: Memory Module Connector End View (C3299A)
Courtesy of FORD MOTOR CO.

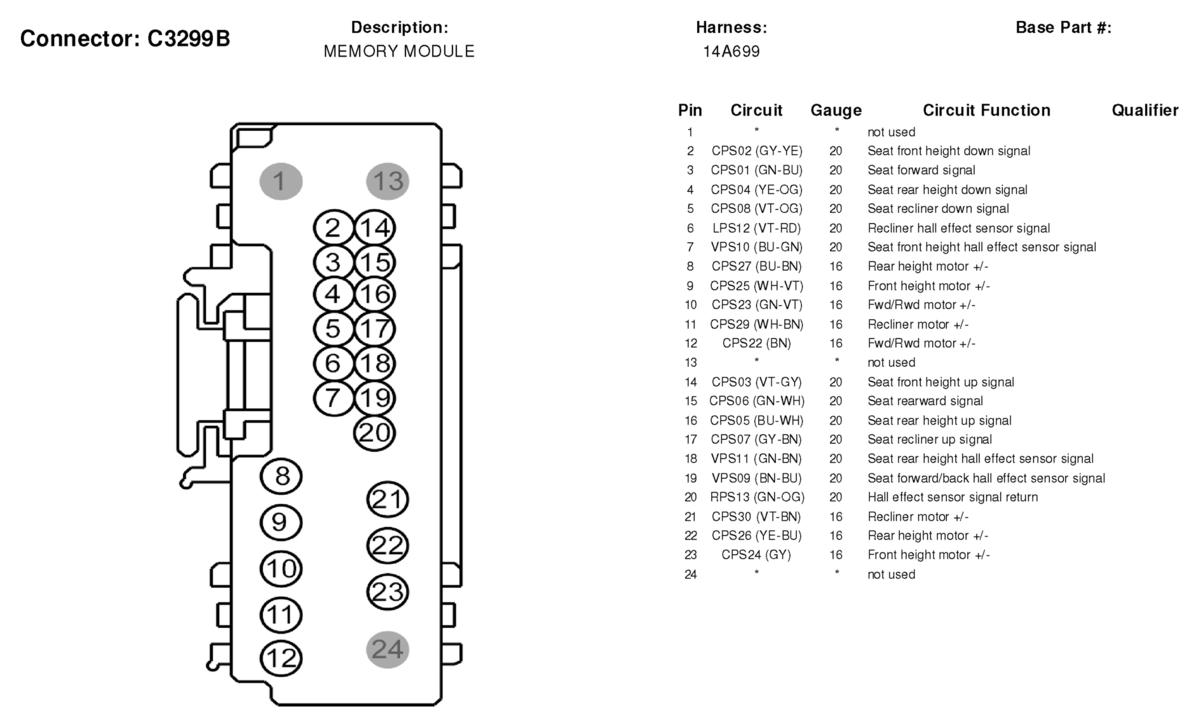

Fig 310: Memory Module Connector End View (C3299B)
Courtesy of FORD MOTOR CO.

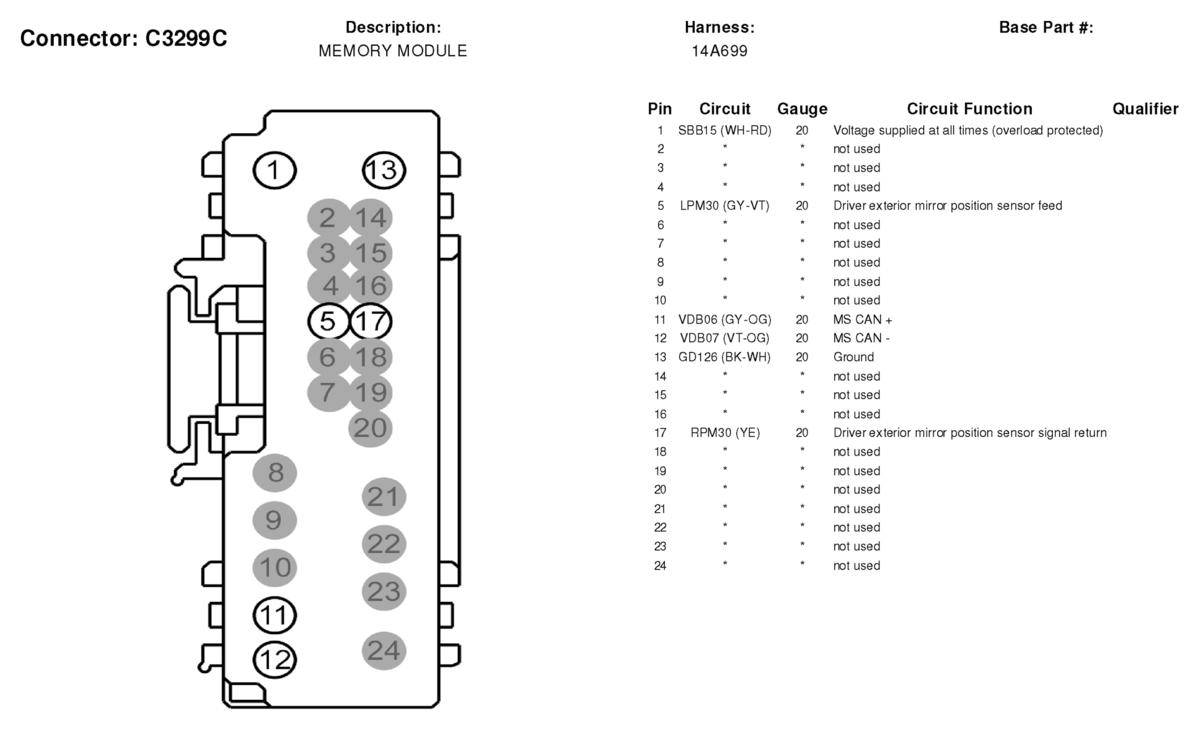

Fig 311: Memory Module Connector End View (C3299C)
Courtesy of FORD MOTOR CO.

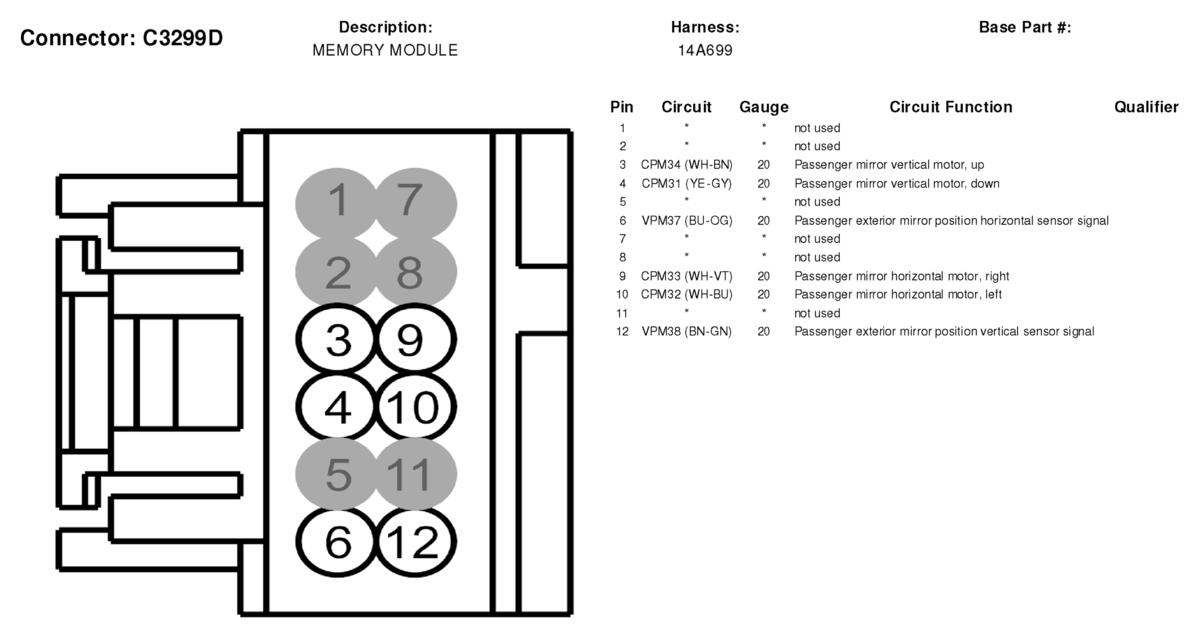

Fig 312: Memory Module Connector End View (C3299D)
Courtesy of FORD MOTOR CO.

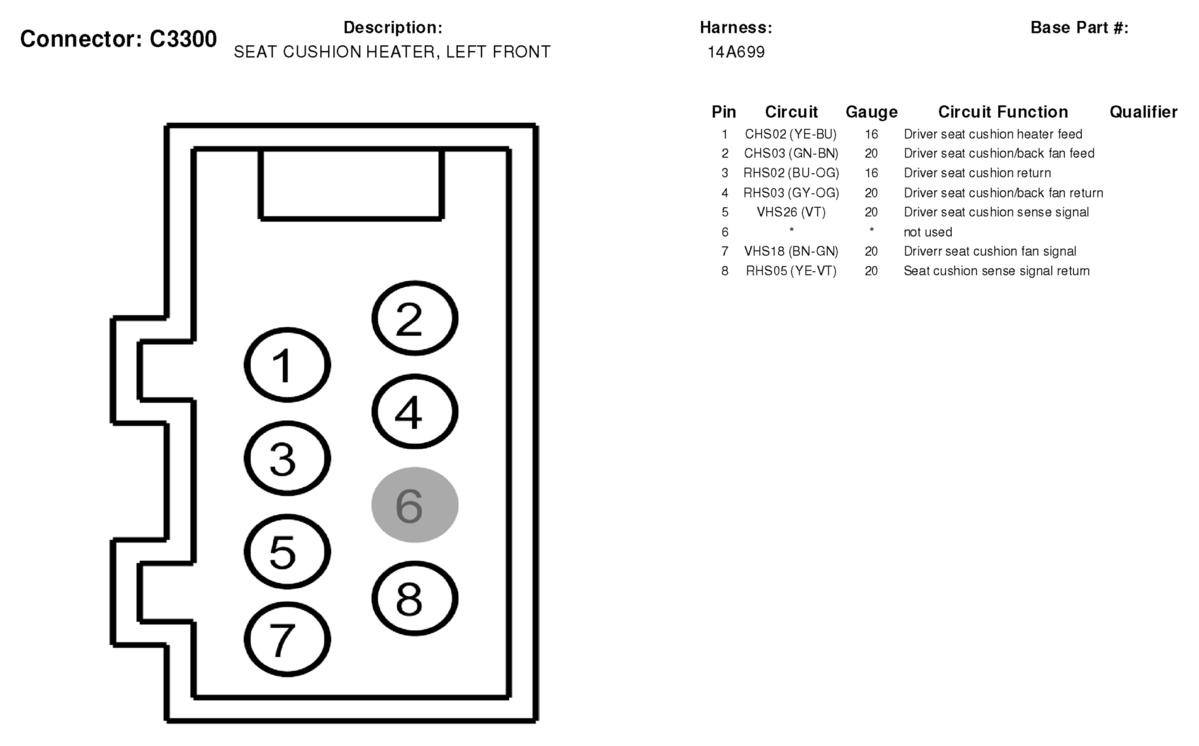

Fig 313: Seat Cushion Heater, Left Front Connector End View (C3300)
Courtesy of FORD MOTOR CO.

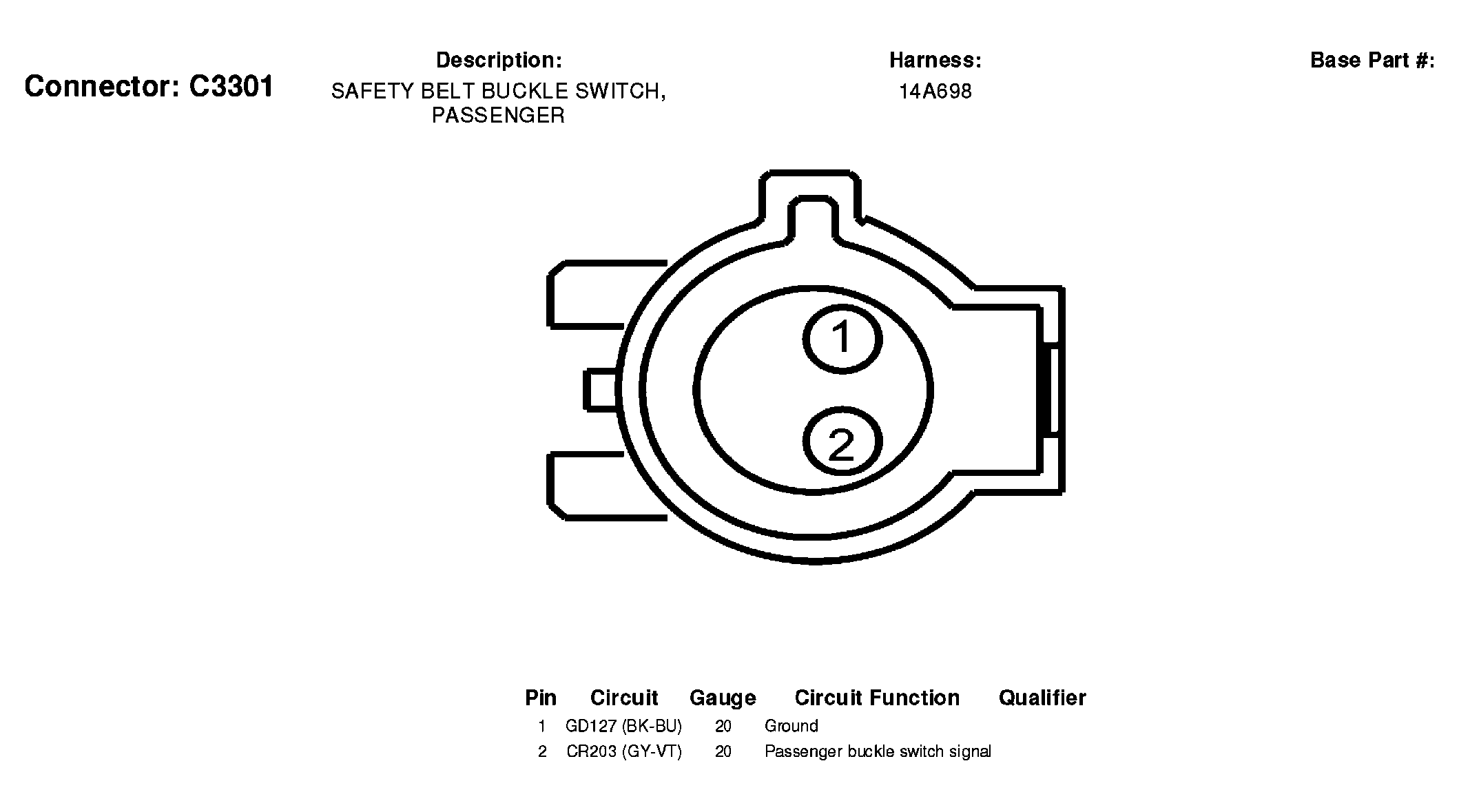

Fig 314: Safety Belt Buckle Switch, Passenger Connector End View (C3301)
Courtesy of FORD MOTOR CO.

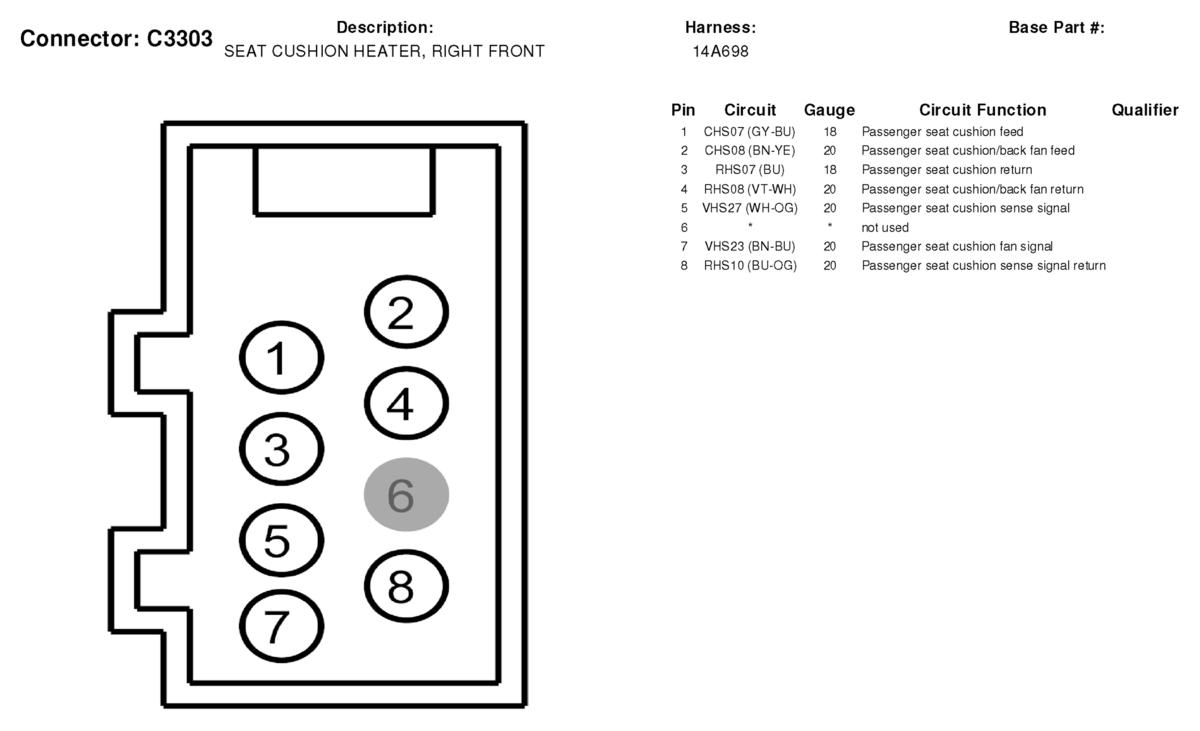

Fig 315: Seat Cushion Heater, Right Front Connector End View (C3303)
Courtesy of FORD MOTOR CO.

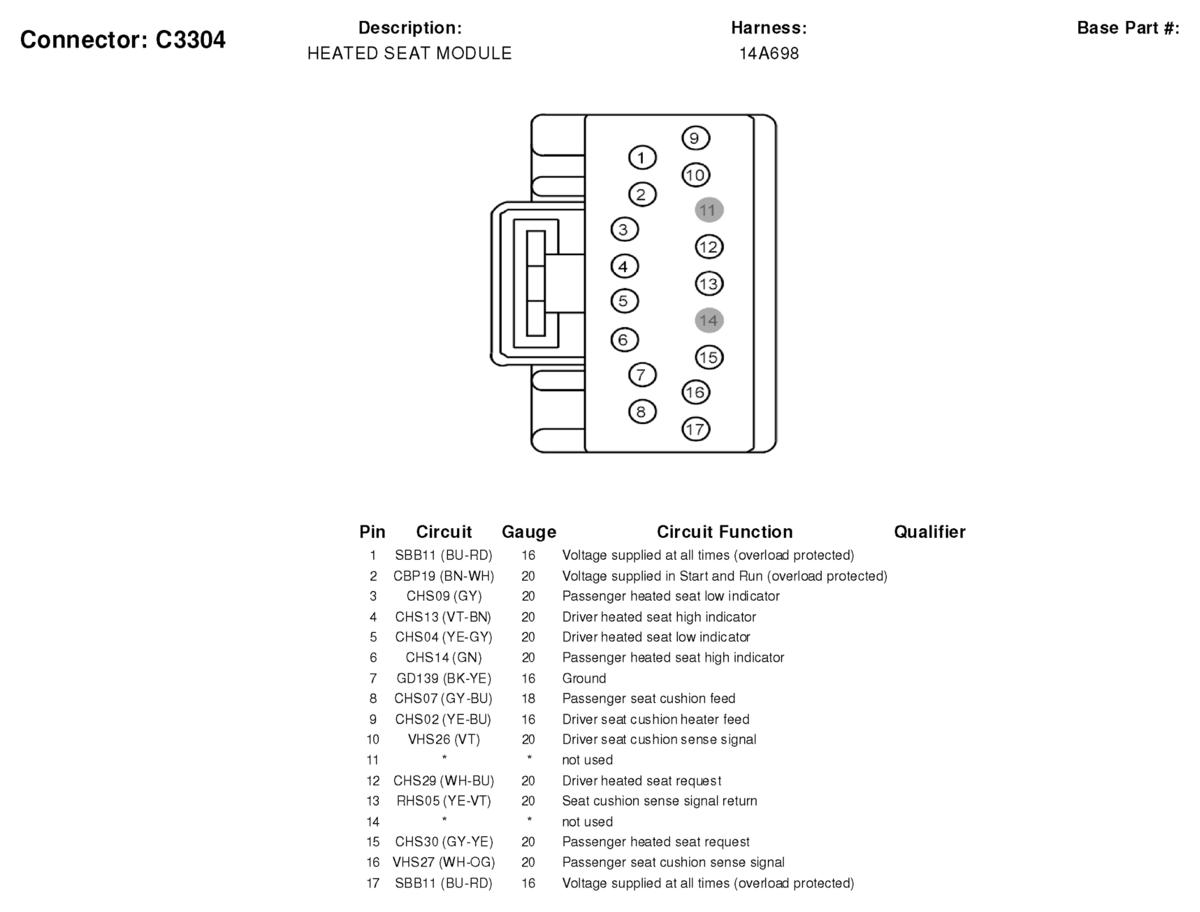

Fig 316: Heated Seat Module Connector End View (C3304)
Courtesy of FORD MOTOR CO.

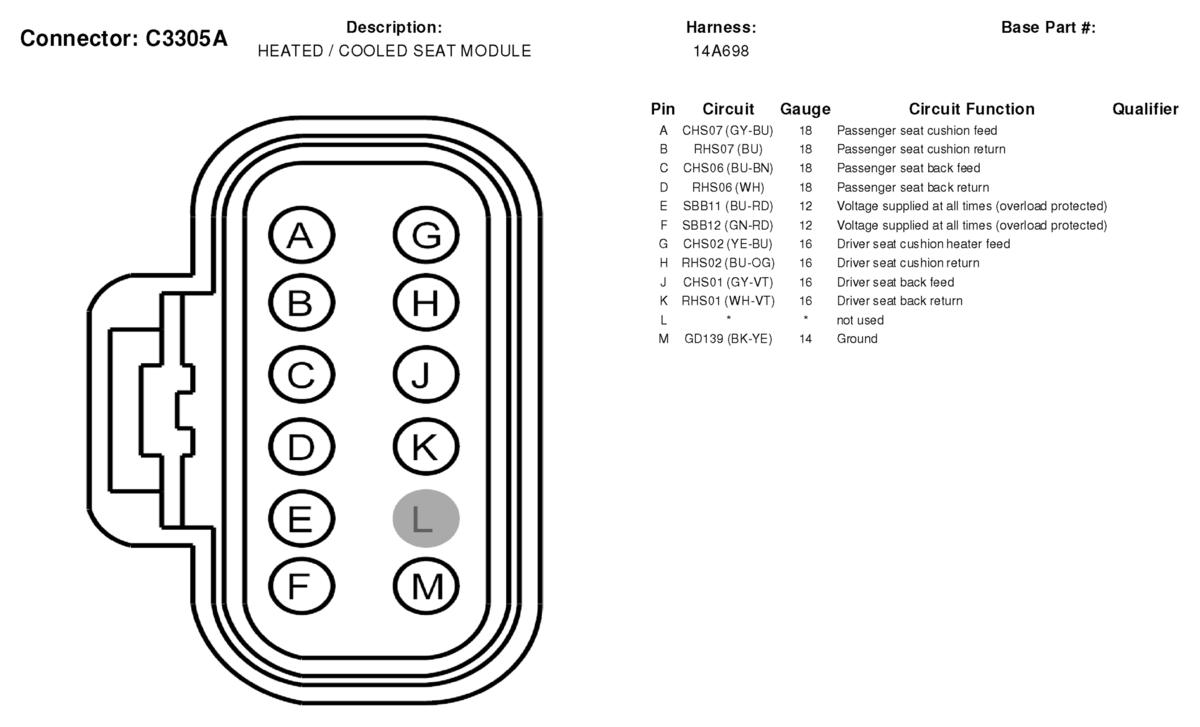

Fig 317: Heated / Cooled Seat Module Connector End View (C3305A)
Courtesy of FORD MOTOR CO.

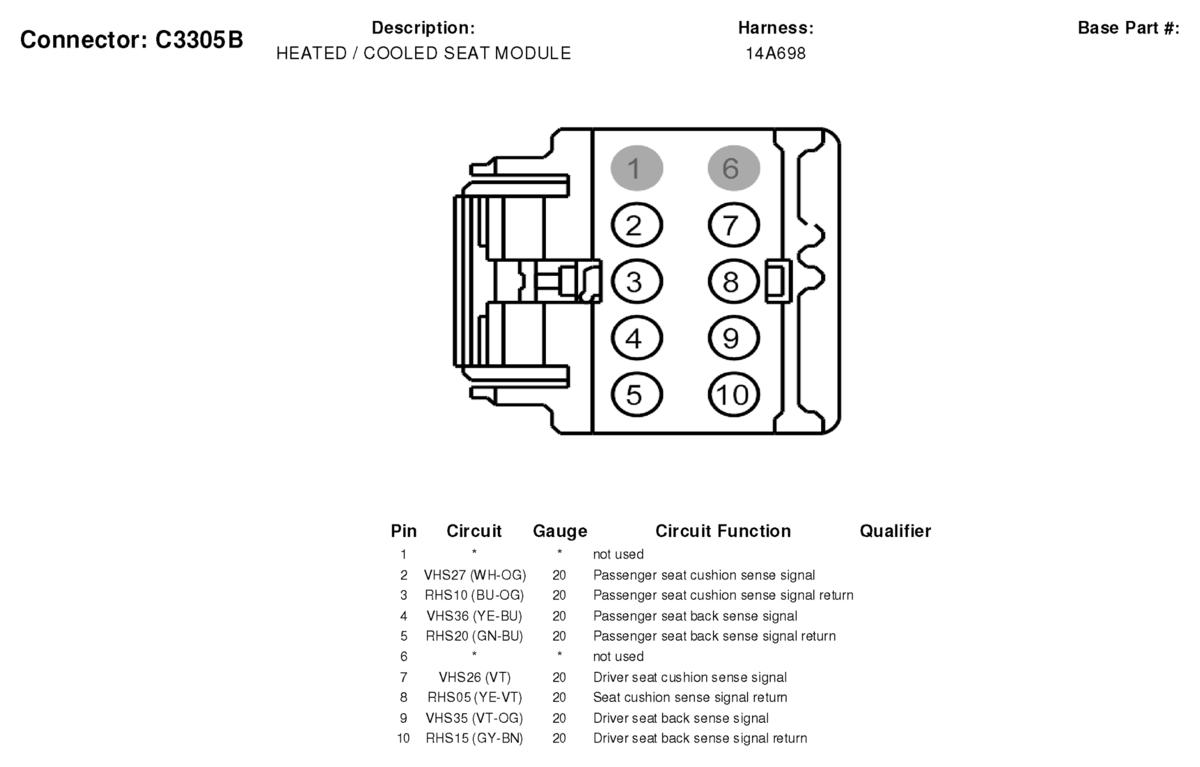

Fig 318: Heated / Cooled Seat Module Connector End View (C3350B)
Courtesy of FORD MOTOR CO.

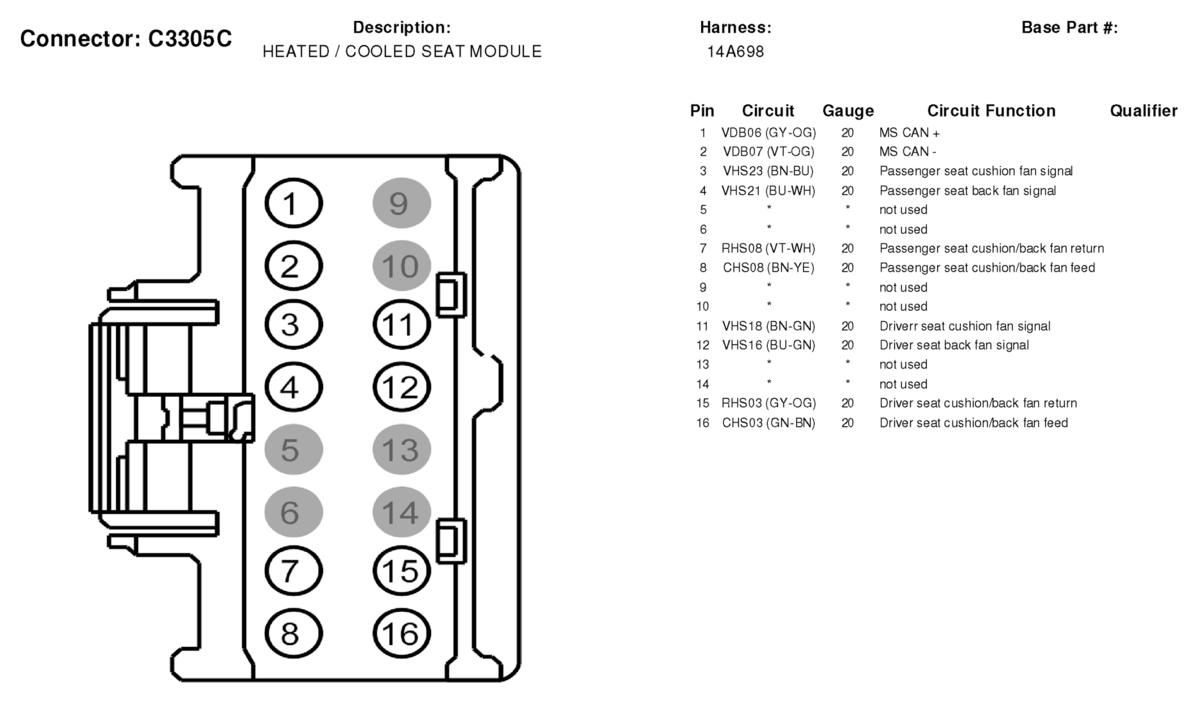

Fig 319: Heated / Cooled Seat Module Connector End View (C3305C)
Courtesy of FORD MOTOR CO.

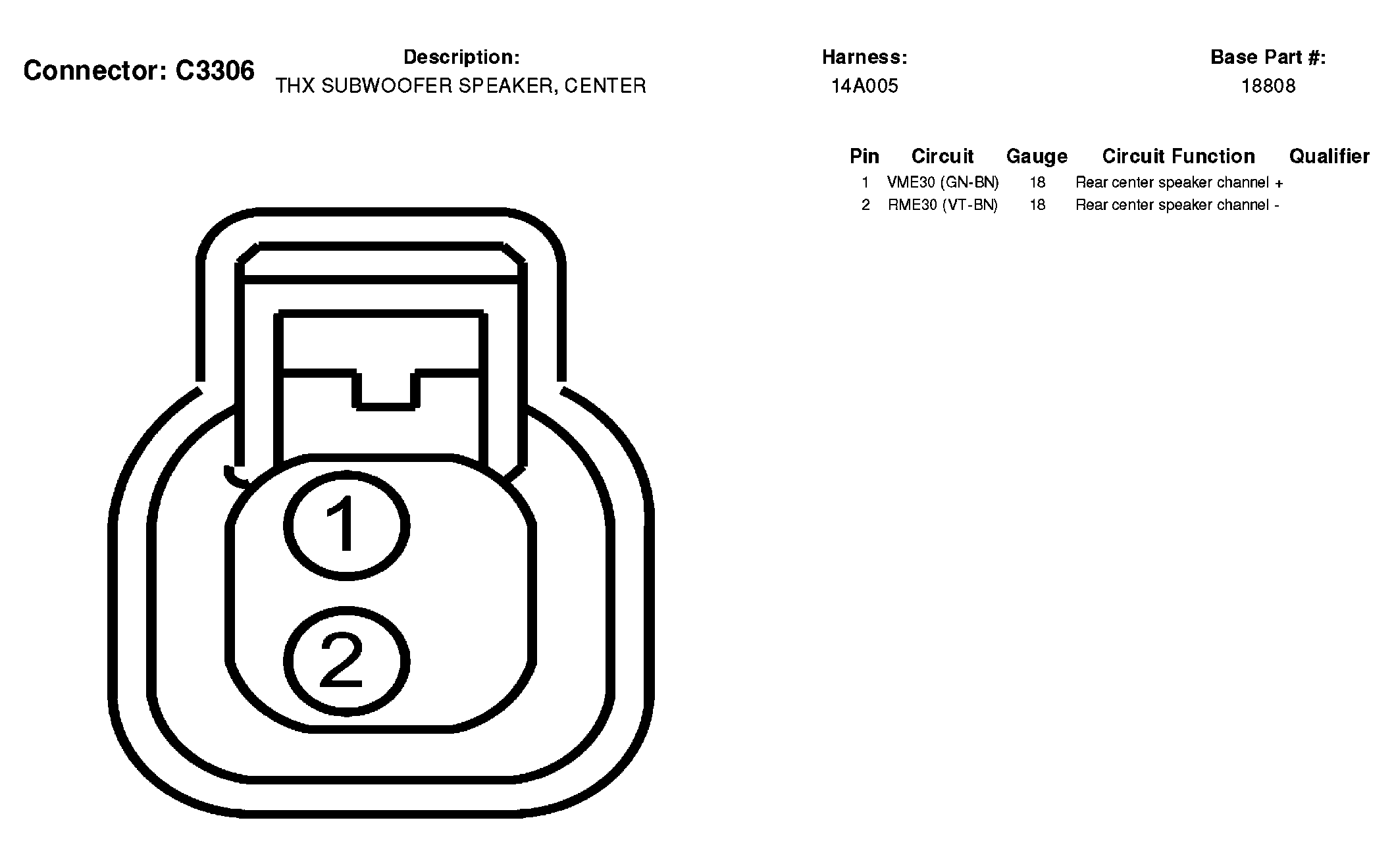

Fig 320: THX Subwoofer Speaker, Center Connector End View (C3306)
Courtesy of FORD MOTOR CO.

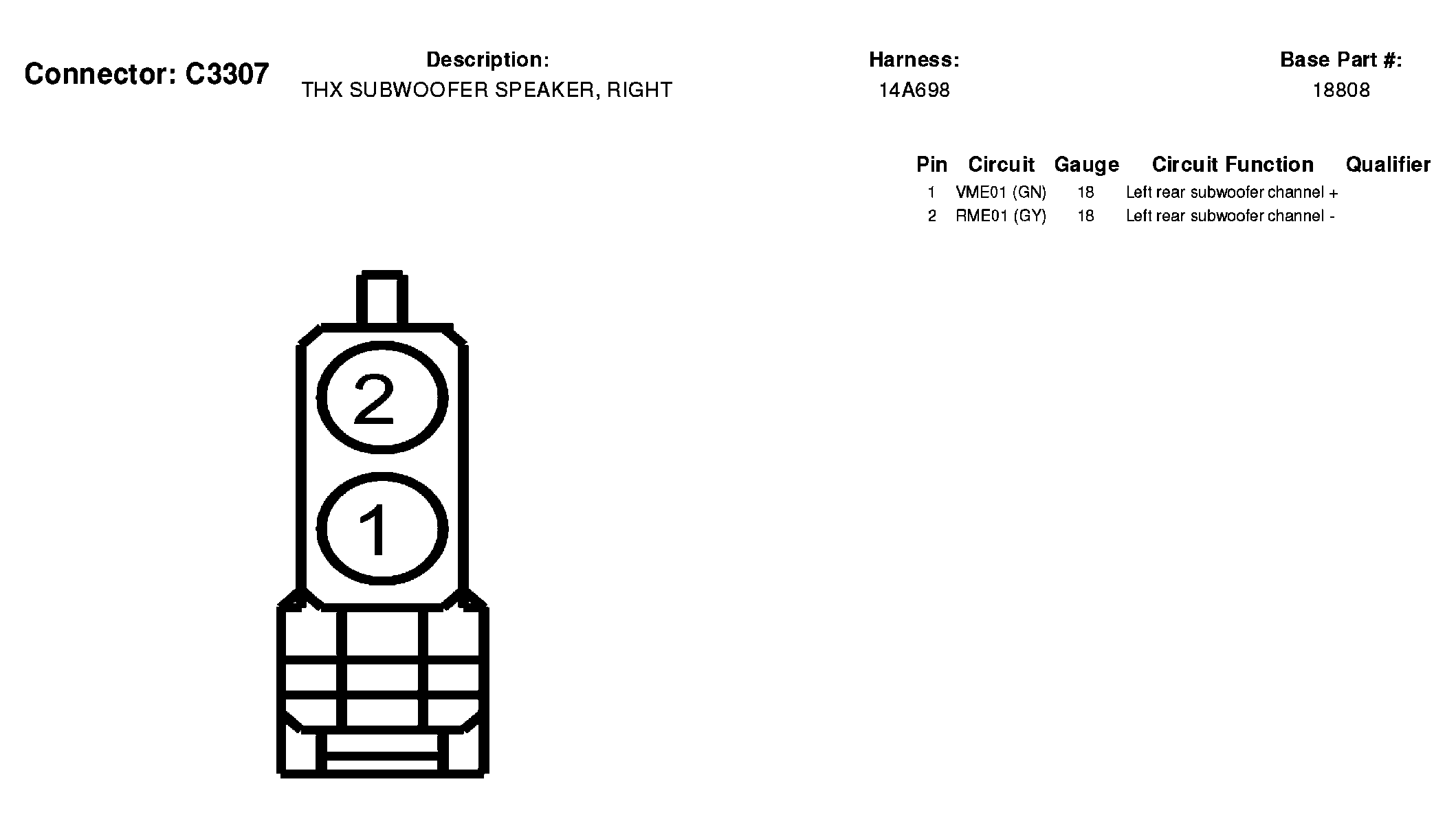

Fig 321: THX Subwoofer Speaker, Right Connector End View (C3307)
Courtesy of FORD MOTOR CO.

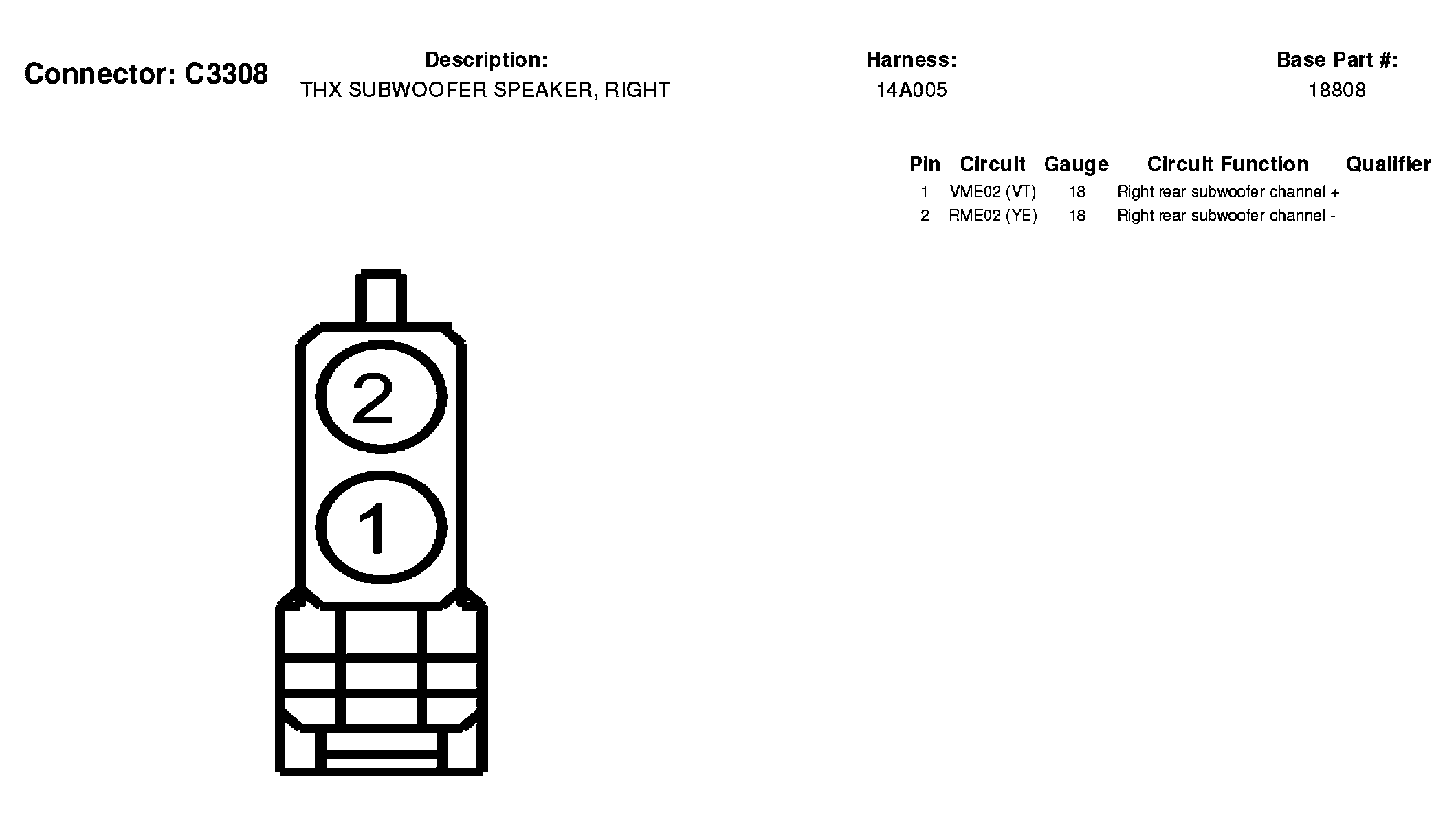

Fig 322: THX Subwoofer Speaker, Right Connector End View (C3308)
Courtesy of FORD MOTOR CO.

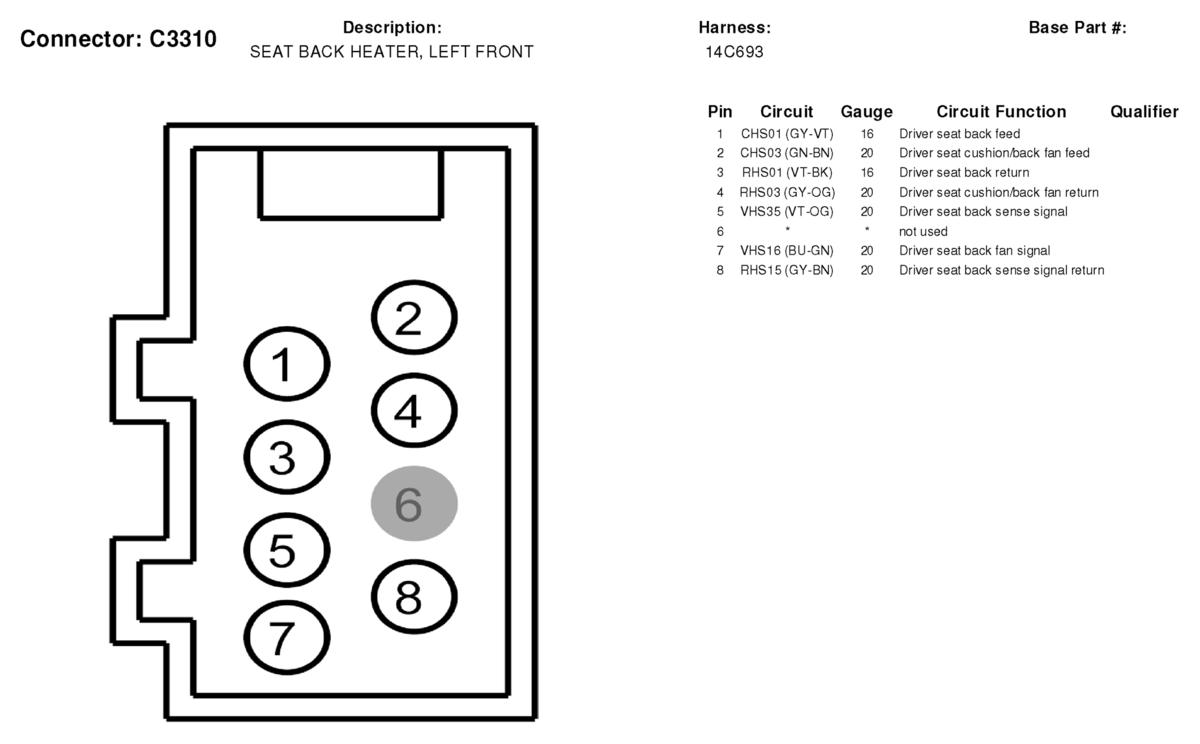

Fig 323: Seat Back Heater, Left Front Connector End View (C3310)
Courtesy of FORD MOTOR CO.

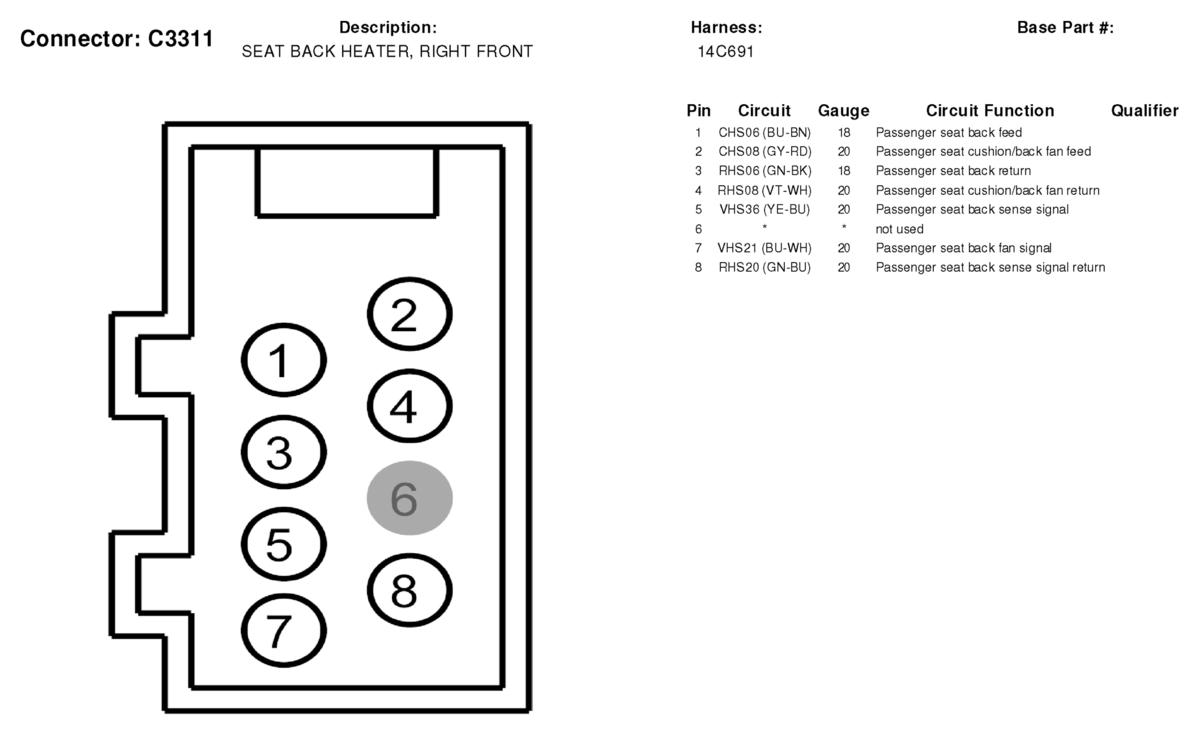

Fig 324: Seat Back Heater, Right Front Connector End View (C3311)
Courtesy of FORD MOTOR CO.
Fig 325: Seat Cushion Heater, Right Front Connector End View (C3320)
Courtesy of FORD MOTOR CO.

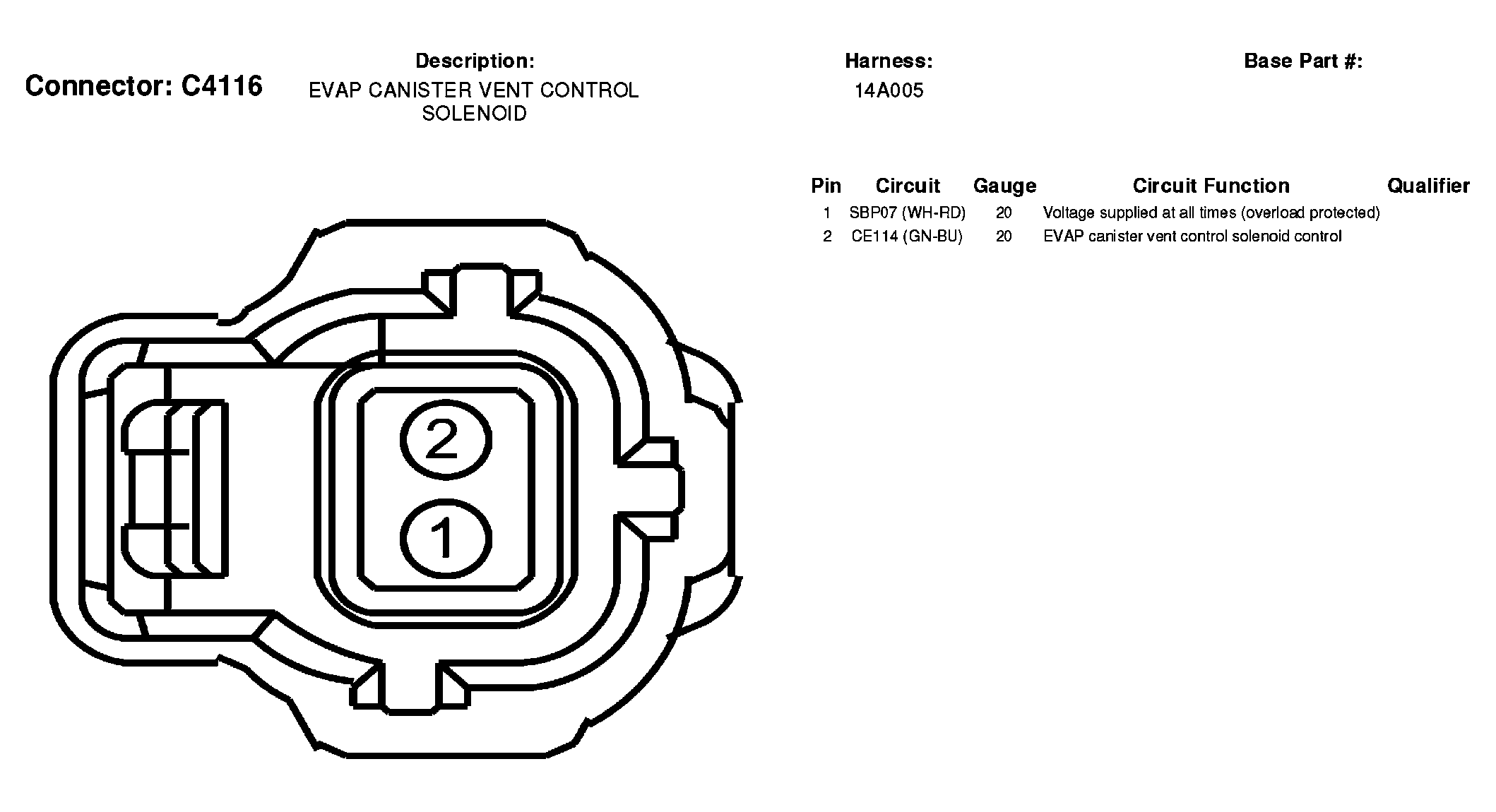

Fig 326: EVAP Canister Vent Control Solenoid Connector End View (C4116)
Courtesy of FORD MOTOR CO.

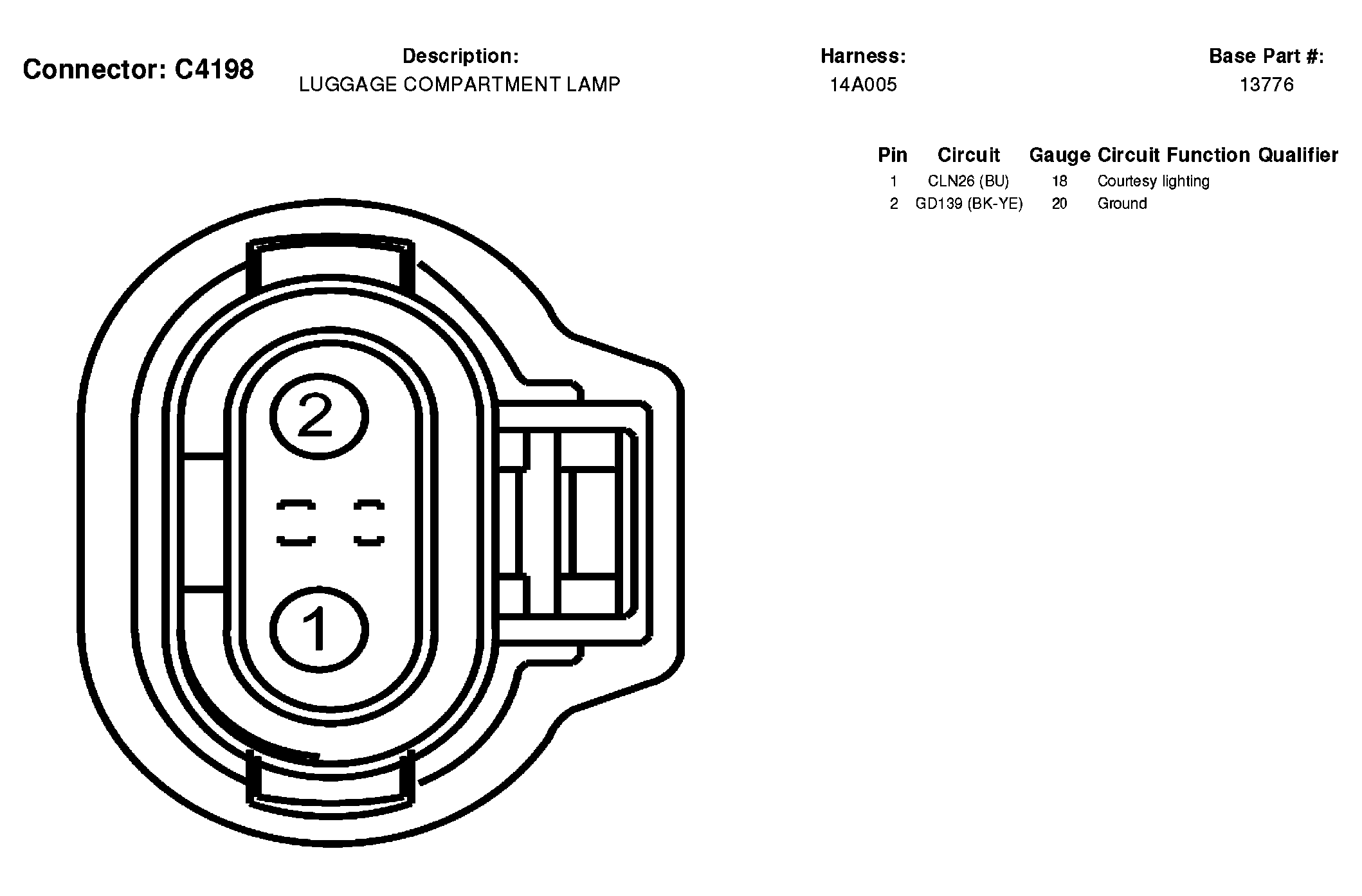

Fig 327: Luggage Compartment Lamp Connector End View (C4198)
Courtesy of FORD MOTOR CO.

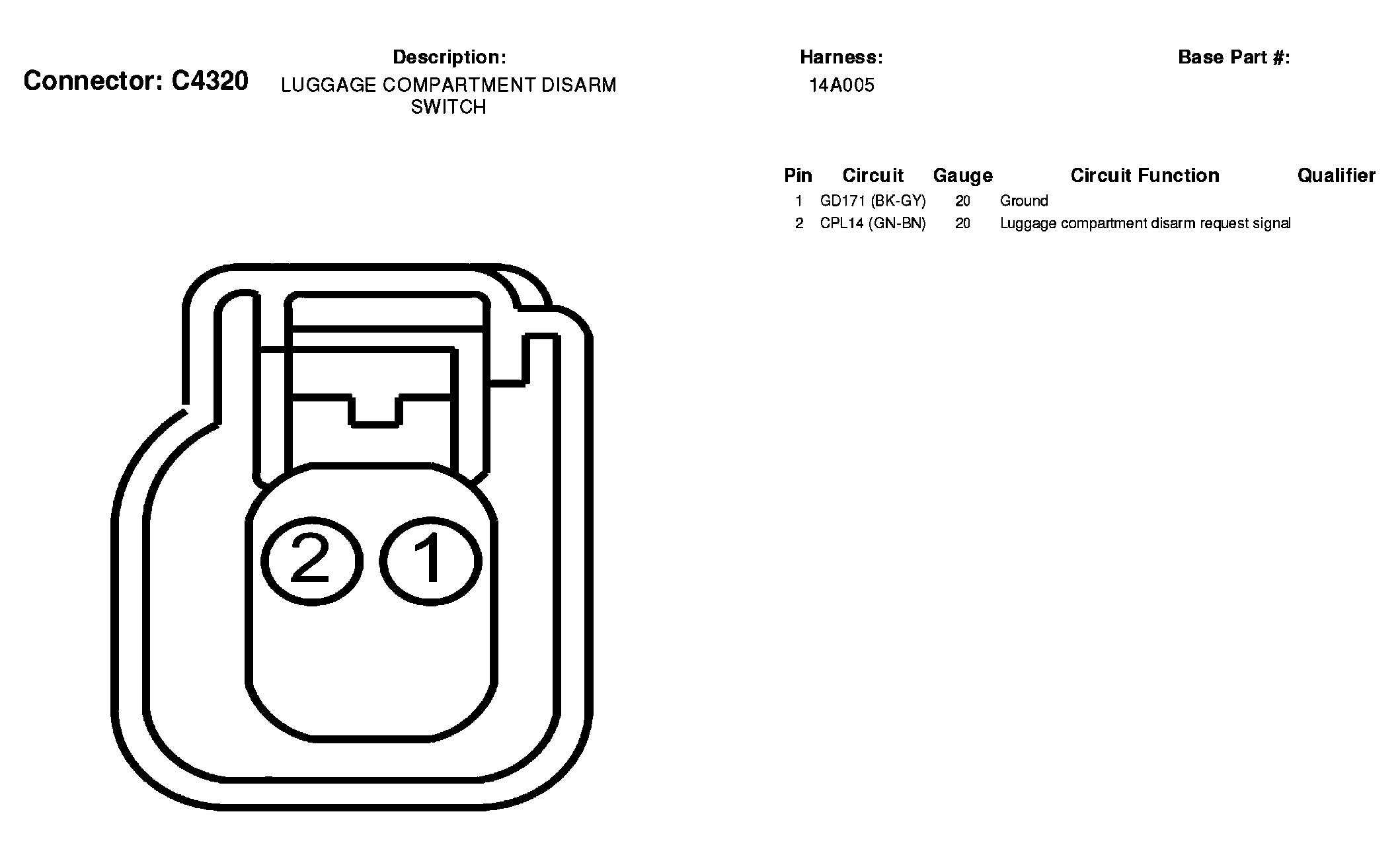

Fig 328: Luggage Compartment Disarm Switch Connector End View (C4320)
Courtesy of FORD MOTOR CO.

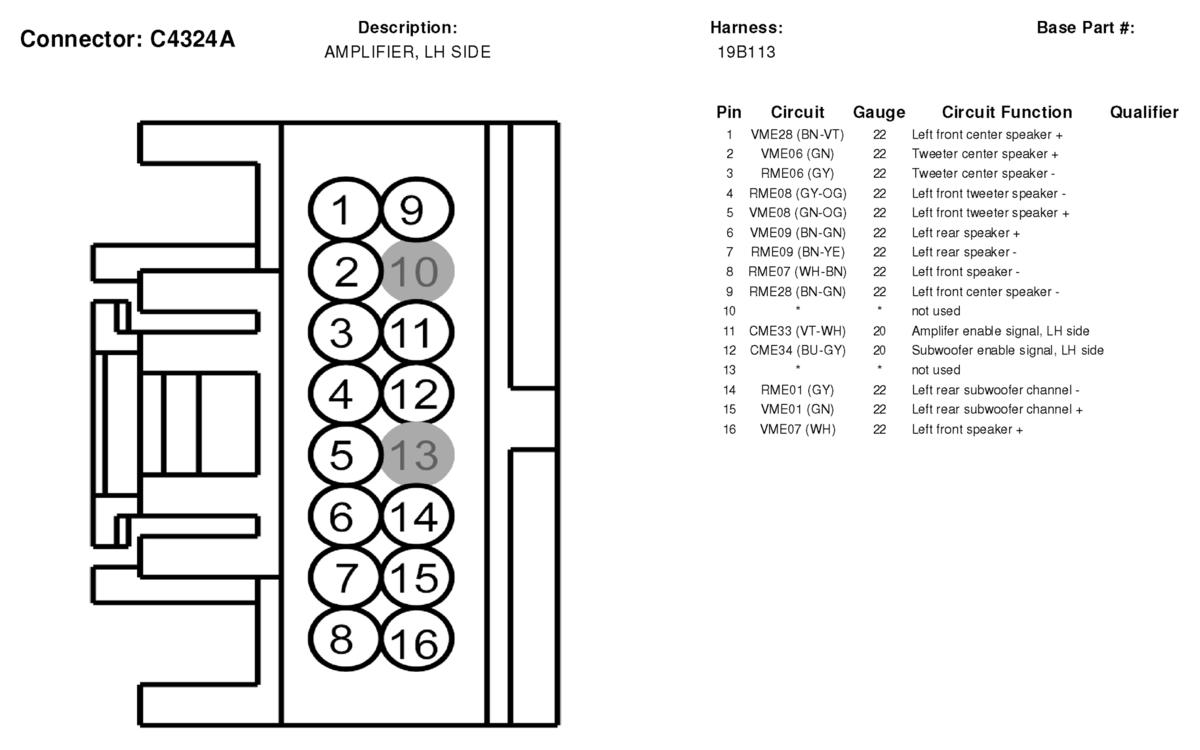

Fig 329: Amplifier, LH Side Connector End View (C4324A)
Courtesy of FORD MOTOR CO.

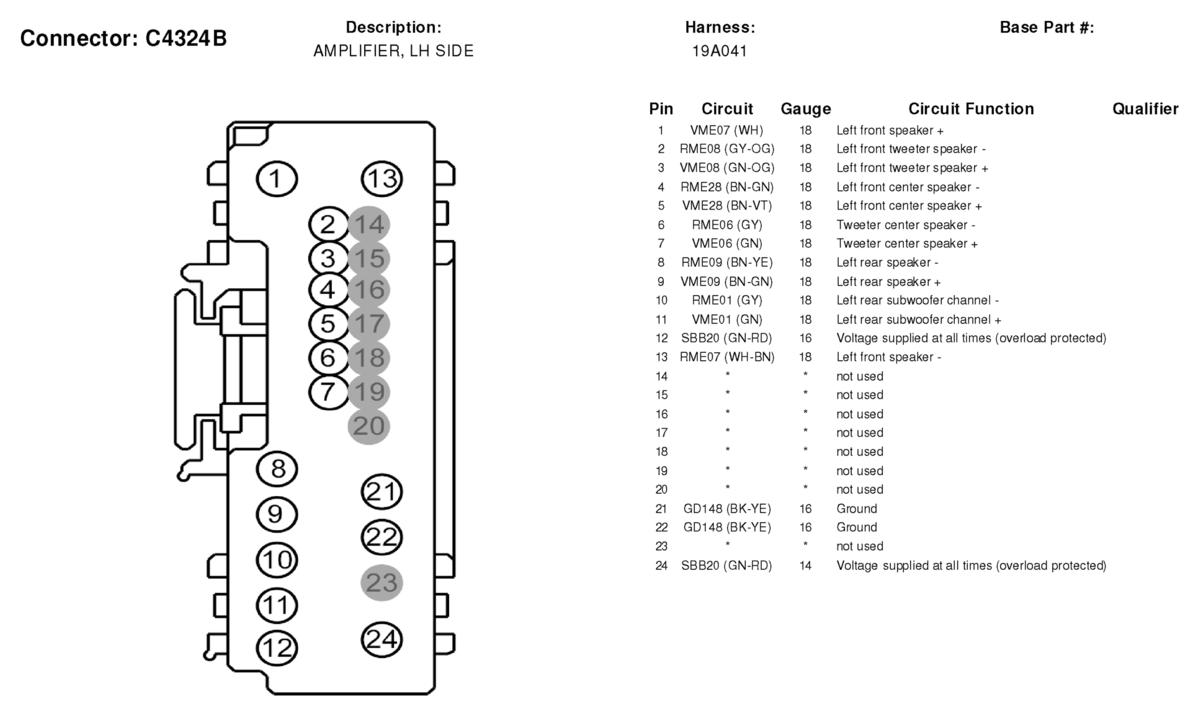

Fig 330: Amplifier, LH Side Connector End View (C4324B)
Courtesy of FORD MOTOR CO.

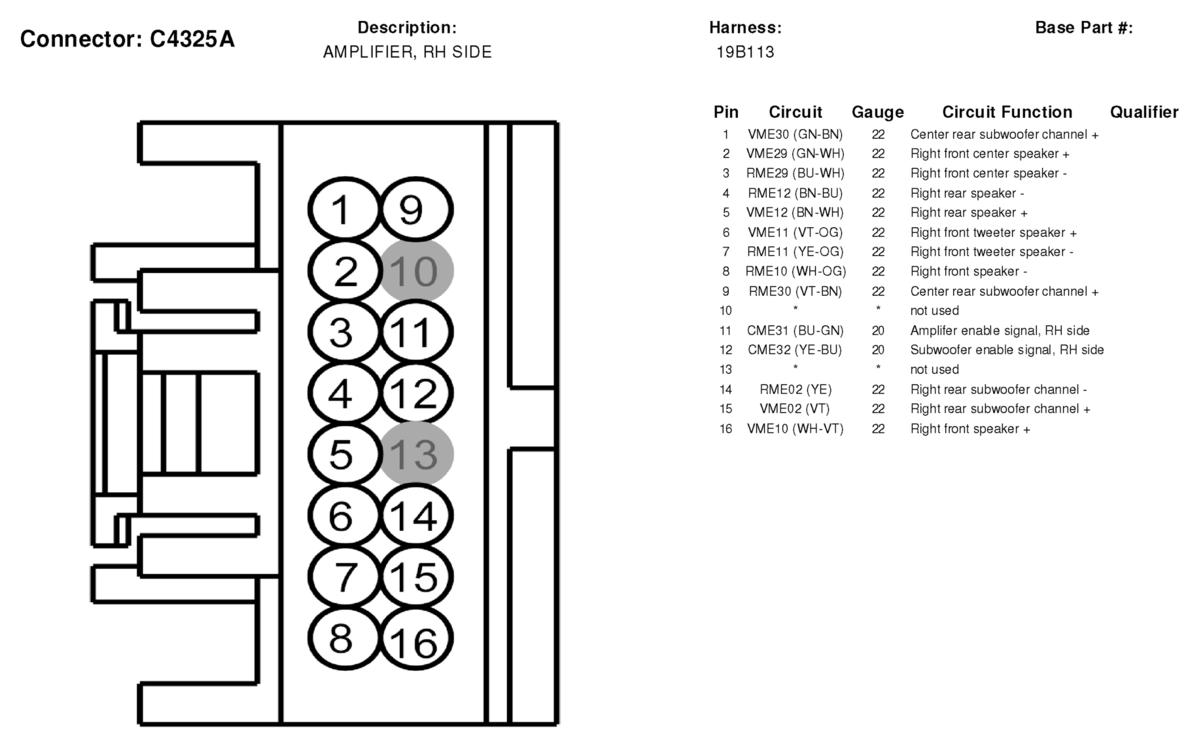

Fig 331: Amplifier, RH Side Connector End View (C4325A)
Courtesy of FORD MOTOR CO.

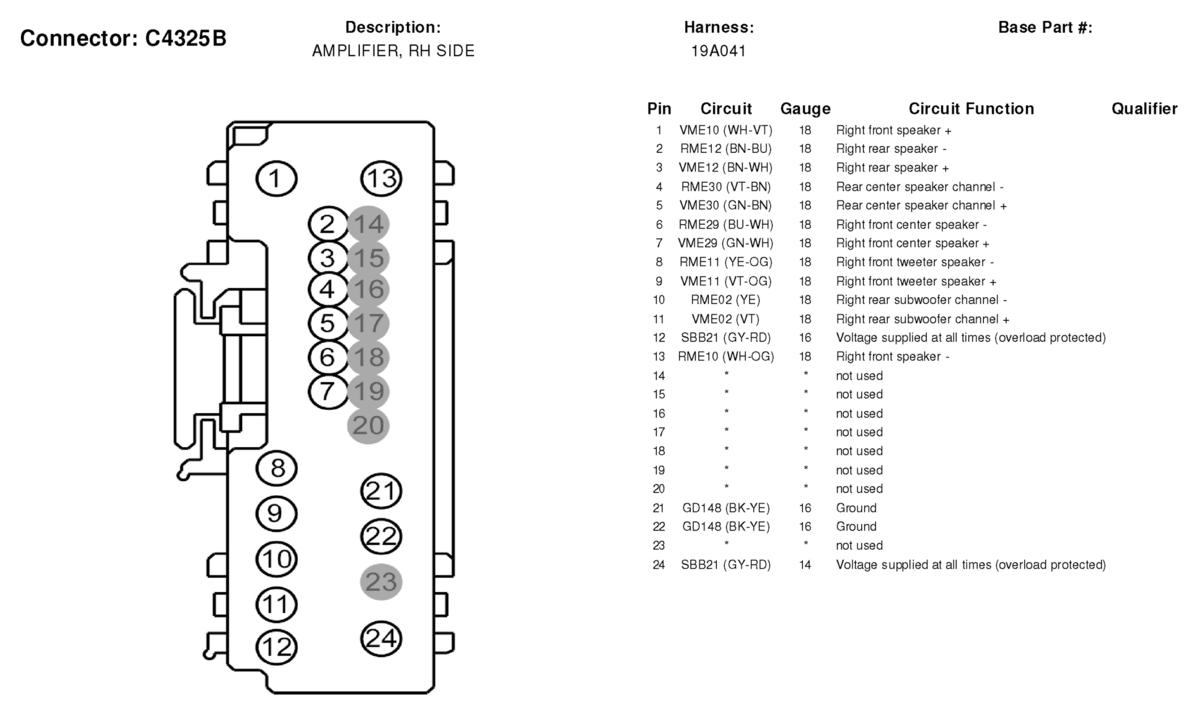

Fig 332: Amplifier, RH Side Connector End View (C4325B)
Courtesy of FORD MOTOR CO.

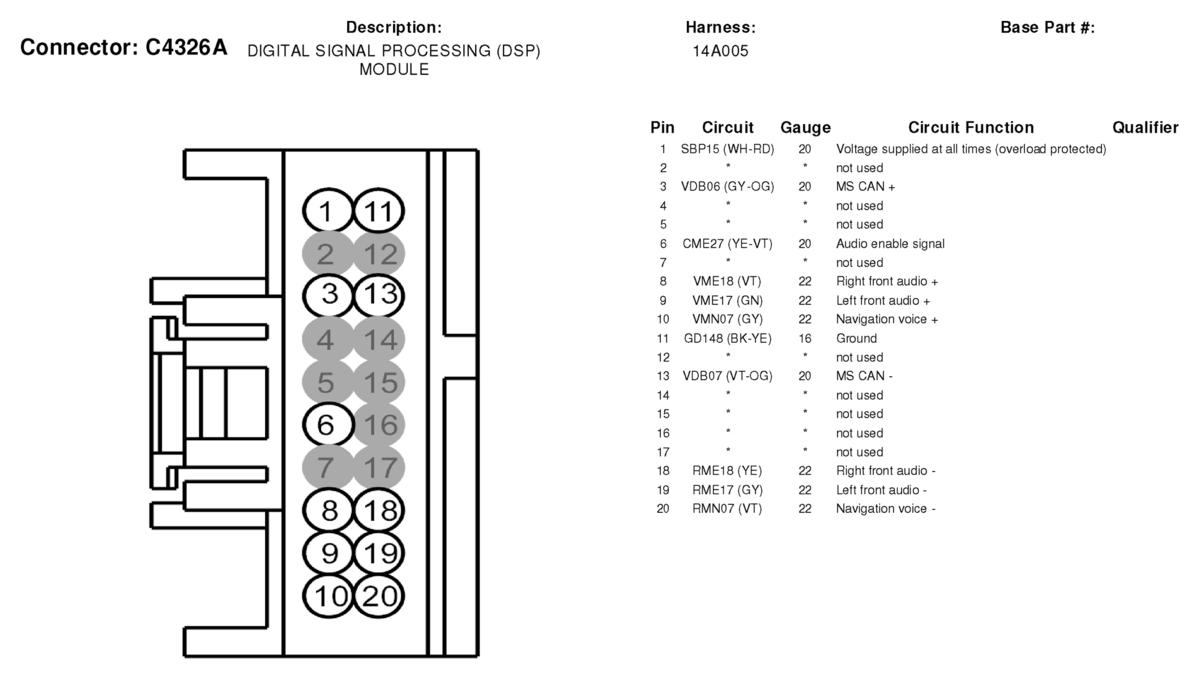

Fig 333: Digital Signal Processing (DSP) Module Connector End View (C4326A)
Courtesy of FORD MOTOR CO.

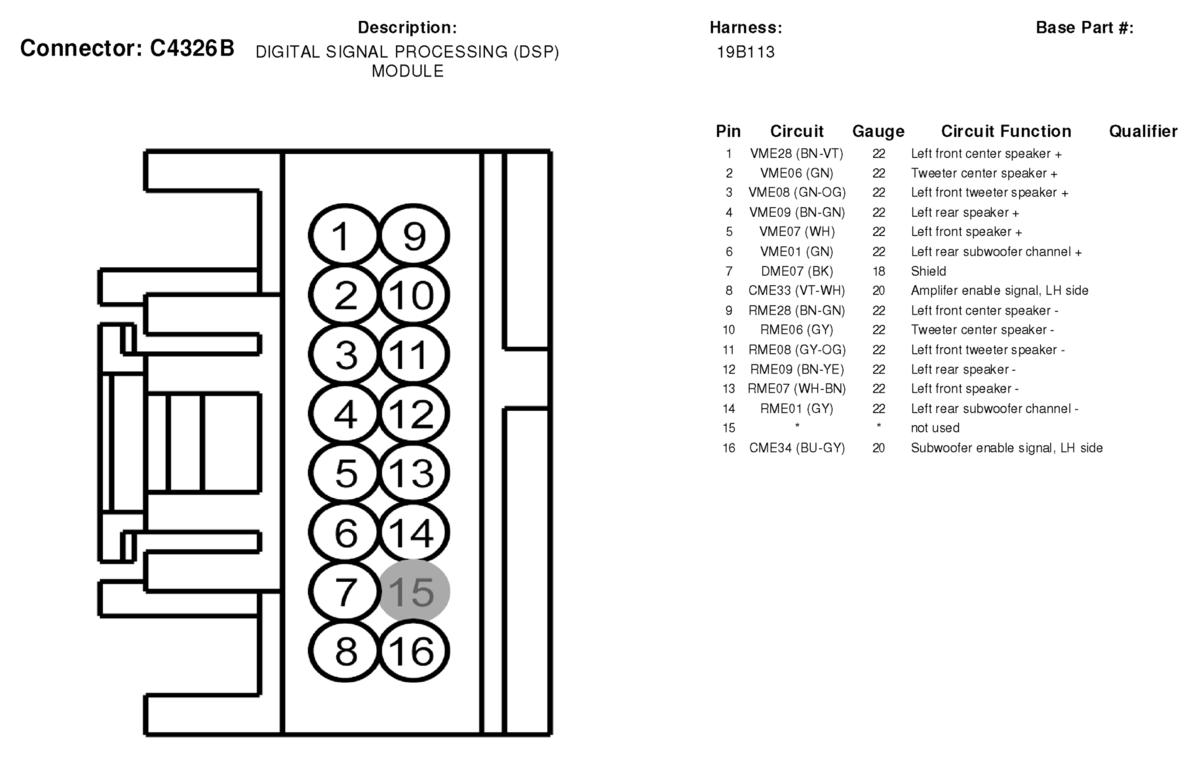

Fig 334: Digital Signal Processing (DSP) Module Connector End View (C4326B)
Courtesy of FORD MOTOR CO.

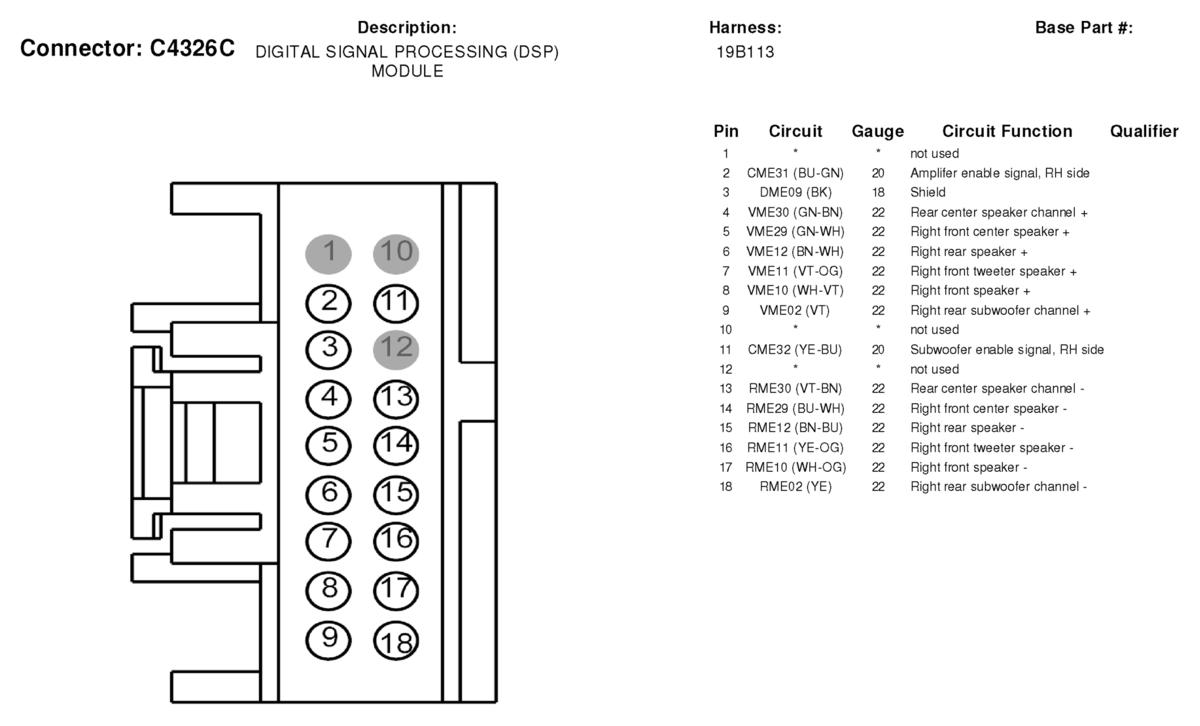

Fig 335: Digital Signal Processing (DSP) Module Connector End View (C4326C)
Courtesy of FORD MOTOR CO.
Fig 336: Side Lamp, Right Rear Connector End View (C4327)
Courtesy of FORD MOTOR CO.

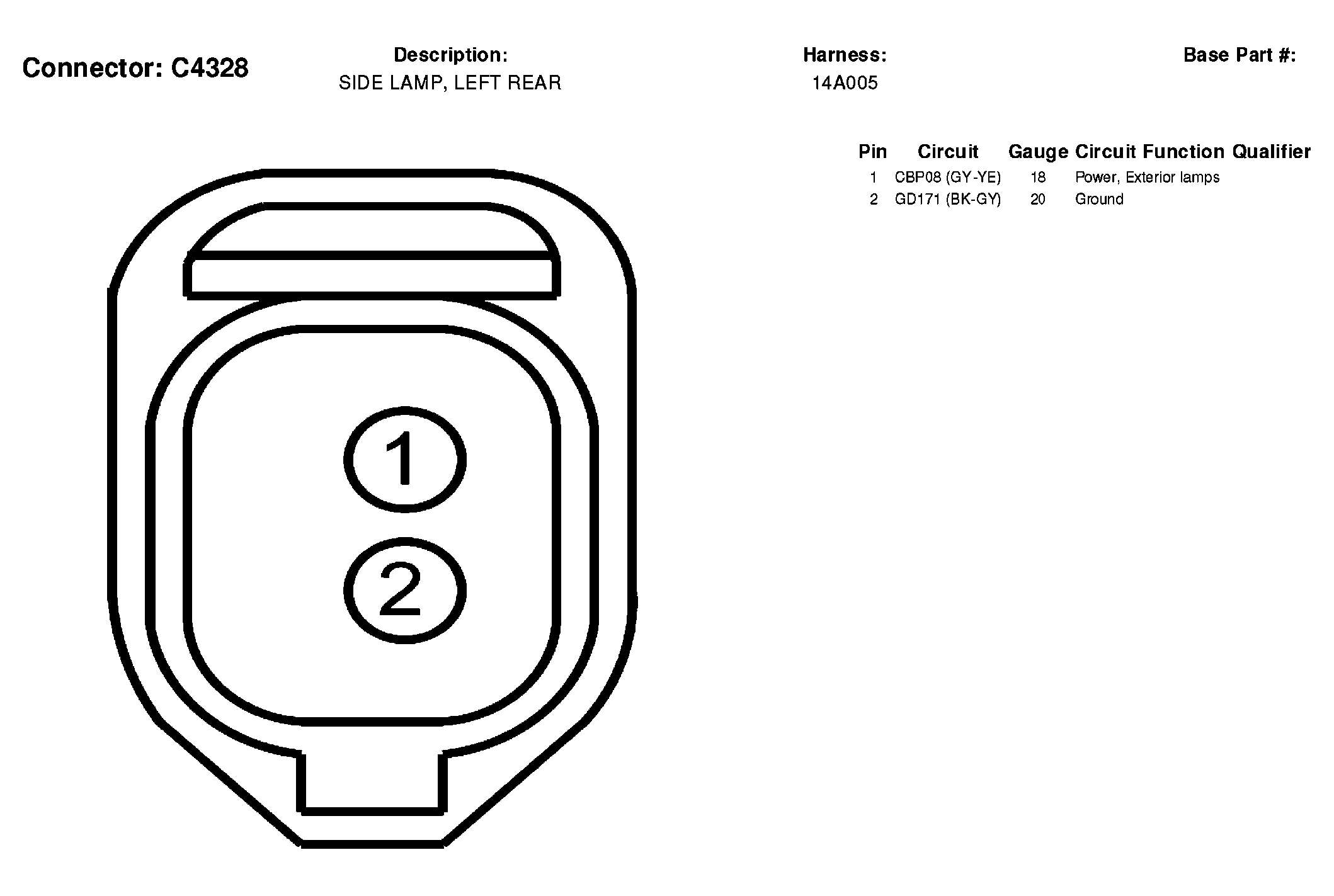

Fig 337: Side Lamp, Left Rear Connector End View (C4328) (1 Of 3)
Courtesy of FORD MOTOR CO.
