Safety Belt Retractor - Rear, Center: Notes

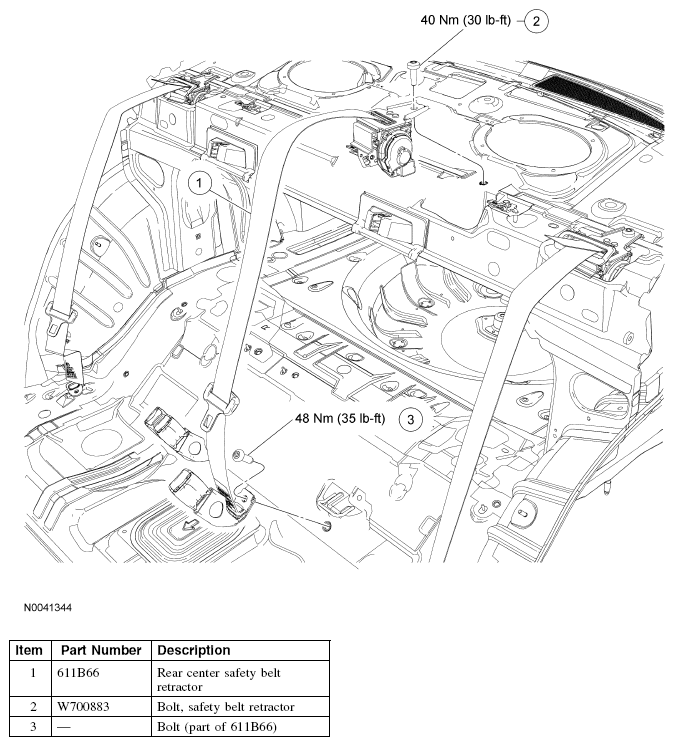

Fig 1: Safety Belt Retractor -- Rear, Center Replacement Components With Torque Specifications
G04683819Courtesy of FORD MOTOR CO.
