Safety Belt Retractor - Rear, Outboard: Notes

NOTE: LH shown, RH similar.

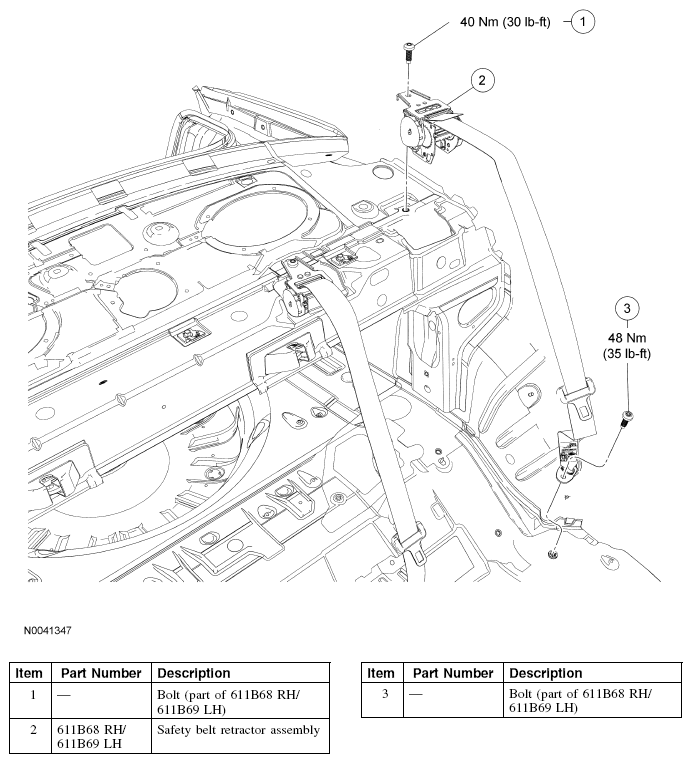

Fig 1: Safety Belt Retractor -- Rear, Outboard Replacement Components With Torque Specifications
G04683820Courtesy of FORD MOTOR CO.
