Home >> Lincoln >> 2007 >> MKX AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Module >> Passenger Side Front

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Passenger Side Front

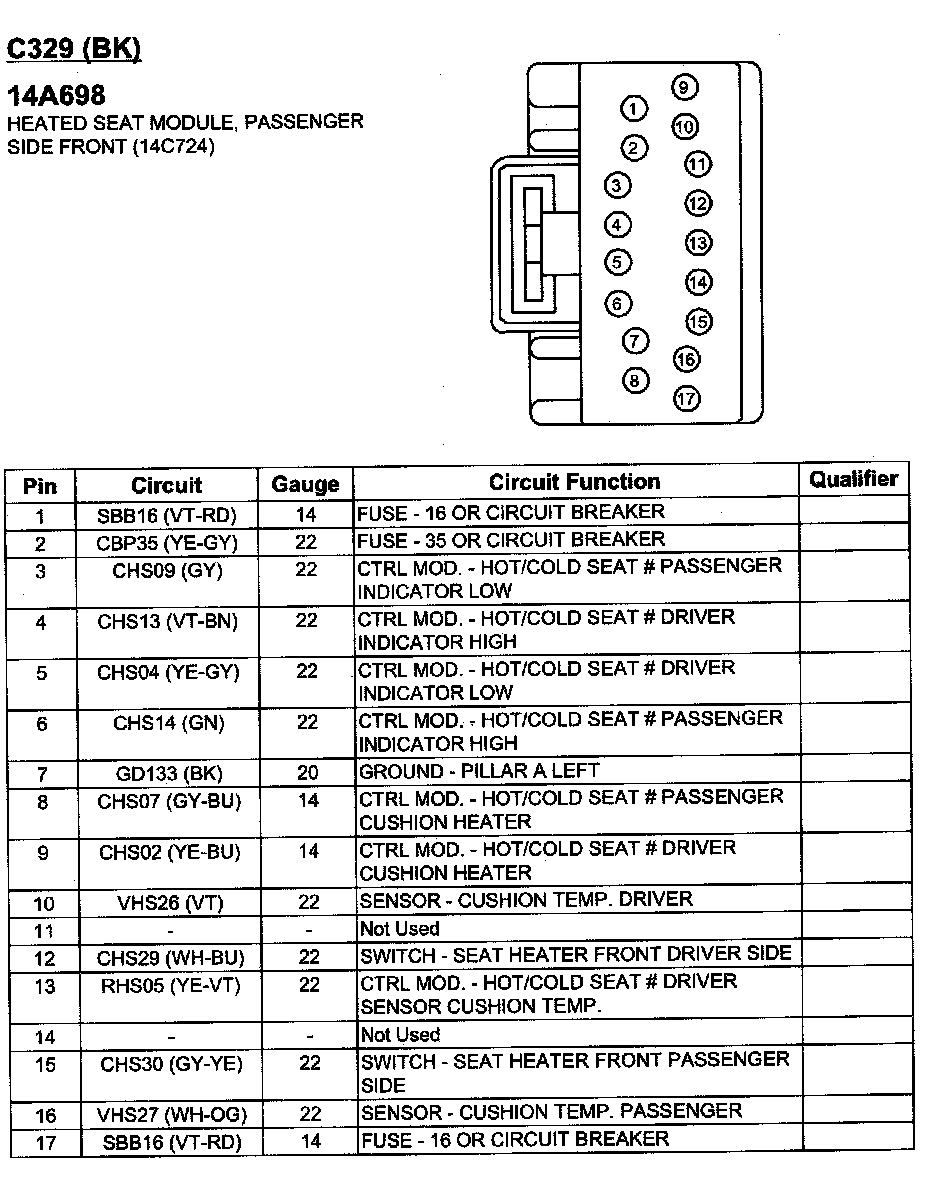

C329:
