Exhaust System
Exhaust System
- Exploded View

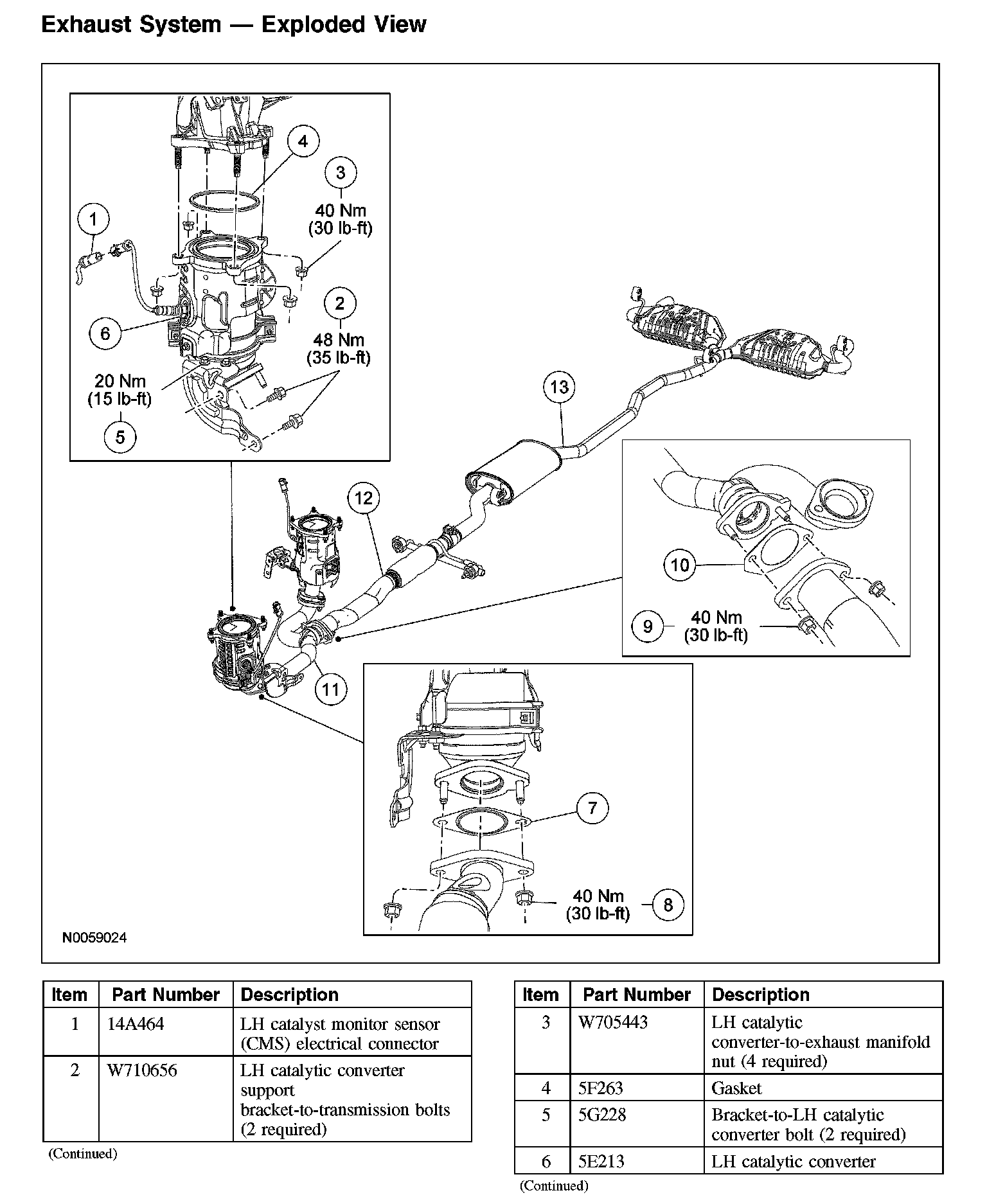

Exhaust System - Exploded View (Part 1):

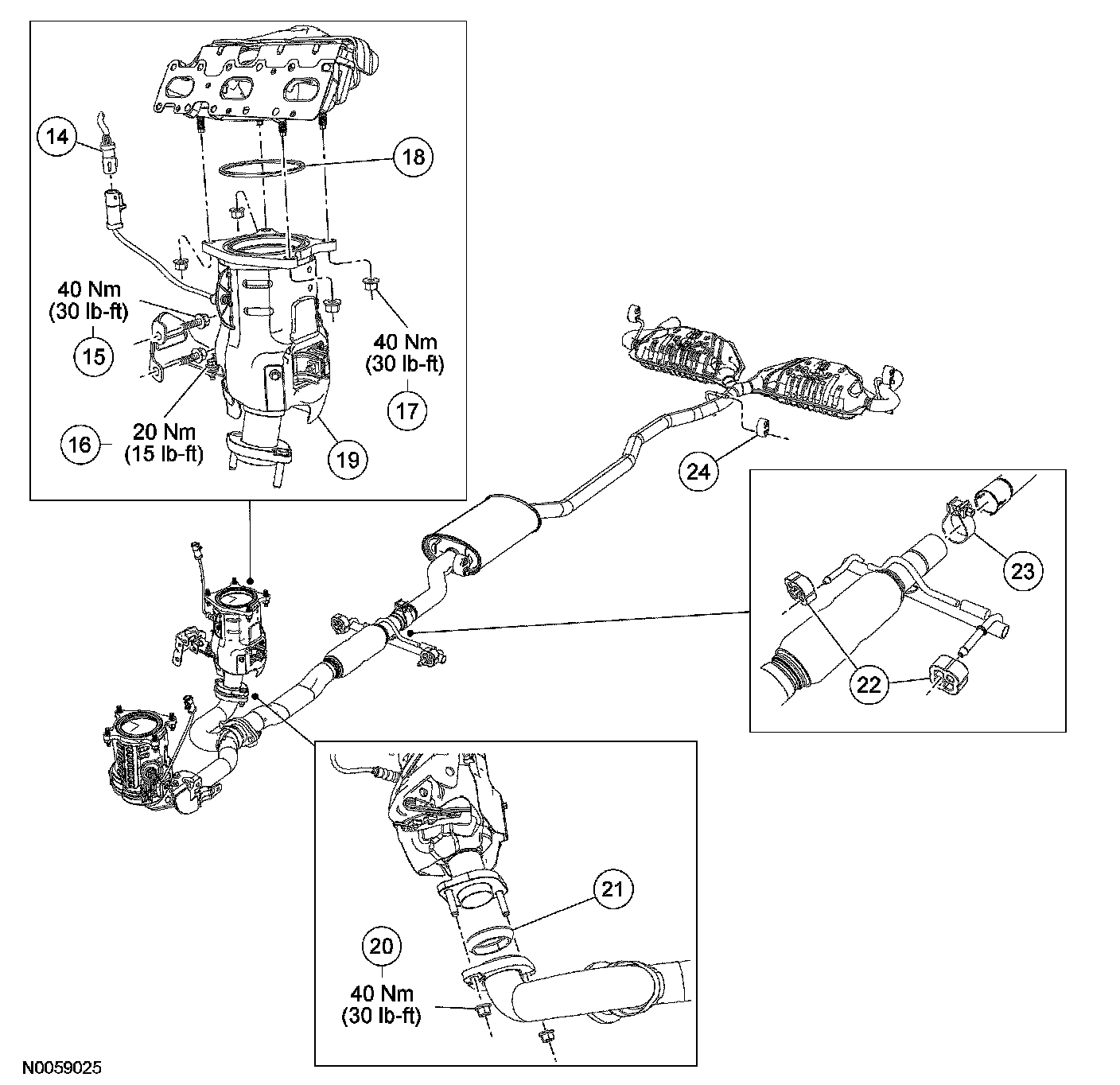

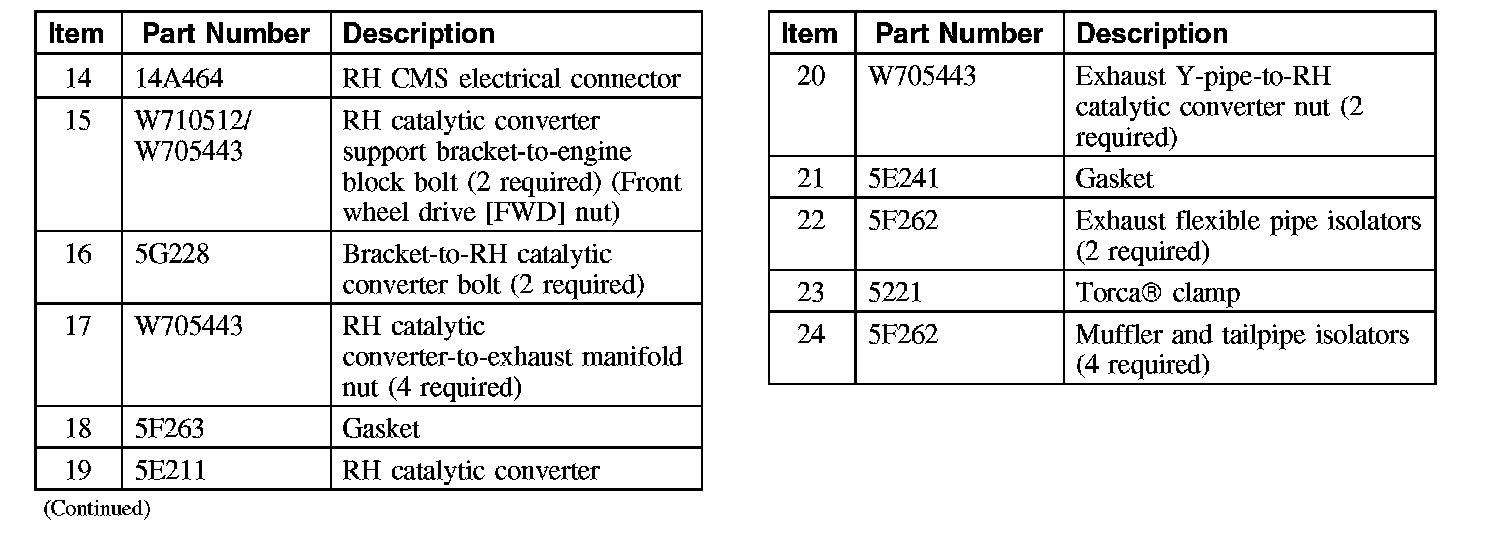

Exhaust System - Exploded View (Part 2):
Exhaust System - Exploded View (Part 3):
Exhaust System - Exploded View (Part 4):
