Trunk / Liftgate

LIFTGATE HANDLE, LOCK AND LATCH - EXPLODED VIEW

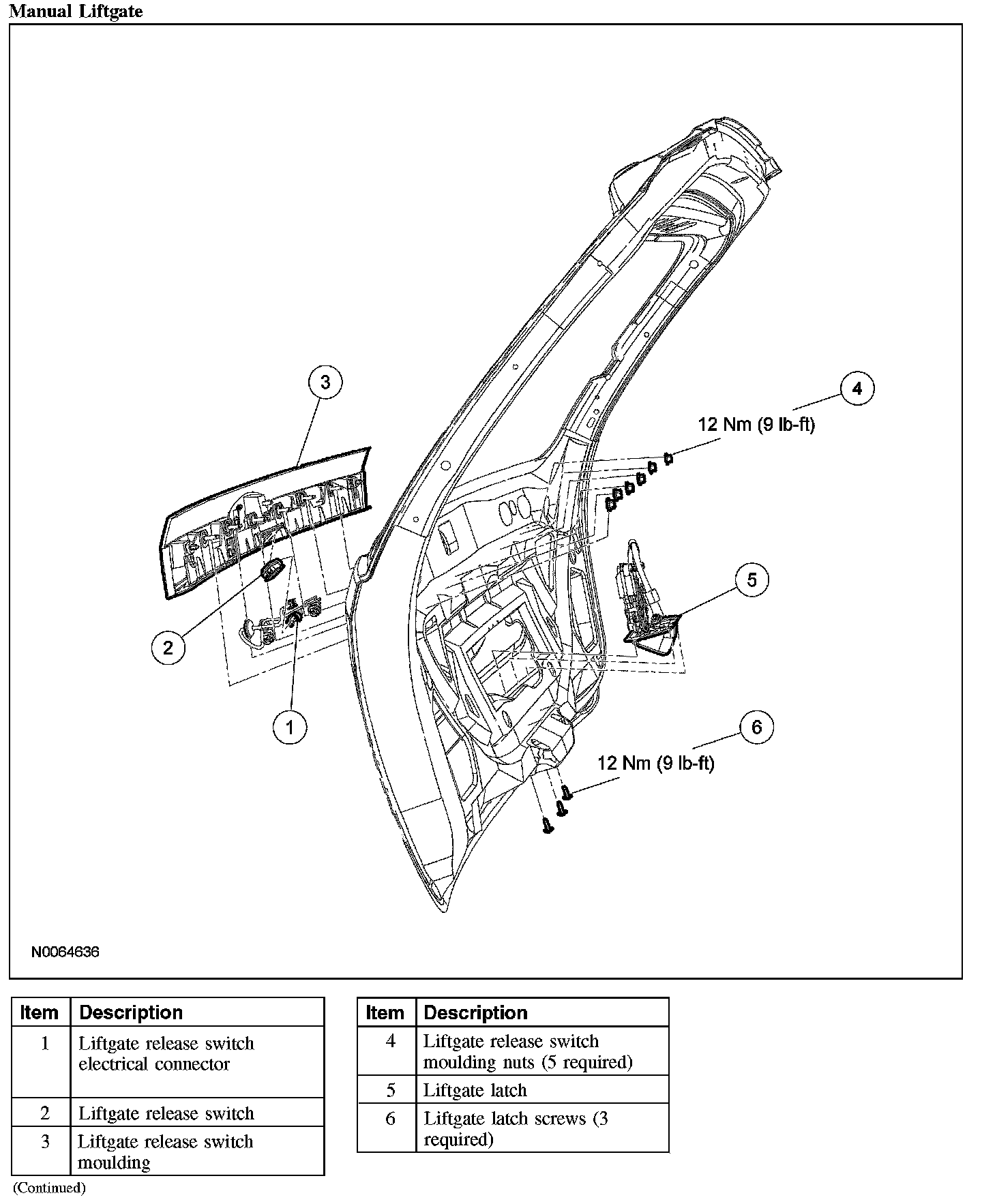

Manual Liftgate:

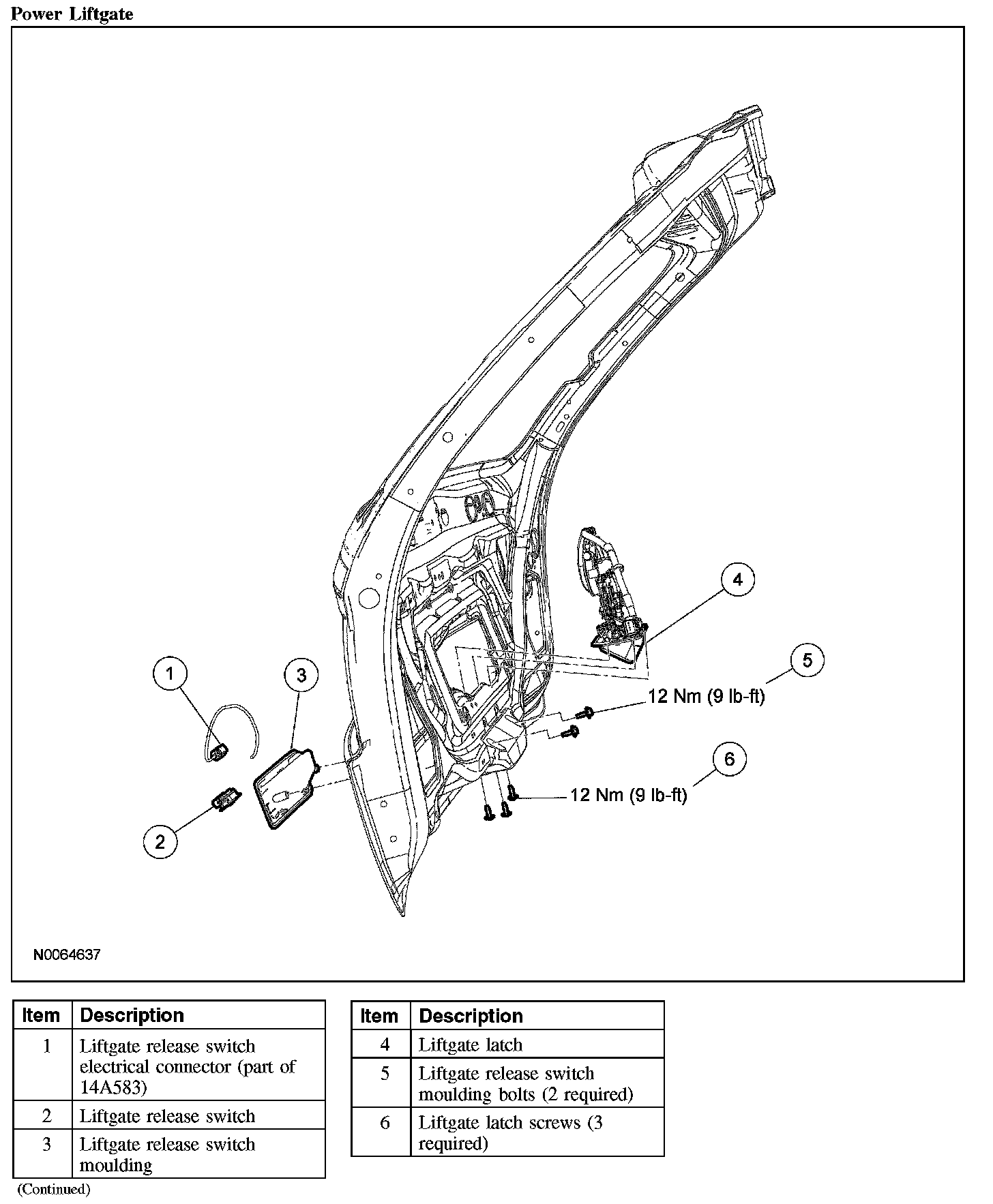

Power Liftgate:






Removal and Installation
1. For additional information, refer to the procedures.
