Flywheel

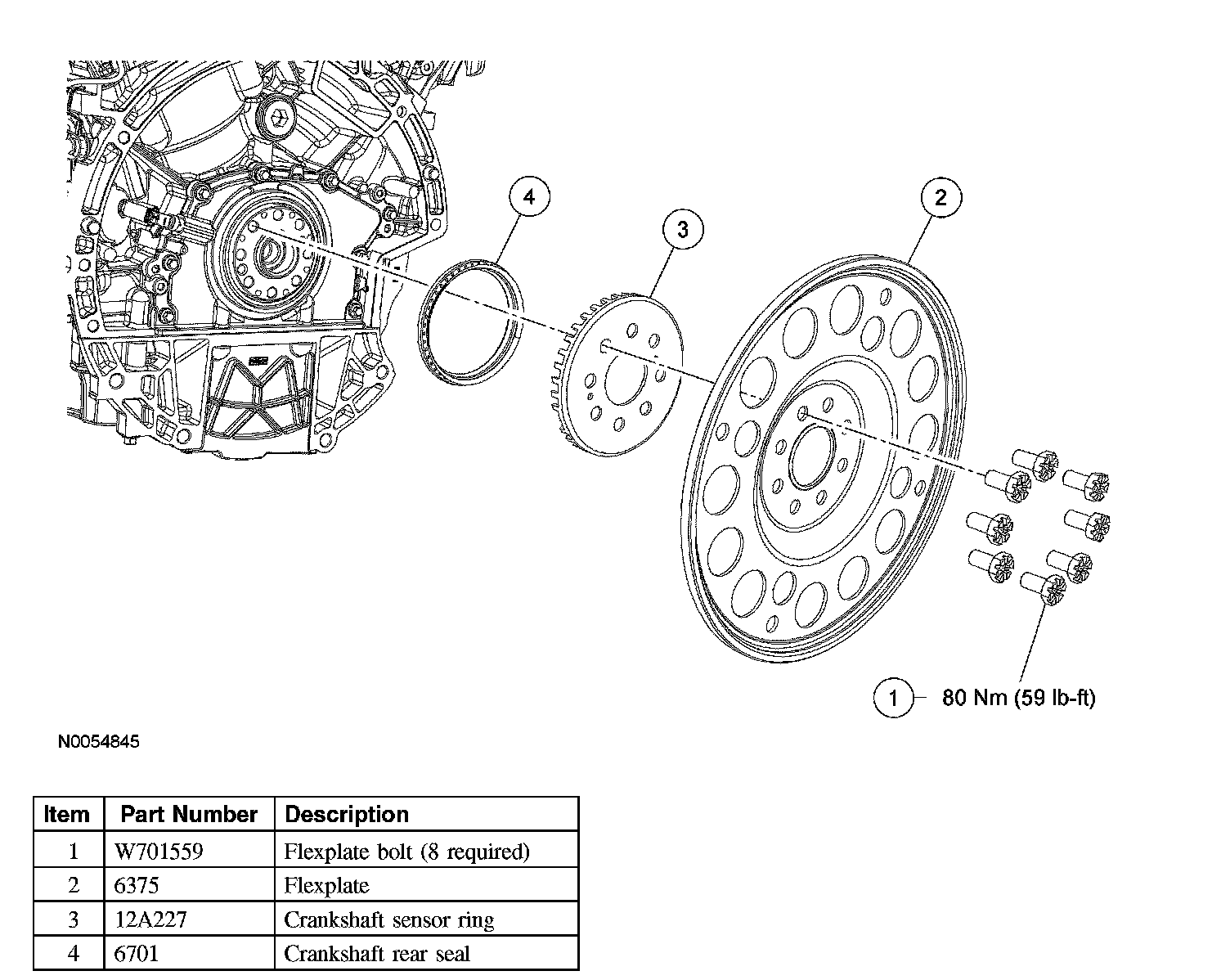

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal





1. For additional information, refer to the procedures.
