Mass Air Flow Sensor / Intake Air Temperature Sensor Connector

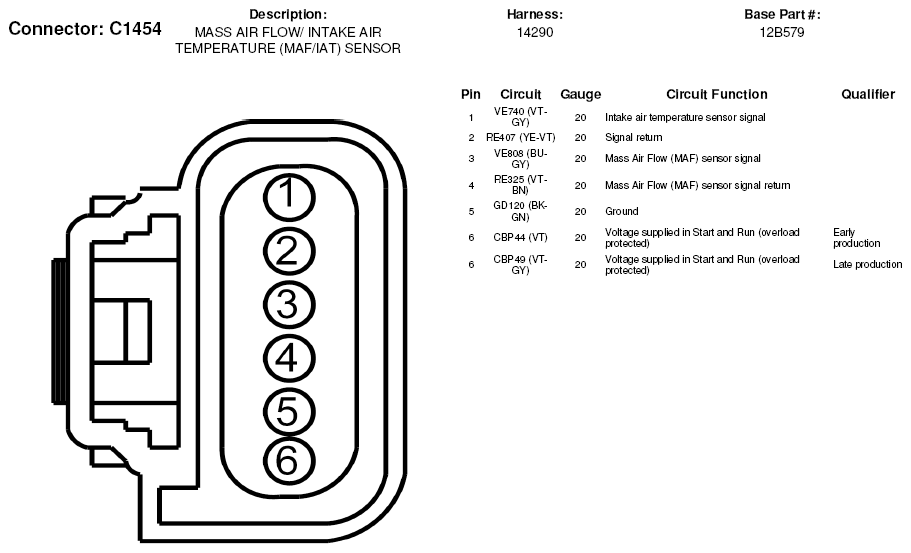

Fig 1: Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C1454)
G05180795Courtesy of FORD MOTOR CO.
