Transaxle Support Insulator: Notes

Special Tools

Illustration Tool Name Tool Number
GF0024108
 Universal Adapter Brackets 014-0001
GF0028932
 Lifting Bracket, Engine 303-050 (T70P-6000)
GF0009357
 Support Bar, Engine 303-290A
GF0009355
 Adapters for 303-290 303-290-01
GF0009356
 Adapter for 303-290A (Support Leg) 303-290A-03A
GF0016984
 Adapter for 303-290A (Lifting Hook) 303-290A-12
GF0029121
 Oil Pan Holding Fixture 303-1295
Material

Item Specification
Threadlock and Sealer
TA-25		 WSK-M2G351-A5

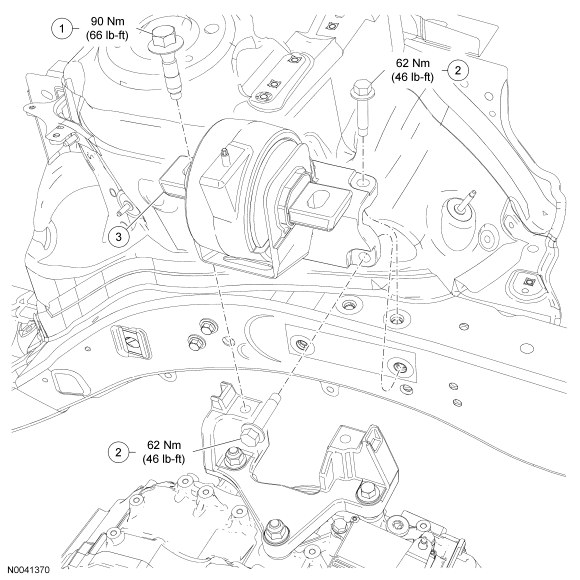

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications - 3.0L Engine
GF0029637Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711724 Transaxle support insulator-to-bracket bolt (2 required)
2 W709234 Transaxle insulator-to-frame bolts (4 required)
3 6F020 Transaxle insulator

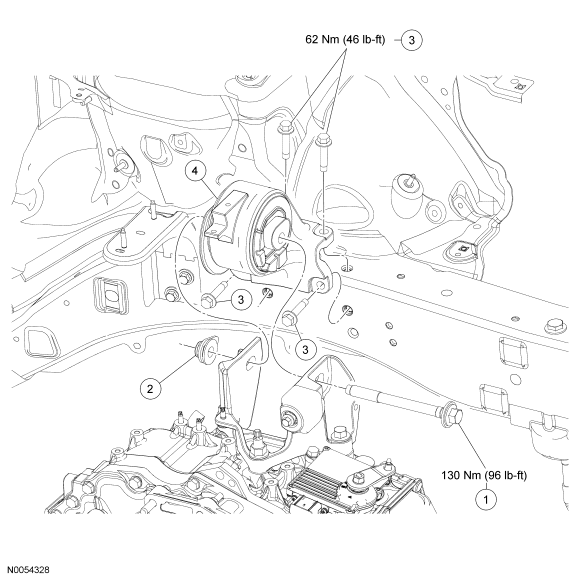

Fig 2: Exploded View Of Transaxle Support Insulator With Torque Specifications - 3.5L Engine
GF0029638Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711873 Transaxle insulator through bolt
2 W711872 Transaxle insulator through bolt, nut and retainer
3 W709234 Transaxle insulator-to-frame bolts
4 6F020 Transaxle insulator
