Master window adjust switch - Expedition: Schematic

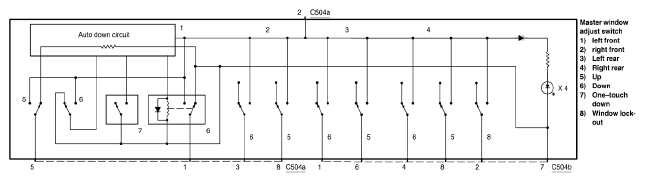

Fig 1: Master Window Adjust Switch - Expedition - Schematic
G05179011Courtesy of FORD MOTOR CO.
