Audio Control Module (ACM) - Fusion, Milan: Notes

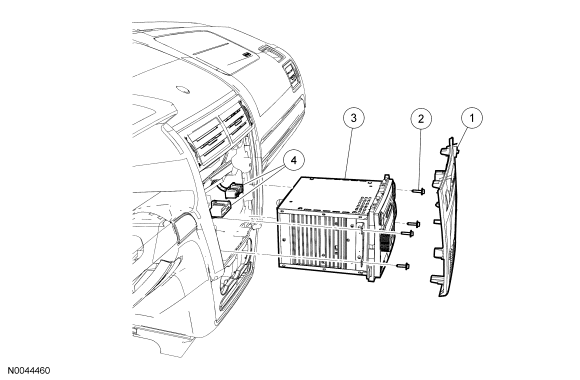

Fig 1: Exploded View Of Audio Unit - Fusion, Milan

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Instrument panel center finish panel
2	W707628	Audio Control Module (ACM) screws (4 required)
3	18806	ACM
4	-	ACM electrical connectors (part of 14401)
