Audio Input Jack: Notes

NOTE: Stowage bin door shown removed for clarity.

NOTE: Vehicle with the SYNC system shown, others similar.

NOTE: Fusion, Milan shown, MKZ similar.

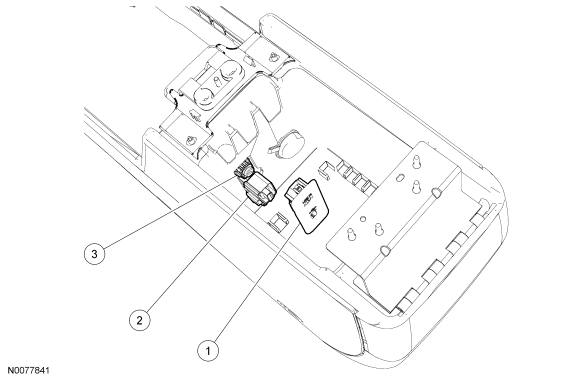

Fig 1: Exploded View Of Audio Input Jack

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Audio input jack bezel
2	-	Universal Serial Bus (USB) cable and port (if equipped) (part of 14D202)
3	19A164	Audio input jack
