Intake Manifold Runner Control Monitor Connector

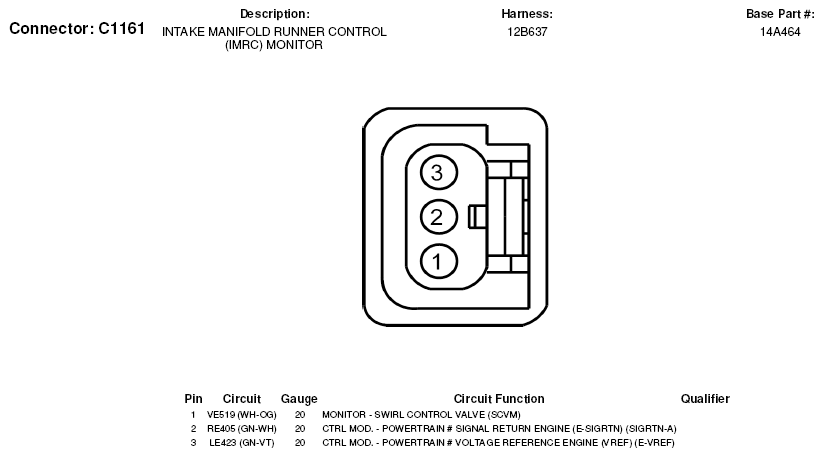

Fig 1: Intake Manifold Runner Control Monitor Connector End View (C1161)
