Master Window Control Switch Connector

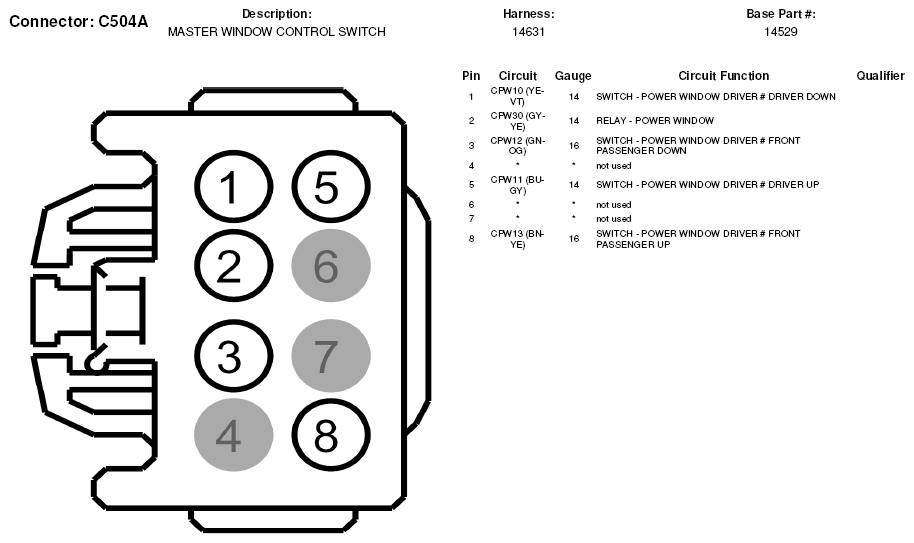

Fig 1: Master Window Control Switch Connector End View (C504A)
G05602523

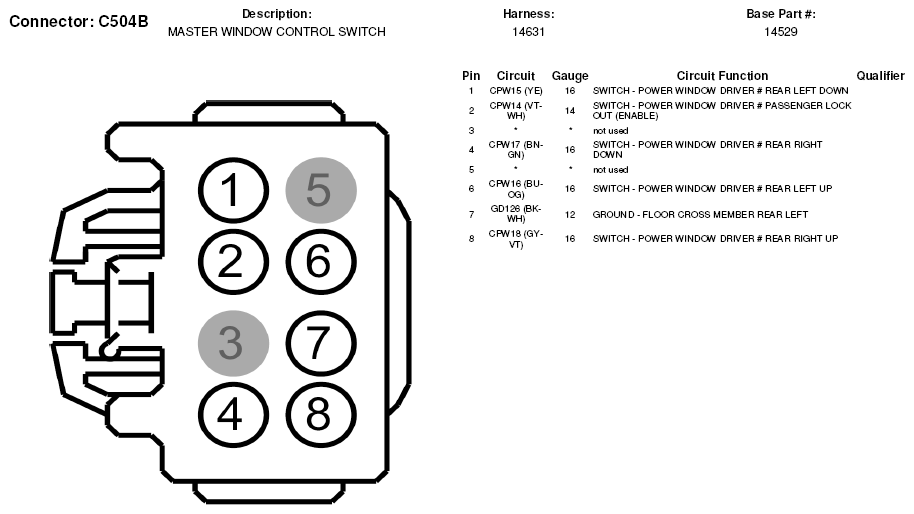

Fig 2: Master Window Control Switch Connector End View (C504B)
G05602524

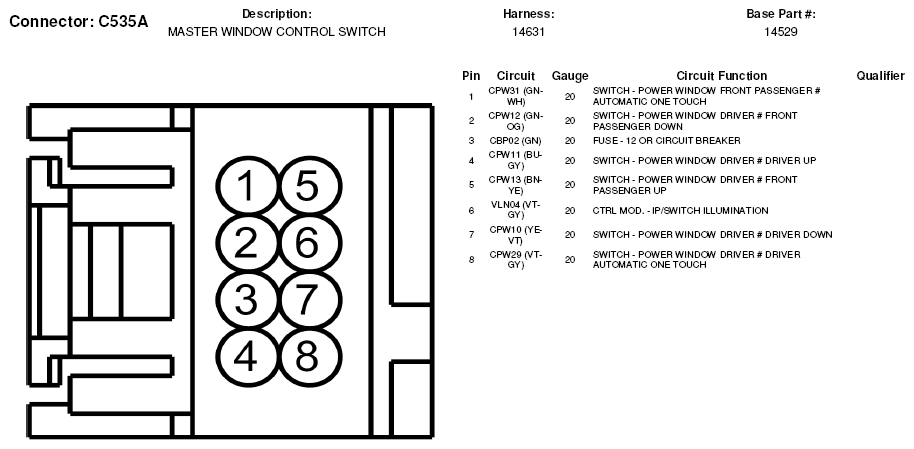

Fig 3: Master Window Control Switch Connector End View (C535A)
G05602536

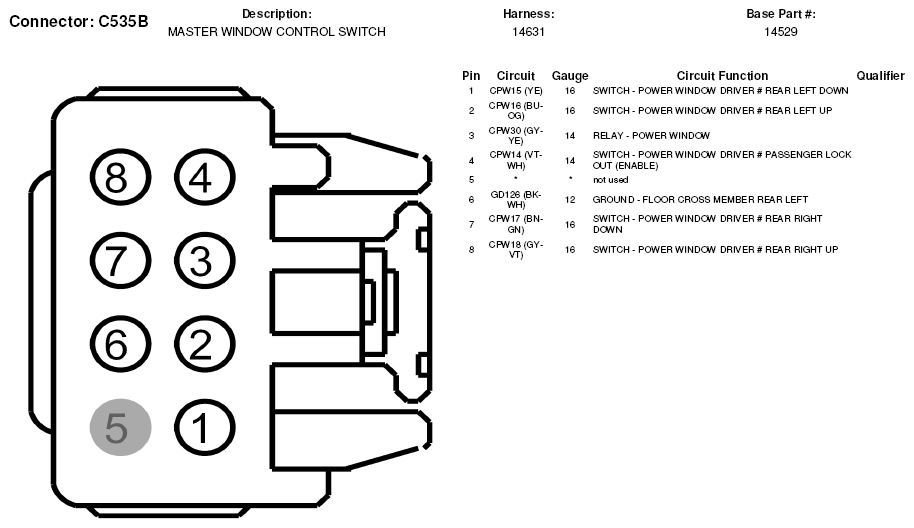

Fig 4: Master Window Control Switch Connector End View (C535B)
G05602537

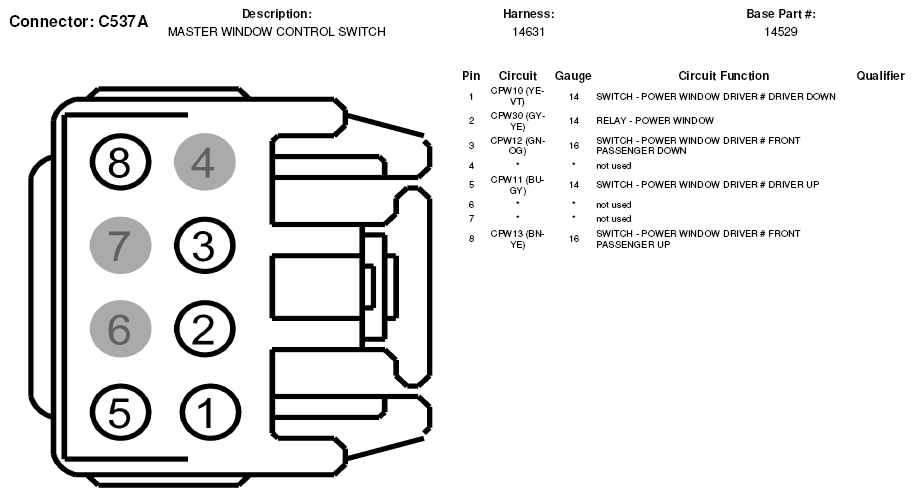

Fig 5: Master Window Control Switch Connector End View (C537A)
G05602538

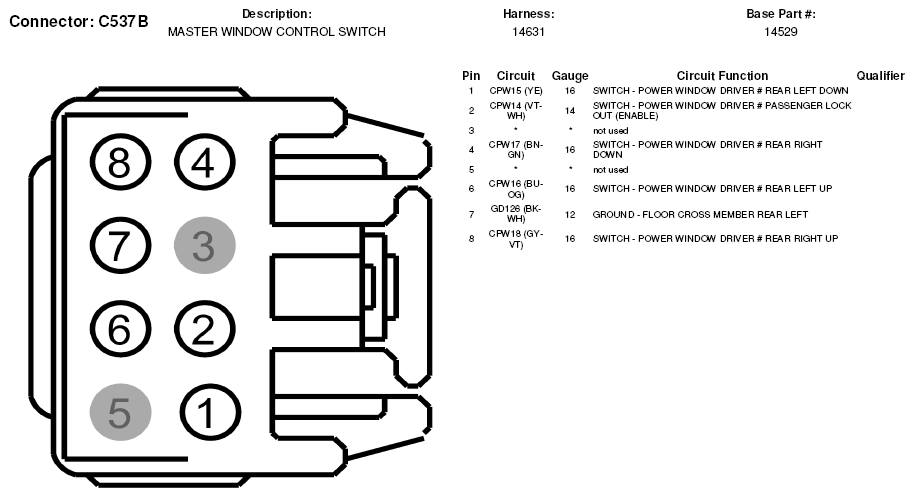

Fig 6: Master Window Control Switch Connector End View (C537B)
G05602539
