Right Rear Window Control Switch Connector

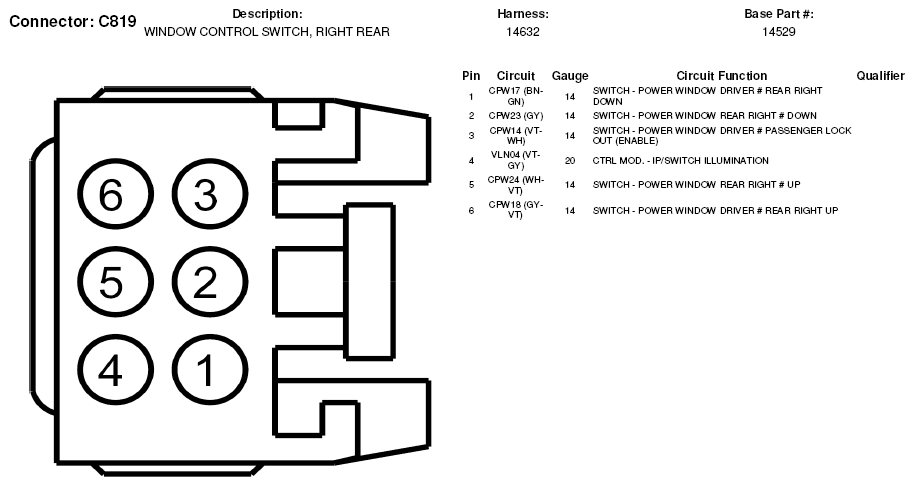

Fig 1: Right Rear Window Control Switch Connector End View (C819)
