Powertrain Control Module (PCM): Notes

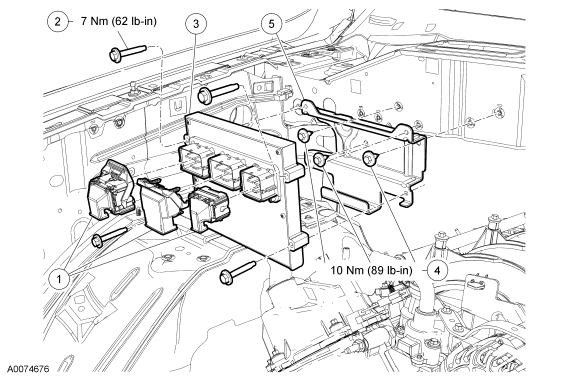

Fig 1: Exploded View Of Powertrain Control Module (PCM) Components With Torque Specifications
GF0002948Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCM electrical connectors (3 required)
2 W505428 PCM bolt (4 required)
3 AAA1001 PCM
4 N802229 PCM bracket bolts
5 12A659 PCM bracket
