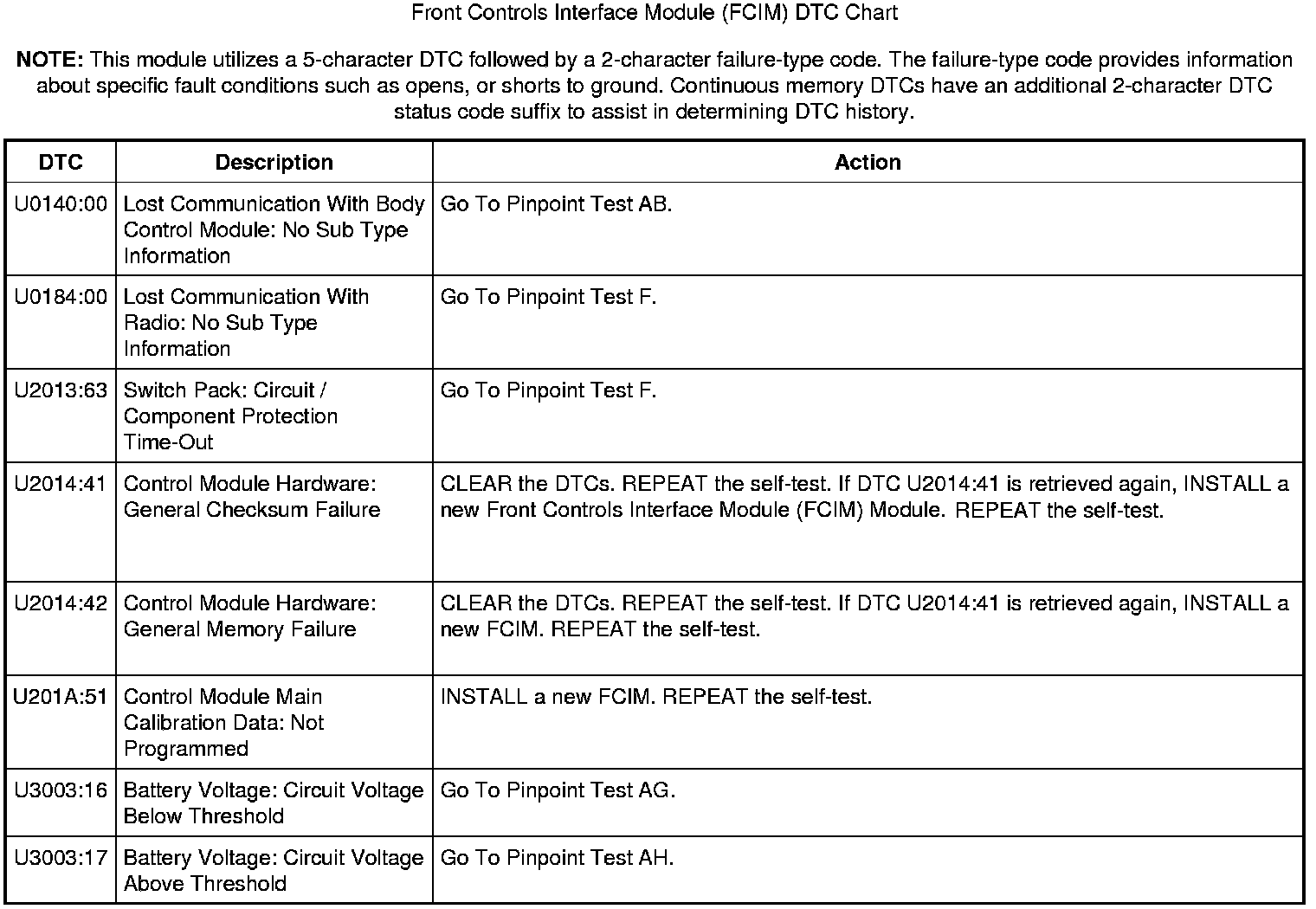

Front Controls Interface Module (FCIM) DTC Chart
Information and Entertainment System
DTC Charts
U0140:00-U3003:17:
