Exhaust System
Exhaust System - Exploded View

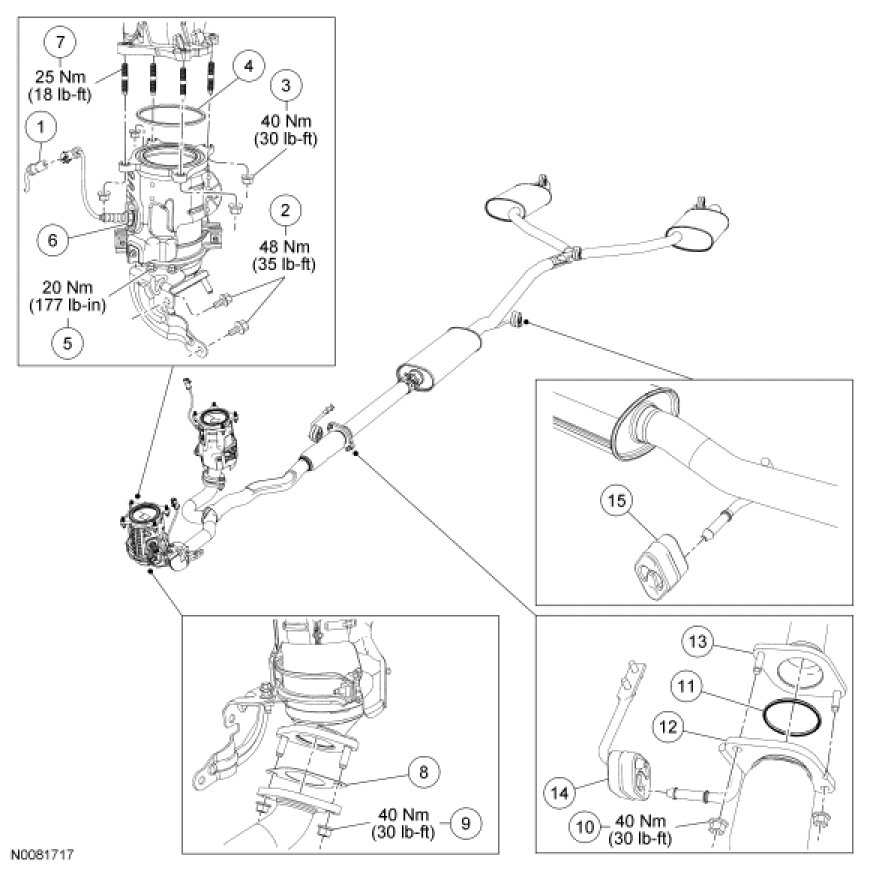

LH Catalytic Converter and Exhaust Pipes

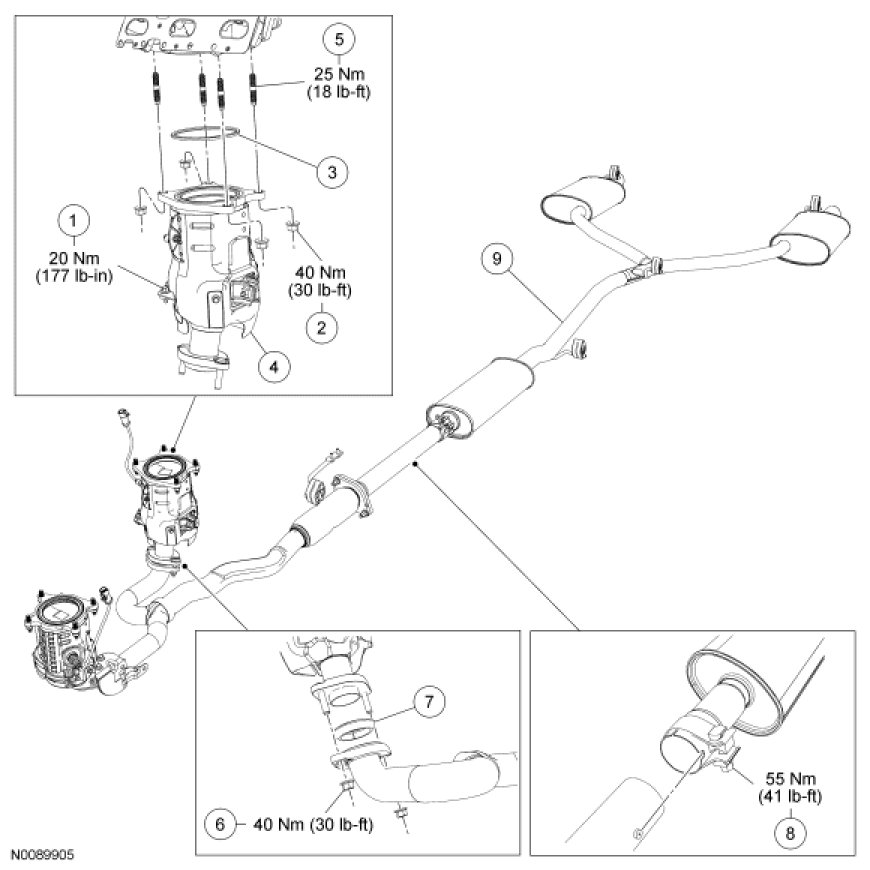

RH Catalytic Converter and Exhaust Pipes
1. For additional information, refer to the procedures.
Exhaust System - Exploded View
LH Catalytic Converter and Exhaust Pipes
RH Catalytic Converter and Exhaust Pipes
1. For additional information, refer to the procedures.
