Control Module: Service and Repair

4X4 Control Module

Removal and Installation

1. Remove the RH cowl side trim panel.

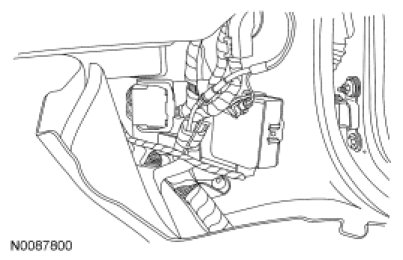

2. Disconnect the Four-Wheel Drive (4WD) control module electrical connector.

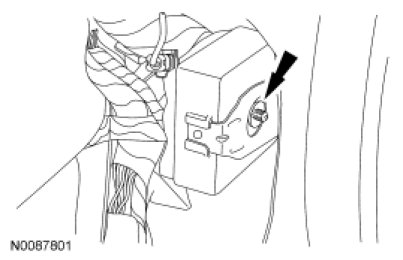

3. Disengage the control module and bracket assembly retaining pins from the mounting holes.
- Discard the retaining pins.





4. Remove the 4WD control module and bracket assembly from the vehicle.

5. To install, reverse the removal procedure.
- Install new retaining pins.
