Power Trunk / Liftgate Control Module: Service and Repair

Luggage Compartment Intelligent Access (IA) Antenna

NOTE: Picture shows the backside of the rear bumper cover.










Removal and Installation

NOTE: The luggage compartment Intelligent Access (IA) antenna is located on the inside of the rear bumper cover.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the luggage compartment IA antenna electrical connector.

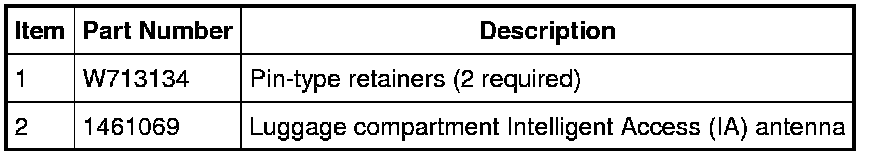

3. Remove the 2 pin-type retainers and the luggage compartment IA antenna.

4. To install, reverse the removal procedure.
