Stability Control Sensor Cluster: Notes

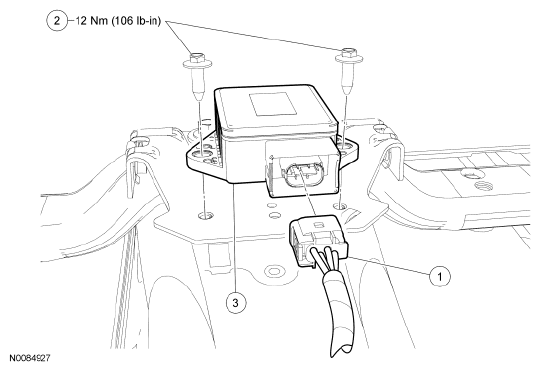

Fig 1: Identifying Stability Control Sensor Cluster Components
G06072925Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Stability control sensor cluster electrical connector (part of 14A318)
2 W707722 Stability control sensor cluster bracket bolts (2 required)
3 3C187 Stability control sensor cluster
