Fuel Pump Driver Module Connector - C3239

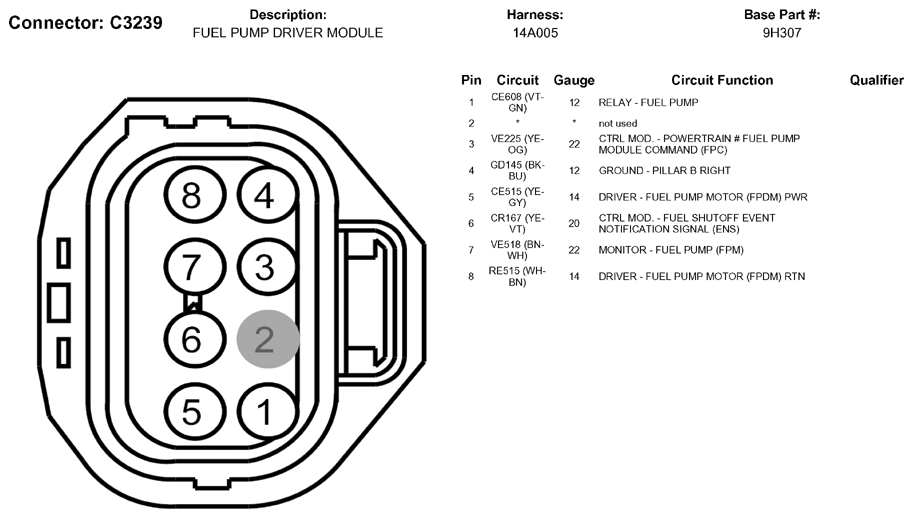

Fig 1: Fuel Pump Driver Module Connector End View (C3239)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
