Highbeam Control Module Connector - C9115

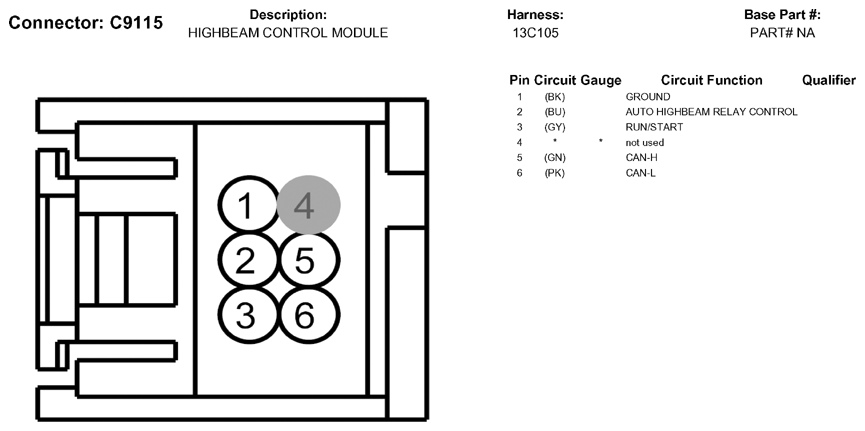

Fig 1: Highbeam Control Module Connector End View (C9115)
Courtesy of FORD MOTOR CO.
