Selector Lever: Notes

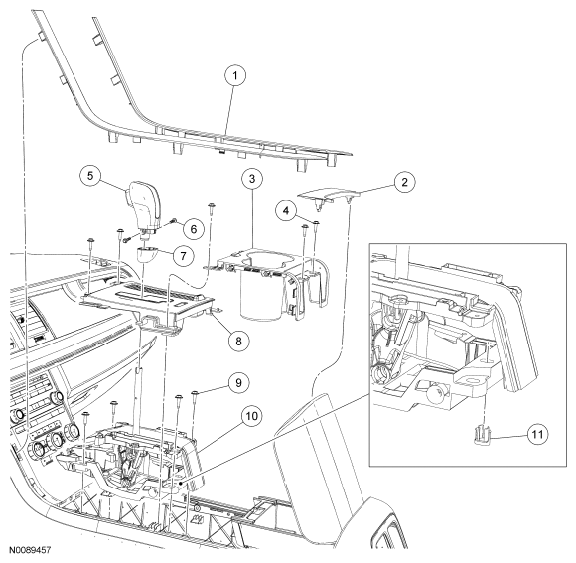

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 54061A16 | Center console trim |
| 2 | 54045A76 | Cup holder lid trim panel |
| 3 | 5406010 | Cup holder |
| 4 | W707628-S424 | Cup holder retaining bolt (4 required) |
| 5 | 7L010 | Selector lever knob |
| 6 | W790088-S901 | Selector lever knob screw (2 required) |
| 7 | 7E026 | Selector lever knob bezel |
| 8 | 54045A76 | Selector lever bezel |
| 9 | W503926-S424 | Selector lever bolt (4 required) |
| 10 | 7210 | Selector lever |
| 11 | 7F069 | Selector lever service insert |
