DATC HVAC Module Connector End View (C228A)

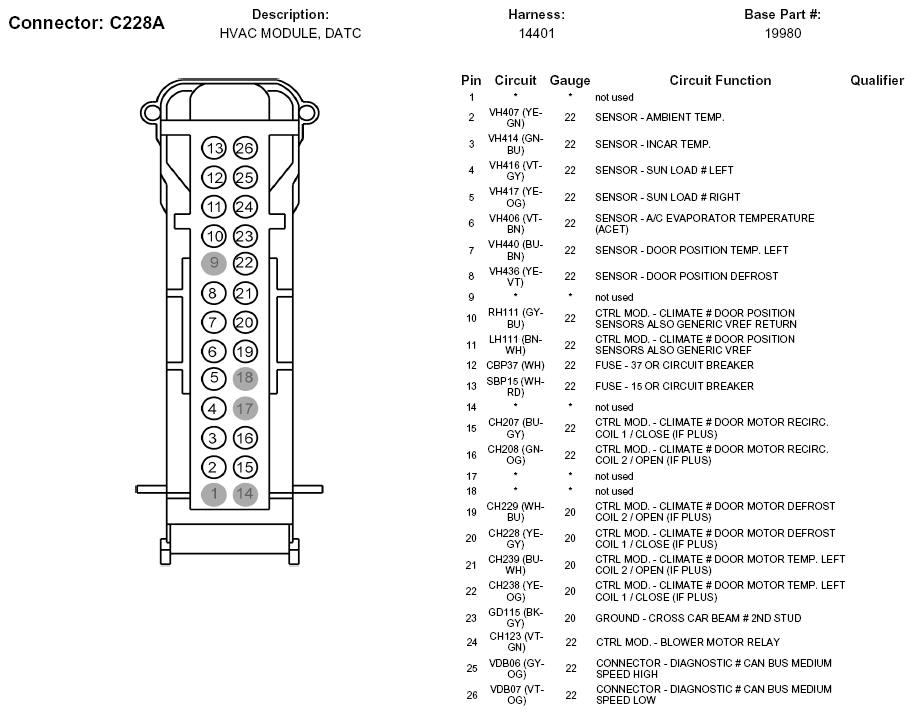

Fig 1: DATC HVAC Module Connector End View (C228A)
Courtesy of FORD MOTOR CO.
