DATC HVAC Module Connector
>>
DATC HVAC Module Connector End View (C228B)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DATC HVAC Module Connector End View (C228B)

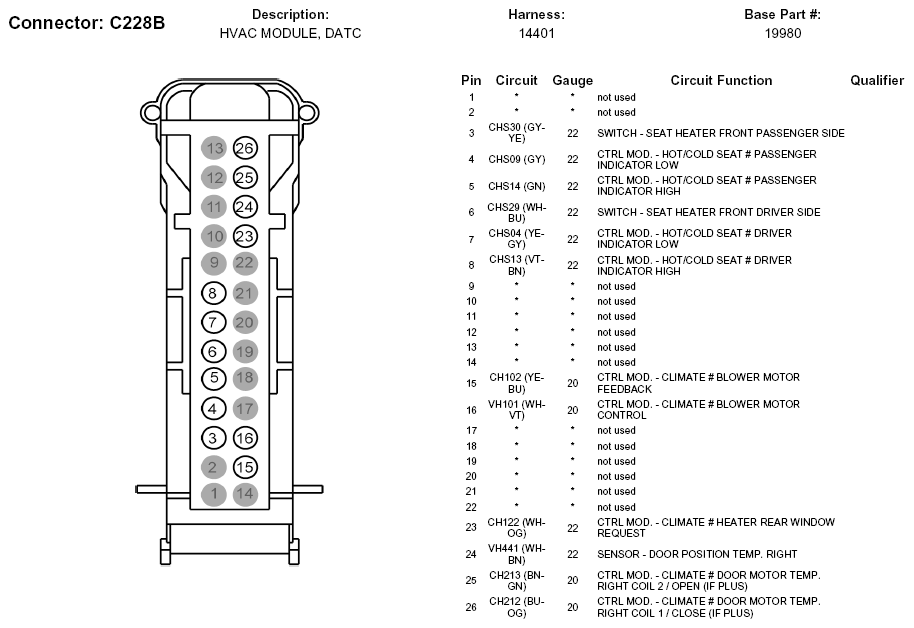

Fig 1: DATC HVAC Module Connector End View (C228B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
