Dual Climate Controlled Seat Module Connector End View (C3036C)

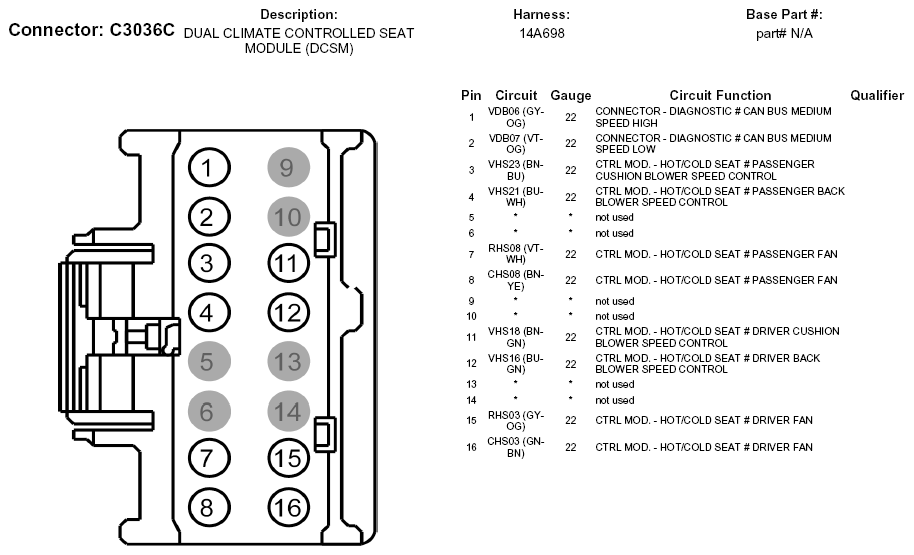

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3036C)
G05747132Courtesy of FORD MOTOR CO.
