Accessory Protocol Interface Module (APIM): Notes

NOTE: Fusion, Milan shown, MKZ similar.

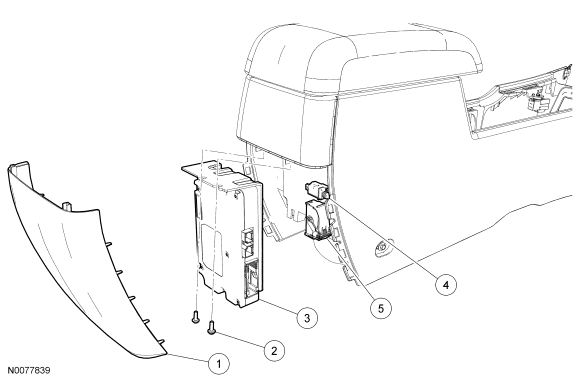

Fig 1: Exploded View Of Accessory Protocol Interface Module (APIM)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Floor console rear trim panel (part of 045A36)
2	W505060-S	Accessory Protocol Interface Module (APIM) screws (2 required [Fusion, Milan], 4 required [MKZ])
3	14D212	APIM
4	14D202	Universal Serial Bus (USB) cable
5	-	APIM electrical connector (part of 14B079)
