Driver Seat Module Connector End View - C3299C

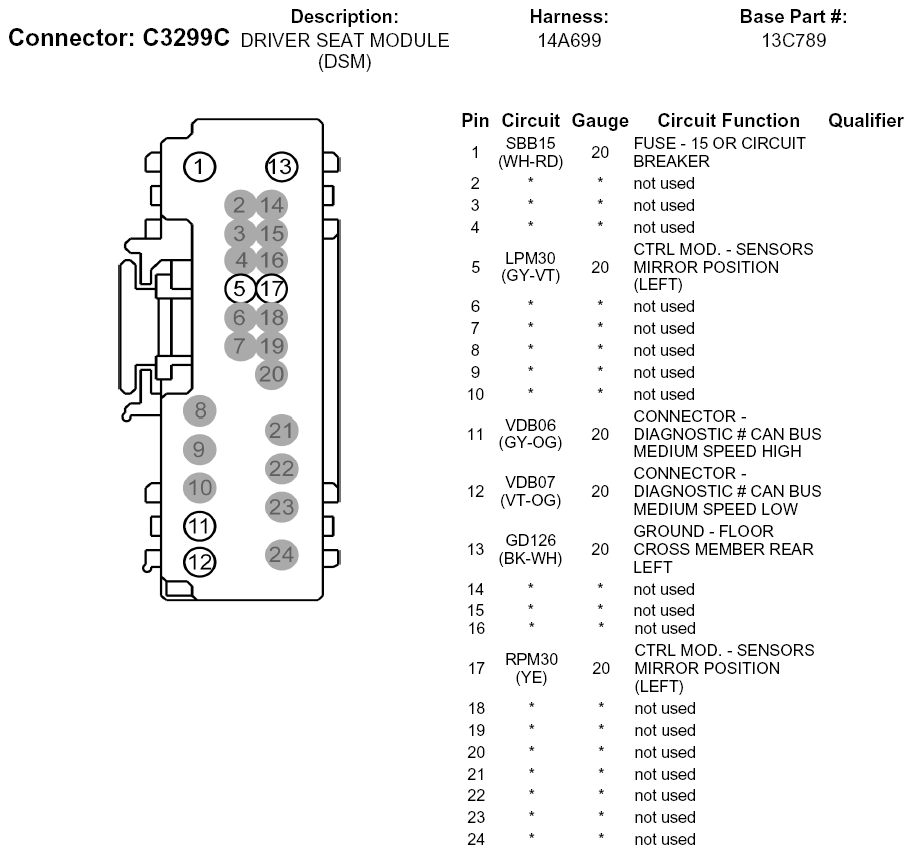

Fig 1: Driver Seat Module Connector End View (C3299C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
