Master Window Control Switch Connector End View - C537A

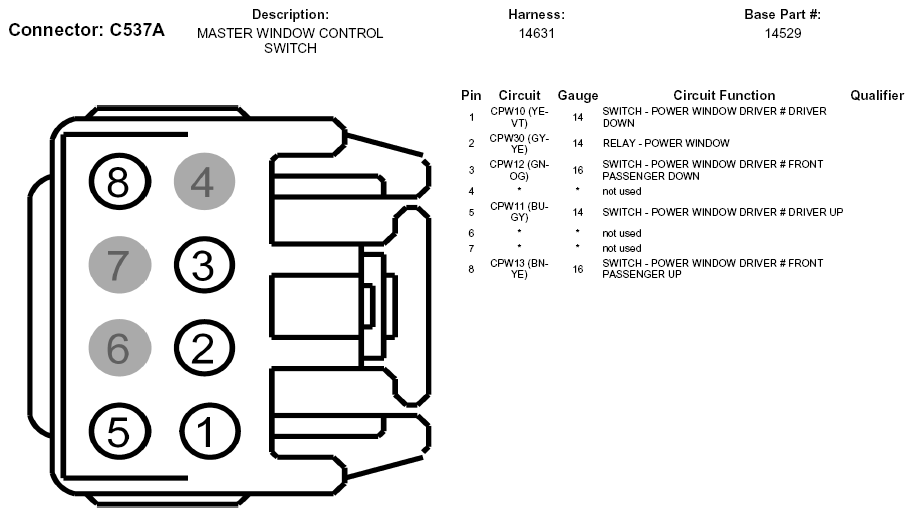

Fig 1: Master Window Control Switch Connector End View (C537A)
G05769935Courtesy of FORD MOTOR CO.
