Upper Intake Manifold: Notes

WARNING: This page is about a different car, the 2008 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exploded View Of Upper Intake Manifold With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503274	Upper intake manifold long support bracket bolt (early build engines)
2	14A464	Heated PCV electrical connector (part of 12C508) (early build engines)
3	6K817	PCV hose
4	13A506	Block heater wiring harness retainer (part of 6B018)
5	14A464	Throttle body (TB) electrical connector (part of 12C508)
6	CS16140	Brake booster-to-intake manifold vacuum hose clamp
7	6K817	Brake booster-to-intake manifold vacuum hose
8	9D661	Evaporative emissions (EVAP)-to-intake manifold tube
9	W503274	Upper intake manifold short support bracket bolt
10	-	Engine control wiring harness retainer (part of 12C508)

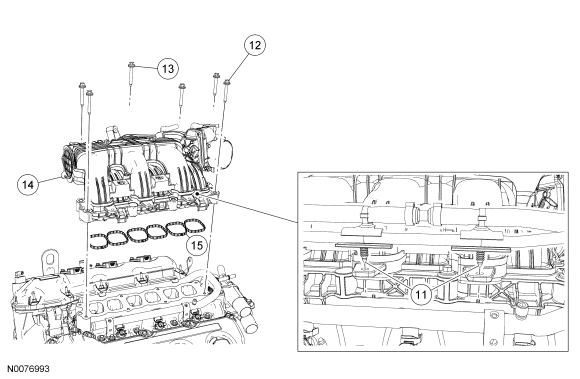

Fig 2: Exploded View Of Upper Intake Manifold With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	13A506	Wire harness pin-type retainers (part of 14B060)
12	W503282	Upper intake manifold bolt (5 required)
13	W707083	Upper intake manifold bolt
14	9S455	Upper intake manifold
15	9H486	Upper intake manifold gasket (3 required)
