Powertrain Control Module Connector - C1381E

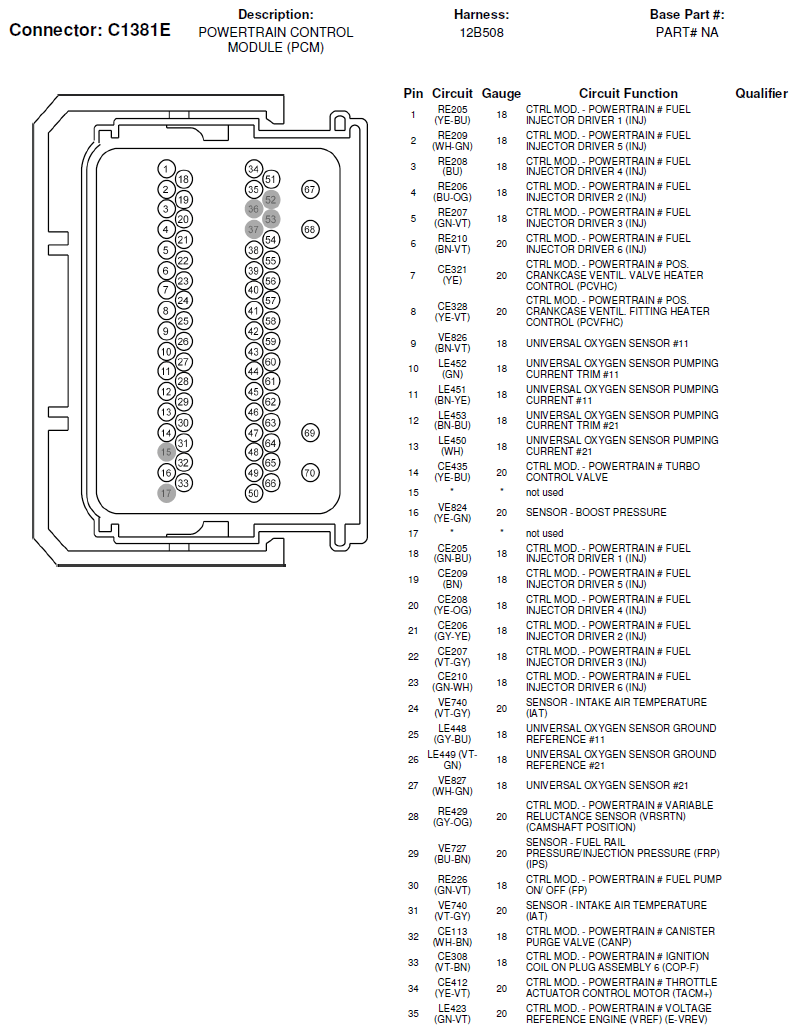

Fig 1: Powertrain Control Module Connector End View (C1381E) (1 Of 2)
Courtesy of FORD MOTOR CO.

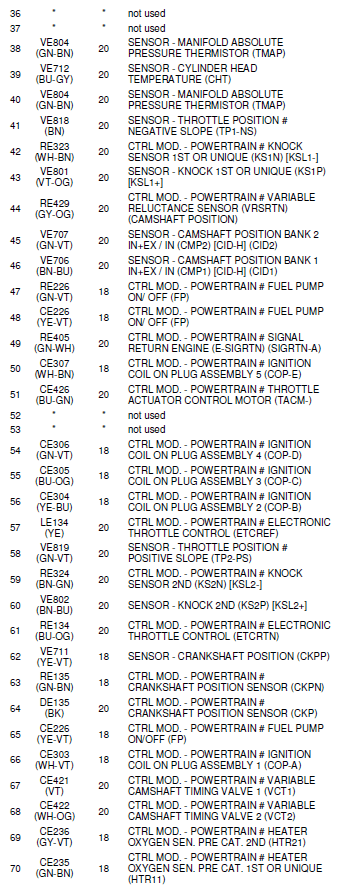

Fig 1: Powertrain Control Module Connector End View (C1381E) (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
