Ambient Lighting Module Connector - C2301

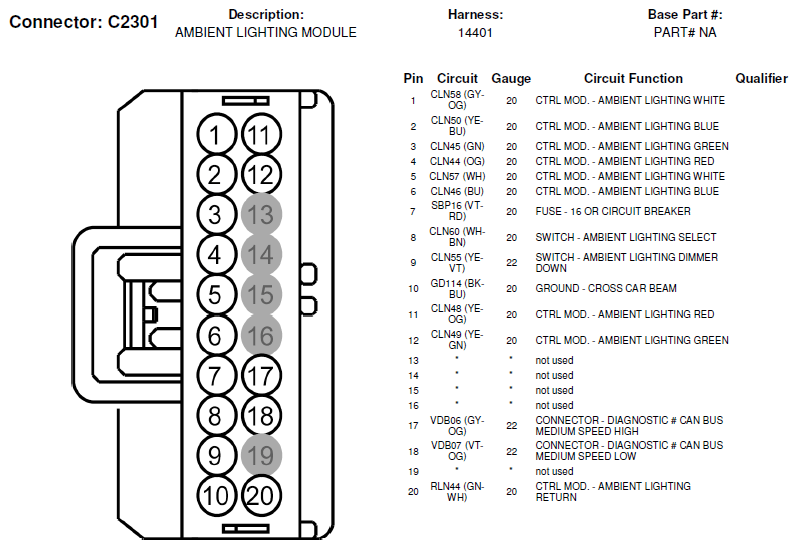

Fig 1: Ambient Lighting Module Connector End View (C2301)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
