Home >> Lincoln >> 2010 >> MKT AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Passenger Climate Controlled Seat Module-2 (PCSM-2)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

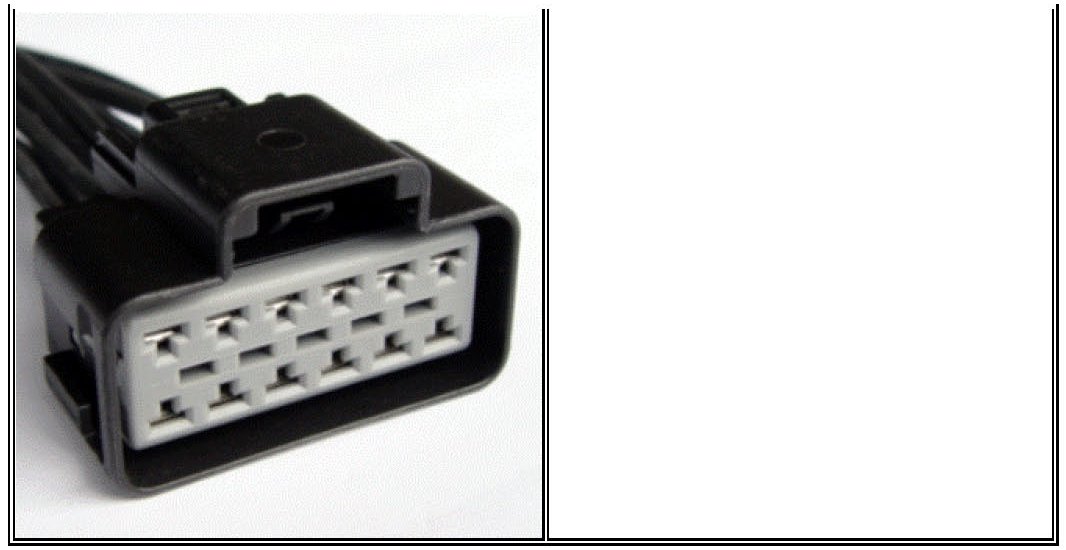

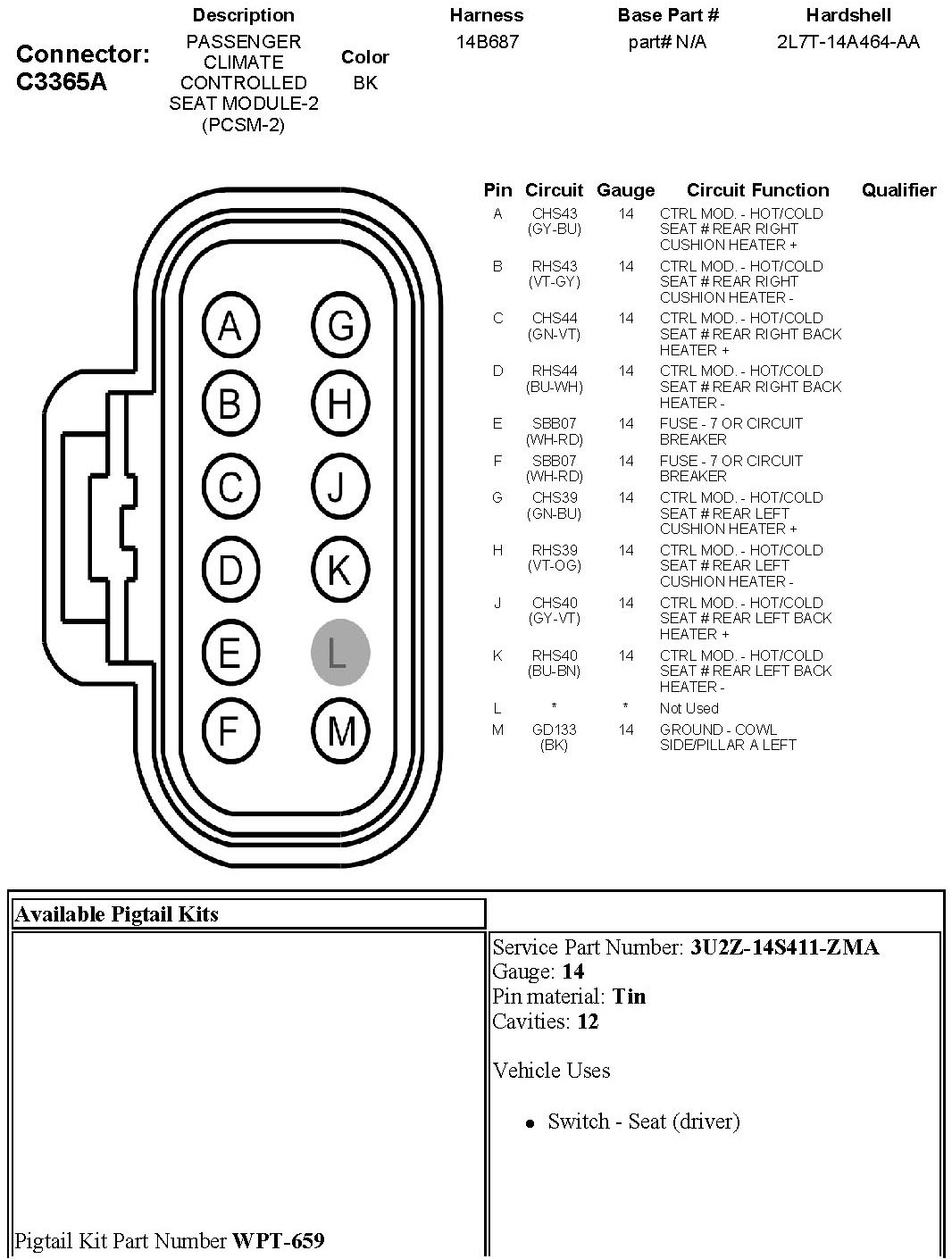

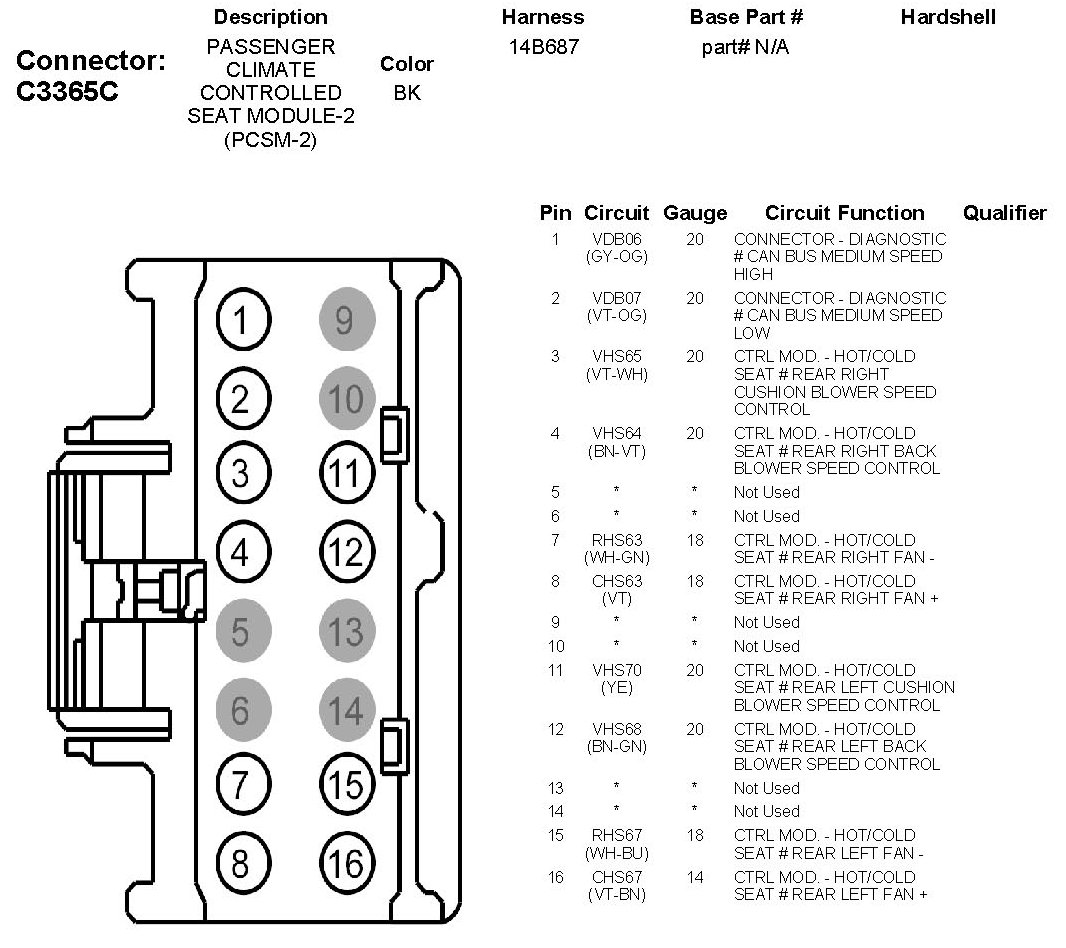

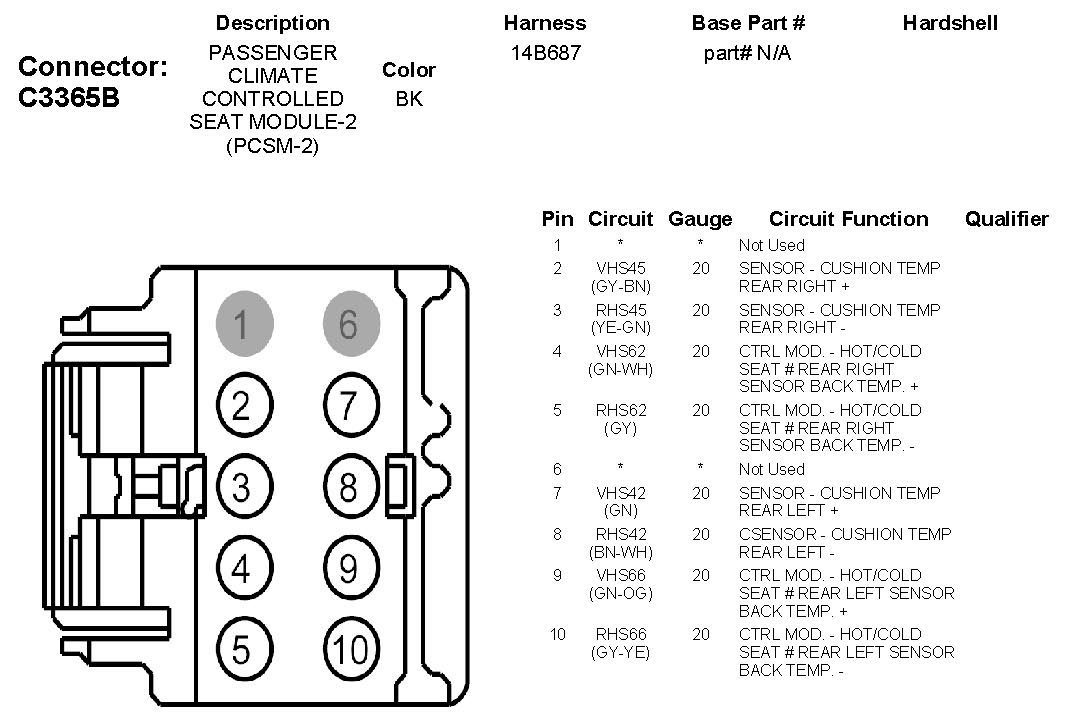

Passenger Climate Controlled Seat Module-2 (PCSM-2)
