Exploded View Images

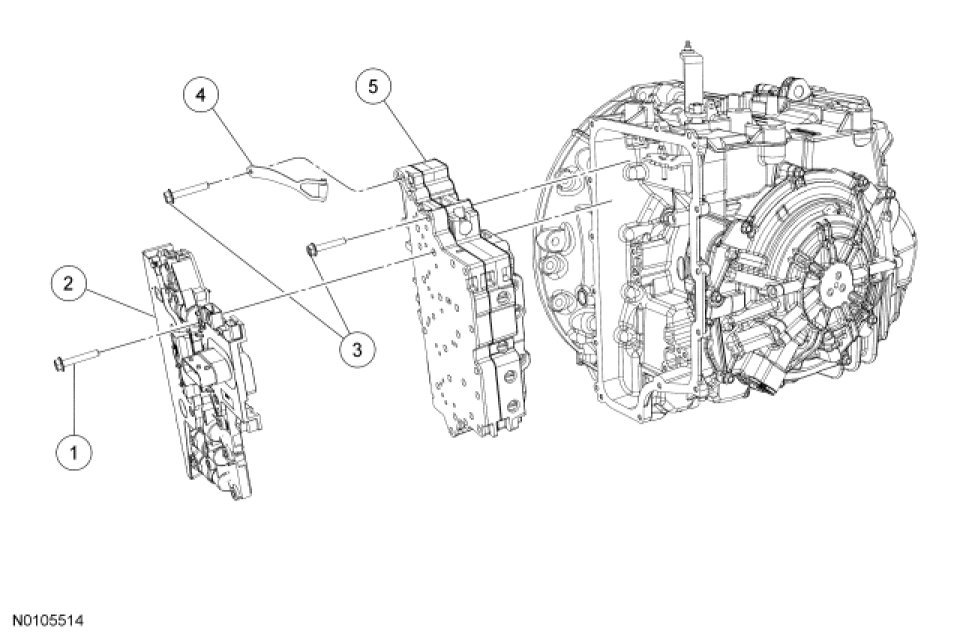

Main Control Valve Body

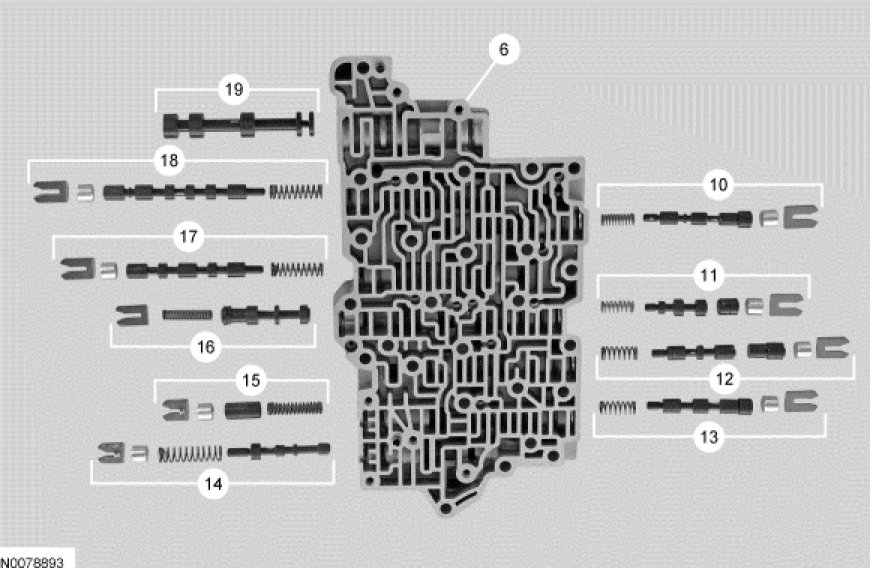

Valve Body
Valve Body:

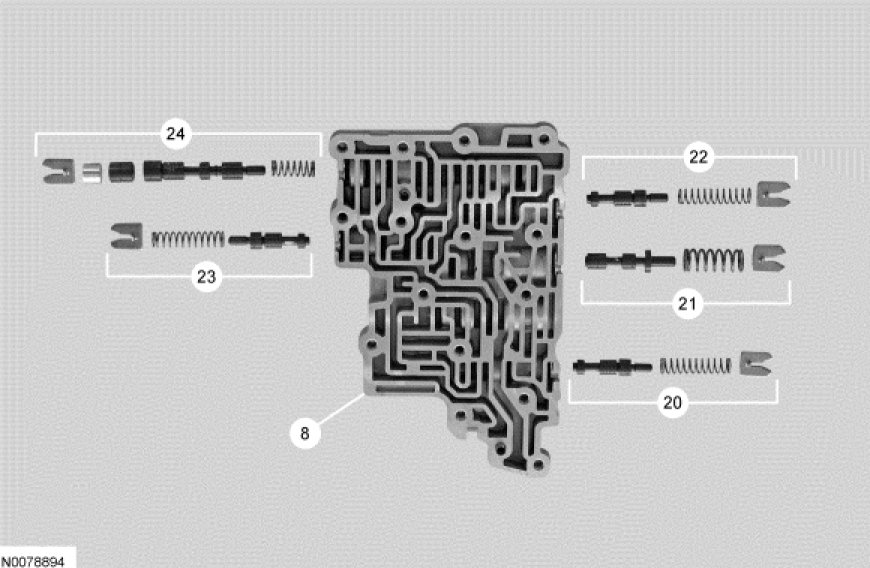

Lower Valve Body
Lower Valve Body:
