Master Window Control Switch Connector - C504

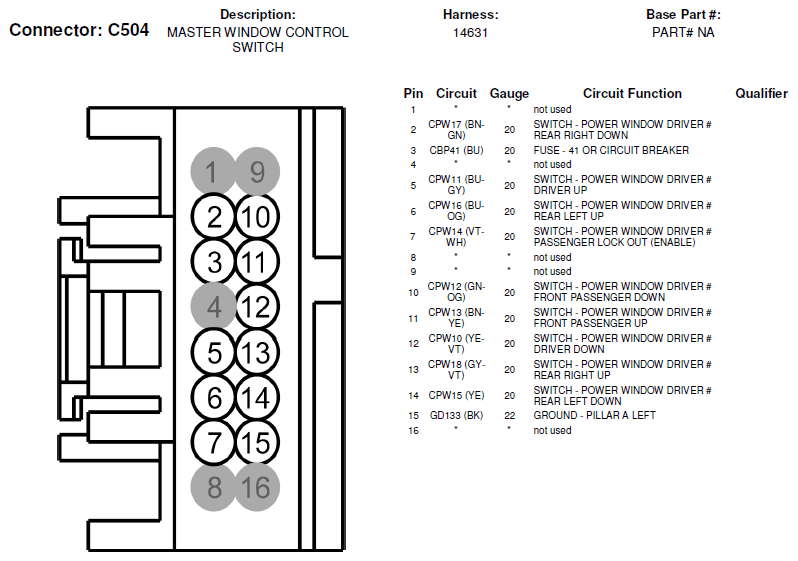

Fig 1: Master Window Control Switch Connector End View (C504)
G06374299Courtesy of FORD MOTOR CO.
