Power-Fold Seat Module Connector End View - C4250C

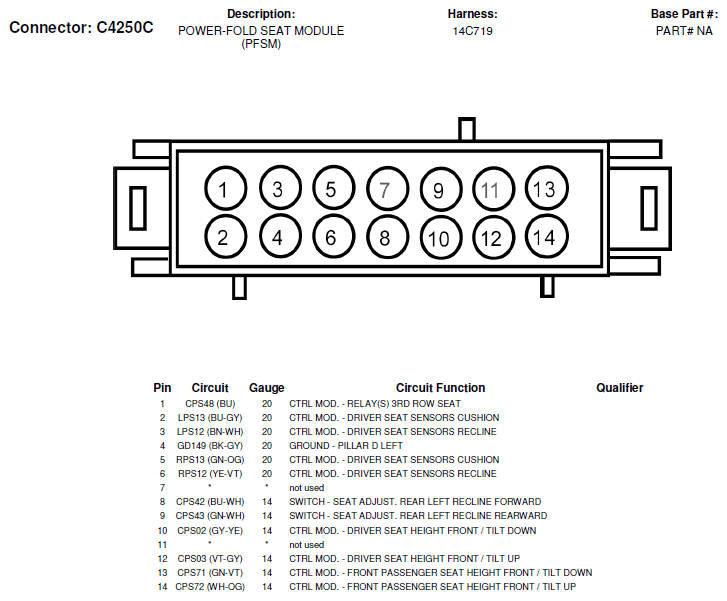

Fig 1: Power-Fold Seat Module Connector End View (C4250C)
G06374580Courtesy of FORD MOTOR CO.
