RHVAC Module Connector - C3198

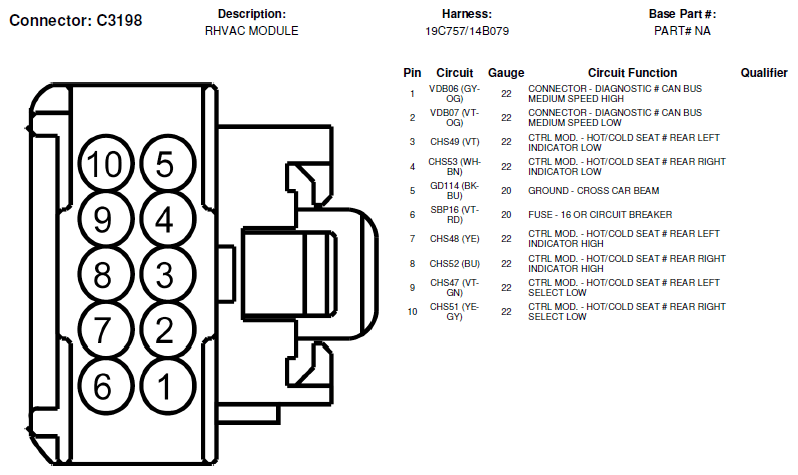

Fig 1: RHVAC Module Connector End View (C3198)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
