Rear Entertainment Module Connector End View - C2949B

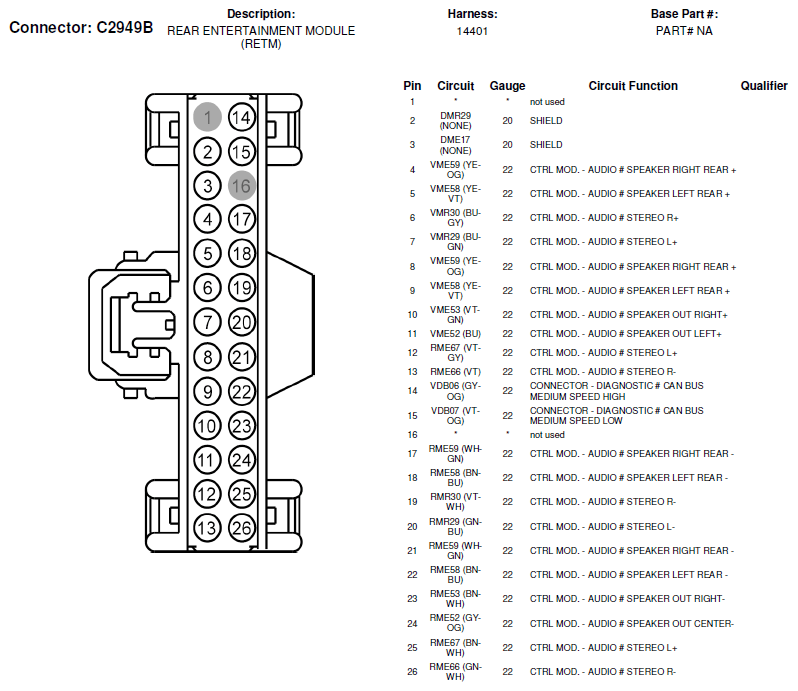

Fig 1: Rear Entertainment Module Connector End View (C2949B)
G06374433Courtesy of FORD MOTOR CO.
