Main Control Valve Body: Notes

Fig 1: Disassembling View Of Main Control Valve Body With Torque Specifications

Courtesy of FORD MOTOR CO.

Valve Body

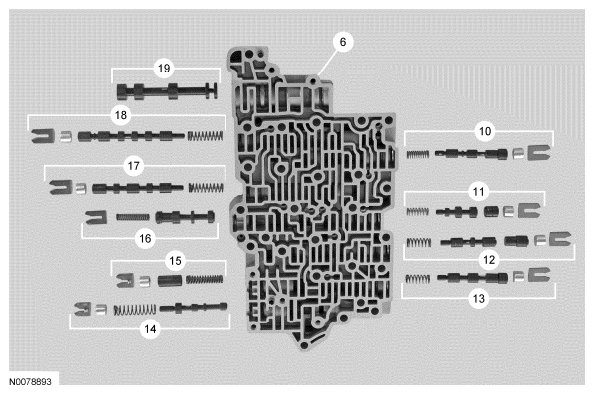

Fig 2: Disassembling View Of Valve Body

Courtesy of FORD MOTOR CO.

Lower Valve Body

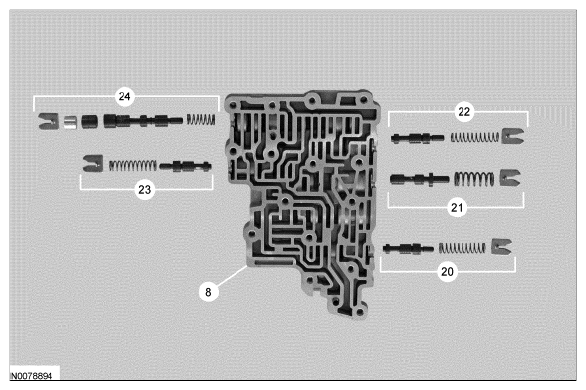

Fig 3: Disassembling View Of Lower Valve Body

Courtesy of FORD MOTOR CO.

DESCRIPTION CHART

Item	Description
1	Bolts - M6 x 63
2	Bolts - M6 x 35
3	Cover - transfer plate
4	Case-to-valve body transfer plate
5	Separator plate - valve body-to-transfer plate
6	Main control valve body
7	Separator plate - main control valve body-to-lower valve body
8	Lower valve body assembly
9	Check balls
10	Low/reverse and overdrive clutch regulator valve assembly
11	Torque Converter Clutch (TCC) regulator apply valve assembly
12	Intermediate clutch regulator valve assembly
13	Direct clutch regulator valve assembly
14	Pressure regulator valve assembly
15	Isolator valve assembly
16	TCC control valve assembly
17	Multiplex manual valve assembly
18	Multiplex shift valve assembly
19	Manual valve
20	Direct clutch boost valve assembly
21	Solenoid regulator valve assembly
22	Low/reverse and overdrive clutch boost valve assembly
23	Forward clutch boost valve assembly
24	Forward clutch regulator valve assembly
