Main Control Cover - 3.7L: Material
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLV | MERCON® LV |

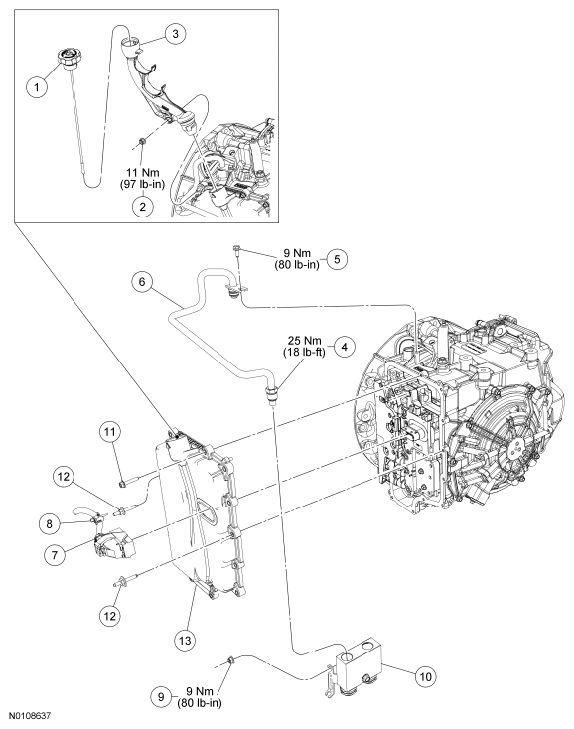

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A020 | Transmission fluid level indicator |
| 2 | W520101 | Transaxle filler tube nut |
| 3 | 7A228 | Transaxle filler tube |
| 4 | - | Nut - transmission fluid cooler tube (part of 7H420) |
| 5 | W711538 | Bolt - transmission fluid cooler tube |
| 6 | 7H420 | Tube - transmission fluid cooler |
| 7 | 7A488 | Connector - transaxle harness |
| 8 | 14A169 | Retainer - transaxle harness |
| 9 | W520101 | Nut - transmission fluid cooler thermal bypass valve |
| 10 | 7H322 | Valve - transmission fluid cooler thermal bypass |
| 11 | 7J289 | Bolt - main control cover (11 required) |
| 12 | W708442 | Studbolts - main control cover (3 required) |
| 13 | 7G004 | Cover - main control |
