Transaxle Support Insulator: Material
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 | WSK-M2G351-A5 |

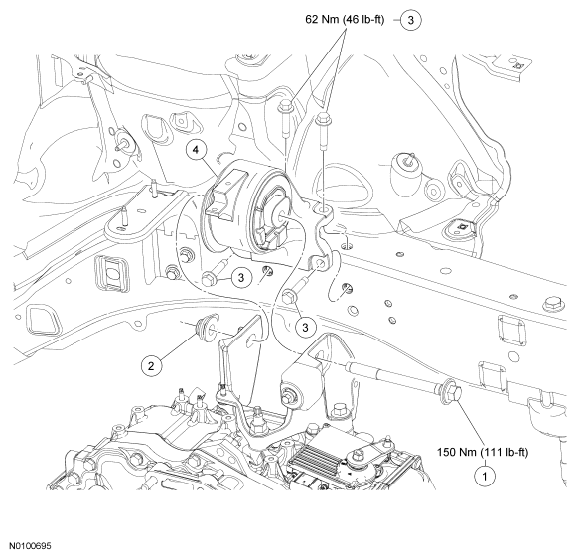

Transaxle Support Insulator
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W711873 | Transaxle insulator through bolt |
| 2 | W711872 | Transaxle insulator through bolt flagnut |
| 3 | W709234 | Transaxle insulator-to-frame bolts |
| 4 | 6F020 | Transaxle insulator |
