Utility Storage Compartment

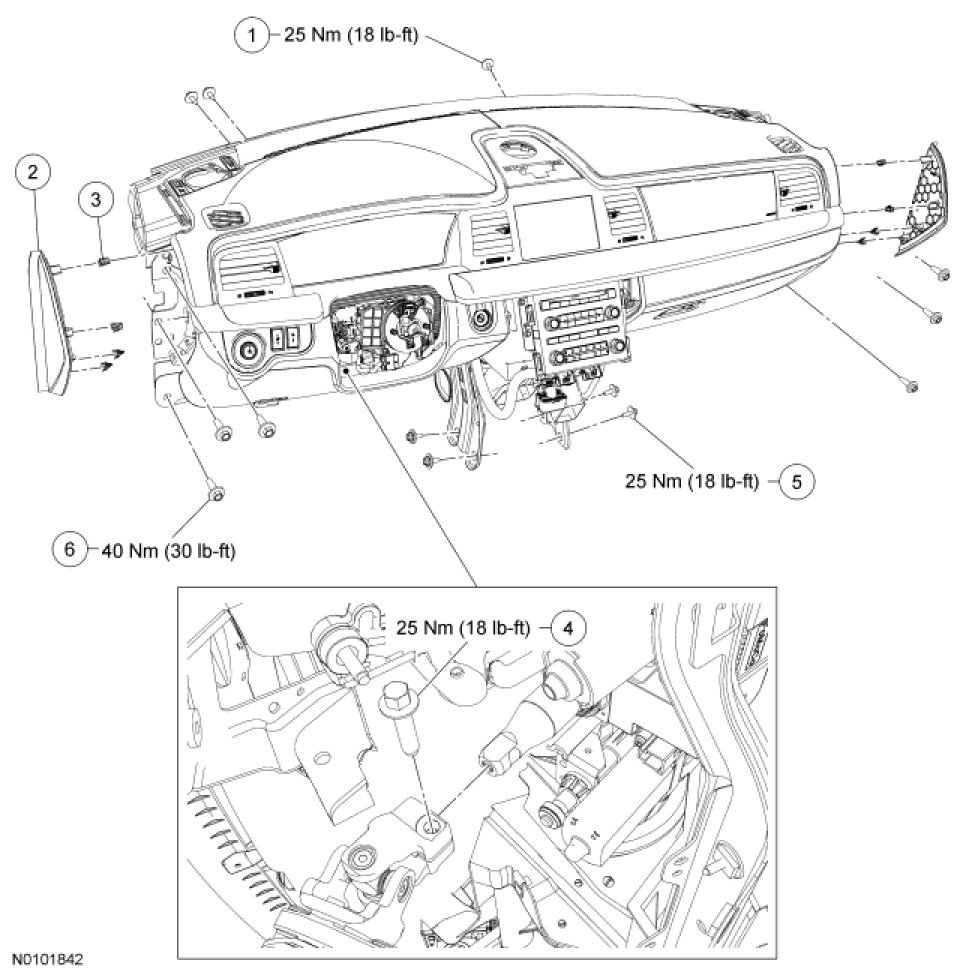

Instrument Panel - Exploded View

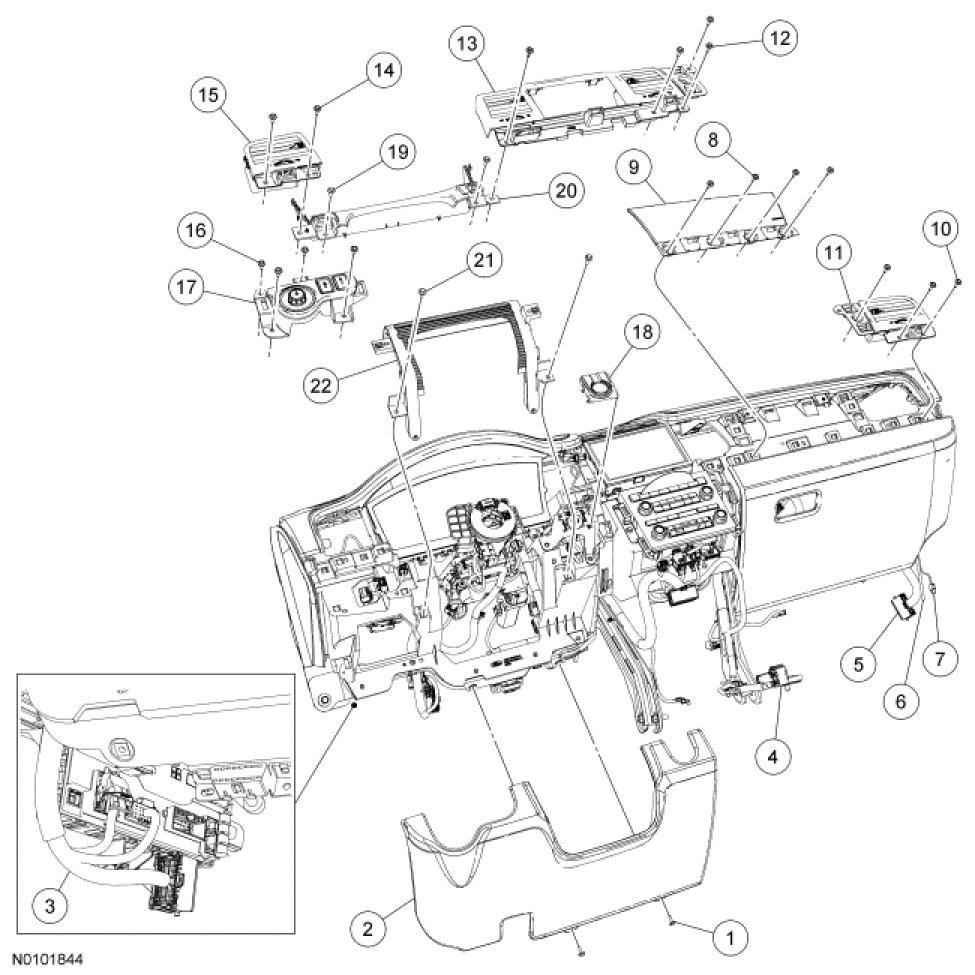

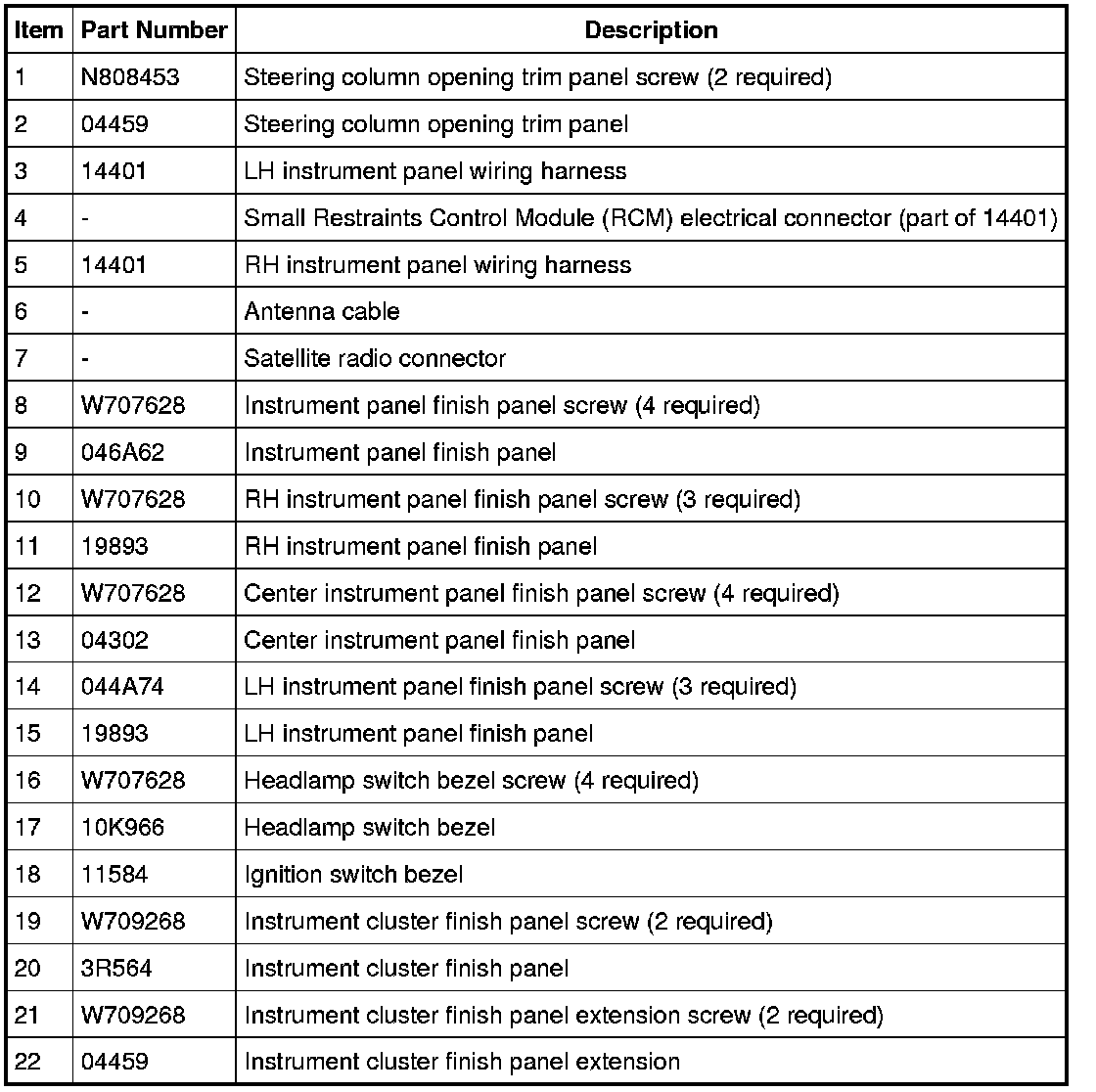

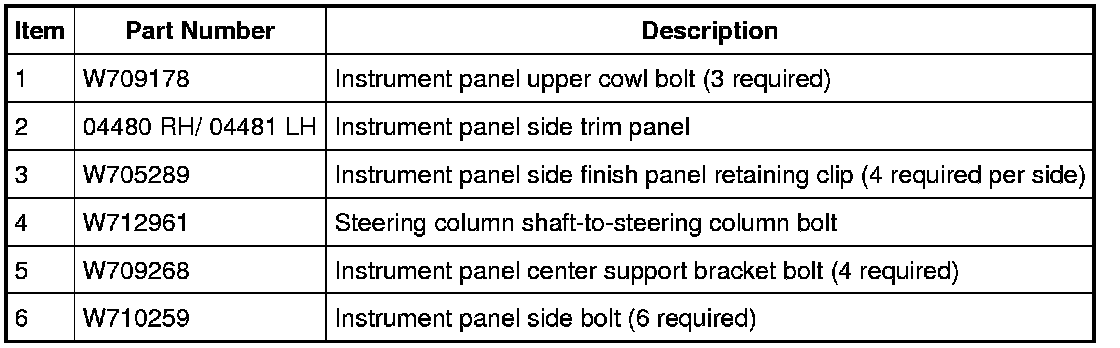

Instrument Panel Trim Panel and Fasteners

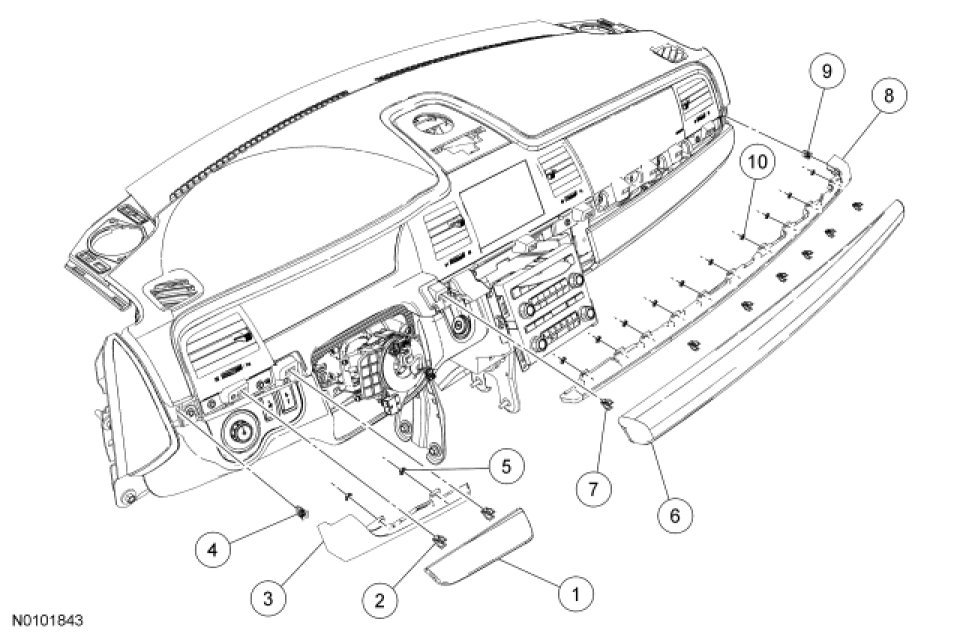

Instrument Panel Finish Mouldings and Appliques









Instrument Panel Finish and Trim Panels

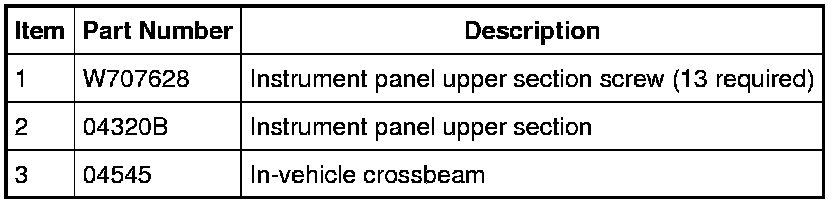

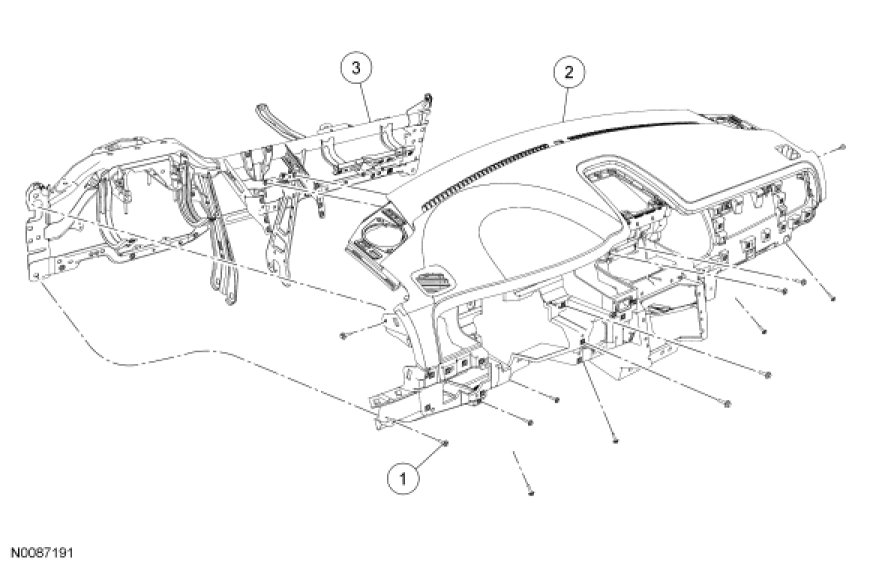

Instrument Panel Upper Section

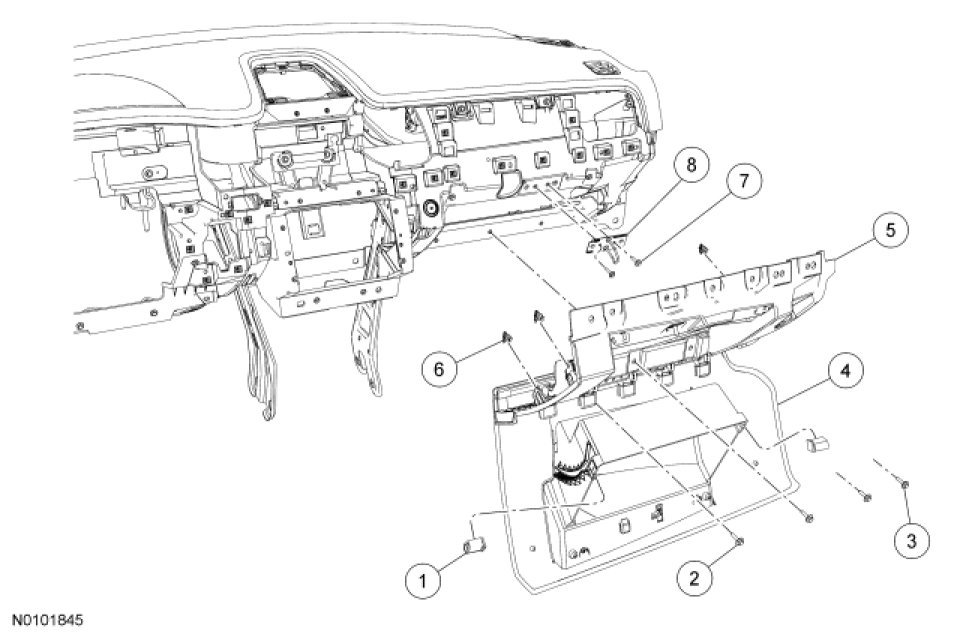

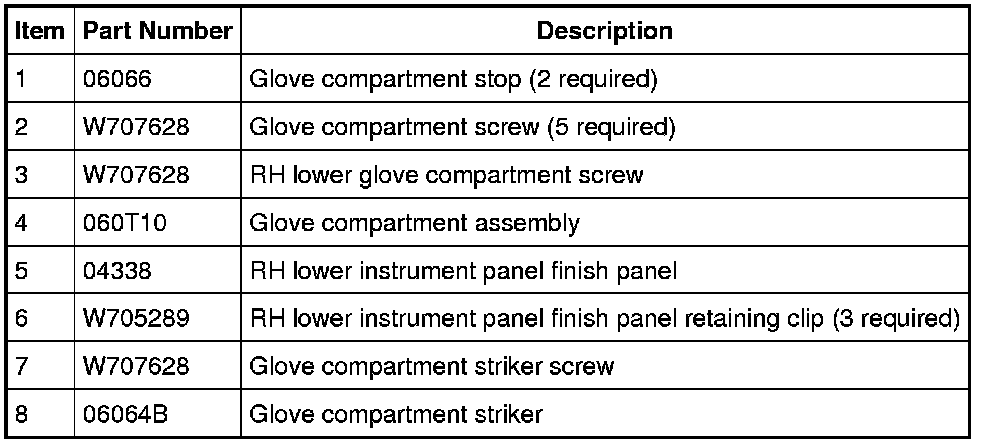

Glove Compartment
